Larson Electronics LM-20-EW User Manual

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

20 Foot Telescoping Light Mast - 12-20' Fold Over Light Tower - Electric Operation - 360° Rotation

Part #: LM-20-EW

Made in the USA

The Larson Electronics LM-20-EW fold over light mast with electric winches provides a safe and effective way for operators to quickly
deploy lights, security cameras and other equipment to elevations up to twenty feet. This light tower folds over for easy
transportation, features a rotating boom that allows for 360° of rotation, electric winches for easy deployment, and a removable mast
head for storing mounted equipment when not in use.

*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS*

This telescoping steel light mast from Larson Electronics’ is designed to allow operators to quickly and safely deploy lighting,

cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 20' for
effective coverage. This light boom can be extended to 20' for maximum area coverage and collapsed to 12' for
applications where a footprint smaller is required. The tower is constructed of square steel tubing with a lower section 12'
in length and 3" by 3" by 1/8" thick and an upper section 10' in length and 2" by 2" by 1/8" thick with 2' of overlap. The mast
is elevated using an included 1,000 lbs electric winch with 3/16" galvanized cable and extended to its full height using a
second 1,000 lbs electric winch.

Page: 1

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

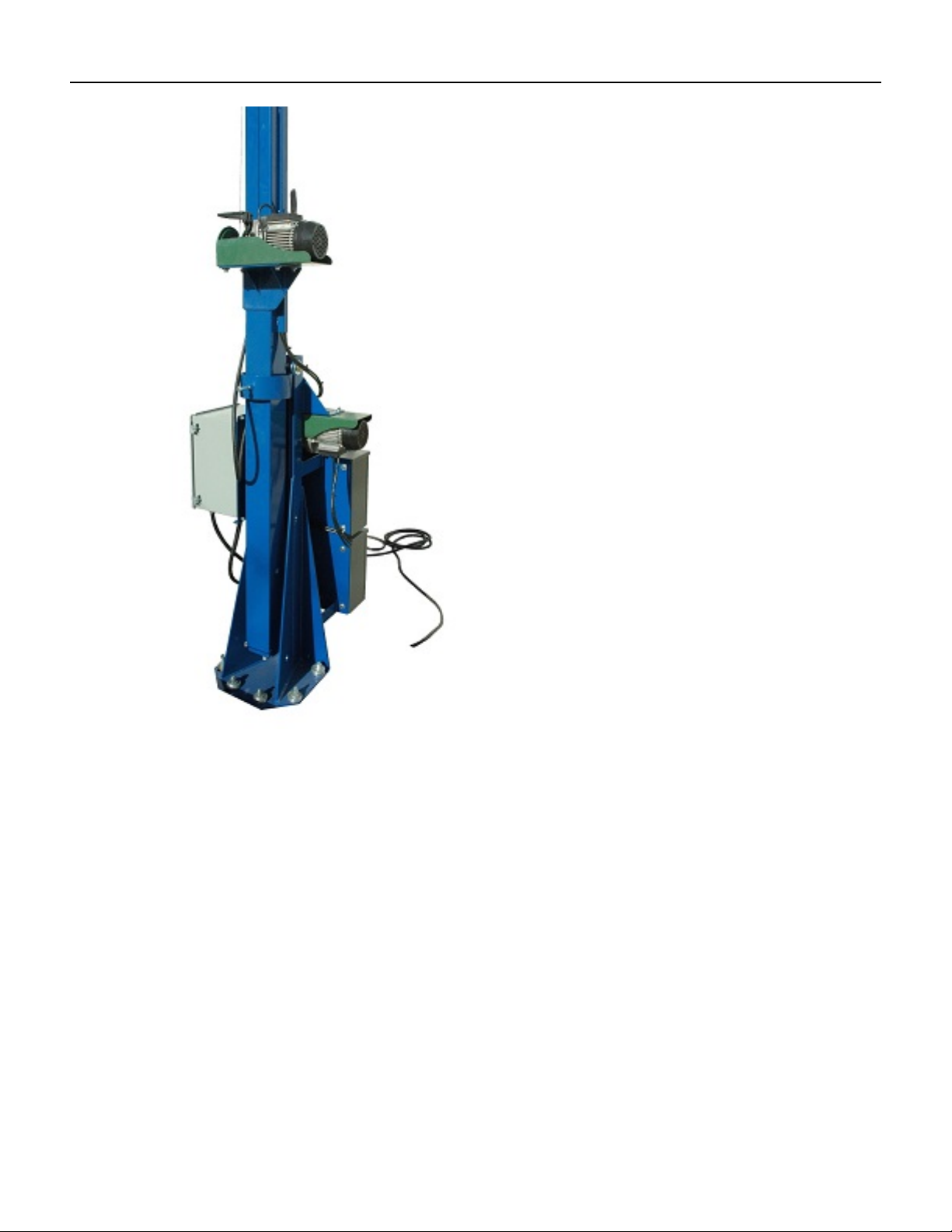

Click Image to Enlarge

Page: 2

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. These light masts are typically
mounted to trailers or other stable surfaces via a 15" by 13" by 1/4" thick mounting base-plate which has been drilled to accept six 9/16" anchor
bolts. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable
platform for the mounted fixtures or equipment.
The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. When
lowered to 12', the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By
loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different
directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a
single hand.
This light tower weighs approximately 350 lbs, can easily support and lift 150 lbs fixtures. The entire tower assembly is shipped via common
freight carrier and when shipped measures approximately 12 feet long, 4 feet wide, 5 feet tall and weighs approximately 600 lbs. Larson
Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. For example, the LM­25-EW is another model that reaches to a length of 25 feet, with a 15 foot lower section and a 10 foot upper section and a 4 foot wide upper
mounting bracket. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches.

Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this
mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power,
including the LED10WSA-160, LEDLB-200X2E, LEDLB-160X2E or LEDLB-80x2E.

Specifications / Additional Information

LM-20-EW Fold Over Light Mast w/ Electric Winches Quick Summary
Length: 12 feet - 20 feet 12' to 20' Light Mast
Weight: +-350 lbs Steel Construction
Capacity: 150 lbs Power Coated Finish
Materials: Steel Removable Mast Head
Finish: Powder Coated - Gloss Blue 125 mph Wind Resistance
Operation: (2) 1,000lbs Electric Winches Electric Operation
Cable: 3/16" Galvanized Cable
Winch Voltage: 120V AC or 24V DC
Mounting: 1/4" thick, 13"x15" Six Bolt Hole Bracket Special Orders- Requirements
Anchor Bolts: (6) 9/16" anchor bolts (not included) Contact us for special requirements
Shipping: Common Freight Phone: [phone]
Shipping Dimensions: 12'-L x 4'-W x 5'-H Toll Free: 1-800-369-6671
Shipping Weight: +-600 lbs Fax: [phone]
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements E-mail: [e-mail]

3 year warranty replacement on this light mast. The customer ships
the failed light mast to Larson Electronics at their expense. If the
failure is a manufacturer defect, we will repair and/or replace the unit.

Scroll Down to Purchase-

Part #: LM-20-EW (64274)
