Three Stage Light Mast on 15' x 4' Foot Single Axle Trailer with wheels - Extends up to 20 Feet

Part #: LM-20-3S-TLR

Made in the USA

The Larson Electronics LM-20-3S-TLR trailer mounted fold over 3-stage light mast provides a safe and effective way for operators to
quickly deploy lights, security cameras and other equipment to elevations up to twenty-five feet. This light tower folds over for easy
transportation, features a rotating boom that allows for 360° of rotation, and a removable mast head for storing mounted equipment
when not in use.

*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS*

This telescoping three stage steel light mast from Larson Electronics’ is designed to allow operators to quickly and safely deploy lighting,
cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 20 feet for effective coverage. This
light boom can be extended to 20 feet for maximum area coverage and collapsed to 10 feet for applications where a footprint smaller is required.
The tower is constructed of square steel tubing with a lower section 10 feet in length and 4 inches in diameter, middle section 8 feet in length and

3.5 inches in diameter, and an upper section 6 and 3 inches in diameter. Each section has 2 foot of overlap. The mast is elevated using an
included 1,000 lbs hand winch with 3/16 inch cable and extended to its full height using a second 1,000 lbs winch.

Page: 1

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

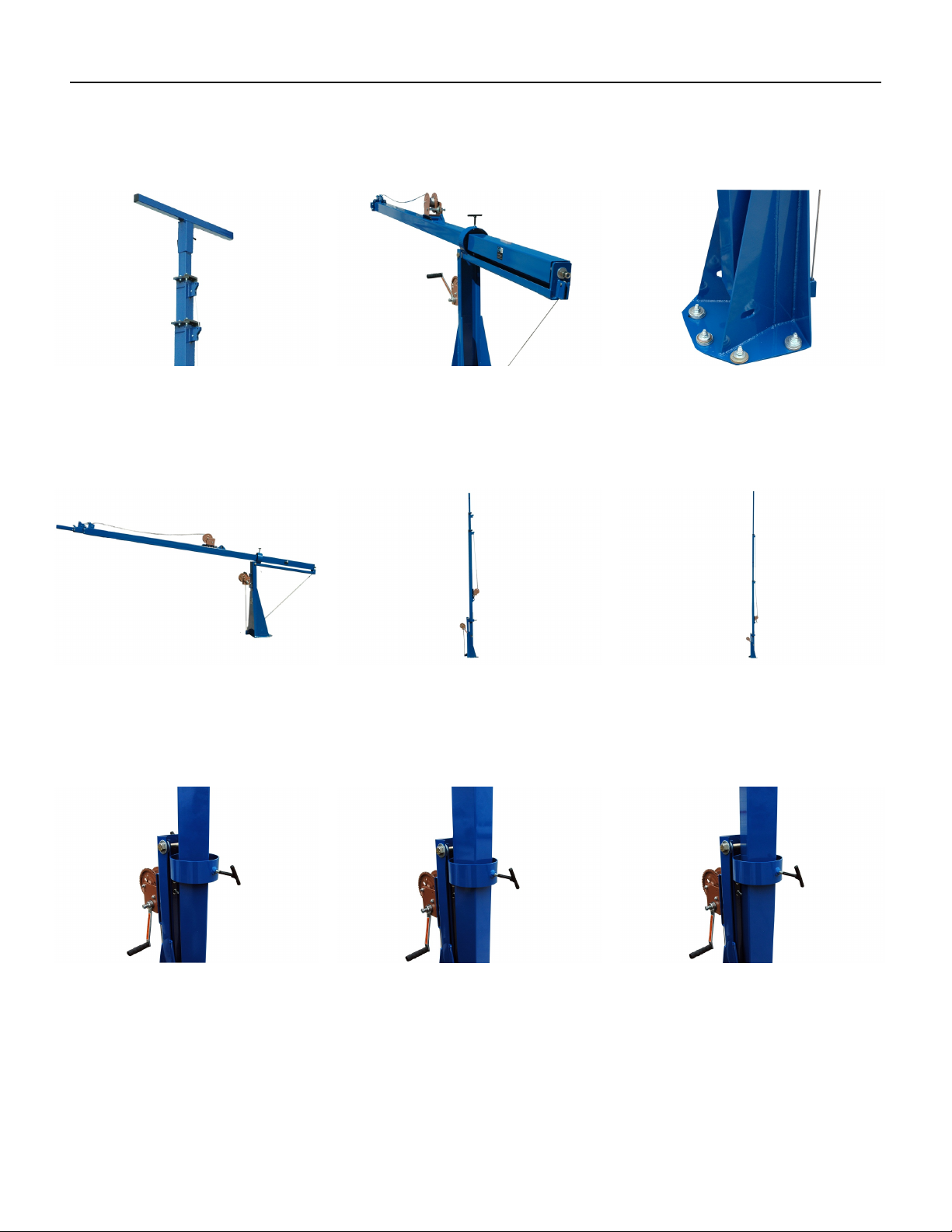

Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge

Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge

Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge

Page: 2

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. This light mast is mounted to a 15
foot by 4 foot, single axle trailer. Constructed of 2" by 3" square tubing, this trailer can be mounted on any 2" ball type receiver hitch. This trailer is
equipped with a 4-pin flat plug for the tail lights. A 36 inch wide and 1/4 inch thick mounting plate is attached to the upper section of the mast
which provides a strong and stable platform for the four metal halide fixtures.
The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. When
lowered to 10 feet, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By
loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different directions,
and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand.
This light tower weighs approximately 800 lbs, can easily support and lift 150 lbs fixtures. The entire tower assembly is shipped via common
freight carrier or flatbed. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger
mounting plates. For example, the LM-30-3S is another model that reaches to a length of 30 feet, with a 14 foot lower section, 12 foot middle
section, and a 8 foot upper section and a 4 foot wide upper mounting bracket. We also offer a choice of either the manual 1,000 lbs hand
winches included standard or optional electric winches.
Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or
1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the LED10WSA-160, LEDLB-200X2E,
LEDLB-160X2E or LEDLB-80x2E.

Specifications / Additional Information

LM-20-3S Trailer Mounted 3-Stage Light Tower Quick Summary
Tower Length: 10 feet - 20 feet 10 to 20 Foot Light Mast
Weight: +-800 lbs Steel Construction
Capacity: 150 lbs Power Coated Finish
Materials: Steel Removable Mast Head
Finish: Powder Coated - Gloss Blue 125 mph Wind Resistance
Operation: (2) 1,000lbs Hand Winches, Electric Optional Manual or Optional Electric Operation
Cable: 3/16 Aircraft Cable
Mounting: 1/4" thick, 13"x15" Six Hole Hole Bracket Special Orders- Requirements
Shipping: Common Freight Contact us for special requirements
Shipping Dimensions: 16.5'-L x 4'-W x 5'-H Phone: [phone]
Shipping Weight: +-1200 lbs Toll Free: 1-800-369-6671
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements Fax: [phone]

E-mail: [e-mail]

3 year warranty replacement on this light mast. The customer ships the
failed light mast to Larson Electronics at their expense. If the failure is a
manufacturer defect, we will repair and/or replace the unit.

Scroll Down to Purchase-

Part #: LM-20-3S-TLR (69968)

Page: 3

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

Page: 4

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

Links (Click on the below items to view):

- Hi-Res Image 1 - Three Stage Light Mast on 15 Ft x 4 Ft Single Axle Trailer Extended

Page: 5

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

- Hi-Res Image 2 - Three Stage Light Mast on 15 Ft x 4 Ft Single Axle Trailer Collapsed

- Hi-Res Image 3 - Three Stage Light Mast on 15 Ft x 4 Ft Single Axle Trailer Raised

Page: 6

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

- Hi-Res Image 4 - Three Stage Light Mast on 15 Ft x 4 Ft Single Axle Trailer Side

- Hi-Res Image 5 - Three Stage Light Mast on 15 Ft x 4 Ft Single Axle Trailer Front

- Hi-Res Image 6 - Three Stage Light Mast on 14 Foot Single Axle Trailer 3/4 view

- Hi-Res Image 7 - Three Stage Light Mast on 15 Ft x 4 Ft Single Axle Trailer Back

- Hi-Res Image 8 - Three Stage Light Mast on 15 Ft x 4 Ft Single Axle Trailer Support Bracket

- Hi-Res Image 9 - Three Stage Light Mast on 15 Ft x 4 Ft Single Axle Trailer Hand Crank

- Hi-Res Image 10 - Three Stage Light Mast on 15 Ft x 4 Ft Single Axle Trailer Mast
