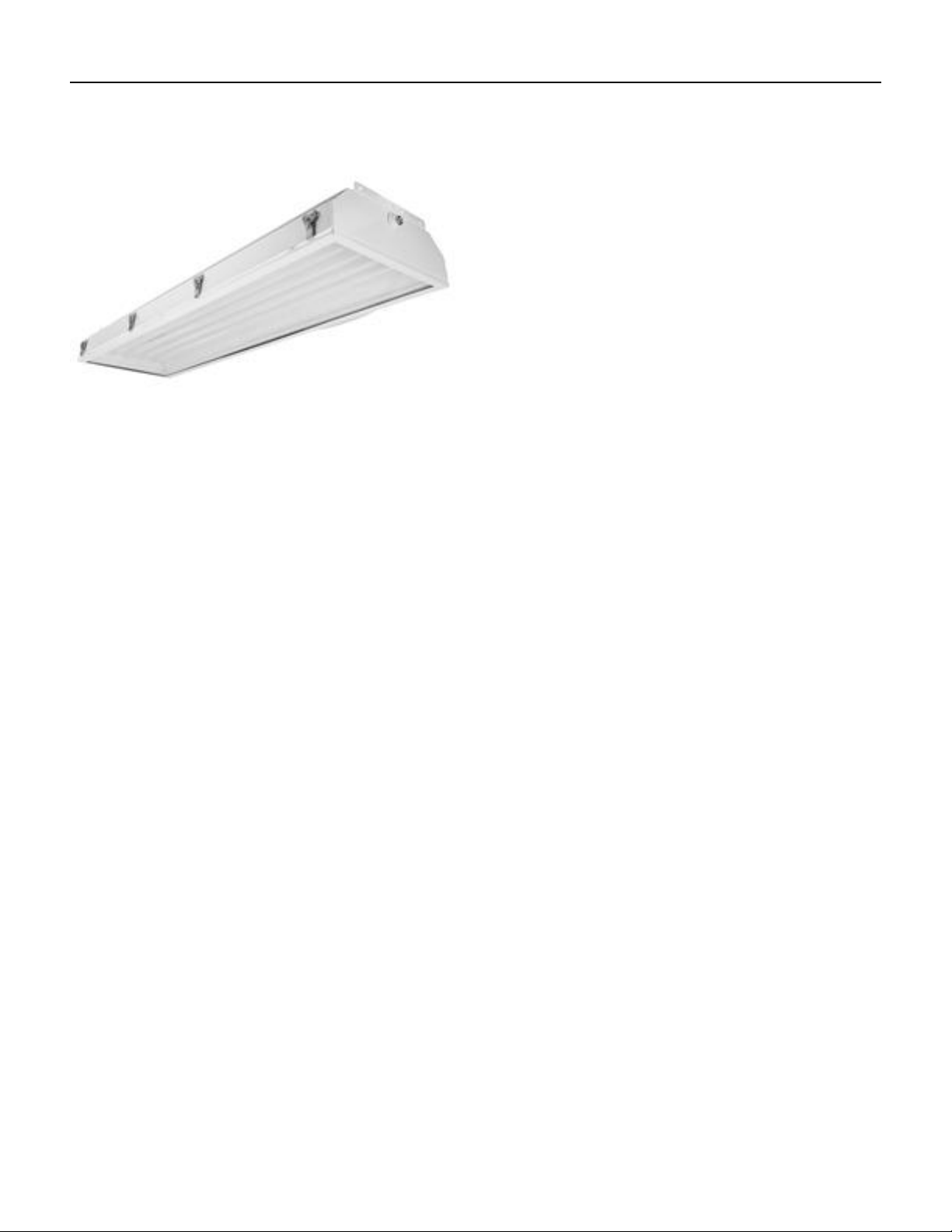

Hazardous Location Fluorescent Lighting - 4' 4 Lamp Fixture - T8 - 120-277V - Class I Div 2

Part #: HALS-48-4L-T8

Made in the USA

The Larson Electronics HALS-48-4L-T8 Hazardous Area Fluorescent Light Fixture is U.S./Canada listed Class I Division 2 Groups A,
B, C, D, UL 1598, and ideal for use in industrial hazardous locations where wet conditions and chemical/petrochemical vapors may be
encountered.

***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE***

The HALS-48-4L-T8 fixture is a 4 foot long, 4 lamp, UL listed Class I Division 2 Groups A, B, C and D hazardous area fluorescent light and a
good choice for use in industrial applications and wet areas. This fixture is T4A temperature rated and comes standard with F32/741 T-8 bulbs.
The housing on this unit is constructed of powder coated 16 gauge steel for durability and contains a hinged reflector and ballast tray for easy
and safe servicing. The lamps are held in place by spring loaded sockets and protected by a hinged glass door with a 3/16” tempered glass lens
which is secured with four turn latches.
This fixture is multi-voltage capable and can be operated with voltages of 120-277 VAC. This fixture is IP65 rated water and dustproof and
carries United States and Canada approvals for wet and marine locations. This fixture also features multiple 1/2 NPT wiring hubs with two
located on top of the fixture at two more located at each end, allowing operators to through-wire multiple units in series or mount the unit with
wire through conduit pendant mounts.
This fixture also features multiple 1/2 NPT wiring hubs with two located on top of the fixture at two more located at each end, allowing operators
to through-wire multiple units in series or mount the unit with wire through conduit pendant mounts.

Page: 1

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

Energy Consumption Comparison

T5HO T8 LED

Wattage 216 watts 128 watts 112 watts
Amp Draw @ 120V AC 1.80 amps 1.07 amps 0.93 amps
Amp Draw @ 220V AC 0.98 amps 0.59 amps 0.51 amps
Amp Draw @ 240V AC 0.90 amps 0.54 amps 0.47 amps
Amp Draw @ 277V AC 0.78 amps 0.47 amps 0.40 amps
Amp Draw @ 12V DC 18 amps 10.67 amps 9.33 amps

Amp Draw @ 24V DC 9 amps 5.34 amps
Lamp Life Expectancy 20,000 hours 24,000 hours 50,000 hours

Operation cost per year
(12hs/day @ 12c/kWh)

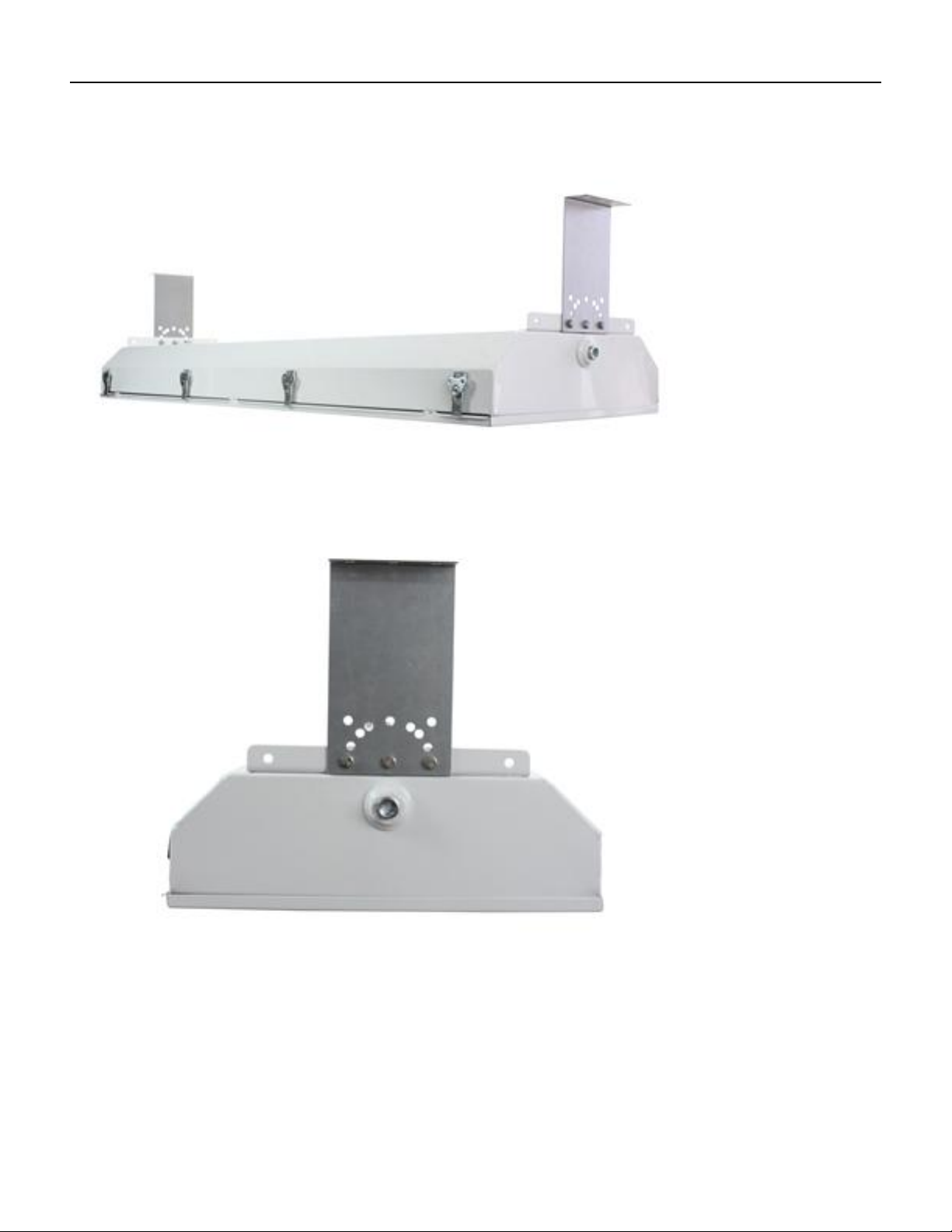

Adjustable Surface Mount Brackets: Two L-brackets enables it to be simply secured to any flat surface. Three through holes provide sufficient
mounting for any environment. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be repositioned by
removing the adjustment bolts, rotating the fixture, and re-inserting the adjustment bolts in pre-drilled holes.

Suspension Mounting: Pendant mount fixtures hang from the ceiling and are suspended by rigid pipe. Each fixture is equipped with two 3/4”
NPT hubs, one on each end of the fixture. Operators bring rigid pipe down to the threaded mounting hubs. Wiring is fed down through the rigid
pipe to one of the NPT hubs and tied in to the fixture’s lead wires, completing the electrical connection. The remaining pendant hub provides
support for the opposite end of the fixture.
Suggested Applications: Aircraft maintenance, Oil drilling rigs, Refineries, Solvent and cleaning areas, Gas processing plants, Chemical
manufacturing, Waste treatment plants, Gas processing plants.

Made in USA Quality Lamp Options

1. Each unit dialectically tested.

2. Fixture arrives assembled and lamped to reduce installation time
and cost. Adjustable mounting brackets enable the operator to choose
any mounting angle for the fixture, where other models may only offer
one or three choices.

3. Fixture housing constructed of white powder coated 16 gauge steel.

4. Relamping done via 4 turn latches, which enable the operator to
unlatch the hinged door and access the lamps.

5. Heavy gauge hinged reflector with high gloss reflective finish.
Resists dents and corrosion.

6. Multiple 1/2 inch, threaded NPT access holes for through wiring.

7. Units can be wired end to end in series.

$113.53 $67.28

F32-T8/841 – 2800 lumens per bulb, 24,000 hours life, 4100 Kelvin
color

4.67 amps

$58.86

Page: 2

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

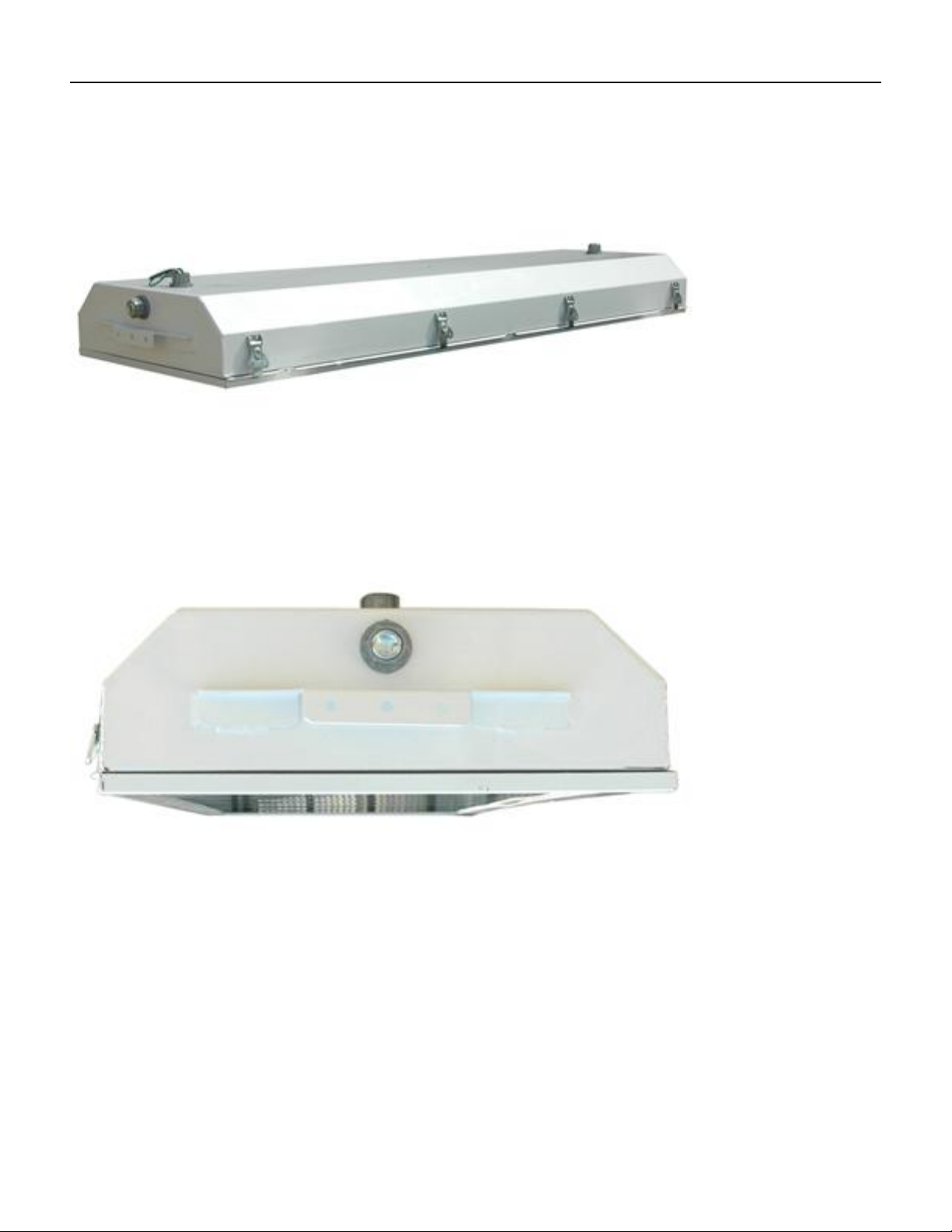

Specifications / Additional Information

HALS-48-4L-T8 Hazardous Location Lighting Ratings/Approvals
Listing: United States - Canada Listed for United States & Canada
Dimensions: 12-3/16"-W x 51-1/2"-L x 5-5/16"-H Class I, Division 2, Groups A, B, C, D

Weight: 45 Lbs
Voltage: Universal 120-277VAC 50/60 Hz

Class II, Division 2 Groups F,G
Class III

Total Watts: 128 watts UL 844
Total Lumens: 11,800 UL 1598

Lamp Life Expectancy: 24,000+ Hours
Luminous Efficiency: 92 Lumens per Watt
Color Temp: 4,100K
Color Rendering Index: 85
Beam Angle: 150°

Operating Temp Range: T3C-T4A Rated

Housing Material: Powder Coated 16 Gauge Steel
Lens Material: Tempered Glass Lens

IP65
Wet Area Suitable
Quick Release Draw Latches & Hinged Lens
Ease-of-Access Front Access Serviceability
Adjustable Surface Mount Brackets

Made in the USA

Special Orders- Requirements

Mounting: Surface Bracket Standard - Pendant Optional Contact us for special requirements
Wiring Hub: 1/2" NPT - (2) On Top, (2) On Ends Toll Free: 1-800-369-6671
U.L Approval: U.S Certificate Canada Certificate Intl: 1-903-498-3363
Warranty: 3 Years* E-mail: [e-mail]

*3 year warranty replacement on this light (or LED bulbs for light
fixtures with removable LED bulbs). After 30 days, the customer ships
the failed light and/or LED bulb to Larson Electronics at their expense.
If the failure is a manufacturer defect, we will ship a new replacement
to the customer. If failure occurs within 30 days of receipt, Larson
Electronics will provide a return label via email to the customer. When
the failed light is returned, Larson Electronics will ship a new
replacement. Please click here to see our 5 Year Warranty pamphlet.
