Larson Electronics HALP-EMG-48-3L-T8-SFC, HALP-EMG-48-3L-T8-PND User Manual

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

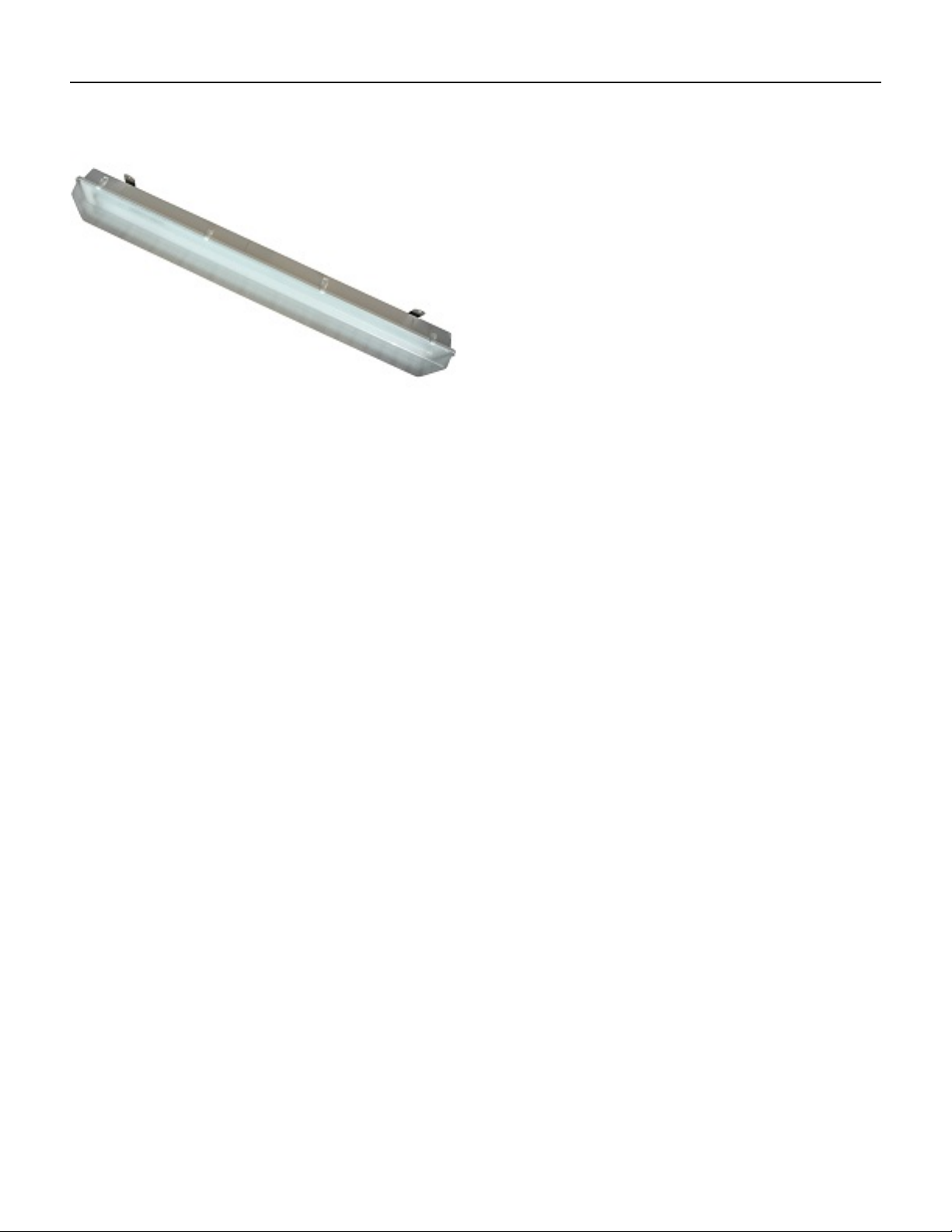

Class 1 Division 2 Emergency/Failsafe Fluorescent Light - Three T8 Lamps - Corrosion Resistant

Part #: HALP-EMG-48-3L-T8

Made in the USA

The Larson Electronics HALP-EMG-48-3L-T8 Hazardous Area Fluorescent Light Fixture is U.S./Canada U.L. approved Class 1 Division
2 Groups A, B, C and D - UL 1598A listed, has a T4C temperature rating and is specifically designed to handle the rigors of wet and
corrosive marine environments.

The HALP-EMG-48-3L-T8 hazardous area fluorescent light fixture is designed for use in wet areas and saltwater-marine environments where
corrosion resistance is critical to equipment longevity and safety. This Class 1 Division 2 rated fixture is constructed of non-corrosive materials
including a polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing and an impact resistant acrylic diffuser. Corrosion
resistant stainless steel latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and
water intrusion. This fixture is UL 844 rated and Class 1 Division II, Groups A, B, C, D approved. The HALP-EMG-48-3L-T8 also carries a UL
1598A outdoor marine rating and meets US Coast Guard specifications.
This fluorescent light works, mounts and is wired like our HALP-48-3L-T8 explosion proof fluorescent light fixtures. The main difference is that we
add a battery backup unit that adds emergency light functionality to the fixture. This hazardous area emergency light will run the standard UL
suggested 90 minutes after power is lost. The light recharges the battery once electrical power is restored. Standard configuration includes a
single emergency ballast that will run a single lamp at 900 lumens for 90 minutes. The battery backup unit includes a switched leg for turning the
light fixture on/off without kicking the unit into emergency mode.

Click here to see the LED version of this hazardous location light.

Page: 1

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

Click Photo to Enlarge Click Photo to Enlarge Click Photo to Enlarge

NOTE ON LAMPS: This fixture comes equipped with F32-T8/841 – 32 Watt lamps producing 2,950 lumens per bulb, a 4100 Kelvin color and a

24,000 hour rated service life. The HALP-EMG-48-3L-T8 has an electronic multi-voltage ballast and works with 120 Volt 60 HZ, 220 Volt 50 HZ,
240 Volt 60 HZ and 277 Volts 60 HZ.
Standard Flange Brackets: Flange type stainless steel mounts attached at each end of the fixture enables it to be simply secured to any
surface. The mounts provide some shock absorbency protection while enabling the user to simply mount the fixture with the through-hole taps
that protrude on each side of the fixture. The mounting holes are 36 9/16 inches on center apart along the top of this hazardous location light.
The mounting holes are 7 inches on center across the top of the light.
Pendant Mounting: This light fixture can hang from the ceiling suspected by rigid pipe. Each fixture is equipped with two 3/4" NPT hubs on
either side of the fixture. Operators will bring rigid pipe down to the threaded mounting ups. The wiring is fed down through the rigid pipe to one
of the NPT hubs and tied to the fixture's lead wires to complete the electrical connection. The remaining pendant hub provides support for the
opposite end of the fixture.
Suggested Applications: The HALP-EMG-48-3L-T8 is designed for marine wet and damp locations, where corrosion resistant fluorescent lights
are required. This includes petrochemical facilities, lubrication pits, oil drilling rigs, crew quarters, solvent/cleaning areas, water treatment areas,
processing plants and marine loading docks.

Made in USA Quality Lamp Options

F32-T8/841 – 2950 lumens per bulb, 24,000 hours life, 4100 Kelvin

1. Each unit dialectically tested.

2. Fixture arrives assembled and lamped to reduce installation time and
cost. Flange type stainless steel mounts attached at each end of the
fixture enables it to be simply secured to any surface.

3. Fixture housing constructed of glass fiber reinforced polyester.

4. Relamping done via 6 stainless steel snap locking latches, which
enable the operator to remove the door and access the lamps.

5. Lamp cover-diffuser constructed of high impact acrylic for corrosion
resistance and lamp protection.

6. 1/2 inch, threaded access hole for wiring conduit.

color

Page: 2

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

Specifications / Additional Information

HALP-EMG-48-3L-T8 Hazardous Area U.L. Ratings
UL Listing: United States - Canada Class 1 Division 2, Groups A, B, C, D
Lamp Type: Fluorescent UL 844
Dimensions: W-8.25 " L-52 " H-7" UL 1598A Marine Type (Salt water)
Weight: 8 Lbs
Voltage:Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz cUL Listed for Canada
Total Watts: 96 Watts
Total Lumens: T5HO Bulbs 8,850
Luminous Efficacy: 92 Lm/W
Lamp Life Expectancy: 24,000 Hours
Color Temp: 4100K
Ambient Operating Temp Range: -30° C to +70° C
Operating Temp Range: T4A Rated
Battery Backup: 90 Minute Runtime 900 Lumens
Surface Mounting: (2) Flange Type Aluminum Brackets
Pendant Mounting: (2) 3/4" Threaded NPT Hubs on Either Side Special Orders- Requirements
Wiring Hub: (2) 1/2" Threaded Hubs Contact us for special requirements
Warranty: YES- 5 Years* Toll Free: 1-800-369-6671
U.L Approval: U.S Certificate Canada Certificate Intl: 1-903-498-3363

Meets US Coast Guard specifications. E-mail: [e-mail]

UL 924 - Failsafe battery backup

T4A Temperature Rated
Meets USCG Specs
Switch Leg for Powering Light On/Off

*5 year warranty replacement on this LED light (or LED bulbs for light
fixtures with removable LED bulbs). After 30 days, the customer ships
the failed LED light and/or LED bulb to Larson Electronics at their
expense. If the failure is a manufacturer defect, we will ship a new
replacement to the customer. If failure occurs within 30 days of receipt,
Larson Electronics will provide a return label via email to the customer.
When the failed light is returned, Larson Electronics will ship a new
replacement. Please click here to see our 5 Year Warranty pamphlet.

Scroll Down to Purchase- Please Note: 2-3 day lead time on this light.

Part #: HALP-EMG-48-3L-T8 (70378)

Page: 3
