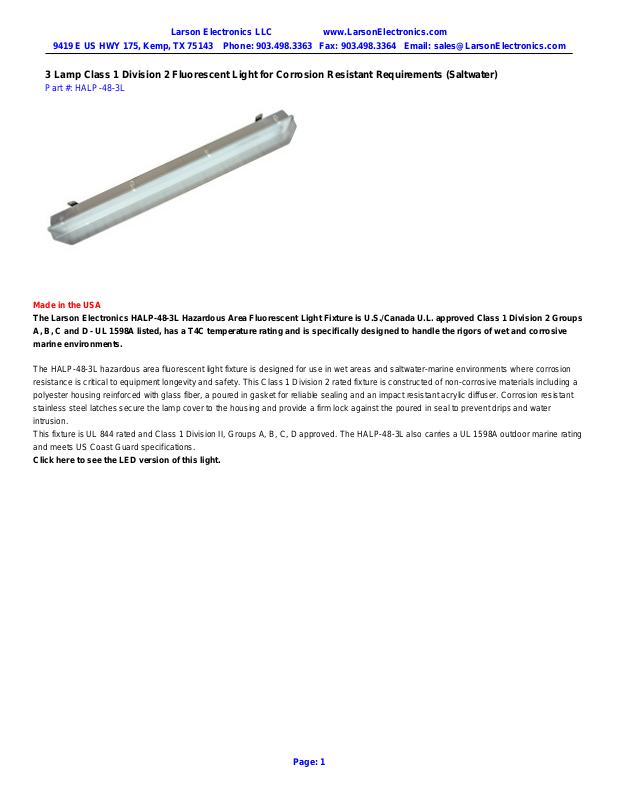

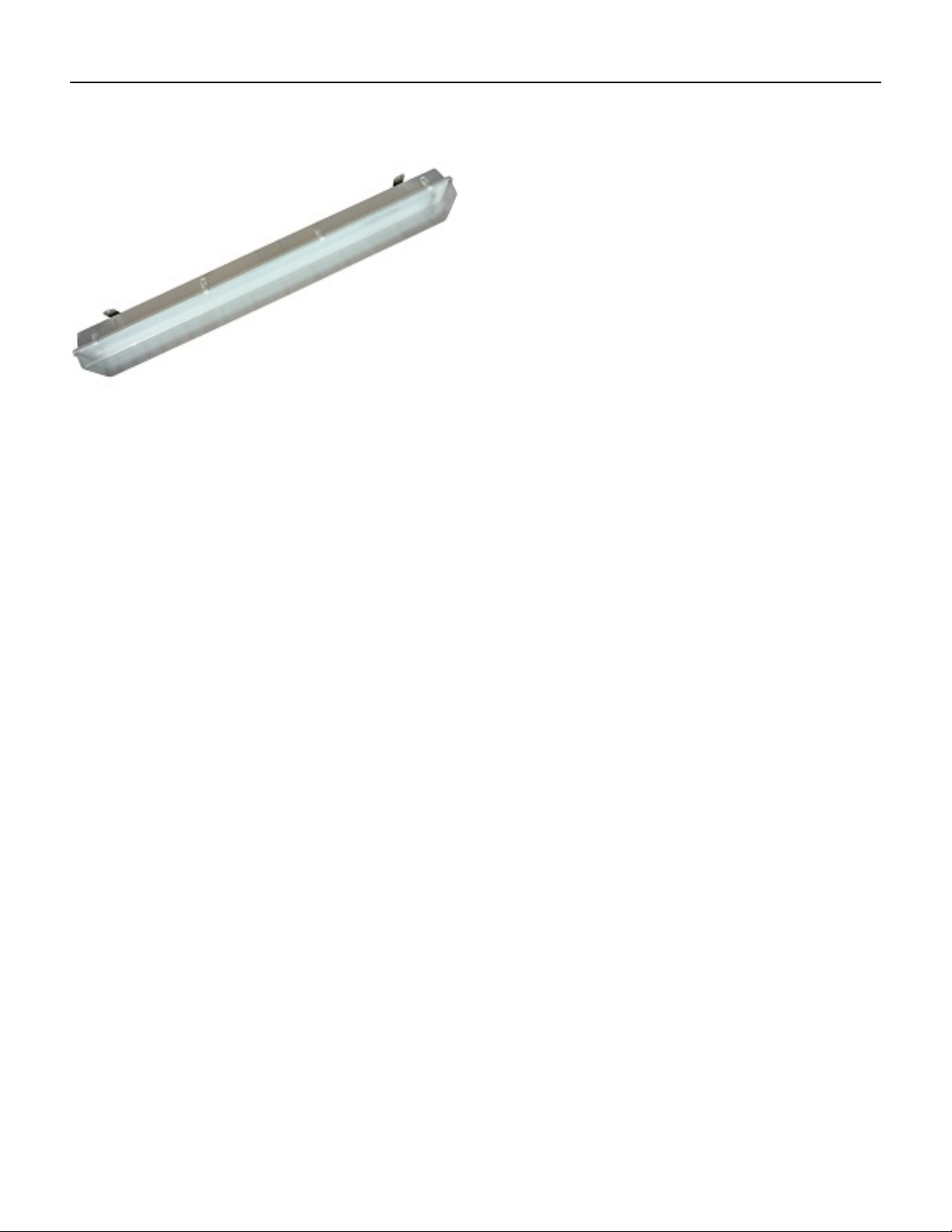

3 Lamp Class 1 Division 2 Fluorescent Light for Corrosion Resistant Requirements (Saltwater)

Part #: HALP-48-3L

Made in the USA

The Larson Electronics HALP-48-3L Hazardous Area Fluorescent Light Fixture is U.S./Canada U.L. approved Class 1 Division 2 Groups
A, B, C and D - UL 1598A listed, has a T4C temperature rating and is specifically designed to handle the rigors of wet and corrosive
marine environments.

The HALP-48-3L hazardous area fluorescent light fixture is designed for use in wet areas and saltwater-marine environments where corrosion
resistance is critical to equipment longevity and safety. This Class 1 Division 2 rated fixture is constructed of non-corrosive materials including a
polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing and an impact resistant acrylic diffuser. Corrosion resistant
stainless steel latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and water
intrusion.
This fixture is UL 844 rated and Class 1 Division II, Groups A, B, C, D approved. The HALP-48-3L also carries a UL 1598A outdoor marine rating
and meets US Coast Guard specifications.

Click here to see the LED version of this light.

Page: 1

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

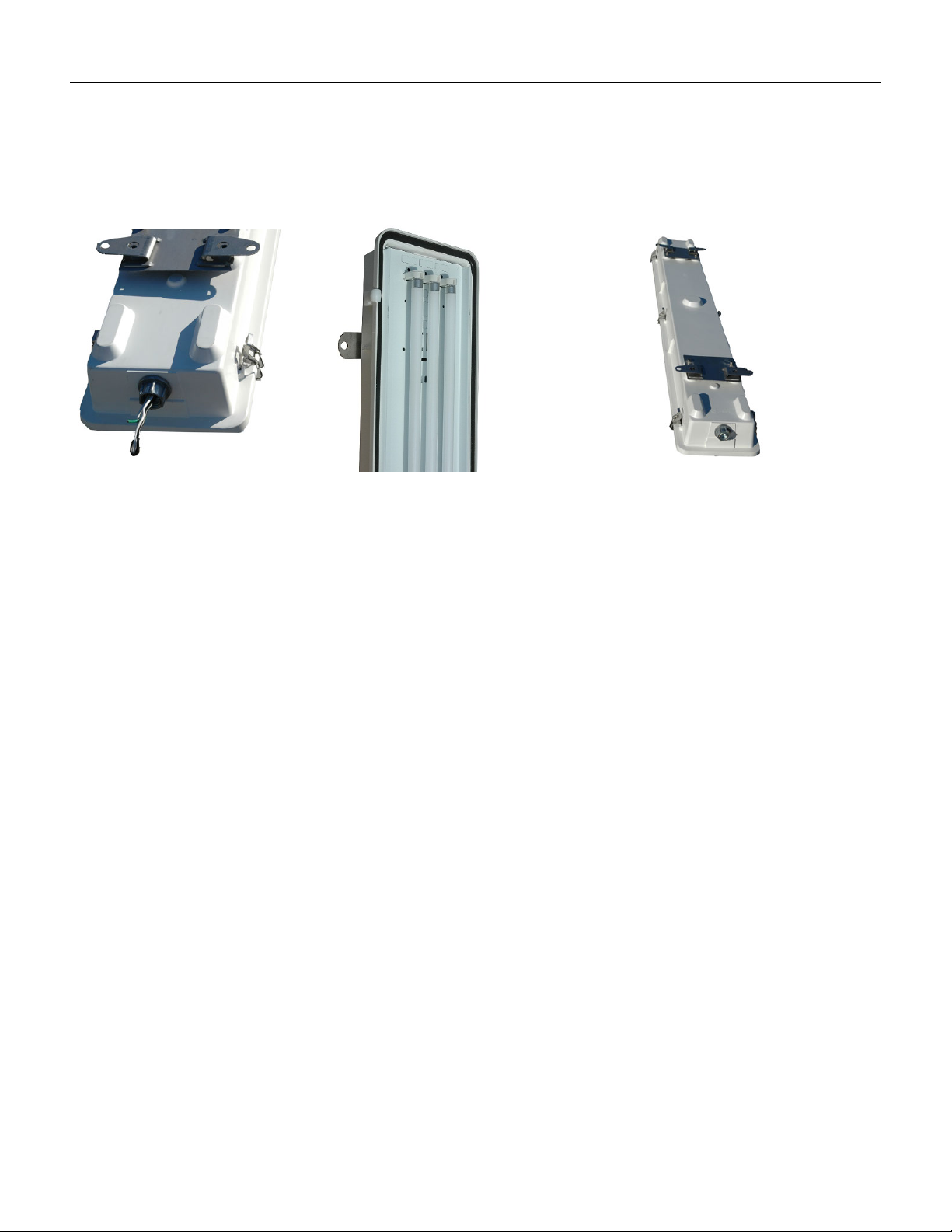

Click Photo to Enlarge Click Photo to Enlarge Click Photo to Enlarge

NOTE ON LAMPS: This fixture comes equipped with F54-T5/850/HO – 54 Watt lamps producing 5,000 lumens per bulb, a 5000 Kelvin color and

a 20,000 hour rated service life. We offer F32-T8/841 – 2950 lumens per bulb, 24,000 hours life, 4100 Kelvin color tubes as lamp options for this
fixture. The HALP-48-2L has an electronic multi-voltage ballast and works with 120 Volt 60 HZ, 220 Volt 50 HZ, 240 Volt 60 HZ and 277 Volts 60
HZ.

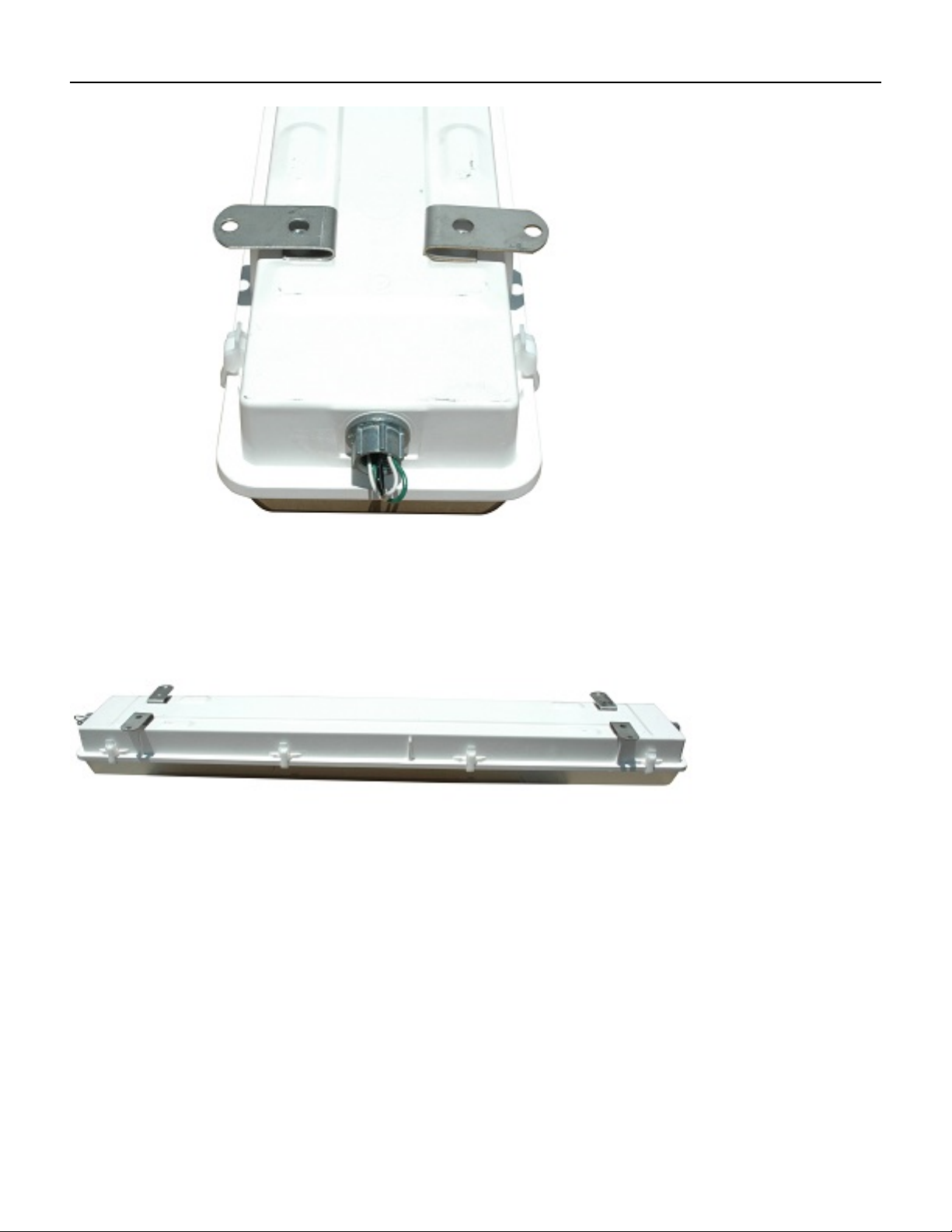

Standard Flange Brackets: Flange type stainless steel mounts attached at each end of the fixture enables it to be simply secured to any
surface. The mounts provide some shock absorbency protection while enabling the user to simply mount the fixture with the through-hole taps
that protrude on each side of the fixture. The mounting holes are 36 9/16 inches on center apart along the top of this hazardous location light.
The mounting holes are 7 inches on center across the top of the light.
Suggested Applications: The HALP-48-3L is designed for marine wet and damp locations, where corrosion resistant fluorescent lights are
required. This includes petrochemical facilities, lubrication pits, oil drilling rigs, crew quarters, solvent/cleaning areas, water treatment areas,
processing plants and marine loading docks.

Made in USA Quality Lamp Options

F54-T5/850/HO – 54 Watt, 5000 lumens per bulb, 20,000 hours life,

5000 Kelvin color

1. Each unit dialectically tested.

2. Fixture arrives assembled and lamped to reduce installation time and
cost. Flange type stainless steel mounts attached at each end of the
fixture enables it to be simply secured to any surface.

3. Fixture housing constructed of glass fiber reinforced polyester.

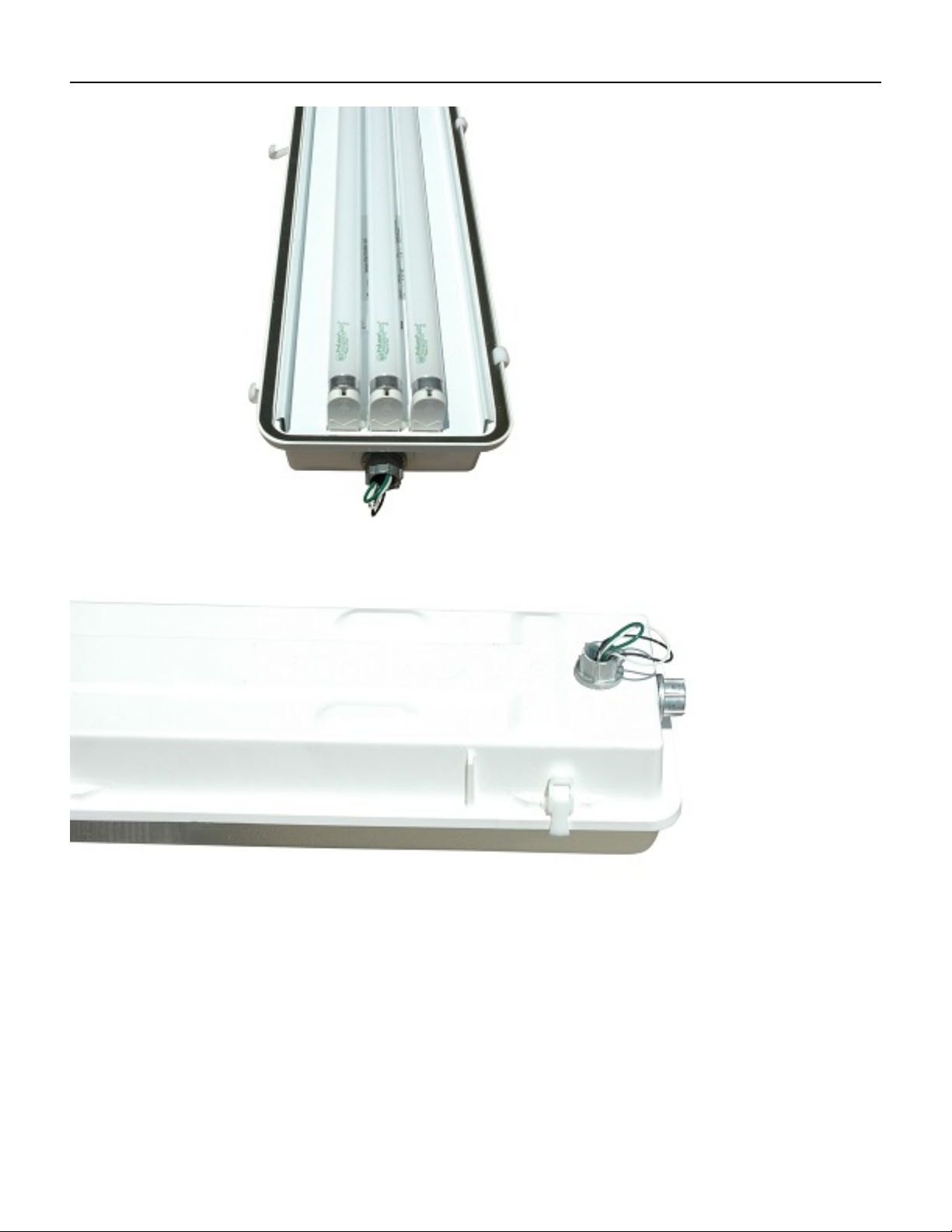

4. Relamping done via 6 stainless steel snap locking latches, which
enable the operator to remove the door and access the lamps.

5. Lamp cover-diffuser constructed of high impact acrylic for corrosion
resistance and lamp protection.

6. 1/2 inch, threaded access hole for wiring conduit.

F32-T8/841 – 2950 lumens per bulb, 24,000 hours life, 4100 Kelvin
color

Page: 2

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

Specifications / Additional Information

HALP-48-3L Hazardous Area U.L. Ratings
UL Listing: United States - Canada Class 1 Division 2, Groups A, B, C, D
Dimensions: W-8.25 " L-52 " H-7" UL 844
Weight: 8 Lbs UL 1598A Marine Type (Salt water)
Total Watts: 162 watts* California Title 24 Compliant
Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz
Total Lumens: STD-T5-HO Bulbs 15,000
Lamp Life Expectancy: STD-T5-HO Bulbs 20,000 Hours
Efficiency: STD-T5-HO Bulbs 92 Lumens per Watt
Operating Temp Range: T4A Rated -30 C to 70 C
Beam Angle: N/A Special Orders- Requirements
Color Temp: 5000K- T5-HO Bulbs Contact us for special requirements
Mounting: Flange type stainless steel Toll Free: 1-800-369-6671
Wiring Hub: 1/2 inch threaded Fax: [phone]
Minimum Operating Temp: -30 C E-mail: [email protected]
Maximum Case Temp: 90 C
U.L Approval: U.S Certificate Canada Certificate

Meets US Coast Guard specifications.

*Wattage totals are lamps only and may vary with different lamps.

Scroll Down to Purchase- Please note: 2-3 day lead time on this light.

Part #: HALP-48-3L (69019)
