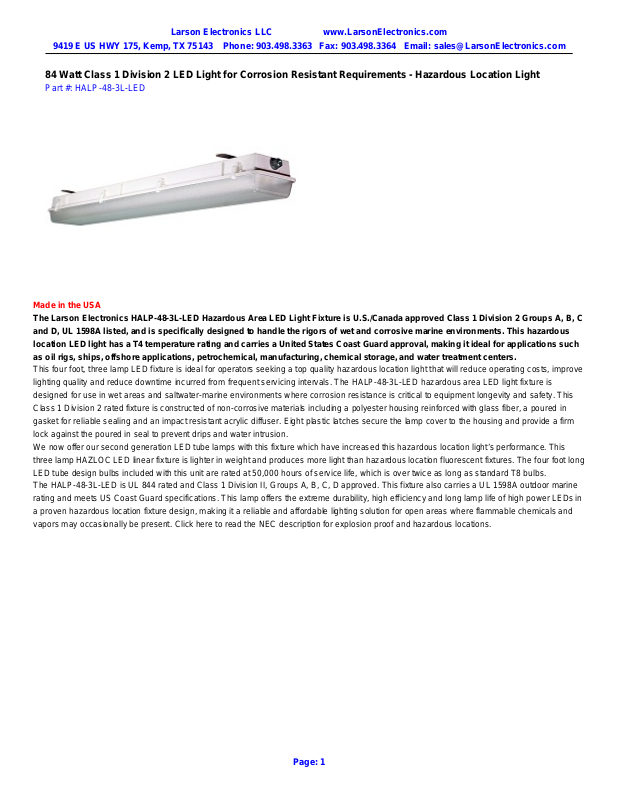

Larson Electronics HALP-48-3L-LED-SFC, HALP-48-3L-LED-PND User Manual

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

84 Watt Class 1 Division 2 LED Light for Corrosion Resistant Requirements - Hazardous Location Light

Part #: HALP-48-3L-LED

Made in the USA

The Larson Electronics HALP-48-3L-LED Hazardous Area LED Light Fixture is U.S./Canada approved Class 1 Division 2 Groups A, B, C
and D, UL 1598A listed, and is specifically designed to handle the rigors of wet and corrosive marine environments. This hazardous
location LED light has a T4 temperature rating and carries a United States Coast Guard approval, making it ideal for applications such
as oil rigs, ships, offshore applications, petrochemical, manufacturing, chemical storage, and water treatment centers.

This four foot, three lamp LED fixture is ideal for operators seeking a top quality hazardous location light that will reduce operating costs, improve
lighting quality and reduce downtime incurred from frequent servicing intervals. The HALP-48-3L-LED hazardous area LED light fixture is
designed for use in wet areas and saltwater-marine environments where corrosion resistance is critical to equipment longevity and safety. This
Class 1 Division 2 rated fixture is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in
gasket for reliable sealing and an impact resistant acrylic diffuser. Eight plastic latches secure the lamp cover to the housing and provide a firm
lock against the poured in seal to prevent drips and water intrusion.
We now offer our second generation LED tube lamps with this fixture which have increased this hazardous location light’s performance. This
three lamp HAZLOC LED linear fixture is lighter in weight and produces more light than hazardous location fluorescent fixtures. The four foot long
LED tube design bulbs included with this unit are rated at 50,000 hours of service life, which is over twice as long as standard T8 bulbs.
The HALP-48-3L-LED is UL 844 rated and Class 1 Division II, Groups A, B, C, D approved. This fixture also carries a UL 1598A outdoor marine
rating and meets US Coast Guard specifications. This lamp offers the extreme durability, high efficiency and long lamp life of high power LEDs in
a proven hazardous location fixture design, making it a reliable and affordable lighting solution for open areas where flammable chemicals and
vapors may occasionally be present. Click here to read the NEC description for explosion proof and hazardous locations.

Page: 1

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

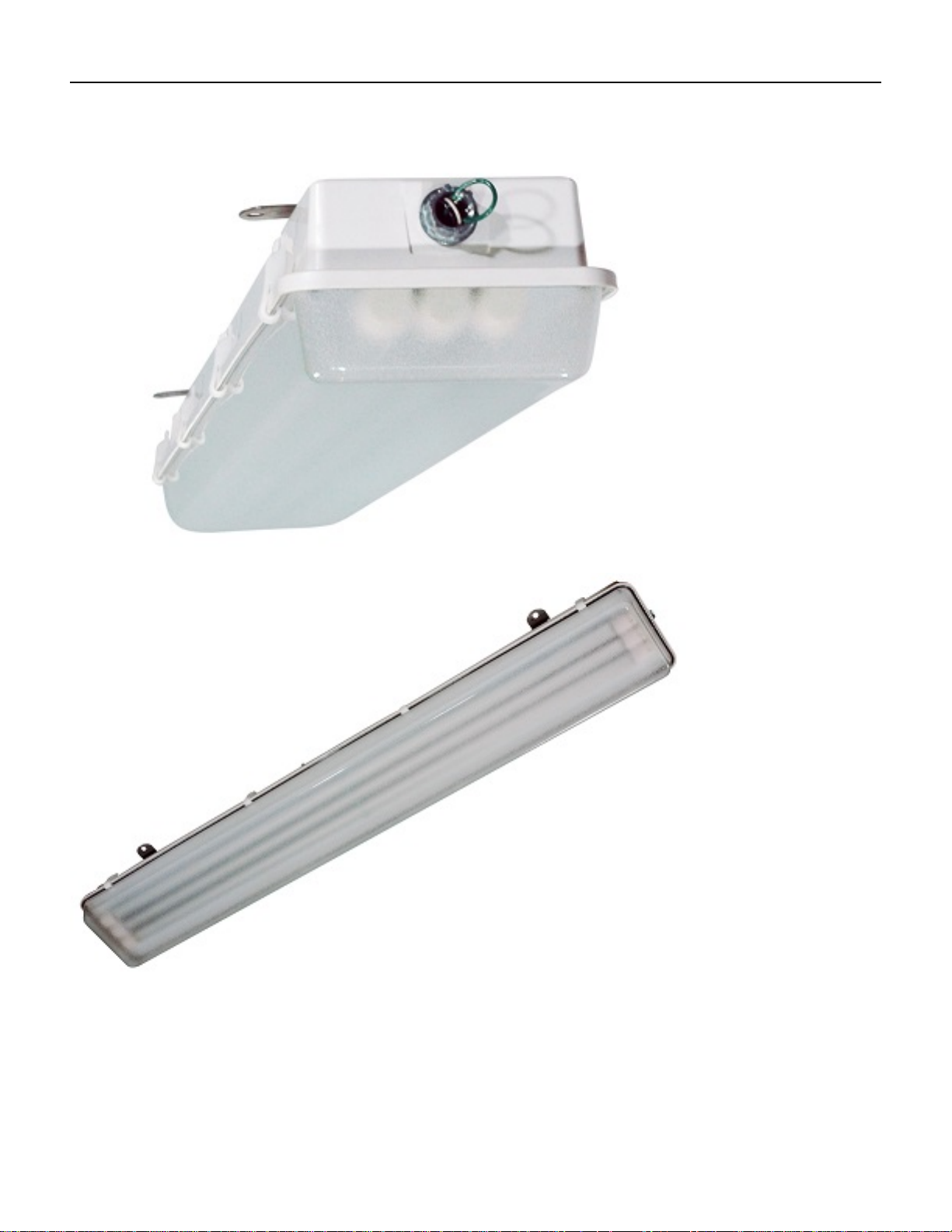

Click Photo to Enlarge Click Photo to Enlarge Click Photo to Enlarge

Page: 2

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

We have eliminated the ballast normally associated with fluorescent fixtures which reduces overall weight and overall complexity of installation.
There is no ballast in this unit and the included LEDT8-28W-V1 LED lamps have a 50,000+ hour service life, both of which result in extreme
efficiency and greatly reduced maintenance costs. The solid state design of the LED lamps give this fixture superior resistance to damage from
vibration, extremes in temperature and a lamp service life over twice that of standard fluorescent bulbs. This second generation lamp is offered in
5600K cool white, 4500K natural white, and 3000K warm white. Our standard unit ships with 5600K unless different color temperature is
specified.
Unlike the glass tube design of traditional fluorescent lamps, these LED T-Style lamps have no filaments or fragile housings to break during
operation. Instead of using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate
when electric current applied and emitting light. The LED assembly is mounted to the "tube" constructed from extruded aluminum, with a
polycarbonate lens protecting the LEDs. With LED lights, there is no warm up time or cool down time before re-striking and provide instant
illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than fluorescent
lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting
diodes provides a more reliable, stable, durable, and energy efficient light source over traditional fluorescent lighting.
The 28 watt LED lamps produce 30% more illumination than standard T8 bulbs while offering lower amp draw and increased reliability. Each
lamp produces 3,500 lumens at 125 lumens per watt, for a combined 10,500 total lumen light output. An HALP-48-3L-T8 hazardous location
fluorescent light, with a combined total of 96 watts, draws 0.8 amps at 120 volts AC. This LED version of the same light, with a total of 84 watts,
draws only 0.7 amps at 120 volts AC. This results in a lower amp draw while still providing increased reliability and light output.
The HALP-48-3L-LED is universal voltage, not multi-tap, and operates on any voltage from 120V to 277V AC 50/60hz without any modifications.
This includes commonly found voltages such as 120V 60Hz, 220V 50Hz, 240V 60Hz, and 277V 60Hz. We also make a 12/24V AC/DC version
for low voltage applications for AC or DC power.

Energy Consumption Comparison

T5HO T8 LED

Wattage 162 watts 96 watts 84 watts
Amp Draw @ 120V AC 1.35 amps 0.80 amps 0.70 amps
Amp Draw @ 220V AC 0.74 amps 0.44 amps 0.38 amps
Amp Draw @ 240V AC 0.68 amps 0.40 amps 0.35 amps
Amp Draw @ 277V AC 0.59 amps 0.35 amps 0.30 amps
Amp Draw @ 12V DC 13.50 amps 8.00 amps 7.00 amps
Amp Draw @ 24V DC 6.75 amps 4.00 amps 3.50 amps
Lamp Life Expectancy 20,000 hours 24,000 hours 50,000 hours
Operation cost per year

(12hs/day @ 12c/kWh)

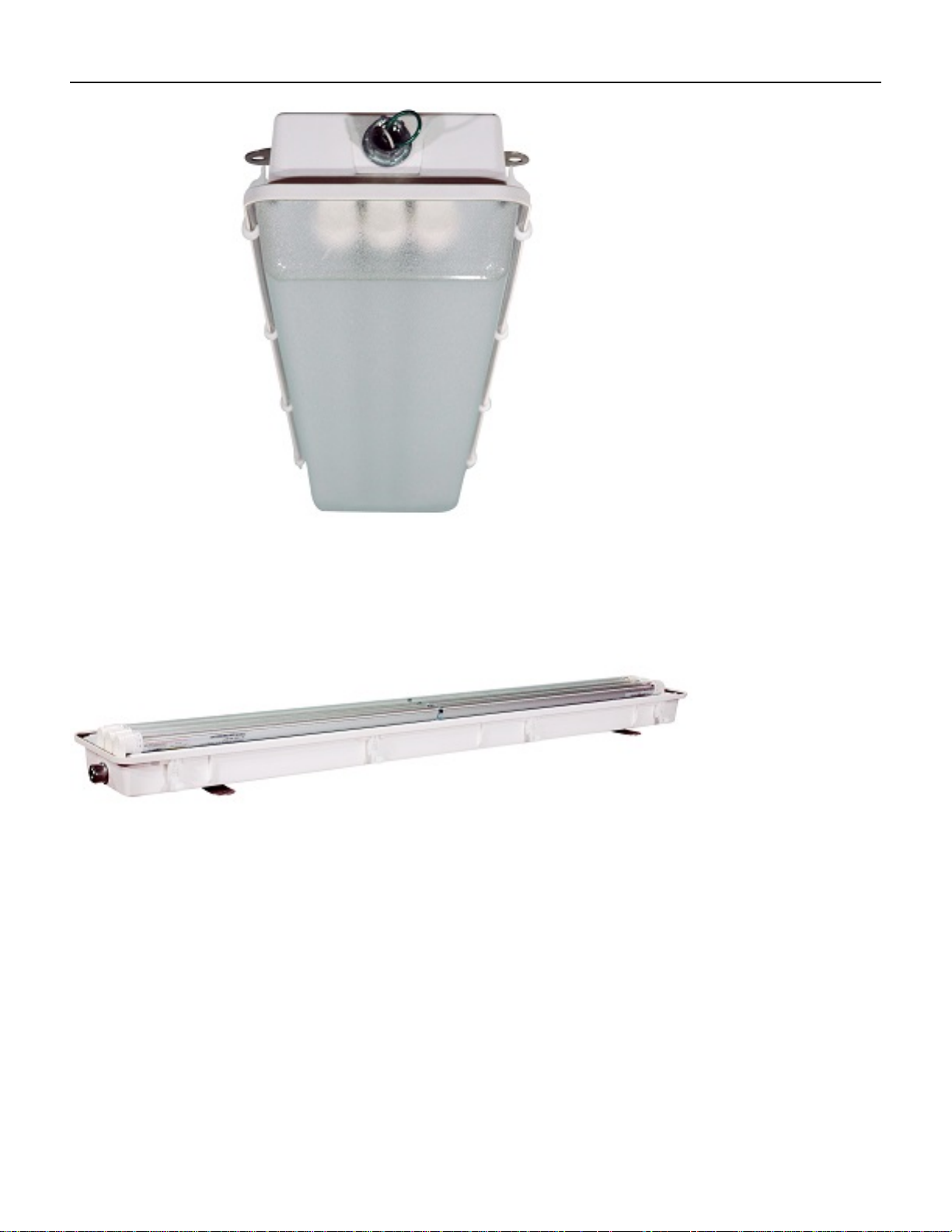

Mounting Options:

Unless otherwise specified, our standard, most popular configuration is the flange mount shown enlarged below. We also offer a pendant mount
for those needing to suspend the fixture away from the ceiling surface (i.e. suspend from pipe or conduit). Additional mounting configurations can
be customized to meet the requirements on the application. Please contact us for special mounting configurations.

Standard Flange Brackets:

Flange type stainless steel mounts attached at each end of the fixture enables it to be simply secured to any surface. The mounts provide some
shock absorbency protection while enabling the user to simply mount the fixture with the through-hole taps that protrude on each side of the
fixture. The mounting holes are 38.25” on center apart along the top of this hazardous location light. The mounting holes are 7.2” on center
across the top of the light.

Standard Suspension Mounting:

Pendant mount fixtures hang from the ceiling and are suspended by rigid pipe. Each fixture is equipped with two 3/4” NPT hubs, one on each end
of the fixture. Operators bring rigid pipe down to the threaded mounting hubs. Wiring is fed down through the rigid pipe to one of the NPT hubs
and tied in to the fixture’s lead wires, completing the electrical connection. The remaining pendant hub provides support for the opposite end of

$85.15 $50.47 $44.15

Page: 3

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

the fixture.
Suggested Applications: The HALP-48-3L-LED is designed for marine, wet, damp locations where corrosion resistant fluorescent lights are
required or are already present. This includes petrochemical facilities, lubrication pits, oil drilling rigs, crew quarters, solvent/cleaning areas, water
treatment areas, processing plants and marine loading docks.

Made in USA Quality Superior LED Benefits

1. 50,000 hour lifespan.

1. Each unit dialectically tested.

2. Fixture arrives assembled and lamped to reduce installation time and
cost. Flange type stainless steel mounts attached at each end of the
fixture enables it to be simply secured to any surface. Pendant mount
fixtures allow for suspension mounting via rigid conduit.

3. Fixture housing constructed of glass fiber reinforced polyester.

4. No ballast box. No ballast to replace. We simply run the black wire to
one end of the bulb and white wire to the other.

5. Re-lamping done via eight plastic snap locking latches which
enables the operator to remove the door and access the lamps.

6. Lamp cover-diffuser constructed of high impact acrylic for corrosion
resistance and lamp protection.

7. 3/4 inch, threaded access hole for wiring conduit.

8. Both surface or pendant mount units can be wired end to end in
series.

2. Can SAVE 50% or more on energy.

3. Qualifies retrofit projects for financial incentives, including utility
rebates, tax credits and energy loan programs.

4. Reduces energy use and prolongs life-spans of peripheral cooling
units (A/C, refrigeration)

5. 100% recyclable.

6. No toxins-lead, mercury.

7. No UV light, infrared radiation or CO2 emissions.

8. Qualifies buildings for LEED and other sustainable business
certifications.

9. Bright, even light maintains consistent color over time.

10. Instant on/off – No flickering, delays or buzzing.

11. Very good color rendering.

12. Vibration/impact resistant.

13. Significantly cooler operation.

14. Less frequent outages, higher output improves workplace safety.

Page: 4

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

Specifications / Additional Information

HALP-48-3L-LED Hazardous Area LED Offshore Light Ratings/Approvals
Listing: United States - Canada Listed for United States and Canada
Surface Mount Dimensions: 48.98"-L x 7.98"-W x 5.1"-H Class 1, Division 2, Groups A, B, C, D
Pendant Mount Dimensions: 48.98"-L x 7.21"-W x 5.43"-H UL 844
Weight:14.28 Lbs UL 1598A Marine Type (Salt water)
Voltage: Universal 120-277VAC 50/60 Hz or 12-24V AC/DC Certified to Canadian Standards
Total Watts: 84 watts (28 Watts per Lamp) Meets USCG Specifications
Total Lumens: 10,500 (3,500 per Lamp) California Title 24 Compliant
Luminous Efficacy: 125 Lumens per Watt T4 Temperature Rating
Lamp Life Expectancy: 50,000 Hours LEL Listed LED Lamps
Color Temp: 5600K, 4500K, 3000K Made in the USA
Color Rendering Index: >80 Silicone Free
Beam Angle: 150°
Lighting Configuration: Flood Pattern
Power Efficiency: 90%
Power Factor: >0.95
Ambient Operating Temp Range:-40° C to +65°C
Operating Temp Rating: T4 Rated
Minimum Operating Temp: -30°C
Maximum Case Temp: +90°C
Housing Material: Fiberglass Reinforced Polyester Housing
Lens Material: Shatter/Impact Resistant Acrylic Diffuser
Gasket Material: Neoprene Special Orders- Requirements
Mounting: Flange Type Surface Mount or Pendant Mount Contact us for special requirements
Wiring Hub: 3/4" NPT Toll Free: 1-800-369-6671
Warranty: YES- 5 Years* Intl: 1-903-498-3363
U.L Approval: U.S Certificate Canada Certificate E-mail: [email protected]

*5 year warranty replacement on this LED light (or LED bulbs for light
fixtures with removable LED bulbs). After 30 days, the customer ships
the failed LED light and/or LED bulb to Larson Electronics at their
expense. If the failure is a manufacturer defect, we will ship a new
replacement to the customer. If failure occurs within 30 days of receipt,
Larson Electronics will provide a return label via email to the customer.
When the failed light is returned, Larson Electronics will ship a new
replacement. Please click here to see our 5 Year Warranty pamphlet.

Scroll Down to Purchase-

Page: 5

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

Part #: HALP-48-3L-LED (69020)
