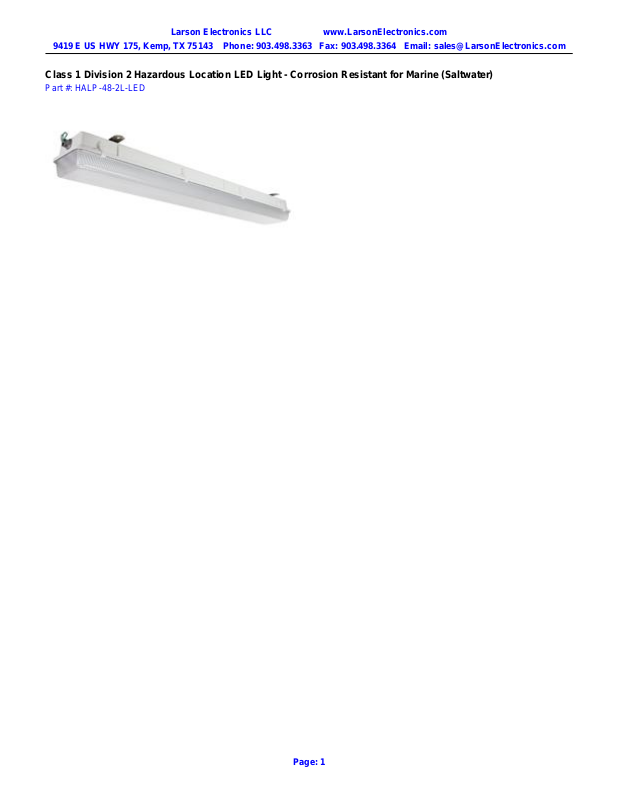

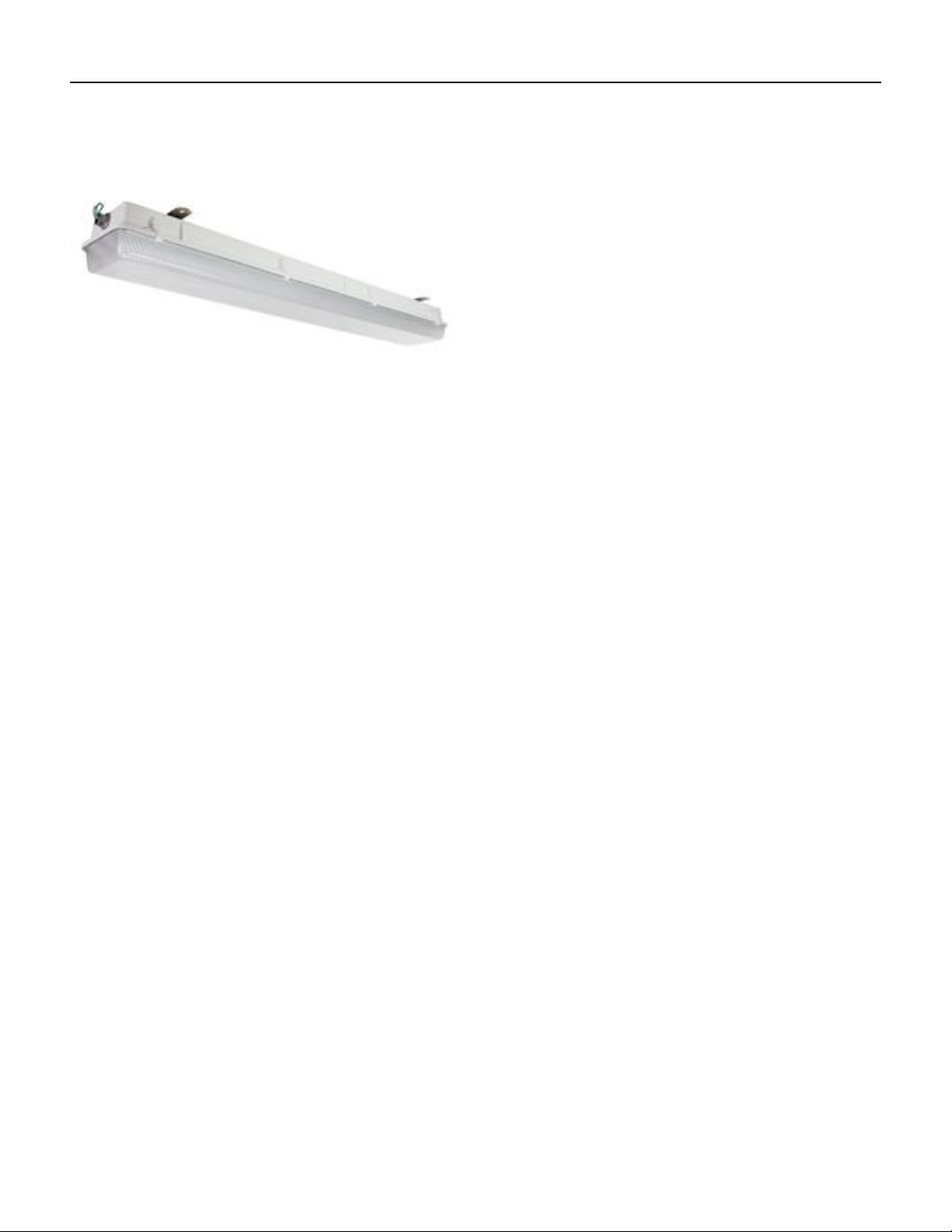

Class 1 Division 2 Hazardous Location LED Light - Corrosion Resistant for Marine (Saltwater)

Part #: HALP-48-2L-LED

Page: 1

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

Made in the USA

The Larson Electronics HALP-48-2L-LED Hazardous Area LED Light Fixture is U.S./Canada U.L. approved Class 1 Division 2 Groups A,
B, C and D, UL 1598A listed, and is specifically designed to handle the rigors of wet and corrosive marine environments. This
hazardous location LED light has a T4 temperature rating and carries a United States Coast Guard approval, making it ideal for
applications such as oil rigs, ships, offshore applications, petrochemical, manufacturing, chemical storage, and water treatment
centers.

This four foot long, two lamp LED fixture is ideal for operators seeking a top quality hazardous location light that will reduce operating costs,
improve lighting quality and reduce downtime incurred from frequent servicing intervals. The HALP-48-2L-LED hazardous area LED light fixture
is designed for use in wet areas and saltwater-marine environments where corrosion resistance is critical to equipment longevity and safety. This
Class 1 Division 2 rated fixture is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in
gasket for reliable sealing and an impact resistant acrylic diffuser. Eight corrosion resistant plastic latches secure the lamp cover to the housing
and provide a firm lock against the poured in seal to prevent drips and water intrusion.

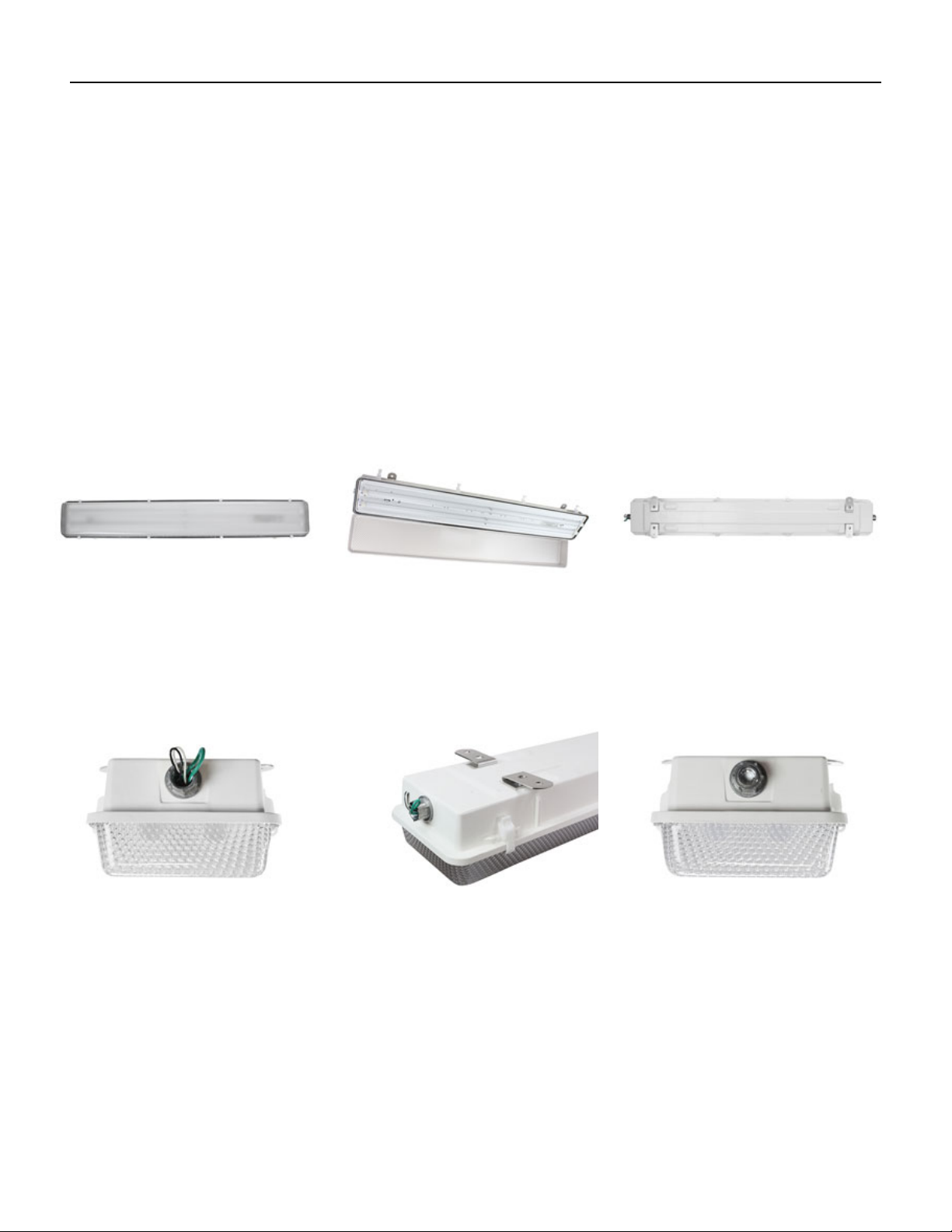

Click Photo to Enlarge Click Photo to Enlarge Click Photo to Enlarge

We now offer our second generation LED tube lamps with this fixture which have increased this hazardous location light’s performance. This two
lamp HAZLOC LED linear fixture is lighter in weight and produces more light than hazardous location fluorescent fixtures. The four foot long LED
tube design bulbs included with this unit are rated at 50,000 hours of service life, which is over twice as long as standard T8 bulbs.
The HALP-48-2L-LED is UL 844 rated and Class 1 Division II, Groups A, B, C, D approved. This fixture also carries a UL 1598A outdoor marine
rating and meets US Coast Guard specifications. This lamp offers the extreme durability, high efficiency and long lamp life of high power LEDs in
a proven hazardous location fixture design, making it a reliable and affordable lighting solution for open areas where flammable chemicals and
vapors may occasionally be present. Click here to read the NEC description for explosion proof and hazardous locations.
We have eliminated the ballast box normally associated with fluorescent fixtures which reduces overall weight and creates a slimmer unit profile.
There is no ballast in this unit and the included LEDT8-28W-V1 LED lamps have a 50,000+ hour service life, both of which result in extreme
efficiency and greatly reduced maintenance costs. The solid state design of the LED lamps give this fixture superior resistance to damage from

Page: 2

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

vibration, extremes in temperature and a lamp service life over twice that of standard fluorescent bulbs.
Unlike the glass tube design of traditional fluorescent lamps, these LED T-Style lamps have no filaments or fragile housings to break during
operation. Instead of using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate
when electric current applied and emitting light. The LED assembly is mounted to the "tube" constructed from extruded aluminum, with a
polycarbonate lens protecting the LEDs. With LED lights, there is no warm up time or cool down time before re-striking and provide instant
illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than fluorescent
lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting
diodes provides a more reliable, stable, durable, and energy efficient light source over traditional fluorescent lighting.
Unlike the glass tube design of traditional fluorescent lamps, these LED T-Style lamps have no filaments or fragile housings to break during
operation. Instead of using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate
when electric current applied and emitting light. The LED assembly is mounted to the "tube" constructed from extruded aluminum, with a
polycarbonate lens protecting the LEDs. With LED lights, there is no warm up time or cool down time before re-striking and provide instant
illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than fluorescent
lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting
diodes provides a more reliable, stable, durable, and energy efficient light source over traditional fluorescent lighting.
The 28 watt LED lamps produce 30% more illumination than standard T8 bulbs while offering lower amp draw and increased reliability. Each
lamp produces 3,500 lumens at 125 lumens per watt, for a combined 7,000 total lumen light output. A HAL-48-2L-T8 hazardous location
fluorescent light, with a combined total of 64 watts, draws 0.54 amps at 120 volts AC. This LED version of the same light, with a total of 56 watts,
draws only 0.47 amps at 120 volts AC. The HAL-48-2L-LED-G2 is universal voltage, not multi-tap, and operates on any voltage from 120V to
277V AC 50/60hz without any modifications. We also make a 12/24V AC/DC version for low voltage applications for AC or DC power.

Energy Consumption Comparison

T5HO T8 LED

Wattage 108 watts 64 watts 56 watts
Amp Draw @ 120V AC 0.90 amps 0.54 amps 0.47 amps
Amp Draw @ 220V AC 0.49 amps 0.29 amps 0.25 amps
Amp Draw @ 240V AC 0.45 amps 0.27 amps 0.23 amps
Amp Draw @ 277V AC 0.39 amps 0.24 amps 0.20 amps
Amp Draw @ 12V DC 9 amps 5.34 amps 4.67 amps
Amp Draw @ 24V DC 4.5 amps 2.67 amps 2.34 amps
Lamp Life Expectancy 20,000 hours 24,000 hours 50,000 hours
Color Temperature 5000K / 4100K 4100K 5600K
Operation cost per year

(12hs/day @ 12c/kWh)

Mounting Options:

Unless otherwise specified, our standard, most popular configuration is the flange mount shown enlarged below. We also offer a pendant mount
for those needing to suspend the fixture away from the ceiling surface (i.e. suspend from pipe or conduit). Additional mounting configurations can
be customized to meet the requirements on the application. Please contact us for special mounting configurations.

$56.77 $33.64 $29.43

Page: 3

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

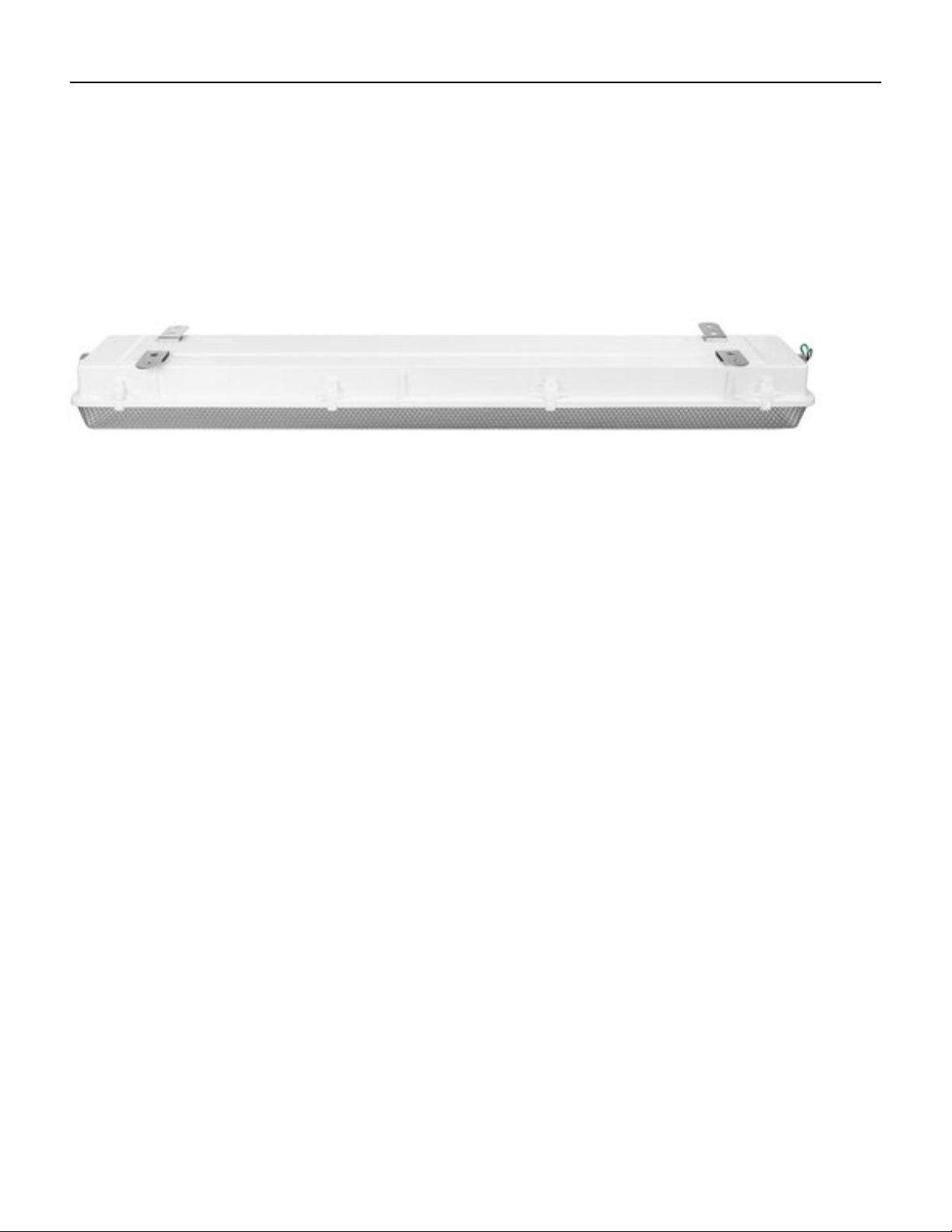

Surface Mount (Standard)
Click Photo to Enlarge

Standard Flange Brackets:

Flange type stainless steel mounts attached at each end of the fixture enables it to be simply secured to any surface. The mounts provide some
shock absorbency protection while enabling the user to simply mount the fixture with the through-hole taps that protrude on each side of the
fixture. The mounting holes are 38.25” on center apart along the top of this hazardous location light. The mounting holes are 7.2” on center
across the top of the light.

Page: 4

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

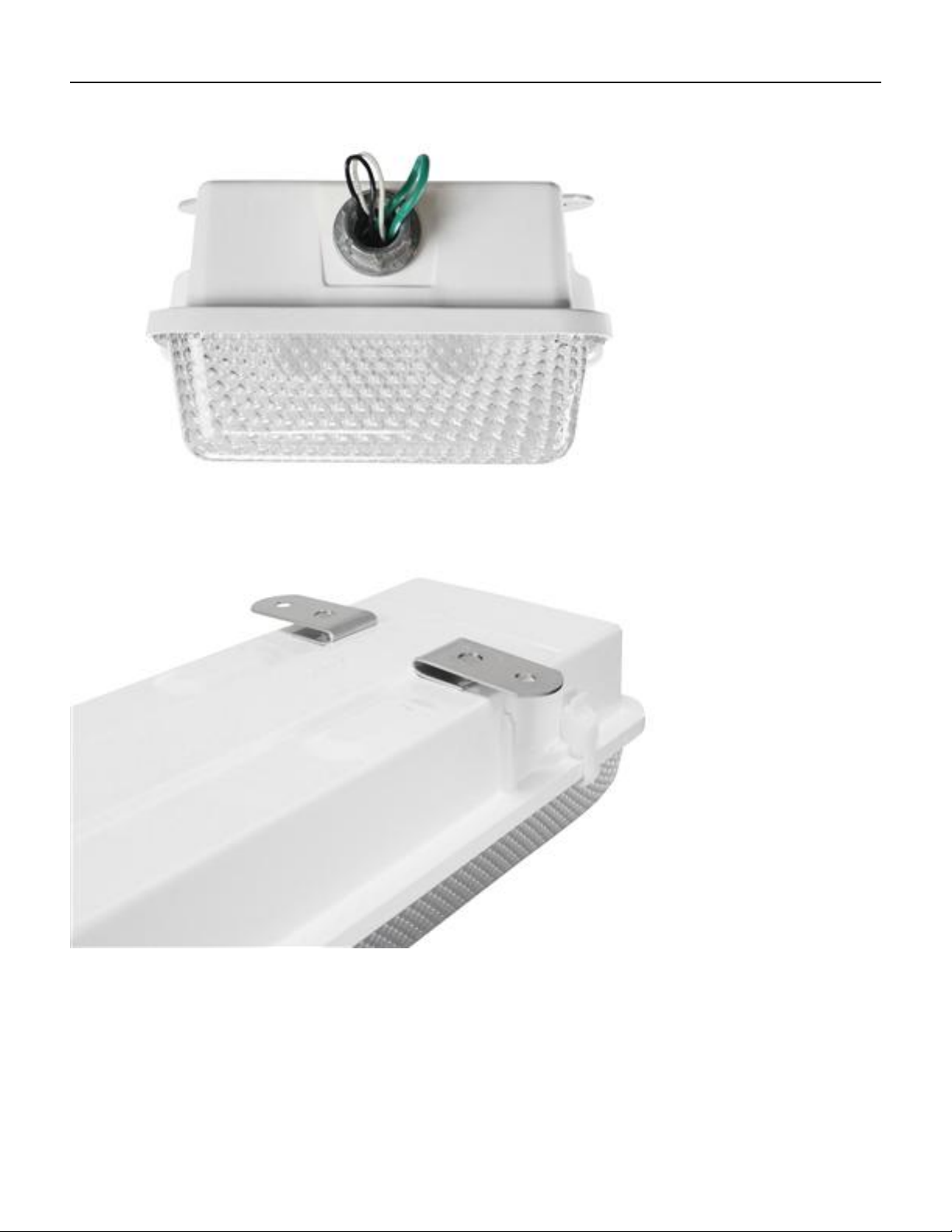

Pendant Mount (Optional)
Click Photo to Enlarge

Standard Suspension Mounting:

Pendant mount fixtures hang from the ceiling and are suspended by rigid pipe. Each fixture is equipped with two 3/4” NPT hubs, one on each end
of the fixture. Operators bring rigid pipe down to the threaded mounting hubs. Wiring is fed down through the rigid pipe to one of the NPT hubs
and tied in to the fixture’s lead wires, completing the electrical connection. The remaining pendant hub provides support for the opposite end of
the fixture.

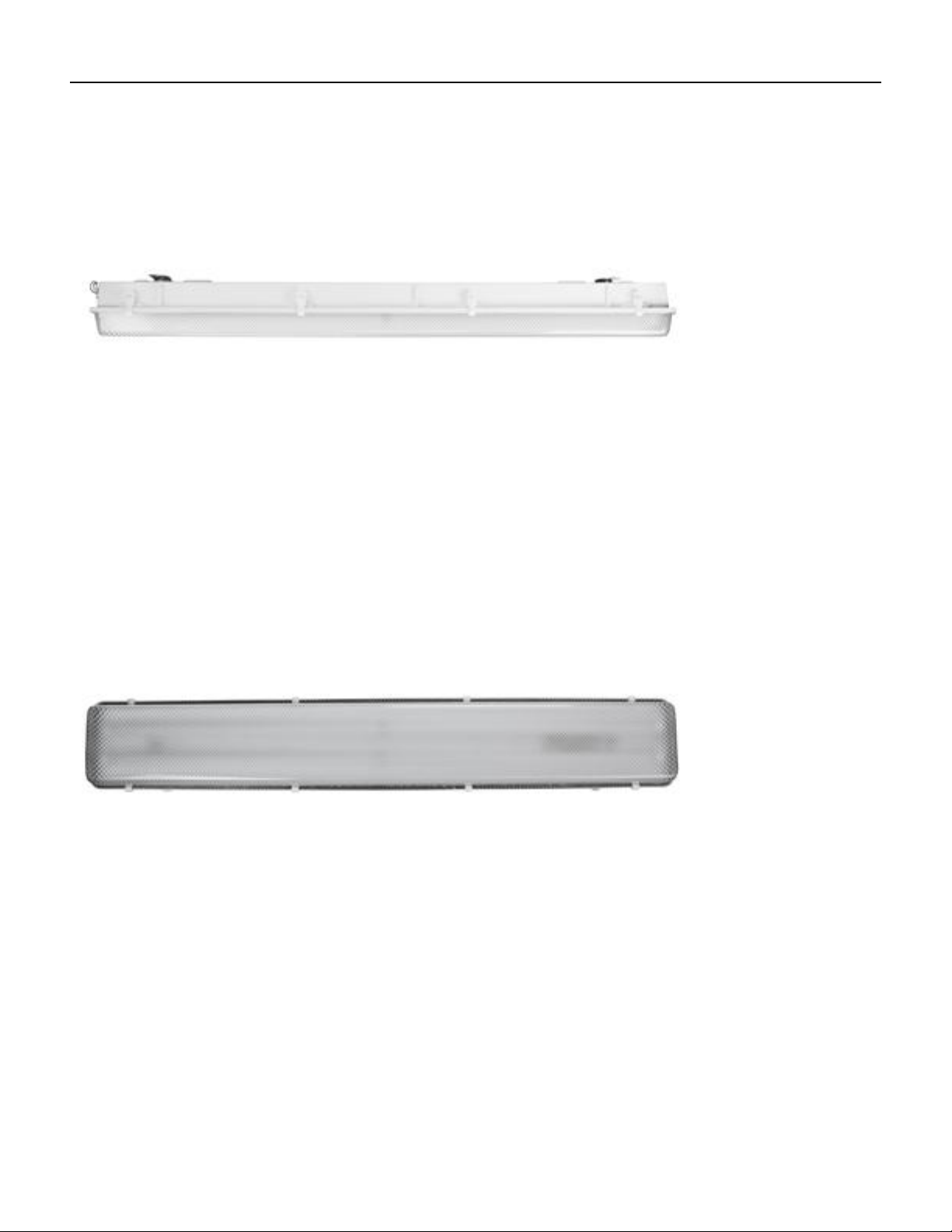

Suggested Applications: The HALP-48-2L-LED is designed for marine, wet, damp locations where corrosion resistant fluorescent lights are
required or are already present. This includes petrochemical facilities, lubrication pits, oil drilling rigs, crew quarters, solvent/cleaning areas, water
treatment areas, processing plants and marine loading docks.

Made in USA Quality Superior LED Benefits

Page: 5

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

1. 50,000 hour lifespan.

2. Can SAVE 50% or more on energy.

1. Each unit dialectrically tested.

2. Fixture arrives assembled and lamped to reduce installation time and
cost. Flange type stainless steel mounts attached at each end of the
fixture enables it to be simply secured to any surface.

3. Fixture housing constructed of glass fiber reinforced polyester.

4. No ballast box. No ballast to replace. We simply run the black wire to
one end of the bulb and white wire to the other.

5. Re-lamping done via 6 stainless steel snap locking latches which
enables the operator to remove the door and access the lamps.

6. Lamp cover-diffuser constructed of high impact acrylic for corrosion
resistance and lamp protection.

7. 3/4 inch, threaded access hole for wiring conduit.

3. Qualifies retrofit projects for financial incentives, including utility
rebates, tax credits and energy loan programs.

4. Reduces energy use and prolongs life-spans of peripheral cooling
units (A/C, refrigeration)

5. 100% recyclable.

6. No toxins-lead, mercury.

7. No UV light, infrared radiation or CO2 emissions.

8. Qualifies buildings for LEED and other sustainable business
certifications.

9. Bright, even light maintains consistent color over time.

10. Instant on/off – No flickering, delays or buzzing.

11. Very good color rendering.

12. Vibration/impact resistant.

13. Significantly cooler operation.

14. Less frequent outages, higher output improves workplace safety.

Page: 6

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

Specifications / Additional Information

HALP-48-2L-LED Hazardous Area LED Offshore Light U.L. Ratings
UL Listing: United States - Canada Class 1 Division 2, Groups A, B, C, D
Dimensions: W-8.25" x L-52" x H-7" UL 844
Weight:8 Lbs UL 1598A Marine Type (Salt water)
Total Watts: 56 watts (28 Watts Per Lamp) California Title 24 Compliant
Total Lumens: 7,000 (3,500 Per Lamp)
Voltage: Universal 120-277VAC 50/60 Hz or 12-24V AC/DC T4A Temperature Rated
Lamp Life Expectancy: 50,000 Hours
Luminous Efficacy: 120 Lumens per Watt
Temp Range: -30°C to +85°C
Beam Angle: 150°
Color Temp: 5600K or 4500K
Minimum Operating Temp: -30 C
Maximum Case Temp: 90 C Special Orders- Requirements
Mounting: Flange Type Surface Mount or Pendant Mount Contact us for special requirements
Wiring Hub: 3/4 inch threaded Toll Free: 1-800-369-6671
Warranty: YES- 3 Years* Intl: 1-903-498-3363
U.L Approval: U.S Certificate Canada Certificate E-mail: [email protected]

*3 year warranty replacement on this LED light (or LED bulbs for light
fixtures with removable LED bulbs). After 30 days, the customer ships
the failed LED light and/or LED bulb to Larson Electronics at their
expense. If the failure is a manufacturer defect, we will ship a new
replacement to the customer. If failure occurs within 30 days of receipt,
Larson Electronics will provide a return label via email to the customer.
When the failed light is returned, Larson Electronics will ship a new
replacement.

Scroll Down to Purchase-

Part #: HALP-48-2L-LED (46918)
