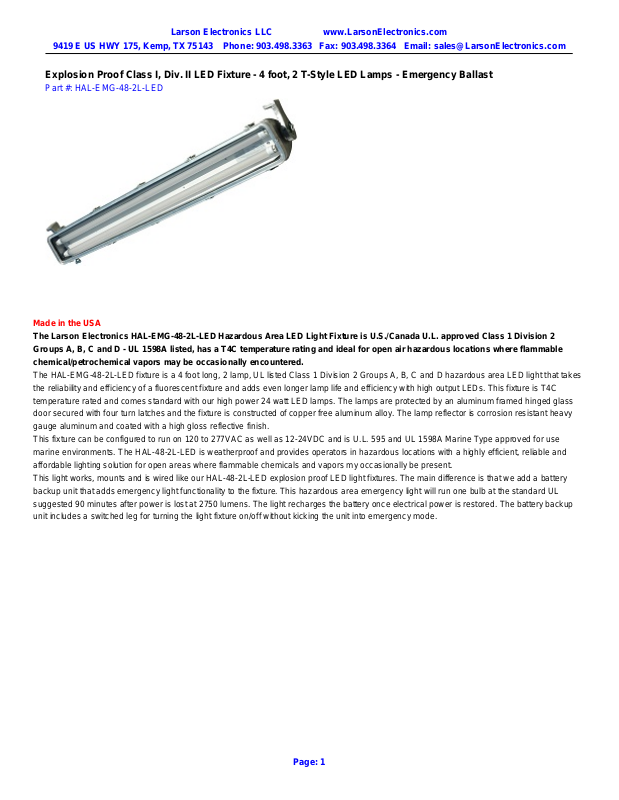

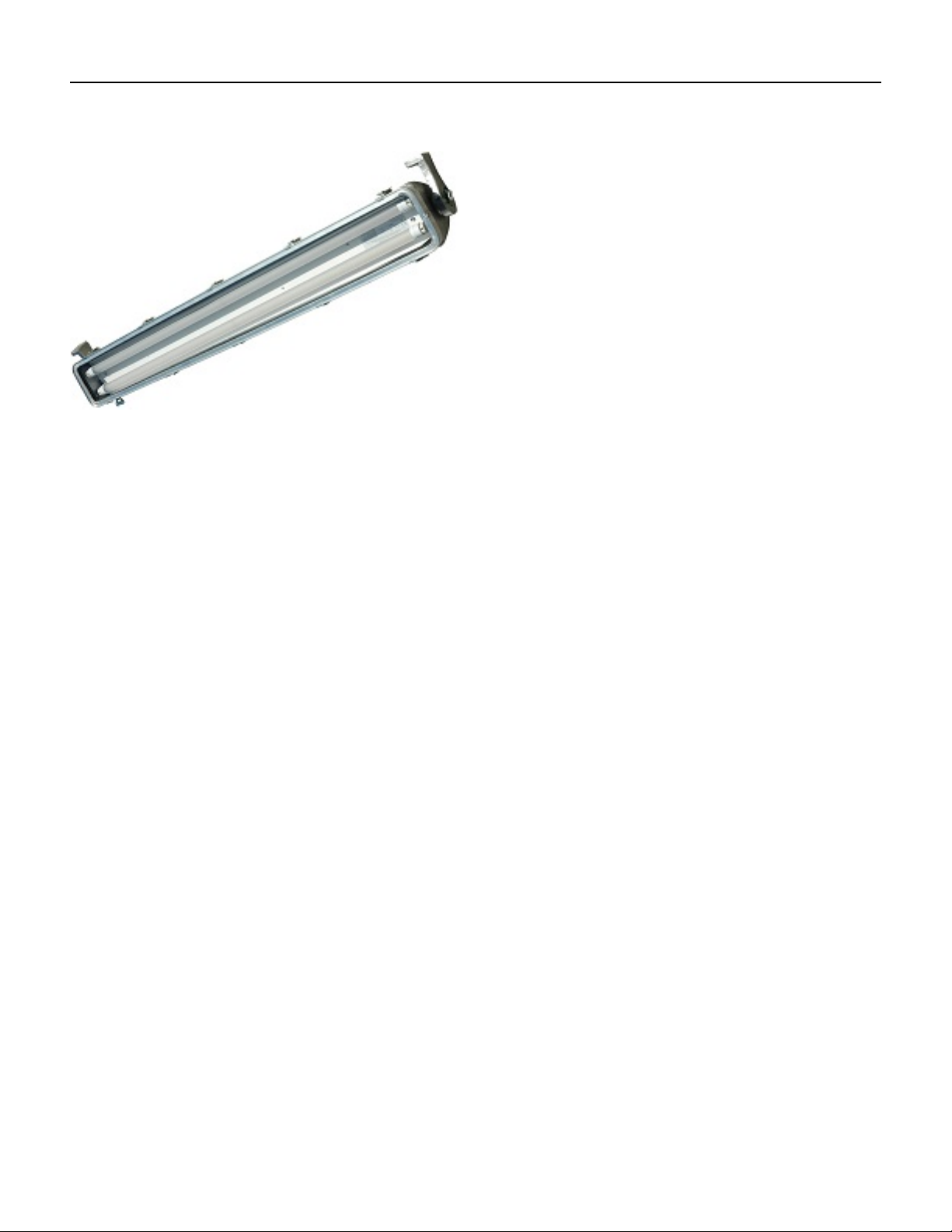

Explosion Proof Class I, Div. II LED Fixture - 4 foot, 2 T-Style LED Lamps - Emergency Ballast

Part #: HAL-EMG-48-2L-LED

Made in the USA

The Larson Electronics HAL-EMG-48-2L-LED Hazardous Area LED Light Fixture is U.S./Canada U.L. approved Class 1 Division 2
Groups A, B, C and D - UL 1598A listed, has a T4C temperature rating and ideal for open air hazardous locations where flammable
chemical/petrochemical vapors may be occasionally encountered.

The HAL-EMG-48-2L-LED fixture is a 4 foot long, 2 lamp, UL listed Class 1 Division 2 Groups A, B, C and D hazardous area LED light that takes
the reliability and efficiency of a fluorescent fixture and adds even longer lamp life and efficiency with high output LEDs. This fixture is T4C
temperature rated and comes standard with our high power 24 watt LED lamps. The lamps are protected by an aluminum framed hinged glass
door secured with four turn latches and the fixture is constructed of copper free aluminum alloy. The lamp reflector is corrosion resistant heavy
gauge aluminum and coated with a high gloss reflective finish.
This fixture can be configured to run on 120 to 277VAC as well as 12-24VDC and is U.L. 595 and UL 1598A Marine Type approved for use
marine environments. The HAL-48-2L-LED is weatherproof and provides operators in hazardous locations with a highly efficient, reliable and
affordable lighting solution for open areas where flammable chemicals and vapors my occasionally be present.
This light works, mounts and is wired like our HAL-48-2L-LED explosion proof LED light fixtures. The main difference is that we add a battery
backup unit that adds emergency light functionality to the fixture. This hazardous area emergency light will run one bulb at the standard UL
suggested 90 minutes after power is lost at 2750 lumens. The light recharges the battery once electrical power is restored. The battery backup
unit includes a switched leg for turning the light fixture on/off without kicking the unit into emergency mode.

Page: 1

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

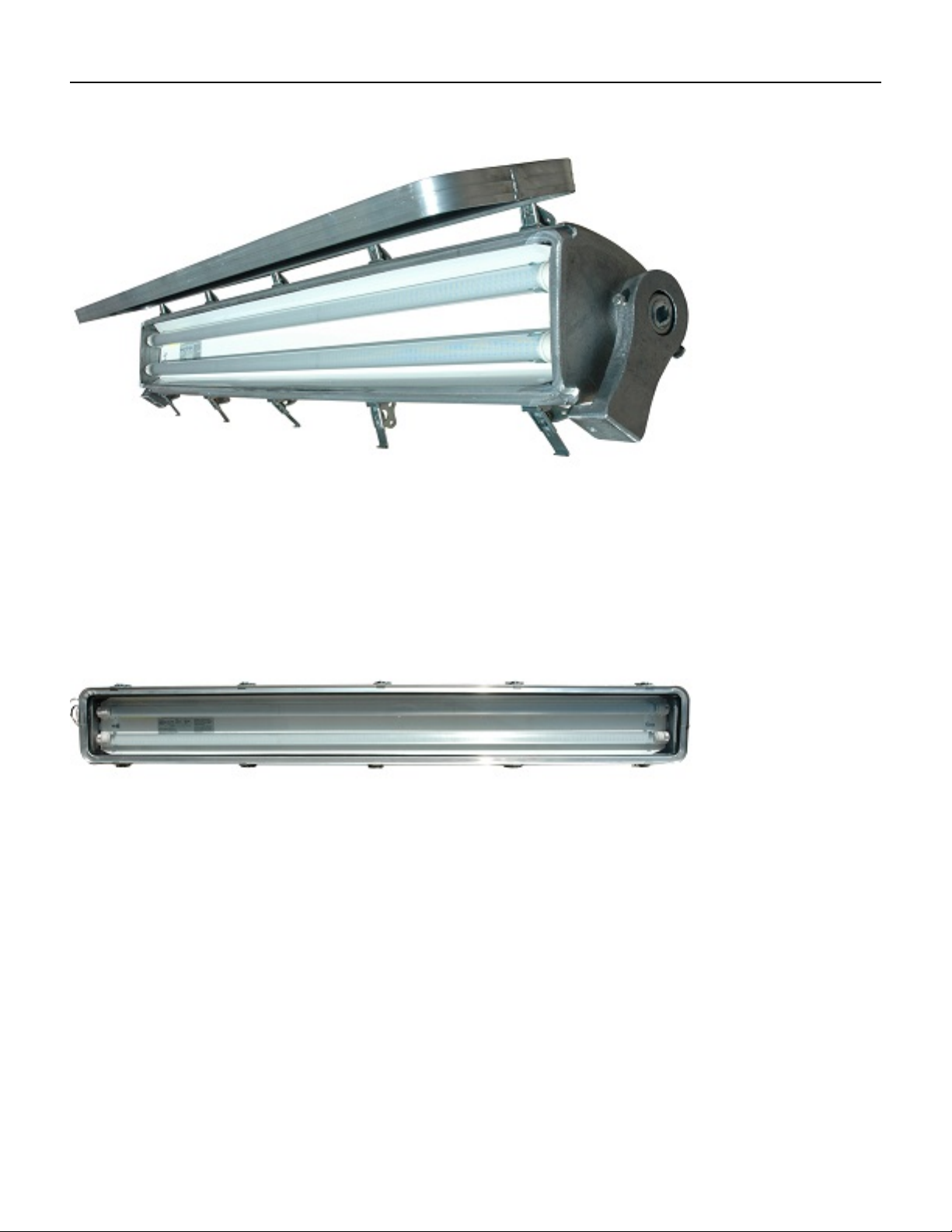

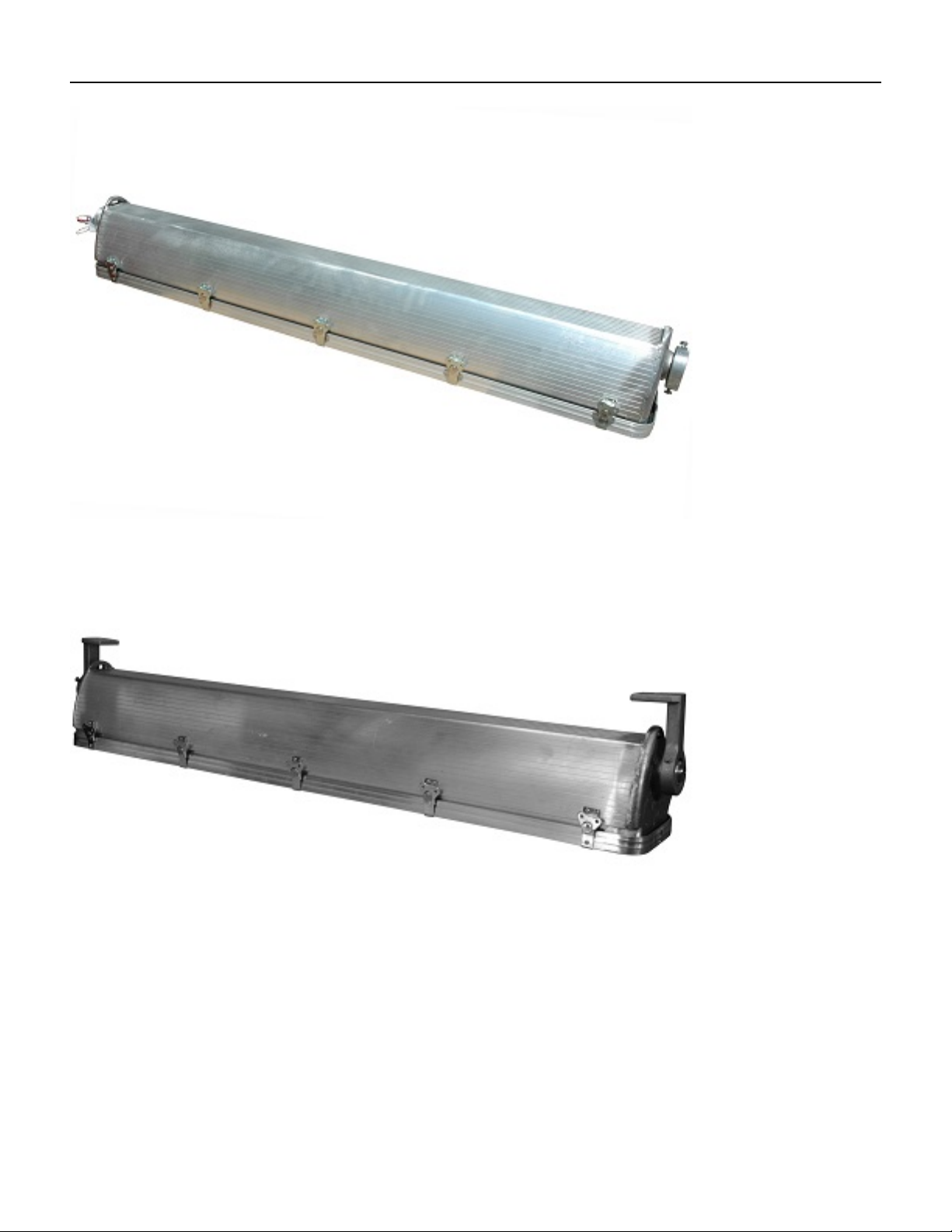

Click Photo to Enlarge Click Photo to Enlarge Click Photo to Enlarge

Click Photo to Enlarge Click Photo to Enlarge Click Photo to Enlarge

Page: 2

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

We have eliminated the ballast normally associated with fluorescent fixtures which reduces overall weight, increases lamp life to an extreme
50,000 hours and helps this LED fixture maintain a T-4C temperature rating. The solid state design of the included LED lamps give this fixture
superior resistance to damage from vibrations and extremes in temperature as well as a lamp service life over twice that of standard T5-bulbs.
The 24 watt LED lamps produce more illumination than standard T5 bulbs, but draw only 1/3rd of the current. The current generation of Larson
Electronics LED T-series style bulbs produce 15% more light than standard T5 bulbs.
This fixture is multi-voltage capable (not multi-tap) and works on the following voltages: 120 Volt 60 HZ, 220 Volt 50 HZ, 240 Volt 60 HZ, 277
Volts 60 HZ. We also make a 12-24V DC version for low voltage applications (-LV suffix). Our HAL-EMG-48-2L-LED light fixture is both U.S. and
Canada U.L. approved.

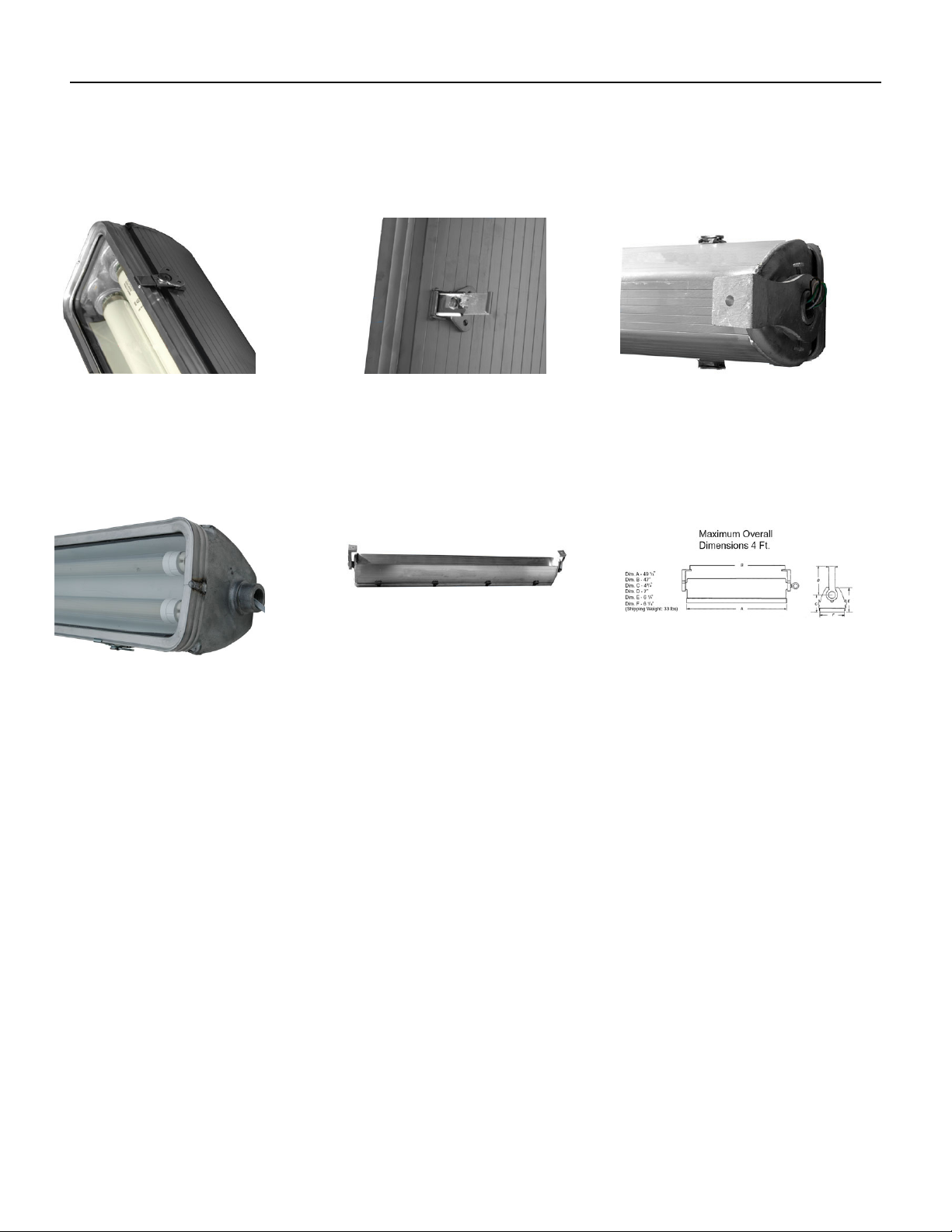

Standard Surface Mount Brackets: Each L bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is
set by tightening two cap screws on either side of the bracket. The cap screws act as a set screw. The bracket itself is mounted via a single bolt
hole at the top the bracket. There are two brackets, one on each end of the light. Once the brackets are mounted to a surface (ceiling, floor or
wall), the light fixture can be removed from the brackets by loosening the cap screws that hold the bracket to the mounting peg. Mounting
brackets are removable. A single through hole enables the operator to install the light to any surface.
A sliding bracket mount is available so operators can retrofit this LED light fixture to use the pre-existing mounting holes from other fluorescent
fixtures. Contact us for the sliding bracket option.
Suggested Applications: Aircraft maintenance, Oil drilling rigs, Refineries, Solvent and cleaning areas, Gas processing plants, Chemical
manufacturing, Waste treatment plants, Gas processing plants.

Made in USA Quality Superior LED Benefits

1. 50,000 hour lifespan.

2. Can SAVE 50% or more on energy.

1. Each unit dielectrically tested.

2. Fixture arrives assembled and lamped to reduce installation time and
cost. Adjustable mounting brackets enable the operator to choose any
mounting angle for the fixture, where other models may only offer one
or three choices.

3. Fixture constructed of extruded corrosion resistant copper free
aluminum alloy.

4. Relamping done via 4 turn latches, which enable the operator to
unlatch the hinged door and access the lamps.

5. Heavy gauge extruded aluminum reflectors with high gloss reflective
finish. Resists dents and corrosion.

6. 3/4 inch, threaded access hole for wiring conduit.

7. Units can be wired end to end in series.

3. Qualifies retrofit projects for financial incentives, including utility
rebates, tax credits and energy loan programs.

4. Reduces energy use and prolongs life-spans of peripheral cooling
units (A/C, refrigeration)

5. 100% recyclable.

6. No toxins-lead, mercury.

7. No UV light, infrared radiation or CO2 emissions.

8. Qualifies buildings for LEED and other sustainable business
certifications.

9. Bright, even light maintains consistent color over time.

10. Instant on/off – No flickering, delays or buzzing.

11. Very good color rendering.

12. Vibration/impact resistant.

13. Significantly cooler operation.

14. Less frequent outages, higher output improves workplace safety.

Page: 3

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

Specifications / Additional Information

HAL-EMG-48-2L-LED Hazardous Area U.L. Ratings
UL Listing: United States - Canada Class 1 Division 2, Groups A, B, C and D
Lamp Type: LED UL 595 Outdoor Marine Type (Saltwater)
Dimensions: W-7" L-49 3/4" H-6 1/8" UL 1598A Marine Type
Weight: 33 Lbs Switch Leg for Powering Light On/Off
Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz
Low Voltage (Optional): 12-24V DC
Total Watts: 48 watts
Total Lumens: 4,320
Luminous Efficacy: 90 Lm/W
LED Lamp Life Expectancy: 50,000 Hours
Color Temp: 5300K
Beam Angle: 150°
Ambient Operating Temp Range:-30°C to +70°C
Operating Temp Range: T4C rated
Mounting: Bracket Standard, Sliding Bracket Optional Special Orders- Requirements
Wiring Hub: 3/4 inch threaded Contact us for special requirements
Battery Backup: 90 minute runtime at 900 lumens Toll Free: 1-800-369-6671
Warranty: YES-3 Years* Intl: 1-903-498-3363
U.L Approval: U.S Certificate Canada Certificate E-mail: [email protected]

*3 year warranty replacement on this LED light (or LED bulbs for light
fixtures with removable LED bulbs). After 30 days, the customer ships
the failed LED light and/or LED bulb to Larson Electronics at their
expense. If the failure is a manufacturer defect, we will ship a new
replacement to the customer. If failure occurs within 30 days of receipt,
Larson Electronics will provide a return label via email to the customer.
When the failed light is returned, Larson Electronics will ship a new
replacement. Please click here to see our 3 Year Warranty pamphlet.

Scroll Down to Purchase- Please note: 2 day lead time on this light.
