Hazardous Location Emergency LED Fixture - 2 foot, 2 lamp - Class I Div II - Failsafe Battery Backup

Part #: HAL-EMG-24-2L-LED

Made in the USA

The Larson Electronics HAL-24-2L-LED Hazardous Area LED Light Fixture is U.S./Canada U.L. approved Class 1 Division 2 Groups A,
B, C and D - UL 1598A listed, has a T4A temperature rating and ideal for open air hazardous locations where flammable
chemical/petrochemical vapors may be occasionally encountered.

The HAL-24-2L-LED fixture is a 2 foot long, 2 lamp, UL listed Class 1 Division 2 Groups A, B, C and D hazardous area LED light and a good
choice for use in applications where space is at a premium. This fixture is T4A temperature rated and comes standard with our high power and
efficiency 14 watt LED lamps. The lamps are protected by an aluminum framed hinged glass door secured with four turn latches and the fixture is
constructed of copper free aluminum alloy. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss
reflective finish. This fixture is multi-voltage capable and is U.L. 595 and UL 1598A Marine Type approved for use marine environments. The HAL

-24-2L-LED provides operators in hazardous locations with a highly efficient, reliable and affordable lighting solution for open areas where
flammable chemicals and vapors may occasionally be present.

Page: 1

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

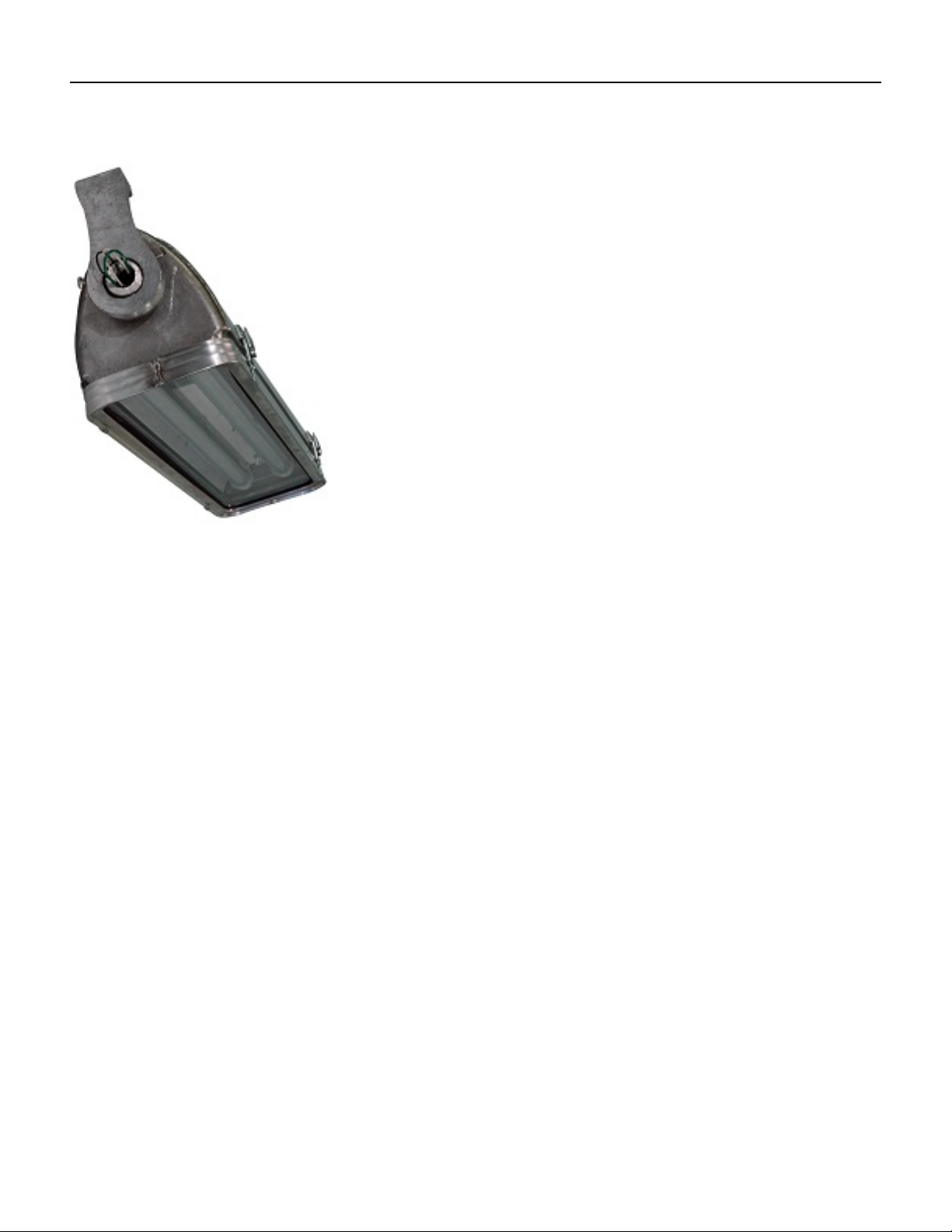

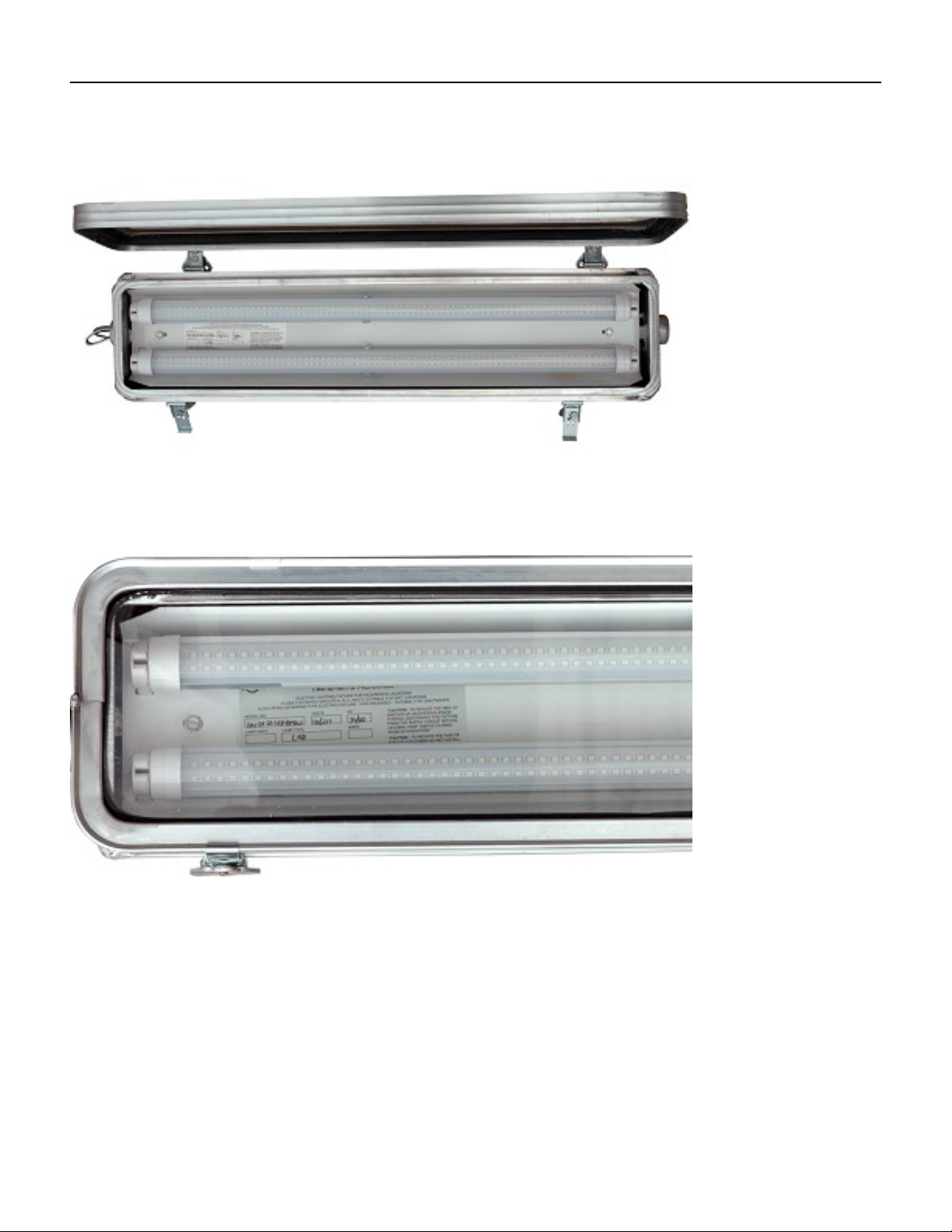

Click Photo to Enlarge Click Photo to Enlarge Click Photo to Enlarge
