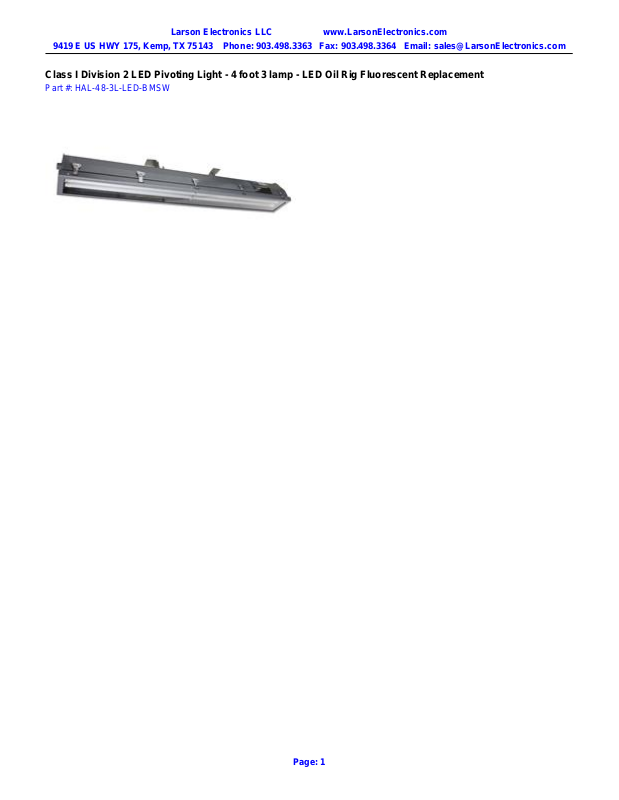

Class I Division 2 LED Pivoting Light - 4 foot 3 lamp - LED Oil Rig Fluorescent Replacement

Part #: HAL-48-3L-LED-BMSW

Page: 1

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

Made in the USA

The Larson Electronics HAL-48-3L-LED-BMSW Hazardous Area LED Light Fixture is U.S./Canada approved Class I Division 2 Groups
A, B, C and D - UL 1598A listed, has a T4A temperature rating and ideal for hazardous locations where flammable
chemical/petrochemical vapors may be occasionally encountered.

The HAL-48-3L-LED-BMSW fixture is a 4 foot long, 3 lamp, Class I Division 2 Groups A, B, C and D hazardous area LED light that takes the
reliability and efficiency of a fluorescent fixture and adds even longer lamp life and efficiency with high output LEDs. This fixture is T4A
temperature rated and comes standard with three of our high power 28 watt LED lamps. The lamps are protected by a powder coated aluminum
frame and shatter and heat resistant clear acrylic lens secured with ten zinc coated steel draw latches.
The fixture is constructed of copper free aluminum alloy and powder coated. The lamp reflector is corrosion resistant heavy gauge aluminum
and coated with a high gloss reflective finish. This fixture can be configured to run on 120 to 277VAC as well as 12-24V AC/DC and is UL 844
and UL 1598A Marine Type approved for use marine environments. The HAL-48-3L-LED-BMSW is weatherproof and provides operators in
hazardous locations with a highly efficient, reliable and affordable lighting solution for open areas where flammable chemicals and vapors may
occasionally be present.
Click here to see the new HAL-48-2L-ITG-LED-BMSW Class I Division 2 integrated LED fixture producing 19,200 lumens.

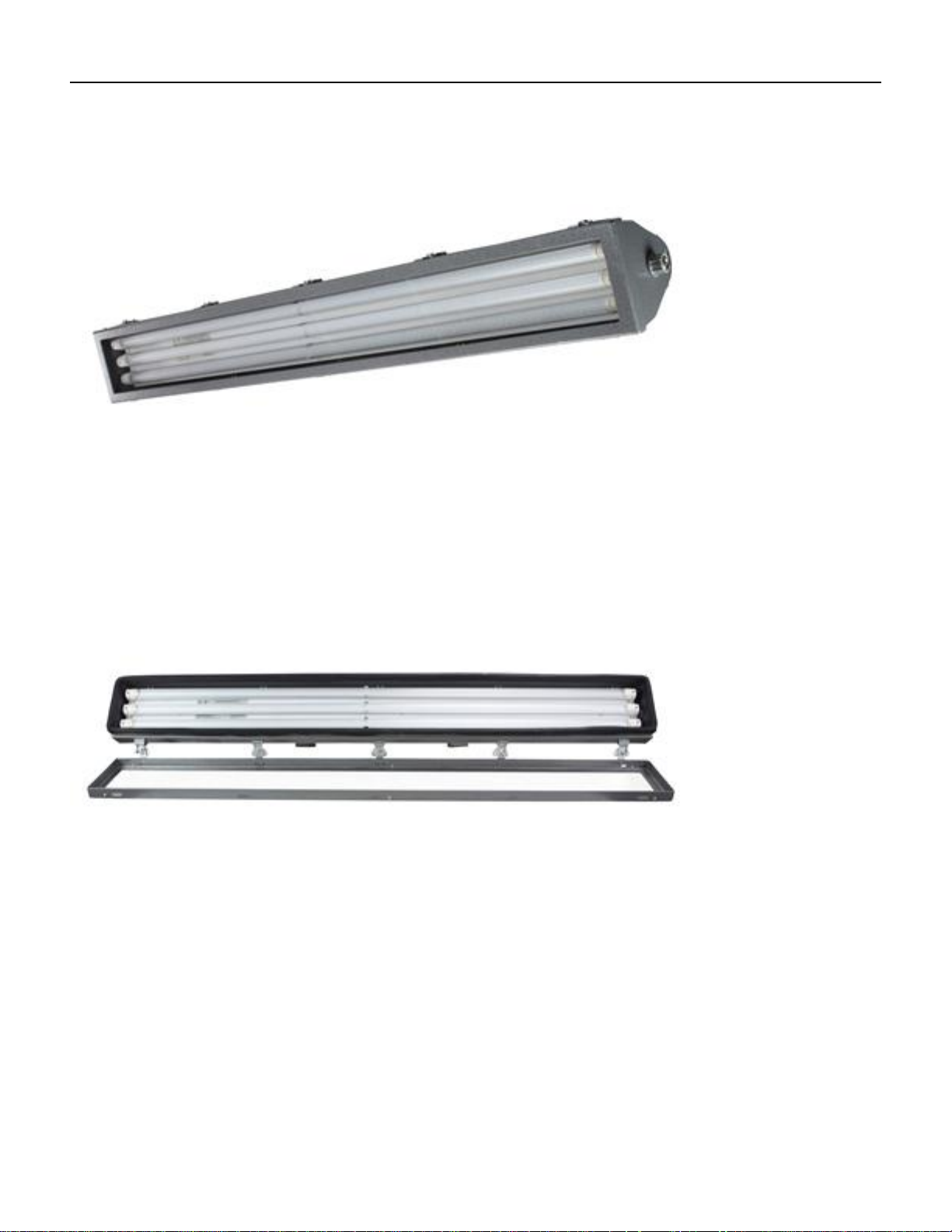

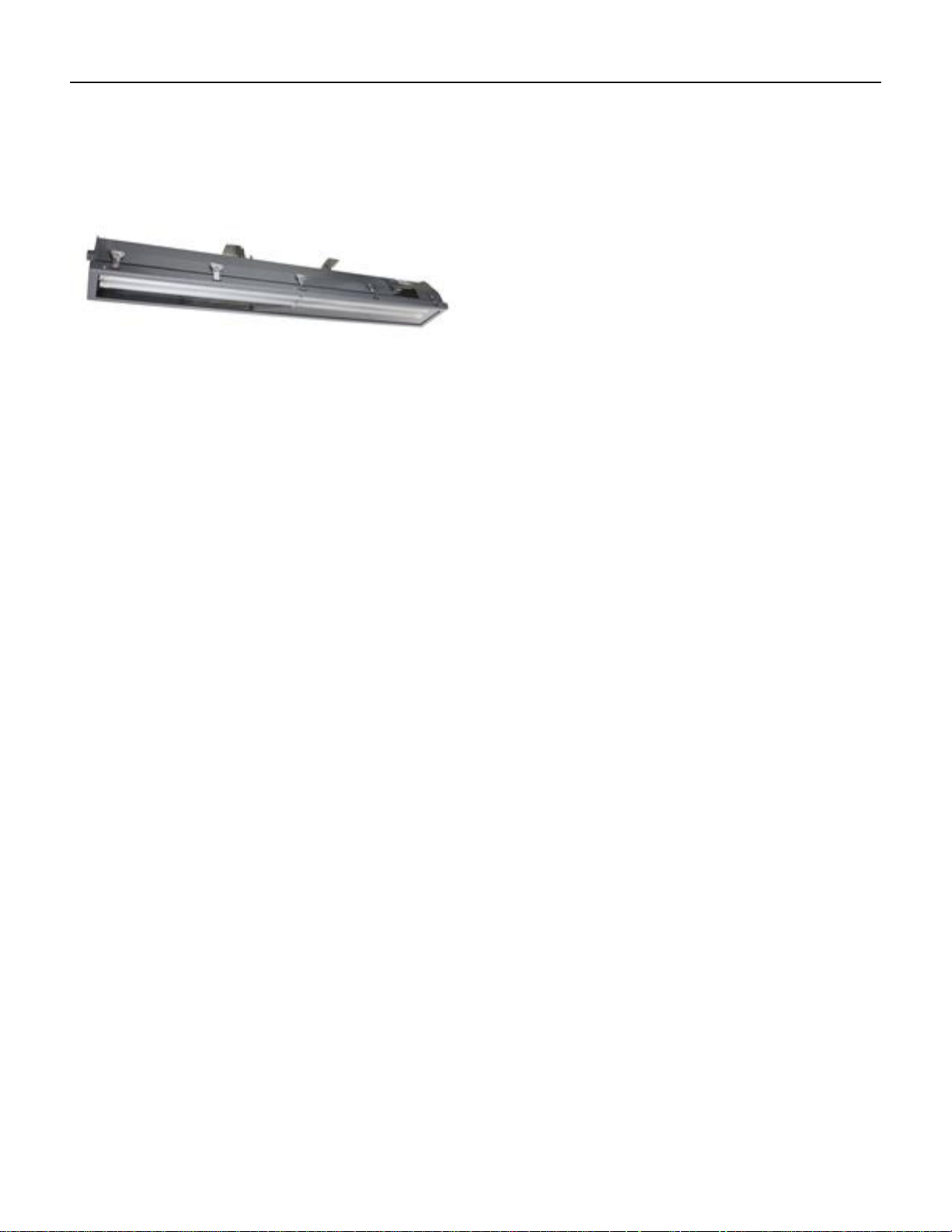

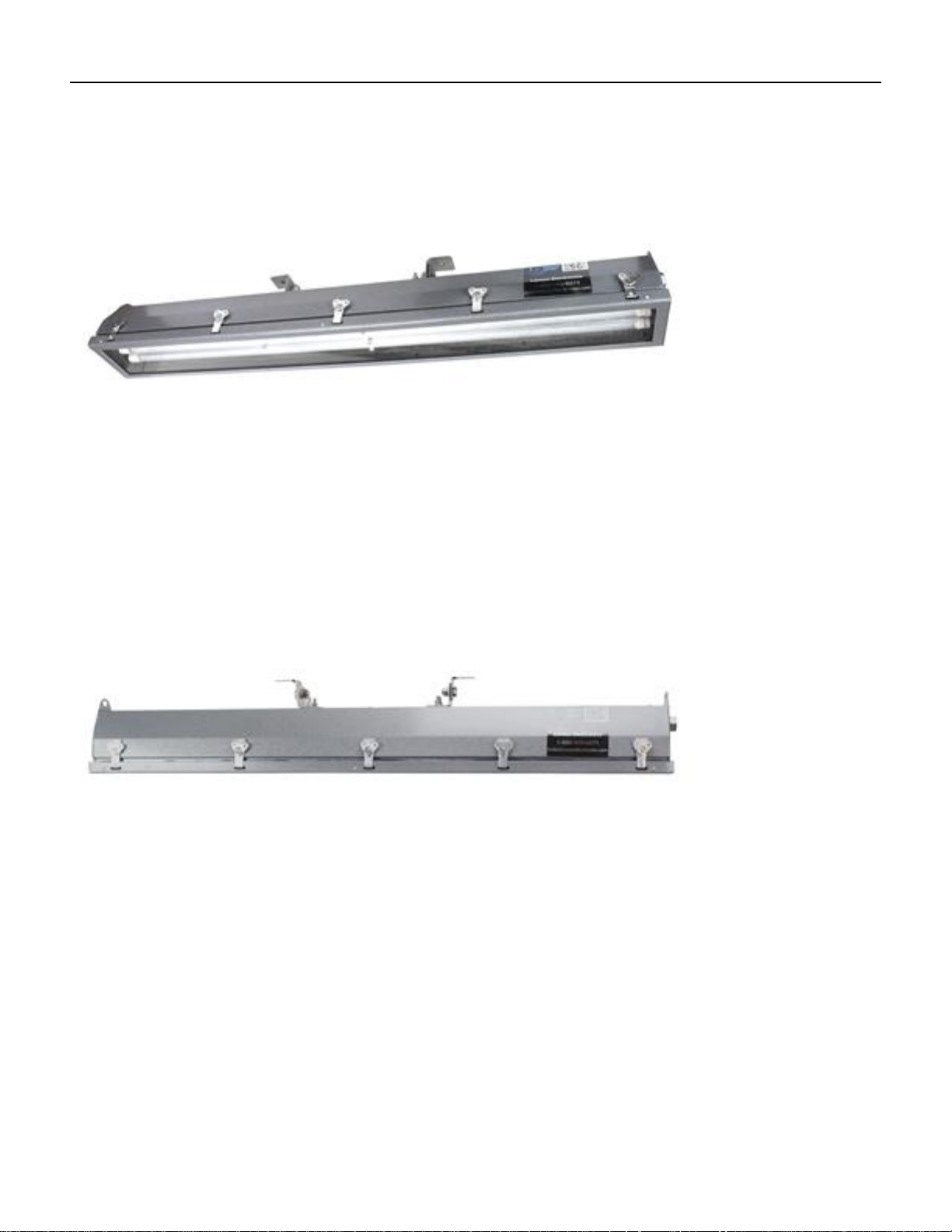

Click Photo to Enlarge Click Photo to Enlarge Click Photo to Enlarge

We have eliminated the ballast normally associated with fluorescent fixtures which reduces overall weight and overall complexity of installation.
There is no ballast in this unit and the included LEDT8-28W-V1 LED lamps have a 50,000+ hour service life, both of which result in extreme
efficiency and greatly reduced maintenance costs. The solid state design of the LED lamps give this fixture superior resistance to damage from
vibration, extremes in temperature and a lamp service life over twice that of standard fluorescent bulbs.
Unlike the glass tube design of traditional fluorescent lamps, these LED T-Style lamps have no filaments or fragile housings to break during
operation. Instead of using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate
when electric current applied and emitting light. The LED assembly is mounted to the "tube" constructed from extruded aluminum, with a

Page: 2

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

polycarbonate lens protecting the LEDs. With LED lights, there is no warm up time or cool down time before re-striking and provide instant
illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than fluorescent
lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting
diodes provides a more reliable, stable, durable, and energy efficient light source over traditional fluorescent lighting.
The 28 watt LED lamps produce 30% more illumination than standard T8 bulbs while offering lower amp draw and increased reliability. Each
lamp produces 3,500 lumens at 125 lumens per watt, for a combined 10,500 total lumen light output. An HAL-48-3L-BMSW-T8 hazardous
location fluorescent light, with a combined total of 96 watts, draws 0.8 amps at 120 volts AC. This LED version of the same light, with a total of
84 watts, draws only 0.7 amps at 120 volts AC. This results in a lower amp draw while still providing increased reliability and light output.
The HAL-48-3L-LED-BMSW is universal voltage, not multi-tap, and operates on any voltage from 120V to 277V AC 50/60hz without any
modifications. This includes commonly found voltages such as 120V 60Hz, 220V 50Hz, 240V 60Hz, and 277V 60Hz. We also make a 12/24V
AC/DC version for low voltage applications for AC or DC power.

Energy Consumption Comparison

T5HO T8 LED

Wattage 162 watts 96 watts 84 watts
Amp Draw @ 120V AC 1.35 amps 0.80 amps 0.70 amps
Amp Draw @ 220V AC 0.74 amps 0.44 amps 0.38 amps
Amp Draw @ 240V AC 0.68 amps 0.40 amps 0.35 amps
Amp Draw @ 277V AC 0.59 amps 0.35 amps 0.30 amps

Amp Draw @ 12V DC

Amp Draw @ 24V DC 6.75 amps 4.00 amps
Lamp Life Expectancy 20,000 hours 24,000 hours 50,000 hours

Color Temperature 5000K / 4100K 4100K 4500K / 5600K
Operation cost per year

(12hs/day @ 12c/kWh)

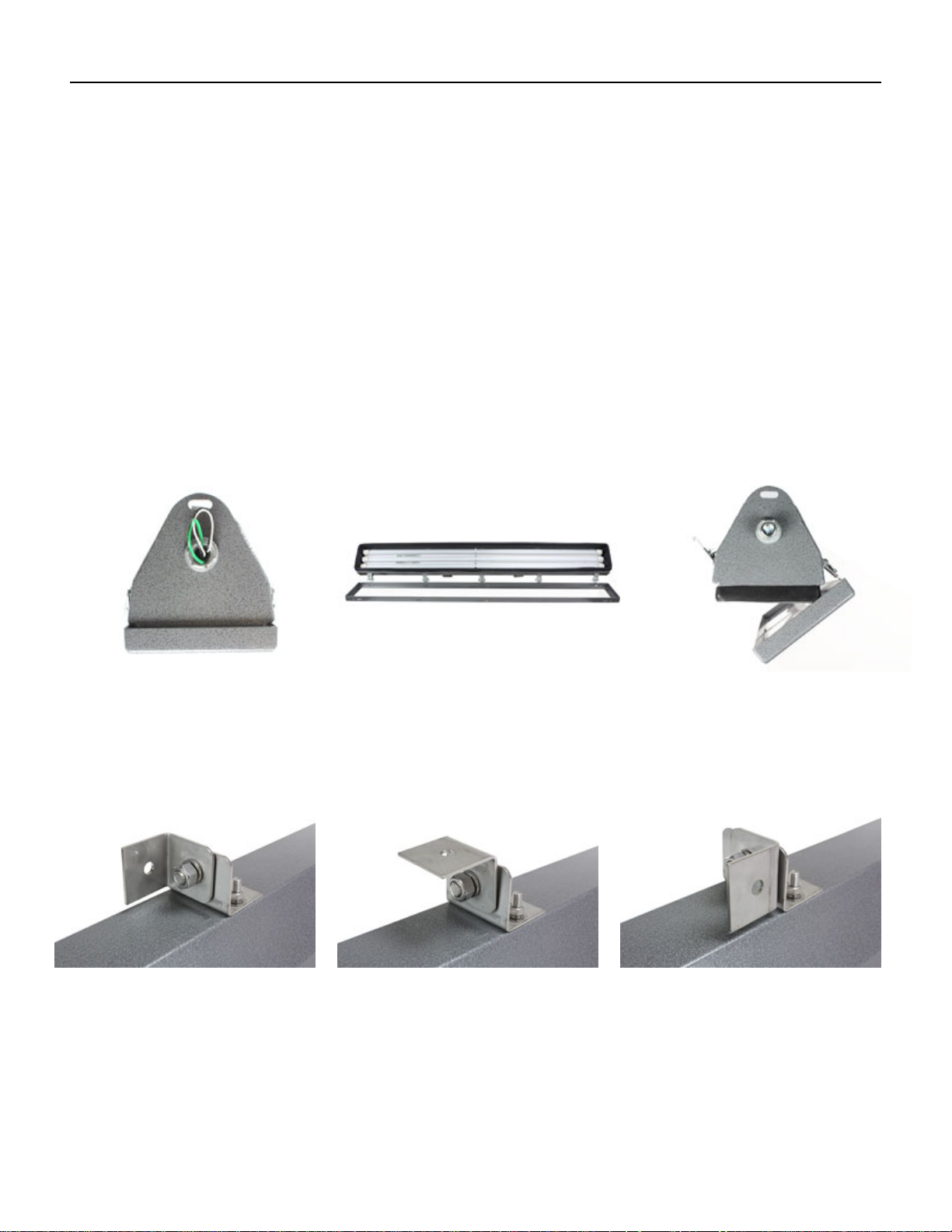

Standard Swivel Mounting Brackets: The light fixture mounts via two L shaped swiveling brackets. The angle of the bracket is set by
tightening the nut and bolt on each bracket. The bolt and lock washer act as a set screw, securing the fixture in place once the position is set.
The bracket itself is mounted via a single 3/8” bolt hole at the top the bracket. Once the brackets are mounted to a flat surface, the fixture can
be pivoted by loosening the nut and bolt that hold the bracket to the fixture. This fixture allows 45° of pivot from the 90° point.
Suggested Applications: Aircraft maintenance, Oil drilling rigs, Refineries, Solvent and cleaning areas, Gas processing plants, Chemical
manufacturing, Waste treatment plants, Gas processing plants, Offshore, Ships, Marine Applications.

Made in USA Quality Superior LED Benefits

13.50 amps

$85.15 $50.47

8.00 amps 7.00 amps

3.50 amps

$44.15

Page: 3

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

1. 50,000 hour lifespan.

1. Each unit dialectically tested.

2. Fixture arrives assembled and lamped to reduce installation time
and cost. Adjustable mounting brackets enable the operator to choose
any mounting angle for the fixture, where other models may only offer
one or three choices.

3. Fixture constructed streamlined ribbed corrosion-resistant, copper
free extruded aluminum body for better hear dissipation and extended
ballast life.

4. Aluminum extruded lens frame for greater strength

5. Relamping done via 10 draw latches, which enable the operator to
unlatch the lens and access the lamps.

5. Heavy gauge extruded aluminum reflectors with high gloss reflective
finish. Resists dents and corrosion.

6. 3/4 inch, threaded access hole for wiring conduit.

7. Units can be wired end to end in series.

2. Can SAVE 50% or more on energy.

3. Qualifies retrofit projects for financial incentives, including utility
rebates, tax credits and energy loan programs.

4. Reduces energy use and prolongs life-spans of peripheral cooling
units (A/C, refrigeration)

5. 100% recyclable.

6. No toxins-lead, mercury.

7. No UV light, infrared radiation or CO2 emissions.

8. Qualifies buildings for LED and other sustainable business
certifications.

9. Bright, even light maintains consistent color over time.

10. Instant on/off – No flickering, delays or buzzing.

11. Very good color rendering.

12. Vibration/impact resistant.

13. Significantly cooler operation.

14. Less frequent outages, higher output improves workplace safety.

Page: 4

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

Specifications / Additional Information

HAL-48-3L-LED-BMSW Hazardous Area LED Rig Light Ratings/Approvals
Listing: United States - Canada Listed for United States and Canada
Dimensions: 51.1"-L x 7.09"-W x 8.65"-H Class I, Division 2, Groups A, B, C, D
Weight: 23.4 Lbs UL 844
Voltage: Universal 120-277VAC 50/60 Hz or 11-25V AC/DC UL 1598A Marine Type
Total Watts: 84 watts (28 Watts per Lamp) Certified to Canadian Standards
Total Lumens: 10,500 (3,500 per Lamp) Meets USCG Specifications
LED Lamp Life Expectancy: 50,000 Hours LEL Listed LED Lamps
Luminous Efficacy: 125 Lumens per Watt Made in the USA
Color Temp: 5600K or 4100K
Color Rendering Index: >80
Beam Angle: 150°
Power Efficiency: 90%
Power Factor: >0.95
Ambient Operating Temp Range:-40° C to +65°C
Operating Temp Rating: T4 Rated
Minimum Operating Temp: -30°C
Maximum Case Temp: +90°C
Housing Material: Sheet Aluminum
Lens Material: Shatter/Heat Resistant Acrylic Lens
Finish: Corrosion Resistant Industrial Powder Coating Special Orders- Requirements
Mounting: Back Mount Swivel Bracket Contact us for special requirements
Wiring Hub: 3/4" NPT Toll Free: 1-800-369-6671
Warranty: YES- 5 Years* Intl: 1-903-498-3363
U.L Approval: U.S Certificate Canada Certificate E-mail: [email protected]

*5 year warranty replacement on this LED light (or LED bulbs for light
fixtures with removable LED bulbs). After 30 days, the customer ships
the failed LED light and/or LED bulb to Larson Electronics at their
expense. If the failure is a manufacturer defect, we will ship a new
replacement to the customer. If failure occurs within 30 days of receipt,
Larson Electronics will provide a return label via email to the customer.
When the failed light is returned, Larson Electronics will ship a new
replacement. Please click here to see our 5 Year Warranty pamphlet.

Scroll Down to Purchase

Part #: HAL-48-3L-LED-BMSW (70345)
