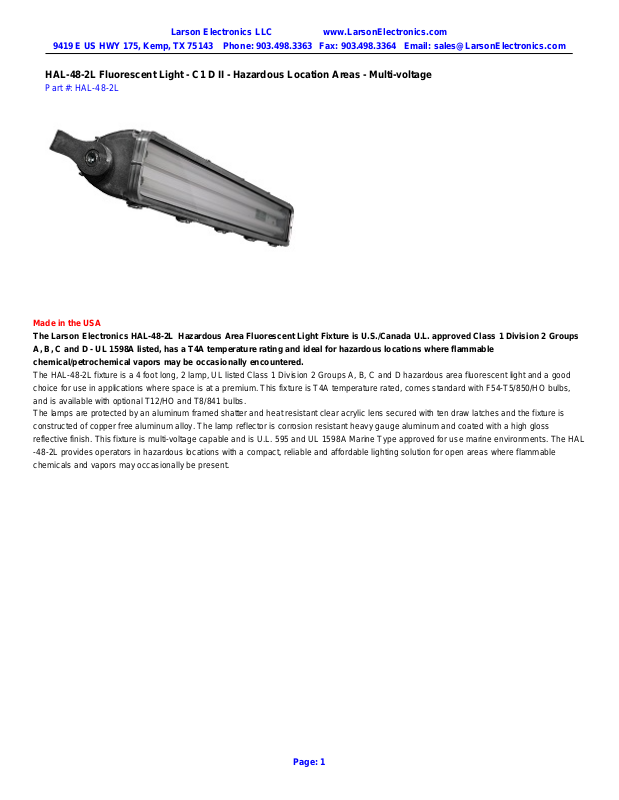

HAL-48-2L Fluorescent Light - C1 D II - Hazardous Location Areas - Multi-voltage

Part #: HAL-48-2L

Made in the USA

The Larson Electronics HAL-48-2L Hazardous Area Fluorescent Light Fixture is U.S./Canada U.L. approved Class 1 Division 2 Groups
A, B, C and D - UL 1598A listed, has a T4A temperature rating and ideal for hazardous locations where flammable
chemical/petrochemical vapors may be occasionally encountered.

The HAL-48-2L fixture is a 4 foot long, 2 lamp, UL listed Class 1 Division 2 Groups A, B, C and D hazardous area fluorescent light and a good
choice for use in applications where space is at a premium. This fixture is T4A temperature rated, comes standard with F54-T5/850/HO bulbs,
and is available with optional T12/HO and T8/841 bulbs.
The lamps are protected by an aluminum framed shatter and heat resistant clear acrylic lens secured with ten draw latches and the fixture is
constructed of copper free aluminum alloy. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss
reflective finish. This fixture is multi-voltage capable and is U.L. 595 and UL 1598A Marine Type approved for use marine environments. The HAL

-48-2L provides operators in hazardous locations with a compact, reliable and affordable lighting solution for open areas where flammable
chemicals and vapors may occasionally be present.

Page: 1

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

Click Photo Enlarge Click Photo Enlarge Click Photo Enlarge

Page: 2

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

NOTE ON LAMPS: This fixture comes equipped with F54-T5/850/HO – 54 Watt lamps producing 5,000 lumens per bulb, a 5000 Kelvin color and

a 20,000 hour rated service life. We offer F48-T12/HO – 4050 lumens per bulb, 12,000 hours life, 4100 Kelvin color and F32-T8/841 – 2950
lumens per bulb, 24,000 hours life, 4100 Kelvin color tubes as lamp options for this fixture. The HAL-48-2L has an electronic multi-voltage ballast
and works with 120 Volt 60 HZ, 220 Volt 50 HZ, 240 Volt 60 HZ and 277 Volts 60 HZ.

Standard Surface Mount Brackets:

Each bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is set by tightening two cap screws on
either side of the bracket. The cap screws act as a set screw. The bracket itself is mounted via a single bolt hole at the top the bracket. There are
two brackets, one on each end of the light. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be removed
from the brackets by loosening the cap screws that hold the bracket to the mounting peg. Mounting brackets are removable. A single through
hole enables the operator to install the light to any surface. Pendant mounts are available for operators who wish to mount these fixtures away
from the ceiling surface.
Suggested Applications: Aircraft maintenance, Oil drilling rigs, Refineries, Solvent and cleaning areas, Gas processing plants, Chemical
manufacturing, Waste treatment plants, Gas processing plants.

Made in USA Quality Lamp Options

F54-T5/850/HO – 54 Watt, 5000 lumens per bulb, 20,000 hours

1. Each unit dialectically tested.

2. Fixture arrives assembled and lamped to reduce installation time and
cost. Adjustable mounting brackets enable the operator to choose any
mounting angle for the fixture, where other models may only offer one
or three choices.

3. Fixture constructed streamlined ribbed corrosion-resistant, copper
free extruded aluminum body for better hear dissipation and extended
ballast life.

4. Aluminum extruded lens frame for greater strength

5. Relamping done via 10 draw latches, which enable the operator to
unlatch the lens and access the lamps.

6. Heavy gauge extruded aluminum reflectors with high gloss reflective
finish. Resists dents and corrosion.

7. 3/4 inch, threaded access hole for wiring conduit. 8. Units can be
wired end to end in series.

life, 5000 Kelvin color
F48-T12/HO – 4050 lumens per bulb, 12,000 hours life, 4100 Kelvin
color
F32-T8/841– 2950 lumens per bulb, 24,000 hours life, 4100 Kelvin
color
F48-T8/HO - 48 watt, 4000 lumens per bulb, 18,000 hours life, 4100
Kelvin color (Suffix -T8HO)

Click here to see the LED version of this light fixture

Page: 3

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

Specifications / Additional Information

HAL-48-2L Hazardous Area U.L. Ratings
UL Listing: United States - Canada Class 1 Division 2, Groups A, B, C, D
Dimensions: W-7" L-49 3/4 " H-6 1/8 " UL 595 Outdoor Marine Type (Saltwater)
Weight: 33 lbs. UL 1598A Marine Type
Total Watts: 108 watts* California Title 24 Compliant
Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz
Total Lumens: STD-T5-HO Bulbs 10,000
Lamp Life Expectancy: STD-T5-HO Bulbs 20,000 Hours
Efficiency: STD-T5-HO Bulbs 92 Lumens per Watt
Operating Temp Range: T4A Rated -30°C to +70°C
Beam Angle: N/A Special Orders- Requirements
Color Temp: 5000K- T5-HO Bulbs Contact us for special requirements
Mounting: Bracket Standard - Pendant Optional Toll Free: 1-800-369-6671
Wiring Hub: 3/4 inch threaded Fax: [phone]
U.L Approval: U.S Certificate Canada Certificate E-mail: [e-mail]
Minimum Operating Temp: -30 C
Maximum Case Temp: 90 C

Hal-48-2L Dimensional Drawing

*Wattage totals are lamps only and may vary with different lamps.

*Temperatures above +65°C will diminish ballast life from 5 years to 3
years

Scroll Down to Purchase- Please note: 2 day lead time on this light.

Part #: HAL-48-2L (1962)
