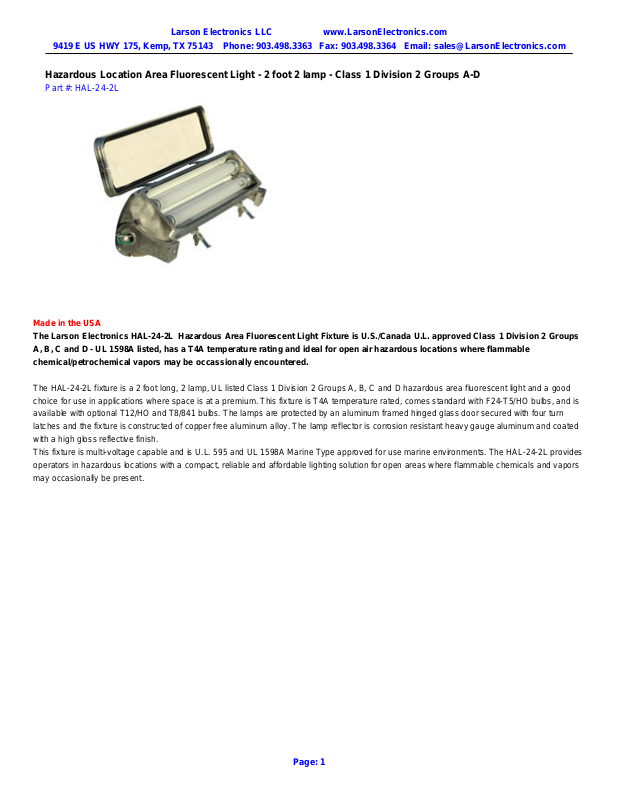

Hazardous Location Area Fluorescent Light - 2 foot 2 lamp - Class 1 Division 2 Groups A-D

Part #: HAL-24-2L

Made in the USA

The Larson Electronics HAL-24-2L Hazardous Area Fluorescent Light Fixture is U.S./Canada U.L. approved Class 1 Division 2 Groups
A, B, C and D - UL 1598A listed, has a T4A temperature rating and ideal for open air hazardous locations where flammable
chemical/petrochemical vapors may be occassionally encountered.

The HAL-24-2L fixture is a 2 foot long, 2 lamp, UL listed Class 1 Division 2 Groups A, B, C and D hazardous area fluorescent light and a good
choice for use in applications where space is at a premium. This fixture is T4A temperature rated, comes standard with F24-T5/HO bulbs, and is
available with optional T12/HO and T8/841 bulbs. The lamps are protected by an aluminum framed hinged glass door secured with four turn
latches and the fixture is constructed of copper free aluminum alloy. The lamp reflector is corrosion resistant heavy gauge aluminum and coated
with a high gloss reflective finish.
This fixture is multi-voltage capable and is U.L. 595 and UL 1598A Marine Type approved for use marine environments. The HAL-24-2L provides
operators in hazardous locations with a compact, reliable and affordable lighting solution for open areas where flammable chemicals and vapors
may occasionally be present.

Page: 1

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

Click Photo to Enlarge Click Photo to Enlarge Click Photo to Enlarge

Click Photo to Enlarge Click Photo to Enlarge Click Photo to Enlarge

Page: 2

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

NOTE ON LAMPS: This fixture comes equipped with F24-T5HO/–24 Watt lamps producing 2,000 lumens per bulb, a 4100 Kelvin color and a

20,000 hour rated service life. We offer F24-T12/HO – 1650 lumens per bulb, F17-T8/ – 1325 lumens per bulb, and F24-T12-D-HO – 1650
lumens per bulb 3300 lumens tubes as lamp options for this fixture. The HAL-24-2L has an electronic multi-voltage ballast and works with 120
Volt 60 HZ, 220 Volt 50 HZ, 240 Volt 60 HZ and 277 Volts 60 HZ.
Standard Surface Mount Brackets: Each bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is
set by tightening two cap screws on either side of the bracket. The cap screws act as a set screw. The bracket itself is mounted via a single bolt
hole at the top the bracket. There are two brackets, one on each end of the light. Once the brackets are mounted to a surface (ceiling, floor or
wall), the light fixture can be removed from the brackets by loosening the cap screws that hold the bracket to the mounting peg. Mounting
brackets are removable. A single through hole enables the operator to install the light to any surface.
Suggested Applications: Aircraft maintenance, Oil drilling rigs, Refineries, Solvent and cleaning areas, Gas processing plants, Chemical
manufacturing, Waste treatment plants, Gas processing plants.

Made in USA Quality Lamp Options

F24-T5/HO –24 Watt, 2000 lumens per bulb, 20,000 hours life, 4100

Kelvin color

1. Each unit dialectically tested.

2. Fixture arrives assembled and lamped to reduce installation time and
cost. Adjustable mounting brackets enable the operator to choose any
mounting angle for the fixture, where other models may only offer one
or three choices.

3. Fixture constructed of extruded corrosion resistant copper free
aluminum alloy.

4. Relamping done via 4 turn latches, which enable the operator to
unlatch the hinged door and access the lamps.

5. Heavy gauge extruded aluminum reflectors with high gloss reflective
finish. Resists dents and corrosion.

6. 1 inch, threaded access hole for wiring conduit.

7. Units can be wired end to end in series.

F24-T12/HO – 1650 lumens per bulb (3300 lumens) 9,000 hours life,
4100 Kelvin color
F17-T8– 1325 lumens per bulb (2650 lumens total), 24,000 hours life,
4100 Kelvin color.

Page: 3

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

Specifications / Additional Information

HAL-24-2L Hazardous Area U.L. Ratings
UL Listing: United States - Canada Class 1 Division 2, Groups A, B, C, D
Dimensions: W-7" L-25.5 " H-6 1/8 " UL 595 Outdoor Marine Type (Saltwater)

UL 1598A Marine Type

Weight: 17 Lbs

California Title 24 Compliant

Total Watts: 48 watts* Temp Rating: T4A
Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz
Total Lumens: STD-T5-HO Bulbs 4,000
Lamp Life Expectancy: STD-T5-HO Bulbs 20,000 Hours
Efficiency: STD-T5-HO Bulbs 83 Lumens per Watt
Operating Temp Range: T4A Rated -30 C to 70 C

Minimum Operating Temp: -30 C

Maximum Case Temp: 90 C
Beam Angle: N/A Special Orders- Requirements
Color Temp: 4100K- Contact us for special requirements
Mounting: Bracket Standard Toll Free: 1-800-369-6671
Wiring Hub: 3/4 inch threaded Intl: 1-903-498-3363
U.L Approval: U.S Certificate Canada Certificate E-mail: [e-mail]

*Wattage totals are lamps only and may vary with different lamps.

Scroll Down to Purchase- Please note: 2 day lead time on this light.

Part #: HAL-24-2L (46807)
