Hazardous Location Area LED Fixture - 2 foot, 2 lamp - Class I, Div. II Groups A~D

Part #: HAL-24-2L-LED

Made in the USA

The Larson Electronics HAL-24-2L-LED Hazardous Area LED Light Fixture is U.S./Canada U.L. approved Class 1
Division 2 Groups A, B, C and D - UL 1598A listed, has a T4A temperature rating and ideal for open air hazardous
locations where flammable chemical/petrochemical vapors may be occassionally encountered.

The HAL-24-2L-LED fixture is a 2 foot long, 2 lamp, UL listed Class 1 Division 2 Groups A, B, C and D hazardous area LED
light and a good choice for use in applications where space is at a premium. This fixture is T4A temperature rated and
comes standard with our high power and efficiency 15 watt LED lamps. The lamps are protected by an aluminum framed
hinged glass door secured with four turn latches and the fixture is constructed of copper free aluminum alloy. The lamp
reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This fixture is multi­voltage capable and is U.L. 595 and UL 1598A Marine Type approved for use marine environments. The HAL-24-2L-LED
provides operators in hazardous locations with a highly efficient, reliable and affordable lighting solution for open areas
where flammable chemicals and vapors may occasionally be present.

Page: 1

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

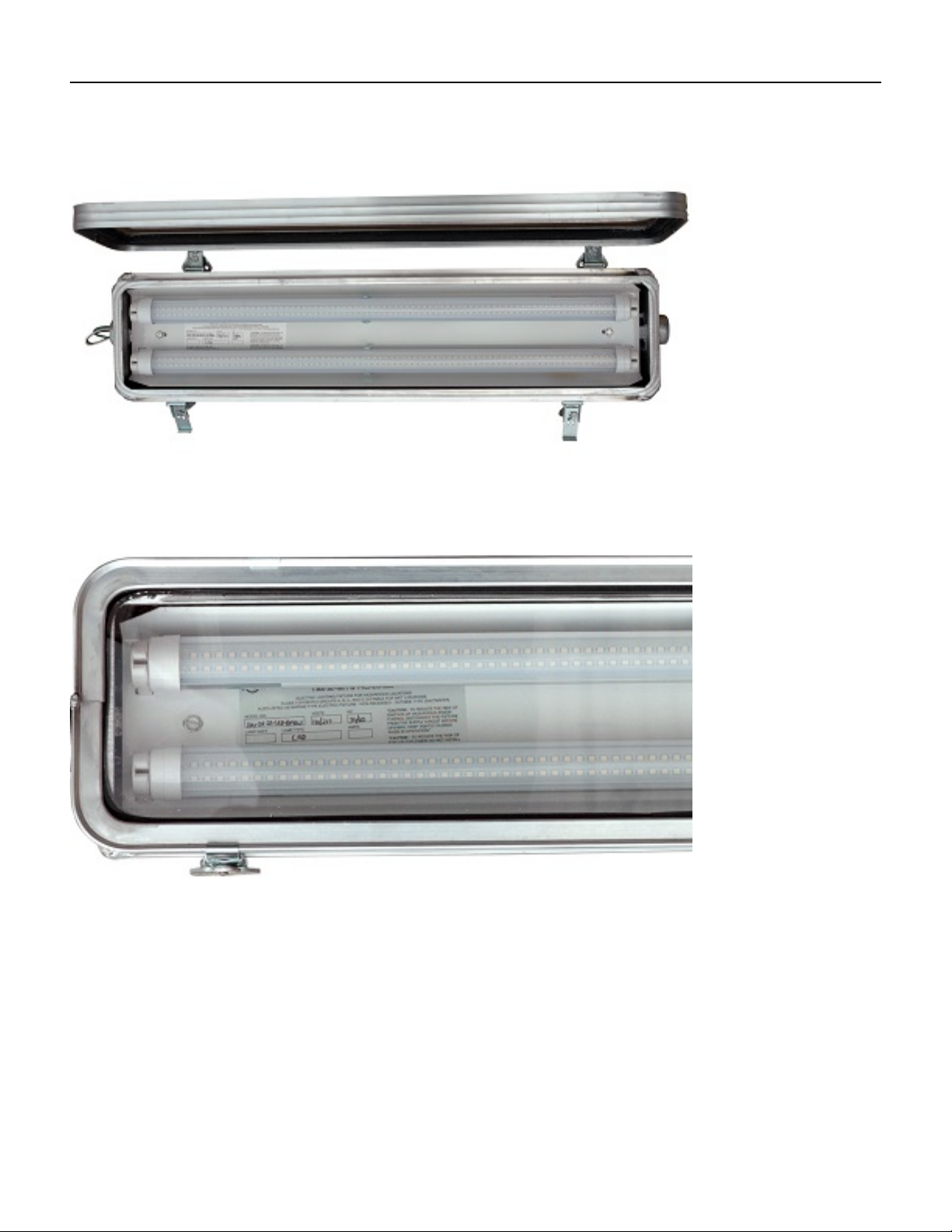

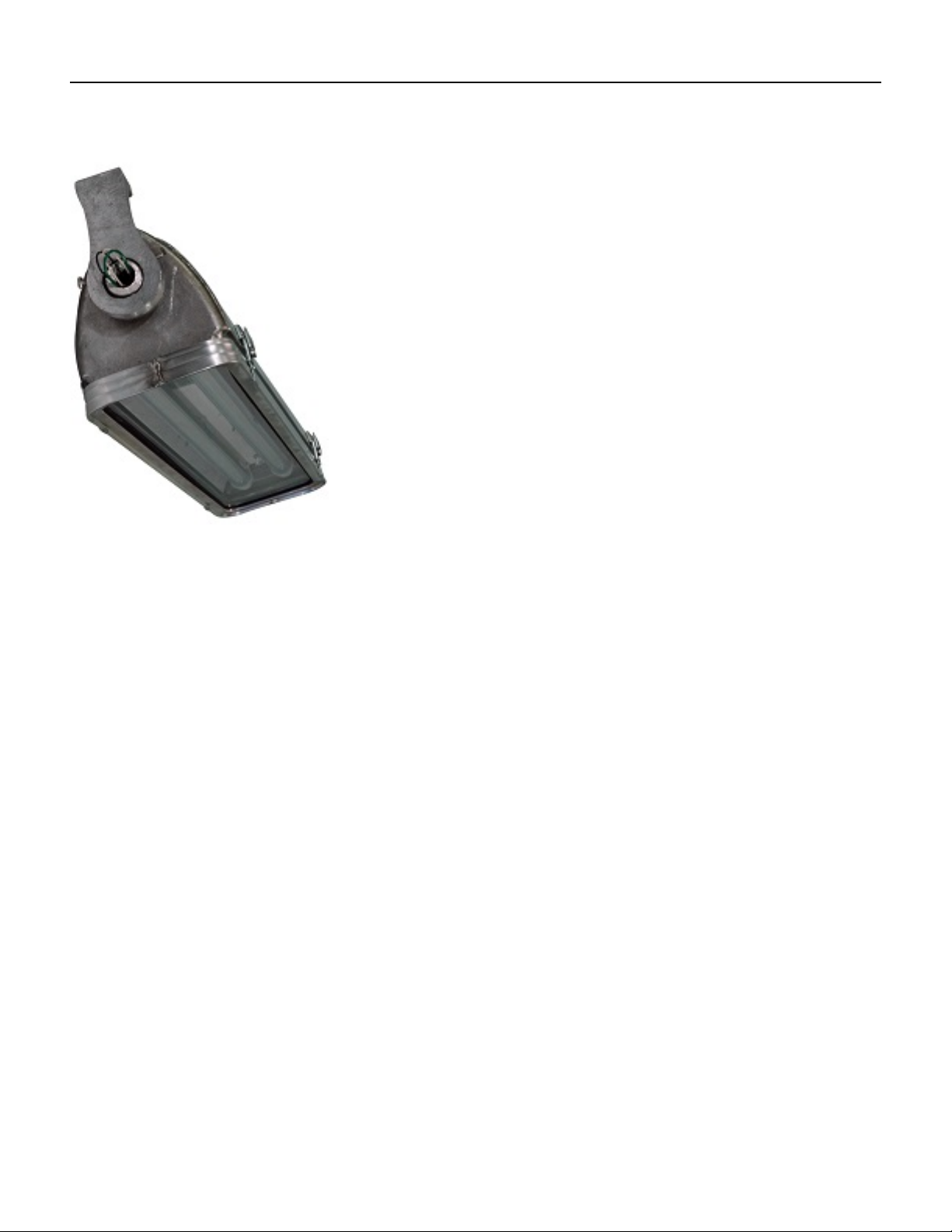

Click Photo to Enlarge Click Photo to Enlarge Click Photo to Enlarge

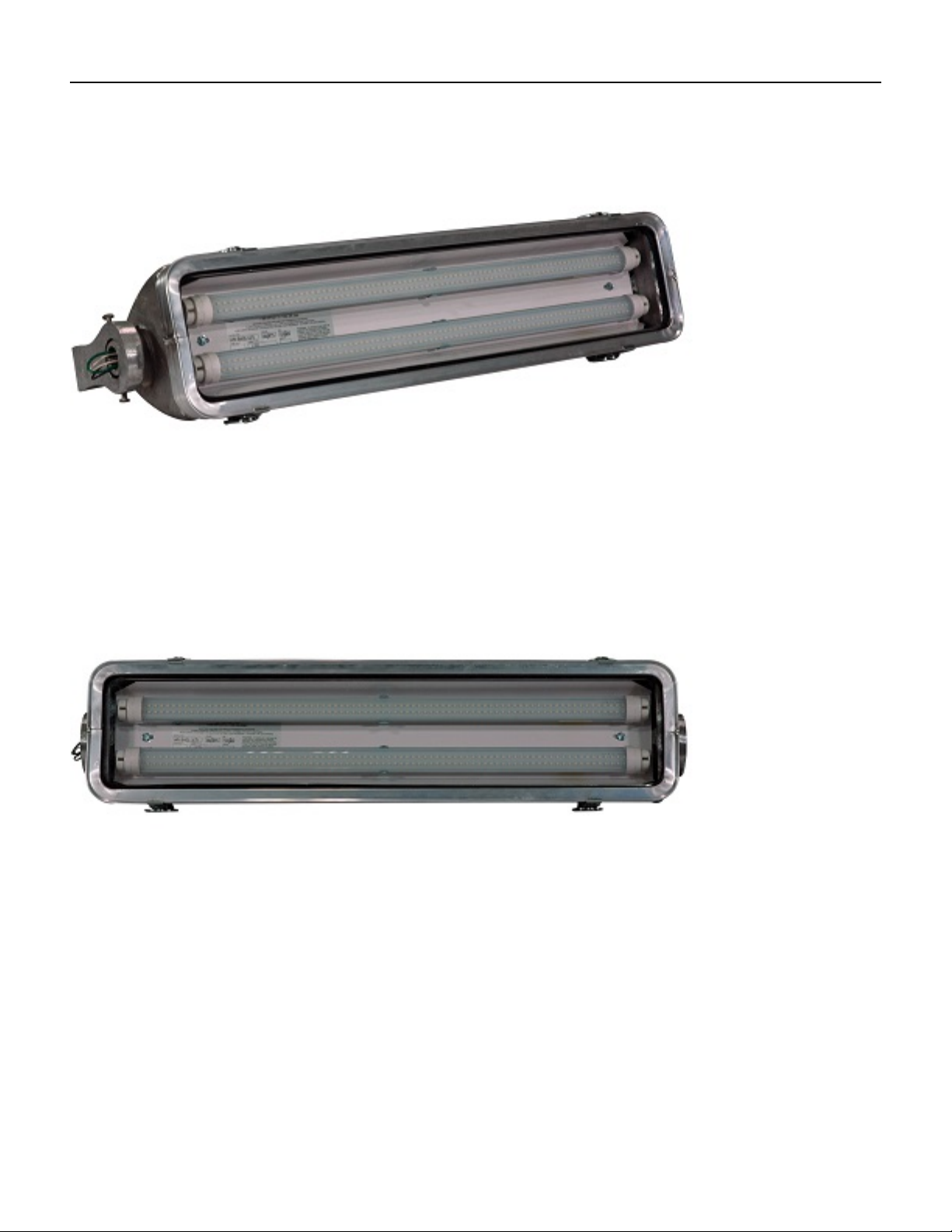

Click Photo to Enlarge Click Photo to Enlarge Click Photo to Enlarge

Page: 2

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

We have eliminated the ballast normally associated with fluorescent fixtures which reduces overall weight, and helps this
LED fixture maintain a T4A temperature rating. The solid state design of the LED lamps give this fixture superior resistance
to damage from vibrations and extremes in temperature as well as a lamp service life over twice that of T8 bulbs. The 15
watt LED lamps produce more illumination than standard T8 bulbs, but draw only 3/4 of the current. The LED bulbs used in
this fixture are our LED T series 15 watt T17 style lamps which produce 15% more light than standard T8 bulbs when
measured from eight feet. This fixture is multi-voltage capable (not multi-tap) and works on the following voltages: 120 Volt
60 HZ, 220 Volt 50 HZ, 240 Volt 60 HZ, 277 Volts 60 HZ. We also make a 12-24V DC version for low voltage applications (­LV suffix). Our HAL-24-2L-LED LED light fixture is both U.S. and Canada U.L. approved.
Standard Surface Mount Brackets: Each bracket is cinched to the bracket mounting peg on each side of the light. The
angle of the bracket is set by tightening two cap screws on either side of the bracket. The cap screws act as a set screw.
The bracket itself is mounted via a single bolt hole at the top the bracket. There are two brackets, one on each end of the
light. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be removed from the brackets
by loosening the cap screws that hold the bracket to the mounting peg. Mounting brackets are removable. A single through
hole enables the operator to install the light to any surface.
Suggested Applications: Aircraft maintenance, Oil drilling rigs, Refineries, Solvent and cleaning areas, Gas processing
plants, Chemical manufacturing, Waste treatment plants, Gas processing plants.

Made in USA Quality Superior LED Benefits

1. Each unit dialectically tested.

2. Fixture arrives assembled and lamped to reduce installation time and
cost. Adjustable mounting brackets enable the operator to choose any
mounting angle for the fixture, where other models may only offer one or
three choices.

3. Fixture constructed of extruded corrosion resistant copper free aluminum
alloy.

4. Relamping done via 4 turn latches, which enable the operator to unlatch
the hinged door and access the lamps.

5. Heavy gauge extruded aluminum reflectors with high gloss reflective
finish. Resists dents and corrosion.

6. 1 inch, threaded access hole for wiring conduit.

7. Units can be wired end to end in series.

1. 50,000 hour lifespan.

2. Can SAVE 50% or more on energy.

3. Qualifies retrofit projects for financial incentives, including utility rebates,
tax credits and energy loan programs.

4. Reduces energy use and prolongs life-spans of peripheral cooling units
(A/C, refrigeration)

5. 100% recyclable.

6. No toxins-lead, mercury.

7. No UV light, infrared radiation or CO2 emissions.

8. Qualifies buildings for LEED and other sustainable business
certifications.

9. Bright, even light maintains consistent color over time.

10. Instant on/off – No flickering, delays or buzzing.

11. Very good color rendering.

12. Vibration/impact resistant.

13. Significantly cooler operation.

14. Less frequent outages, higher output improves workplace safety.

Page: 3

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

Specifications / Additional Information

HAL-24-2L-LED Hazardous Area U.L. Ratings
UL Listing: United States - Canada Class 1 Division 2, Groups A, B, C and D
Dimensions: W-7" L-25.5" H-6 1/8"

Weight: 17 Lbs

Total Watts: 30 watts
Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz
Low Voltage (Optional): 12-24V DC
LED Lamp Life Expectancy: 50,000 Hours
Efficiency: 90 Lumens per Watt
Operating Temp Range: T4A rated -30 C to 85 C
Beam Angle: 150 degrees
Color Temp: 5300K- Color Rendering Index-75
Mounting: Bracket Standard Toll Free: 1-800-369-6671
Wiring Hub: 3/4 inch threaded Intl: 1-903-498-3363
Warranty: YES- 3 Years* E-mail: [e-mail]
U.L Approval: U.S Certificate Canada Certificate

*3 year warranty replacement on this LED light (or LED bulbs for light
fixtures with removable LED bulbs). After 30 days, the customer ships the
failed LED light and/or LED bulb to Larson Electronics at their expense. If
the failure is a manufacturer defect, we will ship a new replacement to the
customer. If failure occurs within 30 days of receipt, Larson Electronics will
provide a return label via email to the customer. When the failed light is
returned, Larson Electronics will ship a new replacement.

UL 595 Outdoor Marine Type (Saltwater)
UL 1598A Marine Type

California Title 24 Compliant

Special Orders- Requirements

Contact us for special requirements

Scroll Down to Purchase- Please note: 2 day lead time on this light.

Part #: HAL-24-2L-LED (47227)
