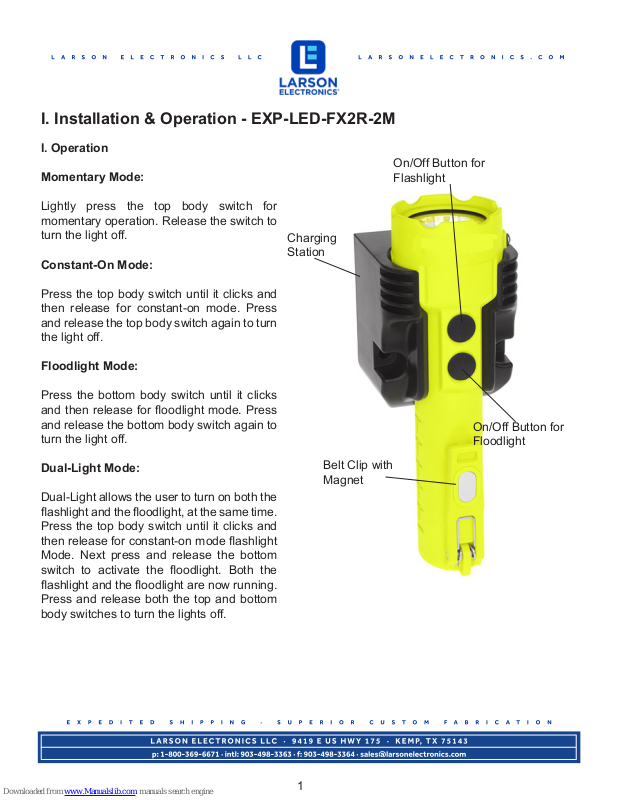

I. Installation & Operation - EXP-LED-FX2R-2M
I. Operation
Momentary Mode:
Lightly press the top body switch for
momentary operation. Release the switch to
turn the light off.
Constant-On Mode:
Press the top body switch until it clicks and
then release for constant-on mode. Press
and release the top body switch again to turn
the light off.
Floodlight Mode:
Press the bottom body switch until it clicks
and then release for oodlight mode. Press
and release the bottom body switch again to
turn the light off.
Charging
Station
On/Off Button for
Flashlight
On/Off Button for
Floodlight
Dual-Light Mode:
Dual-Light allows the user to turn on both the
ashlight and the oodlight, at the same time.
Press the top body switch until it clicks and
then release for constant-on mode ashlight
Mode. Next press and release the bottom
switch to activate the oodlight. Both the
ashlight and the oodlight are now running.
Press and release both the top and bottom
body switches to turn the lights off.
Belt Clip with
Magnet
1
II. Rechargeable Battery Replacement
I. Battery Replacement
1. Loosen the locking screw located on the
side of the lens cap. CAUTION: Do NOT
attempt to completely remove the locking
screw. Doing so is not necessary and may
damage the threads. The screw simply needs
to be loosened enough to allow the lens bezel
to unscrew.
2. Unscrew the lens bezel from the housing in
a counter-clockwise direction.
3. Loosen each of the two Charger Contact
Pins located below the Floodlight Lens.
These two Screws should be loosened until
approximately 1/8” of thread is visible.
CAUTION: Do NOT attempt to completely
remove either of these two screws.
Doing so is not necessary and will potentially
damage the light’s ability to charge.
The two screws simply need to be loosened
enough (approximately 1/8”) to allow the
reector / circuit assembly to be removed.
4. Turn the light upside down and carefully
shake the light in order to remove the reector
/ circuit assembly. Allow the reector / circuit
assembly to slide into your hand. CAUTION:
Do NOT touch the reector surface with your
nger. Doing so may damage the reector
surface.
6. Using only the approved replacement
rechargeable battery pack, slide the new
battery pack into the handle of the light using
the directional arrow marked on the side of the
pack to be a guide to proper battery orientation.
7. Align the reector / circuit assembly so that
the switches on the assembly are aligned with
the switches on the housing. Carefully insert
the assembly back into the ashlight housing
until it is fully seated in the housing. CAUTION:
Be careful to not touch the reector surface with
your nger. Doing so may damage the reector
surface.
8. Tighten both of the Charger Contact Screws
until they are fully seated. CAUTION: Do NOT
over-tighten these two screws. Doing so may
damage the threads and impair the light’s ability
to properly charge.
9. Replace the lens bezel by screwing it onto
the housing in a clockwise direction.
10. Tighten locking screw. CAUTION: Do NOT
over-tighten. Doing so may damage the threads
and impact the light’s Intrinsic Safety.
5. Next, allow the rechargeable battery pack
to slide out of the light paying close attention
to the battery pack’s orientation within the
handle.
2
II. Warnings and Safety Ratings
I. Warnings
Use only the approved non-rechargeable
batteries listed below.
Do NOT attempt to use rechargeable AA
batteries with this light.
To prevent ignition of hazardous atmosphere,
do not open the lens bezel in the hazardous
environment. This task must ONLY be
performed in an area known to be nonhazardous.
To prevent ignition of a hazardous atmosphere,
the AA batteries must only be exchanged in an
area known to be non-hazardous.
To reduce the risk of explosion, do not
mix new non-rechargeable batteries with
used non-rechargeable batteries, or mix
non-rechargeable batteries from different
manufacturers.
II. Ratings
Listed for United States, Canada, Europe
Class I, Division 1 & 2, Groups A,B,C,D
Class II, Division 1 & 2, Groups E,F,G
Class I, Zone 0, AEx ia IIC T3 Ga
Zone 20 Group IIIC T165°C
ATEX II 1 G Ex ia IIC T3 Ga
IECEx Ex ia I Ma
Ex ia op is IIC T3 Ga
MSHA Rated
T3 Temperature Rating
2 Meter Drop Rating
Substitution of components may impair
intrinsic safety.
For personal safety, always conrm the
rating of any known hazardous or potentially
hazardous location where the light is to be
used.
Do NOT attempt to use any type of rechargeable
AA batteries with this light.
To prevent ignition of a hazardous atmosphere,
do NOT remove the lens bezel in the hazardous
environment. This task must ONLY be done in
an area known to be non-hazardous.
