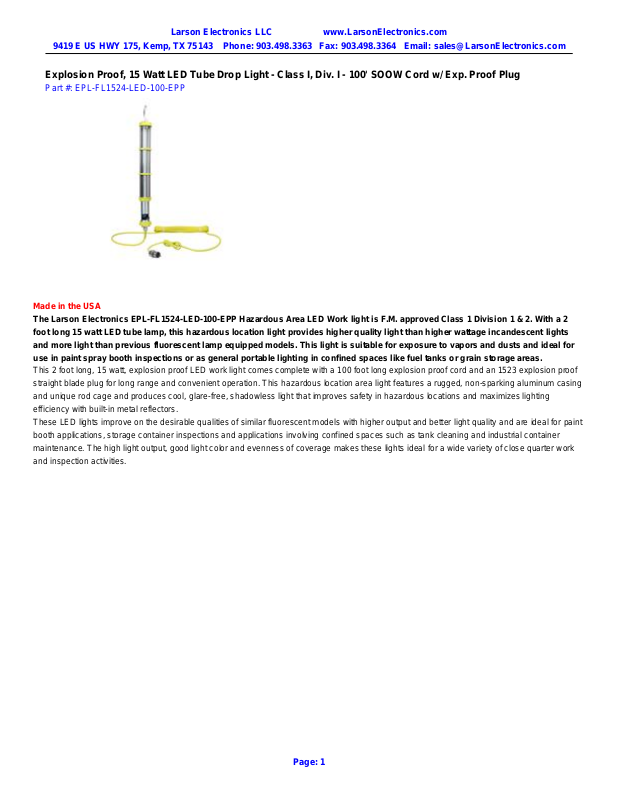

Larson Electronics EPL-FL1524-LED-100-EPP-1523-5.15 User Manual

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

Explosion Proof, 15 Watt LED Tube Drop Light - Class I, Div. I - 100' SOOW Cord w/ Exp. Proof Plug

Part #: EPL-FL1524-LED-100-EPP

Made in the USA

The Larson Electronics EPL-FL1524-LED-100-EPP Hazardous Area LED Work light is F.M. approved Class 1 Division 1 & 2. With a 2
foot long 15 watt LED tube lamp, this hazardous location light provides higher quality light than higher wattage incandescent lights
and more light than previous fluorescent lamp equipped models. This light is suitable for exposure to vapors and dusts and ideal for
use in paint spray booth inspections or as general portable lighting in confined spaces like fuel tanks or grain storage areas.

This 2 foot long, 15 watt, explosion proof LED work light comes complete with a 100 foot long explosion proof cord and an 1523 explosion proof
straight blade plug for long range and convenient operation. This hazardous location area light features a rugged, non-sparking aluminum casing
and unique rod cage and produces cool, glare-free, shadowless light that improves safety in hazardous locations and maximizes lighting
efficiency with built-in metal reflectors.
These LED lights improve on the desirable qualities of similar fluorescent models with higher output and better light quality and are ideal for paint
booth applications, storage container inspections and applications involving confined spaces such as tank cleaning and industrial container
maintenance. The high light output, good light color and evenness of coverage makes these lights ideal for a wide variety of close quarter work
and inspection activities.

Page: 1

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

40' Container Dark Click Photos to Enlarge Container With EPL-FL1524-LED-100-EPP

Page: 2

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

The 15-watt LED lamp used in this unit provides as much illumination as higher-wattage incandescent lamps without the associated heat,
reducing the chances of accidents or burns. This lamp has no ballast, which reduces lamp weight, an impact resistant tube shield with specially
designed annealed glass and an aluminum hook for easy overhead mounting. The 100 foot long Class 1, Division 1 rated SOOW 16/3 AWG cord
and explosion proof slip-ring housing help this unit to achieve approval for use in environments containing flammable vapors and combustible
dusts. This explosion proof fluorescent hand lamp can be used within hazardous locations rated Class 1 Division 1 and 2, and Class 2 Division 1
and 2, making it ideal for hazardous work areas where a ready source of easily managed lighting is desired.
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of
heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that
illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and
provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler
than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light
emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.

Click Photos to Enlarge

5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug

These particular units also come standard with an 1523 explosion proof straight blade plug. The plug is Class 1, Division 1 & 2 and Class 2,
Division 1 & 2 rated. In order to complete the seal and preserve the plugs' explosion proof approval, the operator must connect the plug to a
matching explosion proof outlet receptacle. Although this plug will work with a standard outlet, connecting to a regular 125/250V outlet renders
the plugs' explosion proof rating useless and should only be done when connecting the light outside of the explosion proof environment.

Lamp Features

2 foot 15 watt LED Tube Lamp 50,000 hour service life
Non-sparking aluminum housing
No Ballast
Molded rubber bumper guards
Annealed glass tube shields prevent shattering
Integrated lamp shock absorbers prevent drop damage to bulbs
Swivel hook for hanging and hands free operation
Explosion proof cord

Page: 3

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

Specifications / Additional Information

EPL-FL1524-LED-100-EPP Work Light Ratings/Approvals
Listing: United States Class 1, Division 1 & 2 for Group D
Dimensions: 27"-L x 3.25"-Dia Class II, Division 1 Groups E, F, G
Weight: 14.5 lbs Class III, Division 1 & 2
Voltage: 120-277 Volts 50/60 Hz or 11-25 Volts AC/DC
Total Watts: 15 watts
Lumens: 1450
Luminous Efficacy :96.67 lm/w
Lamp Life: 50,000+ Hours
Lamp Color: 5,600K
CRI: >75 White
Power Efficiency: >95%
Power Factor: 0.992
Lamp Lengths: 2 Foot
Amperage: 0.13 amps @ 120V, 0.07 amps @ 240V, 0.05 amps @

277V

Material: Rubber / Copper Free Aluminum
Mounting: Handheld / Aluminum Hook Special Orders- Requirements
Wiring: 100' 16/3 AWG SOOW Cable Contact us for special requirements
Cord Cap: 5-15 Straight Blade Plug, 5-20 Straight Blade Plug,

6-20 Straight Blade Plug

F.M. Approval: U.S Certificate Intl: 1-903-498-3363
Warranty: Yes - 3 Years E-mail: [e-mail]

3 year warranty replacement on this LED light. After 30 days, the
customer ships the failed LED light and/or LED bulb to Larson
Electronics at their expense. If the failure is a manufacturer defect, we
will ship a new replacement to the customer. If failure occurs within 30
days of receipt, Larson Electronics will provide a return label via email
to the customer. When the failed light is returned, Larson Electronics
will ship a new replacement. Please click here to see our 3 Year

Warranty pamphlet.

Scroll Down to Purchase-

Toll Free: 1-800-369-6671

Part #: EPL-FL1524-LED-100-EPP (48609)

Page: 4

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

Links (Click on the below items to view):

- SpecSheet French

- SpecSheet Arabic

- Dimensional Drawing

- STEP

- DXF

- Hi-Res Image 1

- Hi-Res Image 2

- Hi-Res Image 3
