Explosion Proof High Bay Fluorescent Light Fixture for Paint Booths - 40,000 Lumens - Class 1 Div 1

Part #: EPL-48-432

Made in the USA

The Larson Electronics EPL-48-432 Explosion Proof High Bay Fluorescent Light Fixture is U.S./Canada U.L. approved Class 1 Division
1, Class 1 Division 2 and ideal for hazardous locations where flammable petrochemical vapor or combustible dust exists or has the
potential to exist. The unit has a T6 temperature rating and is approved for paint spray booths.

***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE***

Click here to see the LED version of this lamp.
The EPL-48-432 is our 4 foot long, 8 lamp, UL listed Class 1 Division 1 and Class 2 Division 1 & 2 explosion proof fluorescent light which is
also approved for use in paint spray booth applications. This T6 temperature rated fixture comes standard with eight T5HO fluorescent lamps.
This fixture is multi-voltage capable with 347 Volt and 480 Volt versions available upon request. The EPL-48-432 provides operators in
hazardous locations with a powerful and affordable lighting solution that provides the best explosion proof protection available without sacrificing
fixture durability.

Page: 1

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

Mounting options: Standard surface mounting via our L-brackets attached to Unistruts. Pendant mounting is available for greater distancing of

the fixture from the mounting surface (upon request). The Unistrut is attached to our standard L-bracket mounts. These L-bracket mounts can be

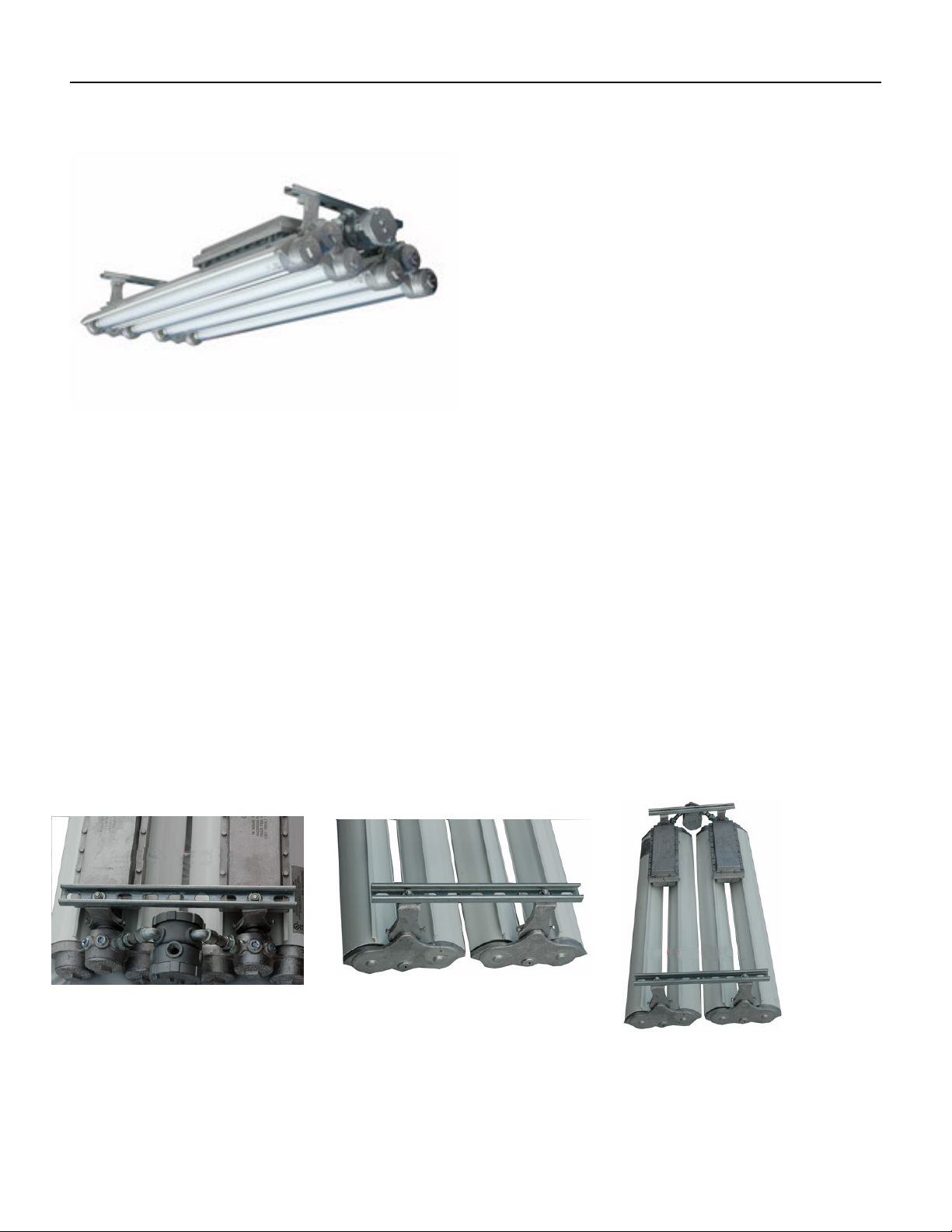

adjusted to create angle mounts. As illustrated in the photos above, the series of mounting holes at the top of the bracket enable this explosion
proof light to be attached to any wall, ceiling or floor surface. A simple through bolt can be used to secure the light to the surface. A single
junction box at one end of the light is provided for the electrical connection.
Suggested Applications: Paint spray booths, Aircraft maintenance, Oil drilling rigs, Refineries, Solvent and cleaning areas, Gas processing
plants, Chemical manufacturing, Waste treatment plants, Gas processing plants.

Made in USA Quality Lamp Options

1. Each unit dialectically tested.

2. Fixture arrives assembled and lamped to reduce installation time and
cost. Adjustable mounting brackets enable the operator to choose any
mounting angle for the fixture, where other models may only offer one
or three choices.

3. Fixture constructed of extruded corrosion resistant copper free
aluminum alloy.

4. Over-sized, finned ballast housing for 800 mA fixtures provides more
heat dissipation and extends ballast life. Larger ballast box
accommodates High Output lamp ballasts. Ballast housing easily
accessible and externally mounted. Top and bottom covers secured
with nuts and bolts, instead of threaded through holes, which can be
damaged with dirt.

5. Heavy gauge extruded aluminum reflectors with high gloss reflective
finish. Resists dents and corrosion.

6. A wrench is used to unscrew the end caps for relamping the fixture,
while other models require the “tap and knock off” method to loosen the
end cap.

7. Explosion proof, impact and heat resistant Pyrex tubes provide lamp
protection.

8. Spring loaded sockets on both ends hold lamps firmly for maximum
shock and vibration protection.

F54-T5/850/HO – 54 watt, 5000 lumens per bulb, 20,000 hours life,
5000 Kelvin color, CRI 85 RHA-UNV-254-LT5 Ballast is THD<10% and
HPF .98 (Suffix –50KT5)
F54-T5/841/HO - 50 watt, 4450 lumens per bulb, 20,000 hour life, 4100
Kelvin color, CRI 85 (Suffix -41KT5)

Page: 2

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

Specifications / Additional Information

EPL-48-432 Explosion Proof U.L. Ratings
UL Listing: United States - Canada Class 1 Div 1 & 2, Groups C & D
Dimensions: W-24.90" L-57.76" H-9.70" Class 1 Div 2, Group A,B,C,D
Weight: 140 Lbs UL 595 Outdoor Marine Type (Saltwater)
Total Watts: 432 watts UL 844, 924
Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz: 347

Volts and 480 Volts available upon request.

Total Lumens: STD-T5-HO Bulbs 40,000 Class 2 Division 1- 2, Groups E,F,G
Lamp Life Expectancy: STD-T5-HO Bulbs 20,000 Hours UL Certified Canadian Standards
Efficiency: STD-T5-HO Bulbs92 Lumens per Watt UL listed for Paint Spray Booths
Ambient Operating Temp Range: -30 to 70 C
Beam Angle: N/A
Color Temp: 5000K OR 4100KT5-HO Bulbs
Mounting: Unistruts - surface mount
Wiring Hub: 1/2 inch threaded Special Orders- Requirements
U.L Approval: U.S Certificate Canada Certificate Contact us for special requirements
Operating Temp Rating: T6 Rated Toll Free: 1-800-369-6671
Minimum Operating Temp: -30 C Intl: 1-903-498-3363
Maximum Case Temp: 90 C E-mail: [e-mail]

*Temperatures above 65 degrees C will diminish ballast life from 5
years to 3 years)
*5 year warranty replacement on this LED light (or LED bulbs for light
fixtures with removable LED bulbs). After 30 days, the customer ships
the failed LED light and/or LED bulb to Larson Electronics at their
expense. If the failure is a manufacturer defect, we will ship a new
replacement to the customer. If failure occurs within 30 days of receipt,
Larson Electronics will provide a return label via email to the customer.
When the failed light is returned, Larson Electronics will ship a new
replacement. Please click here to see our 5 Year Warranty pamphlet.

Scroll Down to Purchase- Please note: 3 day lead time on this light.

UL 1598 Marine Type

Part #: EPL-48-432 (64382)
