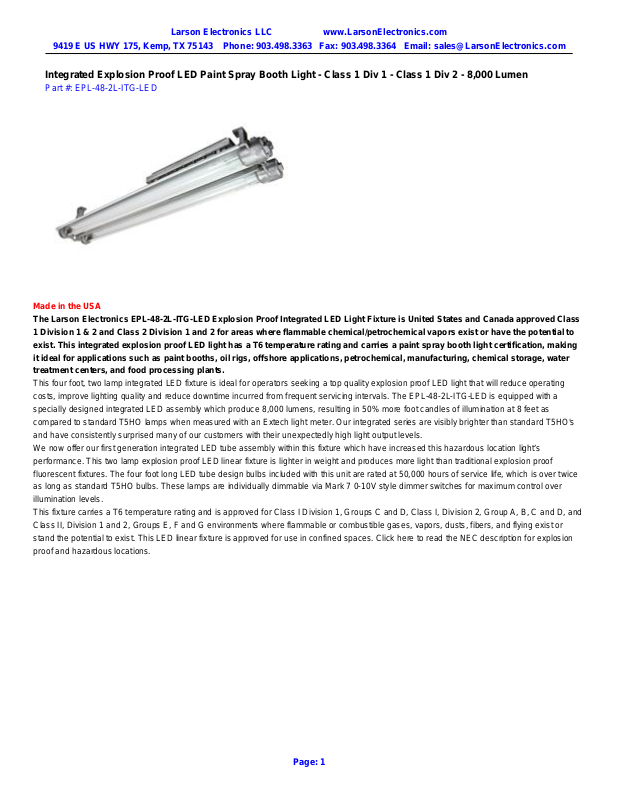

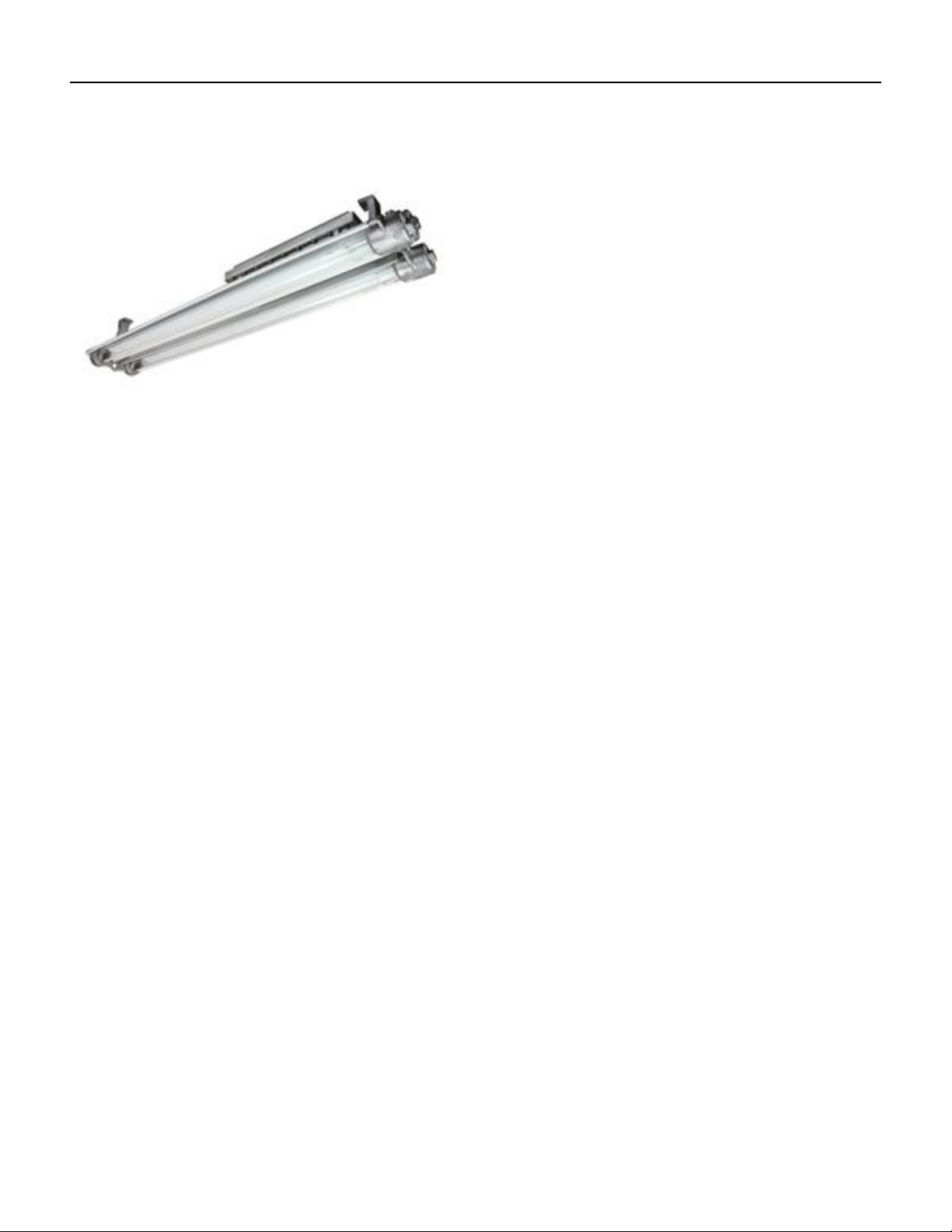

Integrated Explosion Proof LED Paint Spray Booth Light - Class 1 Div 1 - Class 1 Div 2 - 8,000 Lumen

Part #: EPL-48-2L-ITG-LED

Made in the USA

The Larson Electronics EPL-48-2L-ITG-LED Explosion Proof Integrated LED Light Fixture is United States and Canada approved Class
1 Division 1 & 2 and Class 2 Division 1 and 2 for areas where flammable chemical/petrochemical vapors exist or have the potential to
exist. This integrated explosion proof LED light has a T6 temperature rating and carries a paint spray booth light certification, making
it ideal for applications such as paint booths, oil rigs, offshore applications, petrochemical, manufacturing, chemical storage, water
treatment centers, and food processing plants.

This four foot, two lamp integrated LED fixture is ideal for operators seeking a top quality explosion proof LED light that will reduce operating
costs, improve lighting quality and reduce downtime incurred from frequent servicing intervals. The EPL-48-2L-ITG-LED is equipped with a
specially designed integrated LED assembly which produce 8,000 lumens, resulting in 50% more foot candles of illumination at 8 feet as
compared to standard T5HO lamps when measured with an Extech light meter. Our integrated series are visibly brighter than standard T5HO's
and have consistently surprised many of our customers with their unexpectedly high light output levels.
We now offer our first generation integrated LED tube assembly within this fixture which have increased this hazardous location light’s
performance. This two lamp explosion proof LED linear fixture is lighter in weight and produces more light than traditional explosion proof
fluorescent fixtures. The four foot long LED tube design bulbs included with this unit are rated at 50,000 hours of service life, which is over twice
as long as standard T5HO bulbs. These lamps are individually dimmable via Mark 7 0-10V style dimmer switches for maximum control over
illumination levels.
This fixture carries a T6 temperature rating and is approved for Class I Division 1, Groups C and D, Class I, Division 2, Group A, B, C and D, and
Class II, Division 1 and 2, Groups E, F and G environments where flammable or combustible gases, vapors, dusts, fibers, and flying exist or
stand the potential to exist. This LED linear fixture is approved for use in confined spaces. Click here to read the NEC description for explosion
proof and hazardous locations.

Page: 1

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge

Page: 2

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

Unlike the glass tube design of traditional fluorescent lamps, these intrgrated LED fixtures have no filaments or fragile housings to break during
operation. Instead of using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate
when electric current applied and emitting light. The LED assembly is mounted to the "tube" constructed from extruded aluminum, with a
polycarbonate lens protecting the LEDs. With LED lights, there is no warm up time or cool down time before re-striking and provide instant
illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than fluorescent
lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting
diodes provides a more reliable, stable, durable, and energy efficient light source over traditional fluorescent lighting.
The dual 40 watt LED assemblies produce 50% more illumination than standard T5HO bulbs while offering lower amp draw and increased
reliability. Each lamp produces 4,000 lumens at 100 lumens per watt, for a combined 8,000 total lumen light output. An EPL-48-2L-T5HO
explosion proof fluorescent light, with a combined total of 104 watts, draws 0.87 amps at 120 volts AC. This LED version of the same light, with a
total of 80 watts, draws only 0.67 amps at 120 volts AC. The EPL-48-2L-ITG-LED is universal voltage, not multi-tap, and operates on any voltage
from 120V to 277V AC 50/60hz without any modifications. We also make a 12/24V AC/DC version for low voltage applications for AC or DC
power.

Energy Consumption Comparison

T5HO T8 LED

Wattage 108 watts 64 watts 80 watts
Amp Draw @ 120V AC 0.90 amps 0.54 amps 0.67 amps
Amp Draw @ 220V AC 0.49 amps 0.29 amps 0.36 amps
Amp Draw @ 240V AC 0.45 amps 0.27 amps 0.33 amps
Amp Draw @ 277V AC 0.39 amps 0.24 amps 0.29 amps
Amp Draw @ 12V DC 9 amps 5.34 amps 6.67 amps
Amp Draw @ 24V DC 4.5 amps 2.67 amps 3.34 amps
Lamp Life Expectancy 20,000 hours 24,000 hours 50,000 hours
Operation cost per year

(12hs/day @ 12c/kWh)

Our EPL-48-2L-ITG-LED LED light fixture is U.S. and Canada approved for use in paint spray booths. Please note, according to the NEC, using
threaded rigid pipe does not require additional seal offs with this fixture. An EYM and seal off is necessary for flex conduit or other non-rigid pipe
implementations.

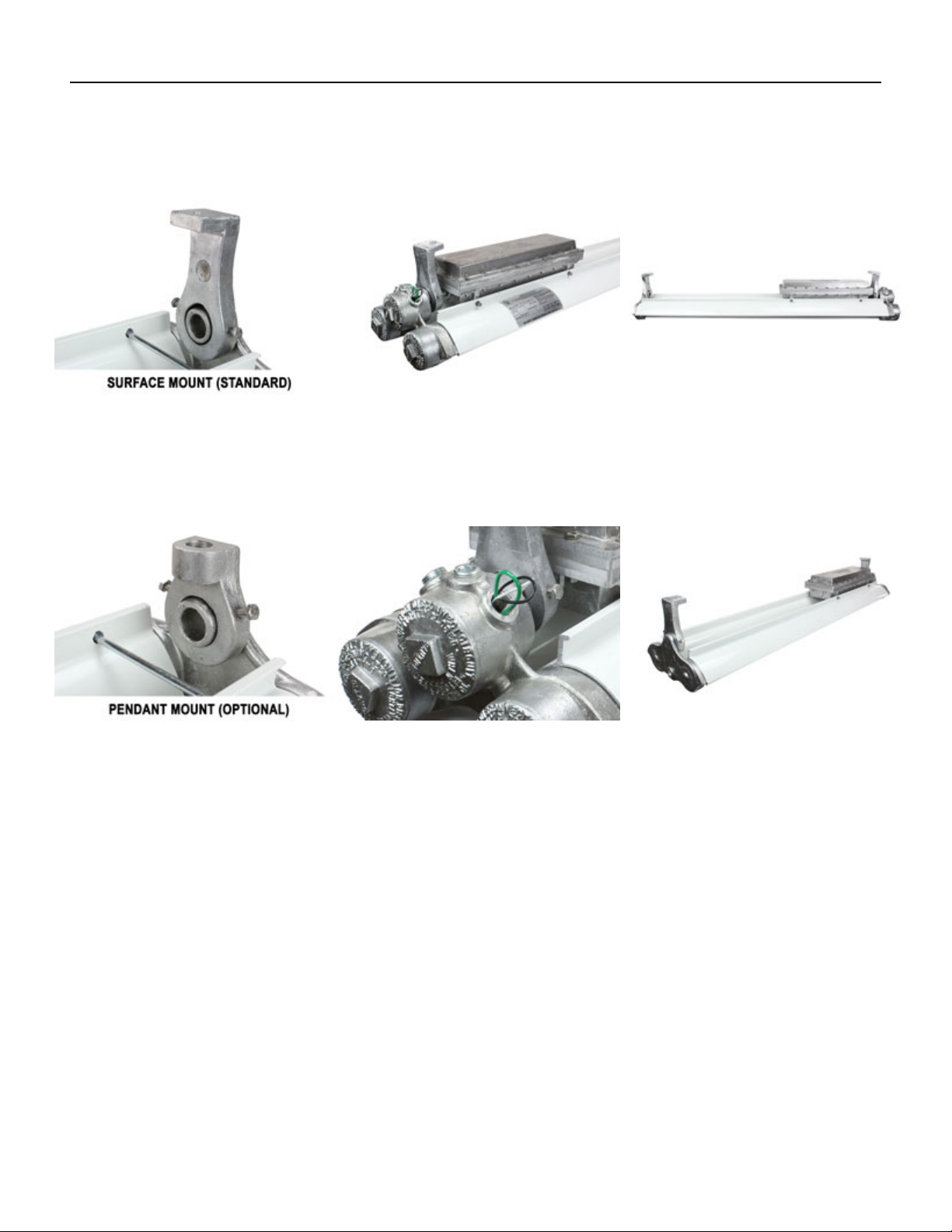

Mounting Options:

Unless otherwise specified, our standard, most popular configuration is the bracket end mounting shown enlarged below. We also offer a
pendant mount for those needing to suspend the fixture away from the ceiling surface (i.e. suspend from pipe or conduit). Additional mounting
configurations can be customized to meet the requirements on the application. Please contact us for special mounting configurations.
Adjustable Surface Mount Brackets: Each bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is
set by tightening two cap screws on either side of the bracket. The cap screws act as a set screw. The bracket itself is mounted via a single bolt
hole at the top the bracket. There are two brackets, one on each end of the light. Once the brackets are mounted to a surface (ceiling, floor or
wall), the light fixture can be removed from the brackets by loosening the cap screws that hold the bracket to the mounting peg.
Suspension Mounting: Pendant mount fixtures hang from the ceiling and are suspended by rigid pipe. Each fixture features a 1/2” NPT junction
box on one end, and a 1/2” NPT adjustable L-bracket on the other end of the fixture. Operators bring rigid pipe down to the threaded mounting
hubs. Wiring is fed down through the rigid pipe to the junction box and tied in to the fixture’s lead wires, completing the electrical connection. The
adjustable L-shape mounting bracket provides support for the opposite end of the fixture.

Suggested Applications:

Paint spray booths, aircraft maintenance, oil drilling rigs, refineries, solvent and cleaning areas, gas processing plants, chemical manufacturing,
waste treatment plants, gas processing plants.

Made in USA Quality Superior LED Benefits

$56.77 $33.64 $42.04

Page: 3

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

1. Each unit dialectically tested.

2. Fixture arrives assembled and lamped to reduce installation time and
cost. Adjustable mounting brackets enable the operator to choose any
mounting angle for the fixture.

3. Fixture constructed of extruded corrosion resistant copper free
aluminum alloy

4. No ballast box. No ballast to replace. We simply run the black wire to
one end of the bulb and white wire to the other.

5. Heavy gauge extruded aluminum reflectors with high gloss reflective
finish. Resists dents and corrosion.

6. A wrench is used to unscrew the end caps for re-lamping the fixture,
while some competitive models require the “tap and knock off” method
to loosen the end cap.

7. Explosion proof, impact and heat resistant Pyrex tubes provide lamp
protection.

8. Spring loaded sockets on both ends hold lamps firmly for maximum
shock and vibration protection.

9. Lighter weight, slimmer, brighter alternative to fluorescent
configurations

1. 50,000 hour lifespan.

2. Can SAVE 50% or more on energy.

3. Qualifies retrofit projects for financial incentives, including utility
rebates, tax credits and energy loan programs.

4. Reduces energy use and prolongs life-spans of peripheral cooling
units (A/C, refrigeration)

5. 100% recyclable.

6. No toxins-lead, mercury.

7. No UV light, infrared radiation or CO2 emissions.

8. Qualifies buildings for LEED and other sustainable business
certifications.

9. Bright, even light maintains consistent color over time.

10. Instant on/off – No flickering, delays or buzzing.

11. Very good color rendering.

12. Vibration/impact resistant.

13. Significantly cooler operation.

14. Less frequent outages, higher output improves workplace safety.

Page: 4

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

Specifications / Additional Information

EPL-48-2L-ITG-LED Explosion Proof LED Fixture Ratings/Approvals
Listing: United States - Canada Class 1 Division 1, Groups C and D T6
Dimensions: W-11.25" x L-52" x H-8.5 " Class 1 Division 2, Group A,B,C,D
Weight: 55 Lbs Class 2, Division 1 & 2, Groups E,F,G
Voltage: Universal 120-277VAC 50/60 Hz or 11-25V AC/DC UL 595 Marine Type (Saltwater)
Total Watts: 80 watts UL 844
Total Lumens: 8,000 UL 1598 Marine Type
LED Lamp Life Expectancy: 50,000+ Hours Certified Canadian Standards
Luminous Efficiency: 100 Lumens per Watt Listed for Paint Spray Booths
Color Temp: 5000K California Title 24 Compliant
Color Rendering Index: >80 IP67 Rated - Waterproof
Beam Angle: 150° T6 Temperature Rating
Power Efficiency: 90% NEMA 4X
Power Factor: >0.95 LEL Listed LED Lamps
Ambient Operating Temp Range:-30° C to +85°C Approved for Confined Spares
Operating Temp Rating: T6 Rated Silicone Free
Minimum Operating Temp: -30°C Factory Sealed Fixture
Maximum Case Temp: +90°C Individually Dimmable Lamps
Housing Material: Cast Aluminum End Caps, Aluminum Reflectors -

Copper Free

Lens Material: Hardened Borosilicate Glass Tubes
Gasket Material: Buna Rubber O-Rings Special Orders- Requirements
Mounting: Surface Standard - Pendant Optional Contact us for special requirements
Wiring Hub: 1/2" NPT Toll Free: 1-800-369-6671
Warranty: 5 Years* Intl: 1-903-498-3363
U.L Approval: U.S Certificate Canada Certificate E-mail: [email protected]

*5 year warranty replacement on this LED light (or LED bulbs for light
fixtures with removable LED bulbs). After 30 days, the customer ships
the failed LED light and/or LED bulb to Larson Electronics at their
expense. If the failure is a manufacturer defect, we will ship a new
replacement to the customer. If failure occurs within 30 days of receipt,
Larson Electronics will provide a return label via email to the customer.
When the failed light is returned, Larson Electronics will ship a new
replacement. Please click here to see our 5 Year Warranty pamphlet.

Scroll Down to Purchase-

Made in the USA

Part #: EPL-48-2L-ITG-LED (105394)

Page: 5

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

Page: 6

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

Links (Click on the below items to view):

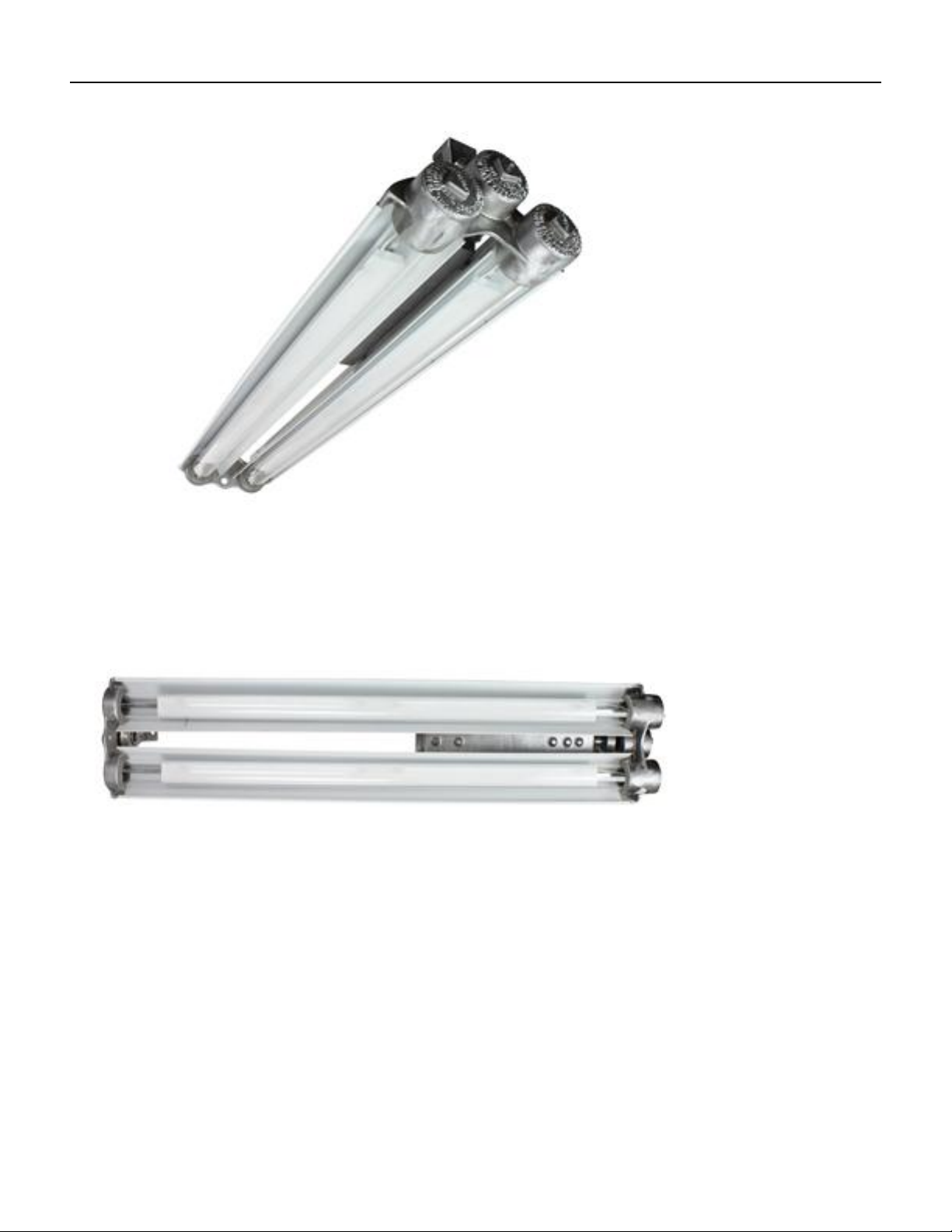

- Hi-Res Image 1 - Integrated Explosion Proof LED Paint Spray Booth light

- Hi-Res Image 2 - Integrated Explosion Proof LED Paint Spray Booth light

- Hi-Res Image 3 - Integrated Explosion Proof LED Paint Spray Booth light

- Hi-Res Image 4 - Integrated Explosion Proof LED Paint Spray Booth light

Page: 7

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

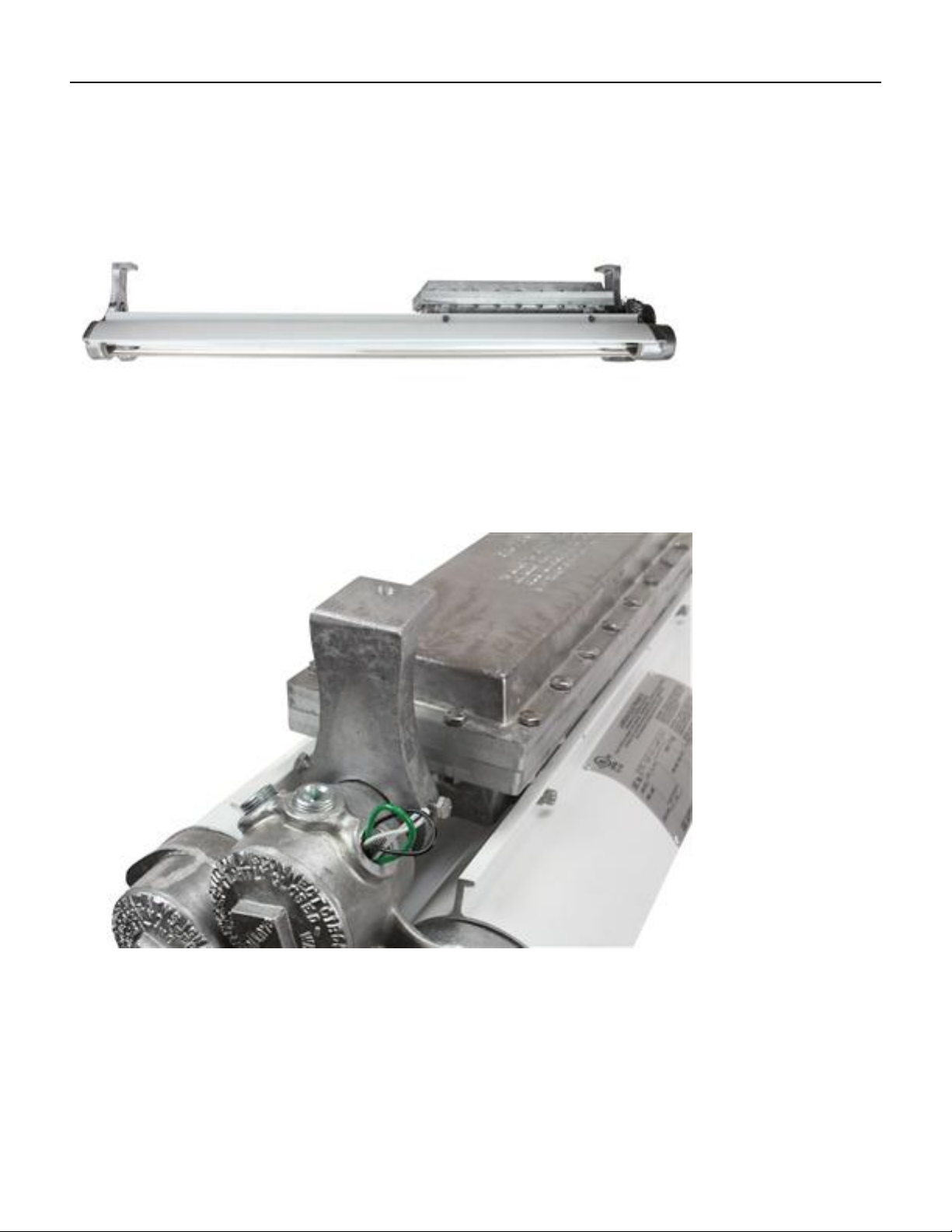

- Hi-Res Image 5 - Integrated Explosion Proof LED Paint Spray Booth light
