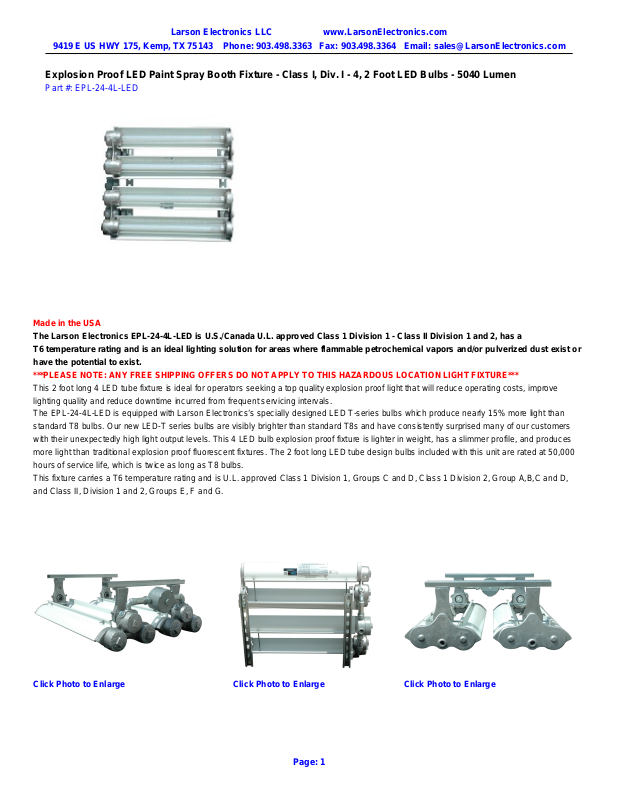

Explosion Proof LED Paint Spray Booth Fixture - Class I, Div. I - 4, 2 Foot LED Bulbs - 5040 Lumen

Part #: EPL-24-4L-LED

Made in the USA

The Larson Electronics EPL-24-4L-LED is U.S./Canada U.L. approved Class 1 Division 1 - Class II Division 1 and 2, has a
T6 temperature rating and is an ideal lighting solution for areas where flammable petrochemical vapors and/or pulverized dust exist or
have the potential to exist.

***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE***

This 2 foot long 4 LED tube fixture is ideal for operators seeking a top quality explosion proof light that will reduce operating costs, improve
lighting quality and reduce downtime incurred from frequent servicing intervals.
The EPL-24-4L-LED is equipped with Larson Electronics’s specially designed LED T-series bulbs which produce nearly 15% more light than
standard T8 bulbs. Our new LED-T series bulbs are visibly brighter than standard T8s and have consistently surprised many of our customers
with their unexpectedly high light output levels. This 4 LED bulb explosion proof fixture is lighter in weight, has a slimmer profile, and produces
more light than traditional explosion proof fluorescent fixtures. The 2 foot long LED tube design bulbs included with this unit are rated at 50,000
hours of service life, which is twice as long as T8 bulbs.
This fixture carries a T6 temperature rating and is U.L. approved Class 1 Division 1, Groups C and D, Class 1 Division 2, Group A,B,C and D,
and Class II, Division 1 and 2, Groups E, F and G.

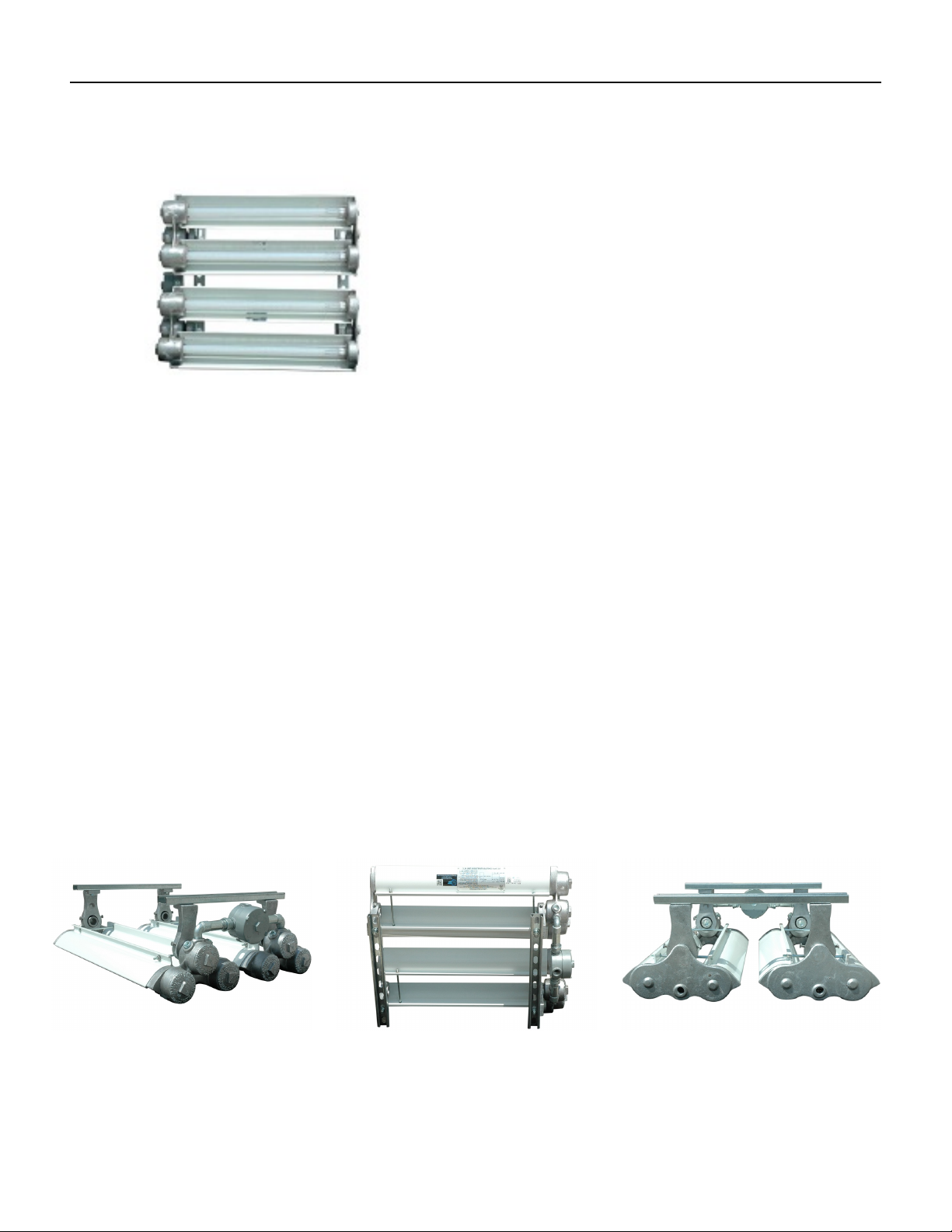

Click Photo to Enlarge Click Photo to Enlarge Click Photo to Enlarge

Page: 1

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

We have eliminated the ballast box normally associated with fluorescent fixtures which reduces overall weight, creates a slimmer unit profile, and
helps this fixture maintain a T-6 temperature rating. There is no ballast in this unit and the included Larson Electronics LED T-series lamps have
a 50,000 hour service life, both of which result in extreme efficiency and greatly reduced maintenance costs. Maintenance is further simplified
with interchangeable screw on end caps and O ring seals which allows all relamping to be done from one end of the fixture. The LED bulbs used
in this fixture are our new second generation LED T series 15W watt lamps which produce 15% more light than standard T8 bulbs.
The solid state design of the LED lamps and integral spring loaded end sockets give this fixture superior resistance to damage from vibrations
and extremes in temperature as well as a lamp service life over twice that of T8 bulbs. Our LED-T series lamps produce more illumination than
standard T8 bulbs. This fixture is multi-voltage capable (not multi-tap) and works on the following voltages: 120 Volt 60 HZ, 220 Volt 50 HZ, 240
Volt 60 HZ, 277 Volts 60 HZ. We also make a 12-24V DC version for low voltage applications (-LV suffix). Our EPL-48-4L-LED LED light fixture is
U.S. and Canada U.L. approved for use in paint spray booths.

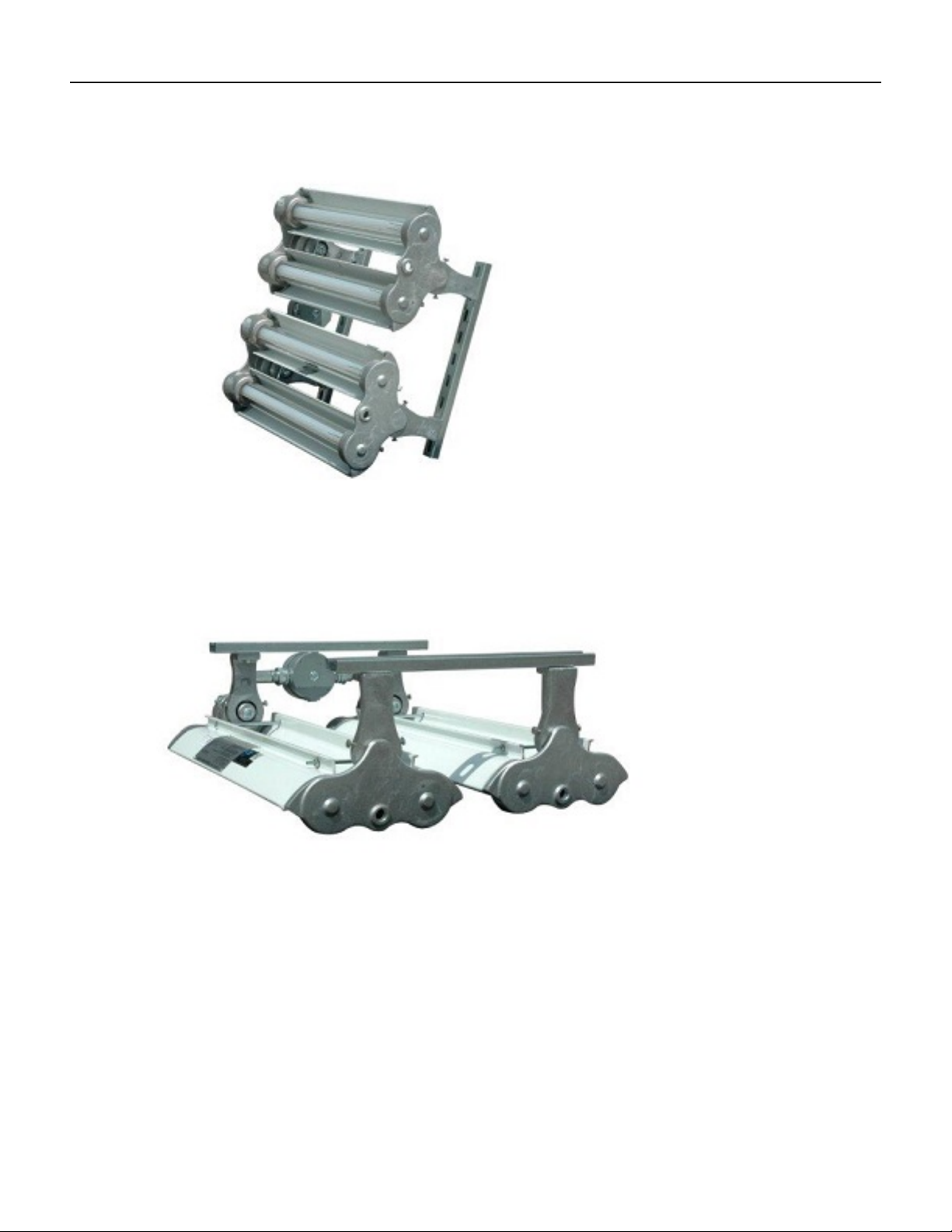

Mounting: Standard end mounting via Unistruts. The Unistrut is attached to our standard L-bracket mounts. These L-bracket mounts can be
adjusted to create angle mounts. As illustrated in the photos above, the series of mounting holes at the top of the bracket enable this explosion
proof LED light to be attached to any wall, ceiling or floor surface. A simple through bolt can be used to secure the light to the surface. A single
junction box at one end of the light is provided for the electrical connection.
Suggested Applications: Paint spray booths, Aircraft maintenance, Oil drilling rigs, Refineries, Solvent and cleaning areas, Gas processing
plants, Chemical manufacturing, Waste treatment plants, Gas processing plants.

Made in USA Quality Superior LED Benefits

1. Each unit dialectrically tested.

2. Fixture arrives assembled and lamped to reduce installation time and
cost.

3. Fixture constructed of extruded corrosion resistant copper free
aluminum alloy

4. No ballast box. No ballast to replace.

5. Heavy gauge extruded aluminum reflectors with high gloss reflective
finish. Resists dents and corrosion.

6. A wrench is used to unscrew the end caps for relamping the fixture,
while some competitive models require the “tap and knock off” method
to loosen the end cap.

7. Explosion proof, impact and heat resistant Pyrex tubes provide lamp
protection.

8. Spring loaded sockets on both ends hold lamps firmly for maximum
shock and vibration protection.

9. Lighter weight, slimmer, brighter alternative to fluorescent
configurations

1. 50,000 hour lifespan.

2. Can SAVE 50% or more on energy.

3. Qualifies retrofit projects for financial incentives, including utility
rebates, tax credits and energy loan programs.

4. Reduces energy use and prolongs life-spans of peripheral cooling
units (A/C, refrigeration)

5. 100% recyclable.

6. No toxins-lead, mercury.

7. No UV light, infrared radiation or CO2 emissions.

8. Qualifies buildings for LEED and other sustainable business
certifications.

9. Bright, even light maintains consistent color over time.

10. Instant on/off – No flickering, delays or buzzing.

11. Very good color rendering.

12. Vibration/impact resistant.

13. Significantly cooler operation.

14. Less frequent outages, higher output improves workplace safety.

15. California Title 24 Compliant

Page: 2

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

Specifications / Additional Information

EPL-24-4L-LED Explosion Proof U.L. Ratings
UL Listing: United States - Canada Class 1 Division 1, Groups C and D
Dimensions: W-22.50" L-27" H-8.5 " Class 1 Division 2, Groups A,B,C,D
Weight: 57 Lbs Class II, Division 1&2, Groups E,F,G
Total Watts: 60 watts UL 595 Outdoor Marine Type (Saltwater)
Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz UL 1598 Marine Type
Low Voltage (Optional): 12-24V DC UL Certified- Canadian Standards
LED Lamp Life Expectancy: 50,000+ Hours UL listed Paint Spray Booth Use
Efficiency: 90 Lumens per Watt UL 844 924
Ambient Operating Temp Range: -30 C to 85 C
Beam Angle: 150 degrees
Color Temp: 5300K- Special Orders- Requirements
Mounting: Unistrut Contact us for special requirements
Wiring Hub: 1/2 inch threaded Toll Free: 1-800-369-6671
Operating Temp Rating: T6 Rated Intl: 1-903-498-3363
U.L. Approval: U.S Certificate Canada Certificate E-mail: [email protected]

*5 year warranty replacement on this LED light (or LED bulbs for light
fixtures with removable LED bulbs). After 30 days, the customer ships
the failed LED light and/or LED bulb to Larson Electronics at their
expense. If the failure is a manufacturer defect, we will ship a new
replacement to the customer. If failure occurs within 30 days of receipt,
Larson Electronics will provide a return label via email to the customer.
When the failed light is returned, Larson Electronics will ship a new
replacement. Please click here to see our 5 Year Warranty pamphlet.

Scroll Down to Purchase-

Part #: EPL-24-4L-LED (48227)

Page: 3

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

Page: 4

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

Links (Click on the below items to view):

- SpecSheet French

- SpecSheet Arabic

- Dimensional Drawing

- SpectrumChart

- STEP

Page: 5

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [email protected]

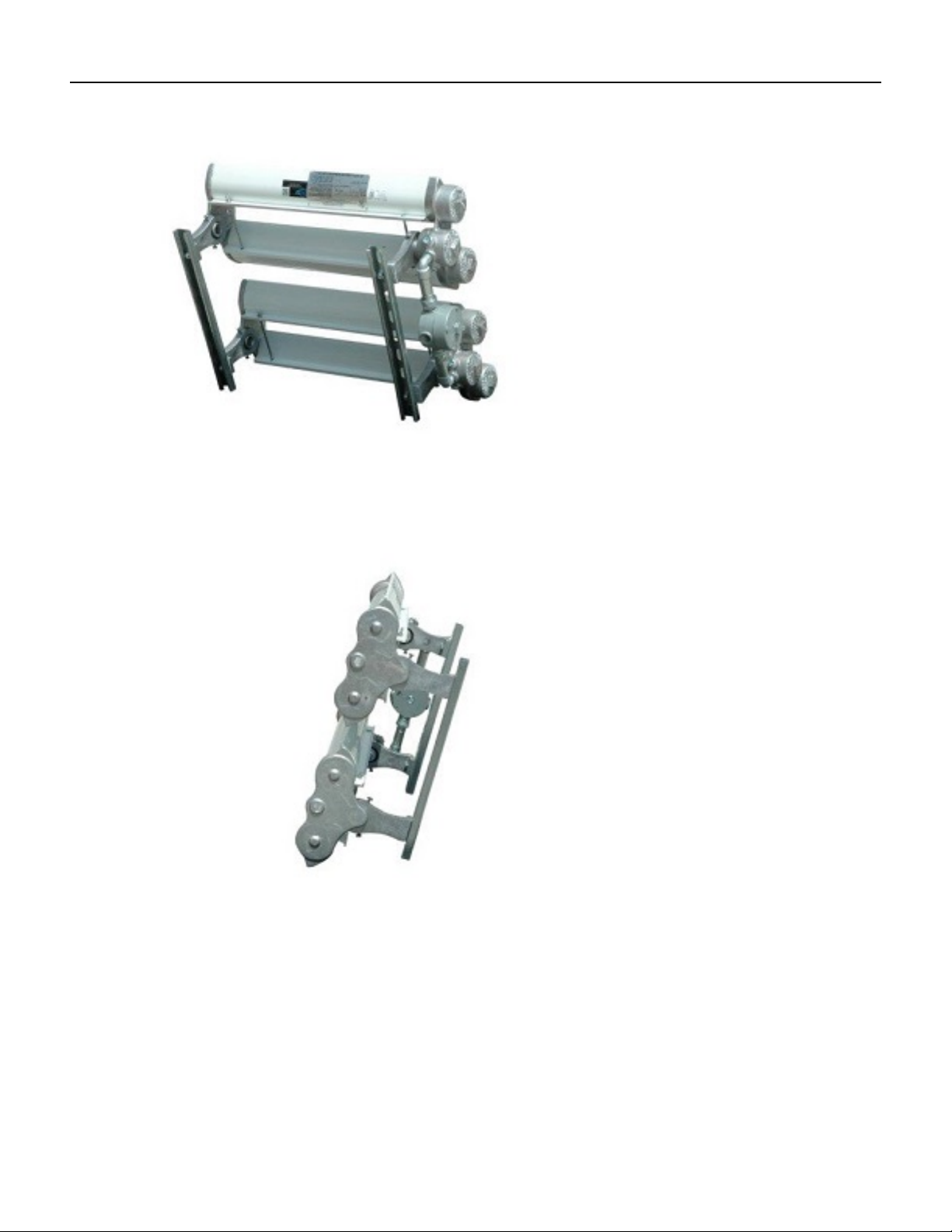

- Hi Res Image 1 - Front Image of Fixture
