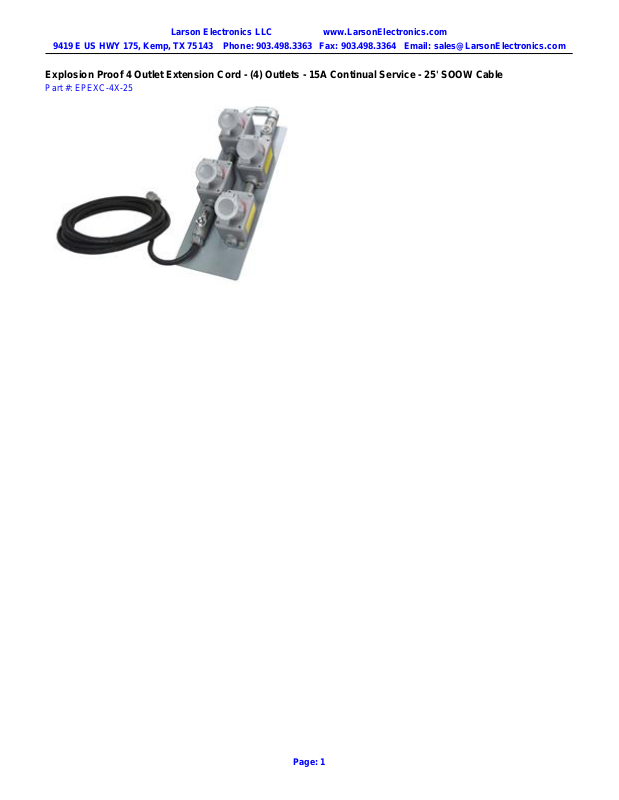

Explosion Proof 4 Outlet Extension Cord - (4) Outlets - 15A Continual Service - 25' SOOW Cable

Part #: EPEXC-4X-25

Page: 1

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

Made in Texas

The Larson Electronics EPEXC-4X-25 Explosion Proof extension cord allows operators to safely extend the range of their explosion
proof light or equipment cords beyond the boundaries of the hazardous work area.

These units are constructed of 25 feet of 14/3 SOOW explosion proof cord and are rated at 15 amps of continuous service. The cord is
chemical and abrasion resistant and comes with four inline, 20 amp, explosion proof receptacles installed on one end and a standard explosion
proof plug installed on the other end. We also include a single extra matching plug for operators to attach to their equipment which allows them
to avoid any issues with plug and receptacle equipment compatibility with this cord. This unit enables multiple connections from a single cord.
Each receptacle's contacts are deep recessed to avoid accidental contact and will accept standard non explosion proof plugs that are NEMA 5­15R, or 5-20R compatible although explosion proof plugs must be used to preserve explosion proof approval in hazardous environments.
Ordinary location plugs will NOT activate this cord's explosion proof receptacles.
The plugs on these units are of a twist lock design. In order for a secure and working connection to take place, the operator must insert the plug
and twist until it locks into place. This ensures a safe seal is made before any sparks from electrical contact can take place. To ensure the
highest safety, operators should make connections outside of the hazardous area.

Click Photos to Enlarge

5-15P Explosion Proof Straight
Blade Plug

Click Photo to Enlarge Click Photo to Enlarge Click Photo to Enlarge

Inter-Compatibility: These cords use T style plugs and will work with non-explosion proof standard receptacles and plugs

(NEMA 5-15R, 5-20R, or 6-20R) but will not work with standard 120V wall outlets. The included plugs and receptacles are
cross-interchangeable with Crouse Hind™ part# ENP5201 plugs and receptacles and Hubble-Killiark part# UGP-20231
ACCEPTOR® plugs and receptacles. Any equipment requiring these C-H or H-B plugs should work with these cords. Due

Page: 2

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

to possible manufacturer changes we cannot guarantee interchangeability although we have made every effort to ensure
cross compatibility correctness.
Suggested Applications: Manufacturing, Industrial, Warehouse, Lighting, Explosion Proof Light Fixtures, Grinders, Wet
areas or Locations Where Combustible Dust is Present.

Specifications / Additional Information

EPEXC-4X-25 Explosion Proof Extension Cord Plug / Outlet Certifications
Amp Rating:15 Amp Continuous Service Class 1 Div 1 Groups C and D
Dimensions: Cord length-25 Feet Plug-2.78"-L 1.75"-W Class 2 Div 1 Groups E, F and G
Configuration: 3 Pole 2 Wire Made in the USA
Suitable Plug Cable Diameter: .538” to .639”
Wiring: 25' 14/3 SOOW Cable Terminated w/ (1) 5-15P Explosion

Proof Straight Blade Plug and (4) 20 Amp Receptacles

Voltage: 125 Volts
Receptacle Specs: 4 Inline Receptacles
Materials: Copper Free Aluminum
Dimensions: 3"-W X 5.69"-D X 6.13"-H Special Orders- Requirements
Mating Plugs: ****EPP-15A, EPP-20-A**** Contact us for special requirements
Finish:Epoxy Powder Coat Toll Free: 1-800-369-6671

U.L. Certification
Warranty: 3 Years*

*3 year warranty replacement on this LED light (or LED bulbs for light
fixtures with removable LED bulbs). After 30 days, the customer ships
the failed LED light and/or LED bulb to Larson Electronics at their
expense. If the failure is a manufacturer defect, we will ship a new
replacement to the customer. If failure occurs within 30 days of receipt,
Larson Electronics will provide a return label via email to the customer.
When the failed light is returned, Larson Electronics will ship a new
replacement. Please click here to see our 3 Year Warranty pamphlet.

Scroll Down to Purchase

Intl: 1-903-498-3363
E-mail: [e-mail]

Part #: EPEXC-4X-25 (50392)
