Larson Electronics EPEXC-150 User Manual

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

Explosion Proof 100 Foot SOOW Extension Cord - 15 Amp Continuous Service

Part #: EPEXC-150

Made in the USA

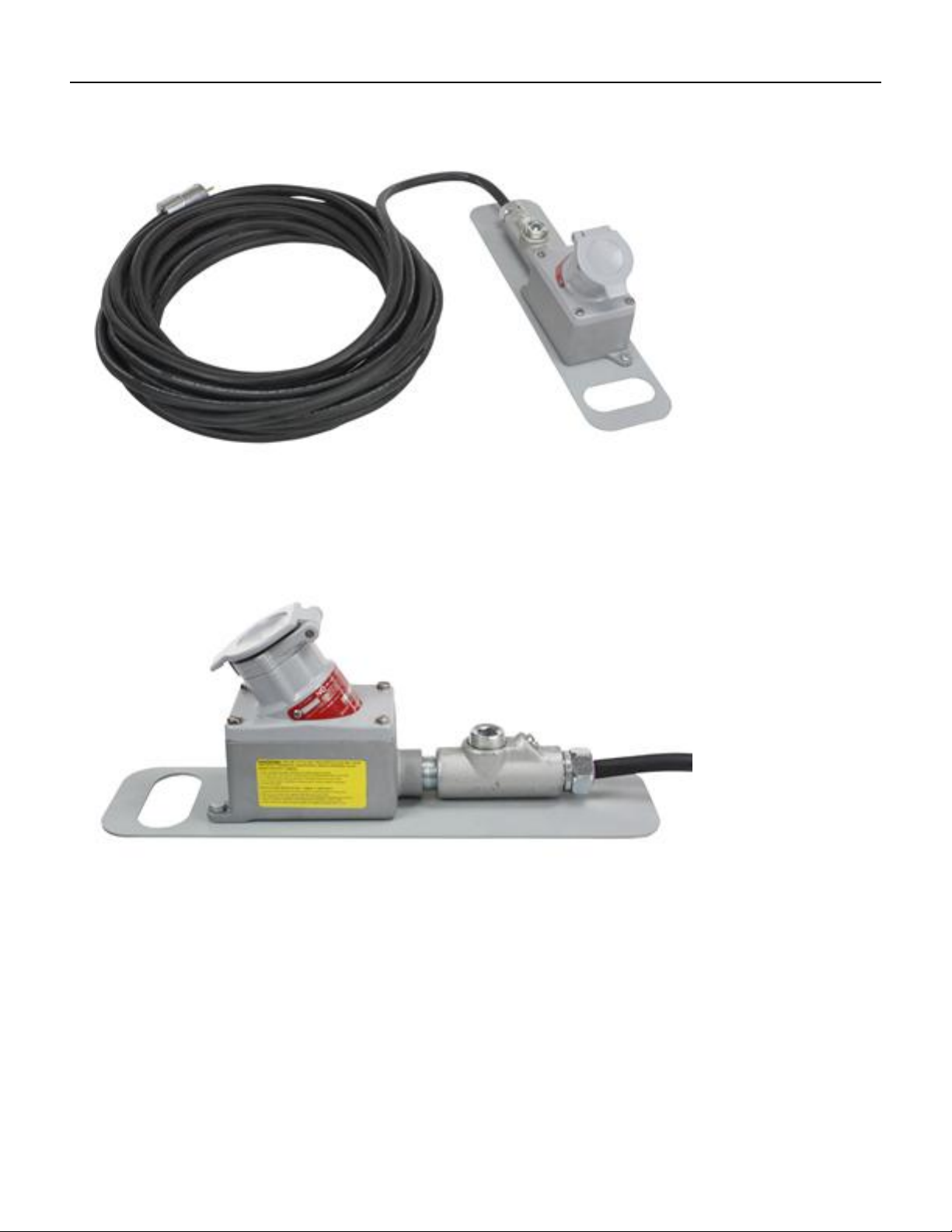

The Larson Electronics EPEXC-150 Explosion Proof extension cord allows operators to safely extend the range of their explosion
proof light or equipment cords beyond the boundaries of the hazardous work area.

These units are constructed of 150 feet of 14/3 SOOW explosion proof cord rated at 15 amps of continuous service. The cord is chemical and
abrasion resistant and comes with a 20 amp explosion proof receptacle installed on one end and a 15 amp explosion proof plug installed on the
other end. We also include an extra matching plug for operators to attach to their equipment which allows them to avoid any issues with plug and
receptacle equipment compatibility with this cord.
The explosion proof receptacles on these units are of a twist lock design. In order for a secure and working connection to take place, the operator
must insert the plug and twist until it locks into place. This ensures a safe seal is made before any sparks from electrical contact can take place.
To ensure the highest safety, operators should make connections outside of the hazardous area.

Click Photos to Enlarge

5-15P Explosion Proof

Straight Blade Plug

Page: 1

Larson Electronics LLC www.LarsonElectronics.com

9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

Inter-Compatibility: The plugs on these cords will work with non-explosion proof standard receptacles (NEMA 5-15R, 5-20R, or 6-20R) and

standard wall outlets, however, they must be used with explosion proof rated outlets to retain their explosion proof rating. The included plugs and
receptacle are cross-interchangeable with Crouse Hind™ part# ENPENP5151 plugs and receptacles and Hubble-Killiark part# UGP-15231
ACCEPTOR® plugs and receptacles. Any equipment requiring these C-H or H-B plugs should work with these cords. Due to possible
manufacturer changes we cannot guarantee interchangability although we have made every effort to ensure cross compatibility correctness.
Suggested Applications: Manufacturing, Industrial, Warehouse, Lighting, Explosion Proof Light Fixtures, Grinders, Wet areas or Locations
Where Combustible Dust is Present.

Specifications / Additional Information

EPEXC-150 Explosion Proof Extension Cord Plug / Outlet Certifications
Amp Rating:15 Amp Continuous Service Class 1 Div 1 Groups C and D
Dimensions: Cord length-150 Feet Plug-2.78"-L 1.75"-W Class 2 Div 1 Groups E, F and G
Configuration: 3 Pole 2 Wire
Suitable Plug Cable Diameter: .538” to .639”
Wiring: 150' 14/3 SOOW Cable Terminated w/ (1) 5-15P Explosion

Proof Straight Blade Plug and (1) 20 Amp Receptacle

Voltage: 125 Volts

Receptacle Specs: 1 In-line Receptacle
Configuration: 3 Pole 2 Wire
Materials: Copper Free Aluminum
Dimensions: 3"-W X 5.69"-D X 6.13"-H Special Orders- Requirements
Mating Plugs: ****EPP-15A, EPP-20-A**** Contact us for special requirements
Finish:Epoxy Powder Coat Toll Free: 1-800-369-6671

Intl: 1-903-498-3363

U.L. Certification
*3 year warranty replacement on this LED light (or LED bulbs for light

fixtures with removable LED bulbs). After 30 days, the customer ships
the failed LED light and/or LED bulb to Larson Electronics at their
expense. If the failure is a manufacturer defect, we will ship a new
replacement to the customer. If failure occurs within 30 days of receipt,
Larson Electronics will provide a return label via email to the customer.
When the failed light is returned, Larson Electronics will ship a new
replacement. Please click here to see our 3 Year Warranty pamphlet.

Scroll Down to Purchase

E-mail: [e-mail]

Part #: EPEXC-150 (70914)
