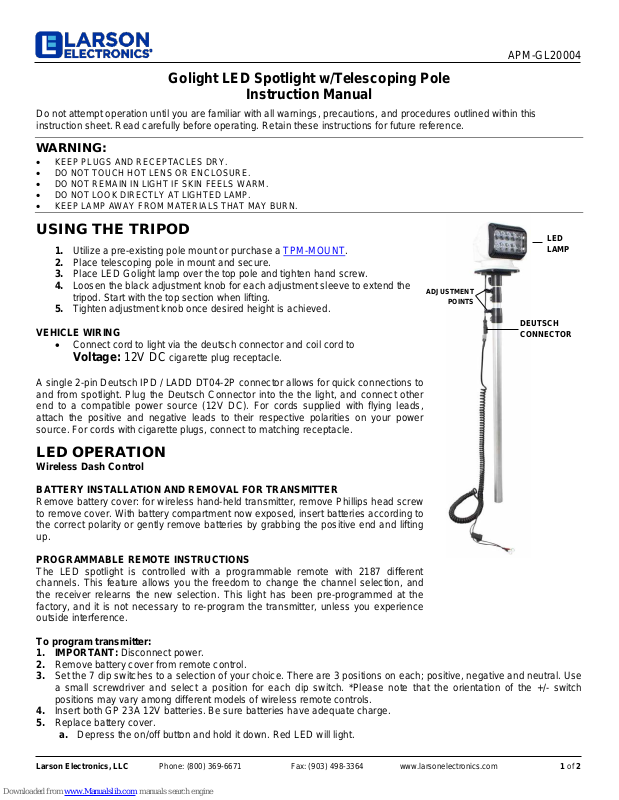

Larson Electronics APM-GL20004 Instruction Manual

APM-GL20004

Larson Electronics, LLC Phone: [phone] Fax: [phone] www.larsonelectronics.com

1 of 2

ADJUSTMENT

DEUTSCH
CONNECTOR

LED
LAMP

Golight LED Spotlight w/Telescoping Pole

Instruction Manual

Do not attempt operation until you are familiar with all warni ngs, prec a uti ons, and pr oc edures outl in ed with in t his
instruction sheet. Read carefully before operating. Retain these instructions for future reference.

WARNING:

• KEEP PLUGS AND RECEPTACLES DRY.

• DO NOT TOUCH HOT LENS OR ENCLOSURE.

• DO NOT REMAIN IN LIGHT IF SKIN FEELS WARM.

• DO NOT LOOK DIRECTLY AT LIGHTED LAMP.

• KEEP LAMP AWAY FROM MATERIALS THAT MAY BURN.

USING THE TRIPOD

1. Utilize a pre-existing pole mount or purchase a TPM-MOUNT.

2. Place telescoping pole in mount and secure.

3. Place LED Go lig ht lamp over the top pole and tighten hand screw.

4. Loosen the black adjustment knob for each adjustment sleeve to extend the

tripod. Start with the top section when lifting.

5. Tighten adjustment knob once desired height is achieved.

VEHICLE WIRING

• Connect cord to light via the deutsch connector and coil cord to

Voltage: 12V DC cigarette plug receptacle.

A single 2-pin Deuts c h IPD / LADD DT 04-2P connector allows for quic k connections to
and from spotlight. P lug the Deutsch Connector int o the the light, and connect o ther
end to a compatible power source (12V DC). For cords supplied with flying leads,
attach the positive and negative leads to their respective polarities on your power
source. For cords with cigarette plugs, connect to matching receptacle.

POINTS

LED OPERATION

Wireless Dash Control
BATTERY INSTALLATION AND REMOVAL FOR TRANSMITTER

Remove battery cover: f or wireles s hand-held trans mitter, rem ove Phillips head sc rew
to remove cover. With battery compartm ent now exposed, insert b atteries according to
the correct polarit y or gently remove batteri es by grabbing the posit ive end and lifting
up.

PROGRAMMABLE REMOTE INSTRUCTIONS

The LED spotlight is controlled with a programmable remote with 2187 different
channels. This feature allo ws you the freedom to change the c hannel selection, and
the receiver relearns the new selection. T his light has been pre-programm ed at the
factory, and it is not n ecessary to re-program the tra nsmitter, unless you experience
outside interference.

To program transmitter:

1. IMPORTANT: Disconnect power.

2. Remove battery cover from remote control.

3. Set the 7 dip switches to a selecti on of your choice. There are 3 positions on each ; pos iti ve, n ega ti ve and neutral. Use

a small screwdriver and select a position for each dip switch. *Please note that the orientation of the +/- switch
positions may vary among different models of wireless remote controls.

4. Insert both GP 23A 12V batteries. Be sure batteries have adequate charge.

5. Replace battery cover.
a. Depress the on/off button and hold it down. Red LED will light.

APM-GL20004

Larson Electronics, LLC Phone: [phone] Fax: [phone] www.larsonelectronics.com

2 of 2



b. While holding the on/off button down, reinstall the power (replace fuse or connect vehicle battery).
c. Keep on/off button depressed for 5-6 seconds, and then release. The light should now be programmed.

OPERATION OF SPOTLIGHT

1. Using the remote control, turn on the light by depressing the on/ off button.

2. With the joystick on the dash control, rotate your light to the desired location.

3. The speed of the light rotation can be controlled by depressing the fast/slow button one time and by depressing

it again to restore the original speed.

4. The hard wired dash control will be backlit when the bu lb is illum inate d.

USAGE:

 This light is intended for off-road and utility use only
 This light is intended to be mounted outside the vehicle while in use
 This light may only be disassembled and repaired by an authorized representative

MISUSE:

 This light is not approved for road or highway use
 This light is not approved for underwater use
 This light is not approved for inverted mounting
 This light is not approved for use inside a vehicle or enclosure and power should be disconnected prior to

placing the light in such circumstance

 This light may be damaged if operated in icing conditions
 This light may only be dismantled by an authori zed repr es entat ive
 Any violation of the above referenced misuses will be considered grounds for warranty refusal

USE AND CARE

Always check damaged or worn out parts before using the work light. Broken parts will affect operation. When not in use,
store work light in a secure place out of the reach of children. Inspect it for good working condition prior to storage and
before re-use.

MAINTENANCE

Maintain your work light. It is recommended that the general condition of any work light be examined before it is used.
Keep your work light in good repair by adopting a program of conscientious repair and maintenance. Have necessary
repairs made by qualified service personnel.

IMPORTANT SAFETY INFORMATION

This symbol is to alert you to important operating or servicing instructions that appear in your instructions. Always follow

basic safety precautions when using this product to reduce the risk of injury, fire or electric shock.

 This light is for off road and utility use only. It is not designed for road use as a driving light.
 The GL-30204 complies with Part. 15.105 of the FCC Rules. This equipment has been tested and found to comply with the limits for

a Class B digital device. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
 FCC RULE Part. 15.21 - Changes or modifications made by the user not expressly approved by Larson Electronics, LLC for
compliance could void the user’s authority to operate the equipment.

THESE INSTRUCTIONS MAY NOT COVER ALL DETAILS OR VARIATIONS OF THIS PRODUCT FOR YOUR EQUIPMENT OR
INSTALLATION REQUIREMENTS. SHOULD FURTHER IN FORMATION NOT COVERED BY THESE INSTRUCTIONS BE
REQUIRED, PLEASE CONTACT LARSON ELECTRONICS BY EMAIL AT [e-mail] OR BY PHONE AT 1-800-
369-6671 FOR FURTHER ASSISTANCE.

PLEASE VISIT LARSONELECTRONICS.COM FOR WARRANTY AND RETURN INFORMATION.
