Page 1
USER MANUAL
Page 2
Page 3
2
Introduction
3 Before use
4
5
Speaker placement
6
Connections
Others
Contents
1
Page 4
2
Congratulations!
Thanks for purchasing the Bolero Mini speaker. We are sure that you will enjoy all kinds of music from our
inspired quality product.
Designed and engineered by well credited team of experts, Lars&Ivan products assure to provide the best
our products provide top quality sound. D
esign, quality, simplicity, and beauty are the criteria of Lars&Ivan. We
believe our designs matches perfectly with all living spaces.
The following manual contains important information about your new Lars&Ivan product. We recommend that
you read the contents of this manual before using the equipment. Please enjoy!
Your Lars&Ivan team
Page 5
1. Do not locate in the following places
To ensure long-lasting use, do not locate the Bolero Mini speaker where:
Exposed to direct sunlight.
Near to sources of heat such as heaters.
Highly humid or poorly ventilated.
Dusty.
Subjected to mechanical vibrations.
On wobbly, inclined or otherwise unstable surfaces.
Radiated heat is blocked such as in cramped audio racks.
2. Important
When seeking warranty service, it is the responsibility of the consumer to establish proof and date or purchase.
Your purchase receipt or invoice is adequate for such proof.
3. Retain your purchase receipt
Your purchase receipt is your permanent record of valueable purchase. It should be kept in a safe place to be
referred to as necessary for insurance purpose or when corresponding with Lars&Ivan.
4. Warnings
Do not expose the equipment to rain or moisture.
Do not remove the cover from the equipment.
Do not insert anything into the equipment throught the ventilation holes.
Do not cover the ventilation with any items such as tablecloths, newspapers, curtains, etc.
Before use
3
Page 6
4
Power Handling: 4 ohms, nominal 20 W RMS, compatible to amp up to 40 W output.
Frequency range ( ± 3 dB): 110 Hz ~ 20 kHz.
Sensitivity: 84 dB SPL (1 w @ 1 m).
Driver units: One 70 mm mid-range / bass driver and 19 mm Hight frequency soft dome tweeter.
Dimensions (HxWxD): 184x132x120 mm / speaker.
Weight: 2.2 kg / pair (without wire and packaging).
Front
Side
Back
Page 7
5
3 m

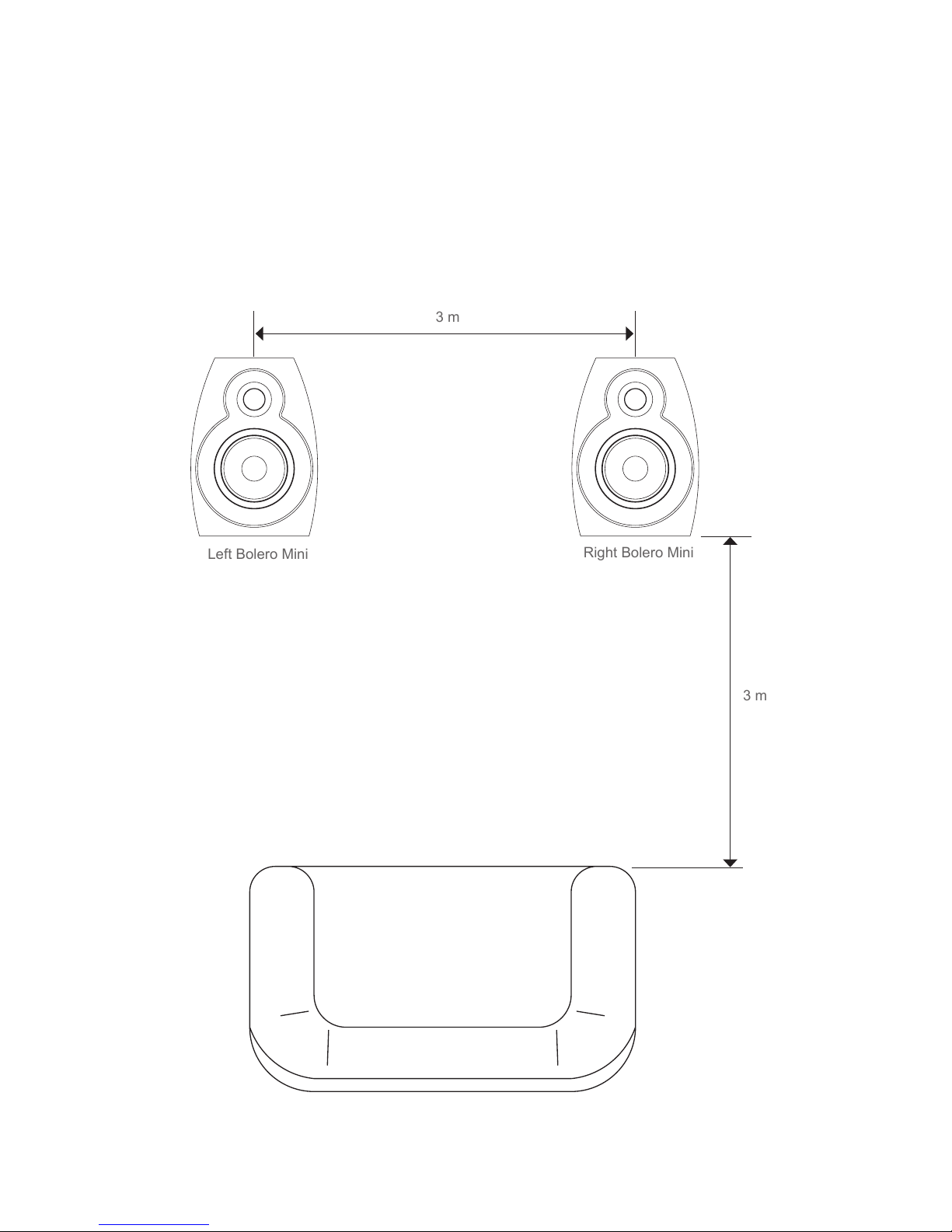

Proper placement of the speakers is an important step in obtaining the most realistic soundstage. These
recommendations are for the optimal placement of the loudspeakers. Use these placement recommendations
as a guide. Slight variations will not diminish your listening pleasure. The Bolero Mini speaker is magnetic
shielded and can be safely placed near a TV or monitor.
Left Bolero Mini
Right Bolero Mini
3 m
Speaker placement
Page 8
6
Speaker connections
Speaker and electrical terminals have corresponding (+) and (-) terminals. It is important to connect both
speakers identically:
This section describes the care and maintenance tasks that must be performed to optimize the operation of
your Lars&Ivan component.
Cleaning of equipment external surfaces
Never use scouring pads, steel wool, scourging powders or harsh chemical agents (e.g., dye solution), alcohol,
Likewise, never use cloths containing chemical substances. If the equipment get dirty, wipe the external
surfaces with a soft, lint-free cloth.
A note about recycling
This product’s packaging materials are recyclable and can be reused.
This product and the accessories packed together are the applicable product to the directive.
Please dispose of any materials in accordance with your local recycling regulations. When discarding the unit,
comply with your local rules or regulations.
Warranty
For warranty information, contact your local Lars&Ivan distributor.
Retain your purchase receipt
Your purchase receipt is your permanent record of a valuable purchase.
It should be kept in a safe place to be referred to as necessary for insurance purposes or when corresponding
with Lars&Ivan.
Important
When seeking warranty service, it is the responsibility of the consumer to establish proof and date of purchase.
Your purchase receipt or invoice is adequate for such proof.
Technical Support
Please contact your local distributor found @ http://www.lars-ivan.com
Connections
Others
Page 9
Page 10
www.lars-ivan.com
