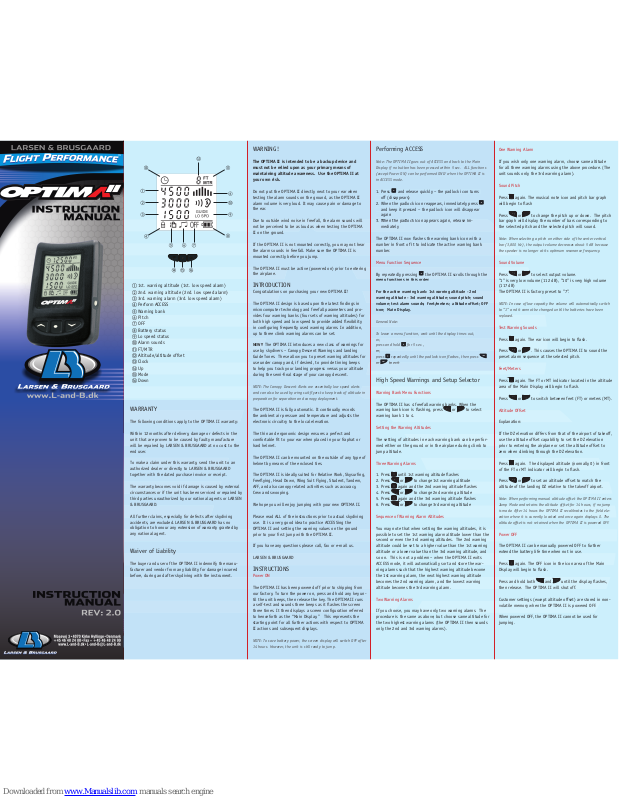

Larsen & Brusgaard OPTIMA II Instruction Manual

WARNING!

The OPTIMA II is intended to be a backup device and must not be relied upon as your primary means of maintaining altitude awareness. Use the OPTIMA II at your own risk.

Do not put the OPTIMA II directly next to your ear when testing the alarm sounds on the ground, as the OPTIMA II alarm volume is very loud. It may cause pain or damage to the ear.

Due to outside wind noise in freefall, the alarm sounds will not be perceived to be as loud as when testing the OPTIMA II on the ground.

If the OPTIMA II is not mounted correctly, you may not hear the alarm sounds in freefall. Make sure the OPTIMA II is mounted correctly before you jump.

The OPTIMA II must be active (powered on) prior to entering the airplane.

INTRODUCTION

Congratulations on purchasing your new OPTIMA II!

The OPTIMA II design is based upon the latest ﬁ ndings in microcomputer technology and freefall parameters and provides four warning banks (four sets of warning altitudes) for both high speed and low speed to provide added ﬂ exibility in conﬁ guring frequently used warning alarms. In addition, up to three climb warning alarms can be set.

NEW!! The OPTIMA II introduces a new class of warnings for

use by skydivers – Canopy Descent Warnings and landing Guide Tones. These allow you to preset warning altitudes for use under canopy and, if desired, to provide timing beeps to help you track your landing progress versus your altitude during the semi-ﬁ nal stage of your canopy descent.

NOTE: The Canopy Descent Alerts are essentially low speed alerts and can also be used by wing suit ﬂ yers to keep track of altitude in preparation for separation and canopy deployment.

The OPTIMA II is fully automatic. It continually records the ambient air pressure and temperature and adjusts the electronic circuitry to the local elevation.

The thin and ergonomic design ensures a perfect and comfortable ﬁ t to your ear when placed in your fraphat or hard helmet.

The OPTIMA II can be mounted on the outside of any type of helmet by means of the enclosed ties.

The OPTIMA II is ideally suited for Relative Work, Skysurﬁ ng, Freeﬂ ying, Head Down, Wing Suit Flying, Student, Tandem, AFF, and also canopy related activities such as accuracy, Crew and swooping.

We hope you will enjoy jumping with your new OPTIMA II.

Please read ALL of the instructions prior to actual skydiving use. It is a very good idea to practice ACCESSing the OPTIMA II and setting the warning values on the ground prior to your ﬁ rst jump with the OPTIMA II.

If you have any questions please call, fax or e-mail us.

LARSEN & BRUSGAARD

INSTRUCTIONS

Power ON

The OPTIMA II has been powered off prior to shipping from our factory. To turn the power on, press and hold any key until the unit beeps, then release the key. The OPTIMA II runs a self-test and sounds three beeps as it ﬂ ashes the screen three times. It then displays a screen conﬁ guration referred to henceforth as the “Main Display.” This represents the starting point for all further actions with respect to OPTIMA II actions and subsequent displays.

NOTE: To save battery power, the screen display will switch OFF after 14 hours. However, the unit is still ready to jump.

WARRANTY

The following conditions apply to the OPTIMA II warranty:

Within 12 months after delivery, damage or defects in the unit that are proven to be caused by faulty manufacture will be repaired by LARSEN & BRUSGAARD at no cost to the end user.

To make a claim under this warranty, send the unit to an authorized dealer or directly to LARSEN & BRUSGAARD together with the dated purchase invoice or receipt.

The warranty becomes void if damage is caused by external circumstances or if the unit has been serviced or repaired by third parties unauthorized by our national agents or LARSEN & BRUSGAARD.

All further claims, especially for defects after skydiving accidents, are excluded. LARSEN & BRUSGAARD has no obligation to honour any extension of warranty granted by any national agent.

Waiver of Liability

The buyer and user of the OPTIMA II indemnify the manufacturer and vendor from any liability for damage incurred before, during and after skydiving with the instrument.

 1st. warning altitude (1st. low speed alarm)  2nd. warning altitude (2nd. low speed alarm)  3rd. warning alarm (3rd. low speed alarm)  Perform ACCESS  Warning bank  Pitch  OFF  Battery status  Lo speed status  Alarm sounds  FT/MTR  Altitude/altitude offset  Clock  Up  Mode  Down

Performing ACCESS

Note: The OPTIMA II goes out of ACCESS and back to the Main Display if no button has been pressed within 5 sec. ALL functions (except Power ON) can be performed ONLY when the OPTIMA II is in ACCESS mode.

1. Press and release quickly – the padlock icon turns off (disappears)

2. When the padlock icon reappears, immediately press and keep it pressed – the padlock icon will disappear again

3. When the padlock icon appears again, release im- mediately

The OPTIMA II now ﬂ ashes the warning bank icon with a number in front of it to indicate the active warning bank number.

Menu Function Sequence

By repeatedly pressing

the OPTIMA II scrolls through the

menu functions in this order:

For the active warning bank: 1st warning altitude - 2nd warning altitude - 3rd warning altitude; sound pitch; sound volume; test alarm sounds; feet/meters; altitude offset; OFF icon; Main Display.

General Note:

To leave a menu function, wait until the display times out, or, press and hold for 5 sec., or, press repeatedly until the padlock icon ﬂ ashes, then press or to exit

High Speed Warnings and Setup Selector

Warning Bank Menu Functions

The OPTIMA II has 4 freefall warning banks. When the warning bank icon is ﬂ ashing, press

or to select

warning bank 1 to 4.

Setting the Warning Altitudes

The setting of altitudes in each warning bank can be performed either on the ground or in the airplane during climb to jump altitude.

Three Warning Alarms

1. Press

until 1st warning altitude ﬂ ashes

2. Press

or to change 1st warning altitude

3. Press

again and the 2nd warning altitude ﬂ ashes

4. Press

or to change 2nd warning altitude

5. Press

again and the 3rd warning altitude ﬂ ashes

6. Press

or to change 3rd warning altitude

Sequence of Warning Alarm Altitudes

You may note that when setting the warning altitudes, it is possible to set the 1st warning alarm altitude lower than the second or even the 3rd warning altitudes. The 2nd warning altitude could be set to a higher value than the 1st warning altitude or a lower value than the 3rd warning altitude, and so on. This is not a problem – when the OPTIMA II exits ACCESS mode, it will automatically sort and store the warning alarms such that the highest warning altitude become the 1st warning alarm, the next highest warning altitude becomes the 2nd warning alarm, and the lowest warning altitude becomes the 3rd warning alarm.

Two Warning Alarms

If you choose, you may have only two warning alarms. The procedure is the same as above, but choose same altitude for the two highest warning alarms (the OPTIMA II then sounds only the 2nd and 3rd warning alarms).

One Warning Alarm

If you wish only one warning alarm, choose same altitude for all three warning alarms using the above procedure. (The unit sounds only the 3rd warning alarm).

Sound Pitch

Press

again. The musical note icon and pitch bar graph

will begin to ﬂ ash

Press

or to change the pitch up or down. The pitch bar graph will display the number of bars corresponding to the selected pitch and the selected pitch will sound.

Note: When selecting a pitch on either side of the center vertical bar (3,800 Hz), the output volume decreases about 5 dB because the speaker is no longer at its optimum resonance frequency.

Sound Volume

Press

or to select output volume. ”1” is very low volume (112 dB), ”10” is very high volume (117 dB) The OPTIMA II is factory preset to ”7”.

NOTE: In case of low capacity the volume will automatically switch to ”1” and it cannot be changed until the batteries have been replaced.

Test Warning Sounds

Press

again. The ear icon will begin to ﬂ ash.

Press

or . This causes the OPTIMA II to sound the preset alarm sequence at the selected pitch.

Feet/Meters

Press

again. The FT or MT indicator located in the altitude

area of the Main Display will begin to ﬂ ash.

Press

or to switch between feet (FT) or meters (MT).

Altitude Offset

Explanation:

If the DZ elevation differs from that of the airport of takeoff, use the altitude offset capability to set the DZ elevation prior to entering the airplane or set the altitude offset to zero when climbing through the DZ elevation.

Press

again. The displayed altitude (normally 0) in front

of the FT or MT indicator will begin to ﬂ ash.

Press

or to set an altitude offset to match the altitude of the landing DZ relative to the takeoff airport.

Note: When performing manual altitude offset the OPTIMA II enters Jump Mode and retains the altitude offset for 14 hours, if no jump is made. After 14 hours the OPTIMA II recalibrates to the ﬁ eld elevation where it is currently located and once again displays 0. The altitude offset is not retained when the OPTIMA II is powered OFF.

Power OFF

The OPTIMA II can be manually powered OFF to further extend the battery life time when not in use.

Press

again. The OFF icon in the icon area of the Main

Display will begin to ﬂ ash.

Press and hold both

and until the display ﬂ ashes,

then release. The OPTIMA II will shut off.

Customer settings (except altitude offset) are stored in nonvolatile memory when the OPTIMA II is powered OFF.

When powered OFF, the OPTIMA II cannot be used for jumping.

Performing ACCESS

Note: The OPTIMA II goes out of ACCESS and back to the Main

Display if no button has been pressed within 5 sec. ALL functions

(except Power ON) can be performed ONLY when the OPTIMA II is

in ACCESS mode.

1. Press

and release quickly – the padlock icon turns

off (disappears)

2. When the padlock icon reappears, immediately press

and keep it pressed – the padlock icon will disappear

again

3. When the padlock icon appears again, release im-

mediately

The OPTIMA II now ﬂ ashes the warning bank icon with a

number in front of it to indicate the active warning bank

number.

Menu Function Sequence

By repeatedly pressing

the OPTIMA II scrolls through the

menu functions in this order:

For the active warning bank: 1st warning altitude - 2nd

warning altitude - 3rd warning altitude; sound pitch; sound

volume; test alarm sounds; feet/meters; altitude offset; OFF

icon; Main Display.

General Note:

To leave a menu function, wait until the display times out,

or,

press and hold

for 5 sec.,

or,

press

repeatedly until the padlock icon ﬂ ashes, then press

to exit

Canopy Descent and Low Speed Warnings Selector

Description

The OPTIMA II includes two types of warning sounds which can be selected to sound while under canopy descent or during wing suit ﬂ ight.

1. Canopy Descent and Low Speed Warnings:

Short beeps sound when passing through one, two or three selectable altitudes during canopy descent or wing suit ﬂ ight.

2. Guide Tones:

A unique series of guide beeps sound when ﬂ ying from the 2nd through the 3rd selected Canopy Descent Warning altitudes.

Setting Canopy Descent and Low Speed Warnings

Note: Minimum selectable height is 100 ft (30 meters)

Note: Default values 1200 ft., 900 ft., and 600 ft. have been factory preset for Canopy Descent Warning altitudes.

In the Main Display mode, press

to access the Canopy

Descent and Low Speed Warnings Selector.

Warning Bank Menu Functions

The OPTIMA II has 4 canopy descent and low speed warning banks. When the warning bank icon is ﬂ ashing, press or to select warning bank 1 to 4.

Setting the Warning Alarm Altitudes

The setting of altitudes in each warning bank can be performed either on the ground or in the airplane during climb to jump altitude.

Three Warning Alarms

1. Press

until 1st warning altitude ﬂ ashes

2. Press

or to change 1st warning altitude

3. Press

again and the 2nd warning altitude ﬂ ashes

4. Press

or to change 2nd warning altitude

5. Press

again and the 3rd warning altitude ﬂ ashes

6. Press

or to change 3rd warning altitude

Two Warning Alarms

One Warning Alarm

If you wish only one warning alarm, choose same altitude for all three warning alarms using the above procedure. (The unit sounds only the 3rd warning alarm).

Sound Pitch

Press

again. The musical note icon and pitch bar graph

will begin to ﬂ ash

Press

or to change the pitch up or down. The pitch bar graph will display the number of bars corresponding to the selected pitch and the selected pitch will sound.

NOTE: When selecting a pitch on either side of the center vertical bar (3,800 Hz), the output volume decreases about 5 dB because the speaker is no longer at its optimum resonance frequency.

Sound Volume

Press

or to select output volume. ”1” is very low volume (112 dB), ”10” is very high volume (117 dB) The OPTIMA II is factory preset to ”3”.

NOTE: In case of low capacity the volume will automatically switch to ”1” and it cannot be changed until the batteries have been replaced.

Setting Guide Tones

Explanation:

When Guide Tones are activated, a unique series of beeps sound between the 2nd and 3rd Canopy Descent Warning altitudes.

The series of beeps can be compared to an aircraft ILS approach. The ﬁ rst beep sounds when passing through the 2nd warning altitude, the next beep 30% into the glide corridor, then after 55% and so on as depicted in the diagram. The diagram shows an example where the 2nd warning is set to 1,500 ft and the 3rd warning to 300 ft. A long beep sounds when passing through the 3rd selected altitude. The steeper a glide angle the shorter time between beeps.

NOTE: For safety reasons, the minimum selectable swoop height is 100 ft.(30 meter) and the minimum selectable altitude difference between the 2nd and the 3rd warnings is 300 ft.(90 meters).

To enable Guide Tones

NOTE: Before enabling Guide Tones, the minimum altitude difference between the 2nd and the 3rd warnings must be 300 ft. (90 meters)

Press

repeatedly until GUIDE ﬂ ashes. Press or

until the GUIDE icon is on.

NOTE: When Guide Tones are enabled, the GUIDE icon will show in the warning bank area of all warning bank displays and in the Main Display.

To disable Guide Tones

Press repeatedly until GUIDE ﬂ ashes. Press or until the GUIDE icon is off.

NOTE: When Canopy Descent and Low Speed Warnings are enabled, the LO SPD icon will show in the warning bank area of all warning bank displays and in the Main Display. To disable LO SPD, ﬁ rst disable Guide Tones, then set all warnings to ---

Test Alarm Sounds

Press

again. The ”Ear” icon will begin to ﬂ ash. Press

. This causes the OPTIMA to sound the preset alarm

sequence at the selected pitch.

NOTE: When GUIDE is enabled, a series of beeps sound which simulates a 10m/sec canopy descent and when GUIDE is disabled, three warning beeps sound

Climb to Altitude Warnings and Clock Selector

The altitude during climb at which the beep is heard may be changed or up to three different altitudes during climb may be selected for beep sounds.

At the lowest preset altitude (factory preset to 1,000 feet), the OPTIMA II sounds a sequence of beeps. These beeps have two functions:

1. The beeps indicate that the OPTIMA II has calibrated itself to the local ground elevation and is ready to jump.

2. The number of beeps indicates the altitude at which the highest warning alarm is set; for example: If set to 4,500 feet, the signal will sound: beep-beep-beep-beep-(pause)beep. The number of rapid-sequence of beeps indicates the highest warning altitude in thousands of feet. The beep after a pause (if any), signiﬁ es a 500-foot altitude increment.

Should the battery voltage of the OPTIMA II show low capacity, the beep sequence is followed by 5 short beeps. This indicates that the batteries should be replaced.

NOTE: At the same time the output volume setting is automatically changed to low volume “1” and it cannot be changed until the batteries have been replaced.

When the aircraft begins climbing to altitude, the OPTIMA II displays the current altitude at the top of the display.

Setting Climb to Altitude Warnings

The setting of warning altitudes can be performed either on the ground or in the airplane during climb to jump altitude.

Three Warning Alarms

1. Press

until 1st warning altitude ﬂ ashes

2. Press

or to change 1st warning altitude

3. Press

again and the 2nd warning altitude ﬂ ashes

4. Press

or to change 2nd warning altitude

5. Press

again and 3rd warning altitude ﬂ ashes

6. Press

or to change 3rd warning altitude

Sequence of Climb Warning Alarm Altitudes

One or Two Warning Alarms

If you wish only one warning alarm or two alarms, preset the not used alarm(s) to ---

Time Set Function

Built-in clock

In Main Display mode, press to display the time. The time is in 24-hour format. The time is displayed for 15 seconds and then reverts back to the Main Display.

Setting the time:

Perform ACCESS and press

repeatedly until “clock” ﬂ ashes.

Then press

or to set the time.

OPERATIONAL CONSIDERATIONS

Prior to Jumping

The OPTIMA II continually adjusts to the local elevation and displays 0 FT (MT) at the top of the display. If the top of the display does not show “0” (or your selected altitude offset) prior to jumping, the unit has not adjusted itself to the local elevation and it must be manually zeroed. See the section, “Altitude Offset Function” under Menu functions above. Even when the display turns OFF, the unit is still ready for jumping

Setting an Altitude Offset

If the drop zone (DZ) elevation is different from that of the take-off airport, you may compensate for this difference by setting an Altitude Offset – see the Altitude Offset menu function described above.

Battery Status

Full capacity: Symbol shows two black bars inside the bat- tery icon.

Half capacity: Symbol shows one black bar inside the battery icon.

Low capacity: Symbol shows no black bars, just an “empty” battery icon. Batteries should be replaced as soon as pos- sible. As a reminder, 5 short beeps sound when climbing through the lowest preset climb altitude. At the same time

the output volume setting is automatically changed to low volume “1”. Empty batteries: The battery icon ﬂ ashes. Replace batteries immediately.

Mounting the OPTIMA II

The OPTIMA II can be mounted on the outside of the helmet or on a Goggle Mount.

Loop the waxed tack cords through the four mounting holes and fasten with knobs to the helmet/Goggle Mount

NOTE: Make sure that there is no material between the OPTIMA II loudspeaker hole and your ear.

Resetting the OPTIMA II

Press a paperclip into the tiny hole on the rear side of the unit and release. The unit restarts.

NOTE: Reset the unit after battery replacement, when troubleshooting and when verifying software version number.

Air Filter

The OPTIMA II is water resistant.

The Air Filter is the white circular part mounted on the side of the unit. If it becomes wet (after a splash in the swoop pond) then let the OPTIMA II dry in a warm place for 48 hours.

NOTE: The Air Filter must be replaced if jumping is resumed quickly or if the OPTIMA II has been submerged into water.

Air Filter removal tooling kit is an accessory which can be purchased separately.

OPTIMA II Firmware Version

Perform reset. The version number is displayed at the upper part of the screen (altitude area). The numbers displayed in the middle of the screen is a factory reference number.

Battery replacement

Carefully remove screw from battery cover and remove batteries. Install new batteries and note polarity. Use only CR-2325 or equivalent.

NOTE: Reset the OPTIMA II after replacing batteries.

Customer settings are kept in non-volatile memory when removing batteries. However, the built-in clock may again be set to the correct time.

Trouble-shooting

When the OPTIMA II detects a fault, an error (“ERR”) sign and trouble shooting number 2 to 4 are displayed in the upper part of the screen. At the same time the unit beeps every minute.

The “ERR” trouble shooting codes are as follows:

ERR 2, ERR 3, ERR 4 = unit is defective. Remedy: perform

reset

If the unit does not function correctly even after replacing batteries and pressing reset, perform following:

Press

and hold while resetting.

The OPTIMA II resets to factory settings and sounds three beeps.

If the unit is still faulty, please contact your local dealer or LARSEN & BRUSGAARD.

SPECIFICATIONS

Dimensions: 52 x 40 x 12 mm (2.16 x 1.57 x 0.47 inches)

Weight: 26 grams (0.9 oz.)

Battery type: 2 x CR 2325 or equivalent

Battery Life Time: 2.5 years or 500 jumps

Freefall alarm sounds:

1st warning:

One 3 second pulsating alarm if vertical airspeed exceeds 13 m/ sec at preset altitude. Sound sequence: Pulsating, low repetition.

2nd warning:

One 4 second pulsating alarm if vertical airspeed exceeds 13 m/sec at preset altitude. Sound sequence: Pulsating, high repetition.

3rd warning:

Siren alarm as long as vertical airspeed exceeds 13 m/sec at or below the preset altitude. After deployment the trigger speed switches to 35 m/sec. Sound sequence: High pitch continuous siren.

Low Speed alarm sounds:

1st warning: One 0.2 second beep

2nd warning: Two 0.2 second beeps

3rd warning: One 1.3 second beep

Climb to Altitude Warnings: Two 0.2 second beeps

Alarm output volume: 112 dB at maximum pitch 117 dB at minimum pitch

Freefall alarm calibration range: 1,000 to 9,990 feet (30 to 3,330 meters)

Low speed alarm calibration range: 100 to 9,990 feet (90 to 3,330 meters)

Minimum Climb to Altitude setting: 1,000 ft. (300 meters)

Altitude selection interval: 10 feet (10 meters)

Operating altitude: 0 to 40,000 feet

Accuracy: ± 20 feet (+/- 6 meters) at MSL

Operating Temperature Range: -20° C to +50° C (-4° F to +122° F)

Meets or exceeds EEC/89/336 L&B part no.: 205222 NATO Stock no.: 6605-22-609-1694

OPERATIONAL CONSIDERATIONS

Prior to Jumping

The OPTIMA II continually adjusts to the local elevation

and displays 0 FT (MT) at the top of the display. If the top

of the display does not show “0” (or your selected altitude

offset) prior to jumping, the unit has not adjusted itself to

the local elevation and it must be manually zeroed. See the

section, “Altitude Offset Function” under Menu functions

above. Even when the display turns OFF, the unit is still

ready for jumping

Setting an Altitude Offset

If the drop zone (DZ) elevation is different from that of the

take-off airport, you may compensate for this difference by

setting an Altitude Offset – see the Altitude Offset menu

function described above.

Battery Status

Full capacity: Symbol shows two black bars inside the bat-

tery icon.

Half capacity: Symbol shows one black bar inside the battery

icon.

Low capacity: Symbol shows no black bars, just an “empty”

battery icon. Batteries should be replaced as soon as pos-

sible. As a reminder, 5 short beeps sound when climbing

through the lowest preset climb altitude. At the same time

Larsen & Brusgaard OPTIMA II Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
