Page 1
Outdoor Dining Chair
Page 2
PART LIST
A B
Back Panel
2 PCS
F
Seat Cushion
Core
2 PCS
Seat Panel
2 PCS
G H
Back Cushion
Cover *
2 PCS
HARDWARE LIST
C
Right Arm Panel
2 PCS
Back Cushion
Core
2 PCS
D
Left Arm Panel
2 PCS
*Please note cushion covers will
ship separately.
E
Seat Cushion
Cover *
2 PCS
#1
M6*12mm
Short Bolt
16 PCS (Extra 2)
#2
M6*45mm
Long Bolt
4 PCS (Extra 1)
#3
M6mm
Flat Washer
20 PCS (Extra 2)
#4
M6mm
Allen Wrench
1 PC
2
Page 3

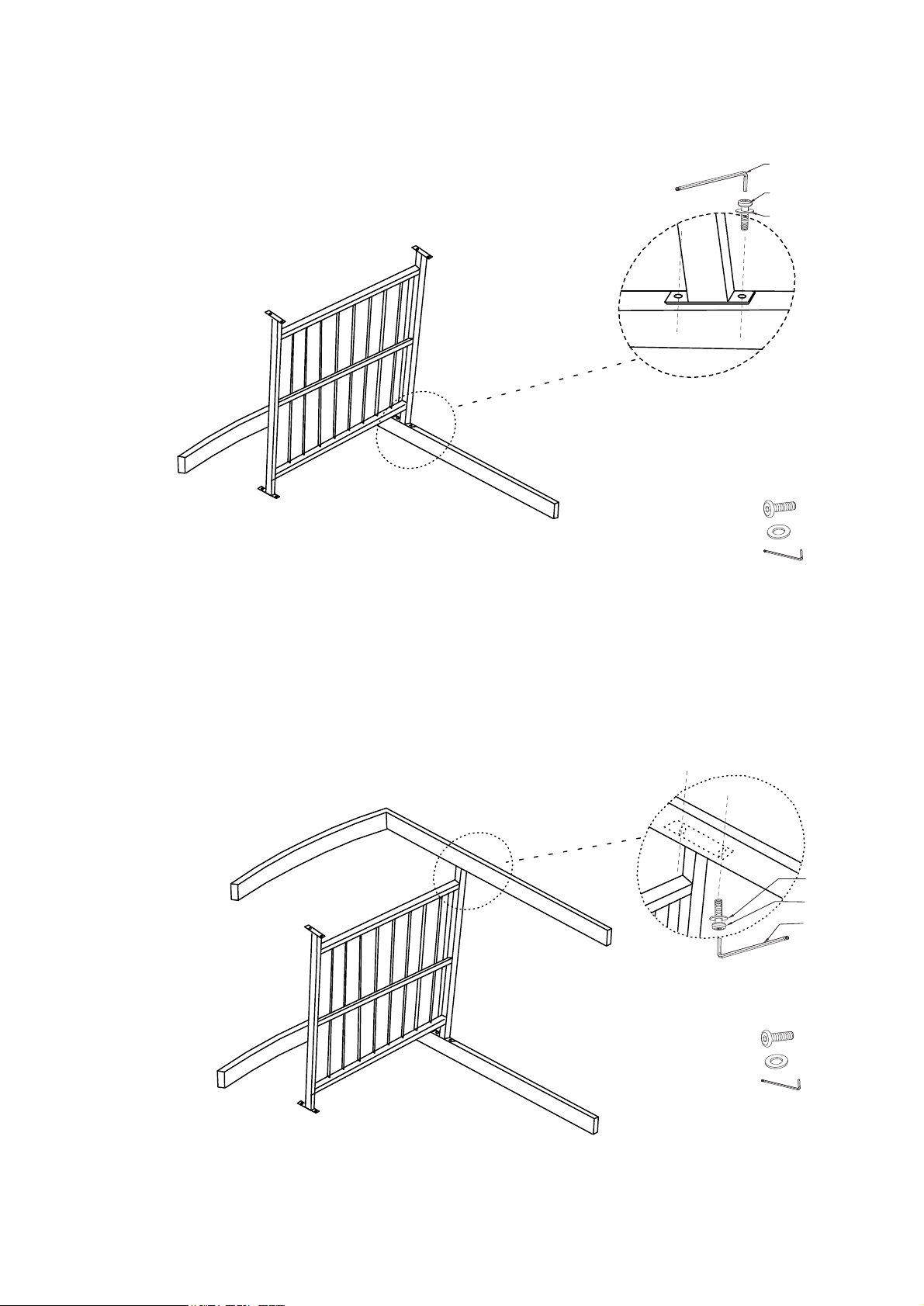

Step 1.
Attach seat panel (part B) to left arm panel (part D) using short bolts (part #1), flat
washers (part #3) and allen wrench (part #4).
NOTE: Please do not fully tighten bolts until unit is fully assembled.
Lay left arm panel (part D) down on a soft flat surface, such as carpet, as shown below.
#4
#1
#3
B
D
Step 2.
washers (part #3) and allen wrench (part #4).
NOTE: Please do not fully tighten bolts until unit is fully assembled.
Attach right arm panel (part C) to seat panel (part B) using short bolts (part #1), flat
C
#1
#3
#4
x2
x2
x1
#1
#3
#4
B
#1
#3
#4
3
x2
x2
x1
Page 4

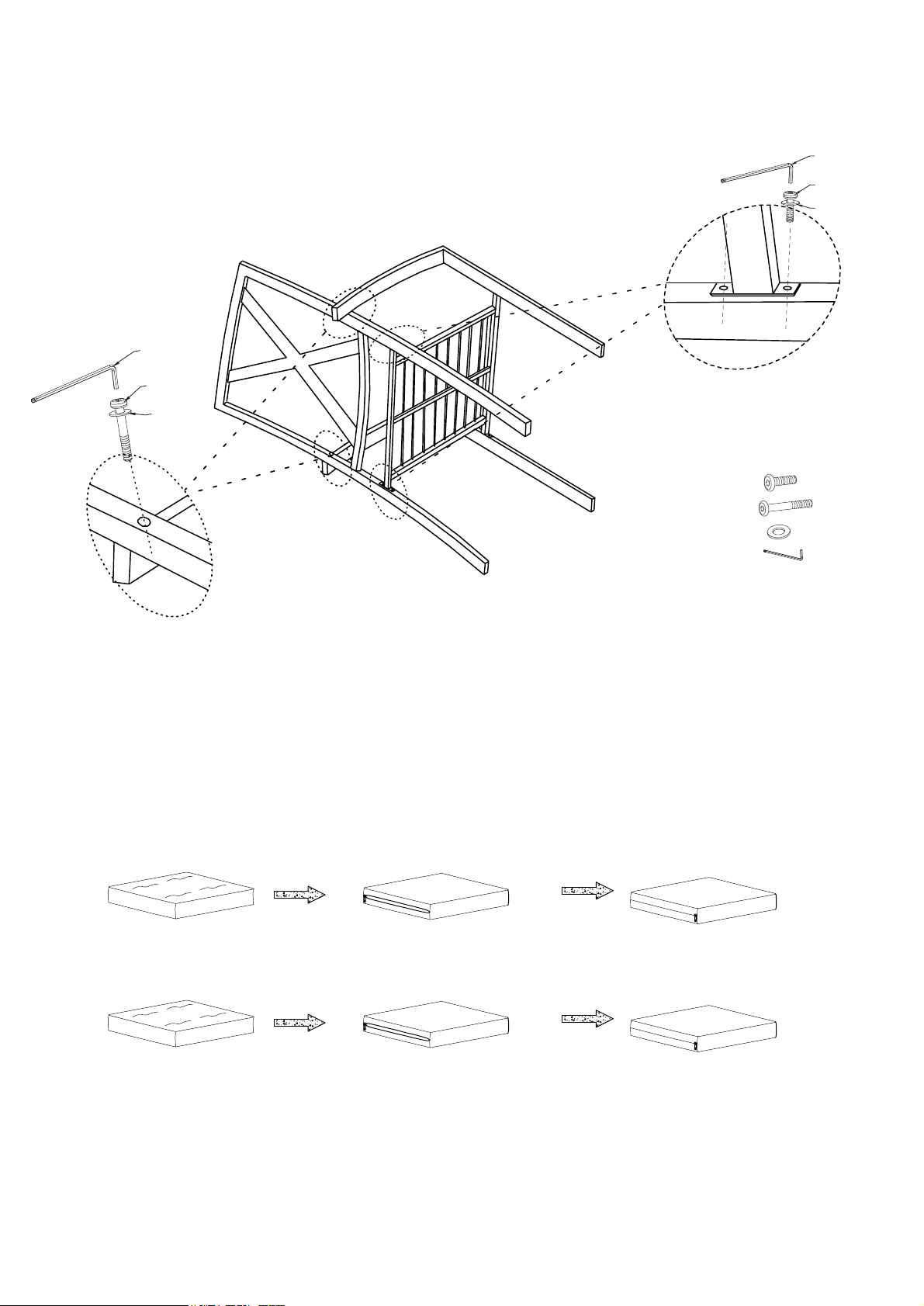

Step 3.
long bolts (part #2), flat washers (part #3) and allen wrench (part #4).
NOTE: Please fully tighten all bolts at this time.
Attach back panel (part A) to assembled unit (parts B,C & D) using shorts bolts (part #1),
C
#4
#2
A
#4
#1
#3
#3
B
D
Step 4. Insert seat cushion core (part F) into seat cushion cover (part E).
lnsert back cushion core (part H) into back cushion cover (part G).
#1
#2
#3
#4
x4
x2
x6
x1
F
H
E
G
4
Page 5

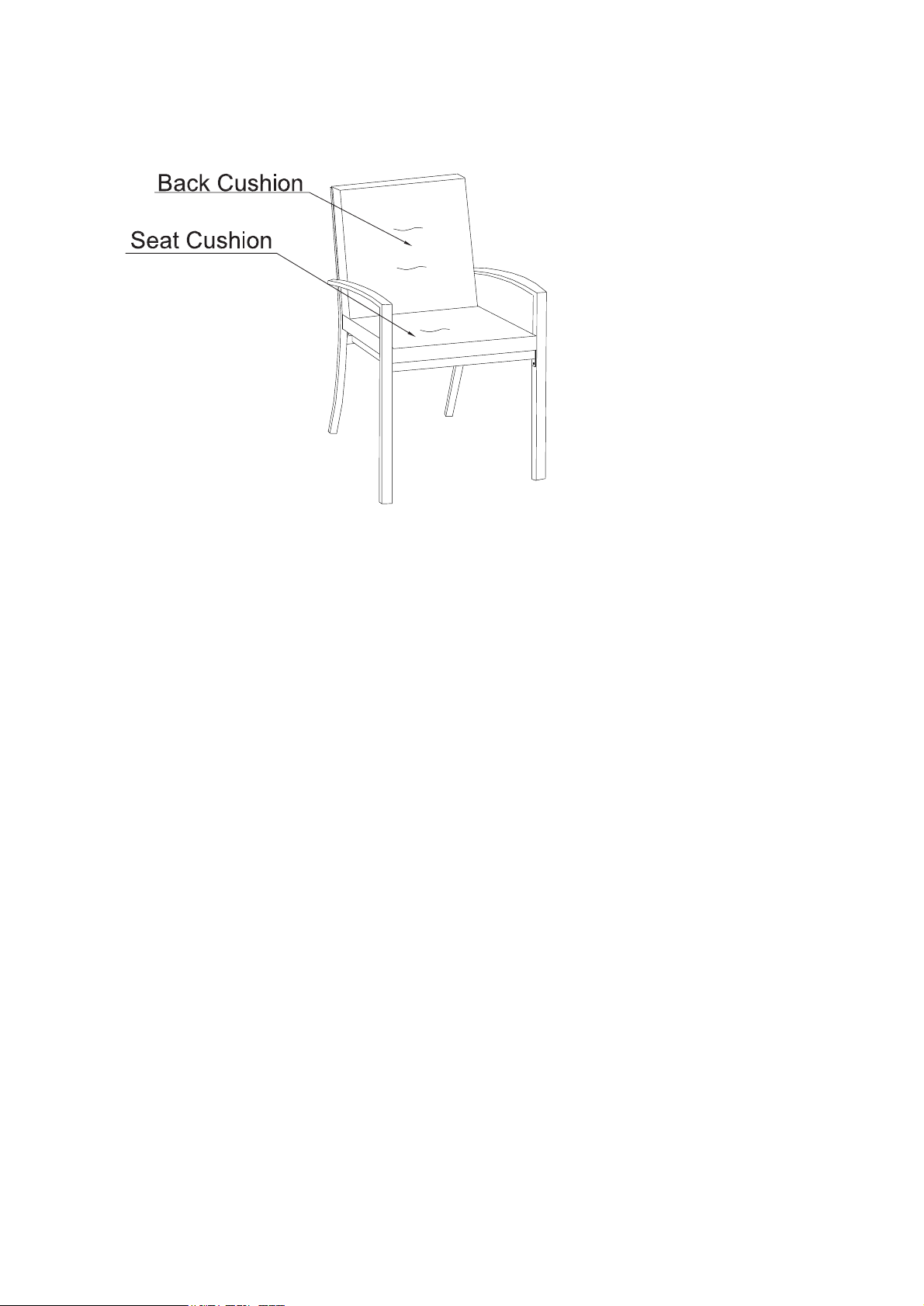

Step 5. Carefully turn unit upright. Place seat cushion and back cushion as shown below. Repeat
steps 1-5 to assemble remaining chair.
5
