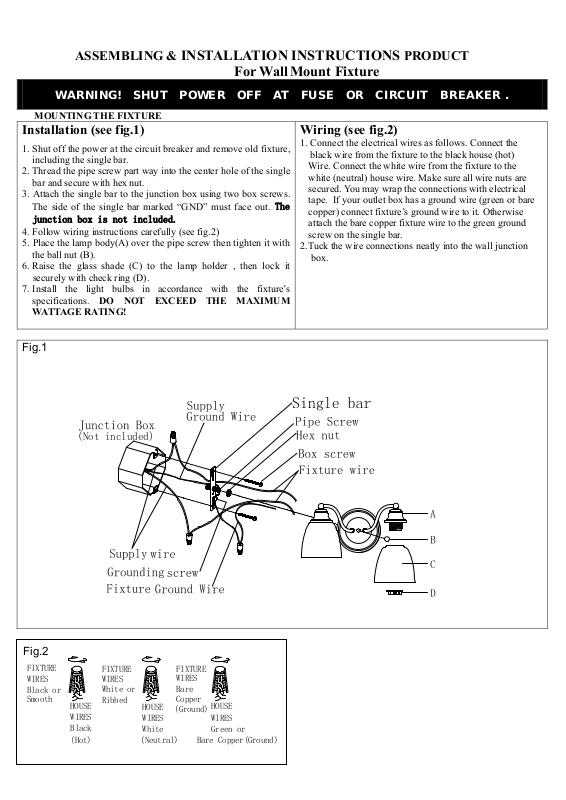

ASSEMBLING & INSTALLATION INSTRUCTIONS PRODUCT
For Wall
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER .
MOUNTING THE FIXTURE
Installation (see fig.1)
1. Shut off the power at the circuit breaker and remove old fixture,
including the single bar.
2. Thread the pipe screw part way into the center hole of the single
bar and secure with hex nut.
3. Attach the single bar to the junction box using two box screws.
The side of the single bar marked “GND” must face out. The
junction box is not included.
4. Follow wiring instructions carefully (see fig.2)
5. Place the lamp body(A) over the pipe screw then tighten it with
the ball nut (B).
6. Raise the glass shade (C) to the lamp holder , then lock it
securely with check ring (D).
7. Install the light bulbs in accordance with the fixture’s
specifications. DO NOT EXCEED THE MAXIMUM
WATTAGE RATING!

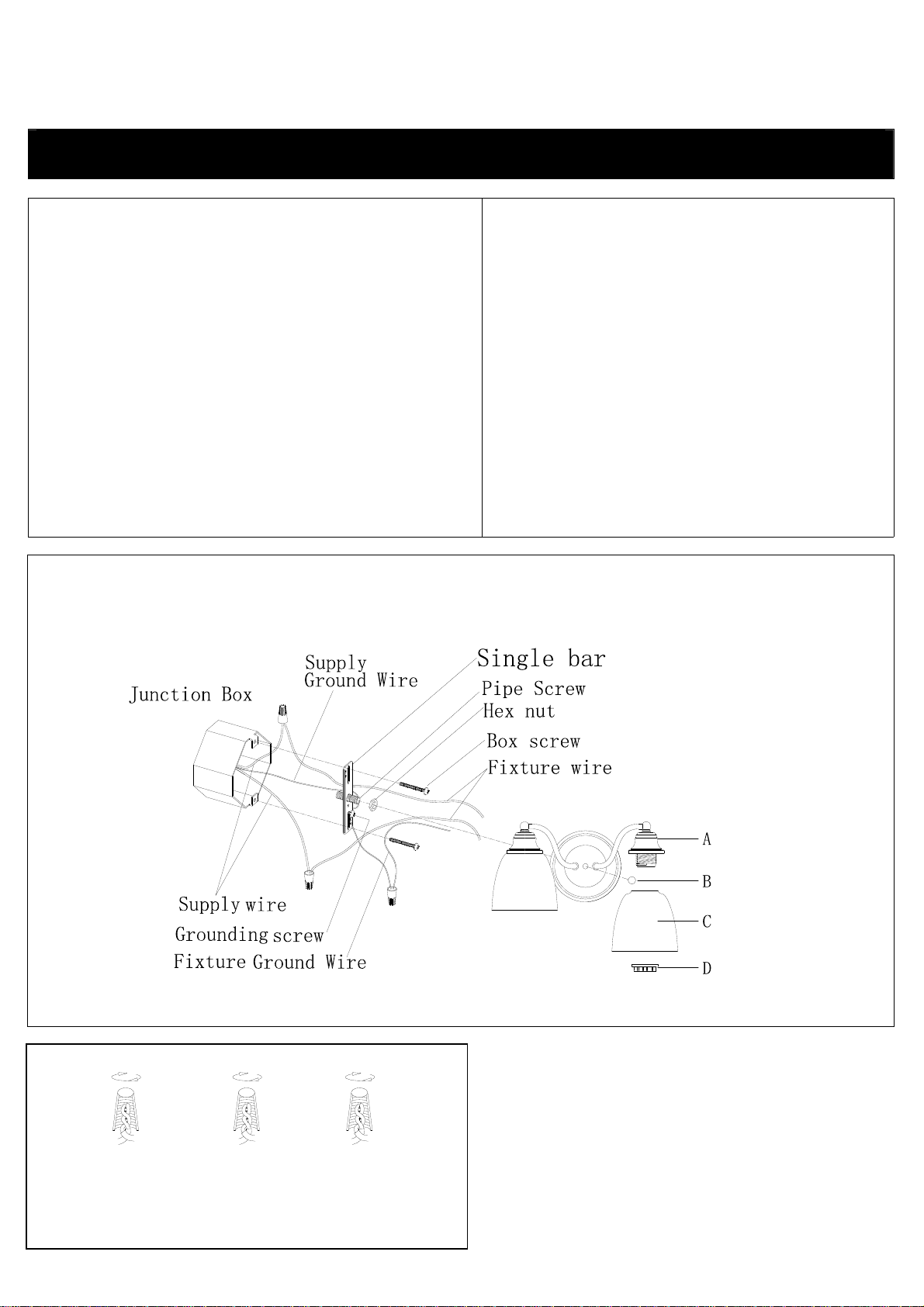

Fig.1
Mount Fixture
Wiring (see fig.2)
1. Connect the electrical wires as follows. Connect the
black wire from the fixture to the black house (hot)
Wire. Connect the white wire from the fixture to the
white (neutral) house wire. Make sure all wire nuts are
secured. You may wrap the connections with electrical
tape. If your outlet box has a ground wire (green or bare
copper) connect fixture’s ground wire to it. Otherwise
attach the bare copper fixture wire to the green ground
screw on the single bar.
2.Tuck the wire connections neatly into the wall junction
box.
Fig.2
FIXTURE
WIRES
Black or
Smooth
(Not included)
FIXTURE
WIRES
White or
HOUSE
WIRES
Black
(Hot)
Ribbed
HOUSE
WIRES
White
(Neutral)
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
Green or
Bare Copper(Ground)
