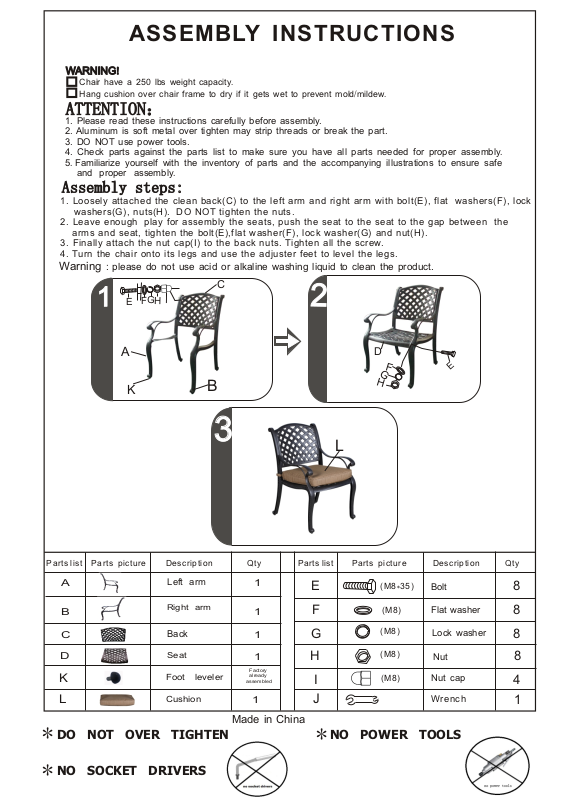

ASSEMBLY INSTRUCTIONS
WARNING!WARNING!
Chair have a 250 lbs weight capacity.
Hang cushion over chair frame to dry if it gets wet to prevent mold/mildew.
ATTENTION：ATTENTION：
1. Please read these instructions carefully before assembly.
2. Aluminum is soft metal over tighten may strip threads or break the part.
3. DO NOT use power tools.
4. Check parts against the parts list to make sure you have all parts needed for proper assembly.
5.Familiarize yourself with the inventory of parts and the accompanying illustrations to ensure safe
and proper assembly.
Assembly steps:Assembly steps:
1. Loosely attached the clea n back(C) to the left arm and right arm with bolt(E) , flat
washers(G), nuts(H). DO NO T tighten the nuts.
2. Leave enough play for assem bly the seats, push the seat to the seat to the gap betw een the
arms and seat, tighten the bol t(E),flat washer(F), lock washer(G) and nut(H ).
3. Finally attach the nut cap( I) to the back nuts. Ti ghten all the screw.
4. Turn the chair onto its legs and use th e adjuster feet to level the legs.
Warning : please do not use acid or alkaline washing liquid to clean the product.
C
G
I
H
F
11
E
22
washers(F), lock
A
K
B
33
Parts l ist Parts p ict ure Descr ipt ion
A 1
B 1
C 1
D
K
Left arm
Right arm
Back
Seat
Foot leveler
Qty
1
Factory
already
assembled
D
F
G
H
E
L
Parts l ist Par ts pi cture Descr ipt ion
H
E
F
G
(M8* 35)
(M8)
(M8)
(M8)
I
(M8)
Bolt
Flat washer
Lock washer
Nut
Nut cap
Qty
8
8
8
8
4
L
DO NOT OVER TIGHTEN
*
NO SOCKET DRIVERS
*
Cushion
1
Made in China
J
NO POWER TOOLS
*
Wrenc h
1
Page 2
J

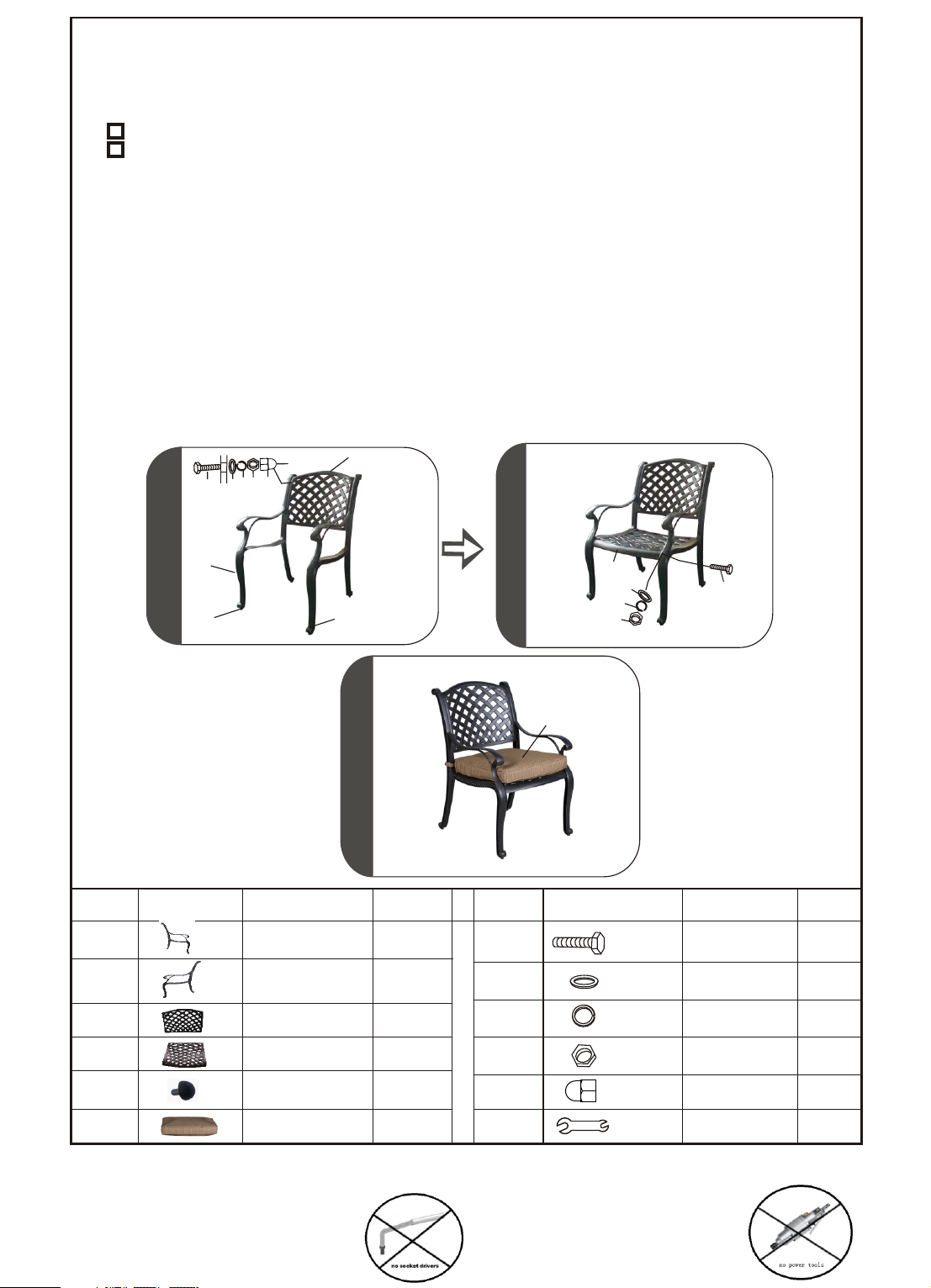

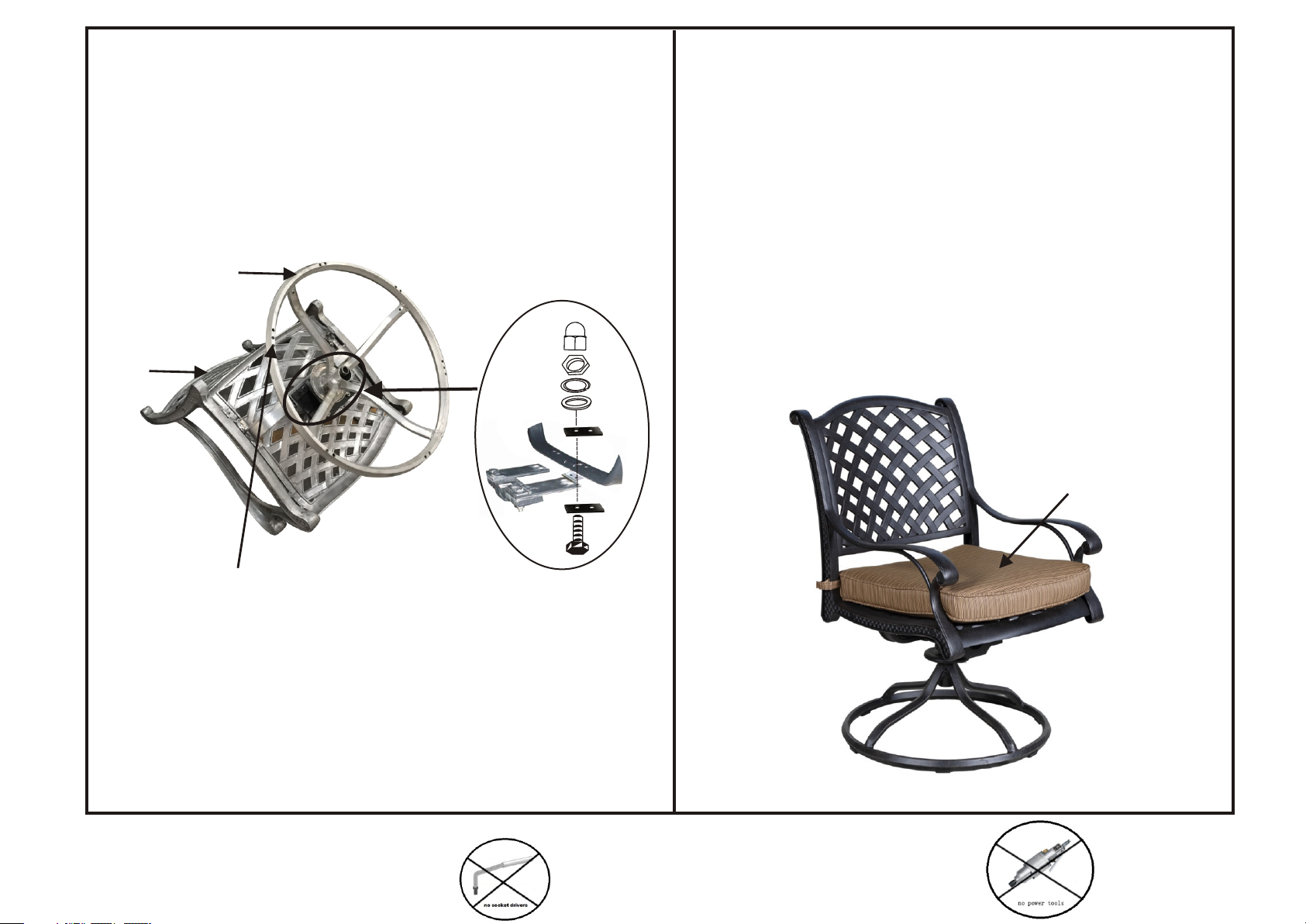

1. Before removing all protective packing material and
position base on floor. Attach the seat(I) onto the base
(J)with Alu plate as the picture, then assemble
using bolt(A), flat washers(B), lock washers(C), nuts(D)
and nut cap(F). Be sure to the arrows face to front.
2. Tighten all the bolts and nuts. Test the swivel rocker
gently. If the rocker does not rock properly, double
check the assembly procedure.
3. Remove all protective packaging.
4.Put Cushion(K) on the unit(as shown in the picture).
Warning : DO NOT use acid or alkaline
F
I
D
washing liquid to clean the product.
C
B
E
K
A
H:This part have been assemble d by
factory alread y.
DO NOT OVER TIGHTEN
*
NO SOCKET DRIVERS
*
Made in China
NO POWER TOOLS
*
Page 3

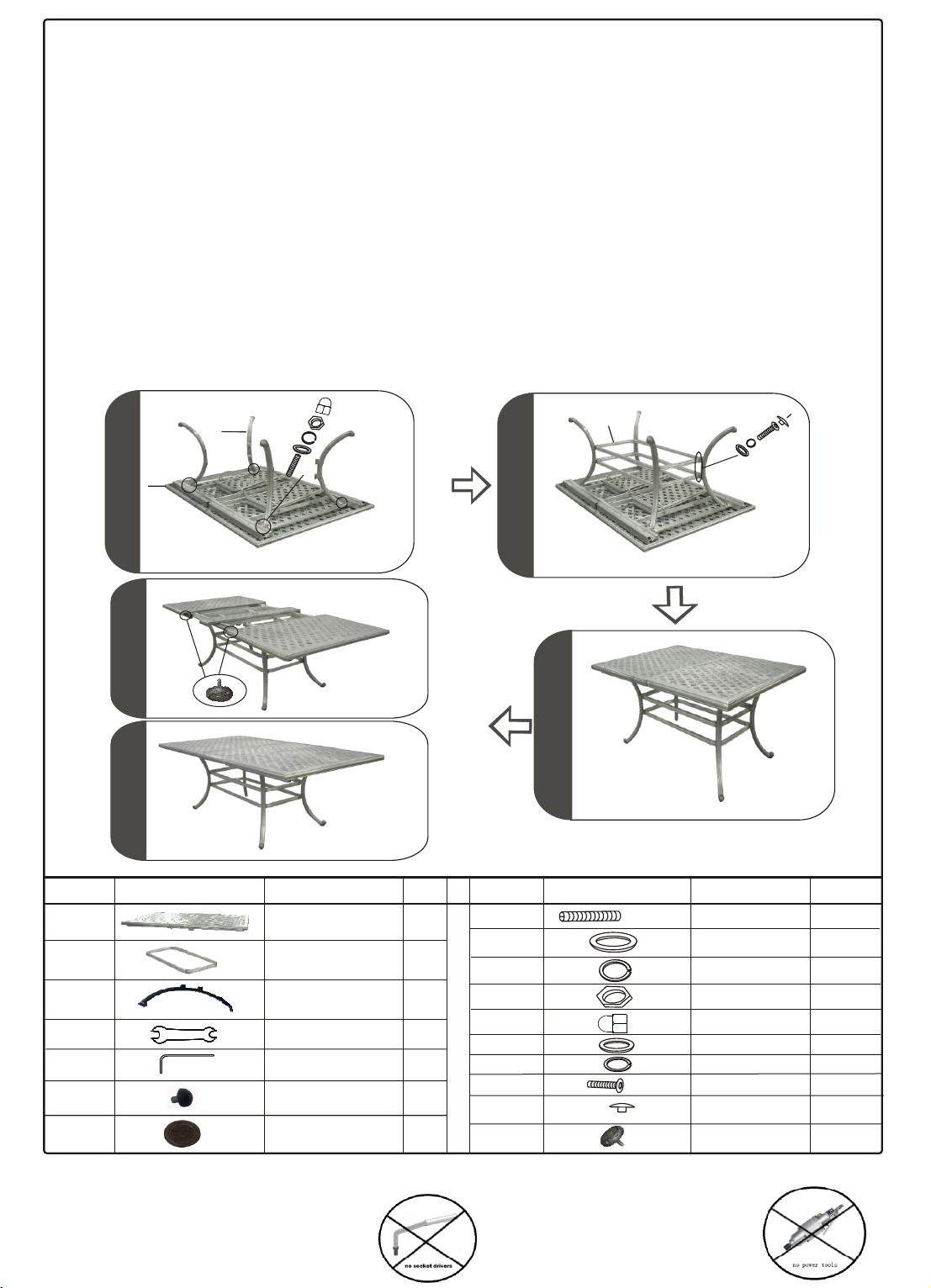

ASSEMBLY INSTRUCTIONS
ATTENTION:ATTENTION:
1. Please read these instructions carefully before assembly.
2. Aluminum is soft metal over tighten may strip threads or break the part.
3. DO NOT use power tools.
4. Check parts against the parts list to make sure you have all parts needed for proper assembly.
5.Familiarize yourself with the inventory of parts and the accompanying illustrations to ensure safe
and proper assembly.
Assembly step:
1. Turn the table top(A) upside down on the soft clean surface. Loosely attach the legs(C) to the table top (A) using
the bolts(E) followed by flat washers(F), lock washers(G), nuts(H) and nut caps(I). DO NOT tighten the nuts.
2. Loosely attach each of the center ring(B) to the legs.
Secure using flat washers(J), lock washers(K), bolts(L) and PVC covers(M) .
3. Tighten all the bolts and nuts completely. DO NOT over-tighten. Turn the table onto its legs and use the adjuster
feet to level the tables.
4. To extend the table, wrench the adjust handle (N) while pulling out the top panels. Lift the removable panels and
lay them on table top structure then open the last panel on opposite side. push top panels toward center of table
and wrench the adjust handle (N).
5. Table is now ready to use.
Warning : DO NOT use acid or alkaline washing liquid to clean the product.
I
11
C
A
H
G
F
E
44
55
Parts list Parts pict ure Description
A
B
C
D
O
P
Q
Table top
Center ring
Table leg
Wrench
Wrench
Foot leveler
Umbrella cover
22
B
33
Notice : Use for a long time telescopic flexible, please
add lubricating oil.
Qty
1
2
4
1
1
Factory
already
assembled
1
Parts list Pa rts p ict ure D esc rip tio n
E
F
G
H
I
J
J
K
L
M
N
(M8*30 )
(M8)
(M8)
(M8)
(M8)
(M6)
(M6)
(M6*35 )
(M6)
Bolt
Flat washer
Lock washer
Nut
Nut cap
Flat washer
Lock washer
Bolt
PVC cover
Adjust handle
M
L
K
J
Qty
4
4
4
4
4
8
8
8
8
2
DO NOT OVER TIGHTEN
*
NO SOCKET DRIVERS
*
Made in China
NO POWER TOOLS
*
