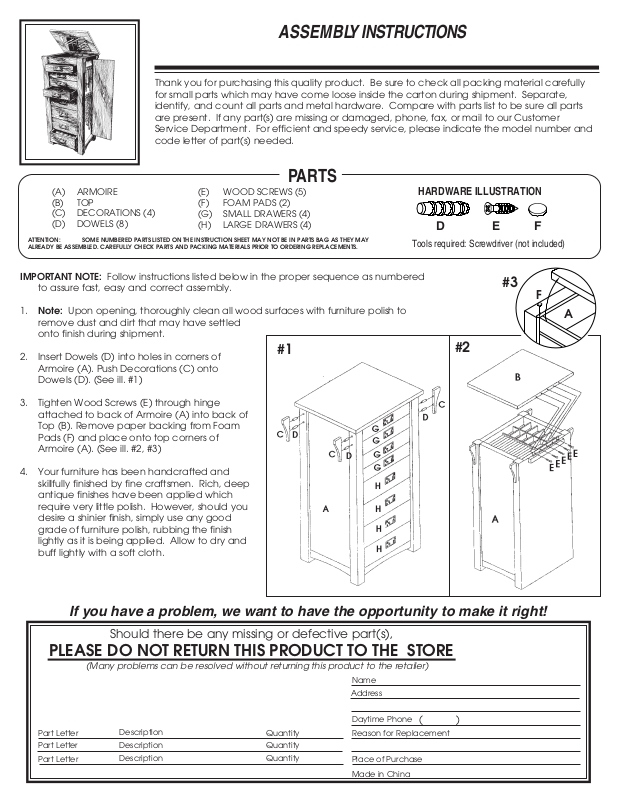

ASSEMBLY I
Thank you for purchasing this quality product. Be sure to check all packing material carefully
for small parts which may have come loose inside the carton during shipment. Separate,
identify, and count all parts and metal hardware. Compare with parts list to be sure all parts
are present. If any part(s) are missing or damaged, phone, fax, or mail to our Customer
Service Department. For efficient and speedy service, please indicate the model number and
code letter of part(s) needed.
PARTS
(A) ARMOIRE
(B) TOP
(C) DECORATIONS (4)
(D) DOWELS (8)
ATTENTION: SOME NUMBERED PARTS LISTED ON THE INSTRUCTION SHEET MAY NOT BE IN PARTS BAG AS THEY MAY
ALREADY BE ASSEMBLED. CAREFULLY CHECK PARTS AND PACKING MATERIALS PRIOR TO ORDERING REPLACEMENTS.
(E) WOOD SCREWS (5)
(F) FOAM PADS (2)
(G) SMALL DRAWERS (4)
(H) LARGE DRAWERS (4)
NSTRUCTIONS
HARDWARE ILLUSTRATION
D E F
Tools required: Screwdriver (not included)
IMPORTANT NOTE: Follow instructions listed below in the proper sequence as numbered
to assure fast, easy and correct assembly.
1. Note: Upon opening, thoroughly clean all wood surfaces with furniture polish to
remove dust and dirt that may have settled
onto finish during shipment.
2. Insert Dowels (D) into holes in corners of
Armoire (A). Push Decorations (C) onto
Dowels (D). (See ill. #1)
3. Tighten Wood Screws (E) through hinge
attached to back of Armoire (A) into back of
Top (B). Remove paper backing from Foam
Pads (F) and place onto top corners of
Armoire (A). (See ill. #2, #3)
4. Your furniture has been handcrafted and
skillfully finished by fine craftsmen. Rich, deep
antique finishes have been applied which
require very little polish. However, should you
desire a shinier finish, simply use any good
grade of furniture polish, rubbing the finish
lightly as it is being applied. Allow to dry and
buff lightly with a soft cloth.
#1
#3
F
A
#2
If you have a problem, we want to have the opportunity to make it right!
Should there be any missing or defective part(s),
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE
(Many problems can be resolved without returning this product to the retailer)
Name
Address
Part Letter
Part Letter
Description
DescriptionPart Letter
Description
Quantity
Quantity
Quantity
Daytime Phone
Reason for Replacement
Place of Purchase
Made in China
( )
