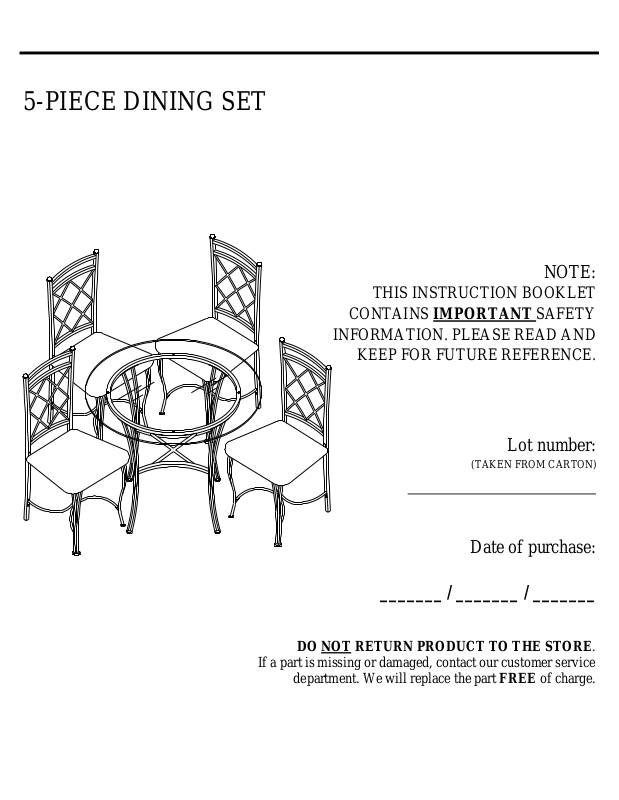

Page 1
5-PIECE DINING SET
(TAKEN FROM CARTON)
NOTE:
_______ / _______ / _______
Lot number:
Date of purchase:
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Page 2
*Ensure all parts and components are present before beginning assembly.
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact our customer service representative first!
You can also order parts by writing to the address listed below. Please include the product model number, color and a
detailed description of the part.
* Read all instructions completely before assembly.
* Do not use power tools.
* Phillips head screw driver is not included.
* CAUTION: Adult assembly required.
CARE AND CLEANING
WARNING
* To prevent any scratches, please remove all packaging and assemble on a clean, smooth surface.
* Assembly and handling may require two people.
* Estimated assembly time is 45 - 60 minutes.
*Assemble on soft, smooth surface to prevent damage to product finish.
LIMITED WARRANTY
Check bolts/screws periodically and tighten them if necessary.
WARNING: Should this product become
damaged, and/or components are broken or missing,
DO NOT USE.
Dust table regularly with a soft, dry cloth to prevent soil build up. A dampened cloth may be used occasionally to
clean the surface. Dry immediately and buff lightly, following the grain. Avoid using harsh cleaners and abrasive
products. Use coasters to prevent the formation of moisture rings and trivets to protect from hot items. Cover
extension leaves (if applicable) with a soft protective fabric before storing. Do not slide objects across the surface always lift them. Wipe away spills immediately off the seat fabric to prevent staining. Use a cloth dampened with
water or a professional product to clean the fabric. Always test an inconspicuous area first. Allow upholstery to dry
and brush lightly. Keep away from heat to avoid glazing, melting or scorching.
MAINTENANCE
Page 3
5-PIECE DINING SET
76 PCS
1/4"* 1/2"LG
16 PCS
PHILLIPS COUNTERSINK
HEAD SCREW
4 PCS
1 PC
1
3
4
HARDWARE LIST
ALLEN KEY
RUBBER PAD
HEX SOCKET
HEAD BOLT
5/32"* 1-1/8"LG
A
PARTS LIST
4 PCS
B
C D
4 PCS 4 PCS
E
SEAT CUSHION
F
TUBE BASE
G
TABLE TUBE BASE
I J
TABLE LEGS
TOP FRAME
GLASS TOP
LEFT LEG
BACK FRAME
RIGHT LEG
SEAT FRAME
1 PC
1 PC
4 PCS
4 PCS
2
4 PCS
H
4 PCS
1PC
Page 4

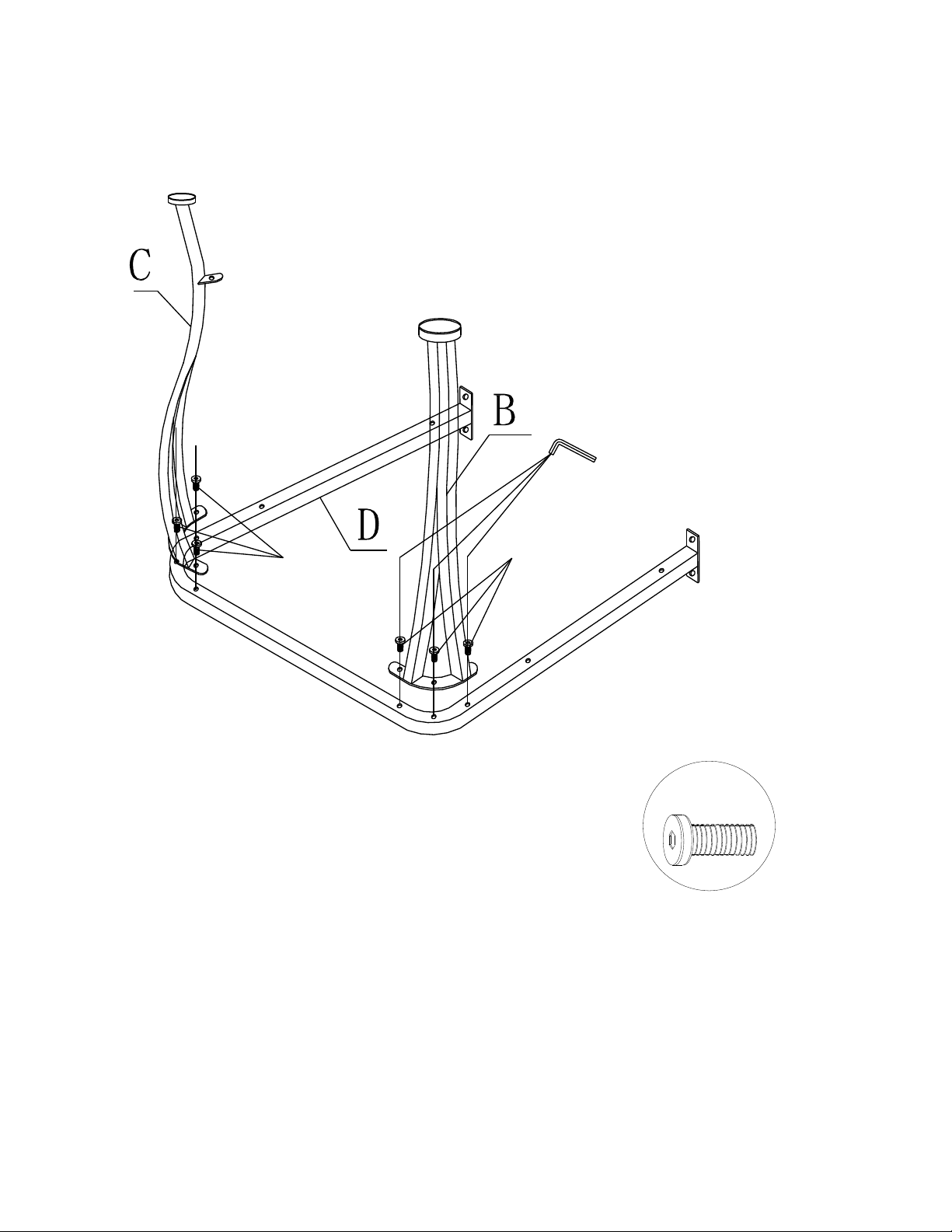

STEP 1
NOTE: Do not fully tighten bolts. Loose bolts will help you to assemble other parts in the
following steps.
Attach left leg (B) and right leg (C) to the seat frame (D) with hex socket head bolts (1).
Use Allen key (4) to install bolts (1).
5
1
1
1
5-PIECE DINING SET
WM2412-1
4
1
5-PIECE DINING SET
Page 5

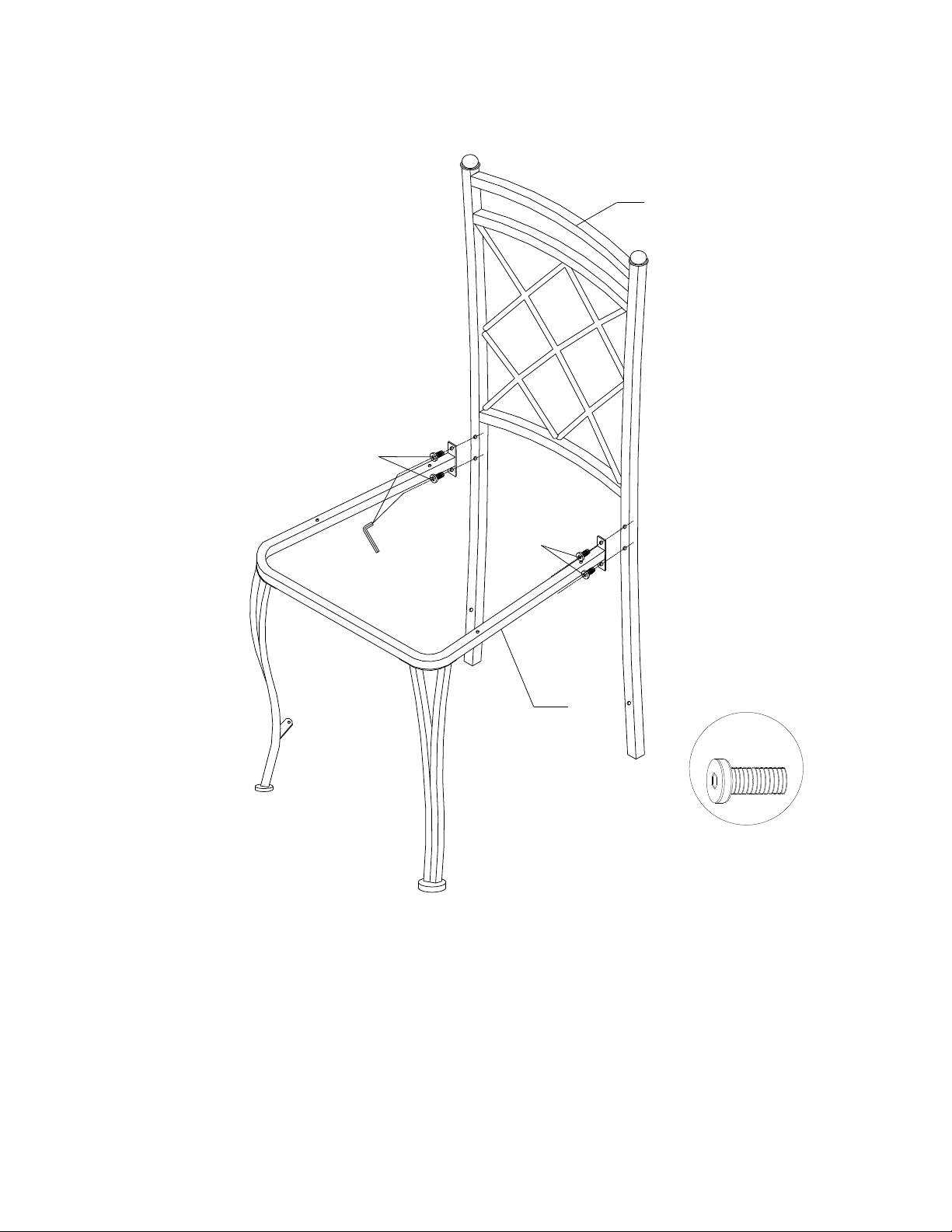

STEP 2
Attach seat frame (D) to back frame (A) with hex socket head bolts (1).
Use Allen key (4) to install bolts.
NOTE: Do not fully tighten bolts. Loose bolts will help you to assemble other parts in
the following steps.
A
1
1
5
D
1
4
5-PIECE DINING SET
Page 6

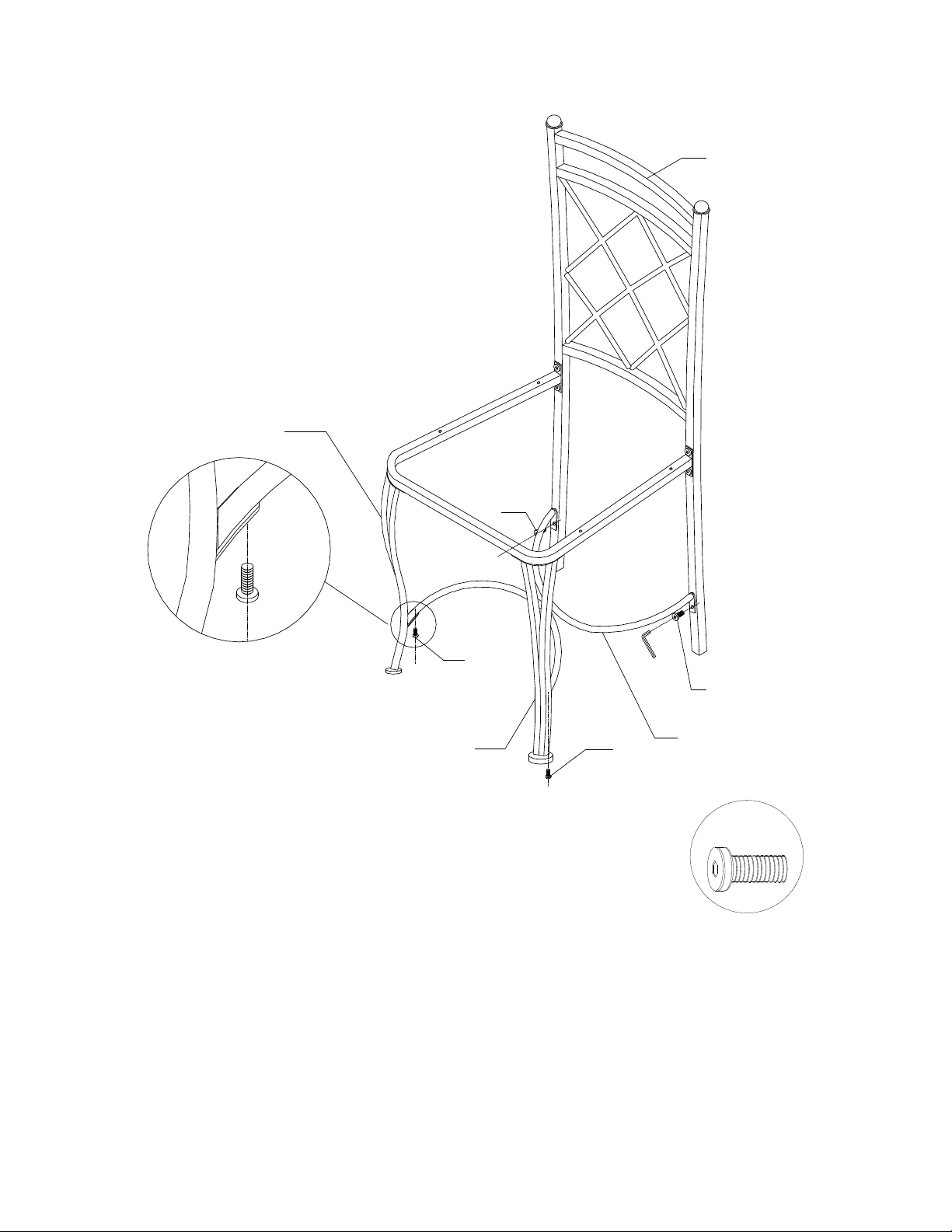

Attach tube base (E) to back frame (A) and legs (B) & (C) with hex socket head bolts
(1). Use Allen key (4) to install bolts (1).
NOTE: The mounting brackets on tube base (E) have to be positioned in a way that they
follow the angle with the chair legs. This will dictate whether it is upside down or not.
Tighten all bolts previously installed in steps 1, 2 and 3.
STEP 3
E
1
1
1
1
5
B
C
A
1
4
5-PIECE DINING SET
Page 7
STEP 4

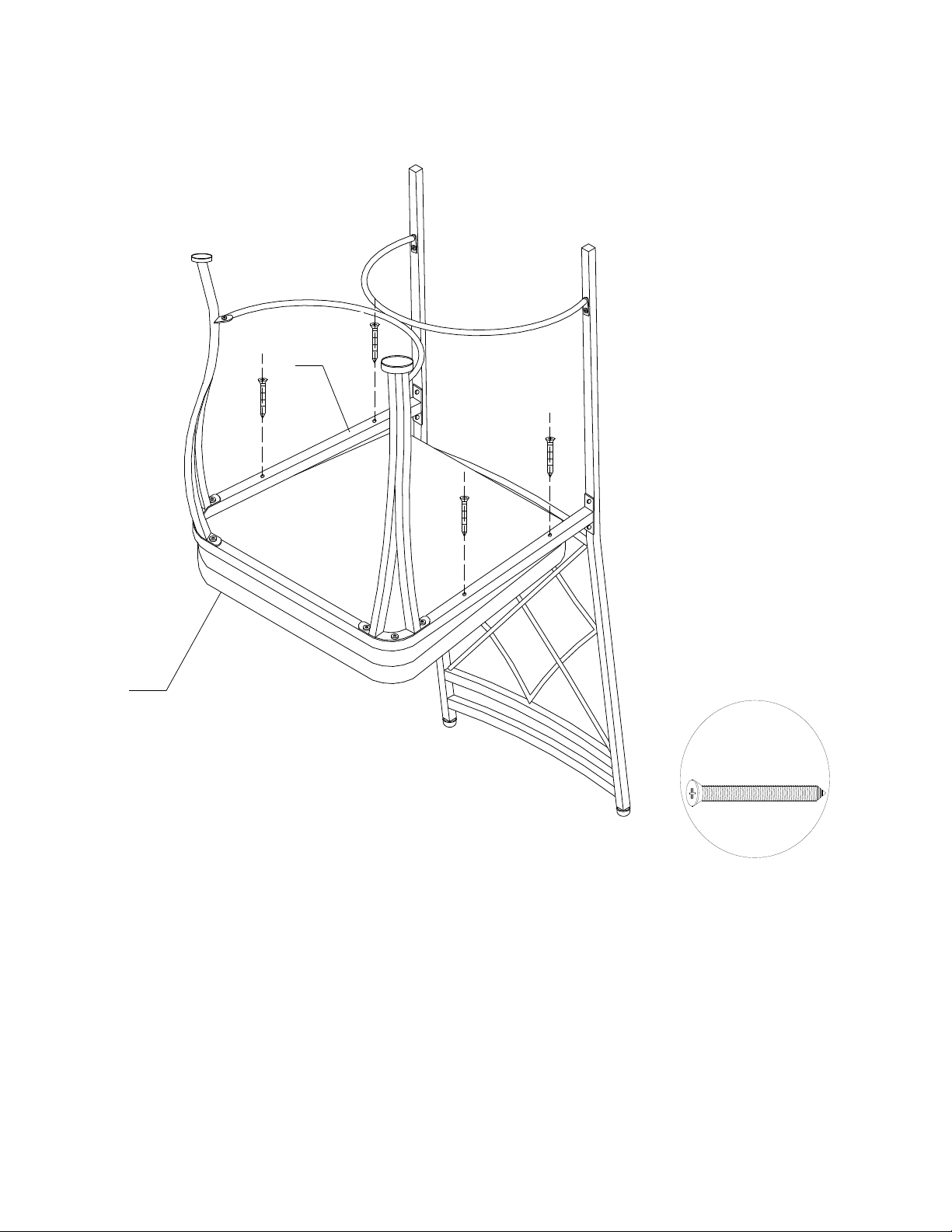

Place seat cushion (F) upside down on a clean, smooth surface. Attach seat cushion (F)
to seat frame (D) with Phillips countersink head screws (2).
Use a Phillips head screwdriver (not included) to install screws (2).
Repeat step 1 through 4 to assemble remaining chairs.
NOTE: Screws (2) will make their own holes. Do not use power tools to install screws
and do not over tighten the screws.
2
5-PIECE DINING SET
WM2412-1
3
3
3
3
F
D
2
2
2
2
5-PIECE DINING SET
Page 8

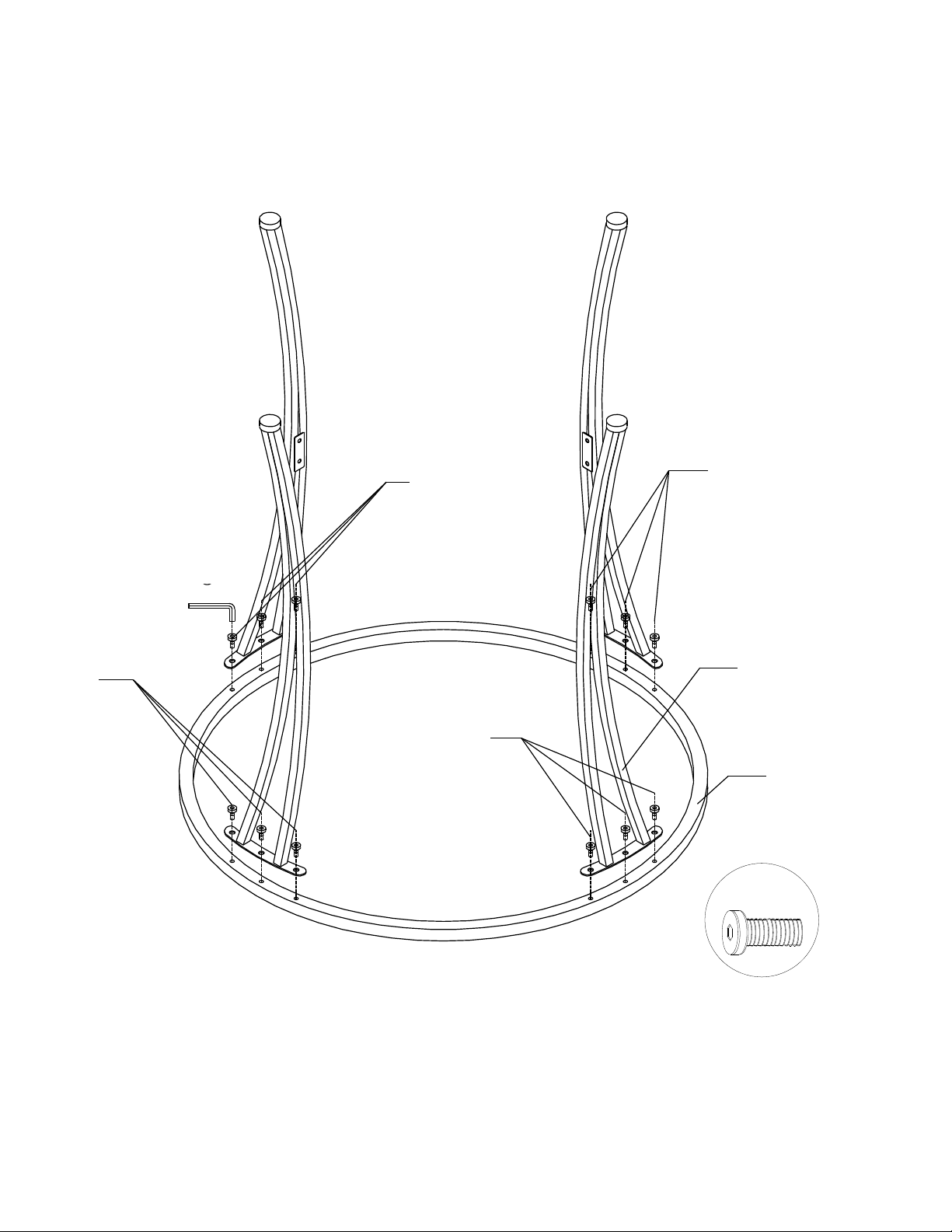

STEP 5
Attach table legs (G) to top frame (I) with hex socket head bolts (1).
Use Allen key (4) to install bolts.
NOTE: Do not fully tighten bolts. Loose bolts will help you to assemble other parts in
the following steps.
G
I
5
1
1
1
1
1
4
5-PIECE DINING SET
Page 9

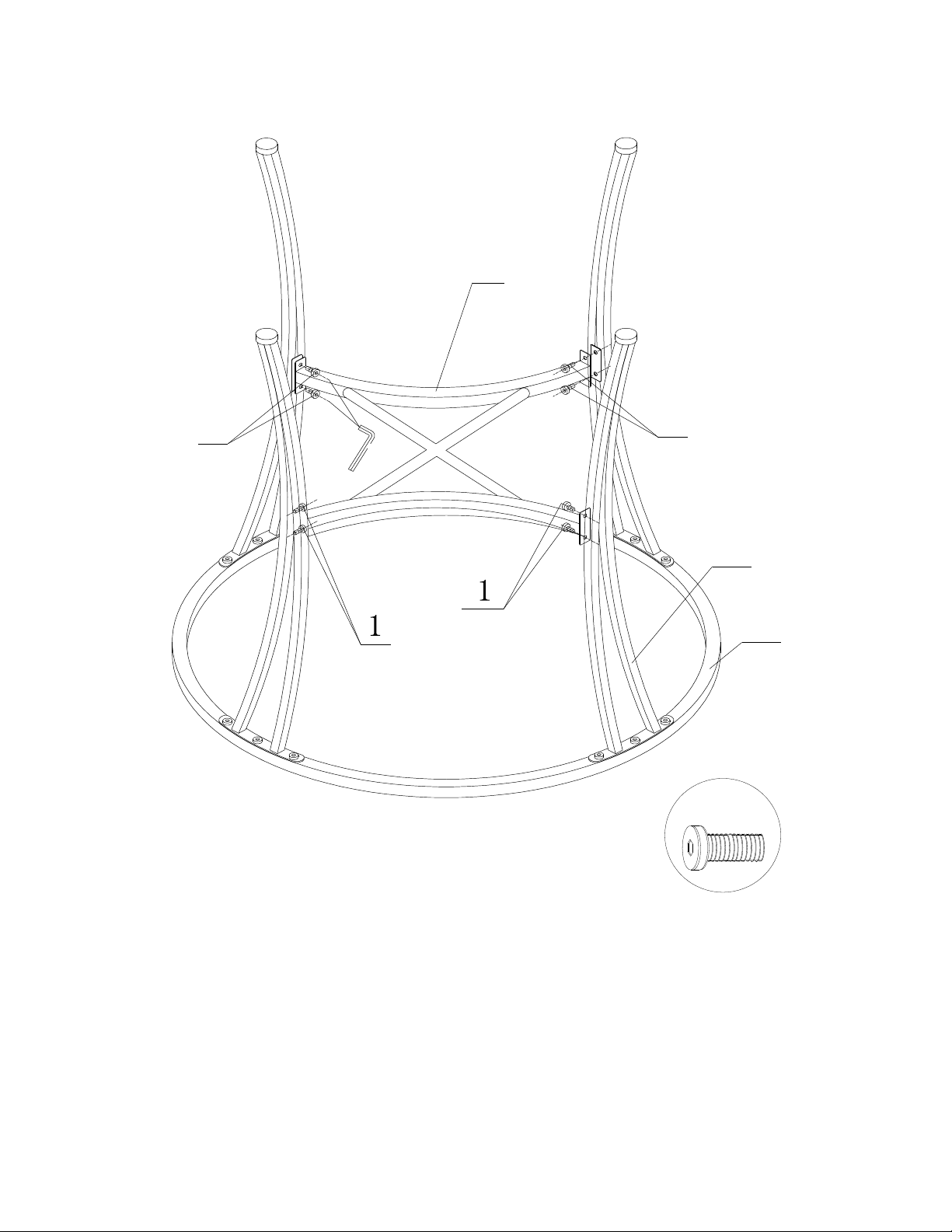

STEP 6
Attach table tube base (H) to table legs (G) with hex socket head bolts (1).
Use Allen key (4) to install bolts.
NOTE: Tighten all bolts installed in steps 5 & 6.
1
G
I
H
1
1
5
4
5-PIECE DINING SET
Page 10

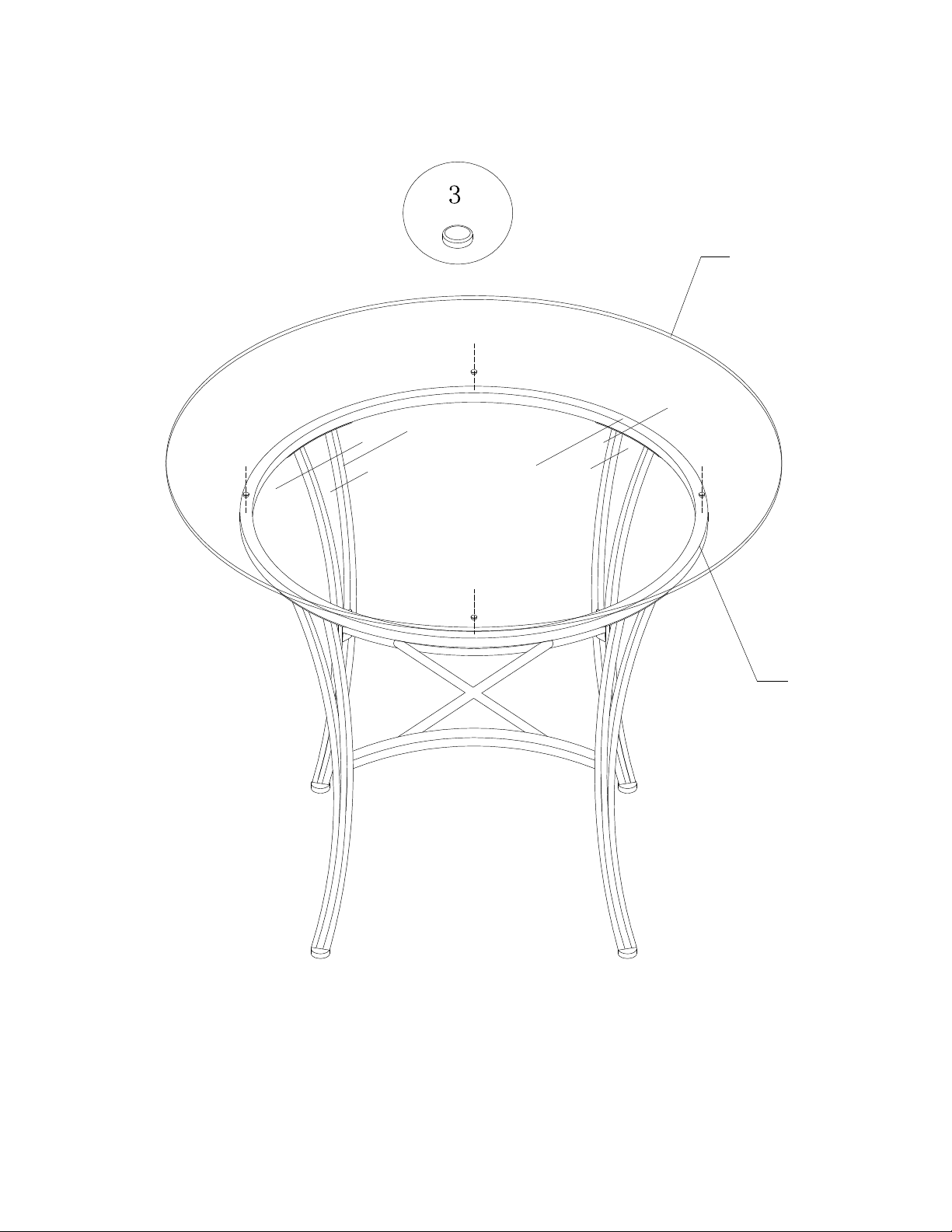

STEP 7
Place rubber pads (3) onto top frame (I). With the help of another person, gently place
glass top (J) onto table frame. Ensure the glass top is placed in the center of the table
frame.
J
3
3
3
3
I
5-PIECE DINING SET
Page 11
That's it ! You've finished assembling your dining set .
CAUTION: This unit is intended for use only with the
products and/or maximum weights indicated. Use with other
products and/or products heavier than the maximum weights
indicated may result in instability or cause possible injury.
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Product
Maximum
Weight
50 lbs
-9-
5-PIECE DINING SET
Page 12
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE
PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING
NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S).
Request Date:
Name:
Shipping Address:
Street & Number:
City & State:
Zip Code:
Day Time Phone Number:
(including area code)
Date & Place of Purchase:
Part(s) description and quantity: (Please be sure to list model number or SKN number)
