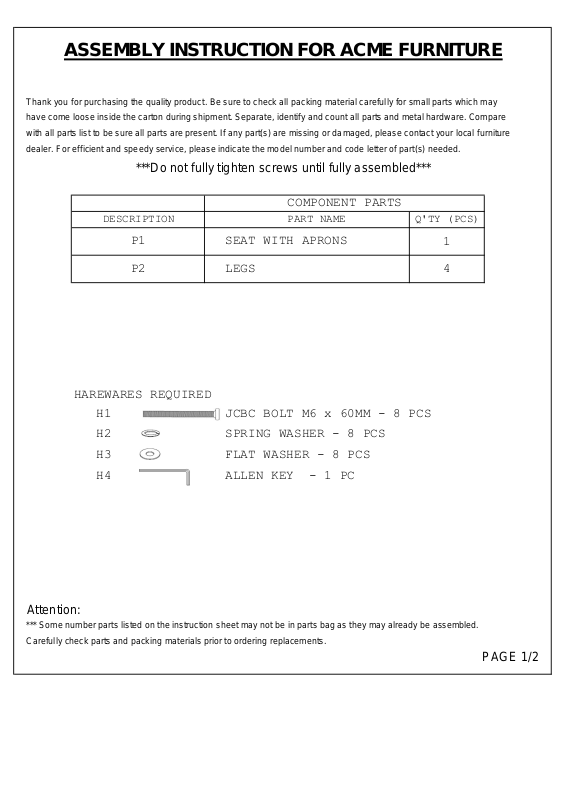

Thank you for purchasing the quality product. Be sure to check all packing material carefully for small parts which may
have come loose inside the carton during shipment. Separate, identify and count all parts and metal hardware. Compare
with all parts list to be sure all parts are present. If any part(s) are missing or damaged, please contact your local furniture
dealer. For efficient and speedy service, please indicate the model number and code letter of part(s) needed.
Q'TY (PCS)
1
4
HAREWARES REQUIRED
H1 JCBC BOLT M6 x 60MM - 8 PCS
H2 SPRING WASHER - 8 PCS
H3 FLAT WASHER - 8 PCS
H4 ALLEN KEY - 1 PC
Attention:
*** Some number parts listed on the instruction sheet may not be in parts bag as they may already be assembled.
Carefully check parts and packing materials prior to ordering replacements.
PAGE 1/2
DESCRIPTION
PART NAME
ASSEMBLY INSTRUCTION FOR ACME FURNITURE
***Do not fully tighten screws until fully assembled***
COMPONENT PARTS
P1
SEAT WITH APRONS
P2
LEGS
Page 2
How to assemble:

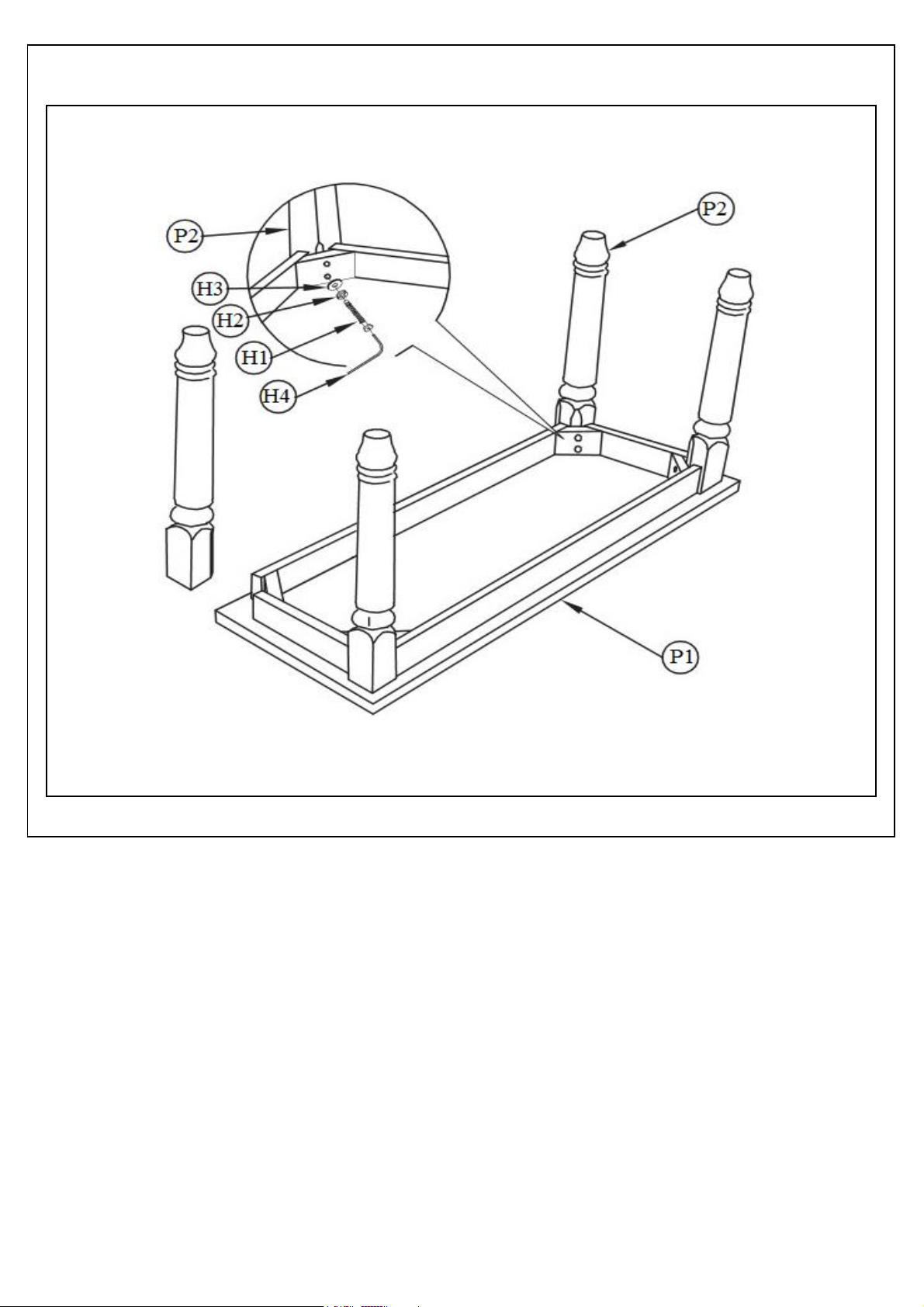

STEP 1:
PAGE 2/2
