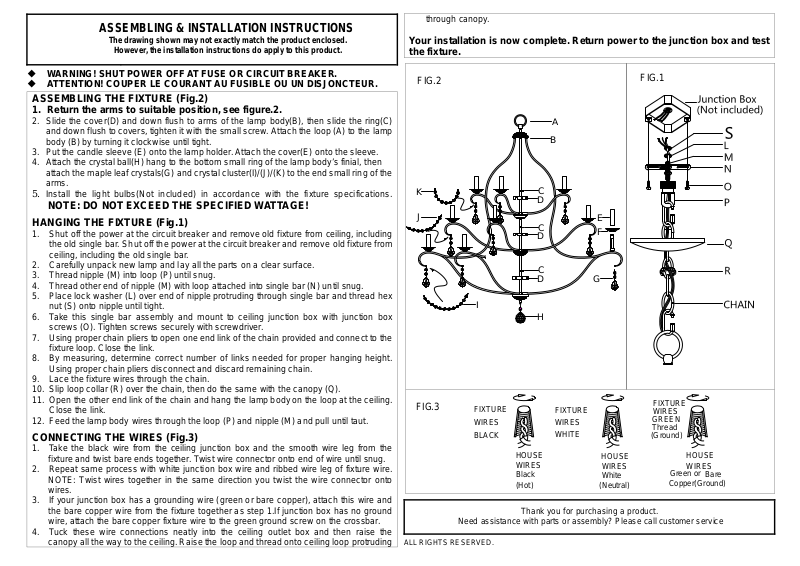

ASSEMBLING & INSTALLATION INSTRUCTIONS
(
)
(
)
The drawing shown may not exactly match the product enclosed.
However, the installation instructions do apply to this product.
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJ ON CTEUR.
ASSEMBLING THE FIXTURE (Fig.2)
1. Return the arms to suitable position, see figure.2.
2. Slide the cover(D) and down flush to arms of the lamp body(B), then slide the ring(C)
and down flush to covers, tighten it with the small screw. Attach the loop (A) to the lamp
body (B) by turning it clockwise until tight.
3. Put the candle sleeve (E) onto the lamp holder. Attach the cover(E) onto the sleeve.
4. Attach the crystal ball(H) hang to the bottom small ring of the lamp body’s finial, then
attach the maple leaf crystals(G) and crystal cluster(I)/(J)/(K) to the end small ring of the
arms.
5. Install the light bulbs(Not included) in accordance with the fixture specifications.
NOTE: DO NOT EXCEED THE SPECIFIED WATTAGE!
HANGING THE FIXTURE (Fig.1)
1. Shut off the power at the circuit breaker and remove old fixture from ceiling, including
the old single bar. Shut off the power at the circuit breaker and remove old fixture from
ceiling, including the old single bar.
2. Carefully unpack new lamp and lay all the parts on a clear surface.
3. Thread nipple (M) into loop (P) until snug.
4. Thread other end of nipple (M) with loop attached into single bar (N) until snug.
5. Place lock washer (L) over end of nipple protruding through single bar and thread hex
nut (S) onto nipple until tight.
6. Take this single bar assembly and mount to ceiling junction box with junction box
screws (O). Tighten screws securely with screwdriver.
7. Using proper chain pliers to open one end link of the chain provided and connect to the
fixture loop. Close the link.
8. By measuring, determine correct number of links needed for proper hanging height.
Using proper chain pliers disconnect and discard remaining chain.
9. Lace the fixture wires through the chain.
10. Slip loop collar (R) over the chain, then do the same with the canopy (Q).
11. Open the other end link of the chain and hang the lamp body on the loop at the ceiling.
Close the link.
12. Feed the lamp body wires through the loop (P) and nipple (M) and pull until taut.
CONNECTING THE WIRES (Fig.3)
1. Take the black wire from the ceiling junction box and the smooth wire leg from the
fixture and twist bare ends together. Twist wire connector onto end of wire until snug.
2. Repeat same process with white juncti on box wire and ribbed wire leg of fixture wire.
NOTE: Twist wires together in the same direction you twist the wire connector onto
wires.
3. If your junction bo x has a grounding wire (green or bare copper), attach this wire and
the bare copper wire from the fixture together as step 1.If junction box has no ground
wire, attach the bare copper fixture wire to the green ground screw on the crossbar.
4. Tuck these wire connections neatly into the ceiling outlet box and then raise the
canopy all the way to the ceiling. Raise the loop and thread onto ceiling loop protruding
through canopy.
Your installation is now complete. Return power to the junction box and test
the fixture.
