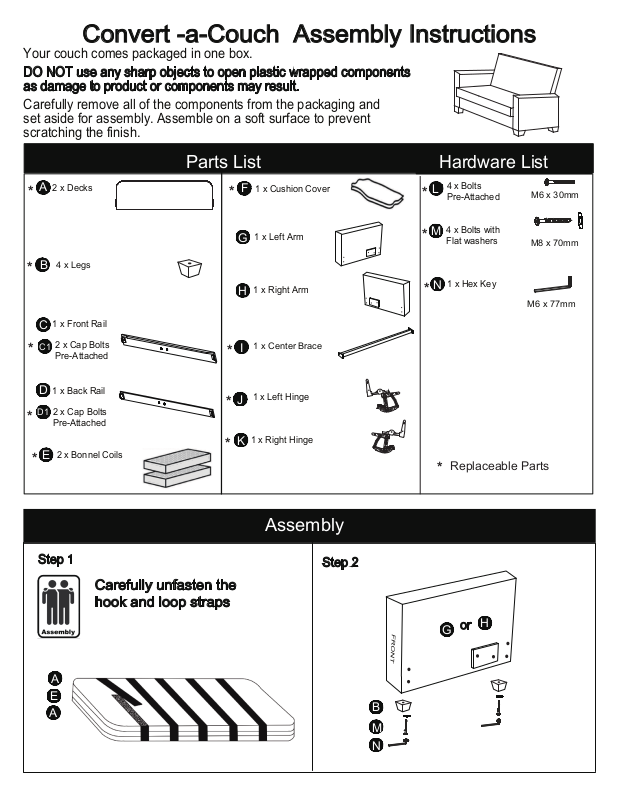

Convert -a-Couch Assembly Instructions
Your couch comes packaged in one box.
DO NOT use any sharp objects to open plastic wrapped components
as damage to product or components may result.
Carefully remove all of the components from the packaging and
set aside for assembly. Assemble on a soft surface to prevent
scratching the finish.
2 x Decks
A
*
4 x Legs
B
*
1 x Front Rail
C
2 x Cap Bolts
C1
*
Pre-Attached
1 x Back Rail
D
2 x Cap Bolts
D1
*
Pre-Attached
2 x Bonnel Coils
E
*
Parts List
F
*
G
H
I
*
1 x Left Hinge
J
*
C1
1 x Right Hinge
K
*
1 x Cushion Cover
1 x Left Arm
1 x Right Arm
1 x Center Brace
Hardware List
4 x Bolts
L
*
Pre-Attached
4 x Bolts with
M
*
Flat washers
1 x Hex Key
N
*
C1
Replaceable Parts
*
M6 x 30mm
M8 x 70mm
M6 x 77mm
Step 1
A
E
A
Carefully unfasten the
hook and loop straps
Assembly
Step 2
B
M
N
G
or
H
Page 2
Step 3
Assembly
Remove the Pre-Attached Bolts ( L )
Step 4
FRONT
FRONT
G
G
H
L
J
K
N
L
H
FRONT
FRONT
L
N
USE THESE 2 HOLES
Left Hinge
HELPFUL HINT the spring
on the hinge will face towards
the front of the couch.
J
USE THESE 2 HOLES
Right Hinge
K
Page 3
Step 5
Assembly
G
D
H
C
Step 6
C1
o
Loosely attach all bolts
before fully tightening.
D1
I
Page 4
Assembly
Step 7
CLICK
J
FRONT
FRONT
K
CLICK
CLICK
A
FRONT
HELPFUL HINT
To remove the seat from the
hinge, pull the tab toward
the arm and pull the seat out.
FRONT
A
Step 8
CLICK
J
FRONT
K
CLICK
A
FRONT
Page 5
Step 9
E
Assembly
F
E
F
Step 10
Remove the fabric from the strap.
Attach the strap to the seat deck.
Pull up on the seat until the back is lying flat
Step 12
If applicable
Step 11
Step 13
If applicable
Pillow
Page 6
Convert the Couch to Bed
Step 14
FRONT
Step 15
Pull up on the seat deck until the backrest is flat
FRONT
FRONT
FRONT
Push against the vertical seat deck until it’s past 12 o’clock and releases.
Step 16
Push
FRONT
FRONT
FRONT
FRONT
FRONT
Gently let the unlocked vertical seat deck down so it is lying flat. It is now ready to sleep!
Page 7
Step 17
FRONT
Convert the Bed to Couch
Pull up on the seat deck until it clicks twice. Stop at one click if you want the seat to be more reclined.
FRONT
Step 18
FRONT
FRONT
Pull down on the seat deck toward the front rail until it is in the seated position.
FRONT
Front Rail
FRONT
Front Rail
Your style may differ from images. Care for your furniture by
periodically tightening all bolts using the included hex key.
About your furniture piece:
.
Softening of foam is natural and will happen over time with use.
.
Fabric will fade or discolor in direct sunlight. Minimize exposure to
direct sunlight to extend the life of your furniture.
.
Wood grain, knots, streaks, and color variation occur naturally
in wood and are not considered defects.
FRONT
FRONT
CAUTION:
before use. Failure to do so may result in
personal injury.
Tighten all components securely
