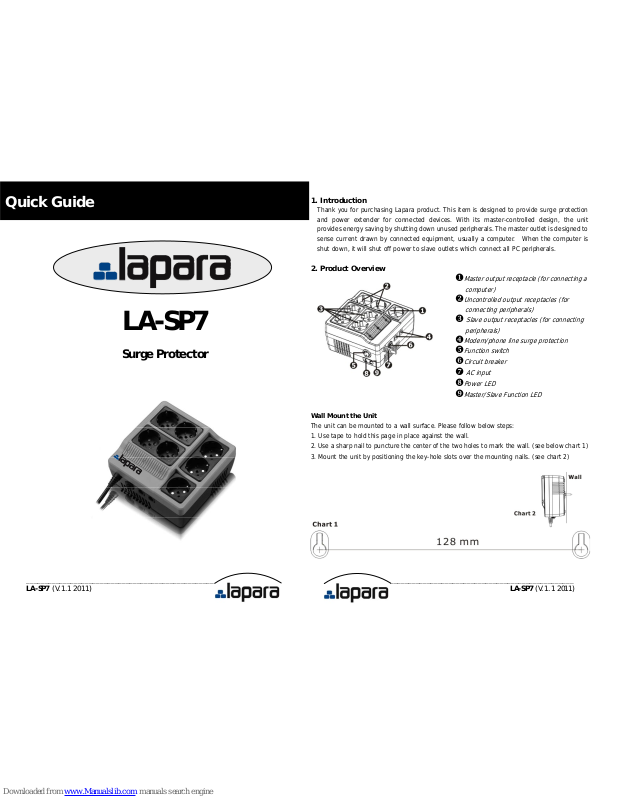

3. Installation and Operation
Inspection
Remove the unit from the shipping package and inspect it for damage that may occurred
during transportation. Notify the carrier and place of purchase if any damage is found.
___________________________________________________ __________________________________________________
LA-SP7 (V.1.1 2011) LA-SP7 (V.1.1 2011)
Connect to the Wall Outlet
Plug the input power cord of the unit to the wall outlet. The Power LED will light up when the
mains is normal. The Power LED will be off while power failure.
Connect Equipment
There are three types of output receptacles: Master, Slave, and Uncontrolled.
Master/Slave Output Receptacles
To save power consumption, the unit is equipped with Master and Slave output receptacles.
The Master output receptacle will sense if master device (computer) is on. If the master
device is no longer drawing current, it will automatically shut down the power to the Slave
output receptacles. Please refer to below charts for detailed equipment connection.
Note: Do not connect devices to the slave output receptacles if you want them to continue
running when your computer is off.
NOTE: When the computer is turned off, the Master output r eceptacle shuts off power to the
slave output receptacles. However, when the computer goes into “sleep mode” or the power
consumption of connected device to Master output receptacle is below 20 W, the Master
output receptacle may not properly recognize the reduced power level.
Uncontrolled Output Receptacles
Equipment connected to uncontrolled output receptacles will continue running when the unit
is powered on and utility is normal even though Master device is shut down.
After connecting all devices to the unit, press “Function switch” to enable master/slave
function. The Function LED will light up. Press “Function switch” to disable the function and
the Function LED will be off.
Status Indicator
Utility is normal Power LED (Green) on
Utility fails Power LED (Green) off
Master/Slave function is enabled Master/Slave Function LED (Yellow) on
Master/Slave function is disabled Master/Slave Function LED (Yellow) off
Connect Modem/Phone for Surge Protection
Connect a single modem/phone line into surge-protected “IN” outlet on the unit. Connect
from “OUT” outlet to the computer with phone line cable.
Placement & Storage Conditions
Install the unit in a protected area that is free of excessive dust and has adequate air flow.
Please place the unit away from other units at least 2.5cm to avoid interference. Do NOT block
the top or side air vents on the unit.
Plug Computer into Plug Peripherals into
Master Output Receptacles Slave Output Receptacles
Do not operation the unit in an environment where the ambient temperature or humidity is
outside the limits listed in the specifications. Operate the unit in an environment free of
excessive dust, mechanical vibration, inflammable gases and explosive or corrosive
atmospheres.
Monitor Scanner
4. Important Safety Warning (SAVE THESE INSTRUCTIONS)
Computer
To safely operate this voltage regulator, please read and follow all instructions
carefully. Read this manual thoroughly before attempting to unpack, install, or
operate. You may keep this quick guide for further reference.
Printer Hub
CAUTION: The unit is designed only for use under the 50 Hz input frequency and pure sine
wave environment. Any other input frequency or wave form will effect the voltage range
and load capability.
CAUTION: Please DO NOT connect the unit to the environment with direct voltage or
simulated sine wave.
CAUTION! To prevent the risk of fire or electric shock, install in a temperature and
humidity controlled indoor area free of conductive contaminants. (See the specifications for
the acceptable temperature and humidity range.)
