Lanzar OPTI2000D User Manual

OPTI OWNER'S MANUAL

1. Contents

2. Introduction

3. Features

4. Specifications

5. Amplifier installation

6. 7. Features and controls

8.9.System wiring

10.11. Troubleshooting

OPTI OWNER'S MANUAL - 1

Thank you for purchasing the Lanzar OPTI Class-D amplifier. Rest assured you have purchased a quality
product

designed and engineered to give you many years of uncompromised musical service.

The OPTI Class-D amplifier has been designed using the latest in electronic technology available today.

This mono subwoofer amplifier is the result of advanced high speed switching technology that overcomes the
less-efficient classAB design. The OPTI Class-D amplifier reflects your true appreciation for powerful bass
reproduction in the mobile environment.

This amplifier is designed for low-frequency information only and it is not capable of reproducing any
mid/high-frequency information.

This is due to the noise introduced into the signal by the switching speed of the power supply, which must be
filtered out of the audio signal.

The power supply incorporated into OPTI amplifier is a DC to DC switching power supply designed to
have adequate headroom for even the most demanding peak and dynamic range found on today's Cds
and recording.

OPTI OWNER'S MANUAL - 2

CLASS-D DESIGN

Low - frequency information for subwoofer only.
High efficient power

POWER SUPPLIES

Stiffly regulated PWM power supplies.
MOSFET switches maintain rated power over a wide range of battery voltages.

LOW PASS FILTER

Adjustable from 50Hz to 150Hz with a slope of 24dB per octave.
This allows for the adjustment of the upper point of the frequency bandwidth
and the respective subwoofer.

VARIABLE SUBSONIC FILTER

Adjustable from 15Hz to 40Hz with a slope of 24dB per octave.
This allows for the attenuation of frequencies that are mostly inaudible and
cause unnecessary strain on the amplifier.

PROTECTION CIRCUITRY

Protection against thermal, Overload and short circuit conditions.

REMOTE DASH-MOUNT GAIN CONTROL

This amplifier come complete with a compact remote GAIN CONTROLLER
which can be conveniently mounted on or under the dashboard of your car.

COOLING FAN

OPTI OWNER'S MANUAL - 3

RMS Power, INTO 4 Ohms

RMS Power, INTO 2 Ohms

RMS Power, INTO 1.3 Ohms

MAX Power, INTO 1.3 Ohms

MAX Power, INTO 0.5 Ohms

BRIDGE MAX Power, INTO 2 Ohms

THD at 1 Watt, 4 Ohm

Signal-to-Noise Ratio, below rated power output

Frequency Response, at 1 Watt, 4 Ohm

Damping Factor at 20Hz, 4 Ohm

Low Pass Filter

Variable Subsonic Filter

Variable Bass Boost Control

Phase Shift Control

Input Sensitivity

Input Impedance

Line Output Impedance

Dimensions(Inches)

Fuse Rating

OPTI 1000D

350W MONO

650W MONO

900W MONO

1000W MONO

N/a

2000W MONO

0.1%

90dB

15Hz to 150Hz (+/-3dB)

400

50Hz~150Hz, 24dB/Octave

15Hz~40Hz, 24dB/Octave

0~+18dB

0 to 180

200mV to 8V

10K Ohm

100 Ohm

10.08" x 2.12" x 12.59"

30A x 3

OPTI 1400D

500W MONO

800W MONO

1000W MONO

1300W MONO

N/a

2600W MONO

0.1%

90dB

15Hz to 150Hz (+/-3dB)

400

50Hz~150Hz, 24dB/Octave

15Hz~40Hz, 24dB/Octave

0~+18dB

0 to 180

200mV to 8V

10K Ohm

100 Ohm

10.08" x 2.12" x 14.96"

30Ax4

OPTI 2000D

700W MONO

1100W MONO

1600W MONO

N/a

2000W MONO

4000W MONO

0.1%

90dB

15Hz to 150Hz (+/-3dB)

400

50Hz~150Hz, 24dB/Octave

15Hz~40Hz, 24dB/Octave

0~+18dB

0 to 180

200mV to 8V

10K Ohm

100 Ohm

10.08" x 2.12" x 19.1"

30A x 6

OPTI OWNER'S MANUAL - 4

1. Find a suitable location in the vehicle to mount the amplifier.

2. Make sure there is sufficient air flow around the intended mounting location.

3. Bolt the amplifier to the mounting surface.

4. Connect the power ground terminal to the nearest point on the chassis of the
car. Keep this ground wire less than one meter (39") in length. Use 4 gauge wire.

5. Connect the remote terminal to the remote output of the head unit using 14 gauge.

6. Connect an empty fuse holder within 300mm (12") of the battery and 4 gauge
or larger high quality cable from this fuse to the amplifier location.

7. Make sure there is no fuse in this fuse holder. Then make the connection to the "BATT"
connection on the amplifier.

8. If multiple amplifiers are being used, use cables (each with its own fuse at the battery)
or a #0 or a #2 cable from the fuse holder at the battery to a distribution
block at or near the amplifier's location.

9. Connect all line inputs and outputs using high-quality RCA-RCA cables.

10. Insert fuse(s) at the battery fuse holder(s).

11. Recheck all connections before powering up.

12. Set all level controls to their least sensitive positions and set all crossover controls, switches,
etc. to the desired frequency or position.

13. Once the system is powered up, set the volume control on the head unit to about the
2 o'clock position, and then set all the amplifiers' level controls for maximum output level.

14. Further fine tuning of the various controls may be necessary to obtain the desired results.

OPTI OWNER'S MANUAL - 5

OPTI 1000D/1400D/2000D

Power

Protection

OPTI OWNER'S MANUAL - 6

Phase

L

Shift

0180

Level

Subsonic

Min Max 15 40

Low

Pass

15050 0dB

Bass

Boost

18dB

Bridged Mode

Slave

Master

Remote

Data Link

R

InputLine out

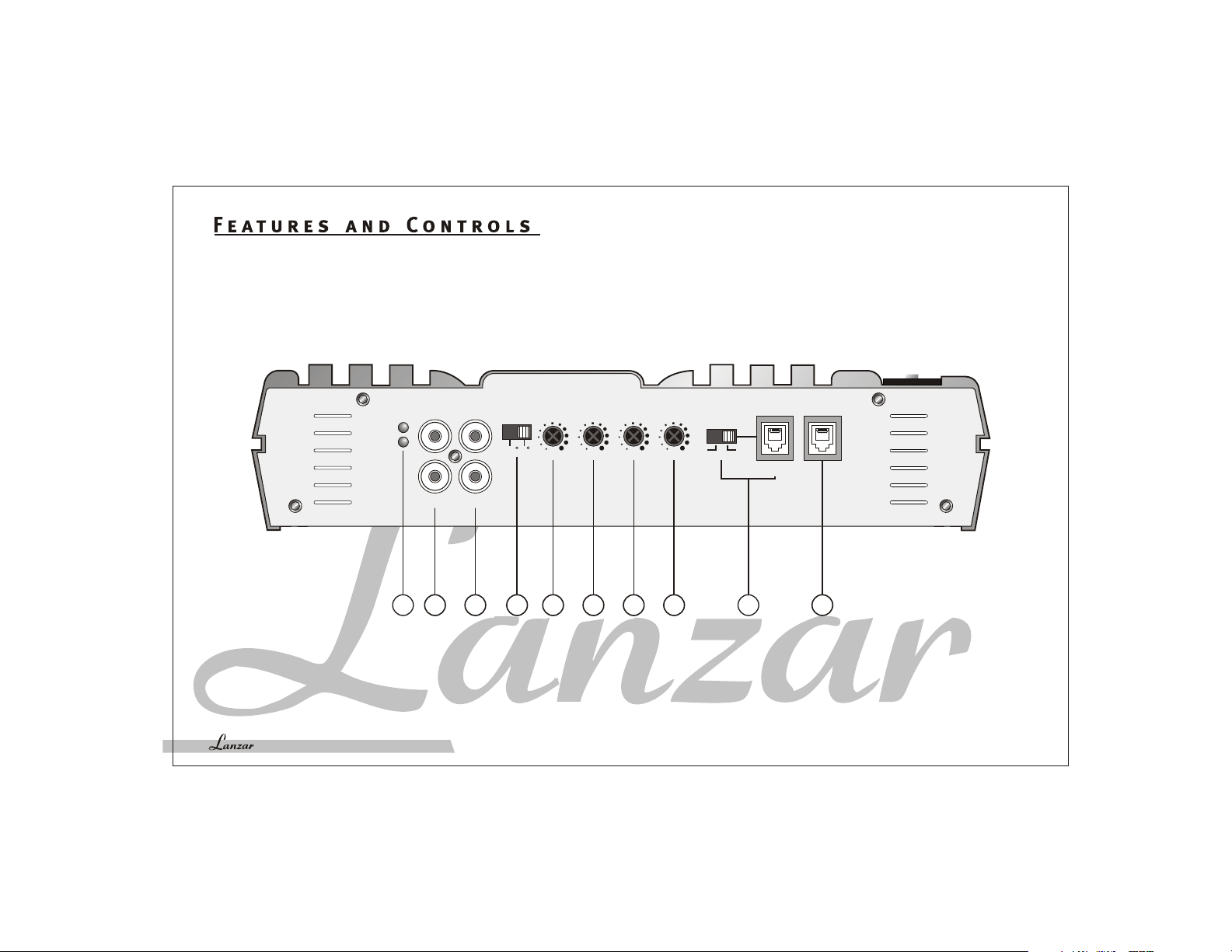

1. Line Out RCA Jacks -

with out having to use splitter cords to distribute the signal. Now it is simple a matter of
bringing one set of RCAs into the first amplifier, then using the line out RCA jacks as the
feed to the next amplifier.

The LINE OUT allows you to build multiple amplifier systems

2. Input RCA Jacks - These inputs are for signal cables from the source.

Always use high quality shielded RCA cables.

3. Level Control- Enables the matching of input levels to the output levels from

the head unit(or other signal source).

4.Variable Subsonic Filter- 15Hz~40Hz

5.Variable Low Pass Filter- When Crossover Mode Selector is in Low Pass Mode, this control

limits the frequencies which will be distributed to the speakers to those below the value
to which this is set within the range50~150Hz.

6.Phase Shift control - Allows you to change the phase of your subwoofer from 0 to 180 degrees

to help compensate for timing differences between drivers.

7.Bridged Mode

8.Bass Boost Remote Control Input

9.Power & Protection Indicators- Provide instant information on status of amplifier,

including short-circuit and thermal overload alerts.

10.Variable Bass Boost Control- 0~18dB.

OPTI OWNER'S MANUAL - 7

OPTI 1000D/1400D/2000D

Power

Protection

Speaker

SPEAKER IMPEDANCE 1~8 Ohm

SUBWOOFER

OPTI OWNER'S MANUAL - 8

Phase

Level

0180

Min Max 15 40

Subsonic

Shift

L

R

InputLine out

Low

Pass

15050 0dB

Bass

Boost

18dB

Bridged Mode

Slave

Master

Remote

Data Link

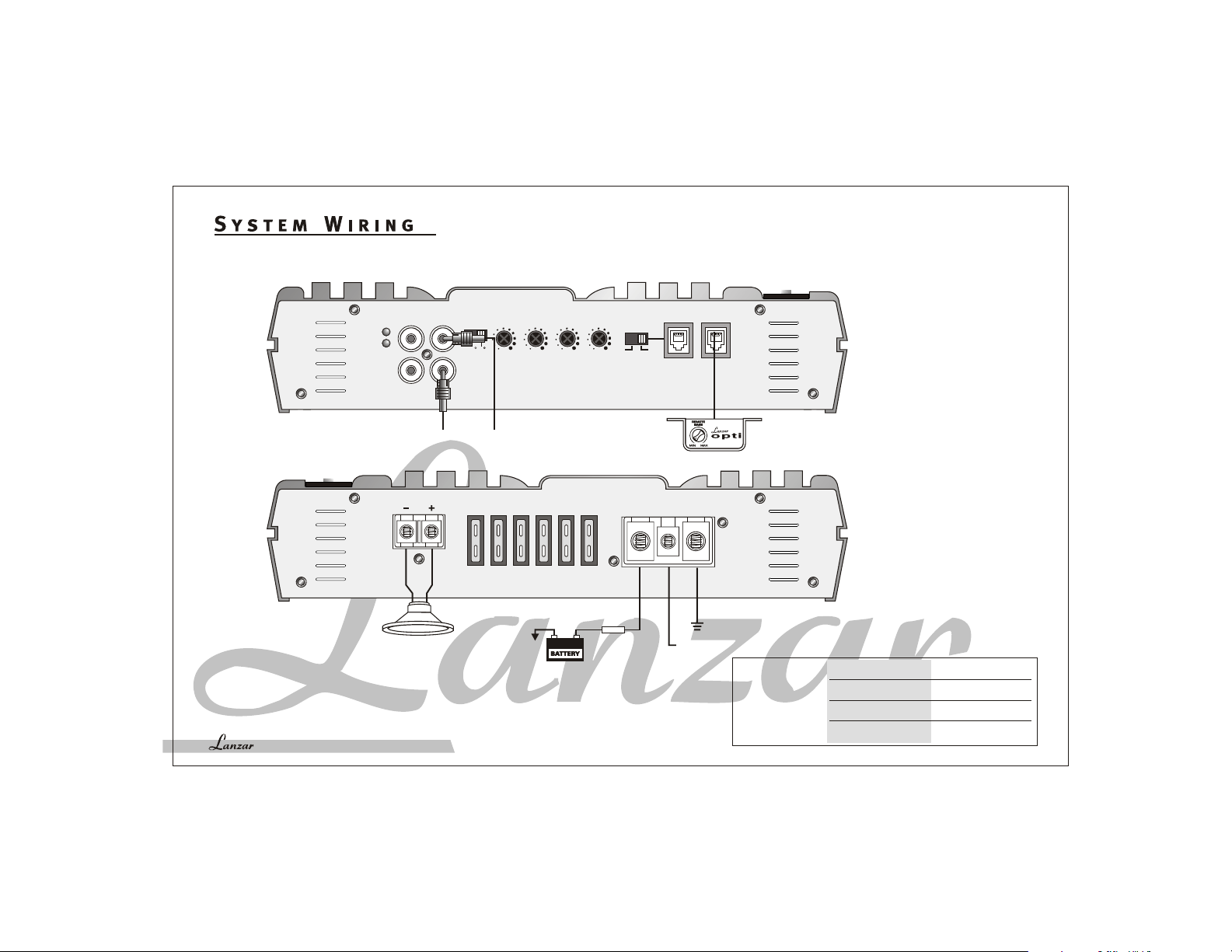

TO REMOTE GAIN CONTROLLERTO OUTPUT FROM HEAD UNIT

Fuses

B+

FUSE

Remote

Power

Ground

CHASSIS GROUND

(BARE METAL)

TO CAR STEREO AUTO ANTENNA

Fuse Rating

MODEL FUSES

OPTI 1000D

OPTI 1400D

OPTI 2000D

30A x 3

30A x 4

30A x 6

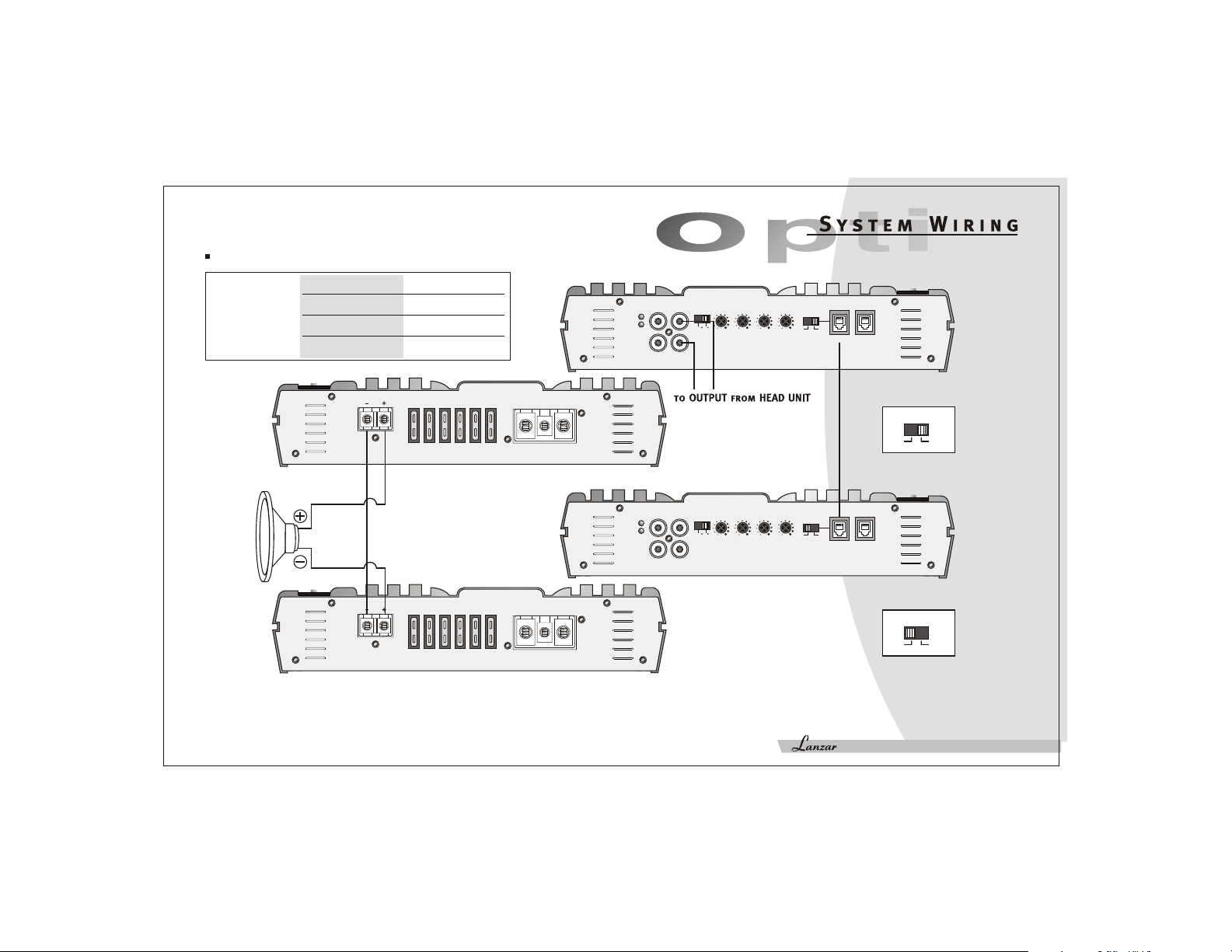

BRIDGING TWO AMPLIFIER

Fuse Rating

MODEL FUSES

OPTI 1000D

OPTI 1400D

OPTI 2000D

30A x 3

30A x 4

30A x 6

Master Amp

Power

Protection

Master

Remote

Data Link

Phase

Shift

L

0180

R

InputLine out

Level

Subsonic

Min Max 15 40

Low

Bass

Pass

Boost

Bridged Mode

Slave

18dB

15050 0dB

SPEAKER IMPEDANCE

2 Ohms!

Speaker

Fuses

Ground

Remote

B+

Power

(BRIDGED SWITCH : MASTER POSITION)

Bridged Mode

Slave

Slave Amp

Remote

Master

Data Link

(BRIDGED SWITCH : SLAVE POSITION)

Bridged Mode

Slave

Speaker

Fuses

Phase

Shift

Power

Protection

Ground

Remote

B+

Power

L

0180

R

InputLine out

Level

Subsonic

Min Max 15 40

Low

Bass

Pass

Boost

Bridged Mode

Slave

18dB

15050 0dB

Bridging two amplifiers can be done only between two amplifiers of the same model number.

OPTI OWNER'S MANUAL - 9

Master

Master

Before removing your amplifier, refer to the list below and follow the
suggested procedures. Always test the speakers and their wires first.

Check for good ground connection.
Check that remote DC terminal has at least 13.8v DC.
Check that there is battery power on the +terminal.
Check all fuses.
Check that Protection LED is not lit. If it is lit, shut off amplifier briefly

and then repower it.

Disconnect all RCA inputs to the amplifier(s)-if hiss / noise disappears, then plug
in the component driving the amplifier and unplug its inputs. If hiss / noise
disappears, go on until the faulty / noisy component is found.

It is best to set the amplifier's input level as insensitive as possible. The best
subjective S/N ratio is obtainable this way. Try to drive as high a signal level from the
head unit as possible.

OPTI OWNER'S MANUAL - 10

Check for shorts on speaker leads.
Check that the volume control on the head unit is turned down low.
Remove speaker leads, and reset the amplifier. If the Protection LED still comes

on, then the amplifier is faulty.

Check that the minimum speaker impedance for that model is correct.
Check for speaker shorts.
Check that there is good airflow around the amplifier. In some applications, an

external cooling fan may be required.

Check that the Level control(s) is set to match the signal level of the head unit.
Check that all crossover frequencies have been properly set.
Check for shorts on the speaker leads.

This is always caused by a poorly-grounded RCA patch cord.

OPTI OWNER'S MANUAL - 11
