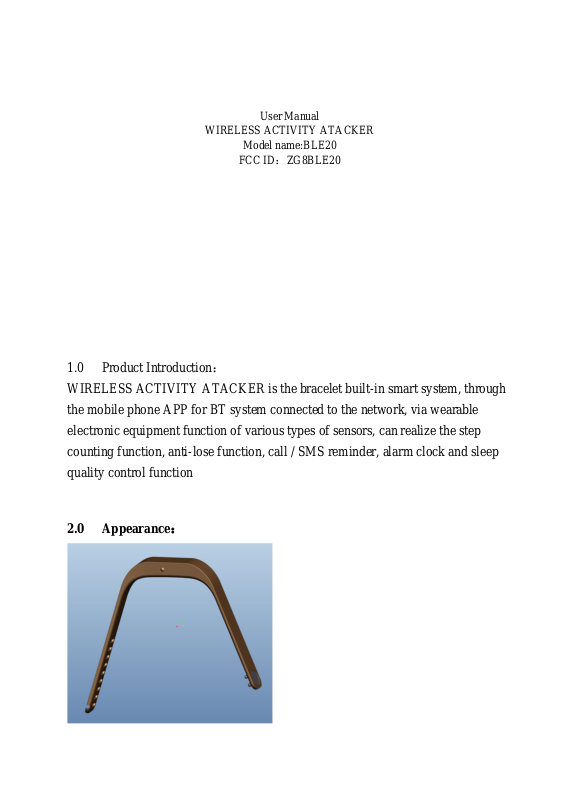

User Manual
WIRELESS ACTIVITY ATACKER
Model name:BLE20
FCC ID：ZG8BLE20
1.0 Product Introduction：
WIRELESS ACTIVITY ATACKER is the bracelet built-in smart system, through
the mobile phone APP for BT system connected to the network, via wearable
electronic equipment function of various types of sensors, can realize the step
counting function, anti-lose function, call / SMS reminder, alarm clock and sleep
quality control function
2.0 Appearance：
3.Product Basic Information
Name: WIRELESS ACTIVITY ATACKER
Model No: BLE20
Size of product: L:107.8 * W:15.5* H:125.2
Size of inside cabinet: L:37 * W:12.5* H:8.5
Weight: TBD
Material: ABS+silicone（wristband）
Button: one confirm button
Battery: 25mAH/ Lithium polymer battery
vibrating motor φ8*3
Charge port: standard USB port
LED red&green flashes LED
Vibration sensor Freescale MMA955xL
Bluetooth version: CSR1012
Distance: 10 meters
Standby time: 12days
Talk time: 10H
Charge time: 1~1.5H
4.Using the interface definition
APP：
Download app: Open mobile phone camera to scan two-dimensional code which was on the product packaging ,
save the file in the link and install it after scanning successful
Start: Install the APP in the mobile phone, click the APP on the mobile phone after startup the smart bracelet,
and then run the app.
Search: click the button on the top of left side, select "Settings" in the column, and then select the
Bluetooth connection, Bluetooth will be access device searching status.
Online: searched to the corresponding equipment and then click the device name that can be connected into
the online status
Exit: click two times the return key, quit to the interface
The specific operation as follows:
Step counting Press the confirm button two times, then began to take the initiative to step function, press two
times confirm button for the termination step.In the step counting process, can display that how
long you spent, how much calories was burned, speed and sport distance, also can check the
historical data.
Reminding function when paired successfully with the mobile phone, The smart bracelet will be vibrated for 1 second
of three times to remind when incoming call. The motor will be vibrated 0.5 seconds to remind
when there is a message.
Sleep quality
monitoring function
Anti-lose function
Alarm reminding
LED
Charging USB plug into the charger to charge the battery
Press the confirm button and hold it for 2-3 seconds into sleep mode,Can be check the sleep
quality by APP after wake up .
The smart bracelet will be vibrated to alarm you when the bracelet was out off the distance of the
mobile phone .It will be vibrated for 10 seconds until press confirm button. or return to the effective
distance; The mobile phone is ringing to remind you at the same time when out off the distance.
When to be the setted time, The smart bracelet will be vibrated lasts 5 sec interval seconds to
reminding, until press confirm button to end it
Display “charging /full charged”. The LED is red when in charging,The LED turns green when full
charged.
5. FCC Statement
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
