Page 1
NOTE :
SKY FLIGHT HOBBY CO., LTD
will not take any responsibility for damage or accident
caused by the improper use of this model.
Instruction Manual
Twin 70MM EDF
Page 2
WARNING
MiG-29 Fighter Jet is an Electric R\C model Jet, it is not a toy and is not
suitable for pilots under 14 years of age.
1. Do not fly near houses, buildings, children play areas, road traffic, railways
airports. Do not fly near crowds of people, power lines, or other dangerous areas.or
l location for flying is a wide-open space such as designated flying fields 2. An idea
or parks, without hazards such as crowds, utility poles, or other structures.
, or placed on top of any flammable 3. The battery should not be overcharged
material or near flammable material when it is being charged.
4. Always check that other pilots are not using the same frequency(band)
in the same area before flight and make sure that you are flying in a safe
area.
interfere with your flight, such as strong winds.5. Do not fly in conditions that can
6. Do not try to catch the airplane with you hands when it is flying.
Children who are younger than 14 years of age should be su
at a
ll times by an experienced pilot or a parent, or guardian while operating.
They
should be ready to take over at any time if the child encounters difficulties.
8. This model aircraft is designed to be powered by an electric motor.
Flying this model aggressively may lead to serious accidents or injuries.
ile the motor is running, it can lead to 9. Do not touch the propeller wh
serious injuries.
pervised7.
Thank you for purchasing MiG-29.
The MiG-29 is an electric ducted fan jet which is best suited for the
intermediate to advanced R/C pilot.
In order to fly the MiG-29 please make sure you read through the
instructions carefully before attempting to operate the model for the
first time.
You alone are responsible for the safety, and the safe operation of your
radio-controlled model. Young pilots should fly the models under the
supervision of adults, or experienced pilots who are aware of the
potential hazards.
Please keep these operating instructions in a safe place. If you ever
sell, trade, or dispose of this model in any manner, please pass on the
instructions to the new owner.
If you have any questions in regarding to the safe operation, or possible
precautions please call your local hobby shop for professional advice.
Radio-controlled models are very demanding and potentially dangerous
machines. They call for a high level of technical knowledge and skill
from the operator. Please always keep this instruction manual ready at
hand for quick reference, even after completing the assembly.
1
2
Page 3

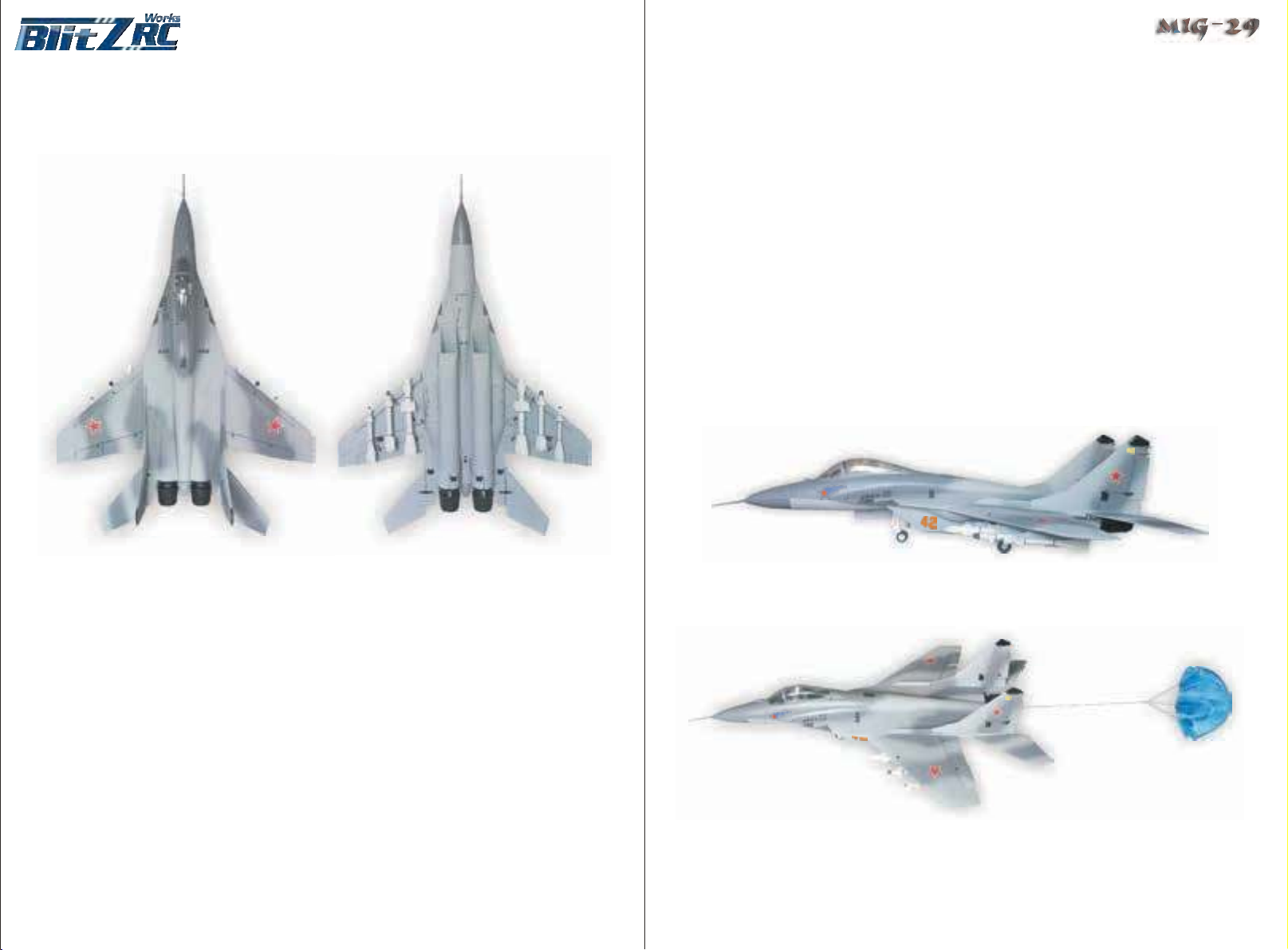

Drag parachute
Coloured smoke
Cockpit ejection
0
360 vector vents
Description:
length:1514mm (60") 9 CH Radio Control
wingspan:1142mm (45) 2 x 50A Brushless ESC
EDF diamet
flying weight:2400g
thrust:>2500g
34
er:2*70mm

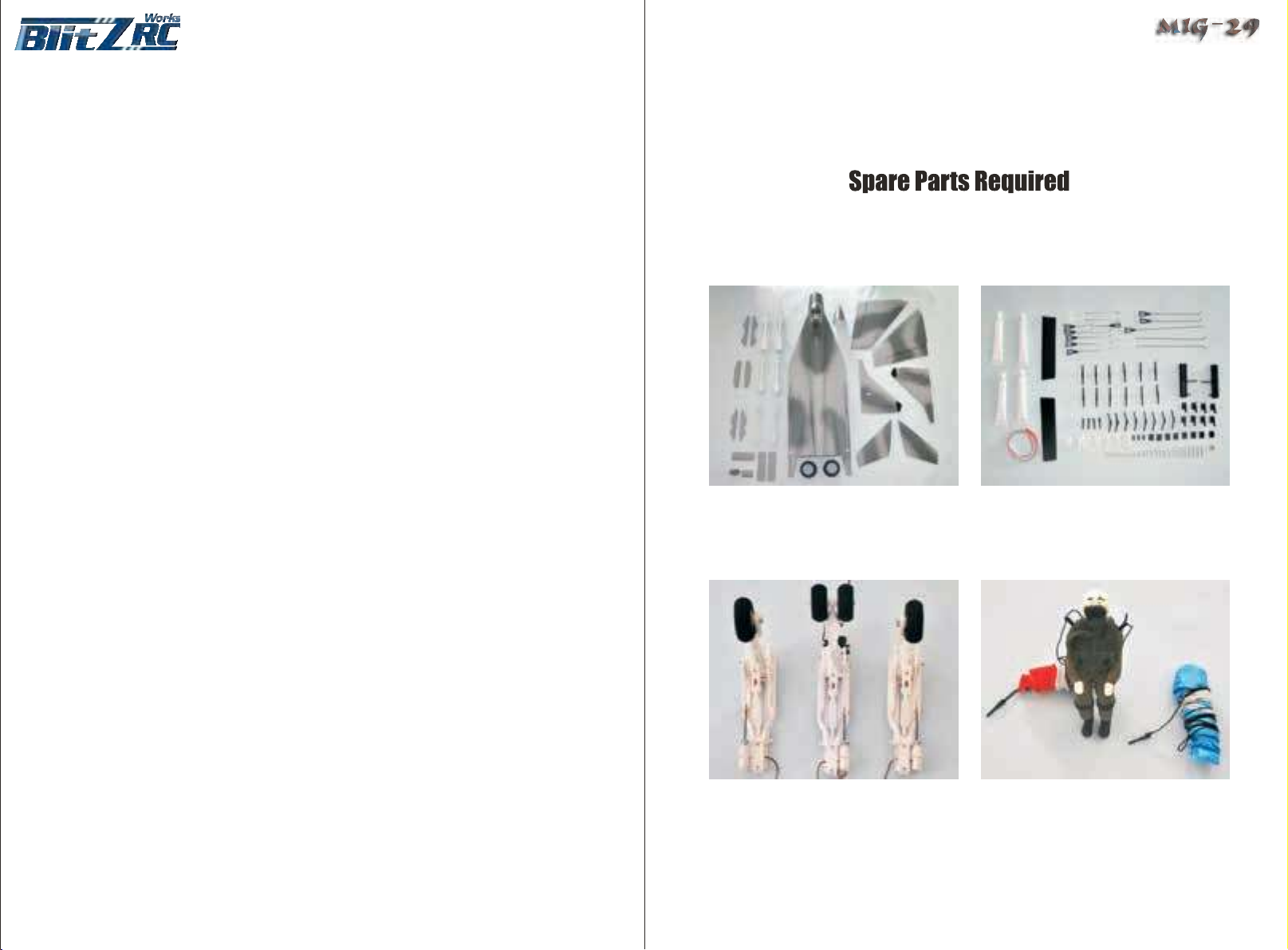

The kits include:
17*9gram servos
2*2100KV brushless motor
2*3600mAh/11.1V 25C li-po battery
Page 4
Assembly procedure

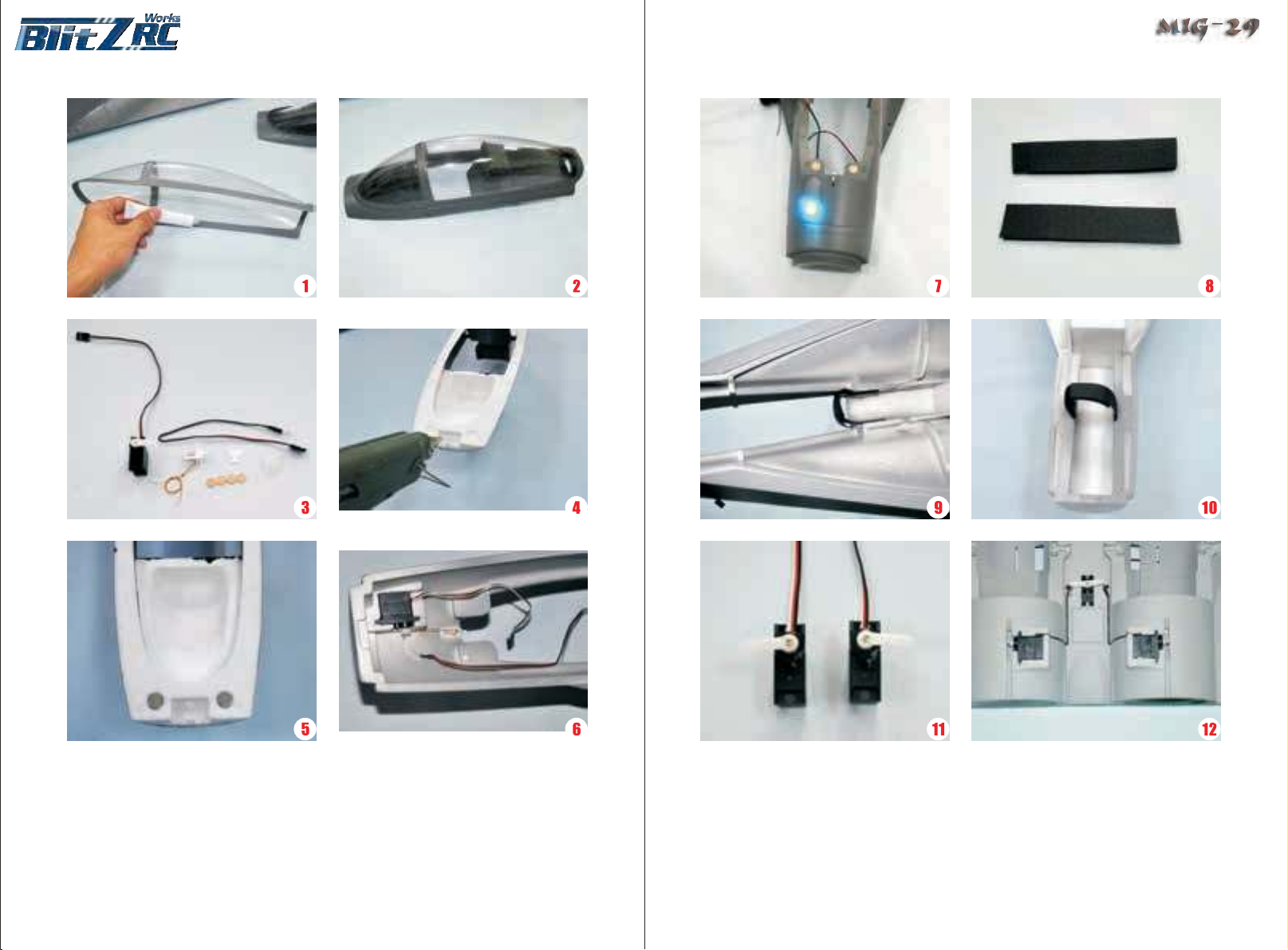

Cockpit Installation:1-6
Nose LED Light Installation:7
Battery Strap Installation:8-10

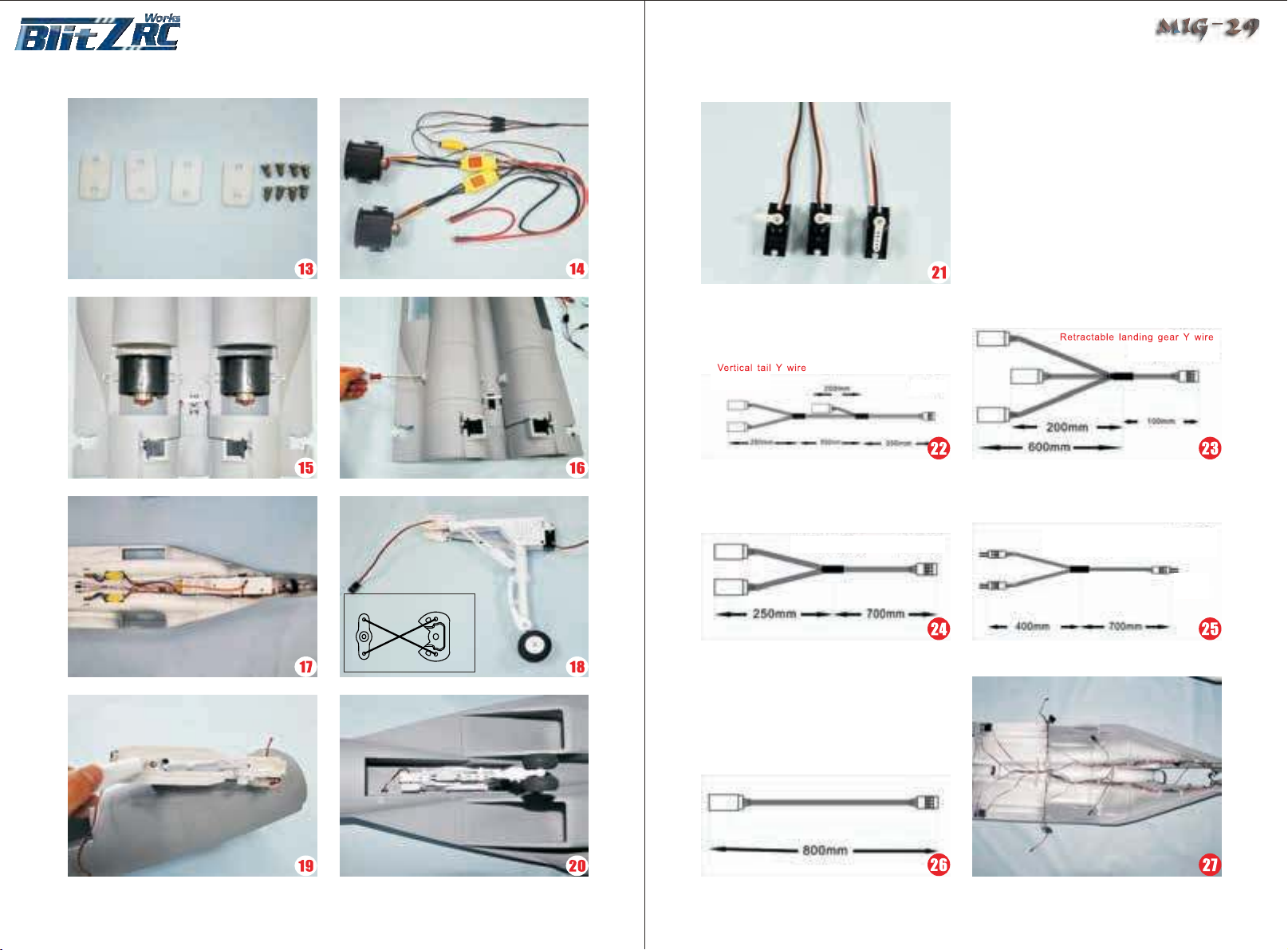

Power Parts Installation:13-17
Front Retracts Installation:18-20

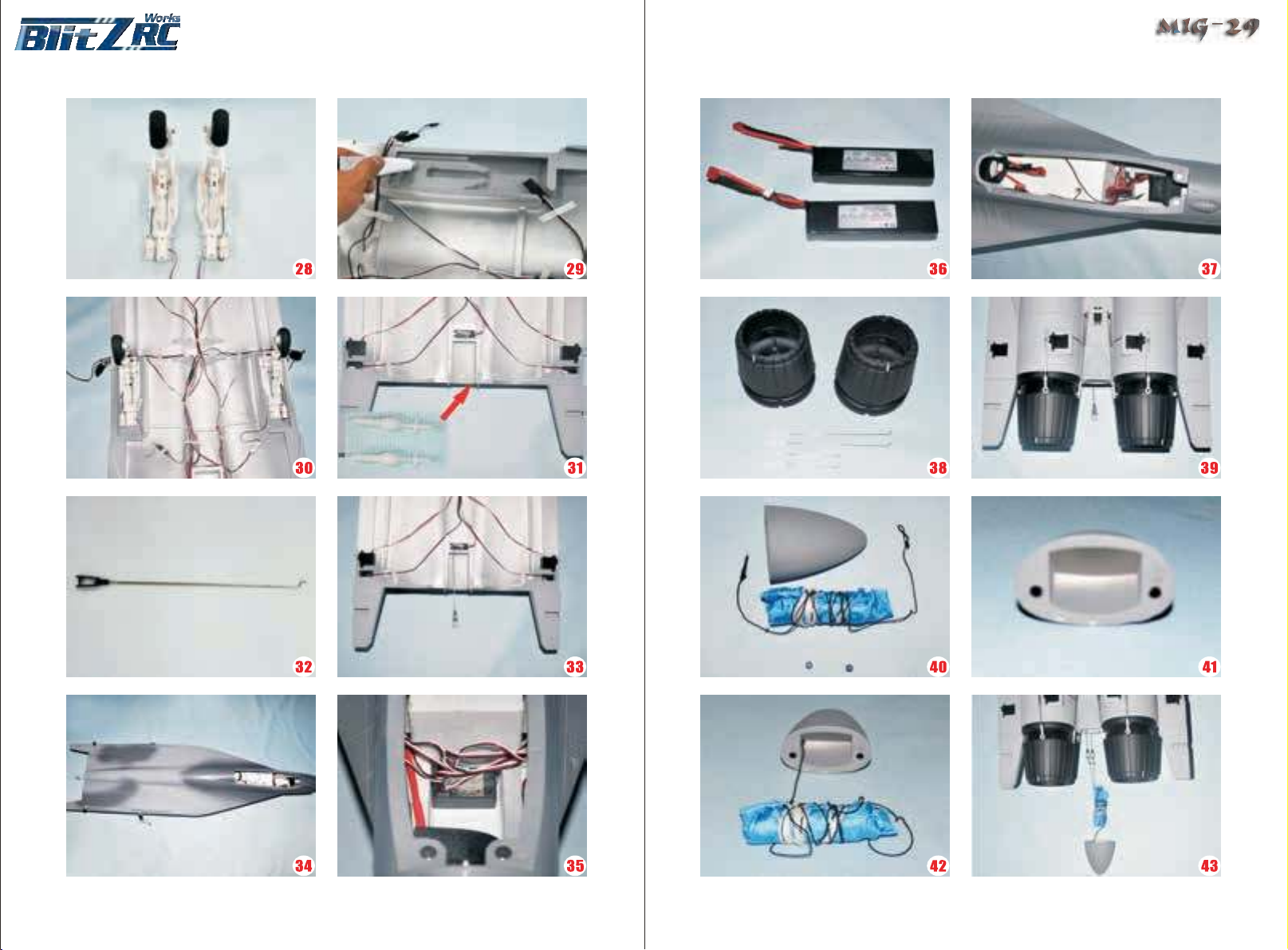

Back Retracts Installation:28-30
Parachute Bolt Installation:31
Parachute Rod Installation:32-33
Fuselage Installation:34
Receiver Installation Spots:35
Battery Installation Spots:36-37
Vector Thrust Installation:38-39
Parachute Installation:40-44

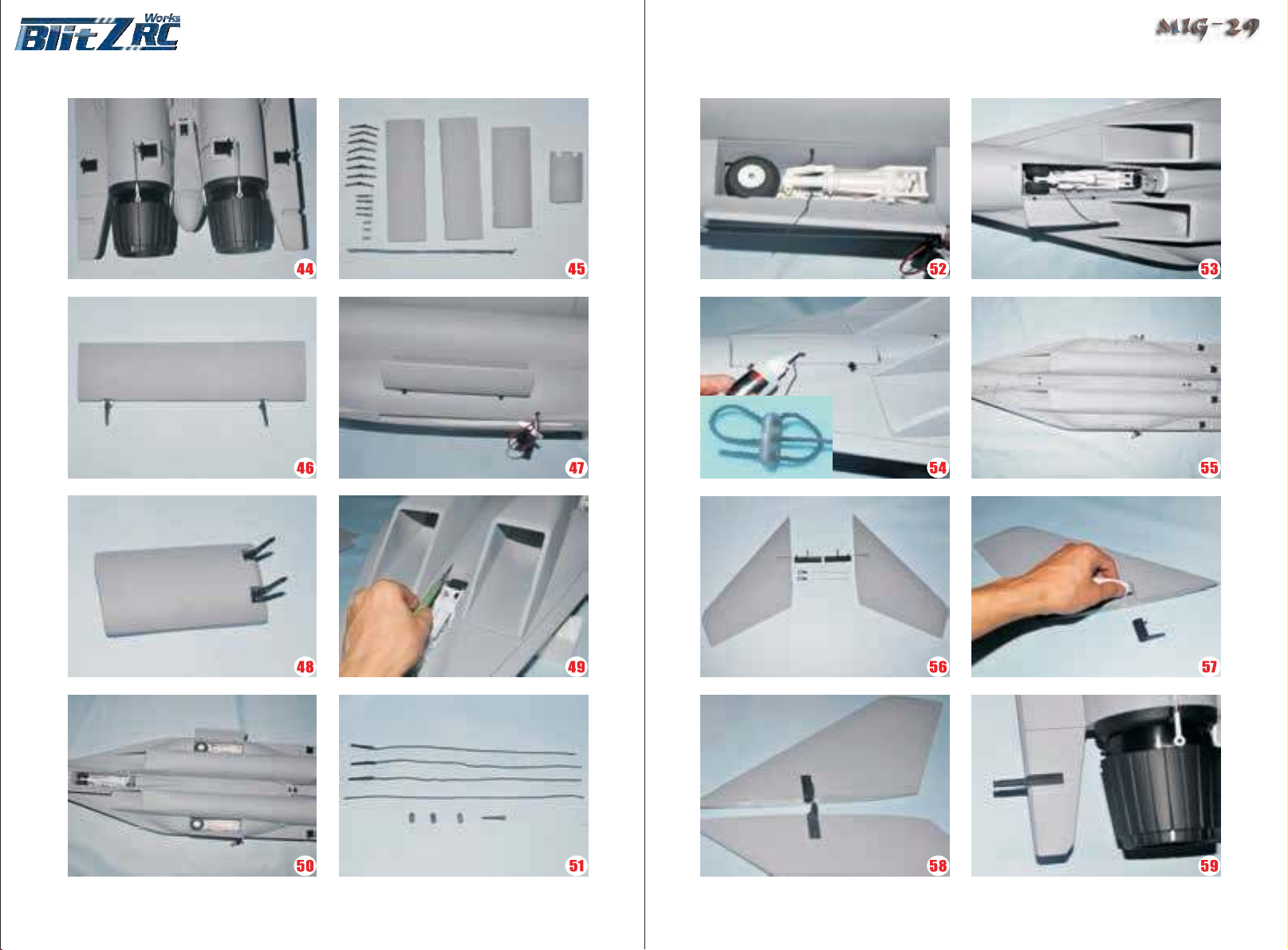

Door for Retracts Installation:45-55

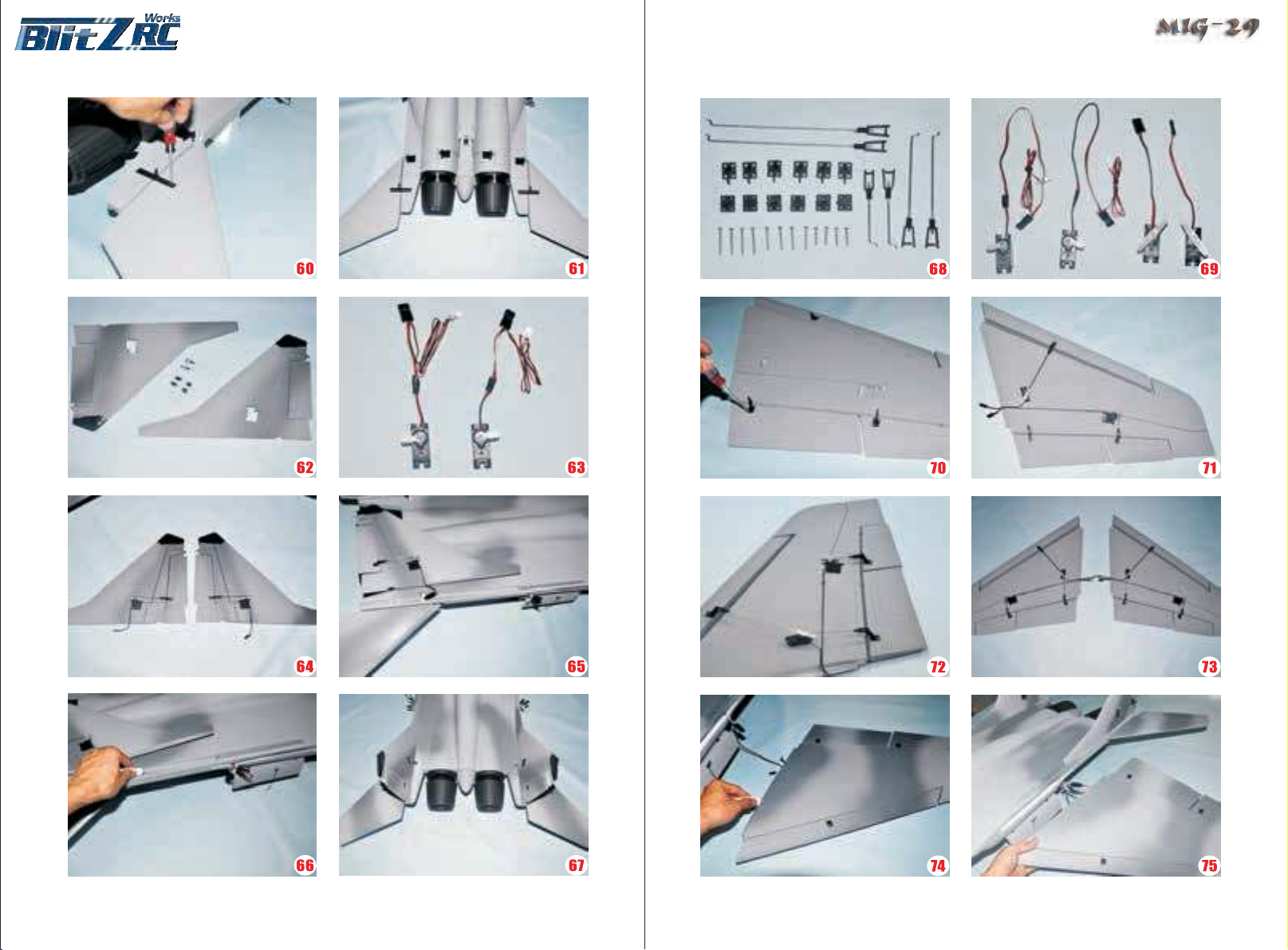

Horizontal Tail Installation:56-61
Vertical Tail Installation:62-67

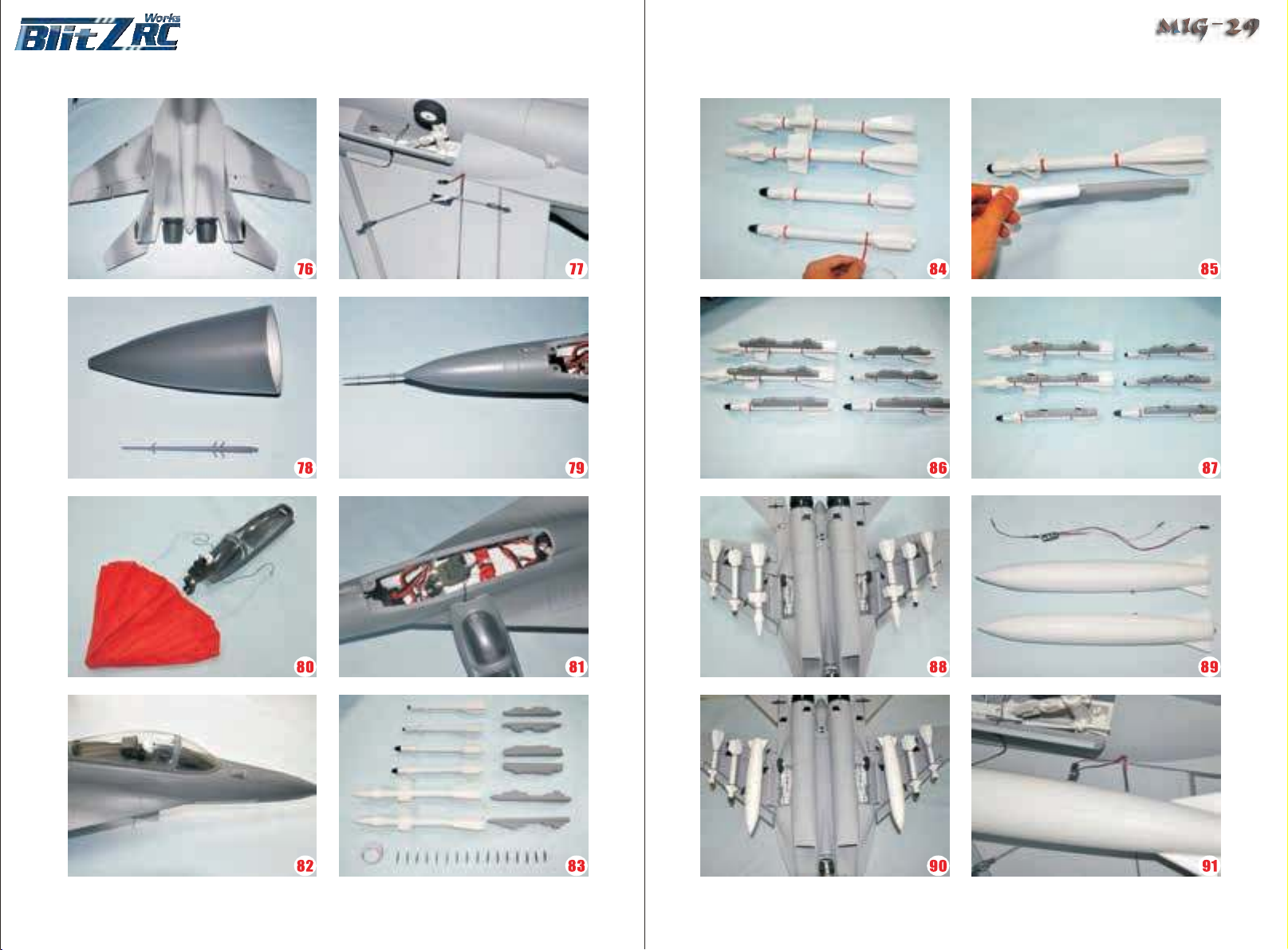

Wings Installation:68-77
Hood Installation:78-79
Pilot,Parachute and Cockpit Installation:80-82
Bombs Installation:83-88
Smoke Launchers Installation:89-92
Beautification:89-92
56
Page 5
Two 1100mm Servos and
Picture 3:a Servo with 250mm Wire is
Required for Pilot Ejection Function
78
one 1000mm Servo are
Required for Vector Thrust
Page 6
Installation of Stablizer Servos(with
1000mm wire), Parachute Servo(with
1000mm wire),Vertical Fin Connecting
Wire, Retracts Connecting Wire,Flaps
Connecting Wire,Color Smoke Connecting
Wire and Aileron Connecting Wire.
Flap servo's Y wire
Color smoke bomb ignition wire
910
Page 7
1112
Page 8
1314
Page 9
1516
Page 10
1718
Page 11

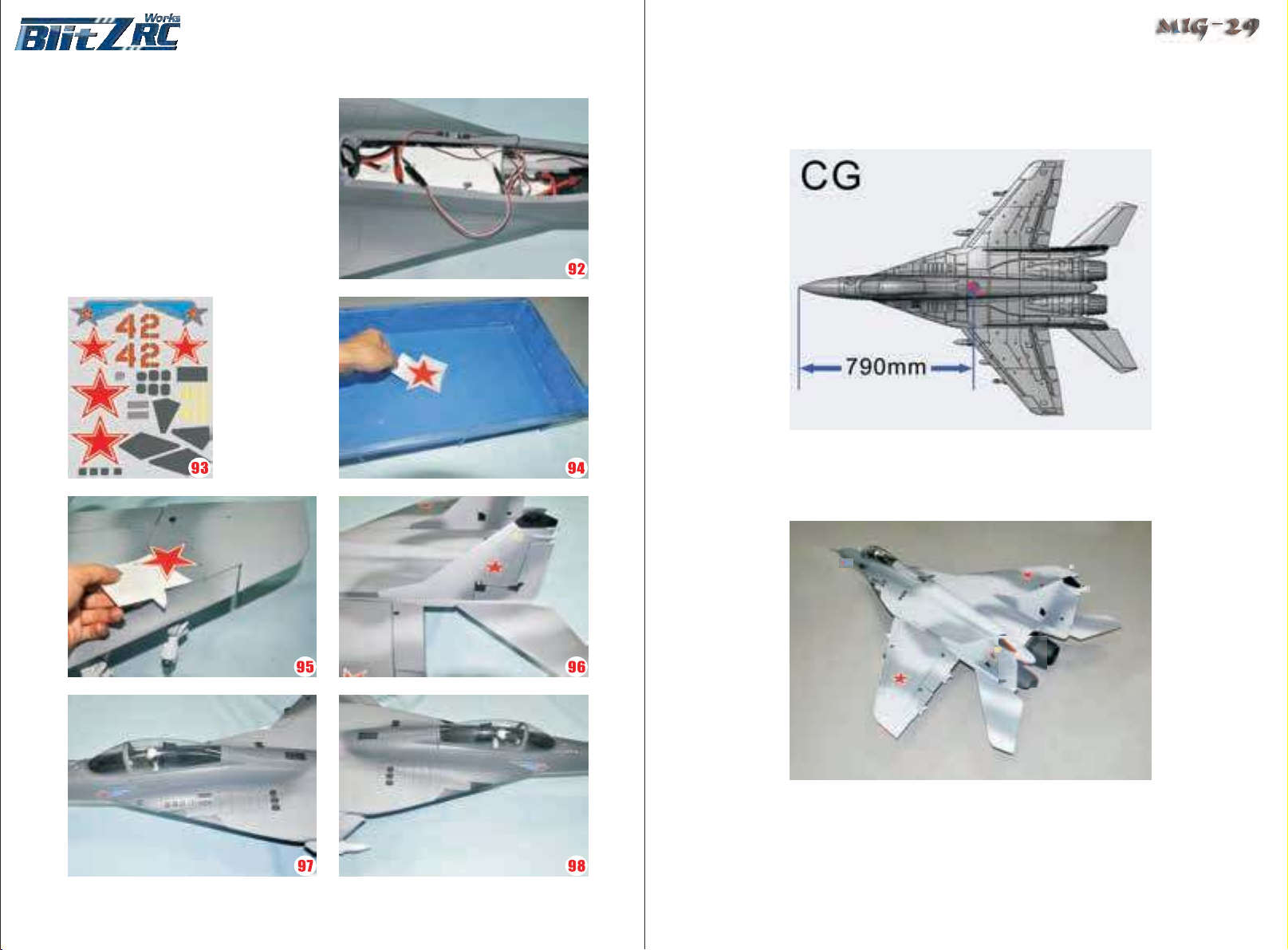

picture 92:please connects the
ignitor according to the manul
Installation is finished
1920
Page 12

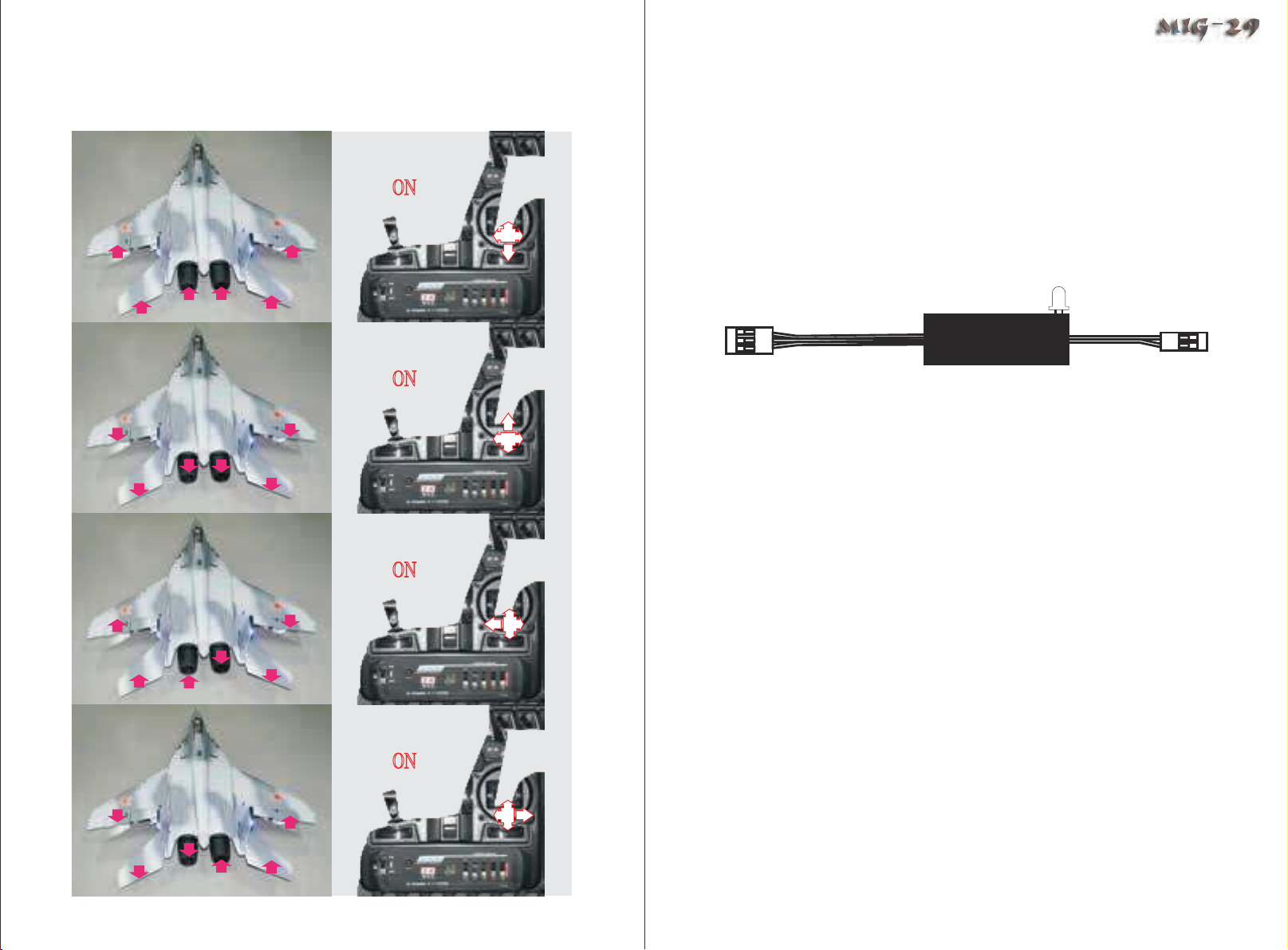

Test before flying
Check your vector nozzles and ensure they are working properly.
ON
Installation of colored smoke ignitor
The coloured smoke is ignited
when LED light turns on.
ON
ON
ON
Receiver connection
Steps:1.receiver connects.
2.Coloured smoke connects(make sure LED light is out before
coloured smoke connection.)
Coloured smoke igniter
Coloured smoke
connection
Sky flight Hobby Co.,Ltd
www.skyflighthobby.com
21 22
*Always do a full pre-flight check before every flight.
