Lantech IGS-3208MGSFP, IPGS-3208MGSFP, IGS-3208C, IPGS-3208C, IGS-3204MGSFP User Manual

I(P)GS-3208MGSFP

I(P)GS-3208C

I(P)GS-3204MGSFP

I(P)GS-3008

IP30-rated Series

IP30-rated L2+ Industrial Managed Switch w/Enhanced G.8032 Ring

User Manual (Hardware)

Mar. 2017

Recommendation for Shielded network cables

STP cables have additional shielding material that is used to reduce external interference.
The shield also reduces the emission at any point in the path of the cable. Our
recommendation is to deploy an STP network cable in demanding electrical environments.
Examples of demanding indoor environments are where the network cable is located in
parallel with electrical mains supply cables or where large inductive loads such as motors
or contactors are in close vicinity to the camera or its cable. It is also mandatory to use an
STP cable where the power device (like IP camera) is used outdoors or where the network
cable is routed outdoors.

Important Notice

Lantech Communications Global, Inc. reserves the right to modify the
equipment, its specification or this manual without prior notice, in the interest
of improving performance, reliability, or servicing. At the time of publication
all data is correct for the operation of the equipment at the voltage and/or
temperature referred to. Performance data indicates typical values related to
the particular product.

No part of this documentation or information supplied may be divulged to any
third party without the express written consent of Lantech Communications
Global Inc. Products offered may contain software which is proprietary to
Lantech Communications Global Inc. The offer or supply of these products
and services does not include or infer any transfer of ownership.

Interference Issues

This Equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
commercial or industrial installation. This equipment generates, uses, and
can radiate radio frequency energy. It may cause harmful interference to
radio communications if the equipment is not installed and used in
accordance with the instructions.

FCC Warning

This Equipment has been tested and found to comply with the limits for a
Class-A digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy. It may cause harmful interference to radio
communications if the equipment is not installed and used in accordance
with the instructions. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.

Content

Chapter 1 Model List ................................................ 1

Chapter 2 Hardware Description ............................ 2

2.1 IP Protection ................................................... 2

2.2 LED Indicators................................................ 5

Chapter 3 Hardware Installation ............................. 7

3.1Hardware installation .......................................... 7

3.2 DIN-Rail Mounting .......................................... 8

3.3 Wall Mount Plate Mounting .......................... 10

3.4 Wiring the Power Inputs ............................... 11

3.5 Wiring the Fault Alarm Contact .................... 12

3.6 Cabling ......................................................... 13

Chapter 4 Network Application ............................. 16

ITU G.8032 Scheme .............................................. 16

Ring Coupling ........................................................... 16

Multiple Rings .......................................................... 17

Dual Homing ............................................................ 18

Chain ....................................................................... 18

Chapter 5 Console Management .......................... 20

5.1 Connecting to the Console Port ................... 20

5.2 Login in the Console Interface ..................... 21

1

Chapter 1 Model List

Model Name

10/100/1000T
Port

1G/2.5G SFP
Port

10/100/1000T/
100M/1000M SFP
Combo Port

USB Port
IPGS­3208MGSFP

8 with PoE at/af

2 1

IGS­3208MGSFP

8 2

1

IPGS-3208C

8 with PoE at/af

2 1

IGS-3208C

8 2

1

IPGS­3204MGSFP

4 with PoE at/af

2 1

IGS­3204MGSFP

4 2

1

IPGS-3008

8 with PoE at/af

IGS-3008

8

 IP30 rated
 L2+ managed
 Enhanced G.8032 Ring

*For detail specifications, please refer to product datasheet.
**The revise authority rights of product specifications belong to Lantech Communications
Global, Inc. Lantech may make changes to specification and product descriptions at
anytime, without notice.

2

Chapter 2 Hardware Description

In this paragraph, it will describe the Industrial switch’s hardware spec, port, cabling

information, and wiring installation.

2.1 IP Protection

The IP Code, Ingress Protection Rating, sometimes also interpreted as International
Protection Rating, classifies and rates the degree of protection provided against the

intrusion (including body parts such as hands and fingers), dust, accidental contact, and
water in mechanical casings and with electrical enclosures. It is published by the
International Electrotechnical Commission (IEC)

Solid particle protection

The first digit indicates the level of protection that the enclosure provides against access
to hazardous parts (e.g., electrical conductors, moving parts) and the ingress of solid
foreign objects.

Level

Object size

protected against

Effective against

0

—

No protection against contact and ingress of objects

1

>50 mm

Any large surface of the body, such as the back of a
hand, but no protection against deliberate contact
with a body part

2

>12.5 mm

Fingers or similar objects

3

>2.5 mm

Tools, thick wires, etc.

4

>1 mm

Most wires, screws, etc.

5

Dust protected

Ingress of dust is not entirely prevented, but it must
not enter in sufficient quantity to interfere with the
satisfactory operation of the equipment; complete

3

protection against contact

6

Dust tight

No ingress of dust; complete protection against
contact

Liquid ingress protection

The second digit indicates the level of protection that the enclosure provides against
harmful ingress of water.

Level

Protected

against

Testing for

Details

0

Not
protected

—

—

1

Dripping
water

Dripping water (vertically
falling drops) shall have no
harmful effect.

Test duration: 10 minutes
Water equivalent to 1 mm
rainfall per minute

2

Dripping
water when
tilted up to
15°

Vertically dripping water
shall have no harmful effect
when the enclosure is tilted
at an angle up to 15° from
its normal position.

Test duration: 10 minutes
Water equivalent to 3 mm
rainfall per minute

3

Spraying
water

Water falling as a spray at
any angle up to 60° from
the vertical shall have no
harmful effect.

Test duration: 5 minutes
Water volume: 0.7 litres per
minute
Pressure: 80–100 kPa

4

Splashing
of water

Water splashing against
the enclosure from any
direction shall have no
harmful effect.

Test duration: 5 minutes
Water volume: 10 litres per
minute
Pressure: 80–100 kPa

4

5

Water jets

Water projected by a
nozzle (6.3 mm) against
enclosure from any
direction shall have no
harmful effects.

Test duration: at least
15 minutes
Water volume: 12.5 litres per
minute
Pressure: 30 kPa at distance
of 3 m

6

Powerful
water jets

Water projected in powerful
jets (12.5 mm nozzle)
against the enclosure from
any direction shall have no
harmful effects.

Test duration: at least
3 minutes
Water volume: 100 litres per
minute
Pressure: 100 kPa at
distance of 3 m

7

Immersion
up to 1 m

Ingress of water in harmful
quantity shall not be
possible when the
enclosure is immersed in
water under defined
conditions of pressure and
time (up to 1 m of
submersion).

Test duration: 30 minutes
Immersion at depth of at
least 1 m measured at
bottom of device, and at least
15 cm measured at top of
device

8

Immersion
beyond 1 m

The equipment is suitable
for continuous immersion in
water under conditions
which shall be specified by
the manufacturer.
Normally, this will mean
that the equipment is
hermetically sealed.
However, with certain types
of equipment, it can mean
that water can enter but
only in such a manner that

Test duration: continuous
immersion in water
Depth specified by
manufacturer

5

it produces no harmful
effects.

9

Powerful
high
temperature
water jets

Protected against close­range high pressure, high
temperature spray downs.

—

2.2 LED Indicators

The diagnostic LEDs that provide real-time information of system and optional status are
located on the front panel of the industrial switch. The following table provides the
description of the LED status and their meanings for the switch.

LED

Color

Status

Meaning

R.M

Green
On

The switch unit is owner switch of ITU-Ring

Off

The switch is not owner switch

PWR1

Green
On

Power 1 is active

Off

Power 1 is inactive

PWR2

Green
On

Power 2 is active

Off

Power 2 is inactive

FAULT

Red
On

Power or port failure

Off

No failure

RJ45 Port
LED

Link/Ack

On

A network device is detected.

Blinking

The port is transmitting or receiving packets
from the TX device.

Off

No device attached

Speed 1000M

On

The port is operating in 1000T mode.

PoE FWD

Off

The port is not operating in PoE mode.

6

(For PoE
model)

On

The port is operating in PoE mode.

SFP Port
LED

On

A network device is detected.

Blinking

The port is transmitting or receiving packets
from the TX device.

Off

No device attached.

7

Chapter 3 Hardware Installation

3.1Hardware installation

1. Unpack the Industrial switch

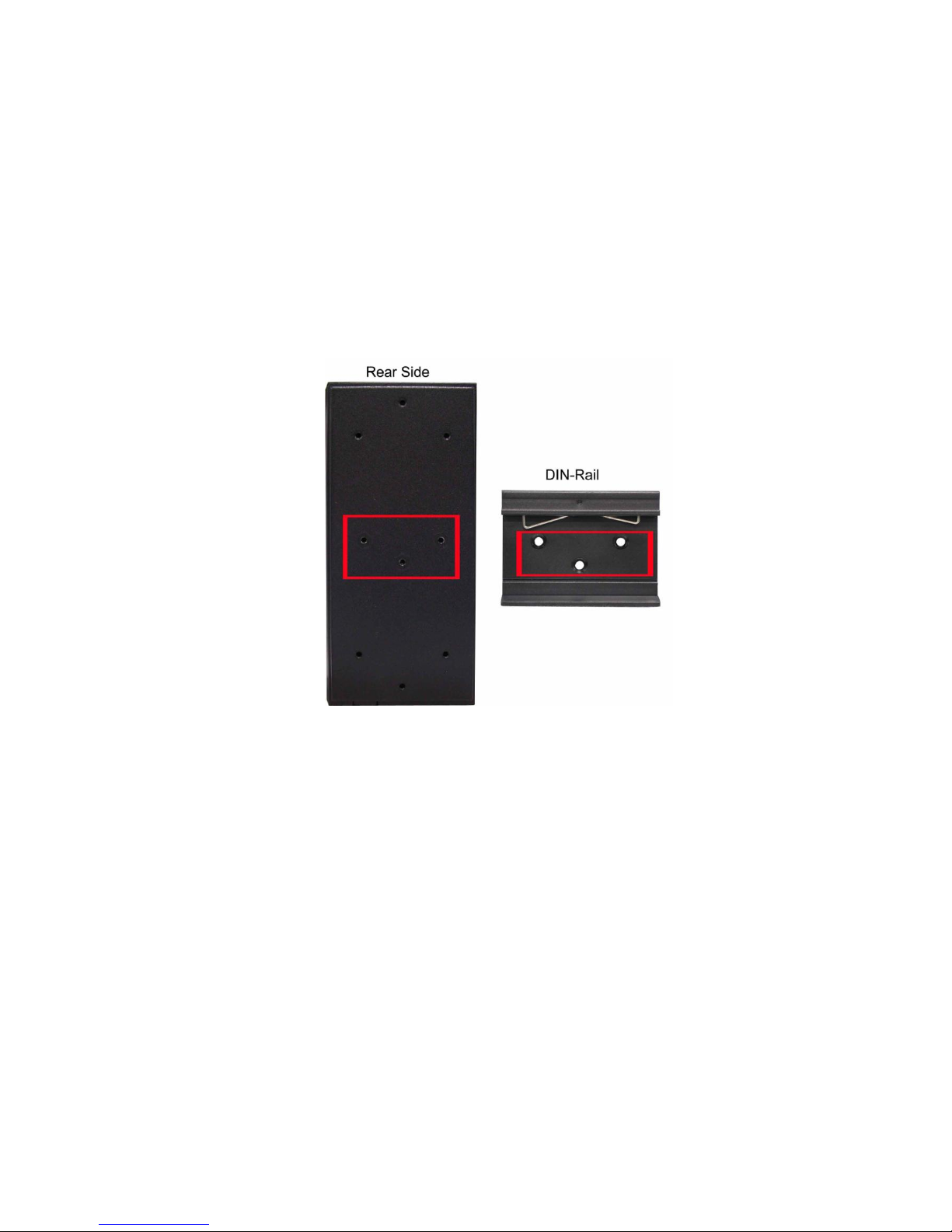

2. Check if the DIN-Rail is screwed on the Industrial switch or not. If the DIN-Rail is not
screwed on the Industrial switch, please refer to DIN-Rail Mounting section for DIN­Rail installation. If users want to wall mount the Industrial switch, please refer to Wall

Mount Plate Mounting section for wall mount plate installation. NOTE: Wall mount
kits are optional accessories.

3. To hang the Industrial switch on the DIN-Rail track or wall.

4. Power on the Industrial switch. Please refer to the Wiring the Power Inputs section
for knowing the information about how to wire the power. The power LED on the
Industrial switch will light up. Please refer to the LED Indicators section for indication
of LED lights.

5. Prepare the twisted-pair, straight through Category 5 cable for Ethernet connection.

6. Insert one side of RJ-45 cable (category 5) into the Industrial switch Ethernet port
(RJ-45 port) and another side of RJ-45 cable (category 5) to the network device’s
Ethernet port (RJ-45 port), ex: Switch PC or Server. The UTP port (RJ-45) LED on
the Industrial switch will light up when the cable is connected with the network device.
Please refer to the LED Indicators section for LED light indication.

[NOTE]

Make sure that the connected network devices support MDI/MDI-X. If it does not
support, use the crossover category-5 cable.

7. When all connections are set and LED lights all show in normal, the installation is
complete.

8

3.2 DIN-Rail Mounting

The DIN-Rail is screwed on the industrial switch when out of factory. If the DIN-Rail is
not screwed on the industrial switch, please see the following pictures to screw the DIN­Rail on the switch. Follow the steps below to hang the industrial switch.

9

1. First, insert the top of DIN-Rail into the track.

2. Then, lightly push the DIN-Rail into the track.

3. Check if the DIN-Rail is tightened on the track or not.

4. To remove the industrial switch from the track, reverse above steps.

10

3.3 Wall Mount Plate Mounting

Follow the steps below to mount the industrial switch with wall mount plate.

1. Remove the DIN-Rail from the industrial switch; loose the screws to remove the DIN­Rail.

2. Place the wall mount plate on the rear panel of the industrial switch.

3. Use the screws to screw the wall mount plate on the industrial switch.

4. Use the hook holes at the corners of the wall mount plate to hang the industrial
switch on the wall.

5. To remove the wall mount plate, reverse the above steps.

NOTE : Wall mount kits are optional accessories

MBAK19008

Wall mount bracket for for I(P)GS-3208C and I(P)GS-3208MGSFP

MBAK19003

Wall mount bracket for for I(P)GS-3008 and I(P)GS-3204MGSFP

11

3.4 Wiring the Power Inputs

Please follow the steps below to insert the power wire.

1. Insert DC power wires into the contacts 1 and 5 with negative electrode of power and,
2 and 6 with positive electrode of power, contacts 1 and 2 are defined as power input
1 and contacts 5 and 6 are defined as power input 2, you can connect both power
input for redundancy but also can connect with single power input to power on switch.

2. Tighten the wire-clamp screws for preventing the wires from loosing.

[NOTE]

The wire gauge for the terminal block should be in the range between 12 ~ 24
AWG.

- +

- +

12

3.5 Wiring the Fault Alarm Contact

The fault alarm contacts are in the middle of the terminal block connector as the picture
shows below. Inserting the wires, the switch will detect the fault status of the power
failure, or port link failure (available for managed model) and then forms an open circuit.
The following illustration shows an application example for wiring the fault alarm contacts.

[NOTE]

The wire gauge for the terminal block should be in the range between 12 ~ 24
AWG.

Insert the wires into the fault alarm contacts

13

3.6 Cabling

 Use four twisted-pair, Category 5e or above cabling for RJ-45 port connection. The

cable between the switch and the link partner (switch, hub, workstation, etc.) must
be less than 100 meters (328 ft.) long.

 Fiber segment using single-mode connector type must use9/125 µm single-mode

fiber cable. User can connect two devices in the distance up to 30km.

 Fiber segment using multi-mode connector type must use 50 or 62.5/125 µm multi-

mode fiber cable. User can connect two devices up to 2kmdistances.
 Gigabit SFP (mini-GBIC) port:
The small form-factor pluggable (SFP) is a compact optical transceiver used in optical
communications for both telecommunication and data communications. The SFP slots
supporting Gigabit speed up to 1000Mbps. They are used for connecting to the network
segment with single or multi-mode fiber. You can choose the appropriate SFP
transceiver to plug into the slots. Then use proper multi-mode or single-mode fiber
according to the transceiver. With fiber optic, it transmits at speed up to 1000 Mbps and
you can prevent noise interference from the system.

To connect the transceiver and LC cable, please follow the steps shown below:

First, insert the transceiver into the SFP module. Notice that the triangle mark is the
bottom of the module.

Transceiver to the SFP module

14

Transceiver Inserted

Second, insert the fiber cable of LC connector into the transceiver.

LC connector to the transceiver

15

To remove the LC connector from the transceiver, please follow the steps shown below:

First, press the upper side of the LC connector to release from the transceiver and pull it
out.

Remove LC connector

Second, push down the metal loop and pull the transceiver out by the plastic handle.

Pull out from the transceiver

16

Chapter 4 Network Application

ITU G.8032 Scheme

Lantech G.8032 protocol is following ITU (International Telecommunication Unit) G.8032
v2 draft. The benefits of G.8032 are:

1. <50ms recovery time when failover

2. G.8032 has defined the protocol scheme, parameters, functions, test measures to be
unified that the users can evaluate the possible network infrastructure without literally
testing each brand in large scale.

Ring Coupling

17

Multiple Rings

18

Dual Homing

Chain

19

20

Chapter 5 Console Management

5.1 Connecting to the Console Port

The supplied cable which one end is RS-232 connector and the other end is RJ-45
connector. Attach the end of RS-232 connector to PC or terminal and the other end
of RJ-45 connector to the console port of the switch. The connected terminal or PC
must support the terminal emulation program.

DB9 Connector

RJ-45 Connector

NC

1 Orange/White

2

2 Orange

3

3 Green/White

NC

4 Blue

5

5 Blue/White

NC

6 Green

NC

7 Brown/White

NC

8 Brown

Pin assignment

21

5.2 Login in the Console Interface

When the connection between Switch and PC is ready, turn on the PC and run a
terminal emulation program or Hyper Terminal and configure its communication

parameters to match the following default characteristics of the console port:

Baud Rate:115200 bps
Data Bits: 8
Parity: none
Stop Bit: 1
Flow control: None

The settings of communication parameters

Having finished the parameter settings, click ‘OK’. When the blank screen shows up,
press Enter key to have the login prompt appears. Key in ‘admin’ (default value) for
both User name and Password (use Enter key to switch), then press Enter and the
Main Menu of console management appears. Please see below figure for login
screen.

22

Console login interface

===============Notice===============

For web-based management, please refer to our “Software Management Manual” at

http://www.lantechcom.tw/global/eng/support-downloads.html
