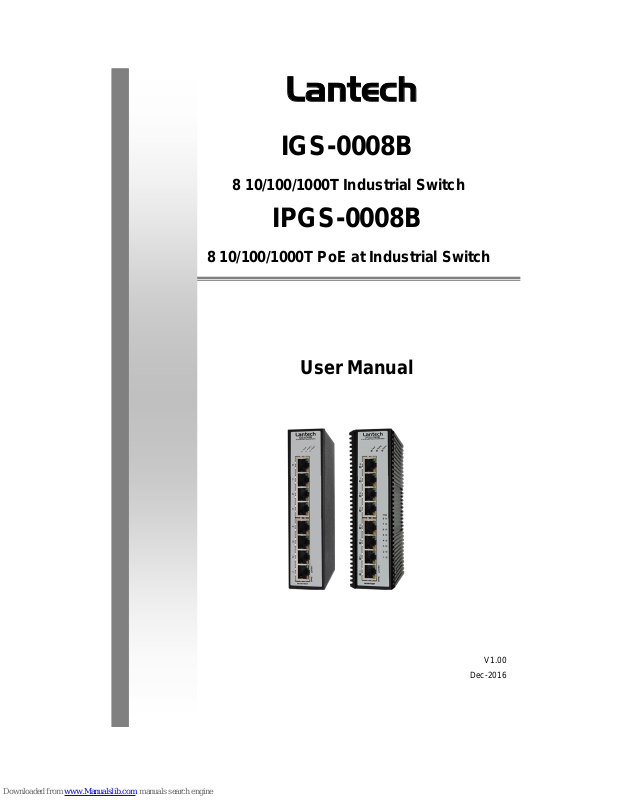

Lantech IGS-0008B, IPGS-0008B User Manual

Lantech

IGS-0008B

8 10/100/1000T Industrial Switch

IPGS-0008B

8 10/100/1000T PoE at Industrial Switch

User Manual

V1.00

Dec-2016

Recommendation for Shielded network cables

STP cables have additional shielding material that is used to reduce external interference. The
shield also reduces the emission at any point in the path of the cable. Our recommendation is
to deploy an STP network cable in demanding electrical environments. Examples of
demanding indoor environments are where the network cable is located in parallel with
electrical mains supply cables or where large inductive loads such as motors or contactors are
in close vicinity to the camera or its cable. It is also mandatory to use an STP cable where the
power device (like IP camera) is used outdoors or where the network cable is routed outdoors.

Content

Overview ............................................................. 1

Introduction .............................................................. 1

Packing List .............................................................. 2

Safety Precaution ..................................................... 2

Hardware Description ......................................... 3

Front Panel ............................................................... 3

Top View .................................................................. 4

Dimensions .............................................................. 4

Wiring the Power Inputs ........................................... 6

LED Indicators .......................................................... 8

RJ-45 Pin Assignments ............................................ 9

Cabling ................................................................... 11

Mounting Installation ........................................ 12

DIN-Rail Mounting .................................................. 12

Wall-Mount Plate Mounting .................................... 14

Hardware Installation ........................................ 15

Installation Steps .................................................... 16

Troubleshooting ................................................ 17

1

Overview

Introduction

The unmanaged industrial switch is a cost-effective solution and meets
the high reliability requirements demanded by industrial applications.

High-Speed Transmissions

The Industrial switch includes a switch controller that can automatically
sense transmission speeds (10/100/1000 Mbps). The RJ-45 interface
can also be auto-detected, so MDI or MDI-X is automatically selected
and a crossover cable is not required. All Ethernet ports have memory
buffers that support the store-and-forward mechanism. This assures
that data is properly transmitted.

Dual Power Inputs

To reduce the risk of power failure, the Industrial switch provides dual
power inputs. When power failure occurs, the device will automatically
switch to the secondary power input.

Flexible Mounting

The industrial switch is extremely compact and can be mounted on a
DIN-rail or a panel, so it is suitable for any space-constrained
environment. *Wall mount kit is optional.

Wide Operating Temperature

The operating temperature of the Industrial switch is in the range
between -20 ~ 60oC (standard model) or -40 ~ 75oC (wide operating
temperature model). With such a wide range, you can use the Industrial
switch in some of the harshest industrial environments that exist.

Easy Troubleshooting

LED indicators make troubleshooting quick and easy. Each
10/100/1000T port has 2 LED indicators that display the link status,
transmission speed and collision status. Also other LED indicators help
you diagnose the system immediately.

2

Packing List

 1 x 8-port 10/100/1000Base-T Industrial Ethernet Switch
 1 x Terminal Block

Safety Precaution

Attention

If DC voltage is supplied by an external circuit, please use a
protection device on the power supply input.

3

Hardware Description

In this paragraph, we will introduce the Industrial switch’s dimensions,
port, cabling information, and wiring installation.

Front Panel

The Front Panel of the IGS-0008B/IPGS-0008B is shown as below.

Front Panel of the Industrial Switch
