Lantech IGS-2206C, IES-2208C User Manual

Download

Lantech

IGS-2206C

6 10/100/1000T + 2 10/100/1000T/Dual Speed SFP

Combo w/Pro-Ring Managed Industrial Switch

User Manual

This manual contents are based on the below table listing software kernel version, hardware version, and firmware version. If the switch functions have any different from the manual contents description, please contact the local sale dealer for more information.

Firmware Version

V1.00

Kernel Version

V3.48

Hardware Version

---------

Notice

FCC Warning

This Equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Content

Introduction ................................................................ 1

Benefits .................................................................... 1

Package Contents .................................................... 3

Hardware Description ............................................... 4

Physical Dimension .................................................. 4

Front Panel .............................................................. 4

Bottom View ............................................................. 5

LED Indicators ......................................................... 5

Ports ......................................................................... 7

Cabling ................................................................... 12

Wiring the Power Inputs ......................................... 13

Wiring the Fault Alarm Contact .............................. 13

Mounting Installation .............................................. 15

DIN-Rail Mounting .................................................. 15

Wall Mount Plate Mounting .................................... 17

Hardware Installation .............................................. 18

Installation Steps .................................................... 18

Network Application ................................................ 19

X-Ring Application ................................................. 20

Coupling Ring Application ...................................... 21

Dual Homing Application ........................................ 21

Console Management ............................................. 23

Connecting to the Console Port ............................. 23

Pin Assignment ...................................................... 23

CLI Management ................................................... 25

Commands Level ............................................................ 26

Commands Set List......................................................... 27

System Commands Set .................................................. 27

Port Commands Set ........................................................ 30

Trunk Commands Set ..................................................... 32

VLAN Commands Set ..................................................... 34

Spanning Tree Commands Set ....................................... 35

QOS Commands Set ...................................................... 38

IGMP Commands Set ..................................................... 39

Mac / Filter Table Commands Set ................................... 39

SNMP Commands Set .................................................... 40

Port Mirroring Commands Set ......................................... 42

802.1x Commands Set ................................................... 43

TFTP Commands Set ..................................................... 45

SystemLog, SMTP and Event Commands Set ................ 46

SNTP Commands Set ..................................................... 48

Pro-ring Commands Set ................................................. 49

Web-Based Management ........................................ 51

About Web-based Management ............................ 51

Preparing for Web Management ............................ 51

System Login ......................................................... 52

Main Page .............................................................. 53

System Information ................................................ 54

IP Configuration ..................................................... 54

DHCP Server – System configuration .................... 55

DHCP Client – Client Entries ................................. 56

DHCP Server - Port and IP Bindings ..................... 57

TFTP - Update Firmware ....................................... 57

TFTP – Restore Configuration ............................... 58

TFTP - Backup Configuration ................................ 58

System Event Log – Syslog Configuration ............. 59

System Event Log - SMTP Configuration .............. 60

System Event Log - Event Configuration ............... 61

Fault Relay Alarm .................................................. 63

SNTP Configuration ............................................... 64

IP Security .............................................................. 67

User Authentication ................................................ 68

Port Statistics ......................................................... 69

Port Control ............................................................ 70

Port Trunk .............................................................. 71

Aggregator setting .......................................................... 71

Aggregator Information ................................................... 73

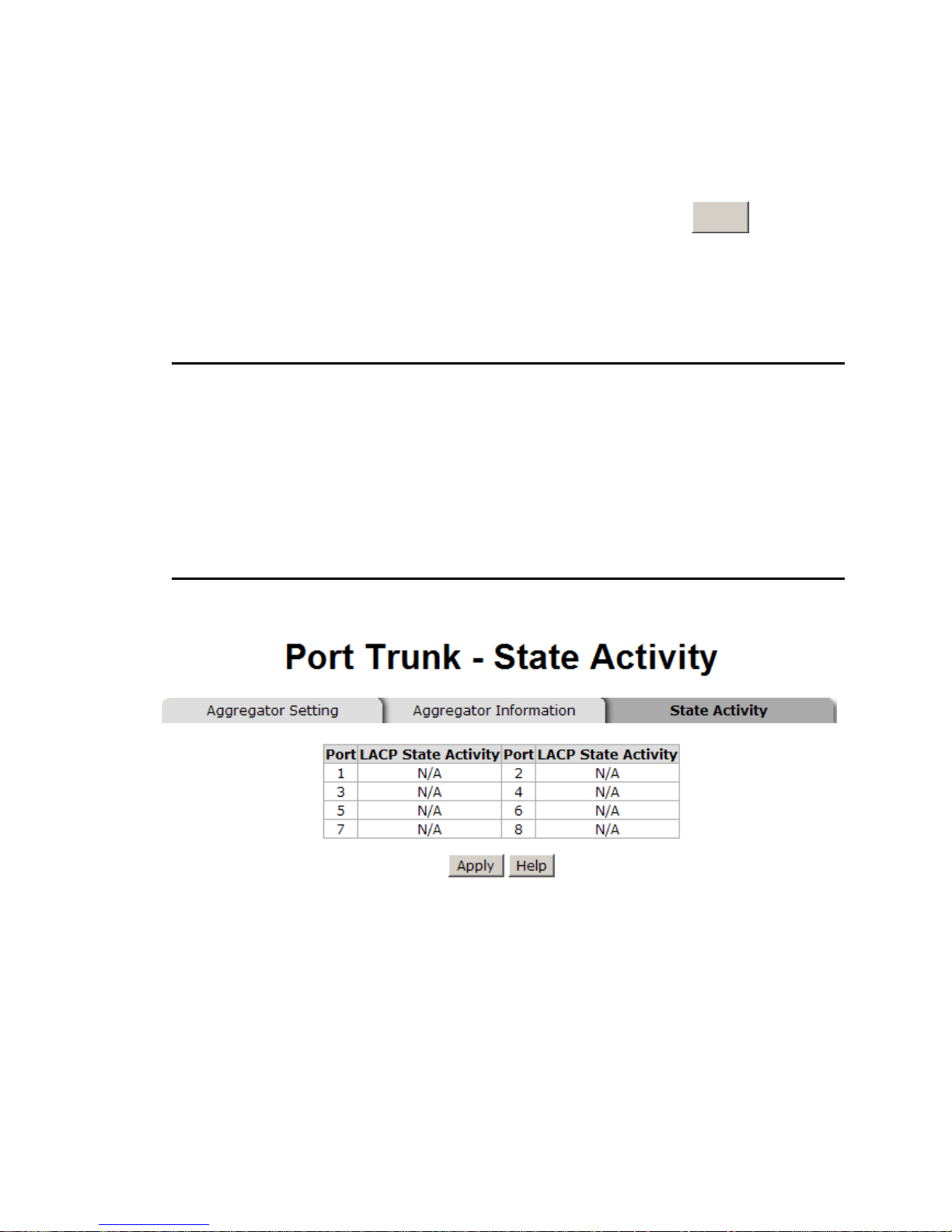

State Activity ................................................................... 74

Port Mirroring ......................................................... 74

Rate Limiting .......................................................... 75

VLAN configuration ................................................ 76

VLAN configuration - Port-based VLAN .......................... 77

802.1Q VLAN .................................................................. 80

Rapid Spanning Tree ............................................. 83

RSTP - System Configuration ......................................... 83

RSTP - Port Configuration .............................................. 84

SNMP Configuration .............................................. 85

System Configuration ...................................................... 86

Trap Configuration .......................................................... 87

SNMPV3 Configuration ................................................... 88

QoS Configuration ................................................. 91

QoS Policy and Priority Type .......................................... 91

Port Base Priority ............................................................ 93

COS Configuration .......................................................... 93

TOS Configuration .......................................................... 93

IGMP Configuration ............................................... 93

Pro-Ring System .................................................... 95

802.1X/Radius Configuration .......................................... 98

MAC Address Table ...................................................... 101

Factory Default ..................................................... 104

Save Configuration .............................................. 104

System Reboot .................................................... 104

Troubles shooting ................................................. 106

Technical Specification ......................................... 107

Introduction

The 6 10/100/1000T + 2 10/100/1000T/Dual Speed SFP Combo w/ Pro-Ring Managed Industrial Switch is a cost-effective solution and meets the high reliability requirements demanded by industrial applications. The 6 10/100/1000T + 2 10/100/1000T/Dual Speed SFP Combo w/ Pro-Ring Managed Industrial Switch can be easily managed through the Web GUI. Using fiber port can extend the connection distance that increases the network elasticity and performance. It also provides the Pro-Ring system that can prevent the network connection failure.

Benefits

 System Interface/Performance

 RJ-45 ports support auto MDI/MDI-X function  SFP (Mini-GBIC) supports 100/1000 Dual Mode  Store-and-Forward switching architecture  Back-plane (Switching Fabric): 16Gbps  1Mbits Packet Buffer  8K MAC Address Table

 Power Supply

 Input Power Isolation design for Telcom application, Pass Hi-Pot test~1.5KV  Wide-range Redundant Power Design

 VLAN

 Port Based VLAN  Supports 802.1Q Tag VLAN  GVRP  Double Tag VLAN (Q in Q)*

 Private VLAN**  Port Trunk with LACP  QoS (Quality of Service)

 Supports IEEE 802.1p Class of Service

 Per port provides 4 priority queues

 Port Base, Tag Base and Type of Service Priority  Port Mirror: Monitor traffic in switched networks

 TX Packet only

 RX Packet only

 Both of TX and RX Packet  Security

 Port Security: MAC address entries/filter

 IP Security: IP address security management to prevent unauthorized intruder

 Login Security: IEEE 802.1X/RADIUS  IGMP with Query mode for Multi Media Application  Case/Installation

 IP-30 Protection

 DIN Rail and Wall Mount Design  Spanning Tree

 Support IEEE 802.1d Spanning Tree

 Support IEEE 802.1w Rapid Spanning Tree  Pro-ring

 X-ring, Dual Homing, and Couple Ring Topology

 Provide redundant backup feature and the recovery time below10ms  Bandwidth Control

 Ingress Packet Filter and Egress Rate Limit

 Broadcast/Multicast Packet Filter Control  System Event Log

 System Log Server/Client

 SMTP e-mail Alert

 Relay Alarm Output System Events  SNMP Trap

 Device cold start

 Power status

 Authentication failure

 X-ring topology changed

 Port Link up/Link down  TFTP Firmware Update and System Configuration Restore and Backup

Package Contents

Please refer to the package content list below to verify them against the checklist.  6 10/100/1000T + 2 10/100/1000T/Dual Speed SFP Combo w/ Pro-Ring Managed

Industrial Switch

 User manual  RS-232/RJ-45 cable  Pluggable Terminal Block  2 wall mount plates and 6 screws  One DIN-Rail (attached on the switch)

6 10/100/1000T + 2 10/100/1000T/Dual Speed SFP Combo User Manual

w/ Pro-Ring Managed Industrial Switch

RS-232-RJ-45 connector cable Pluggable Terminal Block

Wall Mount Plate Screws DIN-Rail

Compare the contents of the industrial switch with the standard checklist above. If any item is damaged or missing, please contact the local dealer for service.

Hardware Description

In this paragraph, it will describe the Industrial switch‘s hardware spec, port, cabling information, and wiring installation.

Physical Dimension

6 10/100/1000T + 2 10/100/1000T/Dual Speed SFP Combo w/ Pro-Ring Managed Industrial Switch dimension (W x D x H) is 72mm x 105mm x 152mm

Front Panel

Here is the front panel of the 6 10/100/1000T + 2 10/100/1000T/Dual Speed SFP Combo w/ Pro-Ring Managed Industrial Switch shown as below.

Front Panel of the industrial switch

Bottom View

The bottom panel of the 6 10/100/1000T + 2 10/100/1000T/Dual Speed SFP Combo w/ Pro-Ring Managed Industrial Switch has one terminal block connector in which has two DC power inputs.

Bottom Panel of the industrial switch

LED Indicators

There are diagnostic LED indicators located on the front panel of the industrial switch. They provide real-time information of system and optional status. The following table provides description of the LED status and their meanings for the switch.

LED

Status

Description

PWR

Green

System power on

Off

No power input

R.M.

Green

The industrial switch is the master of the XRing group

Off

The industrial switch is not the ring master in the X-Ring group

PWR1

Green

Power input 1 is active

Off

Power input 1 is inactive

PWR2

Green

Power input 2 is active

Off

Power input 2 is inactive

Fault

Red

Power input 1 or 2 is inactive or port link failure (depends on Fault Relay Alarm configuration)

Off

Power input 1 and 2 are both active, or no power inputs

LNK/ACT (for P7, P8 SFP)

Green

SFP port is linking

Blinking

Data is transmitting or receiving

Off

Not connected to network

P1 ~ P8 (RJ-45)

Green (upper LED)

Connected to network

Blinking (upper LED)

Networking is active

Off (lower LED)

No connected to network

Green (lower LED)

The port is operating at speed of 1000M

Off (lower LED)

The port is disconnected or working at speed of 10/100M

Ports

 RJ-45 ports

There are 10/100/1000Mbps ports for 10Base-T, 100Base-TX or 1000Base-T devices connection which UTP ports will auto-sense. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing straight through or crossover cabling. See the figures below for straight through and crossover cable schematic.

 RJ-45 Pin Assignments

Pin Number

Assignment

Tx+

Tx-

Rx+

Rx-

[NOTE] ―+‖ and ―-‖ signs represent the polarity of the wires that make up each wire pair.

All ports on this industrial switch support automatic MDI/MDI-X operation, user can use straight-through cables (See figure below) for all network connections to PCs or servers, or to other switches/hubs. In straight-through cable, pins 1, 2, 3, and 6, at one end of the cable, are connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. The table below shows the 10BASE-T/100BASE-TX/1000BASE-T MDI and MDI-X port pin outs.

Pin MDI-X

Signal Name

MDI Signal Name

Receive Data plus (RD+)

Transmit Data plus (TD+)

Receive Data minus (RD-)

Transmit Data minus (TD-)

Transmit Data plus (TD+)

Receive Data plus (RD+)

Transmit Data minus (TD-)

Receive Data minus (RD-)

Straight Through Cable Schematic

Cross Over Cable Schematic

 2 Gigabit Copper/SFP (mini-GBIC) combo port:

The Industrial switch has two auto-detect Giga port—UTP/Fiber combo ports. The Gigabit Copper (10/100/1000T) ports should use Category 5e or above UTP/STP cable for connection. The SFP slots are for connecting to the network segment with single or multi-mode fiber. You can choose appropriate mini-GBIC module to plug into the slots. Make sure the module is aligned correctly and then slide the module into the SFP slot until a click is heard. You can use proper multi-mode or single-mode fiber according to the used SFP module. With fiber optic, it transmits speed up to 1000 Mbps and you can prevent noise interference from the system and transmission distance up to 110 km, depending on the mini-GBIC module. The small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communications applications. To connect the transceiver and LC cable, please follow the steps shown below:

First, insert the transceiver into the SFP slot. Notice that the triangle mark is the bottom of the slot.

Figure 2.8: Transceiver to the SFP slot

Figure 2.9: Transceiver Inserted

Second, insert the fiber cable of LC connector into the transceiver.

Figure 2.10: LC connector to the transceiver

To remove the LC connector from the transceiver, please follow the steps shown below:

First, press the upper side of the LC connector to release from the transceiver and pull it out.

Figure 2.11: Remove LC connector

Second, push down the metal loop and pull the transceiver out by the plastic handle.

Figure 2.12: Pull out from the transceiver

Cabling

 Using four twisted-pair, Category 5e/above cabling for RJ-45 port connection. The

cable between the switch and the link partner (switch, hub, workstation, etc.) must

be less than 100 meters (328 ft.) long.  Fiber segment using single-mode connector type must use 9/125 µm single-mode

fiber cable.  Fiber segment using multi-mode connector type must use 50 or 62.5/125 µm multi-

mode fiber cable.

Wiring the Power Inputs

Please follow the steps below to insert the power wire.

Insert the positive and negative wires into the V+ and V- contacts on the terminal block connector.

Tighten the wire-clamp screws for preventing the wires from loosing.

Wiring the Fault Alarm Contact

The fault alarm contact is in the middle of the terminal block connector as the picture shows below. Inserting the wires, it will detect the fault status including port link failure (managed industrial switch only) or power failure and form an open circuit. An application example for the fault alarm contact is shown as below:

Insert the wires into the fault alarm contact.

Note

The wire gauge for the terminal block should be in the range between 12~ 24 AWG.

Mounting Installation

DIN-Rail Mounting

The DIN-Rail is screwed on the industrial switch when out of factory. If the DIN-Rail is not screwed on the industrial switch, please see the following pictures to screw the DINRail on the switch. Follow the steps below to hang the industrial switch.

1. First, insert the top of DIN-Rail into the track.

2. Then, lightly push the DIN-Rail into the track.

3. Check if the DIN-Rail is tightened on the track or not.

4. To remove the industrial switch from the track, reverse steps above.

Wall Mount Plate Mounting

Follow the steps below to mount the industrial switch with wall mount plate.

1. Remove the DIN-Rail from the industrial switch; loose the screws to remove the DIN-

Rail.

2. Place the wall mount plate on the rear panel of the industrial switch.

3. Use the screws to screw the wall mount plate on the industrial switch.

4. Use the hook holes at the corners of the wall mount plate to hang the industrial

switch on the wall.

5. To remove the wall mount plate, reverse the steps above.

Screwing the wall mount plate on the Industrial Switch

Hardware Installation

In this paragraph, we will describe how to install the 6 10/100/1000T + 2 10/100/1000T/Dual Speed SFP Combo w/ Pro-Ring Managed Industrial Switch and the installation points to be attended to it.

Installation Steps

1. Unpack the Industrial switch packing.

2. Check if the DIN-Rail is screwed on the Industrial switch or not. If not, please refer to

DIN-Rail Mounting section for DIN-Rail installation. If user wants to wall mount the Industrial switch, then please refer to Wall Mount Plate Mounting section for wall mount plate installation.

3. To hang the Industrial switch on the DIN-Rail track or wall, please refer to the

Mounting Installation section.

4. Power on the Industrial switch. Please refer to the Wiring the Power Inputs section

for knowing the information about how to wire the power. The power LED on the Industrial switch will light up. Please refer to the LED Indicators section for indication of LED lights.

5. Prepare the twisted-pair, straight through Category 5e/above cable for Ethernet

connection.

6. Insert one side of RJ-45 cable into the Industrial switch Ethernet port (RJ-45 port)

and another side of RJ-45 cable to the network device‘s Ethernet port (RJ-45 port), e.g. Switch, PC or Server. The UTP port (RJ-45) LED on the industrial switch will light up when the cable is connected with the network device. Please refer to the LED Indicators section for LED light indication.

7. When all connections are set and LED lights all show in normal, the installation is

complete.

Network Application

This chapter provides some sample applications to help user to have more actual idea of industrial switch function application. A sample application of the industrial switch is shown as below:

X-Ring Application

The industrial switch supports the X-Ring protocol that can help the network system to recovery from network connection failure within 300ms or less, and make the network system more reliable. The X-Ring algorithm is similar to Spanning Tree Protocol (STP)/RSTP algorithm but its recovery time is less than STP/RSTP. The following figure is a sample of X-Ring application.

Coupling Ring Application

In the network, there may have more than one X-Ring group. Using the coupling ring function can connect each X-Ring for redundant backup. It can ensure the transmissions between two ring groups not to fail. The following figure is a sample of coupling ring application.

Dual Homing Application

Dual Homing function is to prevent the connection breaking from between X-Ring group and upper level/core switch. Assign two ports to be the Dual Homing port that is the backup port in an X-Ring group. The Dual Homing function works only when the X-Ring function is active. Each X-Ring group has only one Dual Homing port.

[NOTE] In Dual Homing application architecture, the Rapid Spanning Tree protocol of the upper level switches need to be enabled.

X-Ring I Recovery time table

X- Ring

Couple Ring

Dual Homing

Recovery Time(ms) (Using 1G Fiber Cable or 100Mb Copper Cable)

150

150~6000

Recovery Time(ms) (Using 1G Coppor Cable)

150

150~6000

Console Management

Connecting to the Console Port

The supplied cable which one end is RS-232 connector and the other end is RJ-45 connector. Attach the end of RS-232 connector to PC or terminal and the other end of RJ-45 connector to the console port of switch. The connected terminal or PC must support the terminal emulation program.

Pin Assignment

DB9 Connector

RJ-45 Connector

1 Orange/White

2 Orange

3 Green/White

4 Blue

5 Blue/White

6 Green

7 Brown/White

8 Brown

When the connection between Switch and PC is ready, turn on the PC and run a terminal emulation program or Hyper Terminal and configure its communication

parameters to match the following default characteristics of the console port:

Baud Rate: 9600 bps Data Bits: 8 Parity: none Stop Bit: 1 Flow control: None

The settings of communication parameters

After finishing the parameter settings, click ―OK―. When the blank screen shows up, press Enter key to bring out the login prompt. Key in the ―root―(default value) for the both User name and Password (use Enter key to switch), then press Enter key and the Main Menu of console management appears. Please see the figure as below.

Console login interface

CLI Management

The system supports a command line interface management–CLI. After you have logged in the system by typing in user name and password, you will see a command prompt. To enter CLI management interface, enter ―enable‖ command.

CLI command interface

The following table lists the CLI commands and description.

Commands Level

Modes

Access Method

Prompt

Exit Method

About This Mode1

User EXEC

Begin a session with your switch.

switch>

Enter logout or quit.

The user commands available at the user level are a subset of those available at the privileged level. Use this mode to

• Perform basic tests.

• Displays system

information.

Privileged EXEC

Enter the enable command while in user EXEC mode.

switch#

Enter disable to exit.

The privileged command is advance mode Privileged this mode to

• Displays advance function status

• Save configures

Global Configuratio n

Enter the configure command while in privileged EXEC mode.

switch (config)#

To exit to privileged EXEC mode, enter exit or end

Use this mode to configure parameters that apply to your switch as a whole.

VLAN database

Enter the vlan database command while in privileged

switch (vlan)#

To exit to user EXEC mode, enter exit.

Use this mode to configure VLANspecific parameters.

EXEC mode.

Interface configuratio n

Enter the interface command (with a specific interface) while in global configuration mode

switch (config-if)#

To exit to global configuratio n mode, enter exit. To exist to privileged EXEC mode, or end.

Use this mode to configure parameters for the switch and Ethernet ports.

User EXEC E Privileged EXEC P Global configuration G VLAN database V Interface configuration I

Commands Set List

System Commands Set

Commands

Level

Description

Example

show config

Show switch configuration

switch>show config

show terminal

Show console information

switch#show terminal

write memory

Save user configuration into permanent memory (flash rom)

switch#write memory

system name

[System Name]

Configure system name

switch(config)#system name xxx

system location

Set switch system

switch(config)#system location

[System Location]

location string

xxx

system description

[System Description]

Set switch system description string

switch(config)#system

description xxx

system contact

[System Contact]

Set switch system contact window string

switch(config)#system contact

xxx

show system-info

Show system information

switch>show system-info

ip address

[Ip-address] [Subnetmask] [Gateway]

Configure the IP address of switch

switch(config)#ip address

192.168.16.1 255.255.255.0

192.168.16.254

ip dhcp

Enable DHCP client function of switch

switch(config)#ip dhcp

show ip

Show IP information of switch

switch#show ip

no ip dhcp

Disable DHCP client function of switch

switch(config)#no ip dhcp

reload

Halt and perform a cold restart

switch(config)#reload

default

Restore to default

switch(config)#default

admin username

[Username]

Changes a login username. (maximum 10 words)

switch(config)#admin username

xxxxxx

admin password

[Password]

Specifies a password (maximum 10 words)

switch(config)#admin password

xxxxxx

show admin

Show administrator information

switch#show admin

dhcpserver enable

Enable DHCP Server

switch(config)#dhcpserver enable

Dhcpserver disable

Disable DHCP Server

switch(config)#no dhcpserver

dhcpserver lowip

[Low IP]

Configure low IP address for IP pool

switch(config)#dhcpserver lowip

192.168.1.100

dhcpserver highip

[High IP]

Configure high IP address for IP pool

switch(config)#dhcpserver highip

192.168.1.200

dhcpserver subnetmask

[Subnet mask]

Configure subnet mask for DHCP clients

switch(config)#dhcpserver subnetmask 255.255.255.0

dhcpserver gateway [Gateway]

Configure gateway for DHCP clients

switch(config)#dhcpserver

gateway 192.168.1.254

dhcpserver dnsip

[DNS IP]

Configure DNS IP for DHCP clients

switch(config)#dhcpserver dnsip

192.168.1.1

dhcpserver leasetime

[Hours]

Configure lease time (in hour)

switch(config)#dhcpserver

leasetime 1

dhcpserver ipbinding

[IP address]

Set static IP for DHCP clients by port

switch(config)#interface

fastEthernet 2 switch(config)#dhcpserver ipbinding 192.168.1.1

show dhcpserver configuration

Show configuration of DHCP server

switch#show dhcpserver

configuration

show dhcpserver clients

Show client entries of DHCP server

switch#show dhcpserver clients

show dhcpserver ipbinding

Show IP-Binding information of DHCP server

switch#show dhcpserver ip-

binding

no dhcpserver

Disable DHCP server function

switch(config)#no dhcpserver

security enable

Enable IP security function

switch(config)#security enable

security http

Enable IP security of HTTP server

switch(config)#security http

security telnet

Enable IP security of telnet server

switch(config)#security telnet

security ip [Index(1..10)] [IP Address]

Set the IP security list

switch(config)#security ip 1

192.168.1.55

show security

Show the information of IP security

switch#show security

no security

Disable IP security function

switch(config)#no security

no security http

Disable IP security of

switch(config)#no security http

HTTP server

no security telnet

Disable IP security of telnet server

switch(config)#no security telnet

Port Commands Set

Commands

Level

Description

Example

interface fastEthernet

[Portid]

Choose the port for modification.

switch(config)#interface

fastEthernet 2

duplex

[full | half]

Use the duplex configuration command to specify the duplex mode of operation for Fast Ethernet.

switch(config)#interface

fastEthernet 2 switch(config-if)#duplex full

speed

[10|100|1000|auto]

Use the speed configuration command to specify the speed mode of operation for Fast Ethernet., the speed can‘t be set to 1000 if the port isn‘t a giga port..

switch(config)#interface

fastEthernet 2 switch(config-if)#speed 100

no flowcontrol

Disable flow control of interface

switch(config-if)#no flowcontrol

security enable

Enable security of interface

switch(config)#interface

fastEthernet 2 switch(config-if)#security enable

no security

Disable security of interface

switch(config)#interface fastEthernet 2 switch(config-if)#no security

bandwidth type all

Set interface ingress

switch(config)#interface

limit frame type to ‗accept all frame‘

fastEthernet 2 switch(config-if)#bandwidth type all

bandwidth type broadcast-multicastflooded-unicast

Set interface ingress limit frame type to ‗accept broadcast, multicast, and flooded unicast frame‘

switch(config)#interface

fastEthernet 2 switch(config-if)#bandwidth type broadcast-multicast-floodedunicast

bandwidth type broadcast-multicast

Set interface ingress limit frame type to

‗accept broadcast and multicast frame‘

switch(config)#interface fastEthernet 2 switch(config-if)#bandwidth type broadcast-multicast

bandwidth type broadcast-only

Set interface ingress limit frame type to

‗only accept broadcast frame‘

switch(config)#interface fastEthernet 2 switch(config-if)#bandwidth type broadcast-only

bandwidth in

[Value]

Set interface input bandwidth. Rate Range is from 100 kbps to 102400 kbps or to 256000 kbps for giga ports, and zero means no limit.

switch(config)#interface

fastEthernet 2 switch(config-if)#bandwidth in 100

bandwidth out

[Value]

Set interface output bandwidth. Rate Range is from 100 kbps to 102400 kbps or to 256000 kbps for giga ports, and zero means no limit.

switch(config)#interface

fastEthernet 2 switch(config-if)#bandwidth out 100

show bandwidth

Show interfaces

switch(config)#interface

bandwidth control

fastEthernet 2 switch(config-if)#show bandwidth

state

[Enable | Disable]

Use the state interface configuration command to specify the state mode of operation for Ethernet ports. Use the disable form of this command to disable the port.

switch(config)#interface

fastEthernet 2

show interface configuration

show interface configuration status

switch(config)#interface

fastEthernet 2 switch(config-if)#show interface configuration

show interface status

show interface actual status

switch(config)#interface

fastEthernet 2

show interface accounting

show interface statistic counter

switch(config)#interface

fastEthernet 2

accounting

no accounting

Clear interface accounting information

switch(config)#interface

fastEthernet 2 switch(config-if)#no accounting

Trunk Commands Set

Commands

Level

Description

Example

aggregator priority

[1~65535]

Set port group system priority

switch(config)#aggregator priority

aggregator activityport

[Group ID] [Port Numbers]

Set activity port

switch(config)#aggregator

activityport 2

aggregator group

Assign a trunk group

switch(config)#aggregator group

[GroupID] [Port-list]

lacp workp

[Workport]

with LACP active. [GroupID] :1~4 [Port-list]:Member port list, This parameter could be a port range(ex.1-4) or a port list separate by a comma(ex.2, 3, 6) [Workport]: The amount of work ports, this value could not be less than zero or be large than the amount of member ports.

1 1-4 lacp workp 2

or switch(config)#aggregator group

2 1,4,3 lacp workp 3

aggregator group

[GroupID] [Port-list]

nolacp

Assign a static trunk group. [GroupID] :1~4 [Port-list]:Member port list, This parameter could be a port range(ex.1-4) or a port list separate by a comma(ex.2, 3, 6)

switch(config)#aggregator group

1 2-4 nolacp

or switch(config)#aggregator group

1 3,1,2 nolacp

show aggregator

Show the information of trunk group

switch#show aggregator 1 or switch#show aggregator 2 or switch#show aggregator 3

no aggregator lacp

[GroupID]

Disable the LACP function of trunk group

switch(config)#no aggreator lacp

no aggregator group

[GroupID]

Remove a trunk group

switch(config)#no aggreator group 2

VLAN Commands Set

Commands

Level

Description

Example

vlan database

Enter VLAN configure mode

switch#vlan database

Vlanmode [portbase| 802.1q | gvrp]

To set switch VLAN mode.

switch(vlan)#vlanmode portbase or switch(vlan)#vlanmode 802.1q or switch(vlan)#vlanmode gvrp

no vlan

No VLAN

Switch(vlan)#no vlan

Ported based VLAN configuration

vlan port-based grpname

[Group Name]

grpid

[GroupID]

port

[PortNumbers]

Add new port based VALN

switch(vlan)#vlan port-based

grpname test grpid 2 port 2-4

switch(vlan)#vlan port-based

grpname test grpid 2 port 2,3,4

show vlan [GroupID]

show vlan

Show VLAN information

switch(vlan)#show vlan 23

no vlan group

[GroupID]

Delete port base group ID

switch(vlan)#no vlan group 2

IEEE 802.1Q VLAN

vlan 8021q name

[GroupName]

vid

[VID]

Change the name of VLAN group, if the group didn‘t exist, this command can‘t be applied.

switch(vlan)#vlan 8021q name

test vid 22

vlan 8021q port

[PortNumber]

access-link untag

[UntaggedVID]

Assign a access link for VLAN by port, if the port belong to a trunk group, this command can‘t be applied.

switch(vlan)#vlan 8021q port 3 access-link untag 33

vlan 8021q port

[PortNumber]

trunk-link tag

[TaggedVID List]

Assign a trunk link for VLAN by port, if the port belong to a trunk group, this command can‘t be applied.

switch(vlan)#vlan 8021q port 3 trunk-link tag 2,3,6,99 or switch(vlan)#vlan 8021q port 3

trunk-link tag 3-20

vlan 8021q port

[PortNumber]

hybrid-link untag

[UntaggedVID]

tag

[TaggedVID List]

Assign a hybrid link for VLAN by port, if the port belong to a trunk group, this command can‘t be applied.

switch(vlan)#vlan 8021q port 3 hybrid-link untag 4 tag 3,6,8 or switch(vlan)#vlan 8021q port 3

hybrid-link untag 5 tag 6-8

vlan 8021q trunk

[PortNumber]

access-link untag

[UntaggedVID]

Assign a access link for VLAN by trunk group

switch(vlan)#vlan 8021q trunk 3

access-link untag 33

vlan 8021q trunk

[PortNumber]

trunk-link tag

[TaggedVID List]

Assign a trunk link for VLAN by trunk group

switch(vlan)#vlan 8021q trunk 3

trunk-link tag 2,3,6,99

or switch(vlan)#vlan 8021q trunk 3

trunk-link tag 3-20

vlan 8021q trunk

[PortNumber]

hybrid-link untag

[UntaggedVID]

tag

[TaggedVID List]

Assign a hybrid link for VLAN by trunk group

switch(vlan)#vlan 8021q trunk 3

hybrid-link untag 4 tag 3,6,8

or switch(vlan)#vlan 8021q trunk 3

hybrid-link untag 5 tag 6-8

show vlan [GroupID]

show vlan

Show VLAN information

switch(vlan)#show vlan 23

no vlan group

[GroupID]

Delete port base group ID

switch(vlan)#no vlan group 2

Spanning Tree Commands Set

Commands

Level

Description

Example

spanning-tree enable

Enable spanning tree

switch(config)#spanning-tree

enable

spanning-tree priority

Configure spanning

switch(config)#spanning-tree

[0~61440]

tree priority parameter

priority 32767

spanning-tree max-age

[seconds]

Use the spanning-tree max-age global configuration command to change the interval between messages the spanning tree receives from the root switch. If a switch does not receive a bridge protocol data unit (BPDU) message from the root switch within this interval, it recomputed the Spanning Tree Protocol (STP) topology.

switch(config)#spanning-tree

max-age 15

spanning-tree hellotime [seconds]

Use the spanning-tree hello-time global configuration command to specify the interval between hello bridge protocol data units (BPDUs).

switch(config)#spanning-tree

hello-time 3

spanning-tree forwardtime [seconds]

Use the spanning-tree forward-time global configuration command to set the forwarding-time for the specified spanningtree instances. The

switch(config)#spanning-tree

forward-time 20

forwarding time determines how long each of the listening and learning states last

before the port begins forwarding.

stp-path-cost

[1~200000000]

Use the spanning-tree cost interface configuration command to set the path cost for Spanning Tree Protocol (STP) calculations. In the event of a loop, spanning tree considers the path cost when selecting an interface to place into the forwarding state.

switch(config)#interface

fastEthernet 2 switch(config-if)#stp-path-cost 20

stp-path-priority [Port Priority]

Use the spanning-tree port-priority interface configuration command to configure a port priority that is used when two switches tie for position as the root switch.

switch(config)#interface

fastEthernet 2 switch(config-if)#stp-path-priority 128

stp-admin-p2p

[Auto|True|False]

Admin P2P of STP priority on this interface.

switch(config)#interface

fastEthernet 2 switch(config-if)#stp-admin-p2p

Auto

stp-admin-edge

[True|False]

Admin Edge of STP priority on this interface.

switch(config)#interface

fastEthernet 2 switch(config-if)#stp-admin-edge True

stp-admin-non-stp

[True|False]

Admin NonSTP of STP priority on this interface.

switch(config)#interface

fastEthernet 2 switch(config-if)#stp-admin-nonstp False

show spanning-tree

Displays a summary of the spanning-tree states.

switch>show spanning-tree

no spanning-tree

Disable spanning-tree.

switch(config)#no spanning-tree

QOS Commands Set

Commands

Level

Description

Example

qos policy

[weighted-fair|strict]

Select QOS policy scheduling

switch(config)#qos policy

weighted-fair

qos prioritytype

[port-based|cosonly|tos-only|cosfirst|tos-first]

Setting of QOS priority type

switch(config)#qos prioritytype

qos priority portbased

[Port] [lowest|low|middle|high]

Configure Port-based Priority

switch(config)#qos priority

portbased 1 low

qos priority cos

[Priority][lowest|low|mid dle|high]

Configure COS Priority

switch(config)#qos priority cos 0

middle

qos priority tos [Priority][lowest|low|mid dle|high]

Configure TOS Priority

switch(config)#

qos priority tos 3

high

show qos

Displays the information of QoS configuration

Switch#

show qos

no qos

Disable QoS function

switch(config)#

no qos

IGMP Commands Set

Commands

Level

Description

Example

igmp enable

Enable IGMP snooping function

switch(config)#igmp enable

Igmp-query auto

Set IGMP query to auto mode

switch(config)#Igmp-query auto

Igmp-query force

Set IGMP query to force mode

switch(config)#Igmp-query force

show igmp configuration

Displays the details of an IGMP configuration.

switch#show igmp configuration

show igmp multi

Displays the details of an IGMP snooping entries.

switch#show igmp multi

no igmp

Disable IGMP snooping function

switch(config)#no igmp

no igmp-query

Disable IGMP query

switch#no igmp-query

Mac / Filter Table Commands Set

Commands

Level

Description

Example

mac-address-table static hwaddr

[MAC]

Configure MAC address table of interface (static).

switch(config)#interface

fastEthernet 2 switch(config-if)#mac-addresstable static hwaddr 000012345678

mac-address-table filter hwaddr

[MAC]

Configure MAC address table(filter)

switch(config)#mac-address-table

filter hwaddr 000012348678

show mac-address-table

Show all MAC address table

switch#show mac-address-table

show mac-address-table

Show static MAC

switch#show mac-address-table

static

address table

static

show mac-address-table filter

Show filter MAC address table.

switch#show mac-address-table

filter

no mac-address-table static hwaddr

[MAC]

Remove an entry of MAC address table of interface (static)

switch(config)#interface

fastEthernet 2 switch(config-if)#no mac-addresstable static hwaddr 000012345678

no mac-address-table filter hwaddr

[MAC]

Remove an entry of MAC address table (filter)

switch(config)#no mac-address-

table filter hwaddr 000012348678

no mac-address-table

Remove dynamic entry of MAC address table

switch(config)#no mac-address-

table

SNMP Commands Set

Commands

Level

Description

Example

snmp system-name

[System Name]

Set SNMP agent system name

switch(config)#snmp system-

name l2switch

snmp system-location

[System Location]

Set SNMP agent system location

switch(config)#snmp system-

location lab

snmp system-contact

[System Contact]

Set SNMP agent system contact

switch(config)#snmp system-

contact where

snmp agent-mode

[v1v2c|v3|v1v2cv3]

Select the agent mode of SNMP

switch(config)#snmp agent-mode

v1v2cv3

snmp communitystrings [Community] right

[RO/RW]

Add SNMP community string.

switch(config)#snmp community-

strings public right rw

snmp-server host

[IP address]

community

[Community-string]

Configure SNMP server host information and community string

switch(config)#snmp-server host

192.168.1.50 community public trap-version v1 (remove)

trap-version

[v1|v2c]

Switch(config)#

no snmp-server host

192.168.1.50

snmpv3 context-name

[Context Name ]

Configure the context name

switch(config)#snmpv3 context-

name Test

snmpv3 user

[User Name]

group

[Group Name]

password

[Authentication Password] [Privacy Password]

Configure the userprofile for SNMPV3 agent. Privacy password could be empty.

switch(config)#snmpv3 user

test01 group G1 password AuthPW PrivPW

snmpv3 access contextname [Context Name ] group

[Group Name ]

security-level

[NoAuthNoPriv|AuthNoP riv|AuthPriv]

match-rule

[Exact|Prifix]

views

[Read View Name] [Write View Name] [Notify View Name]

Configure the access table of SNMPV3 agent

switch(config)#snmpv3 access

context-name Test group G1 security-level AuthPriv match-rule Exact views V1 V1 V1

snmpv3 mibview view

[View Name]

type

[Excluded|Included]

sub-oid

[OID]

Configure the mibview table of SNMPV3 agent

switch(config)#snmpv3 mibview

view V1 type Excluded sub-oid

1.3.6.1

show snmp

Show SNMP

switch#show snmp

configuration

no snmp communitystrings [Community]

Remove the specified community.

switch(config)#no snmp

community-strings public

no snmp-server host

[Host-address]

Remove the SNMP server host.

switch(config)#no snmp-server

192.168.1.50

no snmpv3 user

[User Name]

Remove specified user of SNMPv3 agent.

switch(config)#no snmpv3 user

Test

no snmpv3 access context-name [Context

Name ]

group

[Group Name ]

security-level

[NoAuthNoPriv|AuthNoP riv|AuthPriv]

match-rule

[Exact|Prifix]

views

[Read View Name] [Write View Name] [Notify View Name]

Remove specified access table of SNMPv3 agent.

switch(config)#no snmpv3 access

context-name Test group G1 security-level AuthPr iv match-rule Exact views V1 V1 V1

no snmpv3 mibview view

[View Name]

type

[Excluded|Included]

sub-oid

[OID]

Remove specified mibview table of SNMPV3 agent.

switch(config)#no snmpv3

mibview view V1 type Excluded sub-oid 1.3.6.1

Port Mirroring Commands Set

Commands

Level

Description

Example

monitor rx

Set RX destination

switch(config)#monitor rx

port of monitor function

monitor tx

Set TX destination port of monitor function

switch(config)#monitor tx

show monitor

Show port monitor information

switch#show monitor

monitor

[RX|TX|Both]

Configure source port of monitor function

switch(config)#interface

fastEthernet 2 switch(config-if)#monitor RX

show monitor

Show port monitor information

switch(config)#interface

fastEthernet 2 switch(config-if)#show monitor

no monitor

Disable source port of monitor function

switch(config)#interface

fastEthernet 2 switch(config-if)#no monitor

802.1x Commands Set

Commands

Level

Description

Example

8021x enable

Use the 802.1x global configuration command to enable

802.1x protocols.

switch(config)# 8021x enable

8021x system radiusip

[IP address]

Use the 802.1x system radius IP global configuration command to change the radius server IP.

switch(config)# 8021x system

radiusip 192.168.1.1

8021x system serverport

[port ID]

Use the 802.1x system server port global configuration command to change the radius server port

switch(config)# 8021x system serverport 1815

8021x system accountport

[port ID]

Use the 802.1x system account port global configuration command to change the accounting port

switch(config)# 8021x system

accountport 1816

8021x system sharekey

[ID]

Use the 802.1x system share key global configuration command to change the shared key value.

switch(config)# 8021x system

sharekey 123456

8021x system nasid

[words]

Use the 802.1x system nasid global configuration command to change the NAS ID

switch(config)# 8021x system

nasid test1

8021x misc quietperiod

[sec.]

Use the 802.1x misc quiet period global configuration command to specify the quiet period value of the switch.

switch(config)# 8021x misc

quietperiod 10

8021x misc txperiod

[sec.]

Use the 802.1x misc TX period global configuration command to set the TX period.

switch(config)# 8021x misc

txperiod 5

8021x misc supportimeout [sec.]

Use the 802.1x misc supp timeout global configuration command to set the supplicant timeout.

switch(config)# 8021x misc

supportimeout 20

8021x misc servertimeout [sec.]

Use the 802.1x misc server timeout global

switch(config)#8021x misc servertimeout 20

configuration command to set the server timeout.

8021x misc maxrequest

[number]

Use the 802.1x misc max request global configuration command to set the MAX requests.

switch(config)# 8021x misc

maxrequest 3

8021x misc reauthperiod [sec.]

Use the 802.1x misc reauth period global configuration command to set the reauth period.

switch(config)# 8021x misc

reauthperiod 3000

8021x portstate

[disable | reject | accept | authorize]

Use the 802.1x port state interface configuration command to set the state of the selected port.

switch(config)#interface

fastethernet 3 switch(config-if)#8021x portstate accept

show 8021x

Displays a summary of the 802.1x properties and also the port sates.

switch>show 8021x

no 8021x

Disable 802.1x function

switch(config)#no 8021x

TFTP Commands Set

Commands

Level

Description

Defaults Example

backup flash:backup_cfg

Save configuration to TFTP and need to specify the IP of TFTP server and the file name of image.

switch(config)#backup flash:backup_cfg

restore flash:restore_cfg

Get configuration from TFTP server and need to specify the IP of TFTP server and the file name of image.

switch(config)#restore

flash:restore_cfg

upgrade flash:upgrade_fw

Upgrade firmware by TFTP and need to specify the IP of TFTP server and the file name of image.

switch(config)#upgrade

lash:upgrade_fw

SystemLog, SMTP and Event Commands Set

Commands

Level

Description

Example

systemlog ip

[IP address]

Set System log server IP address.

switch(config)# systemlog ip

192.168.1.100

systemlog mode

[client|server|both]

Specified the log mode

switch(config)# systemlog mode

both

show systemlog

Displays system log.

Switch>show systemlog

show systemlog

Show system log client & server information

switch#show systemlog

no systemlog

Disable systemlog functon

switch(config)#no systemlog

smtp enable

Enable SMTP function

switch(config)#smtp enable

smtp serverip

[IP address]

Configure SMTP server IP

switch(config)#smtp serverip

192.168.1.5

smtp authentication

Enable SMTP authentication

switch(config)#smtp

authentication

smtp account

[account]

Configure authentication account

switch(config)#smtp account

User

smtp password

[password]

Configure authentication password

switch(config)#smtp password

smtp rcptemail

[Index] [Email address]

Configure Rcpt e-mail Address

switch(config)#smtp rcptemail 1

Alert@test.com

show smtp

Show the information of SMTP

switch#show smtp

no smtp

Disable SMTP function

switch(config)#no smtp

event device-cold-start

[Systemlog|SMTP|Both]

Set cold start event type

switch(config)#event device-cold-

start both

event authenticationfailure

[Systemlog|SMTP|Both]

Set Authentication failure event type

switch(config)#event

authentication-failure both

event X-ring-topologychange

[Systemlog|SMTP|Both]

Set X-ring topology changed event type

switch(config)#event X-ring-

topology-change both

event systemlog

[Link-UP|LinkDown|Both]

Set port event for system log

switch(config)#interface

fastethernet 3 switch(config-if)#event systemlog both

event smtp

[Link-UP|LinkDown|Both]

Set port event for SMTP

switch(config)#interface

fastethernet 3 switch(config-if)#event smtp both

show event

Show event selection

switch#show event

no event device-coldstart

Disable cold start event type

switch(config)#no event device-

cold-start

no event authenticationfailure

Disable Authentication failure event typ

switch(config)#no event

authentication-failure

no event X-ringtopology-change

Disable X-ring topology changed event type

switch(config)#no event X-ring-

topology-change

no event systemlog

Disable port event for system log

switch(config)#interface

fastethernet 3 switch(config-if)#no event systemlog

no event smpt

Disable port event for SMTP

switch(config)#interface

fastethernet 3 switch(config-if)#no event smtp

show systemlog

Show system log client & server information

switch#show systemlog

SNTP Commands Set

Commands

Level

Description

Example

sntp enable

Enable SNTP function

switch(config)#sntp enable

sntp daylight

Enable daylight saving time, if SNTP function is inactive, this command can‘t be applied.

switch(config)#sntp daylight

sntp daylight-period

[Start time] [End time]

Set period of daylight saving time, if SNTP function is inactive, this command can‘t be applied. Parameter format: [yyyymmdd-hh:mm]

switch(config)# sntp daylight-

period 20060101-01:01 20060202-01-01

sntp daylight-offset

[Minute]

Set offset of daylight saving time, if SNTP function is inactive, this command can‘t be applied.

switch(config)#sntp daylight-

offset 3

sntp ip

[IP]

Set SNTP server IP, if SNTP function is inactive, this command can‘t be applied.

switch(config)#sntp ip 192.169.1.1

sntp timezone

Set timezone index,

switch(config)#sntp timezone 22

[Timezone]

use ‗show sntp timzezone‘ command to get more information of index number

show sntp

Show SNTP information

switch#show sntp

show sntp timezone

Show index number of time zone list

switch#show sntp timezone

no sntp

Disable SNTP function

switch(config)#no sntp

no sntp daylight

Disable daylight saving time

switch(config)#no sntp daylight

Pro-ring Commands Set

Commands

Level

Description

Example

Xring enable

Enable X-ring

switch(config)#Xring enable

Xring master

Enable ring master

switch(config)#Xring master

Xring couplering

Enable couple ring

switch(config)#Xring couplering

Xring dualhoming

Enable dual homing

switch(config)#Xring dualhoming

Xring ringport

[1st Ring Port] [2nd Ring Port]

Configure 1st/2nd Ring Port

switch(config)#Xring ringport 7 8

Xring couplingport

[Coupling Port]

Configure Coupling Port

switch(config)#Xring couplingport

Xring controlport

[Control Port]

Configure Control Port

switch(config)#Xring controlport

Xring homingport

[Dual Homing Port]

Configure Dual Homing Port

switch(config)#Xring homingport

show Xring

Show the information of X - Ring

switch#show Xring

no Xring

Disable X-ring

switch(config)#no X ring

no Xring master

Disable ring master

switch(config)# no Xring master

no Xring couplering

Disable couple ring

switch(config)# no Xring

couplering

no Xring dualhoming

Disable dual homing

switch(config)# no Xring dualhoming

Web-Based Management

This section introduces the configuration and functions of the Web-Based management.

About Web-based Management

On CPU board of the switch there is an embedded HTML web site residing in flash memory, which offers advanced management features and allow users to manage the switch from anywhere on the network through a standard browser such as Microsoft Internet Explorer.

The Web-Based Management supports Internet Explorer 6.0 or later version. And, it is applied for Java Applets for reducing network bandwidth consumption, enhance access speed and present an easy viewing screen.

Preparing for Web Management

Before using web management, install the industrial switch on the network and make sure that any one of the PCs on the network can connect with the industrial switch through the web browser. The industrial switch default value of IP, subnet mask, username and password are as follows:

 IP Address: 192.168.16.1  Subnet Mask: 255.255.255.0  Default Gateway: 192.168.16.254  User Name: root  Password: root

System Login

1. Launch the Internet Explorer on the PC

2. Key in ―http:// ―+‖ the IP address of the switch‖, and then Press ―Enter‖.

3. The login screen will appear right after

4. Key in the user name and password. The default user name and password are the

same as ―root‖

5. Press ―Enter‖ or ‖OK‖, and then the home screen of the Web-based management

appears as below:

Main Page

The home page of the Web-based screen mainly consists of tree-view control item. For more details function, please click the ‗+‘ symbol of each node to expand the tree structure.

Main interface

System Information

Assign the system name, location and view the system information.

 System Name: Assign the name of switch. The maximum length is 64 bytes.  System Description: Displays the description of switch. This column is read only;

cannot be modified.  System Location: Assign the switch physical location. The maximum length is 64

bytes.

 System Contact: Enter the name of contact person or organization.  Firmware Version: Displays the switch‘s firmware version.  Kernel Version: Displays the kernel software version.  MAC Address: Displays the unique hardware address assigned by manufacturer

(default).

System information interface

IP Configuration

User can configure the IP Settings and DHCP client function  DHCP Client: Enable or disable the DHCP client function. When DHCP client

function is enabled, the industrial switch will be assigned an IP address from the

network DHCP server. The default IP address will be replaced with an IP address

which is assigned by the DHCP server. After user click ―Apply‖ button, a pop-up

dialog show up. It is to inform the user that when the DHCP client is enabled, the

current IP will lose and user should find the new IP on the DHCP server.

 IP Address: Assign the IP address that the network is using. If DHCP client function

is enabled, then user needn‘t assign the IP address manually. Instead, the network

DHCP server will assign the IP address for the industrial switch and display it in this

column. The default IP is 192.168.16.1  Subnet Mask: Assign the subnet mask of the IP address. If DHCP client function is

enabled, and then user needn‘t assign the subnet mask manually  Gateway: Assign the network gateway for the industrial switch. The default gateway

is 192.168.16.254

 DNS1: Assign the primary DNS IP address.  DNS2: Assign the secondary DNS IP address.

 And then, click

Apply

IP configuration interface

DHCP Server – System configuration

The system provides the DHCP server function. Enable the DHCP server function, the switch system will be a DHCP server.  DHCP Server: Enable or Disable the DHCP Server function. Enable – the switch

will be the DHCP server on your local network.  Low IP Address: the dynamic IP assign range. Low IP address is the beginning of

the dynamic IP assigns range. For example: dynamic IP assign range is from

192.168.1.100 ~ 192.168.1.200. 192.168.1.100 will be the Low IP address.

 High IP Address: the dynamic IP assign range. High IP address is the end of the

dynamic IP assigns range. For example, dynamic IP assign range is from

192.168.1.100 ~ 192.168.1.200. Therefore, 192.168.1.200 is the High IP address.

 Subnet Mask: The dynamic IP assign range subnet mask.  Gateway: The gateway in your network.  DNS: Domain Name Server IP Address in your network.  Lease Time (sec): It is the time period that system will reset the dynamic IP

assignment to ensure the dynamic IP won‘t have been occupied for a long time;

otherwise the server won‘t know that the dynamic IP is idle.  And then, click

Apply

DHCP Server Configuration interface

DHCP Client – Client Entries

When the DHCP server function is active, the system will collect the DHCP client information and display it here.

DHCP Client Entries interface

DHCP Server - Port and IP Bindings

You can assign the specific IP address that is the IP in the dynamic IP assign range to the specific port. When the device is connected to the port and asks for dynamic IP assigning, the system will assign the IP address that has been assigned before to the connected device.

Port and IP Bindings interface

TFTP - Update Firmware

It provides the functions to allow the user to update the switch firmware. Before updating, make sure you have your TFTP server ready and the firmware image is on the TFTP server.

1. TFTP Server IP Address: Fill in your TFTP server IP.

2. Firmware File Name: the name of firmware image.

3. Click

Apply

Update Firmware interface

TFTP – Restore Configuration

You can restore EEPROM value from TFTP server, but you must put the image file on TFTP server first, switch will download back flash image.

1. TFTP Server IP Address: Fill in the TFTP server IP.

2. Restore File Name: Fill in the correct restore file name.

3. Click

Apply

Restore Configuration interface

TFTP - Backup Configuration

You can save current EEPROM value from the switch to TFTP server, then go to the TFTP restore configuration page to restore the EEPROM value.

1. TFTP Server IP Address: Fill in the TFTP server IP.

2. Backup File Name: Fill the file name.

3. Click

Apply

Backup Configuration interface

System Event Log – Syslog Configuration

Configure the system event mode that you want to collect and the system log server IP.

1. Syslog Client Mode: Select the system log mode – client only, server only, or both

S/C.

2. System Log Server IP Address: Assigned the system log server IP.

3. Click

Reload

to refresh the events log.

4. Click

Clear

to clear all current events log.

5. After configuring, click

Apply

Syslog Configuration interface

System Event Log - SMTP Configuration

You can set up the mail server IP, mail account, account password, and forwarded email account for receiving the event alert.

1. Email Alert: enable or disable the email alert function.

2. SMTP Server IP: set up the mail server IP address (when Email Alert enabled, this

function will then be available).

3. Sender: key in a complete email address, e.g. switch101@123.com, to identify

where the event log comes from.

4. Authentication: mark the check box to enable and configure the email account and

password for authentication (when Email Alert enabled, this function will then be

available).

5. Mail Account: set up the email account, e.g. johnadmin, to receive the alert. It must

be an existing email account on the mail server, which you had set up in SMTP

Server IP Address column.

6. Password: The email account password.

7. Confirm Password: reconfirm the password.

8. Rcpt e-mail Address 1 ~ 6: you can assign up to 6 e-mail accounts also to receive

the alert.

9. Click

Apply

SMTP Configuration interface

System Event Log - Event Configuration

You can select the system log events and SMTP events. When selected events occur, the system will send out the log information. Also, per port log and SMTP events can be

selected. After configuring, Click

Apply

 System event selection: 4 selections – Device cold start, Device warm start,

SNMP Authentication Failure, and X-ring topology change. Mark the checkbox to

select the event. When selected events occur, the system will issue the logs.

 Device cold start: When the device executes cold start action, the system will

issue a log event.

 Device warm start: When the device executes warm start, the system will

issue a log event.

 Authentication Failure: When the SNMP authentication fails, the system will

issue a log event.

 X-ring topology change: When the X-ring topology has changed, the system

will issue a log event.

 Port event selection: Select the per port events and per port SMTP events. It has

3 selections – Link UP, Link Down, and Link UP & Link Down. Disable means no

event is selected.

 Link UP: the system will issue a log message when port connection is up only.

 Link Down: the system will issue a log message when port connection is down

only.

 Link UP & Link Down: the system will issue a log message when port

connection is up and down.

Event Configuration interface

Fault Relay Alarm

 Power Failure: Mark the check box to enable the function for lighting up FAULT

LED on the panel when power fails.

 Port Link Down/Broken: Mark the check box to enable the function for lighting up

FAULT LED on the panel when Ports‘ states are link down or broken.

Fault Relay Alarm interface

SNTP Configuration

You can configure the SNTP (Simple Network Time Protocol) settings. The SNTP allows you to synchronize switch clocks in the Internet.

1. SNTP Client: Enable or disable SNTP function to get the time from the SNTP

server.

2. Daylight Saving Time: Enable or disable daylight saving time function. When

daylight saving time is enabled, you need to configure the daylight saving time

period.

3. UTC Timezone: Set the switch location time zone. The following table lists the

different location time zone for your reference.

Local Time Zone

Conversion from UTC

Time at 12:00 UTC

November Time Zone

- 1 hour

11am

Oscar Time Zone

-2 hours

10 am

ADT - Atlantic Daylight

-3 hours

9 am

AST - Atlantic Standard EDT - Eastern Daylight

-4 hours

8 am

EST - Eastern Standard CDT - Central Daylight

-5 hours

7 am

CST - Central Standard MDT - Mountain Daylight

-6 hours

6 am

MST - Mountain Standard PDT - Pacific Daylight

-7 hours

5 am

PST - Pacific Standard ADT - Alaskan Daylight

-8 hours

4 am

ALA - Alaskan Standard

-9 hours

3 am

HAW - Hawaiian Standard

-10 hours

2 am

Nome, Alaska

-11 hours

1 am

CET - Central European FWT - French Winter MET - Middle European MEWT - Middle European Winter SWT - Swedish Winter

+1 hour

1 pm

EET - Eastern European, USSR Zone 1

+2 hours

2 pm

BT - Baghdad, USSR Zone 2

+3 hours

3 pm

ZP4 - USSR Zone 3

+4 hours

4 pm

ZP5 - USSR Zone 4

+5 hours

5 pm

ZP6 - USSR Zone 5

+6 hours

6 pm

WAST - West Australian Standard

+7 hours

7 pm

CCT - China Coast, USSR Zone 7

+8 hours

8 pm

JST - Japan Standard, USSR Zone 8

+9 hours

9 pm

EAST - East Australian Standard GST Guam Standard, USSR Zone 9

+10 hours

10 pm

IDLE - International Date Line NZST - New Zealand Standard NZT - New Zealand

+12 hours

Midnight

4. SNTP Sever URL: Set the SNTP server IP address.

5. Daylight Saving Period: Set up the Daylight Saving beginning time and Daylight

Saving ending time. Both will be different in every year.

6. Daylight Saving Offset (mins): Set up the offset time.

7. Switch Timer: Displays the switch current time.

8. Click

Apply

SNTP Configuration interface

IP Security

IP security function allows user to assign 10 specific IP addresses that have permission to access the switch through the web browser for the securing switch management.

 IP Security Mode: When this option is enabled, the Enable HTTP Server and

Enable Telnet Server Check boxes will then be available.

 Enable HTTP Server: When this check box is checked, the IP addresses among

Security IP1 ~ IP10 will be allowed to access via HTTP service.  Enable Telnet Server: When checked, the IP addresses among Security IP1 ~

IP10 will be allowed to access via Telnet service.  Security IP 1 ~ 10: Assign up to 10 specific IP addresses. Only these 10 IP

address can access and manage the switch through the Web browser  And then, click

Apply

button to apply the configuration

[NOTE] Remember to execute the ―Save Configuration‖ action, otherwise the new configuration will lose when switch power off.

IP Security interface

User Authentication

Here you can change login user name and password for the management security issue.

1. User name: Key in the new user name (The default is ―root‖)

2. Password: Key in the new password (The default is ―root‖)

3. Confirm password: Re-type the new password

4. And then, click

Apply

User Authentication interface

Port Statistics

The following information provides the current port statistic information.

 Port: The port number.  Type: Displays the current speed of connection to the port.  Link: The status of linking—‗Up‘ or ‗Down‘.  State: It‘s set by Port Control. When the state is disabled, the port will not transmit

or receive any packet.

 Tx Good Packet: The counts of transmitting good packets via this port.  Tx Bad Packet: The counts of transmitting bad packets (including undersize [less

than 64 bytes], oversize, CRC Align errors, fragments and jabbers packets) via this

port.

 Rx Good Packet: The counts of receiving good packets via this port.  Rx Bad Packet: The counts of receiving bad packets (including undersize [less

than 64 bytes], oversize, CRC error, fragments and jabbers) via this port.

 Tx Abort Packet: The aborted packet while transmitting.  Packet Collision: The counts of collision packet.  Packet Dropped: The counts of dropped packet.  Rx Bcast Packet: The counts of broadcast packet.  Rx Mcast Packet: The counts of multicast packet.

 Click

Clear

button to clean all counts.

Port Statistics interface

Port Control

In Port control, you can view every port status that depended on user setting and the negotiation result.

1. Port: select the port that you want to configure.

2. State: Current port status. The port can be set to disable or enable mode. If the port

setting is disable then will not receive or transmit any packet.

3. Negotiation: set auto negotiation status of port.

4. Speed: set the port link speed.

5. Duplex: set full-duplex or half-duplex mode of the port.

6. Flow Control: set flow control function as Enable or Disable in Full Duplex mode.

The default value is Enable.

7. Security: When its state is ‗On‘ that means this port accepts only one MAC address

which was configured to be a static MAC address.

8. Click

Apply

Port Control interface

Port Trunk

The Link Aggregation Control Protocol (LACP) provides a standardized means for exchanging information between Partner Systems on a link to allow their Link Aggregation Control instances to reach agreement on the identity of the Link Aggregation Group to which the link belongs, move the link to that Link Aggregation Group, and enable its transmission and reception functions in an orderly manner. Link aggregation lets you group up to 4 ports into one dedicated connections. This feature can expand bandwidth to a device on the network. LACP operation requires full-

duplex mode, more detail information refers to IEEE 802.3ad.

Aggregator setting

1. System Priority: A value used to identify the active LACP. The switch with the

lowest value has the highest priority and is selected as the active LACP.

Group ID:

There are three trunk groups to provide configure. Choose the "

Group

" and click

Select

3. LACP: If enable, the group is LACP static trunk group. If disable, the group is local

static trunk group. All ports support LACP dynamic trunk group. If connecting to the

device that also supports LACP, the LACP dynamic trunk group will be created

automatically.

4. Work ports: allow max four ports can be aggregated at the same time. With LACP

static trunk group, the exceed ports are standby and can be aggregated if work

ports fail. If it is local static trunk group, the number of ports must be the same as

the group member ports.

5. Select the ports to join the trunk group. Allow max four ports can be aggregated at

the same time. Click

Add

button to add the port. To remove unwanted ports,

select the port and click

Remove

button.

6. If LACP enable, you can configure LACP Active/Passive status in each ports on

State Activity page.

7. Click

Apply

8. Use

Delete

button to delete Trunk Group. Select the Group ID and click

Delete

button.

Port Trunk—Aggregator Setting interface

Aggregator Information

When you have set up the aggregator setting with LACP disabled, you will see the local static trunk group information here.

Port Trunk – Aggregator Information interface

State Activity

When you have setup the LACP aggregator, you can configure port state activity. You can mark or un-mark the port. When you mark the port and click

Apply

button, the

port state activity will change to

Active

. Opposite is

Passive

 Active: The port automatically sends LACP protocol packets.  Passive: The port does not automatically send LACP protocol packets, and

responds only if it receives LACP protocol packets from the opposite device.

[NOTE]

1. A link having either two active LACP ports or one active port can perform dynamic LACP trunk.

2. A link has two passive LACP ports will not perform dynamic LACP trunk because both ports are waiting for an LACP protocol packet from the opposite device.

3. If you are active LACP‘s actor, after you have selected trunk port, the active status will be created automatically.

Port Trunk – State Activity interface

Port Mirroring

The Port mirroring is a method for monitoring traffic in switched networks. Traffic through ports can be monitored by one specific port. That means traffic goes in or out monitored (source) ports will be duplicated into mirror (destination) port.

 Destination Port: There is only one port can be selected to be destination (mirror)

port for monitoring both RX and TX traffic which come from source port. Or, use one of two ports for monitoring RX traffic only and the other one for TX traffic only. User can connect mirror port to LAN analyzer or Netxray

 Source Port: The ports that user wants to monitor. All monitored port traffic will be

copied to mirror (destination) port. User can select multiple source ports by checking the RX or TX check boxes to be monitored.

 And then, click

Apply

button.

Port Trunk – Port Mirroring interface

Rate Limiting

You can set up every port‘s bandwidth rate and frame limitation type.  Ingress Limit Frame type: Select the frame type that you want to filter. The frame

types have 4 options for selecting: All, Broadcast/Multicast/Flooded Unicast,

Broadcast/Multicast and Broadcast only. Broadcast/Multicast/Flooded Unicast, Broadcast/Multicast and Bbroadcast only types are only for ingress frames. The egress rate only supports the type of ‗All’.

Rate Limiting interface

 All the ports support port ingress and egress rate control. For example, assume port

1 is 10Mbps, users can set it‘s effective egress rate as 1Mbps, ingress rate as 500Kbps. The switch performs the ingress rate by packet counter to meet the specified rate

 Ingress: Enter the port effective ingress rate (The default value is ―0‖)  Egress: Enter the port effective egress rate (The default value is ―0‖)

And then, click

Apply

to apply the settings.

VLAN configuration

A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain, which would allow you to isolate network traffic, so only the members of the VLAN will receive traffic from the same VLAN members. Basically, creating a VLAN from a switch is logically equivalent to reconnecting a group of network devices to another Layer 2 switch. However, all the network devices are still plugged into the same switch physically.

The industrial switch supports port-based and 802.1Q (tagged-based) VLAN. The default configuration of VLAN operation mode is ―Disable‖.

VLAN Configuration interface

VLAN configuration - Port-based VLAN

Packets can go among only members of the same VLAN group. Note all unselected ports are treated as belonging to another single VLAN. If the port-based VLAN enabled, the VLAN-tagging is ignored.

In order for an end station to send packets to different VLAN groups, it itself has to be either capable of tagging packets it sends with VLAN tags or attached to a VLAN-aware bridge that is capable of classifying and tagging the packet with different VLAN ID based on not only default PVID but also other information about the packet, such as the protocol.

VLAN – Port Based interface

 Click

Add

to add a new VLAN group(The maximum VLAN group is up to 256

VLAN groups)

 Entering the VLAN name, group ID and grouping the members of VLAN group  And then, click

Apply

VLAN—Port Based Add interface

 You will see the VLAN displays.  Use

Delete

button to delete unwanted VLAN.

 Use

Edit

button to modify existing VLAN group.

Note

Remember to execute the ‗Save Configuration‘ action, otherwise the new configuration will lose when switch power off.

802.1Q VLAN

Tag-based VLAN is an IEEE 802.1Q specification standard. Therefore, it is possible to create a VLAN across devices from different switch venders. IEEE 802.1Q VLAN uses a

technique to insert a ―tag‖ into the Ethernet frames. Tag contains a VLAN Identifier (VID)

that indicates the VLAN numbers. You can create Tag-based VLAN, and enable or disable GVRP protocol. There are 256 VLAN groups to provide configure. Enable 802.1Q VLAN, the all ports on the switch belong to default VLAN, VID is 1. The default VLAN can‘t be deleted.

GVRP allows automatic VLAN configuration between the switch and nodes. If the switch is connected to a device with GVRP enabled, you can send a GVRP request using the VID of a VLAN defined on the switch; the switch will automatically add that device to the existing VLAN.

802.1q VLAN interface

802.1Q Configuration

1. Enable GVRP Protocol: check the check box to enable GVRP protocol.

2. Select the port that you want to configure.

3. Link Type: There are 3 types of link type.  Access Link: Single switch only, allows user to group ports by setting the

same VID to those ports.

 Trunk Link: The extended application of Access Link. While the ports are set

in this type, they can forward the packets with specified tag among the switches which are included in the same VLAN group.

 Hybrid Link: Both Access Link and Trunk Link are available.

4. Untagged VID: assign the untagged frame VID.

Tagged VID:

assign the tagged frame VID.

6. Click

Apply

7. You can see each port setting in the below table on the screen.

Group Configuration

Edit the existing VLAN Group.

1. Select the VLAN group in the table list.

2. Click

Edit

Group Configuration interface

3. You can Change the VLAN group name and VLAN ID.

4. Click

Apply

Group Configuration interface

Rapid Spanning Tree

The Rapid Spanning Tree Protocol (RSTP) is an evolution of the Spanning Tree Protocol and provides for faster spanning tree convergence after a topology change. The system also supports STP and the system will auto detect the connected device that is running STP or RSTP protocol.

RSTP - System Configuration

 User can view spanning tree information about the Root Bridge.  User can modify RSTP state. After modification, click

Apply

button

 RSTP mode: User must enable or disable RSTP function before configure the

related parameters.

 Priority (0-61440): A value used to identify the root bridge. The bridge with the

lowest value has the highest priority and is selected as the root. The value must be a multiple of 4096 according to the protocol standard rule.

 Max Age (6-40): The number of seconds a bridge waits without receiving

Spanning-tree Protocol configuration messages before attempting a reconfiguration. Enter a value between 6 through 40.

 Hello Time (1-10): The time that controls switch sends out the BPDU packet to

check RSTP current status. Enter a value between 1 through 10.

 Forward Delay Time (4-30): The number of seconds a port waits before

changing from its Rapid Spanning-Tree Protocol learning and listening to STP states to the forwarding state. Enter a value between 4 through 30.

Note

Follow the rule to configure the MAX Age, Hello Time, and Forward Delay Time.

2 x (Forward Delay Time value – 1) > = Max Age value >= 2 x (Hello Time value +1)

RSTP System Configuration interface

RSTP - Port Configuration

You can configure path cost and priority of every port.

1. Path Cost: The cost of the path to the other bridge from this transmitting bridge at

the specified port. Enter a number 1 through 200000000.

2. Priority: Decide which port should be blocked by priority in LAN. Enter a number 0

through 240. The value of priority must be the multiple of 16.

3. P2P: Some of the rapid state transactions that are possible within RSTP are

dependent upon whether the port concerned can only be connected to exactly one other bridge (i.e. it is served by a point-to-point LAN segment), or can be connected to two or more bridges (i.e. it is served by a shared medium LAN segment). This function allows the P2P status of the link to be manipulated administratively. True is P2P enabling. False is P2P disabling.

4. Edge: The port directly connected to end stations cannot create bridging loop in the

network. To configure the port as an edge port, set the port to ―True‖ status.

5. Non Stp: The port includes the STP mathematic calculation. True is not including

STP mathematic calculation. False is including the STP mathematic calculation.

6. Click

Apply

RSTP Port Configuration interface

SNMP Configuration

Simple Network Management Protocol (SNMP) is the protocol developed to manage nodes (servers, workstations, routers, switches and hubs etc.) on an IP network. SNMP enables network administrators to manage network performance, find and solve network problems, and plan for network growth. Network management systems learn of

problems by receiving traps or change notices from network devices implementing SNMP.

System Configuration

 Community Strings

You can define a new community string set or remove unwanted community string.

1. String: Fill the name of string.

2. RO: Read only. Enables requests accompanied by this string to display MIB-object information.

3. RW: Read write. Enables requests accompanied by this string to display MIB-object information and to set MIB objects.

1. Click

Add

2. To remove the community string, select the community string that you have defined and click

Remove

. You cannot edit the name of the default community string set.



Agent Mode:

Select the SNMP version that you want to use it. And then click

Change

to switch to the selected SNMP version mode.

SNMP System Configuration interface

Trap Configuration

A trap manager is a management station that receives traps, the system alerts generated by the switch. If no trap manager is defined, no traps will issue. Create a trap manager by entering the IP address of the station and a community string. To define management stations as trap manager and enter SNMP community strings and selects the SNMP version.

1. IP Address: Enter the IP address of trap manager.

2. Community: Enter the community string.

3. Trap Version: Select the SNMP trap version type—v1 or v2c.

4. Click

Add

5. To remove the community string, select the community string that you have defined

and click

Remove

. You cannot edit the name of the default community string set.

Trap Managers interface

SNMPV3 Configuration

Configure the SNMP V3 function.

Context Table

Configure SNMP v3 context table. Assign the context name of context table. Click

Add

to add context name. Click

Remove

to remove unwanted context name.

User Profile

Configure SNMP v3 user table..

 User ID: Set up the user name.  Authentication Password: Set up the authentication password.  Privacy Password: Set up the private password.

 Click

Add

to add context name.

 Click

Remove

to remove unwanted context name.

SNMP V3 configuration interface

Group Table

Configure SNMP v3 group table.

 Security Name (User ID): Assign the user name that you have set up in user table.  Group Name: Set up the group name.

 Click

Add

to add context name.

 Click

Remove

to remove unwanted context name.

Access Table

Configure SNMP v3 access table.

 Context Prefix: Set up the context name.  Group Name: Set up the group.  Security Level: Select the access level.  Context Match Rule: Select the context match rule.  Read View Name: Set up the read view.  Write View Name: Set up the write view.  Notify View Name: Set up the notify view.

 Click

Add

to add context name.

 Click

Remove

to remove unwanted context name.

MIBview Table

Configure MIB view table.

 ViewName: Set up the name.  Sub-Oid Tree: Fill the Sub-OID.  Type: Select the type – exclude or included.

 Click

Add

to add context name.

 Click

Remove

to remove unwanted context name.

QoS Configuration

You can configure Qos policy and priority setting, per port priority setting, COS and TOS setting.

QoS Policy and Priority Type

 Qos Policy: select the Qos policy rule.

 Using the 8,4,2,1 weight fair queue scheme: The switch will follow 8:4:2:1

rate to process priority queue from High to lowest queue. For example, when the system processes, 1 frame of the lowest queue, 2 frames of the low queue, 4 frames of the middle queue, and 8 frames of the high queue will be processed at the same time in accordance with the 8,4,2,1 policy rule.

 Use the strict priority scheme: Always higher queue will be process first,

except higher queue is empty.

 Priority Type: there are 5 priority type selections available. Disable means no

priority type is selected.

 Port-base: the port priority will follow the Port-base that you have assigned – High,

middle, low, or lowest.

 COS only: the port priority will only follow the COS priority that you have

assigned.

 TOS only: the port priority will only follow the TOS priority that you have

assigned.

 COS first: the port priority will follow the COS priority first, and then other

priority rule.

 TOS first: the port priority will follow the TOS priority first, and the other priority

rule.

 Click

Apply

QoS Configuration interface

Port Base Priority

Configure per port priority level.

 Port: Each port has 4 egress queues – High, Middle, Low, and Lowest.  Click

Apply

COS Configuration

Set up the COS priority level.

 COS priority: Set up the COS priority level 0~7 with 4 egress queues: High, Middle, Low, Lowest.

 Click

Apply

TOS Configuration

Set up the TOS priority.

 TOS priority: the system provides 0~63 TOS priority level. Each level has 4 types of priority (egress queues) – high, middle, low, and lowest. The default value is ―Lowest‖ priority for each level. When the IP packet is received, the system will check the TOS level value in the IP packet that has received. For example, user set the TOS level 25 as high, the system will check the TOS value of the received IP packet. If the TOS value of received IP packet is 25(priority = high), and then the packet priority will have highest priority.

 Click

Apply

IGMP Configuration

The Internet Group Management Protocol (IGMP) is an internal protocol of the Internet Protocol (IP) suite. IP manages multicast traffic by using switches, routers, and hosts

Lantech IGS-2206C, IES-2208C User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
