Lantech IES-1204FT User Manual
Lantech
IES-1204FT
4 10/100TX + 2 100SFP Smart
Industrial Ethernet Switch w/Pro-Ring
User’s Manual
1
Table of Content
Getting to Know Your Switch ........................................................................ 3
1.1 About the IES-1204FT Industrial Smart-Ring Switch ............................................... 3
1.2 Software Features .................................................................................................... 3
1.3 Hardware Features ................................................................................................... 3
Hardware Installation ..................................................................................... 4
2.1 Installing Switch on DIN-Rail .................................................................................... 4
2.1.1 Mount IES-1204FT on DIN-Rail ........................................................................... 4
2.2 Wall Mounting Installation ........................................................................................ 5
2.2.1 Mount IES-1204FT on wall .................................................................................. 5
Hardware Overview ........................................................................................ 6
3.1 Front Panel ............................................................................................................... 6
3.2 Front Panel LEDs ..................................................................................................... 8
3.3 Bottom Panel ............................................................................................................ 8
4.1 Ethernet Cables ........................................................................................................ 9
4.1.1 100BASE-TX/10BASE-T Pin Assignments .......................................................... 9
4.2 SFP......................................................................................................................... 10
WEB Management ........................................................................................ 11
5.1 Configuration by Web Browser ............................................................................... 11
5.1.1 About Web-based Management ......................................................................... 11
5.1.2 Basic Setting ...................................................................................................... 13
5.1.2.1 Switch setting ............................................................................................ 13
5.1.2.2 Admin Password ....................................................................................... 14
5.1.2.3 IP configuration ......................................................................................... 14
5.1.2.4 SNTP Configuration .................................................................................. 16
5.1.2.5 LLDP ......................................................................................................... 18
5.1.2.6 Dip Setting ................................................................................................. 19
5.1.2.7 Backup & Restore ..................................................................................... 19
5.1.2.8 Upgrade Firmware..................................................................................... 20
5.1.3 Port Configuration .............................................................................................. 20
5.1.3.1 Port Control ............................................................................................... 20
5.1.3.2 Port Status ................................................................................................. 21
2
5.1.4 Redundancy ....................................................................................................... 22
5.1.4.1 Fast Recovery Mode ................................................................................. 22
5.1.4.2 Pro-Ring .................................................................................................... 23

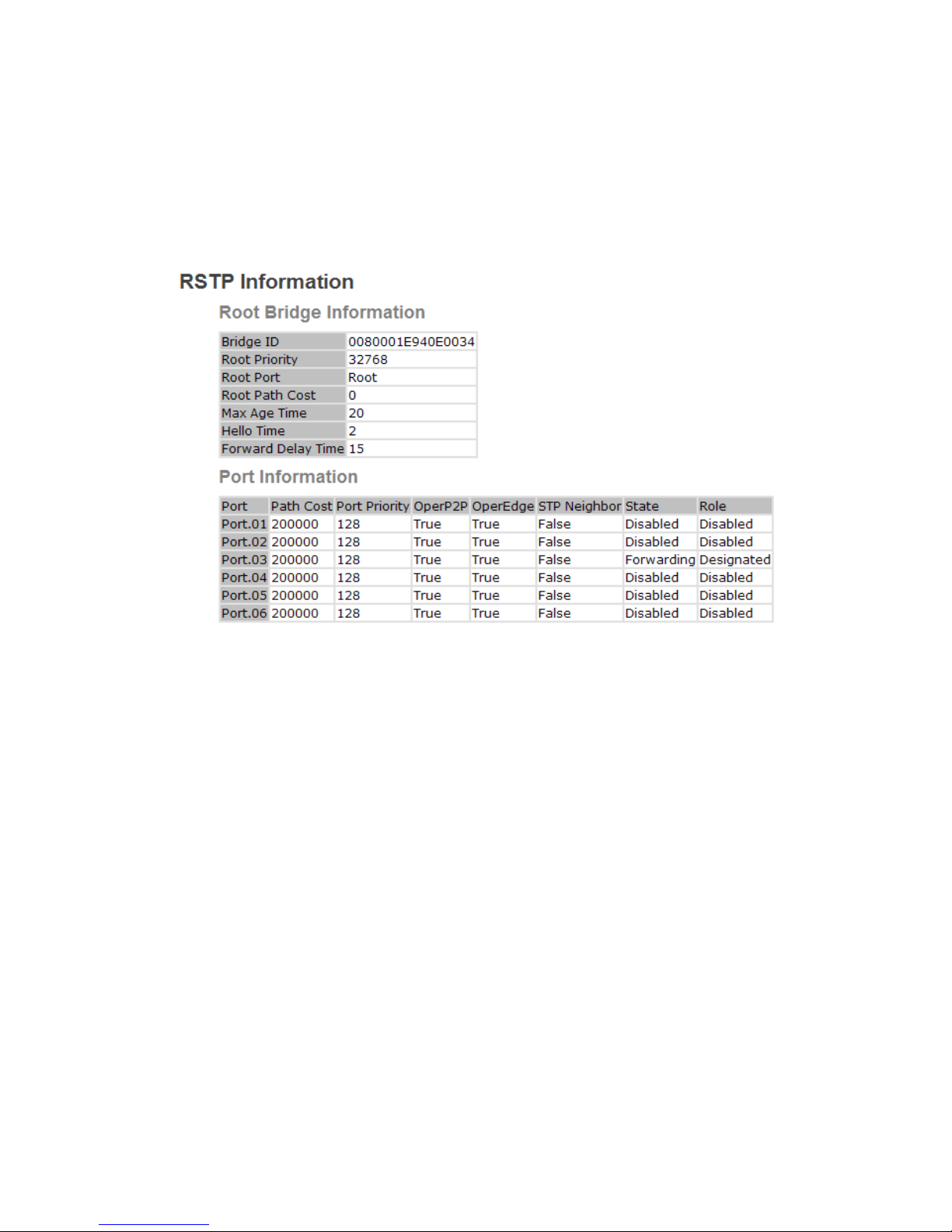

5.1.4.3 RSTP ......................................................................................................... 24
5.1.5 VLAN Configuration – Port Based ..................................................................... 26
5.1.6 QOS ................................................................................................................... 27
5.1.7 MAC Filter .......................................................................................................... 29
5.1.8 SNMP Configuration .......................................................................................... 31
5.1.8.1 SNMP – Agent Setting .................................................................................... 31
5.1.6.2 SNMP –Trap Setting ....................................................................................... 32
5.1.6.3 SNMP–SNMPV3 Setting ................................................................................ 34
5.1.7. Warning .............................................................................................................. 36
5.1.7.1. SYSLOG Setting ....................................................................................... 36
5.1.7.2. System Event LOG.................................................................................... 37
5.1.7.3. SMTP Setting ............................................................................................ 38
5.1.7.4. Even Selection .......................................................................................... 39
5.1.7.5. Fault Alarm ................................................................................................ 40
5.1.8 Front Panel ............................................................................................................ 40
5.1.9 Save Configuration ................................................................................................ 41
5.1.10 Factory Default ..................................................................................................... 41
5.1.11 System Reboot ..................................................................................................... 41
Technical Specifications ............................................................................. 42
3
Getting to Know Your Switch
1.1 About the IES-1204FT Industrial Smart-Ring Switch
The IES-1204FT switch are cost-effect and powerful industrial switch with many features.
These switches can work under wide temperature and dusty environment and humid
condition.
1.2 Software Features
World’s fastest Redundant Ethernet Ring (Recovery time < 10ms over 250 units
connection)
Supports Ring Coupling, Dual Homing and RSTP over Pro-Ring
Support fast recovery mode
Easy-to-configure: Web / Windows utility
1.3 Hardware Features
Wide Operating Temperature: -40 to 70oC
Storage Temperature: -40 to 85oC
Operating Humidity: 5% to 95%, non-condensing
10/100Base-T(X) Ethernet port
100Base-FX SFP port
4
Hardware Installation
2.1 Installing Switch on DIN-Rail
Each switch has a DIN-Rail kit on rear panel. The DIN-Rail kit helps switch to fix on the
DIN-Rail. It is easy to install the switch on the DIN-Rail:
2.1.1 Mount IES-1204FT on DIN-Rail
Step 1: Slant the switch and mount the metal spring to DIN-Rail.
Step 2: Push the switch toward the DIN-Rail until you heard a “click” sound.
Metal Spring
5
2.2 Wall Mounting Installation
Each switch has another installation method for users to fix the switch. A wall mount panel
can be found in the package. The following steps show how to mount the switch on the
wall:
2.2.1 Mount IES-1204FT on wall
Step 1: Remove DIN-Rail kit.
Step 2: Use 8 screws that can be found in the package to combine the wall mount panel.
Just like the picture shows below:
6
Hardware Overview
3.1 Front Panel
The following table describes the labels that stick on the IES-1204FT
Port
Description
10/100 RJ-45 fast
Ethernet ports
10/100Base-T(X) RJ-45 fast Ethernet ports support
auto-negotiation.
Default Setting :
Speed: auto
Duplex: auto
Flow control : disable
Reset
Push reset button 2 to 3 seconds to reset the switch.
Push reset button 5 second to reset the switch into Factory
Default.
7
IES-1204FT
1. Model name
2. LED for PWR1&PWR2 When the PWR links, the green led will be light on
3. LED for Fault Relay. When the fault occurs, the amber LED will be light on.
4. LED for Ring. When the led light on, it means the Pro-Ring is activated.
5. LED for R.M (Ring master). When the LED light on, it means that the switch is the ring
master of Pro-Ring.
6. Dip Switch setting when the Dip sett
P.F：Power fault
R.E：Ring Enable
R.M：Ring Master
R.S：Ring Select (P1/P2:Port1 and Port2 , P5/P6:Port5 and Port6)
7. 100 Base Fiber port on SFP
8. LED for SFP LINK/ACT
9. 10/100Base-T(X) Ethernet ports..
10. LED for Ethernet ports ACT status.
11. LED for Ethernet ports LINK status.
8
3.2 Front Panel LEDs
LED
Color
Status
Description
PWR1
Green
On
DC power module 1 activated.
PWR2
Green
On
DC power module 2 activated.
R.M
Green
On
Pro-Ring Master.
Ring
Green
Slowly blinking
Pro-Ring enabled.
Pro-Ring topology has problem
On
Pro-Ring work normally.
Fault
Amber
On
Fault relay. Power failure or Port
down/fail.
10/100Base-T(X) Fast Ethernet ports
LNK / ACT
Green
On
Port link up.
Blinking
Data transmitted.
LINK
Amber
On
LINK LED
100Base Fiber port on SFP
LINK / ACT
Green
On
Port link up
Blinking
Data transmitted
3.3 Bottom Panel
The bottom panel components of IES-1204FT are showed as below:
Terminal block includes: PWR1, PWR2 (12-48V DC) and Relay output (1A@24VDC).
.
IES-1204FT power connection
9
Cables
4.1 Ethernet Cables
The IES-1204FT switch have standard Ethernet ports. According to the link type, the
switches use CAT 3, 4, 5,5e UTP cables to connect to any other network device (PCs,
servers, switches, routers, or hubs). Please refer to the following table for cable
specifications.
Cable Types and Specifications
Cable
Type
Max. Length
Connector
10BASE-T
Cat. 3, 4, 5 100-ohm
UTP 100 m (328 ft)
RJ-45
100BASE-TX
Cat. 5 100-ohm UTP
UTP 100 m (328 ft)
RJ-45
4.1.1 100BASE-TX/10BASE-T Pin Assignments
With 100BASE-TX/10BASE-T cable, pins 1 and 2 are used for transmitting data, and pins
3 and 6 are used for receiving data.
RJ-45 Pin Assignments
Pin Number
Assignment
1
TD+ 2 TD- 3 RD+
4
Not used
5
Not used
6
RD-
7
Not used
8
Not used
10
The IES-1204FT switches support auto MDI/MDI-X operation. You can use a
straight-through cable to connect PC and switch. The following table below shows the
10BASE-T/ 100BASE-TX MDI and MDI-X port pin outs.
MDI/MDI-X pins assignment
Pin Number
MDI port
MDI-X port
1
TD+(transmit)
RD+(receive)
2
TD-(transmit)
RD-(receive)
3
RD+(receive)
TD+(transmit)
4
Not used
Not used
5
Not used
Not used
6
RD-(receive)
TD-(transmit)
7
Not used
Not used
8
Not used
Not used
Note: “+” and “-” signs represent the polarity of the wires that make up each
wire pair.
4.2 SFP
The Switch has fiber optical ports with SFP connectors. The fiber optical ports are in
multi-mode and single-mode with LC connector. Please remember that the TX port of Switch
A should be connected to the RX port of Switch B.
Switch A Switch B
Fiber cord
11
WEB Management
5.1 Configuration by Web Browser
This section introduces the configuration by Web browser.
5.1.1 About Web-based Management
An embedded HTML web site resides in flash memory on the CPU board. It contains
advanced management features and allows you to manage the switch from anywhere on
the network through a standard web browser such as Microsoft Internet Explorer.
The Web-Based Management function supports Internet Explorer 5.0 or later. It is based
on Java Applets with an aim to reduce network bandwidth consumption, enhance access
speed and present an easy viewing screen.
Note: By default, IE5.0 or later version does not allow Java Applets to open sockets. You need to explicitly
modify the browser setting in order to enable Java Applets to use network ports.
Preparing for Web Management
The default value is as below:
IP Address: 192.168.10.1
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.10.254
User Name: admin
Password: admin
System Login
1. Launch the Internet Explorer.
2. Type http:// and the IP address of the switch. Press “Enter”.
12
3. The login screen appears.
4. Key in the username and password. The default username and password is
“admin”.
5. Click “Enter” or “OK” button, then the main interface of the Web-based management
appears.
Login screen
Main Interface
Main interface
13
5.1.2 Basic Setting
5.1.2.1 Switch setting
Switch setting interface
The following table describes the labels in this screen.
Label
Description
System Name
Assign the name of switch. The maximum length is 64 bytes
System Description
Display the description of switch.
System Location
Assign the switch physical location. The maximum length is 64
bytes
System Contact
Enter the name of contact person or organization
Firmware Version
Display the switch’s firmware version
Kernel Version
Display the kernel software version
MAC Address
Display the unique hardware address assigned by manufacturer
(default)
