LanPorty UT CFX3200-DR User Guide

System Board User’s Manual

935-CF3291-000G

90800601

This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes.

Trademarks

Product names or trademarks appearing in this manual are for identification purpose only and are the properties of the respective owners.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission limits.

Table of Contents

About this Manual................................................................................

Warranty.....................................................................................................

Static Electricity Precaution................................................................

Safety Measures.....................................................................................

About the Package...............................................................................

Before Using the System Board.........................................................

Chapter 1 - Introduction....................................................................

Specifications...................................................................................................................................

Features..............................................................................................................................................

Français................................................................................................................................................

Deutsch...............................................................................................................................................

Español................................................................................................................................................

Русский язык.........................................................................................................................

Japanese.............................................................................................................................................

Chapter 2 - Hardware Installation....................................................

System Board Layout ..........................................................................................................

System Memory..........................................................................................................................

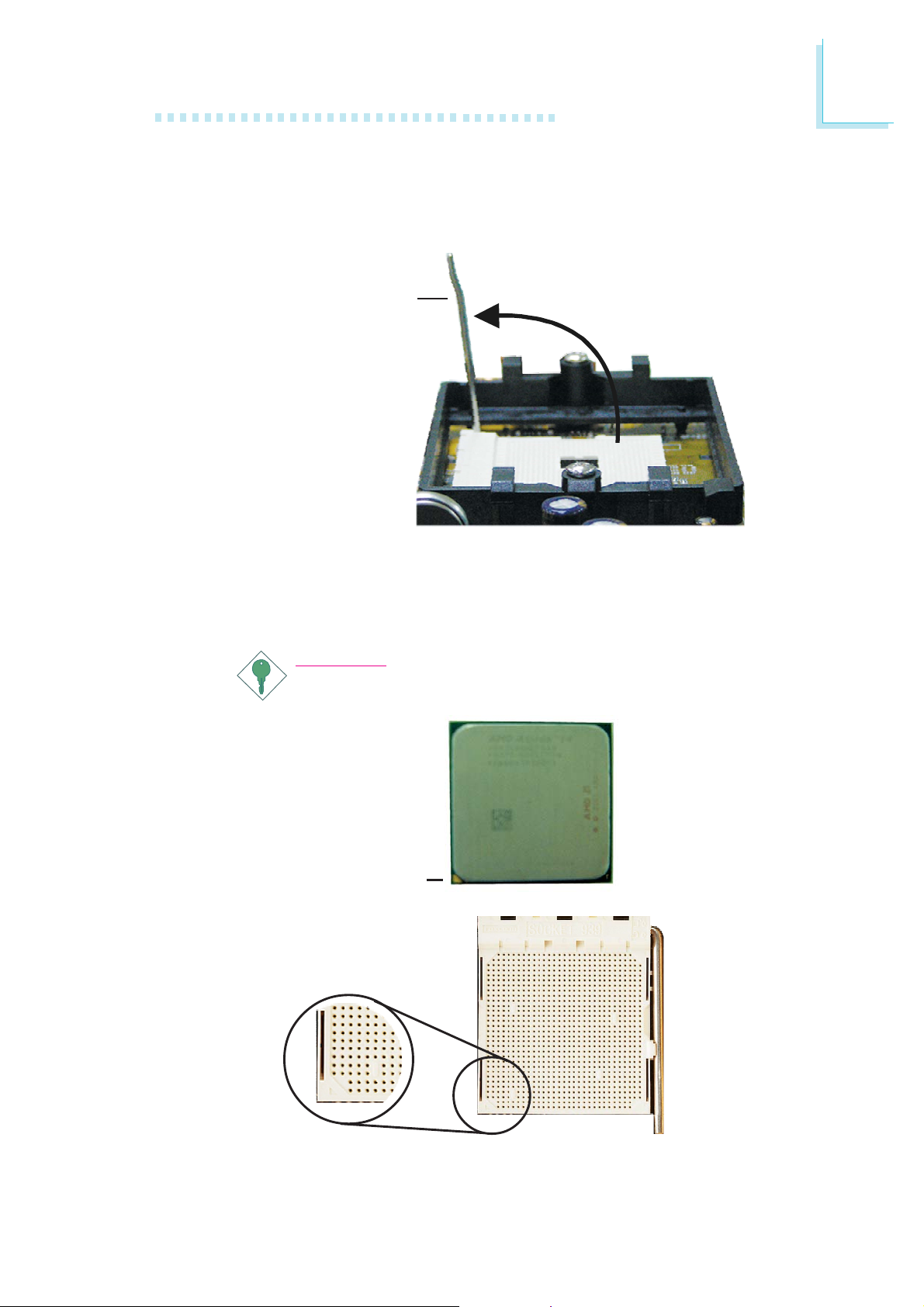

CPU.......................................................................................................................................................

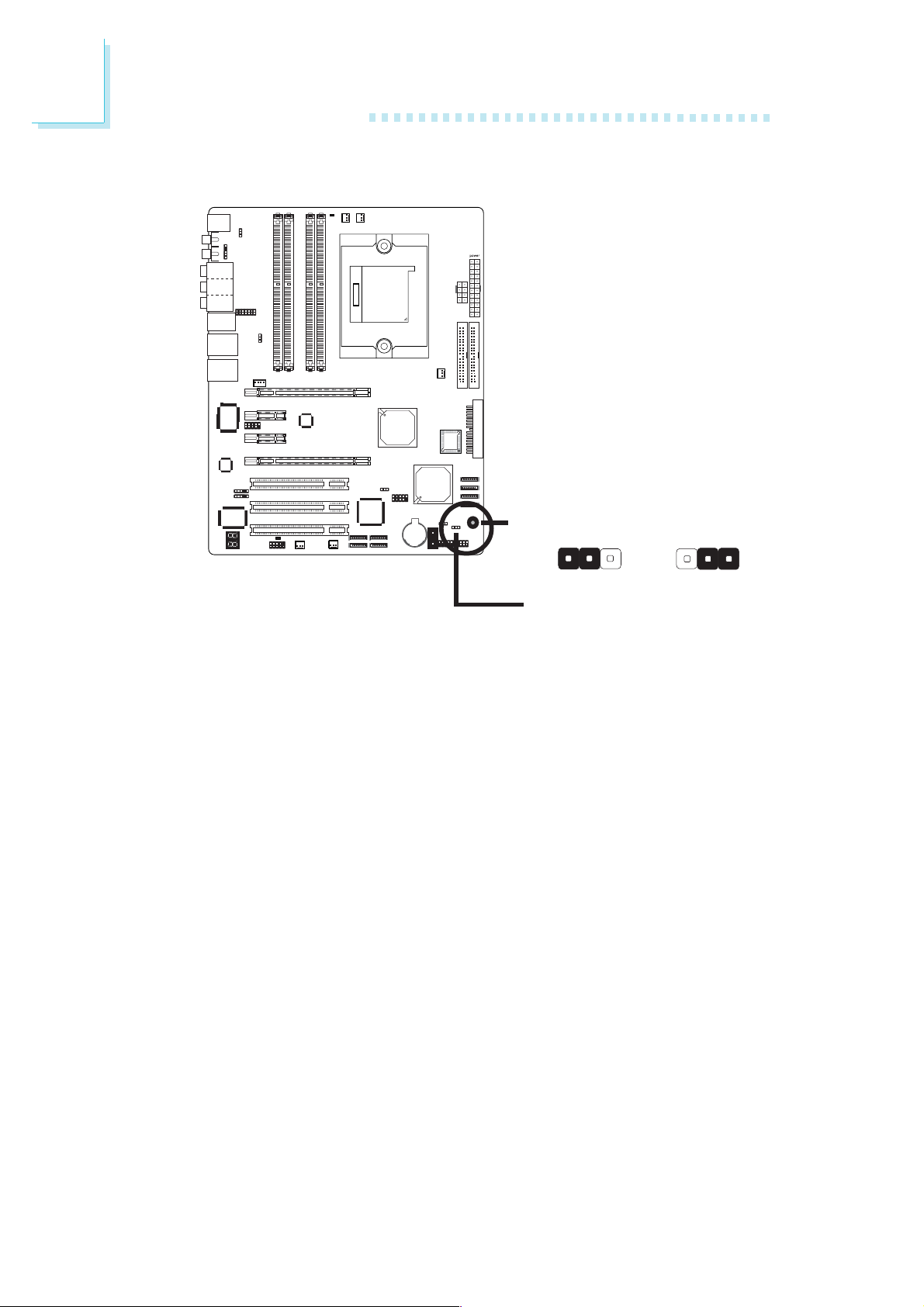

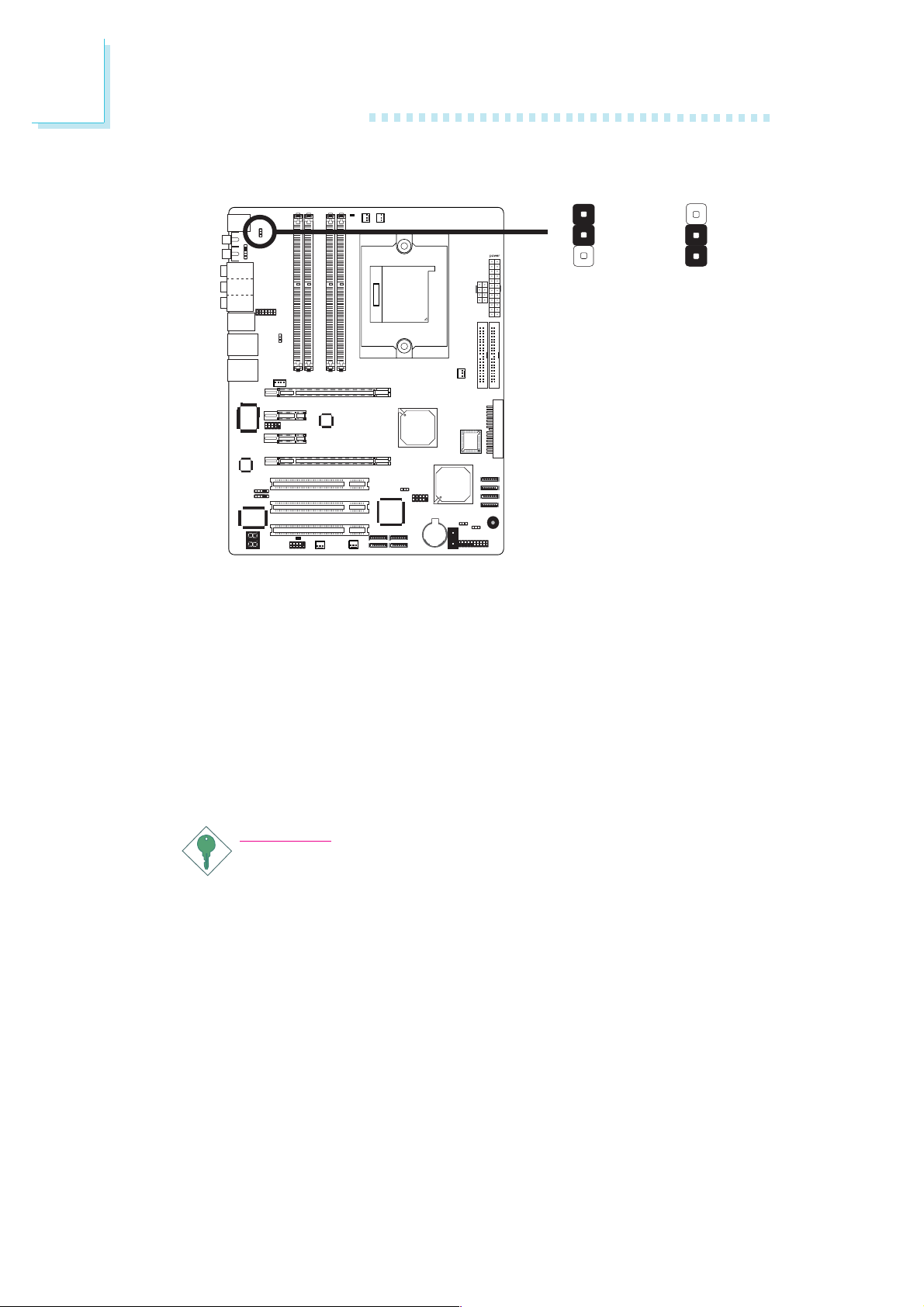

Jumper Settings............................................................................................................................

Rear Panel I/O Ports.............................................................................................................

Internal I/O Connectors.....................................................................................................

5 5 6 6 7 7

8 10 15 17 19 21 23

25 25 26 30 36 41 52

Chapter 3 - BIOS Setup......................................................................

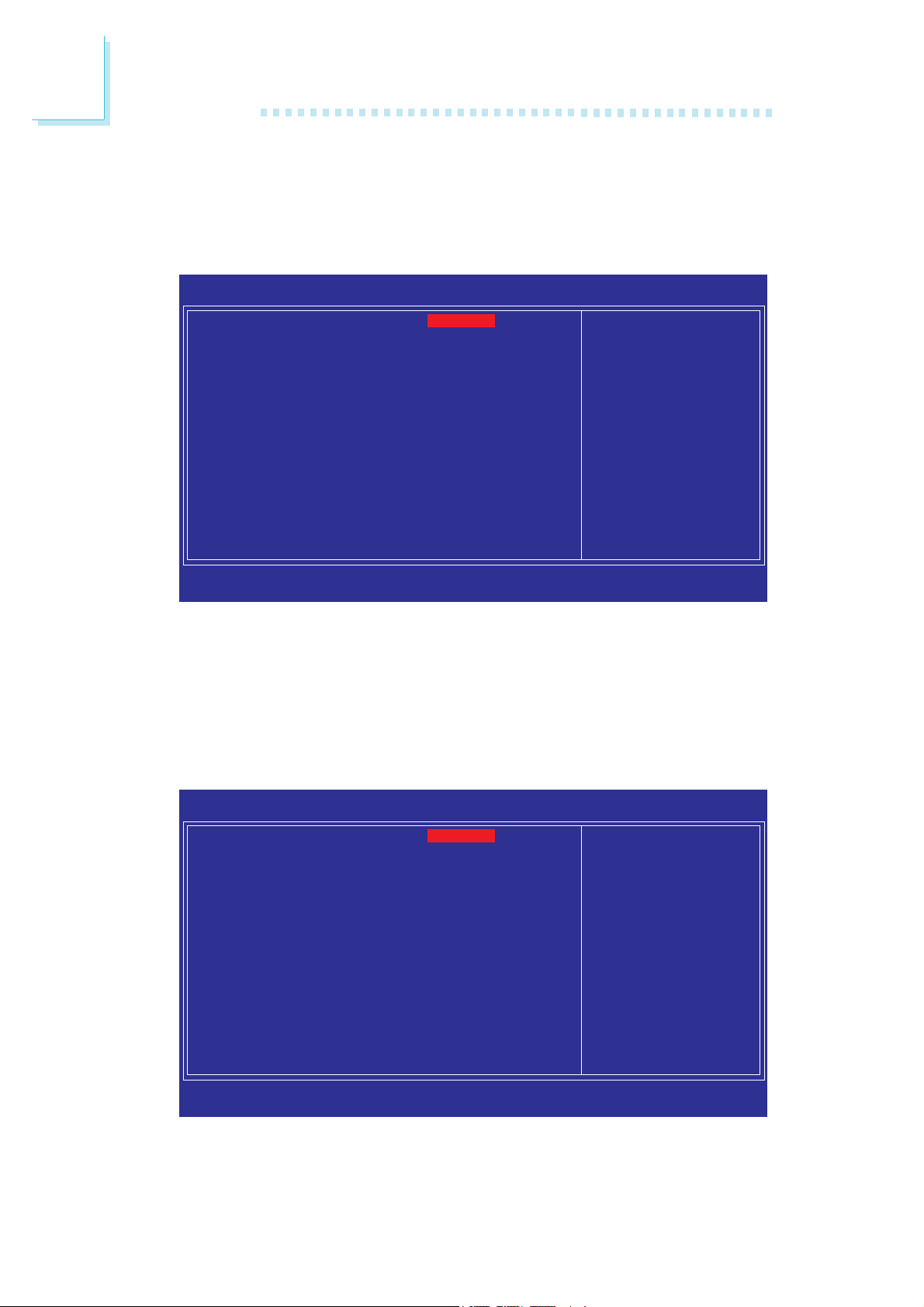

Award BIOS Setup Utility.................................................................................................

RAID BIOS.....................................................................................................................................

Updating the BIOS..................................................................................................................

Chapter 4 - Supported Softwares.....................................................

Chapter 5 - Cool’n’Quiet Technology..............................................

Chapter 6 - RAID.................................................................................

Chapter 7 - ATI CrossFire Technology.............................................

Appendix A - System Error Message...............................................

Appendix B - Troubleshooting..........................................................

70 70

127 128

130 150 153 161 168 170

About this Manual

An electronic file of this manual is included in the CD. To view the user’s manual, insert the CD into a CD-ROM drive. The autorun screen (Mainboard Utility CD) will appear. Click the “TOOLS” icon then click “Manual” on the main menu.

Warranty

1. Warranty does not cover damages or failures that arised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifications.

2. The warranty is void if the product has been subjected to physical abuse, improper installation, modification, accidents or unauthorized repair of the product.

3. Unless otherwise instructed in this user’s manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on the product, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work.

4. We will not be liable for any indirect, special, incidental or consequencial damages to the product that has been modified or altered.

Introduction

Static Electricity Precautions

It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer components without causing any signs of physical damage. You must take extra care in handling them to ensure against electrostatic build-up.

1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are ready to install it.

2. Wear an antistatic wrist strap.

3. Do all preparation work on a static-free surface.

4. Hold the device only by its edges. Be careful not to touch any of the components, contacts or connections.

5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or connectors by their ends.

Important:

Electrostatic discharge (ESD) can damage your processor, disk drive and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

Safety Measures

To avoid damage to the system:

• Use the correct AC input voltage range

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord.

Battery:

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend the manufacturer.

• Dispose of used batteries according to the battery manufacturer’s

instructions.

About the Package

The system board package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance.

; One system board ; One Karajan audio module ; Two IDE round cables ; One floppy round cable ; Four Serial ATA data cables ; Two Serial ATA power cables ; One I/O shield ; One RAID driver diskette ; One “Mainboard Utility” CD ; One user’s manual ; One Quick Installation Guide

Introduction

The system board and accessories in the package may not come similar to the information listed above. This may differ in accordance to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.

Before Using the System Board

Before using the system board, prepare basic system components.

If you are installing the system board in a new system, you will need at least the following internal components.

• A CPU

• Memory module

• Storage devices such as hard disk drive, CD-ROM, etc.

You will also need external system peripherals you intend to use which will normally include at least a keyboard, a mouse and a video display monitor.

Introduction

Chapter 1 - Introduction

Specifications

Processor

Front Side Bus

Chipset

System Memory

Expansion Slots

BIOS

AMD® AthlonTM 64 X2 / Athlon 64 FX / AthlonTM 64 / Sempron Socket 939

2000MT/s HyperTransport interface ATI chipset

- Northbridge: ATI CrossFire CFX3200

- Southbridge: ULI M1575 Four 184-pin DDR SDRAM DIMM sockets

Supports dual channel (128-bit wide) memory interface Supports up to 4GB system memory Supports PC2100 (DDR266), PC2700 (DDR333) and PC3200 (DDR400) DDR SDRAM DIMM Supports x8/x16 non-ECC unbuffered DIMMs, up to 512Mb DDR devices

2 PCI Express x16 slots

- CrossFire mode: Each x16 slot operates at x16 bandwidth.

- Single VGA mode: Each x16 slot operates at x16 bandwidth. 2 PCI Express x1 slots 3 PCI slots

Award BIOS CMOS Reloaded CPU/DRAM overclocking CPU/DRAM/Chipset overvoltage 4Mbit flash memory

Power Management

Hardware Monitor

Audio

ACPI and OS Directed Power Management ACPI STR (Suspend to RAM) function Wake-On-PS/2 Keyboard/Mouse Wake-On-USB Keyboard/Mouse Wake-On-Ring Wake-On-LAN RTC timer to power-on the system AC power failure recovery

Monitors CPU/system/chipset temperature Monitors 12V/5V/3.3V/Vcore/Vbat/5Vsb/Vdimm/Vchip voltages Monitors the speed of the cooling fans CPU Overheat Protection function monitors CPU temperature during system boot-up

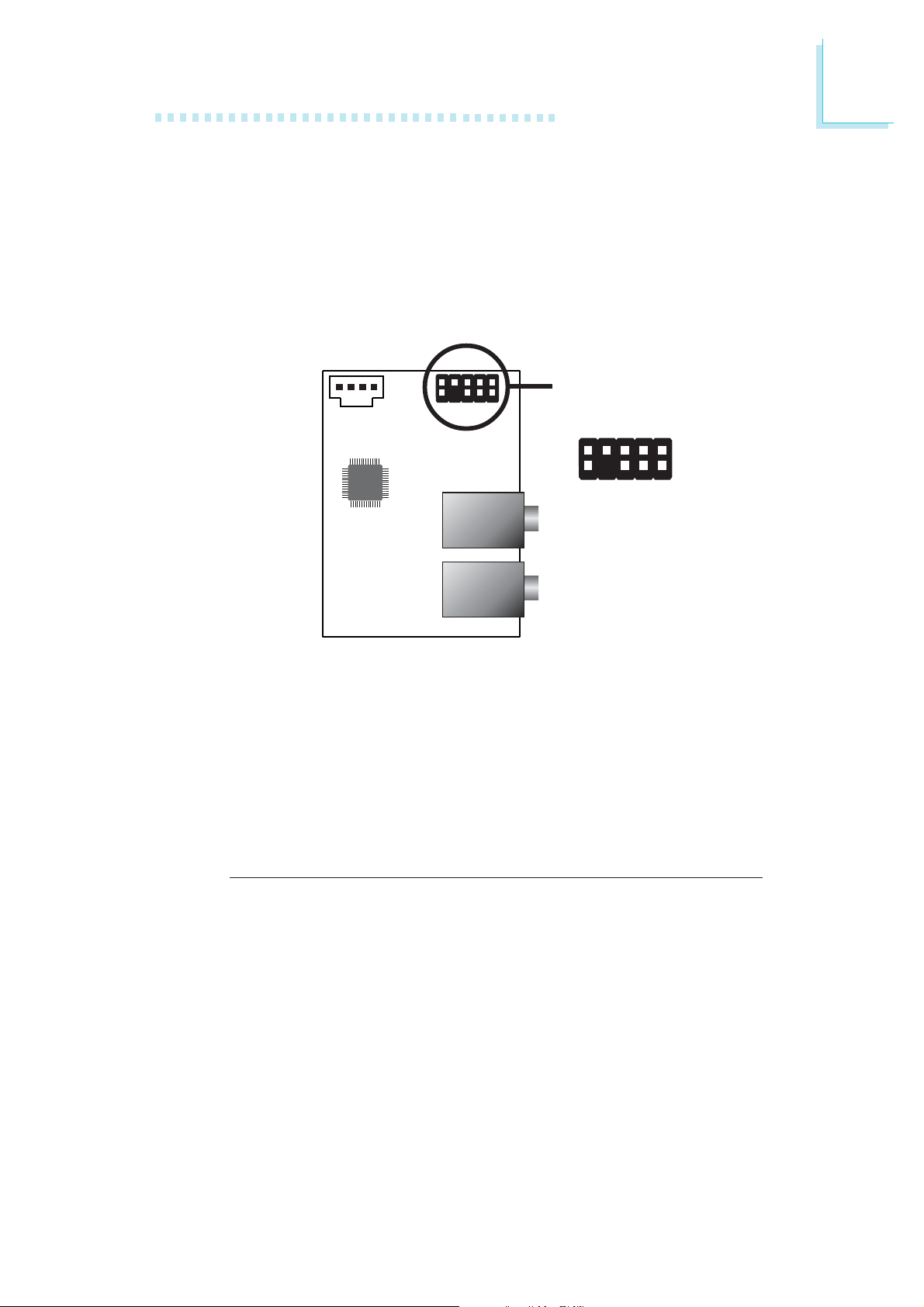

Karajan audio module

- Realtek ALC882 8-channel High Definition Audio CODEC

- 6 audio jacks

- 1 CD-in connector

- 1 front audio connector True stereo line level outputs S/PDIF-in/out interface

Introduction

LAN

IDE

Serial ATA with RAID

IEEE 1394

Rear Panel I/O

Dual Gigabit LAN - Marvell 88E8052 and Marvell 88E8053 Gigabit PCI LAN Fully compliant to IEEE 802.3 (10BASE-T), 802.3u (100BASETX) and 802.3ab (1000BASE-T) standards

Supports two IDE connectors that allows connecting up to four UltraDMA 133Mbps hard drives

Four Serial ATA ports supported by the ULI M1575 chip

- SATA speed up to 3Gb/s

- RAID 0, RAID 1, RAID 0+1 and JBOD Four Serial ATA ports supported by the Silicon Image Sil 3114 chip

- SATA speed up to 1.5Gb/s

- RAID 0, RAID 1, RAID 0+1 and RAID 5 VIA VT6307

Supports two 100/200/400 Mb/sec ports 1 mini-DIN-6 PS/2 mouse port

1 mini-DIN-6 PS/2 keyboard port 2 S/PDIF RCA jacks (S/PDIF-in and S/PDIF-out) Karajan audio module (6 audio jacks) 1 IEEE 1394 port 2 RJ45 LAN ports 6 USB 2.0/1.1 ports

Internal I/O

PCB

1 connector for 2 additional external USB 2.0/1.1 ports 1 connector for 1 external IEEE 1394 port 1 connector for 1 external serial port 1 connector for the Karajan audio module 1 front audio connector for external line-out and mic-in jacks (on the Karajan audio module) 1 CD-in internal audio connector (on the Karajan audio module) 1 S/PDIF connector for optical cable connection 1 IrDA connector 1 CIR connector 8 Serial ATA connectors 2 IDE connectors

floppy connector

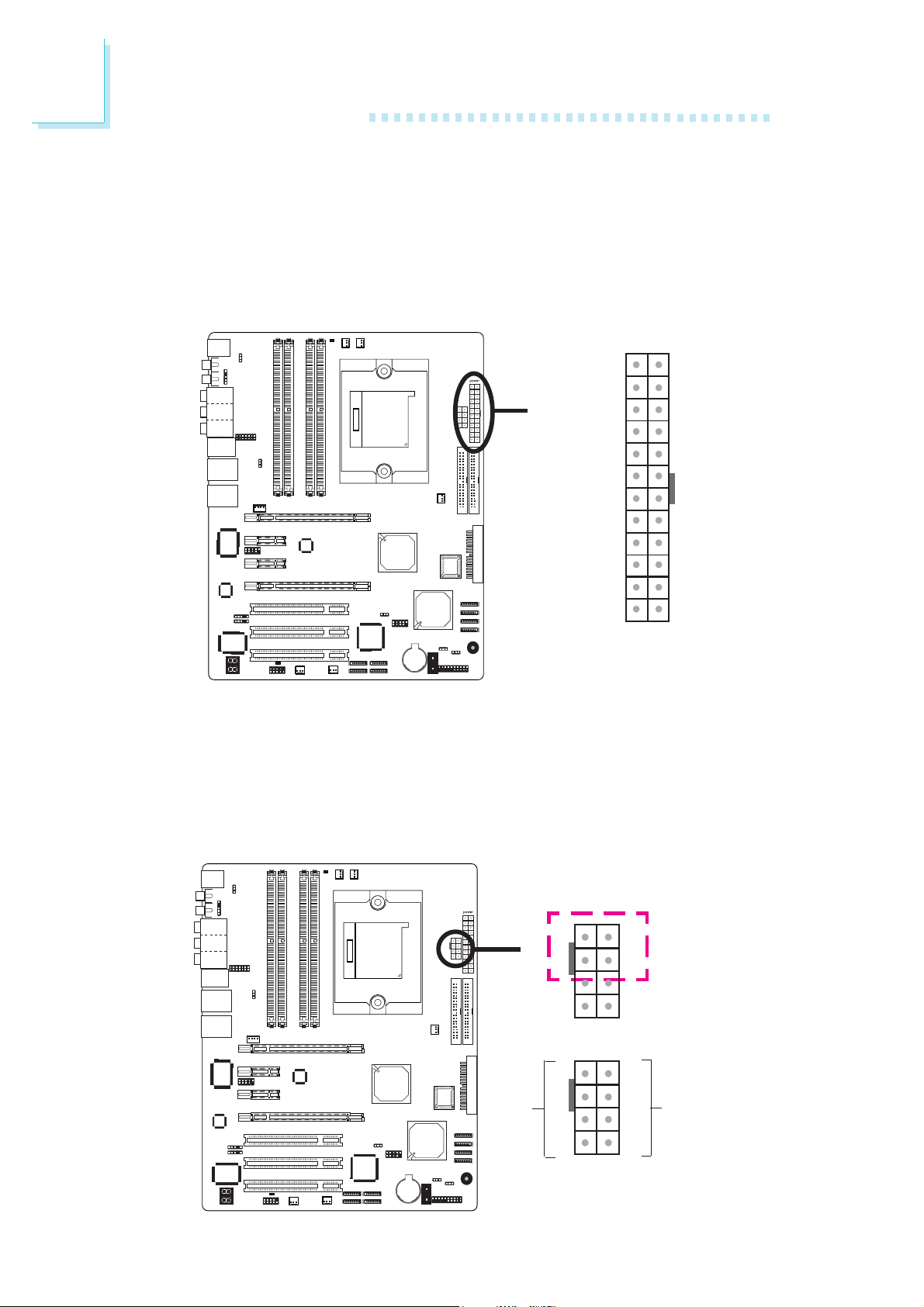

1 90 1 24-pin ATX power connector 1 8-pin ATX 12V power connector 1 4-pin 5V/12V power connector (FDD type) 1 front panel connector 5 fan connectors 1 Debug LED EZ touch switches (power switch and reset switch)

ATX form factor 24cm (9.45") x 30.5cm (12")

Introduction

Features

applications by allowing both 32-bit and 64-bit applications to run simultaneously on the same platform. The operating system and software are able to process more data and access a tremendous amount of memory which improves the overall system performance.

2T timing which provides better system stability is supported in CG or later revisions of the AMD Athlon the memory timing in the Genie BIOS Setting submenu (“DRAM Configuration” section) of the BIOS.

The system board supports the AMD Athlon Athlon computing for many software

64 processor. AMD

64 provides superior

64 processor. You can select

The AMD Cool‘n’QuietTM technology allows

Cool‘n’Quiet

utilization status. When the CPU’s task slows down, the system effectively lowers power consumption by lowering its CPU speed and voltage, subsequently decreasing its noise level.

graphics card and a standard PCI Express graphics card, the power of these multiple GPUs (Graphics Processing Units) within the system will accelerate your gaming performance and improve image quality.

the physical layer of x1 and x16 lane widths. The x1 PCI Express lane supports transfer rate of 2.5 Gigabytes (250MBbps) per second. The PCI Express architecture also provides a high performance graphics infrastructure by enhancing the capability of a x16 PCI Express lane to provide 4 Gigabytes per second transfer rate.

the system to detect the CPU’s tasks and

ATI’s CrossFire PC to a new peak of performance. By connecting a Radeon CrossFire Edition

PCI Express is a high bandwidth I/O infrastructure that possesses the ability to scale speeds by forming multiple lanes. The system board currently supports

technology drives your

Introduction

CPU Overheat Protection

temperature limit pre-defined by the CPU, the system will automatically shutdown. This preventive measure has been added to protect the CPU from damage and insure a safe computing environment.

doubling the speed of data transfer.

able to conveniently switch between these settings simultaneously.

CPU Overheat Protection has the capability of monitoring the CPU’s temperature during system boot up. Once the CPU’s temperature exceeded the

Double Data Rate SDRAM (DDR SDRAM) is a type of SDRAM that doubles the data rate through reading and writing at both the rising and falling edge of each clock. This effectively doubles the speed of operation therefore

CMOS Reloaded is a technology that allows storing multiple user-defined BIOS settings by using the BIOS utility to save, load and name the settings. This is especially useful to overclockers who require saving a variety of overclocked settings and being

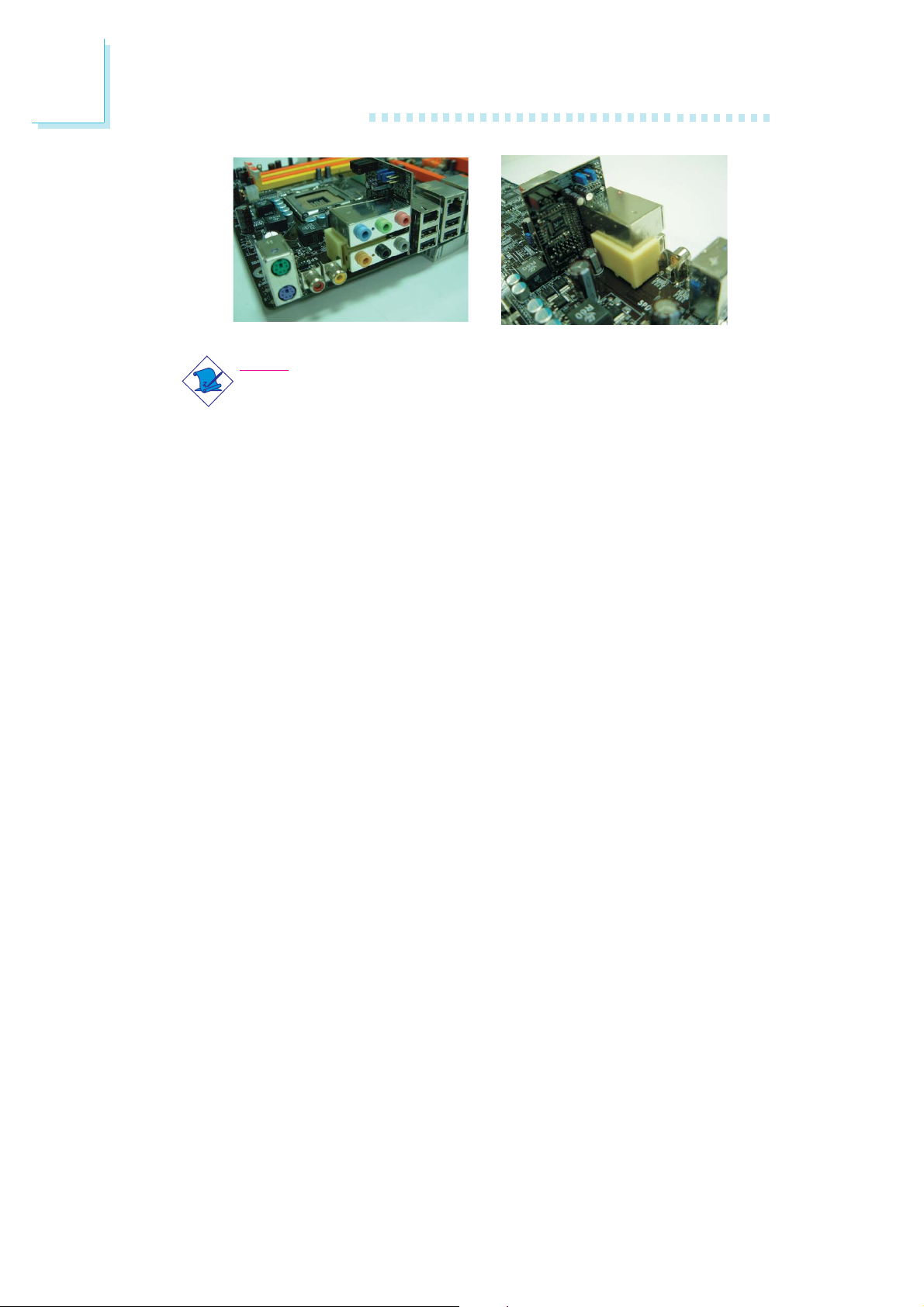

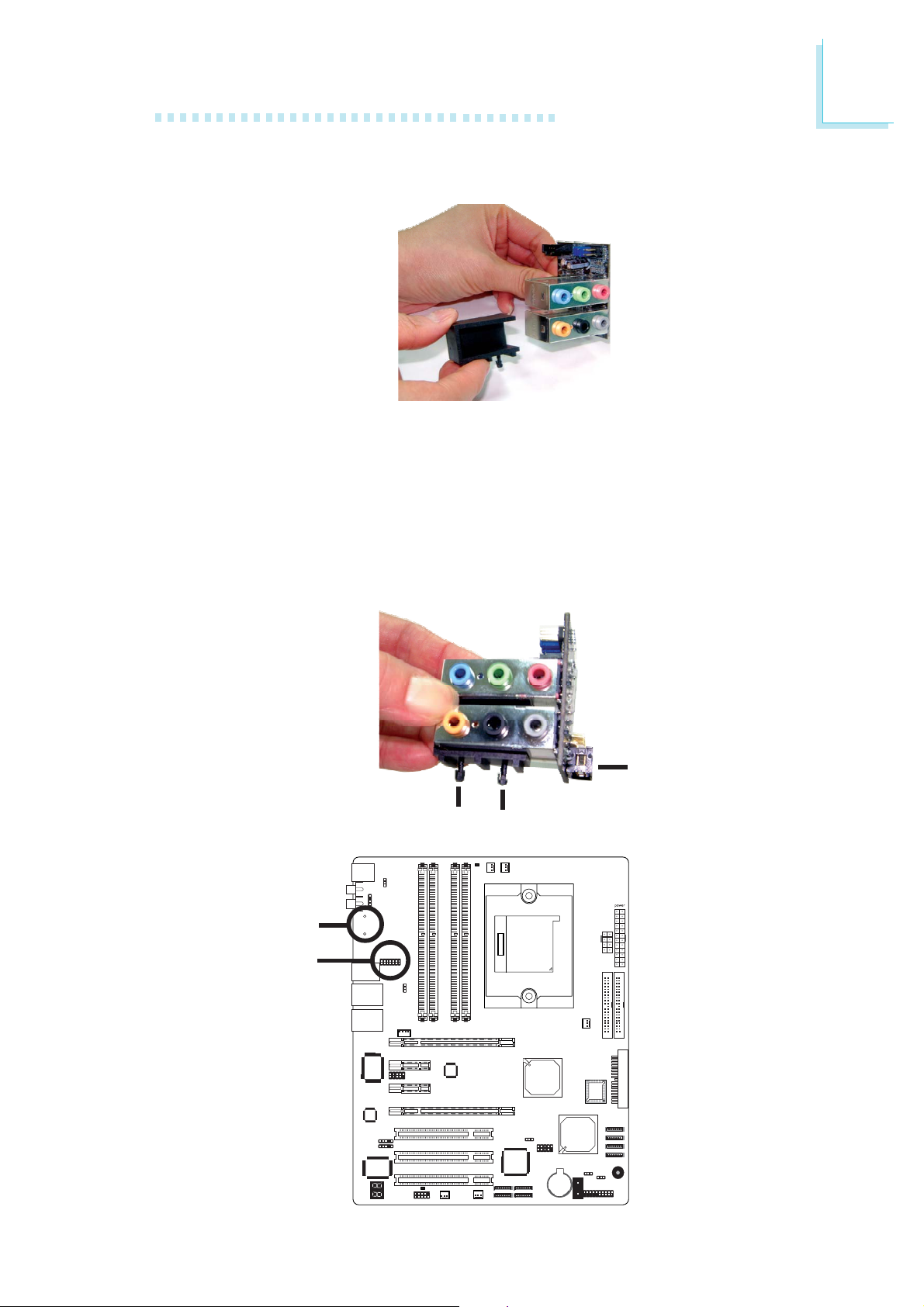

The Karajan audio module at the rear I/O panel has 6 audio jacks that provide 8-channel audio output for advanced 7.1-channel super surround sound audio system. It is also equipped with a CD-in and front audio

connector.

S/PDIF is a standard audio file transfer format that transfers digital audio signals to a device without having to be converted first to an analog format. This prevents

the quality of the audio signal from degrading whenever it is converted to analog. S/PDIF is usually found on digital audio equipment such as a DAT machine or audio processing device. The S/PDIF connector on the system board sends surround sound and 3D audio signal outputs to amplifiers and speakers and to digital recording devices like CD recorders.

Introduction

Serial ATA is a storage interface

that is compliant with SATA 1.0 specification. ULI M1575 supports 4 Serial ATA ports with speed of up to 3Gb/s which is twice as fast as the

standard 1.5Gb/s speed supported by Silicon Image that controls another 4 Serial ATA ports. Serial ATA it improves hard drive performance faster than the standard parallel ATA whose data transfer rate is 100MB/s.

The ULI M1575 chip allows configuring RAID on 4 Serial ATA drives. It supports RAID 0, RAID 1, RAID 0+1 and JBOD.

The Silicon Image Sil 3114 chip allows configuring RAID on another 4 Serial ATA ports. It supports RAID 0, RAID 1, RAID 0+1 and RAID 5.

The Marvell 88E8052 and Marvell 88E8053 Gigabit PCI LAN support up to 1Gbps.

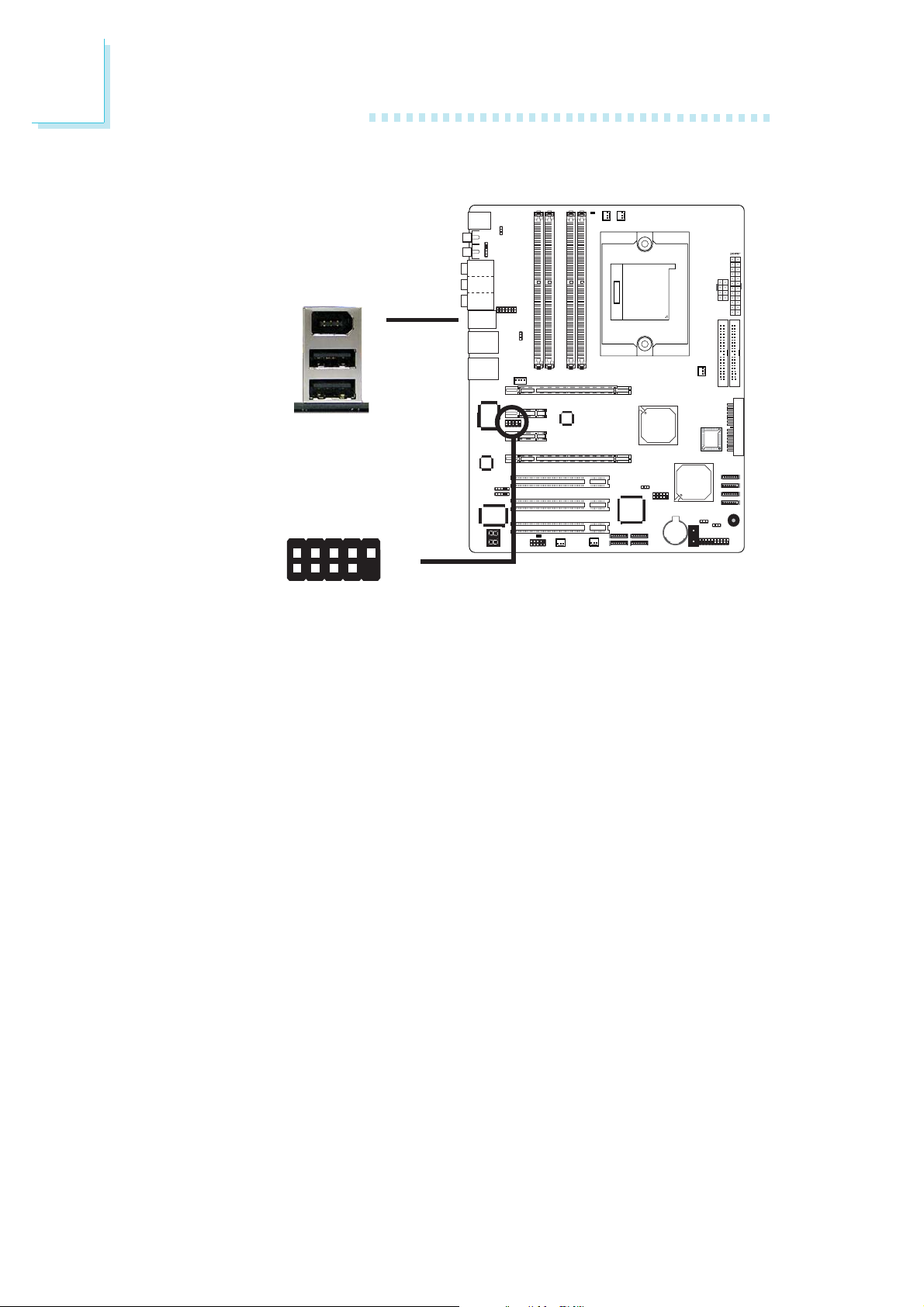

IEEE 1394 is fully compliant with the 1394 OHCI (Open Host Controller Interface) 1.1 specification. It supports up to 63 devices that can run simultaneously on a system.

1394 is a fast external bus standard that supports data transfer rates of up to 400Mbps. In addition to its high speed, it also supports isochronous data transfer which is ideal for video devices that need to transfer high levels of data in real-time. 1394 supports both Plug-and-Play and hot plugging.

IrDA

peripheral devices. The IRDA (Infrared Data Association) specification supports data transfers of 115K baud at a distance of 1 meter.

The system board is equipped with an IrDA connector for wireless connectivity between your computer and

Introduction

The system board supports USB 2.0 and USB 1.1 ports. USB 1.1 supports 12Mb/second bandwidth while USB 2.0 supports 480Mb/second bandwidth providing

a marked improvement in device transfer speeds between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.

W ake-On-ring

wake-up/power-on to respond to calls coming from an external modem or respond to calls from a modem PCI card that uses the PCI PME (Power Management Event) signal to remotely wake up the PC.

Important:

If you are using a modem add-in card, the 5VSB power source of your power supply must support a minimum of ≥720mA.

W ake-On-L AN

It is supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Management Event) signal. However, if your system is in the Suspend mode, you can power-on the system only through an IRQ or DMA interrupt.

Important:

The 5VSB power source of your power supply must support

≥

720mA.

This feature allows the system that is in the Suspend mode or Soft Power Off mode to

This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC.

Wake-On-PS/2

system.

Important:

The 5VSB power source of your power supply must support

≥

720mA.

This function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the

Introduction

W ake-On-USB

from the S3 (STR - Suspend To RAM) state.

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the 5VSB power source of your power supply must support ≥1.5A. For 3 or more USB ports, the 5VSB power source of your power supply must support ≥2A.

ACPI

specification. ACPI has energy saving features that enables PCs to implement Power Management and Plug-and-Play with operating systems that support OS Direct Power Management. Currently, only Windows enabled in the Power Management Setup will allow you to use the Suspend to RAM function.

The system board is designed to meet the ACPI (Advanced Configuration and Power Interface)

®®

2000/XP supports the ACPI function. ACPI when

This function allows you to use a USB keyboard or USB mouse to wake up a system

With the Suspend to RAM function enabled, you can power-off the system at once by pressing the power button or selecting “Standby”

®®

when you shut down Windows through the sometimes tiresome process of closing files, applications and operating system. This is because the system is capable of storing all programs and data files during the entire operating session into RAM (Random Access Memory) when it powers-off. The operating session will resume exactly where you left off the next time you power-on the system.

Important:

The 5VSB power source of your power supply must support

≥

1A.

®®

2000/XP without having to go

Français

Caractéristiques et Spécifications

Introduction

Processeur

Chipset

Mémoire Système

Logements d’Extension

BIOS

AMD® AthlonTM 64 X2 / Athlon 64 FX / AthlonTM 64 / Sempron

Socket 939

Interface HyperTransport 2000MT/s

chipset

ATI

- Pont nord: ATI CrossFire CFX3200

- Pont sud: ULI M1575

4 sockets DDR SDRAM DIMM 184 broches

Supporte l’interface de mémoire deux canaux (128-bit)

Supporte jusqu’à 4GB de mémoire

Supporte DDR SDRAM DIMM PC2100 (DDR266), PC2700

(DDR333) et PC3200 (DDR400)

Supporte exclusivement les modules DIMM non-ECC x8/x16,

densité de RAM jusqu’à 512Mb, DIMM non-tamponnés

2 slots PCI Express x16

- Mode CrossFire: Chaque slot x16 fonctionne à la bande passante x16.

- Mode Single VGA: Chaque slot x16 fonctionne à la bande passante x16.

2 slots PCI Express x1 3 slots PCI

Compatible avec Award BIOS CMOS Reloaded Overclocking de CPU/DRAM Contrôle du voltage de CPU/DRAM/Chipset Mémoire Flash 4Mbit

Gestion de Puissance

Fonctions de Moniteur de Matériel

ACPI et OS Directed Power Management ACPI STR (Suspend to RAM) fonction Réveil-Sur-PS/2 Clavier/Souris Réveil-Sur-USB Clavier/Souris Eveil Sonnerie Réveil Par Le Réseau Minuterie RTC pour allumer le système Récupération après Défaillance d’Alimentation CA

Gère l’alarme de température et de surchauffe de CPU/système/ chipset Gère l’alarme de voltage et d’échec de 12V/5V/3.3V/Vcore/ Vbat/5Vsb/Vdimm/Vchip Gère la vitesse de ventilateur du ventilateur Protection du CPU - supporte la mise hors circuit automatique en cas de surchauffage du système

Introduction

Audio

LAN

IDE

Serial ATA avec RAID

IEEE 1394

Panneau Arrière

Karajan carte audio

- Audio CODEC Realtek ALC882 8-canaux Définition Élevée

- 6 prises audio

- 1 connecteur CD-in

- 1 connecteur audio de l’avant Sorties de niveau de lignes stéréo vraies Interface entrée/sortie S/PDIF

Deux Gigabit LAN - Marvell 88E8052 et Marvell 88E8053 Gigabit PCI LAN Supporte IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX) et

802.3ab (1000BASE-T) Supporte des disques durs jusqu’à UltraDMA 133Mbps Quatre ports de série ATA gérés avec la puce ULI M1575

- Vitesse SATA jusqu’à 3Gb/s

- RAID 0, RAID 1, RAID 0+1 et JBOD Quatre ports de série ATA gérés par Silicon Image Sil 3114

- Vitesse SATA jusqu’à 1.5Gb/s

- RAID 0, RAID 1, RAID 0+1 et RAID 5 VIA VT6307

Supporte 2 100/200/400 Mb/sec ports

I/O

1 port souris PS/2 1 port clavier PS/2 2 S/PDIF RCA prises (S/PDIF-in et S/PDIF-out) 1 carte Karajan (6 prises audio) 1 port IEEE 1394 2 ports RJ45 LAN 6 ports USB 2.0/1.1

Interne I/O

PCB

1 connecteur pour 2 ports USB 2.0/1.1 supplémentaires

1 connecteur pour 1 IEEE 1394 1 connecteur pour 1 série 1 connecteur pour module audio Karajan 1 connecteur audio frontal pour les jacks de sortie externe et d’entrée micro (sur le module audio Karajan) 1 connecteur CD-in audio internes (sur le module audio Karajan) 1 S/PDIF l’assemblage pour l’adjonction de câble optique 1 connecteur IR 1 connecteur CIR 8 connecteurs Serial ATA 2 connecteurs IDE 1 connecteur de 90o FDD 1 connecteur d’alimentation 24-pin ATX 1 connecteur d’alimentation 8-pin 12V ATX 1 prises d’alimentation 4-broches 5V/12V (type-FDD) 1 connecteur devant panneau 5 connecteurs de ventilateurs 1 indicateur diagnostiques EZ interrupteurs (bouton de power et reset)

Facteur de forme de ATX 24cm (9.45") x 30.5cm (12")

Introduction

Deutsch

Leistungsmerkmale und Technische Daten

Prozessor

Chipset

Systemspeicher

Expansion Schlitz

AMD® AthlonTM 64 X2 / Athlon 64 FX / AthlonTM 64 / Sempron Socket 939 Interface HyperTransport 2000MT/s

ATI chipset

- Nordbrücke: ATI CrossFire CFX3200

- Südbrücke: ULI M1575 4 DDR-SDRAM-DIMM- Fassungen mit 184poligem

Anschlußstecker Unterhält 128-bit – Speiher mit den zwei Kanälen Unterhält bis zum 4GB-Systemspeicher Unterstützt DDR SDRAM DIMM PC2100 (DDR266), PC2700 (DDR333) und PC3200 (DDR400) Supporte exclusivement les modules DIMM non-ECC x8/x16, densité de RAM jusqu’à 512Mb, DIMM non-tamponnés

2 PCI Express x16-Einbauplätzen

- CrossFire Modus: Beide x16 Steckplätze arbeiten mit x16 Bandbreite.

- Single VGA Modus: Beide x16 Steckplätze arbeiten mit x16 Bandbreite.

2 PCI Express x1-Einbauplätzen 3 PCI-Einbauplätzen

BIOS

Energie Management

Kleinteilmonitor

Kompatibilität mit Award BIOS CMOS Reloaded Die Frequenzerhöhung CPU/DRAM Spannungserhöhung CPU/DRAM/Chipset Flash-Speicher (4Mbit)

ACPI und OS Directed Power Management ACPI STR (Suspend to RAM) funktion Wecken bei Betätigung der PS/2 Tastatur/Maus Wecken bei USB-Tastatur/Maus Wecken bei Klingeln Wecken des Systems durch das Netzwerk RTC-Taktgeber zum Einschalten des Systems Wiederherstellung der Wechselstromversorgung nach einem Ausfall

Überwachung der Temperatur des CPU/Systems/Chipset sowie Warnsignal bei Überhitzung Überwachung der Spannungen des 12V/5V/3.3V/Vcore/Vbat/ 5Vsb/Vdimm/Vchip Überwachung der Geschwindigkeit des Ventilators Prozessor-Shutz - Die Ausschaltung bei der Überhitzung – die automatische Ausschaltung des Computers bei der Überhitzung

Introduction

Audio

LAN

IDE

Serial ATA mit RAID

IEEE 1394

Porte an der Rückwand

Karajan-platine

- Realtek ALC882 8-Kanal Hohe Definition, Audio Codec

- 6 Audio-Anschlußbuchsen

- 1 interne Audioanschlüsse (CD-in)

- 1 Frontaudioanschluß Naturgetreue Stereo-Leitungspegel-Ausgabe S/PDIF-In/Aus-Schnittstelle

Zwei Gigabit LAN - Marvell 88E8052 und Marvell 88E8053 Gigabit PCI LAN Unterstützt IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX) und

802.3ab (1000BASE-T) Unterstützung der Festplatten bis zum UltraDMA 133Mbps Vier serielle Serial ATA-Ports, unterstützt von einem ULI M1575

- SATA bis zu 3Gb/s schnell

- RAID 0, RAID 1, RAID 0+1 und JBOD Vier serielle ATA-Ports, unterstützt von Silicon Image Sil 3114

- SATA bis zu 1.5Gb/s schnell

- RAID 0, RAID 1, RAID 0+1 und RAID 5 VIA VT6307

Unterstützt 2 100/200/400 Mb/sec porte 1 Mini-DIN-6-Anschluß für eine PS/2-Maus

1 Mini-DIN-6-Anschluß für eine PS/2-Tastatur 2 S/PDIF RCA-Anschlüsse (S/PDIF-in und S/PDIF-out) Karajan-platine (6 Audio-Anschlußbuchsen) 1 IEEE 1394-Anschlüsse 2 RJ45 LAN-Anschlüsse 6 USB 2.0/1.1-Anschlüsse

Internes I/O

PCB

Anschlußfassung für 2 zusätzliche externe USB 2.0/1.1-

Anschlüsse

1 Anschluß für eine externe IEEE 1394 Schnittstelle 1 Anschluß für eine externe serieller DB-9-Anschluß 1 Anschluß für eine Karajan Audiomodul 1 Front-Audioanschluss für externe Mikrofon-Ein- und –Ausgänge (im Karajan Audiomodul) 1 CD-in interne Audioanschlüsse (im Karajan Audiomodul) 1 S/PDIF Anschluß für die Verbindung des optischen Kabel 1 Anschluß für die IR-Schnittstelle 1 Anschluß für die CIR-Schnittstelle 8 Serial ATA-Anschlüsse 2 IDE-Anschlüsse 1 90o Floppy-Anschlüsse 1 24-polige Anschlußstecker für das ATX-Netzgerät 1 8-polige 12V Anschlußstecker für das ATX-Netzgerät 1 4-polige 5V/12V Netzstecker (für FDD) 1 Vorderseite Füllung Anschlüsse 5-ventilator-Anschlüsse 1 diagnostischen Außenindikatoren EZ Umschaltern (der Knopf der Speisung und des Auslasses)

ATX Formfaktor 24cm (9.45") x 30.5cm (12")

Español

Características y Especificaciones

Introduction

Procesador

Chipset

Memoria de Sistema

Ranuras de Expansión

BIOS

AMD® AthlonTM 64 X2 / Athlon 64 FX / AthlonTM 64 / Sempron Socket 939 Interface de HyperTransport 2000MT/s

chipset

ATI

- Puente norte: ATI CrossFire CFX3200

- Puente sur: ULI M1575

4 zocalos 184-pin DDR SDRAM DIMM Soporta memoria de dos canales (128-bit) Soporta hasta 4 GB de memoria sistémica Soporta PC2100 (DDR266), PC2700 (DDR333) y PC3200 (DDR400) Soporta sólo non-ECC x8/x16 DIMM, unbuffered, apoyo hasta 512 Mb DRAM

2 slot PCI Express x16

- Modo CrossFire: Los slots x16 operan con un ancho de banda x16.

- Modo Single VGA: Los slots x16 operan con un ancho de banda x16.

2 slot PCI Express x1 3 slots PCI

Award BIOS CMOS Reloaded Subida de frecuencia de CPU/DRAM Subida de voltaje de CPU/DRAM/Chipset Memoria Instante (4Mbitios)

Gerencia de la Energía

Monitor del Hardware

ACPI y OS Directed Power Management ACPI STR (Suspend to RAM) función PS/2 Teclado/Ratón de Wake-On USB Teclado/Ratón de Wake-On Wake-On-Ring Wake-On-LAN Temporizador de RTC para encender el sistema Recuperación de Fracaso de Energía AC

Monitores de los CPU/sistema/chipset temperaturas y alarma acalorada. Monitores de voltajes de 12V/5V/3.3V/Vcore/Vbat/5Vsb/ Vdimm/Vchip Vigila la velocidad del abanico del abanido Protección del procesador - Desconección en caso de recalentamiento –el ordenador se desconecta automáticamente en caso de recalentamiento

Introduction

Audio

LAN

IDE

Serial ATA con RAID

IEEE 1394

Panel Trasero I/O

Tablero de Karajan

- Realtek ALC882 8-canal Alta Definición Audio CODEC

- 6 enchufes de audio

- 1 conector de CD-in audio interno

- 1 conectador audio delantero Auténtico salidas de nivel de línea estéreo Interfáz de S/PDIF-in/out

Dos Gigabit LAN - Marvell 88E8052 y Marvell 88E8053 Gigabit PCI LAN Soporta IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX) y

802.3ab (1000BASE-T) Soporta las unidades duras hasta de UltraDMA 133Mbps 4 ports de Serial ATA soporta por ULI M1575

- SATA se acelera a 3Gb/s

- RAID 0, RAID 1, RAID 0+1 y JBOD 4 ports de Serial ATA soporta por Silicon Image Sil 3114

- SATA se acelera a 1.5Gb/s

- RAID 0, RAID 1, RAID 0+1 y RAID 5 VIA VT6307

Soporta 2 ports 100/200/400 Mb/sec 1 puerto de ratón PS/2

1 puerto de teclado PS/2 2 enchufes de S/PDIF RCA (S/PDIF-in y S/PDIF-out) 1 tablero de Karajan (6 enchufes de audio) 1 puerto de IEEE 1394 2 puertos de RJ45 LAN 6 puertos de USB 2.0/1.1

Conectador Interno

PCB

1 conector para 2 puertos de USB 2.0/1.1 externo adicional 1 conector para un puerto de IEEE 1394 1 conector para un puerto de DB-9 serie externa 1 conector para un módulo de sonido de Karajan 1 connector de sonido delantera por linea externa y micrófono interno (en el módulo de sonido de Karajan) 1 conector de CD-in audio interno (en el módulo de sonido de Karajan) 1 S/PDIF mortaja para conección de cable óptico 1 conector de IR 1 conector de CIR 8 conectores de Serial ATA 2 conector de IDE 1 conector de 90 1 conector 24-pin de fuente de alimentación de ATX 1 conector 8-pin 12V de fuente de alimentación de ATX 1 4-fichas conectadores de energía de 5V/12V (FDD-tipo) 1 conector de panel delante 5 conectores de abanicos 1 indicadores diagnósticos EZ conmutadores (conmutadores de alimentación y reset)

ATX forme el factor 24cm (9.45") x 30.5cm (12")

FDD

Русский языкРусский язык

Русский язык

Русский языкРусский язык

Характеристики и свойстваХарактеристики и свойства

Характеристики и свойства

Характеристики и свойстваХарактеристики и свойства

ПроцессорПроцессор

Процессор

ПроцессорПроцессор

ЧипсетЧипсет

Чипсет

ЧипсетЧипсет

AMD® AthlonTM 64 X2 / Athlon 64 FX / AthlonTM 64 / Sempron гнездо 939 Интерфейс системной шины 2000MT/s

ATI

- Северный мост: ATI CrossFire CFX3200

- Южный мост: ULI M1575

Чипсет

Introduction

ОперативнаяОперативная

Оперативная

ОперативнаяОперативная ПамятьПамять

Память

ПамятьПамять

управлениеуправление

управление

управлениеуправление силыñèëû

ñèëû

ñèëûñèëû

BIOSBIOS

BIOS

BIOSBIOS

управлениеуправление

управление

управлениеуправление силыñèëû

ñèëû

ñèëûñèëû

4 184-pin DDR SDRAM DIMM Поддерживает двухканальный (128-битного) интерфейс Поддерживает до 4ГБ системной памяти Поддерживает PC2100 (DDR266), PC2700 (DDR333) и PC3200 (DDR400) DDR SDRAM DIMM Поддерживает только non-ECC x8/x16 DIMM, небуфф, Поддержка до 512Mб DRAM

2 PCI Express x16 слотов

- Режим CrossFire: Каждый слот x16 работает с пропускной способностью x16.

- Режим Single VGA – Каждый слот x16 работает с пропускной способностью x16.

2 PCI Express x1 слотов 3 PCI слотов

Award BIOS CMOS Reloaded

Повышение частоты CPU/DRAM Повышение напряжения CPU/DRAM/Chipset

4Mbit Flash Память

ACPI и OS Directed Power Management ACPI STR (Suspend to RAM) Активизация На Движение Мыши Активизация На Нажатие Кнопки USB Клавиатуры Активизация На Входящий Звонок Активизация На Сетевое Событие RTC Таймер для Включения Системы Скачки Напряжения

монитормонитор

монитор

монитормонитор оборудованияоборудования

оборудования

оборудованияоборудования

Mониторинг температуры процессора/системы/ Mониторинг напряжений 12V/5V/3.3V/Vcore/Vbat/5Vsb/ Vdimm/Vchip Mониторинг скорости вращения вентилятора Защита процессора - Выключение при перегреве – автоматическое выключение компьютера при перегреве

Чипсет

Introduction

тональнозвуковотональнозвуково

тональнозвуково

тональнозвуковотональнозвуково

LANLAN

LAN

LANLAN

IDEIDE

IDE

IDEIDE

Serial ASerial A

Serial A

Serial ASerial A RAIDRAID

RAID

RAIDRAID

A cA c

A c

A cA c

звуковой модуль Karajan

- Полнодуплексный Realtek ALC882 Высокое Определение Audio Codec 8-и канальный звуковой выход

- 6 гнезда для звука

- 1 разъем CD-in

- 1 передний аудио разъем

Настоящий линейный стерео выход интерфейса S/PDIF-in/out

2 Gigabit LAN - Marvell 88E8052 и Marvell 88E8053 Gigabit PCI LAN Поддержка IEEE 802.3 (10BASE-T), 802.3u (100BASETX) и 802.3ab (1000BASE-T)

Поддерживает жесткие диски до UltraDMA 133Mbps

Чип ULI M1575 поддерживает четыре порта Serial ATA

- Скорость SATA до 3 ГБ/с

- RAID 0, RAID 1, RAID 0+1 è JBOD

Чип Silicon Image Sil 3114 поддерживает четыре порта Serial ATA

- Скорость SATA до 1.5 ГБ/с

- RAID 0, RAID 1, RAID 0+1 è RAID 5

IEEE 1394IEEE 1394

IEEE 1394

IEEE 1394IEEE 1394

задняя панельзадняя панель

задняя панель

задняя панельзадняя панель I/OI/O

I/O

I/OI/O

внутренне внутренне

внутренне

внутренне внутренне

I/OI/O

I/O

I/OI/O

VIA VT6307 Поддерживает 2 100/200/400 Mb/sec порта

1 мини-DIN-6 PS/2 порт для мыши и 1 мини-DIN-6 PS/2 порт для клавиатуры 2 S/PDIF RCA звука (S/PDIF-in и S/PDIF-out) звуковой модуль Karajan (6 гнезда для звука)

1 IEEE 1394 порт и 2 RJ45 LAN порт 6 USB 2.0/1.1 порта

1 разъем для 2-х дополнительных внешних USB 2.0/

1.1 портов

1 разъем для внешнего IEEE 1394 порта 1 разъем для внешнего внешнего DB-9 1 разъем для аудио-модуле Karajan

1 фронтальный аудио-разъем для внешнего линейного и микрофонного выходов (на аудио-модуле Karajan)

1 CD-in внутренних звуковых разъема (на аудиомодуле Karajan)

1 S/PDIF разъем для присоединения оптического кабеля

2 разъем для интерфейса IR и CIR 8 Serial ATA разъема 2 IDE разъема и 1 разъем 90o FDD 1 24-штырьковых разъемов питания ATX 1 8-штырьковых 12V разъемов питания ATX

1 4-штырьковых разъемов питания 5V/12V (типа FDD)

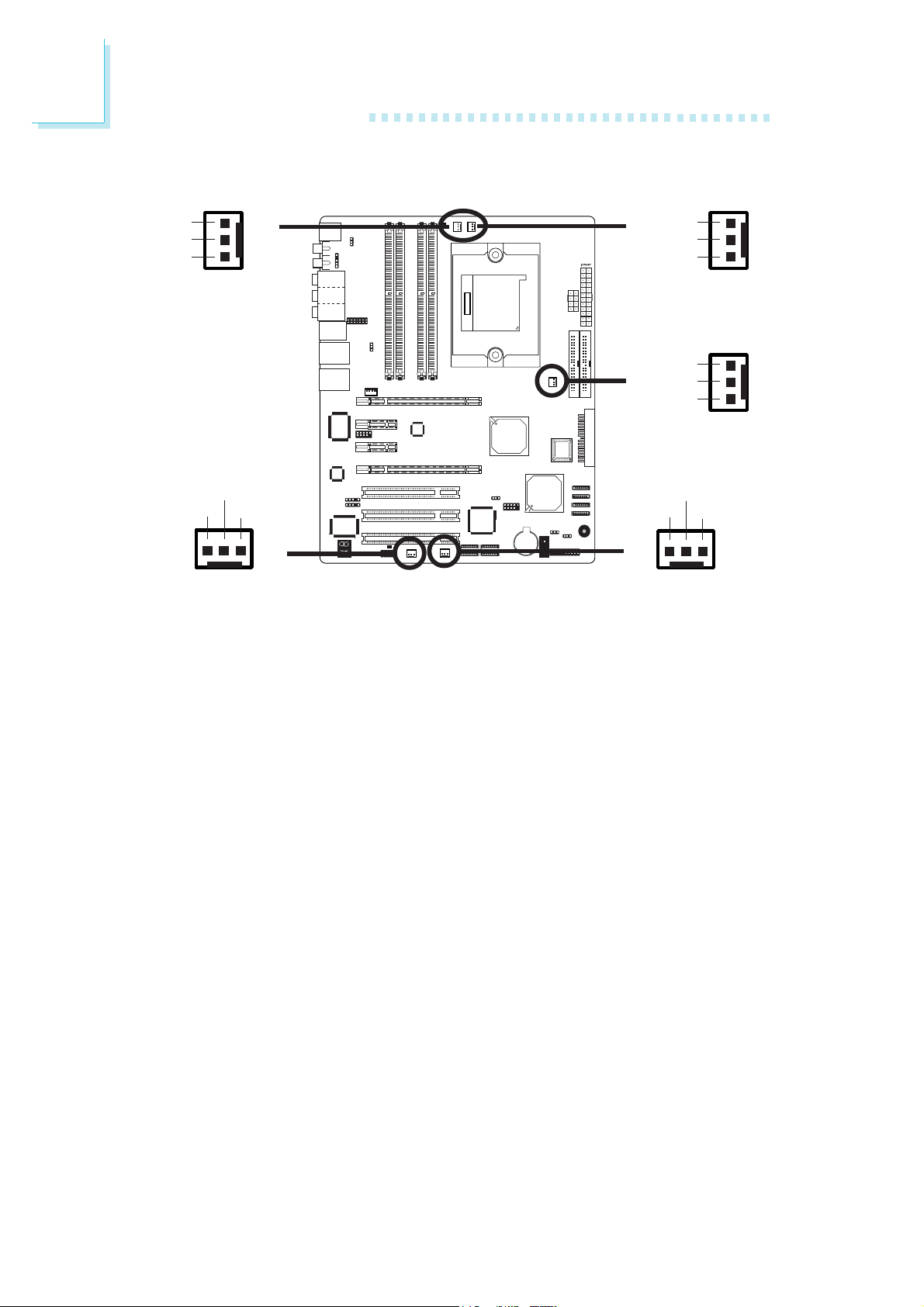

1 Фронт панель разъем и 5 Разъемы для вентилятора

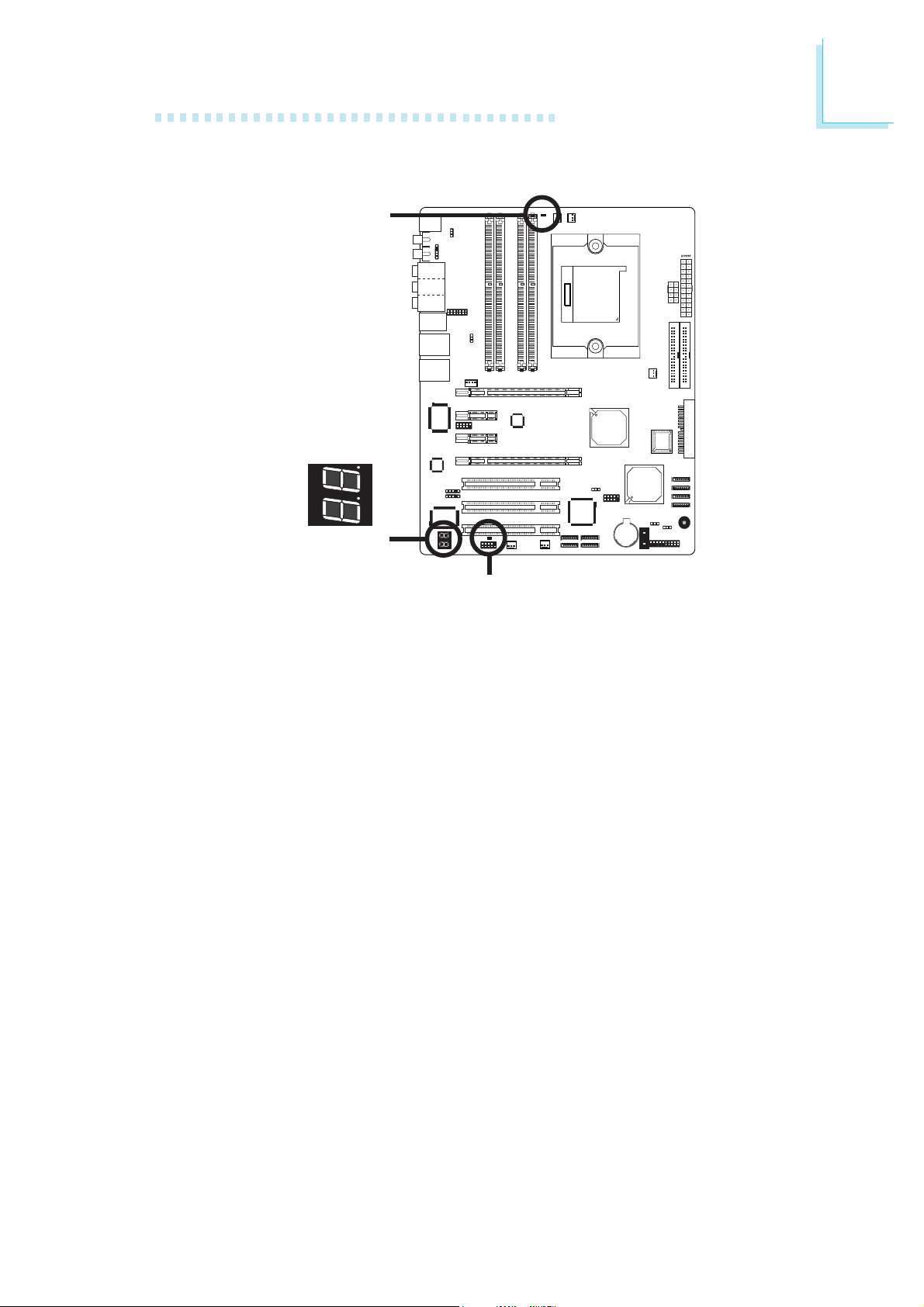

1-х внешних диагностических индикаторов EZ переключатели (кнопка питания и сброса)

PCBPCB

PCB

PCBPCB

ATX, 24cm (9.45") x 30.5cm (12")

Introduction

Hardware Installation

Chapter 2 - Hardware Installation

System Board Layout

Hardware Installation

Warning:

Electrostatic discharge (ESD) can damage your system board, processor, disk drives, add-in boards, and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

System Memory

Warning:

When the DRAM Power LED lit red, it indicates that power is present on the DDR sockets. Power-off the PC then unplug the power cord prior to installing any memory modules. Failure to do so will cause severe damage to the motherboard and components.

DRAM Power LED

Channel A

DDR 1 DDR 2

DDR 3

Channel B

DDR 4

The system board supports DDR SDRAM DIMM. Double Data Rate SDRAM (DDR SDRAM) is a type of SDRAM that doubles the data rate through reading and writing at both the rising and falling edge of each clock. This effectively doubles the speed of operation therefore doubling the speed of data transfer. Refer to chapter 1 (System Memory section) for detailed specification of the memory supported by the system board.

Hardware Installation

The four DDR DIMM sockets on the system board are divided into 2 channels:

Channel A - DDR 1 and DDR 2 Channel B - DDR 3 and DDR 4

The system board supports the following memory interface.

Single Channel (SC)

Data will be accessed in chunks of 64 bits (8B) from the memory channels.

Dual Channel (DC)

Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides better system performance because it doubles the data transfer rate.

Single Channel

Dual Channel

BIOS Setting

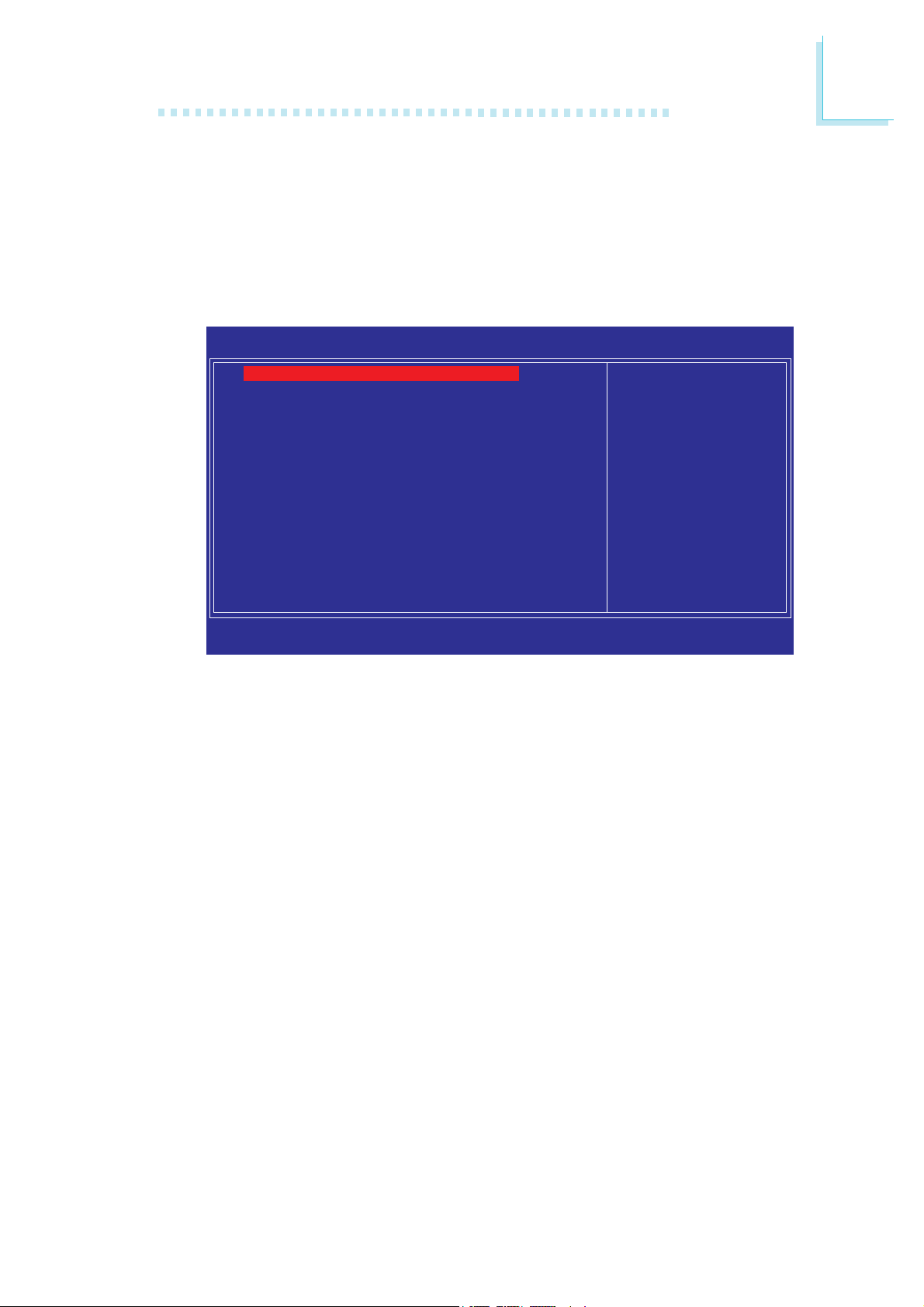

Configure the system memory in the Genie BIOS Setting submenu (“DRAM Configuration” section) of the BIOS.

• DIMMs are on the same channel.

• DIMMs in a channel can be identical or

completely different. However, we highly recommend using identical DIMMs.

• Not all slots need to be populated.

• DIMMs of the same memory configura-

tion are on different channels.

Hardware Installation

The integrated memory controller in AMD's 64-bit Socket 939 series CPU will directly catch data transmission from DDR RAM without passing through the North bridge. Therefore when using 4 identical double side DIMMs or using 2 DIMMs in non-dual channels, the memory speed will reduce to DDR333. Please refer to the detailed memory speed shown below.

Memory Speed

DDR400 DDR400 DDR400 DDR400 DDR400 DDR400 DDR400 DDR333 DDR400 DDR333

"S": Single side DIMM "D": Double side DIMM

DIMM 1

DIMM 2

DIMM 3

DIMM 4

A DIMM's SPD is originally fixed at 1T. When modules are inserted in DIMM 1 and DIMM 3, the SPD must be 2T for better system stability. We recommend inserting DIMMs in DIMM 2 and DIMM 4.

Installing the DIM Module

A DIM module simply snaps into a DIMM socket on the system board. Pin 1 of the DIM module must correspond with Pin 1 of the socket.

Hardware Installation

Notch Key

Tab

Pin 1

1. Pull the “tabs” which are at the ends of the socket to the side.

2. Position the DIMM above the socket with the “notch” in the module aligned with the “key” on the socket.

3. Seat the module vertically into the socket. Make sure it is completely seated. The tabs will hold the DIMM in place.

Tab

Hardware Installation

CPU

Overview

The system board is equipped with a surface mount 939-pin CPU socket. This socket is exclusively designed for installing an AMD CPU.

Installing the CPU

1. Make sure the PC and all other peripheral devices connected to it has been powered down.

2. Disconnect all power cords and cables.

3. Locate the 939-pin CPU socket on the system board.

Hardware Installation

4. Unlock the socket by pushing the lever sideways, away from the socket, then lifting it up to a 90o angle. Make sure the lever is lifted to at least this angle otherwise the CPU will not fit in properly.

Lever

5. Position the CPU above the socket. The gold mark on the CPU must align with the corner of the CPU socket (refer to the enlarged view) shown below.

Important:

Handle the CPU by its edges and avoid touching the pins.

Gold mark

Hardware Installation

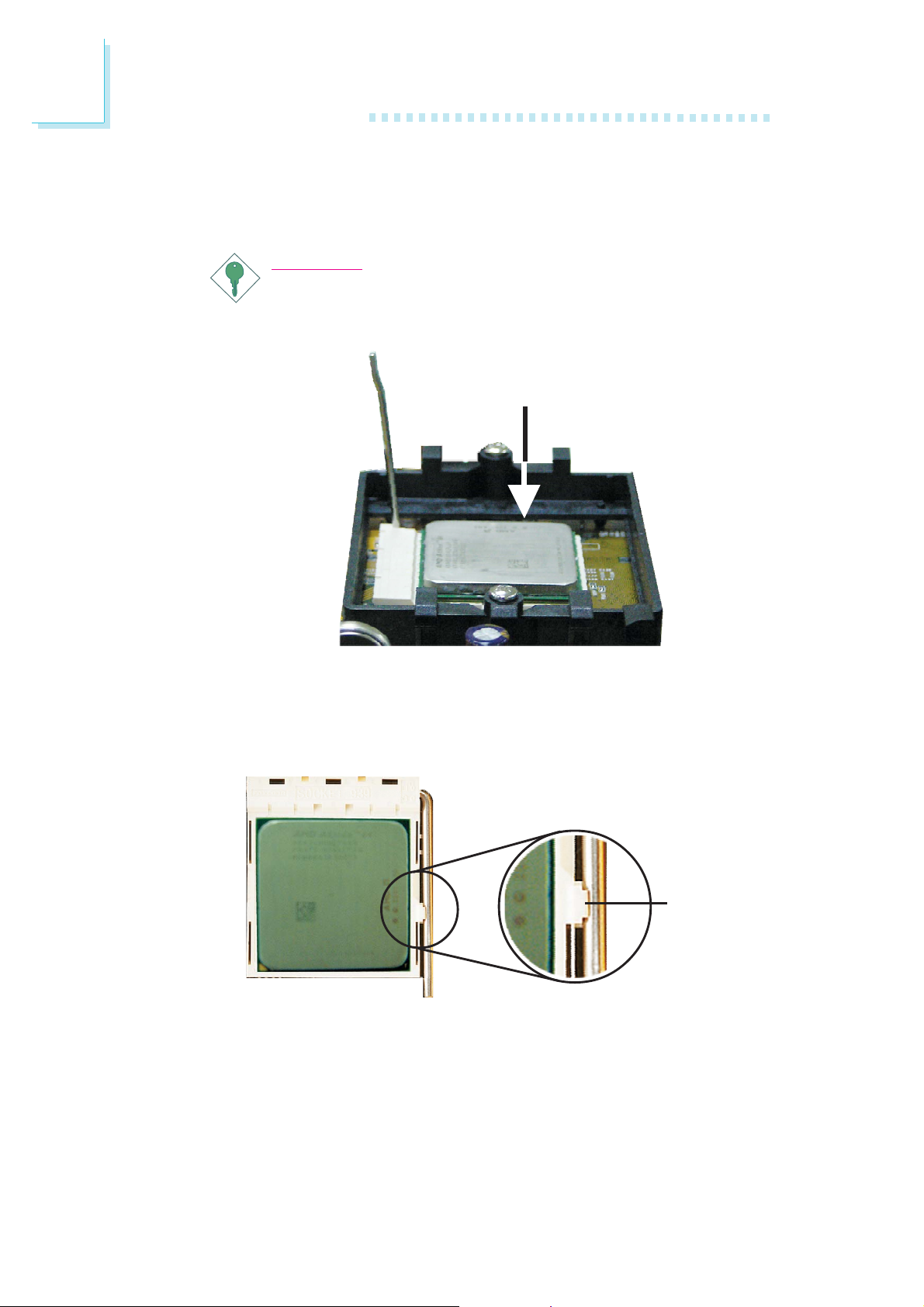

6. Insert the CPU into the socket until it is seated in place. The CPU will fit in only one orientation and can easily be inserted without exerting any force.

Important:

Do not force the CPU into the socket. Forcing the CPU into the socket may bend the pins and damage the CPU.

7. Once the CPU is in place, push down the lever to lock the socket. The lever should click on the side tab to indicate that the CPU is completely secured in the socket.

Side tab

Installing the Fan and Heat Sink

The CPU must be kept cool by using a CPU fan with heat sink. Without sufficient air circulation across the CPU and heat sink, the CPU will overheat damaging both the CPU and system board.

Note:

• Use only certified fan and heat sink.

• The fan and heat sink package usually contains the fan and

heat sink assembly, and an installation guide. If the installation procedure in the installation guide differs from the one in this section, please follow the installation guide in the package.

1. Before you install the fan / heat sink, you must apply a thermal paste onto the top of the CPU. The thermal paste is usually supplied when you purchase the CPU or fan heat sink assembly. Do not spread the paste all over the surface. When you later place the heat sink on top of the CPU, the compound will disperse evenly.

Hardware Installation

Do not apply the paste if the fan / heat sink already has a patch of thermal paste on its underside. Peel the strip that covers the paste before you place the fan / heat sink on top of the CPU.

2. The system board comes with the retention module base already installed.

Retention module base

Hardware Installation

3. Place the heat sink on top of the CPU. Now hook one side of the retention clip onto the retention module base by fitting the holes on the retention clip into the retaining tabs of the retention module base.

Retaining tab

Retention clip

Retention module base

Side View

Retaining

tabs

Retaining tabs

Top View

Hardware Installation

4. Hook the other side of the retention clip (the one near the retention lever) so that the holes on the retention clip also fit into the retaining tabs of the retention module base.

Note:

You will not be able to secure the fan and heat sink assembly in place if it did not fit properly onto the retention module base.

Retention lever

5. Move the retention lever to its opposite side then push it down to lock the fan and heat sink assembly to the retention module base.

Note:

Make sure there is sufficient air circulation across the CPU fan and heat sink.

6. Connect the CPU fan’s cable connector to the CPU fan connector on the system board.

Hardware Installation

Jumper Settings

Clear CMOS Data

312312

JP2

1-2 On: Normal

(default)

If you encounter the following,

a) CMOS data becomes corrupted. b) You forgot the supervisor or user password. c) You are unable to boot-up the computer system because the

processor’s clock/ratio was incorrectly set in the BIOS.

you can reconfigure the system with the default values stored in the ROM BIOS.

To load the default values stored in the ROM BIOS, please follow the steps below.

1. Power-off the system and unplug the power cord.

2. Set JP2 pins 2 and 3 to On. Wait for a few seconds and set JP2 back to its default setting, pins 1 and 2 On.

2-3 On:

Clear CMOS Data

3. Now plug the power cord and power-on the system.

If your reason for clearing the CMOS data is due to incorrect setting of the processor’s clock/ratio in the BIOS, please proceed to step 4.

Hardware Installation

4. After powering-on the system, press <Del> to enter the main menu of the BIOS.

5. Select the Genie BIOS Setting submenu and press <Enter>.

6. Set the processor’s clock/ratio to its default setting or an appropriate bus clock/ratio. Refer to the Genie BIOS Setting section in chapter 3 for more information.

7. Press <Esc> to return to the main menu of the BIOS setup utility. Select “Save & Exit Setup” and press <Enter>.

8. Type <Y> and press <Enter>.

Hardware Installation

PS/2 Power Select

JP7

1-2 On: 5V

(default)

1 2 3

2-3 On: 5VSB

1 2 3

JP7 is used to select the power of the PS/2 keyboard/mouse port. Selecting 5VSB will allow you to use the PS/2 keyboard or PS/2 mouse to wake up the system.

BIOS Setting

Configure the PS/2 keyboard/mouse wake up function in the Integrated Peripherals submenu (“I/O Setting” section) of the BIOS. Refer to chapter 3 for more information.

Important:

The 5VSB power source of your power supply must support

≥

720mA.

USB Power Select

Hardware Installation

USB 1-6

(JP5)

USB 7-8

(JP6)

(default)

3 2 1

2-3 On: 5VSB1-2 On: 5V

132 132

2-3 On: 5VSB1-2 On: 5V

3 2 1

JP5 and JP6 are used to select the power of the USB ports. Selecting 5VSB will allow you to use the USB keyboard or USB mouse to wake up the system..

BIOS Setting

Configure the USB wake up function in the Power Management Setup submenu (“PowerOn/WakeUp Function” section) of the BIOS. Refer to chapter 3 for more information.

Important:

Hardware Installation

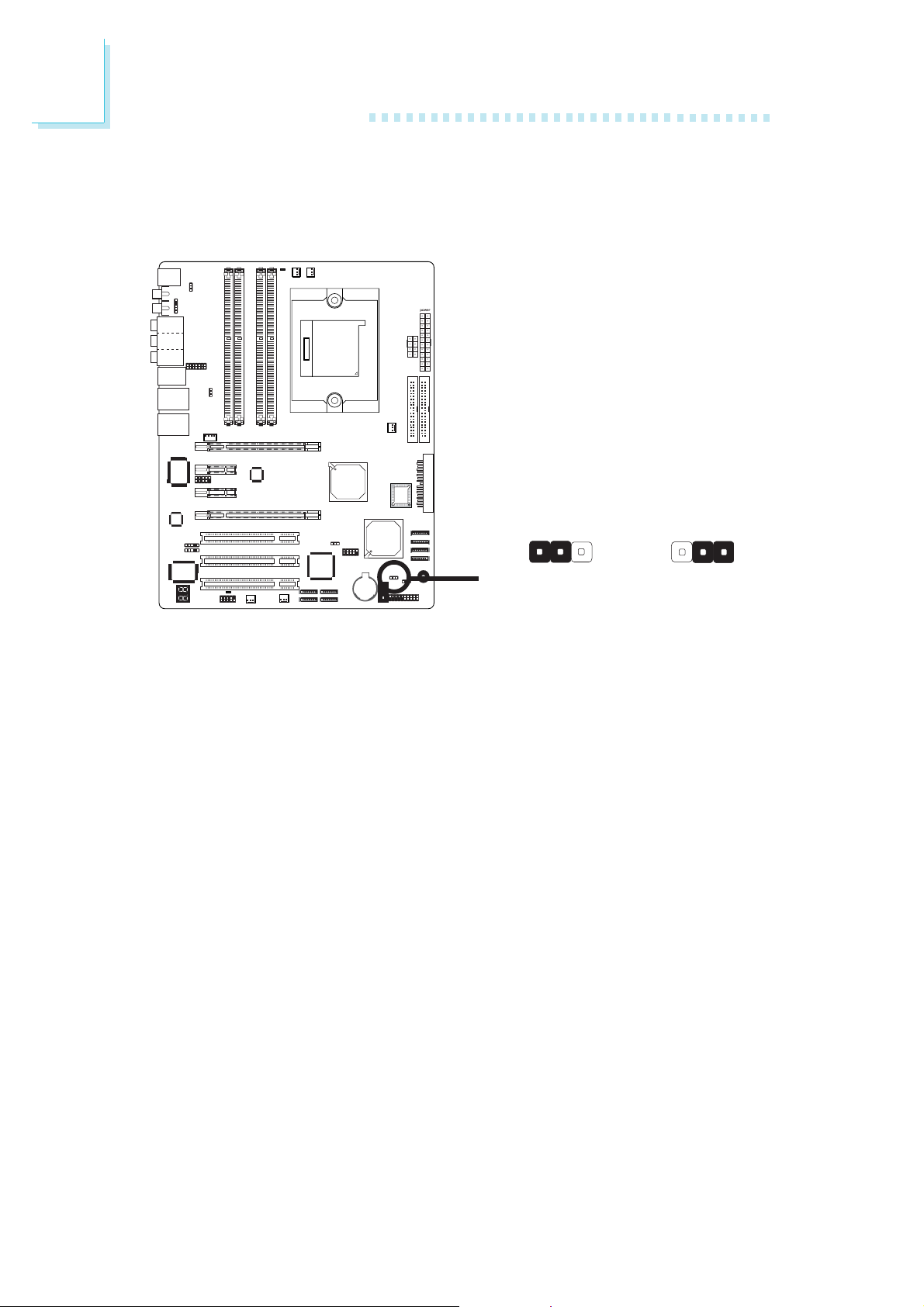

Speaker On/Off Select

Buzzer

JP8

The system board is equipped with a buzzer which serves as the PC’s speaker. By default the buzzer is “on” allowing you to hear the system’s beep messages and warnings. If you intend to use an external speaker, turn this function off by setting JP8 pins 1 and 2 to On.

1-2 On:

Speaker Off

Speaker On

(default)

312312

2-3 On:

Rear Panel I/O Ports

Front R/L

(Line-out)

PS/2

Mouse

S/PDIF-in

Line-in

Mic-in

Hardware Installation

1394_1

LAN 2LAN 1

PS/2

K/B

The rear panel I/O ports consist of the following:

• PS/2 mouse port

• PS/2 keyboard port

• S/PDIF-in jack

• S/PDIF-out jack

• Karajan audio module

• 1394_1 port

• USB ports

• LAN 1 Gigabit PCI Express port

• LAN 2 Gigabit PCI Express port

S/PDIF-out

Subwoofer

Karajan audio module

- Line-in jack

- Front right/left jack (Line-out)

- Mic-in jack

- Center/Subwoofer jack

- Rear right/left port jack

- Side right/left port jack

Rear R/L

Center/

Side R/L

USB 1-2 USB 3-4 USB 5-6

Hardware Installation

PS/2 Mouse and PS/2 Keyboard Ports

PS/2 Mouse

PS/2 Keyboard

The system board is equipped with an onboard PS/2 mouse (Green) and PS/2 keyboard (Purple) ports - both at location CN2 of the system board. The PS/2 mouse port uses IRQ12. If a mouse is not connected to this port, the system will reserve IRQ12 for other expansion cards.

Warning:

Make sure to turn off your computer prior to connecting or disconnecting a mouse or keyboard. Failure to do so may damage the system board.

Wake-On-PS/2 Keyboard/Mouse

The Wake-On-PS/2 Keyboard/Mouse function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system. To use this function:

• Jumper Setting:

JP7 must be set to “2-3 On: 5VSB”. Refer to “PS/2 Power Select” in this chapter for more information.

• BIOS Setting:

Configure the PS/2 keyboard/mouse wake up function in the Integrated Peripherals submenu (“I/O Setting” section) of the BIOS. Refer to chapter 3 for more information.

S/PDIF-in/out Jacks

S/PDIF-in

S/PDIF-out

Hardware Installation

+5V

Key

SPDIF out

GND

SPDIF in

The system board is equipped with an onboard S/PDIF-in RCA jack (red) and a S/PDIF-out RCA jack (yellow) at locations CN5 and CN7 respectively.

The S/PDIF connector at location J3 is used to connect to optical S/PDIF ports. The S/PDIF ports may be mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis then connect the audio cable connector to J3. Make sure pin 1 of the audio cable connector is aligned with pin 1 of J3.

DO NOT use RCA S/PDIF and optical S/PDIF at the same time.

Hardware Installation

Karajan Audio Module

Line-in

Mic-in

Front R/L

(Line-out)

Rear R/L

Center/

Subwoofer Karajan audio module

13 14

Karajan audio connector

Installing the Karajan Audio Module

Side R/L

The system board package includes a Karajan audio module and the module holder. The module holder is used to stabilize the Karajan audio module onto the system board.

PlugPlug

Karajan audio module Module holder

Hardware Installation

1. Fit the module holder onto the Karajan audio module.

2. Align the module’s plugs above the mounting holes then insert the plugs from the top through to the bottom of the system board. While at it, the 14-pin connector at the solder side of the module must also insert into the Karajan audio connector at location J7 of the system board. Make sure the plugs snap firmly out the bottom of the board.

Mounting holes

Karajan audio

connector (J7)

Plug

14-pin connector

Plug

Hardware Installation

Note:

The illustrations in this section are for reference only. The color of the module holder may differ from the actual one.

Uninstalling the Karajan Audio Module

The Karajan audio module is snapped through the system board via the module holder. Pull the Karajan audio module upward. The module holder will at the same time detach from the system board.

Karajan Audio Jacks

• Line-in (Light Blue)

This jack is used to connect any audio devices such as Hi-fi set, CD player, tape player, AM/FM radio tuner, synthesizer, etc.

• Front Right/Left Jack - Line-out (Lime)

This jack is used to connect to the front right and front left speakers of the audio system.

• Mic-in Jack (Pink)

This jack is used to connect an external microphone.

• Center/Subwoofer Jack (Orange)

This jack is used to connect to the center and subwoofer speakers of the audio system.

• Rear Right/Left Jack (Black)

This jack is used to connect to the rear right and rear left speakers of the audio system.

• Side Right/Left Jack (Gray)

This jack is used to connect to the side left and side right speakers of the audio system.

Hardware Installation

Front Audio

The front audio connector (J4) on the Karajan audio module allows you to connect to the line-out and mic-in jacks that are at the front panel of your system. Using this connector will disable the rear audio’s line-out and mic-in functions.

Audio codec

Line-in

Front R/L

Mic-in

Center/Subwoofer

Rear R/L

Side R/L

Line out_Left

Line out_Right

N. C.

Line out_Left_Front

Line out_Right_Front

Mic_Right

Mic_LeftGND

Vcc

Remove the jumper caps from pins 5-6 and pins 9-10 of J4 prior to connecting the front audio cable connector. Make sure pin 1 of the cable connector is aligned with pin 1 of J4. If you are not using this connector, make sure to replace the jumper caps back to their original pin locations.

Pins 5-6 and 9-10 short (default)

Pins 5-6 and 9-10 open

The front audio is disabled. The rear audio is enabled.

The front audio is enabled. The rear audio is disabled.

BIOS Setting

Configure the onboard audio in the Advanced Chipset Features submenu (“South Configuration” section) of the BIOS. Refer to chapter 3 for more information.

Driver Installation

Install the audio driver. Refer to chapter 4 for more information.

Hardware Installation

IEEE 1394

1394_1

1394_2

Ground

TPA-

2 1

TPA+

Ground

TPB-

+12V (fused)

Key

TPB+

+12V (fused)

The system board is equipped with an onboard IEEE 1394 port at location CN3 (IEEE 1394_1) of the system board.

It is also equipped with an IEEE 1394 connector at location J8 (1394_2) for connecting an additional 1394 device. The 1394 port may come mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis then insert the connector that is attached to the 1394 port cable to J8. Make sure pin 1 of the cable connector is aligned with pin 1 of the J8.

Universal Serial Bus Ports

USB 2 USB 1

Hardware Installation

USB 4 USB 3

USB 6

-Data

+Data

-Data

+Data

GND

N. C.

Key

GND

VCC

USB 5

USB 7-8

The system board supports 8 USB 2.0/1.1 ports. USB allows data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.

Six onboard USB 2.0/1.1 ports (Black) are at locations CN3 (USB 1-2), CN4 (USB 3-4) and CN6 (USB 5-6) of the system board.

J18 (USB 7-8) allows you to connect 2 additional USB 2.0/1.1 ports. The USB ports may come mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis then insert the connector that is attached to the USB port cables to J18.

BIOS Setting

Configure the onboard USB in the Integrated Peripherals submenu of the BIOS. Refer to chapter 3 for more information.

Hardware Installation

Driver Installation

You may need to install the proper drivers in your operating system to use the USB device. Refer to your operating system’s manual or documentation for more information.

Refer to chapter 4 for more information about installing the USB 2.0 driver.

Wake-On-USB Keyboard/Mouse

The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard to wake up a system from the S3 (STR - Suspend To RAM) state. To use this function:

• Jumper Setting: JP5 and/or JP6 must be set to “2-3 On: 5VSB”. Refer to “USB Power Select” in this chapter for more information.

• BIOS Setting: Configure the USB wake up function in the Power Management Setup submenu (“PowerOn/WakeUp Function” section) of the BIOS. Refer to chapter 3 for more information.

Important:

RJ45 LAN Port

LAN 1

Hardware Installation

LAN 2

LAN 1 (CN4)

- The Marvell 88E8052 Gigabit PCI Express x1 chip controls LAN

LAN 2 (CN6)

- The Marvell 88E8053 Gigabit PCI Express x1 chip controls LAN

LAN allows the system board to connect to a local area network by means of a network hub.

BIOS Setting

Configure the onboard LAN in the Genie BIOS Setting submenu (“PCI Device Control” section) of the BIOS. Refer to chapter 3 for more information.

Driver Installation

Install the LAN driver. Refer to chapter 4 for more information.

Hardware Installation

I/O Connectors

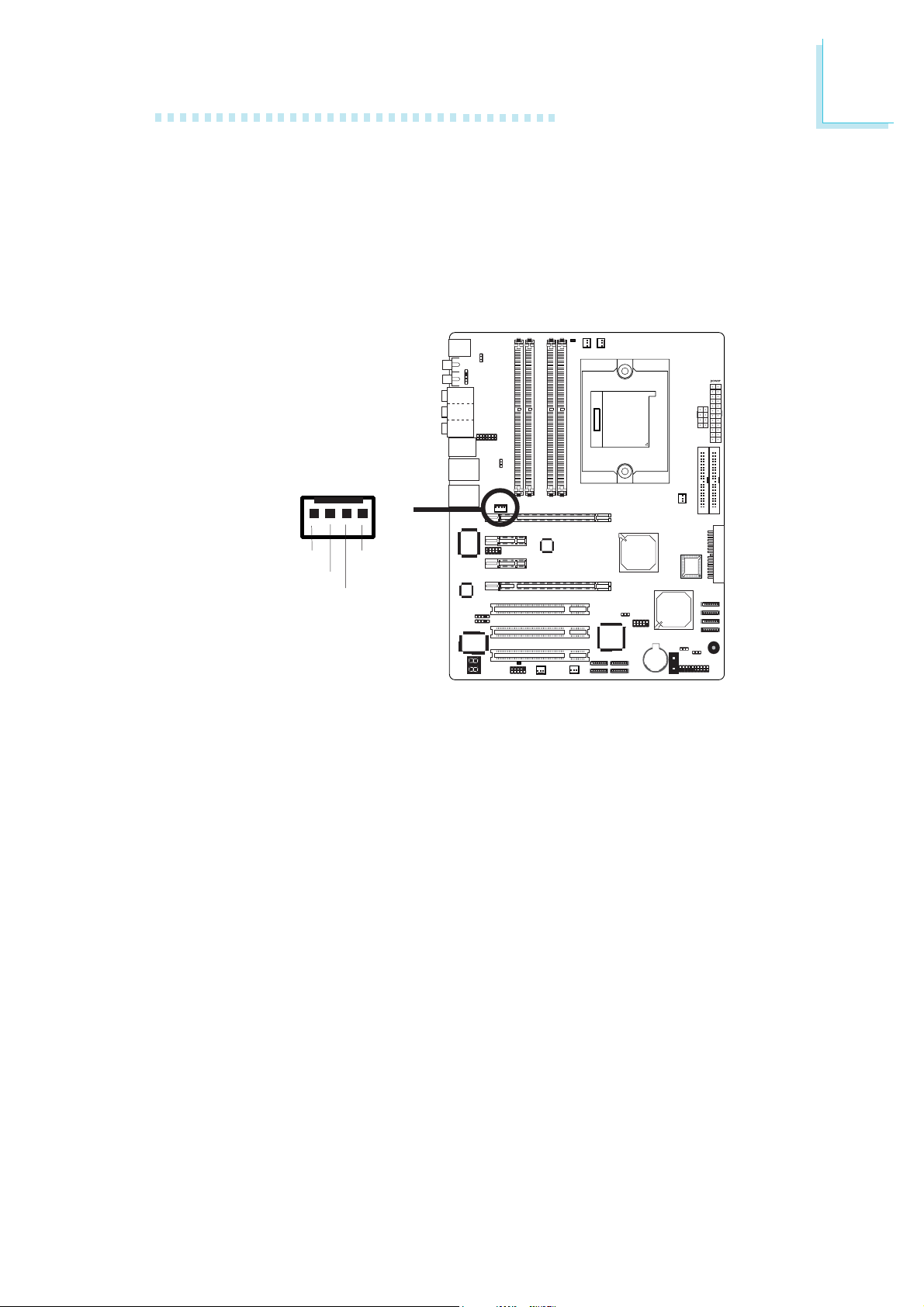

CD-in Internal Audio Connector

Ground Ground

Left audio

channel

Right audio channel

Audio codec

Line-in

Front R/L

Mic-in

Center/Subwoofer

Rear R/L Side R/L

The CD-in (J2) connector on the Karajan audio module is used to

receive audio from a CD-ROM drive, TV tuner or MPEG card.

Floppy Disk Drive Connector

Hardware Installation

The system board is equipped with a 90o floppy disk drive connector that supports two standard floppy disk drives. To prevent improper floppy cable installation, the floppy disk header has a keying mechanism. The 34-pin connector on the floppy cable can be placed into the header only if pin 1 of the connector is aligned with pin 1 of the header.

Connecting the Floppy Disk Drive Cable

Install one end of the floppy disk drive cable into the shrouded floppy disk header (J23) on the system board and the other endmost connector to the drive you want to designate as Drive A. If you are connecting another drive (Drive B), install the middle connector of the cable to the drive. The colored edge of the daisy chained ribbon cable should be aligned with pin 1 of J23.

BIOS Setting

Enable or disable this function in the Integrated Peripherals submenu (“I/O Setting” section) of the BIOS. Refer to chapter 3 for more information.

Hardware Installation

Serial ATA Connectors

Supported by ULI M1575

Supported by Silicon Image Sil 3114

SATA 8 (J26)

SATA 6 (J27)

SATA 1 to SATA 4

• ULI M1575

• SATA speed up to 3Gb/s

• RAID 0, RAID 1, RAID 0+1 and JBOD

SATA 5 (J29)

SATA 7 (J28)

1 2 3 4 5 6 7

SATA 4 (J13)

SATA 3 (J11)

SATA 2 (J10)

GND TXP TXN GND RXN RXP GND

SATA 1 (J2)

SATA 5 to SATA 8

• Silicon Image Sil 3114

• SATA speed up to 1.5Gb/s

• RAID 0, RAID 1, RAID 0+1 and RAID 5

Connecting Serial ATA Cables

Connect one end of the Serial ATA cable to a SATA connector and the other end to your Serial ATA device.

Hardware Installation

BIOS Setting

Configure Serial ATA in the Genie BIOS Setting submenu (“PCI Device Control” section) of the BIOS. Refer to chapter 3 for more information.

Configuring RAID

The system board allows configuring RAID on Serial ATA drives. Refer to chapter 6 for steps in configuring RAID.

Hardware Installation

IDE Disk Drive Connector

IDE 1

The system board is equipped with two shrouded PCI IDE headers that will interface four Enhanced IDE (Integrated Drive Electronics) disk drives. To prevent improper IDE cable installation, each shrouded PCI IDE header has a keying mechanism. The 40-pin connector on the IDE cable can be placed into the header only if pin 1 of the connector is aligned with pin 1 of the header.

IDE 2

Each IDE connector supports 2 devices, a Master and a Slave. Use an IDE ribbon cable to connect the drives to the system board. An IDE ribbon cable have 3 connectors on them, one that plugs into an IDE connector on the system board and the other 2 connects to IDE devices. The connector at the end of the cable is for the Master drive and the connector in the middle of the cable is for the Slave drive.

Connecting the IDE Disk Drive Cable

Install one end of the IDE cable into the IDE 1 header (J22) on the system board and the other connectors to the IDE devices.

If you are adding a third or fourth IDE device, use another IDE cable and install one end of the cable into the IDE 2 header (J25) on the system board and the other connectors to the IDE devices.

Hardware Installation

Note:

Refer to your disk drive user’s manual for information about selecting proper drive switch settings.

Adding a Second IDE Disk Drive

When using two IDE drives, one must be set as the master and the other as the slave. Follow the instructions provided by the drive manufacturer for setting the jumpers and/or switches on the drives.

The system board supports up to UltraDMA 133Mbps hard drives. We recommend that you use hard drives from the same manufacturer. In a few cases, drives from two different manufacturers will not function properly when used together. The problem lies in the hard drives, not the system board.

Important:

If you encountered problems while using an ATAPI CD-ROM drive that is set in Master mode, please set the CD-ROM drive to Slave mode. Some ATAPI CD-ROMs may not be recognized and cannot be used if incorrectly set in Master mode.

BIOS Setting

Configure the onboard IDE in the Integrated Peripherals submenu (“OnChip IDE Setting” section) of the BIOS. Refer to chapter 3 for more information.

Hardware Installation

Serial (COM) Port

DSR

DTR

GND

CTS

RTS

2 1

The system board is equipped with a 9-pin connector for connecting an external serial port. The serial port cable is an optional item and must be purchased separately. Insert the connector that is attached to the serial port cable to the 9-pin connector (J4) then install the serial port bracket to an available bracket slot at the rear of the system chassis. Make sure the colored stripe on the ribbon cable is aligned with pin 1 of the connector.

The serial port is an RS-232 and/or RS-485 asynchronous communication port with 16C550A-compatible UARTs that can be used with modems, serial printers, remote display terminals, and other serial devices.

BIOS Setting

Configure the onboard serial port in the Integrated Peripherals submenu (“I/O Setting” section) of the BIOS. Refer to chapter 3 for more information.

IrDA and CIR Connectors

IRRX

Ground

IRTX

N. C.

VCC

Hardware Installation

IrDA

CIR

Connect the cable connector from your IrDA/CIR module to the IrDA connector (J5) or CIR connector (J14).

BIOS Setting

CIRRX

Ground

CIRTX

Note:

The sequence of the pin functions on some IrDA/CIR cable may be reversed from the pin function defined on the system board. Make sure to connect the cable connector to the IrDA/ CIR connector according to their pin functions.

N. C.

5VSB

Configure IrDA/CIR in the Integrated Peripherals submenu (“I/O Setting” section) of the BIOS.

Driver Installation

You may need to install the proper drivers in your operating system to use the IrDA/CIR function. Refer to your operating system’s manual or documentation for more information.

Hardware Installation

Cooling Fan Connectors

Sense

Power

Ground

CPU fan

Power

N. C.

Fan 4

Sense

Power

Ground

Sense

Power

Ground

Power

Ground

Connect the CPU fan’s cable connector to the CPU fan connector (J31) on the system board. Fan 2 (J32), Fan 3 (J30), Fan 4 (J6) and Fan 5 (J9) are used to connect additional cooling fans. The cooling fans will provide adequate airflow throughout the chassis to prevent overheating the CPU and system board components.

Fan 2

Fan 3

N. C.

Fan 5

BIOS Setting

The “PC Health Status” submenu of the BIOS will display the current speed of the cooling fans. Refer to chapter 3 for more information.

LEDs

Hardware Installation

DRAM Power LED

Debug LED

Standby Power LED

DRAM Power LED

This LED will light when the system’s power is on.

Standby Power LED

This LED will light when the system is in the standby mode.

Debug LED

The Debug LED displays POST codes. POST (Power-On Self Tests) which is controlled by the BIOS is performed whenever you poweron the system. POST will detect the status of the system and its components. Each code displayed on the LED corresponds to a certain system status.

Hardware Installation

Power Connectors

Use a power supply that complies with the ATX12V Power Supply Design Guide Version 1.1. An ATX12V power supply unit has a standard 24-pin ATX main power connector that must be inserted onto CN10.

+3.3VDC

+12VDC +12VDC

PWR_OK

+3.3VDC +3.3VDC

+5VSB

COM

+5VDC

COM

+5VDC

COM

24-pin ATX

12 24

COM +5VDC +5VDC +5VDC

COM COM

COM

PS_ON#

COM

-12VDC +3.3VDC

131

(CN10)

Your power supply unit may come with an 8-pin or 4-pin +12V power connector. The +12V power enables the delivery of more +12VDC current to the processor’s Voltage Regulator Module (VRM). If available, it is preferable to use the 8-pin power; otherwise connect the 4-pin power connector to CN9 as shown below.

For 4-pin

+12V

power, connect as indicated by the red dotted rectangle

Ground

8-pin +12V

(CN9)

Hardware Installation

The FDD-type power connector is an additional power connector. If you are using two graphics cards, we recommend that you plug a power cable from your power supply unit onto the 5V/12V power connector at location J1. This will provide more stability to the entire system. The system board will still work even if the additional power connector is not connected.

5V/12V

(FDD-type)

+5V

Ground

The system board requires a minimum of 300 Watt power supply to operate. Your system configuration (CPU power, amount of memory, add-in cards, peripherals, etc.) may exceed the minimum power requirement. To ensure that adequate power is provided, we

strongly recommend that you use a minimum of 400 Watt (or greater) power supply.

+12V

Ground

Hardware Installation

Restarting the PC

Normally, you can power-off the PC by:

1. Pressing the power button at the front panel of the chassis.

2. Pressing the power switch that is on the system board (note: not all system boards come with this switch).

If for some reasons you need to totally cut off the power supplied to the PC, switch off the power supply or unplug the power cord. Take note though that if you intend to restart it at once, please strictly follow the steps below.

1. The time where power is totally discharged varies among power supplies. It's discharge time is highly dependent on the system's configuration such as the wattage of the power supply, the sequence of the supplied power as well as the number of peripheral devices connected to the system. Due to this reason, we strongly recommend that you wait for the Standby Power LED (refer to the “LEDs” section in this chapter for the location of the Standby Power LED) to lit off.

2. After the Standby Power LED has lit off, wait for 6 seconds before powering on the PC.

If the system board is already enclosed in a chassis which apparently will not make the Standby Power LED visible, wait for 15 seconds before you restore power connections. 15 seconds is approximately the time that will take the LED to lit off plus the time needed before restoring power.

The above will ensure protection and prevent damage to the motherboard and components.

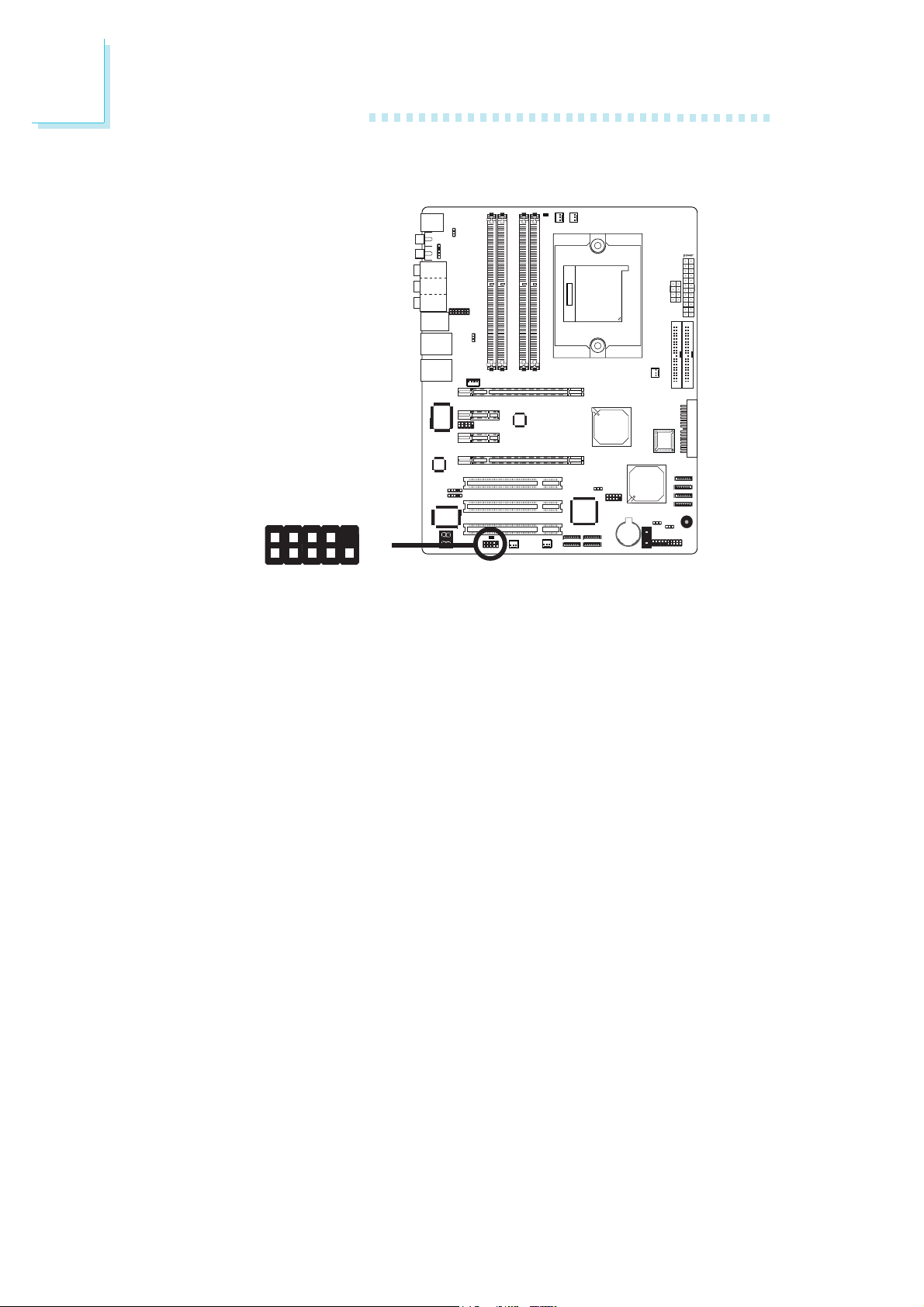

Front Panel Connectors

Hardware Installation

RESET

SPEAKER

HD-LED

J19

PWR-LED

ATX-SW

HD-LED: Primary/Secondary IDE LED

This LED will light when the hard drive is being accessed.

RESET: Reset Switch

This switch allows you to reboot without having to power off the system thus prolonging the life of the power supply or system.

SPEAKER: Speaker Connector

This connects to the speaker installed in the system chassis.

ATX-SW: ATX Power Switch

Depending on the setting in the BIOS setup, this switch is a “dual function power button” that will allow your system to enter the SoftOff or Suspend mode. Refer to “Soft-Off By PWR-BTTN” in the Power Management Setup section (Chapter 3).

Hardware Installation

PWR-LED: Power/Standby LED

When the system’s power is on, this LED will light. When the system is in the S1 (POS - Power On Suspend) or S3 (STR - Suspend To RAM) state, it will blink every second.

Note:

If a system did not boot-up and the Power/Standby LED did not light after it was powered-on, it may indicate that the CPU or memory module was not installed properly. Please make sure they are properly inserted into their corresponding socket.

HD-LED

(Primary/Secondary IDE LED)

Reserved

ATX-SW

(ATX power switch)

Reserved

RESET

(Reset switch)

SPEAKER

(Speaker connector)

PWR-LED

(Power/Standby LED)

Pin Assignment

HDD LED Power

HDD

N. C.

PWRBT+

PWRBT-

N. C.

Ground

H/W Reset

Speaker Data

N. C.

Ground

Speaker Power

LED Power (+)

LED Power (-) or Standby Signal

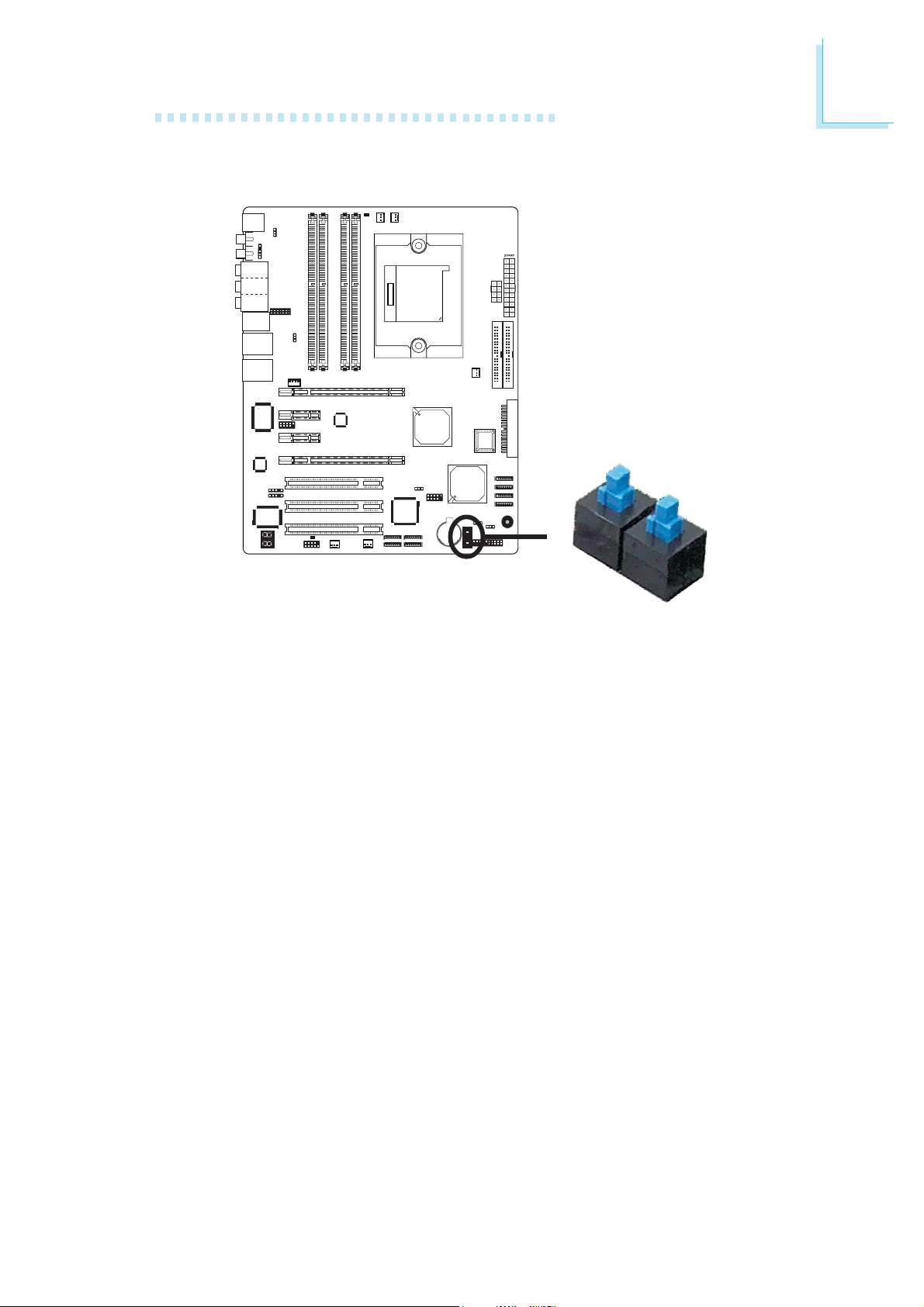

EZ Touch Switches

Hardware Installation

Reset Switch

Power Switch

The presence of the power switch and reset switch on the system board are user-friendly especially to DIY users. They provide convenience in powering on and/or resetting the system while fine tuning the system board before it is installed into the system chassis.

Hardware Installation

PCI Express Slots

PCI Express x16

PCI Express x1 PCI Express x1

PCI Express x16

Install PCI Express x16 graphics card, that comply to the PCI Express specifications, into the PCI Express x16 slot. To install a graphics card into the x16 slot, align the graphics card above the slot then press it down firmly until it is completely seated in the slot. The retaining clip of the slot will automatically hold the graphics card in place.

Refer to chapter 7 for information about CrossFire.

PCI Express x1

Install PCI Express x1 cards such as network cards or other cards that comply to the PCI Express specifications into the PCI Express x1 slot.

Battery

Hardware Installation

The lithium ion battery powers the real-time clock and CMOS memory. It is an auxiliary source of power when the main power is shut off.

Safety Measures

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend the manufacturer.

• Dispose of used batteries according to the battery manufacturer’s

instructions.

BIOS Setup

Chapter 3 - BIOS Setup

Award BIOS Setup Utility

The Basic Input/Output System (BIOS) is a program that takes care of the basic level of communication between the processor and peripherals. In addition, the BIOS also contains codes for various advanced features found in this system board. This chapter explains the Setup Utility for the Award BIOS.

After you power up the system, the BIOS message appears on the screen and the memory count begins. After the memory test, the following message will appear on the screen:

Press DEL to enter setup

If the message disappears before you respond, restart the system or press the “Reset” button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously.

When you press <Del>, the main menu screen will appear.

Phoenix - AwardBIOS CMOS Setup Utility

X Standard CMOS Features X Advanced BIOS Features X Advanced Chipset Features X Integrated Peripherals X Power Management Setup X PnP/PCI Configurations X PC Health Status

Esc : Quit F10 : Save & Exit Setup

Time, Date, Hard Disk Type...

X Genie BIOS Setting X CMOS Reloaded

Load Optimized Defaults Set Supervisor Password Set User Password Save & Exit Setup Exit Without Saving

↑ ↓ → ← : Select Item

Standard CMOS Features

Use the arrow keys to highlight “Standard CMOS Features” and press <Enter>. A screen similar to the one below will appear.

BIOS Setup

Date

Phoenix - AwardBIOS CMOS Setup Utility

Date <mm:dd:yy> Time <hh:mm:ss>

X Primary IDE Master X Primary IDE Slave X Secondary IDE Master X Secondary IDE Slave X Internal Phy SATA 1 X Internal Phy SATA 2 X Internal Phy SATA 3 X Internal Phy SATA 4

Drive A Drive B Halt On

Base Memory Extended Memory Total Memory

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Standard CMOS Features

Mon, Jan 9 2006 9 : 3 : 54

ST38410A None None None None None None None

1.44M, 3.5 in. None All, But Keyboard

640K 260096K 261120K

Item Help Menu Level Change the day, month,

year and century

The settings on the screen are for reference only. Your version may not be identical to this one.

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1994 to 2079.

Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

BIOS Setup

Primary IDE Master/Slave, Secondary IDE Master/Slave and Internal Phy SATA 1/2/3/4

Primary IDE Master Primary IDE Slave Secondary IDE Master Secondary IDE Slave

Internal Phy SATA 1 Internal Phy SATA 2 Internal Phy SATA 3 Internal Phy SATA 4

Note:

The fields for configuring Serial ATA drives (“Internal Phy SATA 1” to “Internal Phy SATA 4”) will appear only if the “Serial ATA Controller” field is set to Enabled. This field is in the Advanced Chipset Features submenu, South Configuration section of the BIOS.

Used to configure Parallel ATA drives

Used to configure Serial ATA drives

BIOS Setup

To configure IDE drives, move the cursor to a field then press <Enter>. The following screen will appear.

Phoenix - AwardBIOS CMOS Setup Utility

IDE HDD Auto-Detection IDE Channel 0 Master

Access Mode Capacity Cylinder

Head Precomp Landing Zone Sector

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

The settings on the screen are for reference only. Your version may not be identical to this one.

Primary IDE Master

Press Enter Auto

Auto 40022MB

19158

19157

255

Item Help Menu Level To auto-detect the

HDD’s size, head... on this channel

IDE HDD Auto-Detection

Detects the parameters of the drive. The parameters will automatically be shown on the screen.

Primary IDE Master/Slave and Secondary IDE Master/Slave

The drive type information should be included in the documentation from your hard disk vendor. If you select ”Auto”, the BIOS will autodetect the HDD & CD-ROM drive at the POST stage and show the IDE for the HDD & CD-ROM drive. If a hard disk has not been installed, select “None”.

Access Mode

For hard drives larger than 528MB, you would typically select the LBA type. Certain operating systems require that you select CHS or Large. Please check your operating system’s manual or Help desk on which one to select.

BIOS Setup

Capacity

Displays the approximate capacity of the disk drive. Usually the size is slightly greater than the size of a formatted disk given by a disk checking program.

Cylinder

This field displays the number of cylinders.

Head

This field displays the number of read/write heads.

Precomp

This field displays the number of cylinders at which to change the write timing.

Landing Zone

This field displays the number of cylinders specified as the landing zone for the read/write heads.

Sector

This field displays the number sectors per track.

BIOS Setup

To configure Serial ATA drives, move the cursor to a field then press <Enter>. The following screen will appear.

Phoenix - AwardBIOS CMOS Setup Utility

IDE Auto-Detection Extended IDE Drive

Access Mode Capacity Cylinder

Head Precomp Landing Zone Sector

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

The settings on the screen are for reference only. Your version may not be identical to this one.

Internal Phy SATA 1

Press Enter Auto

Auto 0 MB 0

0 0 0 0

Item Help Menu Level To auto-detect the

HDD’s size, head... on this channel

IDE Auto-Detection

Detects the parameters of the drive. The parameters will automatically be shown on the screen.

Extended IDE Drive

The default is Auto. The BIOS will automatically detect the Serial ATA drives.

Access Mode

Capacity

Displays the approximate capacity of the disk drive. Usually the size is slightly greater than the size of a formatted disk given by a disk checking program.

BIOS Setup

Cylinder

This field displays the number of cylinders.

Head

This field displays the number of read/write heads.

Precomp

This field displays the number of cylinders at which to change the write timing.

Landing Zone

This field displays the number of cylinders specified as the landing zone for the read/write heads.

Sector

This field displays the number sectors per track.

Drive A and Drive B

These fields identify the types of floppy disk drives installed.

None No floppy drive is installed 360K, 5.25 in. 5-1/4 in. standard drive; 360KB capacity

1.2M, 5.25 in. 5-1/4 in. AT-type high-density drive; 1.2MB capacity 720K, 3.5 in. 3-1/2 in. double-sided drive; 720KB capacity

1.44M, 3.5 in. 3-1/2 in. double-sided drive; 1.44MB capacity

2.88M, 3.5 in. 3-1/2 in. double-sided drive; 2.88MB capacity

Halt On

This field determines whether the system will stop if an error is detected during power up. The default setting is All Errors.

No Errors The system boot will not stop for any errors detected. All Errors The system boot will stop whenever the BIOS detects

a non-fatal error.

All, But Keyboard The system boot will not stop for a keyboard

All, But Diskette The system boot will not stop for a disk error;

All, But Disk/Key The system boot will not stop for a disk or

BIOS Setup

error; it will stop for all other errors.

it will stop for all other errors.

keyboard error; it will stop for all other errors.

Base Memory

Displays the amount of base (or conventional) memory installed in the system. The value of the base memory is typically 512K for systems with 512K memory installed on the motherboard or 640K for systems with 640K or more memory installed on the motherboard.

Extended Memory

Displays the amount of extended memory detected during boot-up.

Total Memory

Displays the total memory available in the system.

BIOS Setup

Advanced BIOS Features

The Advanced BIOS Features allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Phoenix - AwardBIOS CMOS Setup Utility

X Removable Device Priority X Hard Disk Boot Priority X Network Boot Priority

CPU Internal Cache External Cache Quick Power On Self Test First Boot Device Second Boot Device Third Boot Device Boot Other Device Boot Up Floppy Seek Boot Up NumLock Status Typematic Rate (Chars/Sec) Typematic Delay (Msec) Security Option MPS Version Control For OS OS Select For DRAM > 64MB HDD S.M.A.R.T. Capability Delay For HDD (Secs) Full Screen LOGO Show

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Advanced BIOS Features

Press Enter Press Enter Press Enter Enabled Enabled Enabled Removable Hard Disk CDROM Enabled Disabled On 30 250 Setup

1.4 Non-OS2 Disabled 0 Enabled

Menu Level Select Removable Boot

Device Priority

Item Help

The screen above list all the fields available in the Advanced BIOS Features submenu, for ease of reference in this manual. In the actual CMOS setup, you have to use the scroll bar to view the fields. The settings on the screen are for reference only. Your version may not be identical to this one.

Removable Device Priority

This field is used to select the boot sequence of the removable devices. Move the cursor to this field then press <Enter>. Use the Up or Down arrow keys to select a device then press <+> to move it up or <-> to move it down the list.

1. Floppy Disks :

Phoenix - AwardBIOS CMOS Setup Utility

Removable Device Priority

BIOS Setup

Item Help Menu Level Use <↑> or <↓> to

select a device, then press <+> to move it up, or <-> to move it down the list. Press <ESC> to exit this menu.

↑↓: Move PU/PD/+/-: Change Priority F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

The settings on the screen are for reference only. Your version may not be identical to this one.

BIOS Setup

Hard Disk Boot Priority

This field is used to select the boot sequence of the hard drives. Move the cursor to this field then press <Enter>. Use the Up or Down arrow keys to select a device then press <+> to move it up or <-> to move it down the list.

Phoenix - AwardBIOS CMOS Setup Utility

1. Ch0 M. : ST38410A

2. Bootable Add-in Cards

↑↓: Move PU/PD/+/-: Change Priority F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

The settings on the screen are for reference only. Your version may not be identical to this one.

Hard Disk Boot Priority

Item Help Menu Level Use <↑> or <↓> to

select a device, then press <+> to move it up, or <-> to move it down the list. Press <ESC> to exit this menu.

Network Boot Priority

This field is used to select the boot sequence of the network. Move the cursor to this field then press <Enter>. Use the Up or Down arrow keys to select a device then press <+> to move it up or <> to move it down the list.

BIOS Setup

Phoenix - AwardBIOS CMOS Setup Utility

1. Legacy Lan Cards :

↑↓: Move PU/PD/+/-: Change Priority F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

The settings on the screen are for reference only. Your version may not be identical to this one.

Network Boot Priority

Item Help Menu Level Use <↑> or <↓> to

select a device, then press <+> to move it up, or <-> to move it down the list. Press <ESC> to exit this menu.

BIOS Setup

CPU Internal Cache and External Cache

These fields speed up the memory access. The default is Enabled, which provides better performance by enabling cache.

Quick Power On Self Test

This field speeds up Power On Self Test (POST) whenever the system is powered on. The BIOS will shorten or skip some check items during POST. To attain the shortest POST time, select “Enabled”.

First Boot Device, Second Boot Device, Third Boot Device and Boot Other Device

Select the drive to boot first, second and third in the “First Boot Device” “Second Boot Device” and “Third Boot Device” fields respectively. The BIOS will boot the operating system according to the sequence of the drive selected. Set “Boot Other Device” to Enabled if you wish to boot from another device.

Boot Up Floppy Seek

When enabled, the BIOS will check whether the floppy disk drive installed is 40 or 80 tracks. Note that the BIOS cannot distinguish between 720K, 1.2M, 1.44M and 2.88M drive types as they are all 80 tracks. When disabled, the BIOS will not search for the type of floppy disk drive by track number. Note that there will not be any warning message if the drive installed is 360KB.

Boot Up NumLock Status

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

Typematic Rate (Chars/Sec)

This field allows you to select the rate at which the keys are accelerated.

Typematic Delay (Msec)

This field allows you to select the delay between when the key was first depressed and when the acceleration begins.

Security Option

This field determines when the system will prompt for the password

- everytime the system boots or only when you enter the BIOS setup. Set the password in the Set Supervisor/User Password submenu.

BIOS Setup

System The system will not boot and access to Setup will be

denied unless the correct password is entered at the prompt.

Setup The system will boot, but access to Setup will be denied

unless the correct password is entered at the prompt.

MPS Version Control for OS

This field is used to select the MPS version that the system board is using.

OS Select for DRAM > 64MB

Select the “OS2” option only if the system that is running an OS/2 operating system has greater than 64MB RAM.

HDD S.M.A.R.T. Capability

The system board supports SMART (Self-Monitoring, Analysis and Reporting Technology) hard drives. SMART is a reliability prediction technology for ATA/IDE and SCSI drives. The drive will provide sufficient notice to the system or user to backup data prior to the drive’s failure. The default is Disabled. If you are using hard drives that support S.M.A.R.T., set this field to Enabled. SMART is supported in ATA/33 or later hard drives.

BIOS Setup

Delay for HDD (Secs)

This field is used to select the time that would delay the HDD controller’s initial time. This is specially useful for some HDDs which will not be ready at first boot when you power-on the system.

Full Screen Logo Show

This field is applicable only if you want a particular logo to appear during system boot-up.

Enabled The logo will appear in full screen during system boot-

up.

Disabled The logo will not appear during system boot-up.

Advanced Chipset Features

Phoenix - AwardBIOS CMOS Setup Utility

Advanced Chipset Features

South Configuration

X PCIE Configuration

AGP Aperture Size Memory Hole MTRR Mapping Mode S/W Memory Hole Remapping H/W Memory Hole Remapping System BIOS Cacheable

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

The settings on the screen are for reference only. Your version may not be identical to this one.

Press Enter Press Enter 64MB Disabled Continuous Disabled Disabled Disabled

BIOS Setup

Item Help Menu Level South Bridge Setting

This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources. These items should not

be altered unless necessary. The default settings have been chosen

because they provide the best operating conditions for your system. The only time you might consider making any changes would be if you discovered some incompatibility or that data was being lost while using your system.

BIOS Setup

South Configuration

Move the cursor to the South Configuration field and press <Enter>. The following screen will appear.

Phoenix - AwardBIOS CMOS Setup Utility

South Bridge Feature

AC97 & Azalia LINK A AC97 & Azalia LINK B

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

South Configuration

Press Enter Azalia Only Disabled

Item Help

Menu Level

South Bridge Power Saving, Clock Gated and Prefetch

The settings on the screen are for reference only. Your version may not be identical to this one.

South Bridge Feature

Move the cursor to the South Bridge Feature field and press <Enter>. The following screen will appear.

Phoenix - AwardBIOS CMOS Setup Utility

Test System Reboot

x Cold Reboot Time

P2P Pre-fetch Queue Depth P2P Maximum Pre-fetch DW PCI/14M/USB CLK PowerDown USB Performance Mode USB Power Saving Mode HTTSTOP Timing 32K0 Mask Disable Function

ULi Throttle Function x ULi Throttle Enable Time x Throttle Duty Setting

ULI HPET

ULI WDRT

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

South Bridge Feature

Disabled 05 Sec Auto Pre-fetch 4x16DW Disabled Enabled Enabled 1us Disabled All Disabled When ACPI On

12.5% - 25% Disabled Disabled

Item Help

Menu Level

The settings on the screen are for reference only. Your version may not be identical to this one.

BIOS Setup

Test System Reboot

This field allows you to test the system’s reboot status.

Cold Reboot Time.

This field is used to select the time that the system will cold reboot.

P2P Pre-fetch Queue Depth

This field is used to select the P2P prefetch queue depth.

P2P Maximum Pre-fetch DW

This field is used to select the P2P maximum prefetch DW.

PCI/14M/USB CLK PowerDown

This field is used to enable or disable the PCI/14M/USB clock power down function.

USB Performance Mode

This field is used to enable or disable the USB performance mode.

USB Power Saving Mode

This field is used to enable or disable the USB power saving mode.

HTTSTOP Timing

This field is used to select the HTTSTOP timing.

32K0 Mask Disable Function

The options are Enabled and Disabled.

ULi Throttle Function

This field is used to configure the ULi throttle function.

ULi Throttle Enable Time

This field is used to select the ULi throttle enable time.

BIOS Setup

Throttle Duty Setting

This field is used to select the percent of time that the clock runs to save power.

ULI HPET

The options are Enabled and Disabled.

ULI WDRT

The options are Enabled and Disabled.

AC97 & Azalia Link A

This field is used to enable Azalia or AC97 audio.

AC97 & Azalia Link B

This field is used to enable or disable AC97 audio.

PCIE Configuration

Move the cursor to the South Configuration field and press <Enter>. The following screen will appear.

BIOS Setup

Phoenix - AwardBIOS CMOS Setup Utility

Link Width ............................GFX1

............................GFX1

Payload Size......................... GFX

..........................SB

Lane Reversal.......................GFX1

.......................GFX2

PowerDown Unused Port GFX1 Hide Empty PCIE Port

Reset GFX Slot Reset GFX2 Slot Reset GPP Slots Delay After PCIE Reset (mS) GFX Card WorkAround TXCLK Gating P2P Write Between GFX1/2 PCIE Common Clock

ASPM L1..............................GFX

.............................. GPP

.............................. SB

10% Extra Current................GFX1

................GFX2

................GPP

................SB

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

PCIE Configuration

GPP

x16 x16 64 Bytes 64 Bytes Disabled Disabled Enabled Enabled Enabled Enabled Enabled Enabled 0 Enabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled

Item Help

Menu Level

The settings on the screen are for reference only. Your version may not be identical to this one.

Link Width GFX1

The options are x1, x2, x4, x8, x12 and x16.

Payload Size GFX/SB

This field is used to select the payload size of the PCI Express devices. The unit is byte.

Lane Reversal GFX1/GFX2

The options are Enabled and Disabled.

Power Down Unused Port GFX1/GPP

The options are Enabled and Disabled.

Hide Empty PCIE Port

The options are Enabled and Disabled.

BIOS Setup

Reset GFX Slot

The options are Enabled and Disabled.

Reset GFX2 Slot

The options are Enabled and Disabled.

Reset GPP Slot

The options are Enabled and Disabled.

Delay After PCIE Reset (mS)

This field is used to select the delay time after PCIE resets.

GFX Card WorkAround

The options are Enabled and Disabled.

TXCLK Gating

The options are Enabled and Disabled.

P2P Write Between GFX1/2

The options are Enabled and Disabled.

PCIE Common Clock

The options are Enabled and Disabled.

ASPM L1 GFX/GPP/SB

This field is used to configure ASPM L1 of GFX/GPP/SB.

10% Extra Current GFX1/GFX2/GPP/SB

This field allows you to provide 10% extra current to GFX1/GFX2/ GPP/SB.

AGP Aperture Size (MB)

This field is used to select the size of the system RAM that can be allocated to the AGP for graphics purposes. Aperture refers to a portion of the PCI memory address range that is dedicated for the graphics memory address space. Host cycles that hit the aperture range are forwarded to the AGP without any translation.

Memory Hole

In order to improve system performance, certain space in memory can be reserved for ISA cards. This memory must be mapped into the memory space below 16MB. When enabled, the CPU assumes the 1516MB memory range is allocated to the hidden ISA address range instead of the actual system DRAM. When disabled, the CPU assumes the 15-16MB address range actually contains DRAM memory. If more than 16MB of system memory is installed, this field must be disabled to provide contiguous system memory.

BIOS Setup

MTRR Mapping Mode

This field is used to disable or continue the MTRR mapping mode.

S/W Memory Hole Remapping

This field is used to enable the software to remap the physical memory to an address higher than 00E0.

H/W Memory Hole Remapping

This field is used to enable the hardware to remap the physical memory to an address higher than 00E0.

System BIOS Cacheable

When this field is enabled, accesses to the system BIOS ROM addressed at F0000H-FFFFFH are cached, provided that the cache controller is enabled. The larger the range of the Cache RAM, the higher the efficiency of the system.

BIOS Setup

Integrated Peripherals

X OnChip IDE Setting X I/O Setting

OnChip USB Controller USB Keyboard Support USB Mouse Support USB 2.0 Controller

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

The settings on the screen are for reference only. Your version may not be identical to this one.

OnChip IDE Setting

Primary IDE Primary Master PIO Primary Slave PIO Primary Master UDMA Primary Slave UDMA Secondary IDE Secondary Master PIO Secondary Slave PIO Secondary Master UDMA Secondary Slave UDMA IDE DMA Transfer Access IDE HDD Block Mode

Phoenix - AwardBIOS CMOS Setup Utility

Integrated Peripherals

Press Enter Press Enter Enabled Disabled Disabled Enabled

Phoenix - AwardBIOS CMOS Setup Utility

OnChip IDE Setting

Enabled Auto Auto Auto Auto Enabled Auto Auto Auto Auto Enabled Enabled

Item Help

Menu Level

Item Help

Menu Level

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

The settings on the screen are for reference only. Your version may not be identical to this one.

BIOS Setup

Primary IDE and Secondary IDE

These fields allow you to enable or disable the primary and secondary IDE controller. The default is Enabled. Select Disabled if you want to add a different hard drive controller.

Primary Master/Slave PIO and Secondary Master/Slave PIO

PIO means Programmed Input/Output. Rather than have the BIOS issue a series of commands to effect a transfer to or from the disk drive, PIO allows the BIOS to tell the controller what it wants and then let the controller and the CPU perform the complete task by themselves. Your system supports five modes, 0 (default) to 4, which primarily differ in timing. When Auto is selected, the BIOS will select the best available mode after checking your drive.

Auto The BIOS will automatically set the system according

to your hard disk drive’s timing.

Mode 0-4 You can select a mode that matches your hard disk

drive’s timing. Caution: Do not use the wrong setting or you will have drive errors.

Primary Master/Slave UDMA and Secondary Master/Slave UDMA

These fields allow you to set the Ultra DMA in use. When Auto is selected, the BIOS will select the best available option after checking your hard drive or CD-ROM.

Auto The BIOS will automatically detect the settings for

you.

Disabled The BIOS will not detect these categories.

IDE DMA Transfer Access

This field is used to enable or disable the DMA transfer function of an IDE hard drive.

IDE HDD Block Mode

Enabled The IDE HDD uses the block mode. The system BIOS

will check the hard disk drive for the maximum block size the system can transfer. The block size will depend on the type of hard disk drive.

Disabled The IDE HDD uses the standard mode.

BIOS Setup

I/O Setting

Phoenix - AwardBIOS CMOS Setup Utility

Power On By Mouse

Power On By Keyboard x Power On By Button x KB Power On Password x Hot Key Power On

Onboard FDC Controller

Onboard Serial Port

Onboard IRDA Select

IR Mode Select

UR2 Duplex Mode

CIR Port Address x CIR Port IRQ

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

The settings on the screen are for reference only. Your version may not be identical to this one.

I/O Setting

Disabled Button Only Enabled Enter Ctrl-F1 Enabled Auto Auto IrDA Half Disabled 11

Item Help

Menu Level

Power On By Mouse

Disabled Disables the power on by mouse function. Mouse Move When this option is selected, move the mouse to

power-on the system.

Mouse Click When this option is selected, double-click the mouse

button to power-on the system.

Power On By Keyboard

Button only Uses the power button to power on the system. Password When this option is selected, set the password you

would like to use to power-on the system in the “KB Power On Password” field.

Hot Key When this option is selected, select the function key

you would like to use to power-on the system in the “Hot Key Power On” field.

Any Key Press any key to power-on the system. Keyboard 98 When this option is selected, press the “wake up”

key of the Windows® 98 compatible keyboard to power-on the system.

BIOS Setup

Power On By Button

Set this field to Enabled if you are using the power button to power-on the system.

KB Power On Password

Move the cursor to this field and press <Enter>. Enter your password. You can enter up to 5 characters. Type in exactly the same password to confirm, then press <Enter>.

The power button will not function once a keyboard password has been set in this field. You must type the correct password to poweron the system. If you forgot the password, power-off the system and remove the battery. Wait for a few seconds and install it back before powering-on the system.

Hot Key Power On

This field is used to select a function key that you would like to use to power-on the system.

Onboard FDC Controller

Enabled Enables the onboard floppy disk controller. Disabled Disables the onboard floppy disk controller.

Onboard Serial Port

Auto The system will automatically select an I/O address for

the onboard serial port 1 and serial port 2.

3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3 Allows you to manu-

ally select an I/O address for the onboard serial port 1 and serial port 2.

Disabled Disables the onboard serial port 1 and/or serial port 2.

Onboard IRDA Select

Auto Automatically detects the IrDA device. Disabled Disables the onboard IrDA.

BIOS Setup

IR Mode Select

This field is used to select the type of IrDA standard supported by your IrDA device. For better transmission of data, your IrDA peripheral device must be within a 30o angle and within a distance of 1 meter.

UR2 Duplex Mode

Half Data is completely transmitted before receiving data. Full Transmits and receives data simultaneously.

CIR Port Address

This field is used to select an I/O address for the CIR device.

CIR Port IRQ

This field is used to select an IRQ for the CIR device.

OnChip USB Controller

This field is used to enable or disable the onboard USB.

USB Keyboard Support

If you are using a USB keyboard device, set this field to Enabled.

USB Mouse Support

If you are using a USB mouse, set this field to Enabled.

USB 2.0 Controller

This field is used to enable or disable USB 2.0.

Power Management Setup

The Power Management Setup allows you to configure your system to most effectively save energy.

Phoenix - AwardBIOS CMOS Setup Utility

ACPI Function ACPI Suspend Type ACPI C2 Function ACPI C3 Function Power Management Modem Use IRQ Video Off In Suspend Video Off Method

HDD Power Down Suspend Mode

X PowerOn/WakeUp Function X Suspend Break Events

PWRON After PWR-Fail

Power Management Setup

Enabled S1(POS) Disabled Disabled User Define Disabled Suspend -> Off V/H Sync+Blank

Disabled Disabled

Press Enter Press Enter Off

BIOS Setup

Item Help

Menu Level

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

The settings on the screen are for reference only. Your version may not be identical to this one.

ACPI Function

This function should be enabled only in operating systems that support ACPI. Currently, only Windows this function. When this field is enabled, the system will ignore the settings in the “HDD Power Down” field. If you want to use the Suspend to RAM function, make sure this field is enabled then select “S3(STR)” in the field below.

ACPI Suspend Type

This field is used to select the type of Suspend mode.

S1(POS) Enables the Power On Suspend function. S3(STR) Enables the Suspend to RAM function.

®®

98SE/2000/ME/XP supports

BIOS Setup

ACPI C2 Function

The options are Enabled and Disabled.

ACPI C3 Function

The options are Enabled and Disabled.

Power Management Option

This field allows you to select the type (or degree) of power saving by changing the length of idle time that elapses before the “HDD Power Down” field is activated.

Min Saving Minimum power saving time for the “HDD Power

Down” = 15 min.

Max Saving Maximum power saving time for the “HDD Power

Down” = 1 min.

User Define Allows you to set the power saving time in the

“HDD Power Down” field.

MODEM Use IRQ

This field is used to set an IRQ channel for the modem installed in your system.

Video Off In Suspend

This field is used to activate the video off feature when the system enters the Suspend mode. The options are Yes and No.

Video Off Method

This determines the manner in which the monitor is blanked.

V/H SYNC + Blank This selection will cause the system to turn

Blank Screen This option only writes blanks to the video buffer. DPMS Initializes display power management signaling. Use

off the vertical and horizontal synchronization ports and write blanks to the video buffer.

this option if your video board supports it.

HDD Power Down

This is selectable only when the Power Management field is set to User Define. When the system enters the HDD Power Down mode according to the power saving time selected, the hard disk drive will be powered down while all other devices remain active.

Suspend Mode

This is configurable only when the Power Management field is set to “User Define”. When the system enters the power saving time set in this field, the CPU and onboard peripherals will be shut off.

PowerOn/WakeUp Function

Phoenix - AwardBIOS CMOS Setup Utility

Soft-Off by PWR-BTTN WakeUp/PowerOn by PCI Card WakeUp/PowerOn by Ring USB Dev WakeUp

Resume By Alarm x Date (of Month) Alarm x Time (hh:mm:ss) Alarm

PowerOn/WakeUp Function

Instant-Off Disabled Disabled Disabled Disabled 0 0 : 0 : 0

BIOS Setup

Item Help

Menu Level

↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

The settings on the screen are for reference only. Your version may not be identical to this one.

Soft-Off by PWR-BTTN

This field allows you to select the method of powering off your system.

Delay 4 Sec. Regardless of whether the Power Management func-

tion is enabled or disabled, if the power button is pushed and released in less than 4 sec, the system enters the Suspend mode. The purpose of this function is to prevent the system from powering off in case you accidentally “hit” or pushed the power button. Push and release again in less than 4 sec to

BIOS Setup

restore. Pushing the power button for more than 4 seconds will power off the system.

Instant-Off Pressing and then releasing the power button at

once will immediately power off your system.

WakeUp/PowerOn by PCI Card

Enabled This field should be set to Enabled only if your PCI

card such as LAN card or modem card uses the PCI PME (Power Management Event) signal to remotely wake up the system. Access to the LAN card or PCI

card will cause the system to wake up. Refer to the

card’s documentation for more information.

Disabled The system will not wake up despite access to the PCI

card.

WakeUp/PowerOn By Ring

Set this field to Enabled to use the modem ring-on function. This will allow your system to power-on to respond to calls coming from an external modem.

USB Dev WakeUp

This field, when enabled, allows you to use a USB keyboard to wake up a system that is in the S3 (STR - Suspend To RAM) state.

Resume By Alarm

Enabled When Enabled, you can set the time you would like the

Soft Power Down (Soft-Off) PC to power-on in the “Time (dd:hh:mm) of Alarm” field. However, if the system is being accessed by incoming calls or the network prior to the time set in the field, the system will give priority to the incoming calls or network.

Disabled Disables the automatic power-on function. (default)

100

Day (of Month) Alarm

0 The system will power-on everyday according to the

time set in the “Time (hh:mm:ss) Alarm” field.

1-31 Select a date you would like the system to power-on.

The system will power-on on the set date, and time set in the “Time (hh:mm:ss) Alarm” field.

LanPorty UT CFX3200-DR User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

About this Manual

Warranty

Static Electricity Precautions

Safety Measures

About the Package

Before Using the System Board

Chapter 1 - Introduction

Specifications

Features

Français

Deutsch

Español

Chapter 2 - Hardware Installation

System Board Layout

System Memory

Jumper Settings

Rear Panel I/O Ports

I/O Connectors

Chapter 3 - BIOS Setup

Award BIOS Setup Utility
