Lanner VES-8X6 User Manual

Embedded &
Industrial Computing

Hardware Platforms for Embedded and Industrial Computing

VES-8X6
V1.0

>>

User's Manual

Publication date:2014-05-12

About

About

Overview

Icon Descriptions

The icons are used in the manual to serve as an indication
of interest topics or important messages. Below is a
description of these icons:

NOTE: This check mark indicates that

there is a note of interest and is something
that you should pay special attention to
while using the product.

Online Resources

The listed websites are links to the on-line product
information and technical support.

Resource Website

Lanner http://www.lannerinc.com

Product Resources

RMA http://eRMA.lannerinc.com

WARNING: This exclamation point

indicates that there is a caution or
warning and it is something that could
damage your property or product.

http://www.lannerinc.com/
download-center/

Acknowledgement

Intel, Pentium and Celeron are registered trademarks of
Intel Corp.

Microsoft Windows and MS-DOS are registered trademarks
of Microsoft Corp.

All other product names or trademarks are properties of
their respective owners.

Compliances and Certification

CE Certication

This product has passed the CE test for environmental
specifications. Test conditions for passing included the
equipment being operated within an industrial enclosure.
In order to protect the product from being damaged by
ESD (Electrostatic Discharge) and EMI leakage, we strongly
recommend the use of CE-compliant industrial enclosure
products.

FCC Class A Certication

This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required
to correct the interference at his own expense.

Copyright and Trademarks

This document is copyrighted, © 2014. All rights are
reserved. The original manufacturer reserves the right to
make improvements to the products described in this
manual at any time without notice.

No part of this manual may be reproduced, copied,
translated or transmitted in any form or by any means
without the prior written permission of the original
manufacturer. Information provided in this manual is
intended to be accurate and reliable. However, the original
manufacturer assumes no responsibility for its use, nor for
any infringements upon the rights of third parties that
may result from such use.

Embedded and Industrial Computing

2

TTaTTable of Contentsbeable of Contents

Chapter 1: Introduction 4

System Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Chapter 2: System Components 6

System Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

External Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Chapter 3: Board Layout 8

External Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Internal Connectors and Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Connectors and Jumpers List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Jumper Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Appendix A: Terms and Conditions 16

Warranty Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

RMA Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

3

Chapter 1

Chapter 1:

Introduction

Introduction

Thank you for choosing the VES-8X6. The VES-8X6 is
Lanner’s flagship Micro ATX COM Express Type 6 carrier
board. It is a standard Micro ATX size carrier board which
allows embedded application developers to deploy
their applications quickly on the COM Express modular
platform.

This carrier board has the following highlighted features:

Expansion Interfaces from Module

-Mini-PCIe card with SIM card slot

-VGA, LVDS, HDMI, and DisplayPort

-USB 2.0 (6x; 2 in pin headers, 4 in external type A
connectors), upto USB 3.0 (4x in external type A
connectors)

-PCI Express (1x PCIex4, 1xPCIex16, 1xPCIex1)

-COM (1x RS-232/422/485, 1x RS232), and GPIO (4 input,
4 output)

-Keyboard/mouse

-SATA (4x)

-LPT (1x)

-Line-in, Mic-in, Line-out, SPDIF, CD Audio-in (provided by
Realtek ALC892)

Outline Dimension

243.84 mm x 243.84 mm

Operating Temperature

0 ~ 60°C (32 ~ 140°F)

Storage Temperature

-20 ~ 80°C (-4 ~ 176°F)

Relative Humidity

0% ~ 90% Relative Humidity, Non-condensing

System Specifications

System

Form Factor Micro-ATX

BIOS

I/O Chip Nuvoton NCT6776F

Expansion 1 PCIex16, 1 PCIex4, 1 PCIex1, Mini-PCIe card

MIO

USB Connector 6 x USB (Up to 4 x USB 3.0)

DIO 8-bit GPIO

External I/O Connector

Internal I/O Connector

Audio Codec Realtek ALC892 Supports 7.1-CH Audio

Audio Interface Line-in, Mic-in, Line-out, SPDIF, CD-in

Power Type AT / ATX

Operating Temperature 0 ~ 60°C (32 ~ 140°F)

Storage Temperature -20 ~ 80°C (-4 ~ 176°F)

Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing

Ordering Information

Size (L x W) 243.84 mm x 243.84 mm

Weight 0.5 Kg (1.10 lbs)

VES-8X6 COM Express® R2.0 Type 2 Module with Intel® AtomTM D2550

VES-270

CPU and NM10 Chipset

Carrier Board BIOS Socket
(Enable/ Disable by 2-pin Jumper)

4 x SATA, 1 x LPT, 1 x RS-232, 1 x RS-232/ 422/ 485,
1 x K/B, 1 x Mouse

Mechanical & Environmental

Supported COM Express CPU Modules

COM Express® R2.0 Type 6 Module with Intel®
Core

I/O

PS/2 Mouse (Mini-DIN) & PS/2 KB (Mini-DIN)•
COM1 (DB-9) over HDM•
VGA (DB-15) over DisplayPort•
2 Dual Deck USB ports•
2 RJ45 over Dual USB•
3-Ports Audio Jack•

LVDS Connector (HIROSE DF13-40DP-1.25V)•
USB: One 5 x 2, pitch 2.54mm Header•
COM: One 5 x 2, pitch 2.54mm Header •
(RS-232/ 422/ 485 & Pin-9 5/ 12V Set by
Jumper)
LPC: One 7 x 2, pitch 2.00mm Header•
CPU Fan: One 3 x 1, pitch 2.54mm Header•
System Fan: Two 3 x 1, pitch 2.54mm Header•
LPT: One 13 x 2, pitch 2.00mm Header•
Floppy: One 17 x 2, pitch 2.54mm Header•
Carrier Board Power: One Switch Button•
Carrier Board Switch: One Switch Button•
GPIO: One 5 x 2, pitch 2.54mm Header•
Power Connector: ATX, One 12 x 2-pin & 2 x •
2-pin (12V Aux Power) Connector
Miscellaneous Setting Connector: One 13 x 2, •
pitch 2.54mm Header (Including Power/Reset
Switch, Power/SATA/Suspend LED, K/B Locked,
Speaker-out, Case Open Detection, Thermal
Detection, LCD Brightness Setting)

Audio

TM

i7 / i3 CPU and QM77 Chipset

Embedded and Industrial Computing

Ordering Information

VES-8X6 Micro ATX COM Express® Type 6 Carrier Board

4

Chapter 1

Package Contents

Your package contains the following items:

VES-8X6 Embedded Board •

Drivers and User’s Manual CD •

Introduction

Embedded and Industrial Computing

5

Chapter 2

Chapter 2:
System Components

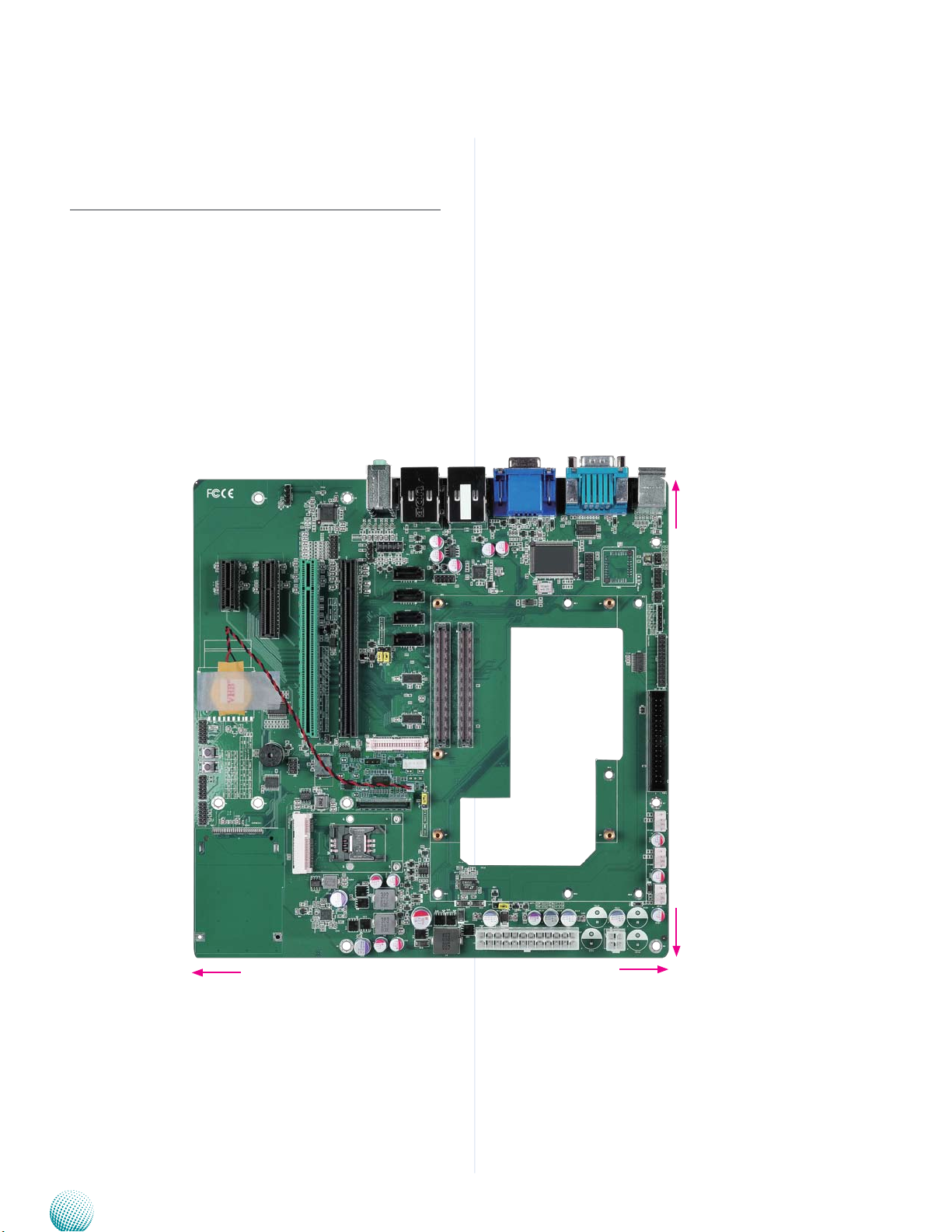

System Drawing

Mechanical dimensions of the VES-8X6.

Unit: mm

System Components

243.84

243.84

Embedded and Industrial Computing

6

Chapter 2

External Connectors

System Components

F1 F2

Component Description Pin Definition Reference

F1 PS/2 Keyboard and Mouse A hardware reset button
F2 COM1 and HDMI Ports An RS-232 port and HDMI port
F3 VGA1 and DisplayPort
F4 LAN2 and USB 2&3

LAN1 and USB 0&1

F5 Audio Port Blue: Line-in Port

F3

Two RJ-45 (network) jacks with
LED indicators as described
below

LINK/ACT (Yellow)

On/Flashing: The port is •
linking and active in data
transmission.

Off: The port is not linking.•

SPEED (Green/Amber)

Amber: The connection •
speed is 1000Mbps.

Green: The connection •
speed is 100Mbps

Off: .The connection speed •
is 10Mbps.

An USB type A connector•

Green: Line-out Port

Red: Microphone Port

F4F4

F5

Audio Connector (AUDIO1) on
page 12

Embedded and Industrial Computing

7

Chapter 3

Chapter 3:
Board Layout

External Connectors

The following picture highlights the location of internal
connectors and jumpers. Refer to the table 3.1 Connector
List for more details.

Board Layout

Audio1

LAN1

USB0&1

LAN2

USB2&3

VGA1

DP1

COM1

HDMI1

KBMS1

Embedded and Industrial Computing

8

Chapter 3

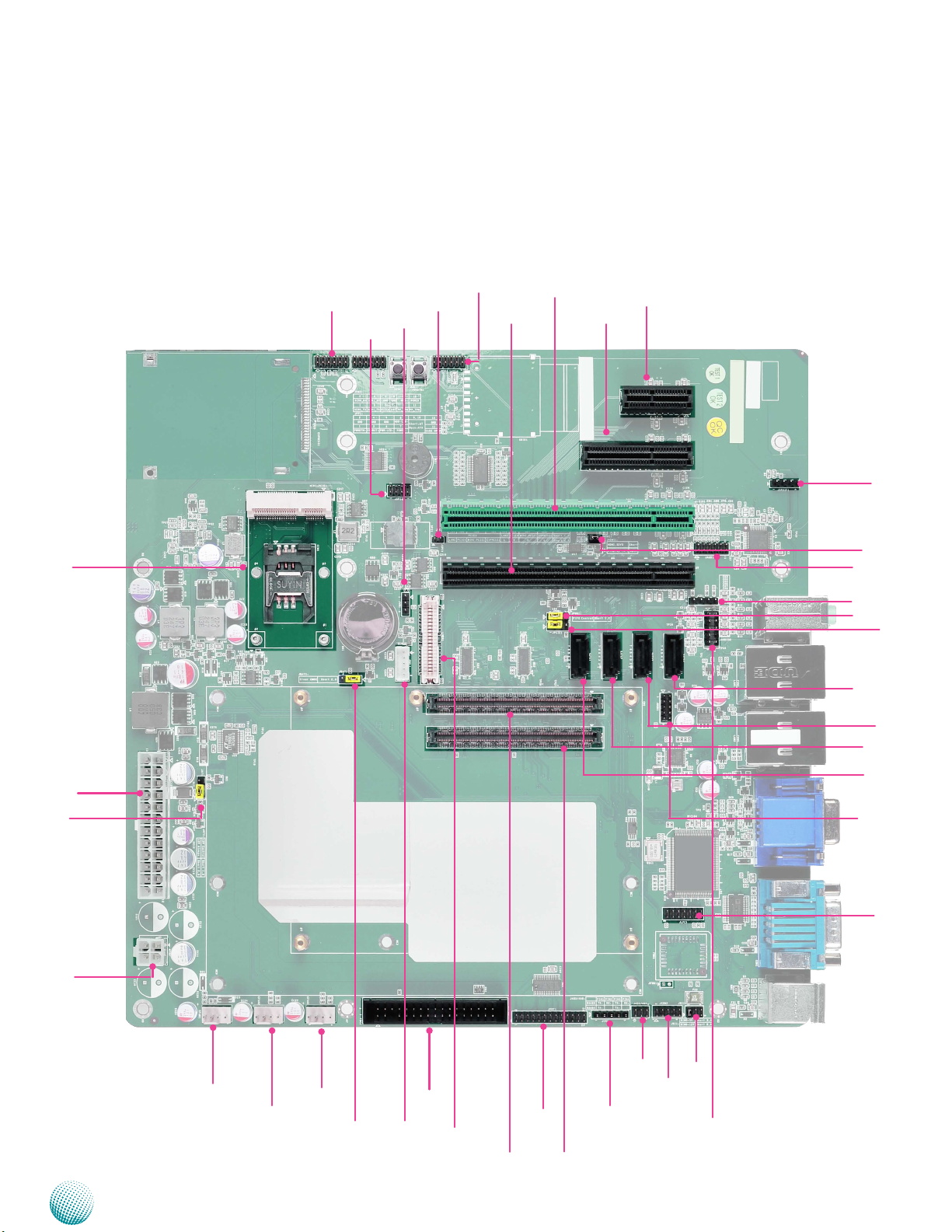

Internal Connectors and Jumpers

The following picture highlights the location of internal
connectors and jumpers. Refer to the table 3.1 Connector
List for more details.

Board Layout

MINI_PCIE1

ATX1

JAT1

JFP1

JSPI2

JVR1

JSPI1

JDIO1

PCIE1

PCIE2

PCIE3

PCIE4

RESET1

JSPDIF1

JHDMI1

JAUDIO1

JCD1

JPWR1
JPCIE1

SATA4

SATA3

SATA2

SATA1

JUSB1

ATX2

SFAN1

CFAN2

Embedded and Industrial Computing

CFAN1

JBAT1

JBKL1

FDC1

LVDS1

CN1A

JPRT1

CN1B

JIR1

J422/485

JCOM2

JLPC1

JRI1

JAUDIO2

9

Chapter 3

Connectors and Jumpers List

The tables below list the function of each of the board
jumpers and connectors by labels shown in the above
section. The next section in this chapter gives pin
definitions and instructions on setting jumpers.

Table 3.1 Connector List for VES-8X6

Labels Function Pin Denition Reference

Page

AUDIO1
ATX1
ATX2
CFAN1
CFAN2
CN1A
CN1B
COM1
DP1
FDC1
HDMI1
J422/485
JAT1
JAUDIO1
JAUDIO2
JBAT1
JBKL1
JCD1
JCN3
JCOM2
JDIO1
JFP1
JFWH1
JHDMI1
JIR1
JLPC1
JPCIE1
JPRT1
JPWR1
JRI1
JSPDIF1
JSPI1
JSPI2
JUSB1
JVR1
KBMS1
LAN1/2
LVDS1
MINI-PCIE1
PCIE1
PCIE2
PCIE3
PCIE4
RESET1
SATA 1/2/3/4
SDIO1
SFAN1
SIM1
USB 0&1
USB 2&3

Embedded and Industrial Computing

Audio connector
ATX1 Power connector
ATX2 Power connector
CPU fan connector 1
CPU fan connector 2
COM Express connector A
COM Express connector B
Serial port 1 connector
Display port connector
Floppy connector 1
HDMI connector 1
Serial Port 2 RS422/485 connector
12V control selector

7.1ch Audio connector
Front Audio connector
Clear CMOS
LCD Inverter connector
CD-ROM Audio Input connector
MultI-purpose connector
Serial Port 2 RS232 connector
DIO connector
Front panel connector
Firmware Hub BIOS chip select
PCIE2 (DDI) signal selector
IR connector
LPC port connector
PCIE signal selector
Printer connector
S3 signal control selector
COM1 pin 9 signal select
SPDIF connector
SPI Selector
Carrier board SPI FLASH programming
USB 4&5 connector
LCD backlight brightness adjustment connector
KB/MS connector
Ethernet connector
LVDS connector
PCI Express Mini Card slot
PCI Express x16 connector
Digital Display Interfaces (DDI) slot
PCI Express x4 connector
PCI Express x1 connector
Reset button
Serial ATA connector
SD card slot
System fan connector
SIM card slot
USB connector 0&1
USB connector 2&3

P11
P11
P13
P13

P14

P11
P13
P12
P12
P14
P14
P12
P15
P11
P11
P14
P15
P15
P12
P13
P15
P13
P15
P12
P12
P15
P15
P13
P15

P13

P13

Board Layout

10

Chapter 3

Board Layout

Jumper Settings

ATX Power Connector (ATX2):

Pin No. Signal

1

2

ATX Power Connector (ATX1)

1 GND
2 GND

3 +12V
4 +12V

13 1

General Purpose I/O Connector (JDIO1)

1

Pin No. Signal Pin No. Signal

1 DO0 2 DI0
3 DO1 4 DI1
5 DO2 6 DI2
7 DO3 8 DI3
9 SMB_CLK 10 SMB_DAT

11 GND 12 +5V

COM2 Pin Definition in RS-232Mode (JCOM2)

2
1

Pin No. Signal Pin No. Signal

1 DCD 2 RXDD
3 TXDD 4 DTR
5 GND 6 DSR
7 RTS 8 CTS
9 RI 10 NC

10

9

24 12

Pin No. Signal Pin No. Signal

1 NC 13 NC
2 NC 14 NC
3 GND 15 GND
4 NC 16 PSON#
5 GND 17 GND
6 NC 18 GND
7 GND 19 GND
8 NC 20 NC

9 +5VSB 21 NC
10 +12V 22 NC
11 +12V 23 NC
12 NC 24 GND

Embedded and Industrial Computing

COM2 Pin Definition in RS-422/485 Mode (J422/485):

2
1

6
5

Pin No. Signal

1 TX- DATA­2 RX- ­3 TX+ DATA+
4 RX+ ­5 +5V +5V
6 GND GND

RS-422 RS-485

11

Chapter 3

Board Layout

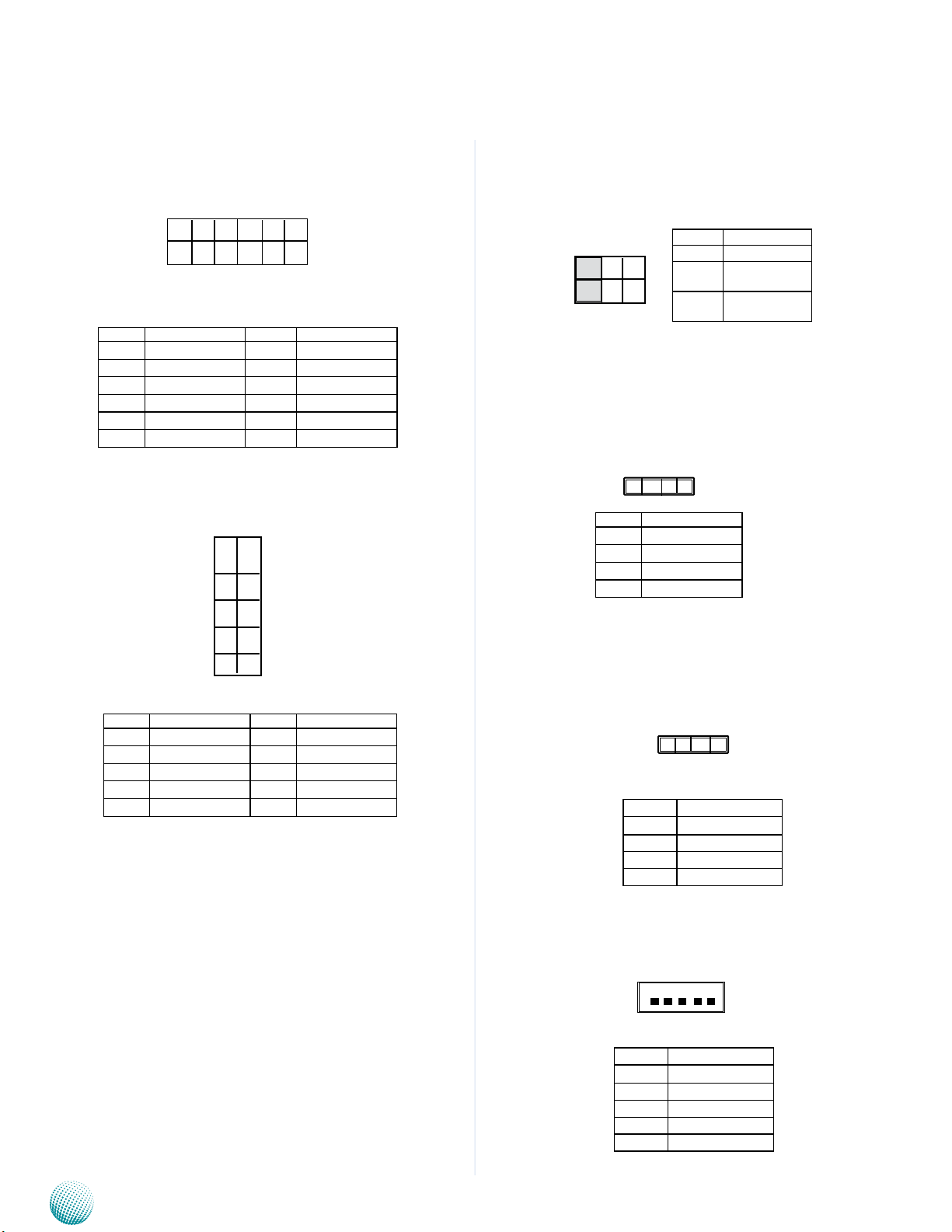

7.1ch Audio Connector (JAUDIO1)

2

1

Pin No. Signal Pin No. Signal

1 LFE-OUT 2 CEN-OUT
3 GND 4 GND
5 SURR-R-OUT 6 SURR-L-OUT
7 SIDESURR-R-OUT 8 SIDESURR-L-OUT
9 CEN-JD 10 SURR-JD

11 SIDESURR-JD 12 GND

Front Audio Connector (JAUDIO2)

1

2

Select COM1 Pin9 Function (in RS-232) (JRI1):. The
Ring indicator pinout of the RS-232 COM port can be
altered according to the following jumper settings.

Pin No. Function

2

1

1-2 Ring-in (default)
3-4 Supply +5V to

the device

5-6 Supply +12V to

the device

SPDIF connector (JSPDIF1)

1 2 3 4

Pin No. Signal

1 +3.3V
2 S/PDIF-IN
3 S/PDIF-OUT
4 GND

9

Pin No. Signal Pin No. Signal

1 MIC2-L-IN 2 GND
3 MIC2-R-IN 4 ACZ_DET#
5 LINE2-R-OUT 6 MIC2_JD
7 GND 8
9 LINE2-L-OUT 10 LINE2-JD

10

CD-ROM Audio Input Connector (JCD1)

4 3 2 1

Pin No. Signal

1 CD_R
2 GND
3 GND
4 CD_L

IR Connector (JIR1)

1 2 3 4 5

Pin No. Signal

1 +5V
2 NC
3 IRRX
4 GND
5

IRTX

Embedded and Industrial Computing

12

Chapter 3

Board Layout

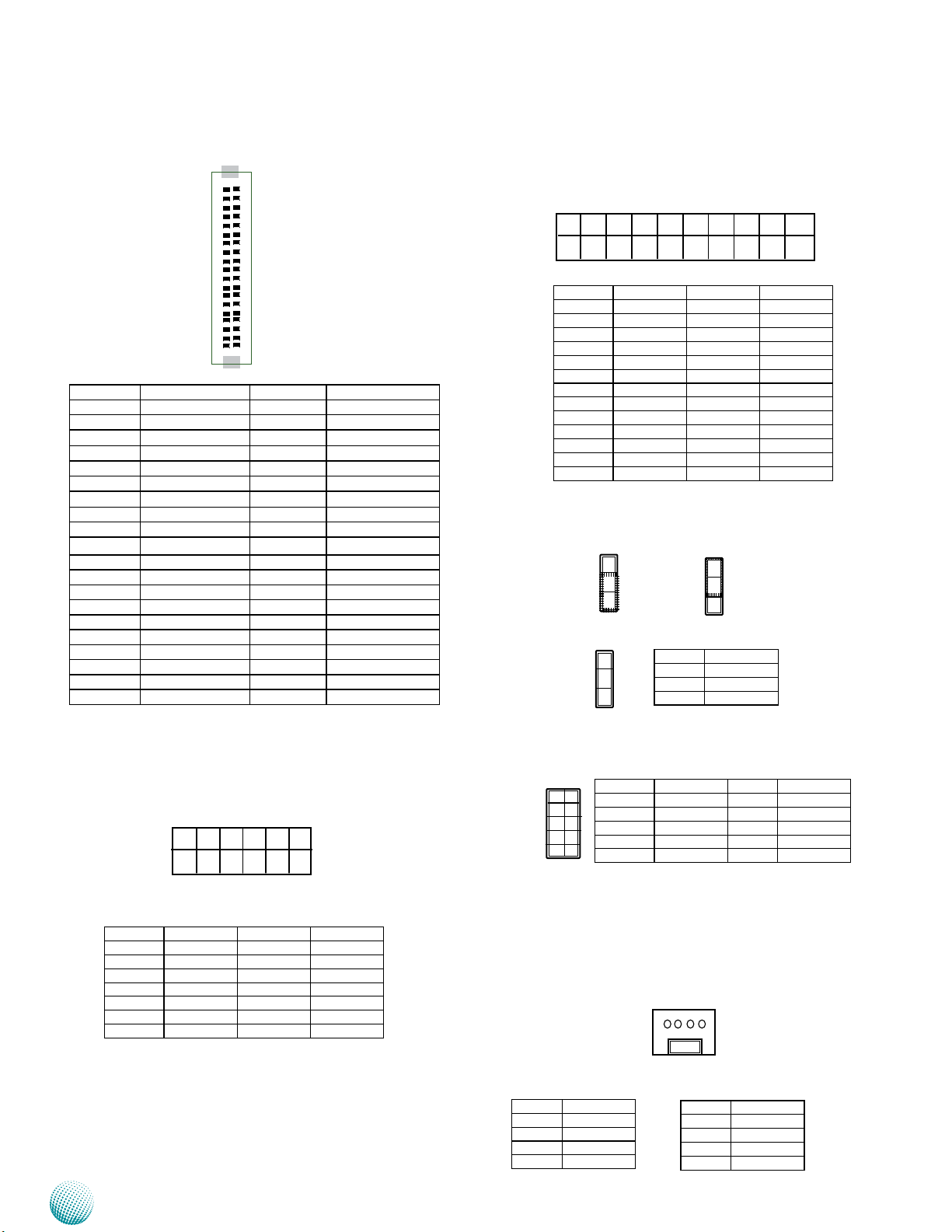

LVDS Connector (LVDS1)

1

39

PIN Signal PIN Signal

1 +3.3V 2 +5V
3 +3.3V 4 +5V
5 LVDS_DDC_SC 6 LVDS_DDC_SD
7 GND 8 GND

9 LVDSA_DATA1 10 LVDSA_DATA0
11 LVDSA_DATA1# 12 LVDSA_DATA0#
13 GND 14 GND
15 LVDSA_DATA3 16 LVDSA_DATA2
17 LVDSA_DATA3# 18 LVDSA_DATA2#
19 GND 20 GND

21 LVDSB_DATA1 22 LVDSB_DATA0
23 LVDSB_DATA1# 24 LVDSB_DATA0#
25 GND 26 GND
27 LVDSB_DATA3 28 LVDSB_DATA2
29 LVDSB_DATA3# 30 LVDSB_DATA2#
31 GND 32 GND
33 LVDSB_CLK 34 LVDSA_CLK
35 LVDSB_CLK# 36 LVDSA_CLK#
37 GND 38 GND
39 +12V 40 +12V

Printer Connector (JPRT1)

2

1

Pin No. Signal Pin No. Signal

1 STB- 2 LPT_AFD#
3 PD0 4 LPT_ERR#
5 PD1 6 LPT_INIT#
7 PD2 8 LPT_SLIN#

9 PD3 10 GND
11 PD4 12 GND
13 PD5 14 GND
15 PD6 16 GND
17 PD7 18 GND
19 LPT_ACT# 20 GND
21 LPT_BUSY 22 GND
23 LPT_PE 24 GND
25 LPT_SLCT 26 GND

AT Power Selector (JAT1)

3

1

AT mode

3

Pin No. Signal

1

26

25

3

1

ATX mode

1 SLP_S3#
2 Enable +12V
3 +3VSB

LPC Port Connector (JLPC1)

2

1

Pin No. Signal Pin No. Signal

1 AD0 2 +3.3V
3 AD1 4 RESET#
5 AD2 6 FRAME#
7 AD3 8 CLOCK

9 SERIRQ 10 GND
11 +5V 12 GND
13 +5VSB 14 LPC_DRQ1#

USB Connector 4 & 5 (JUSB1)

1
3

9

Pin No. Signal Pin No. Signal

1 +5V 2 GND
3 D4- 4 GND
5 D4+ 6 D5+
7 GND 8 D5­9 GND 10 +5V

CPU Fan Connector/ System Fan Connector 1/ System
Fan Connector 2

(C_FAN1/ C_FAN2/ S_FAN1)

1 2 3 4

CFAN1/CFAN2 SFAN1

Pin No. Signal

1 GND
2 +12V
3 CPUFANIN
4 CPUFANOUT

Pin No. Signal

1 GND
2 +12V
3 SYSFANIN
4 SYSFANOUT

Embedded and Industrial Computing

13

Chapter 3

Board Layout

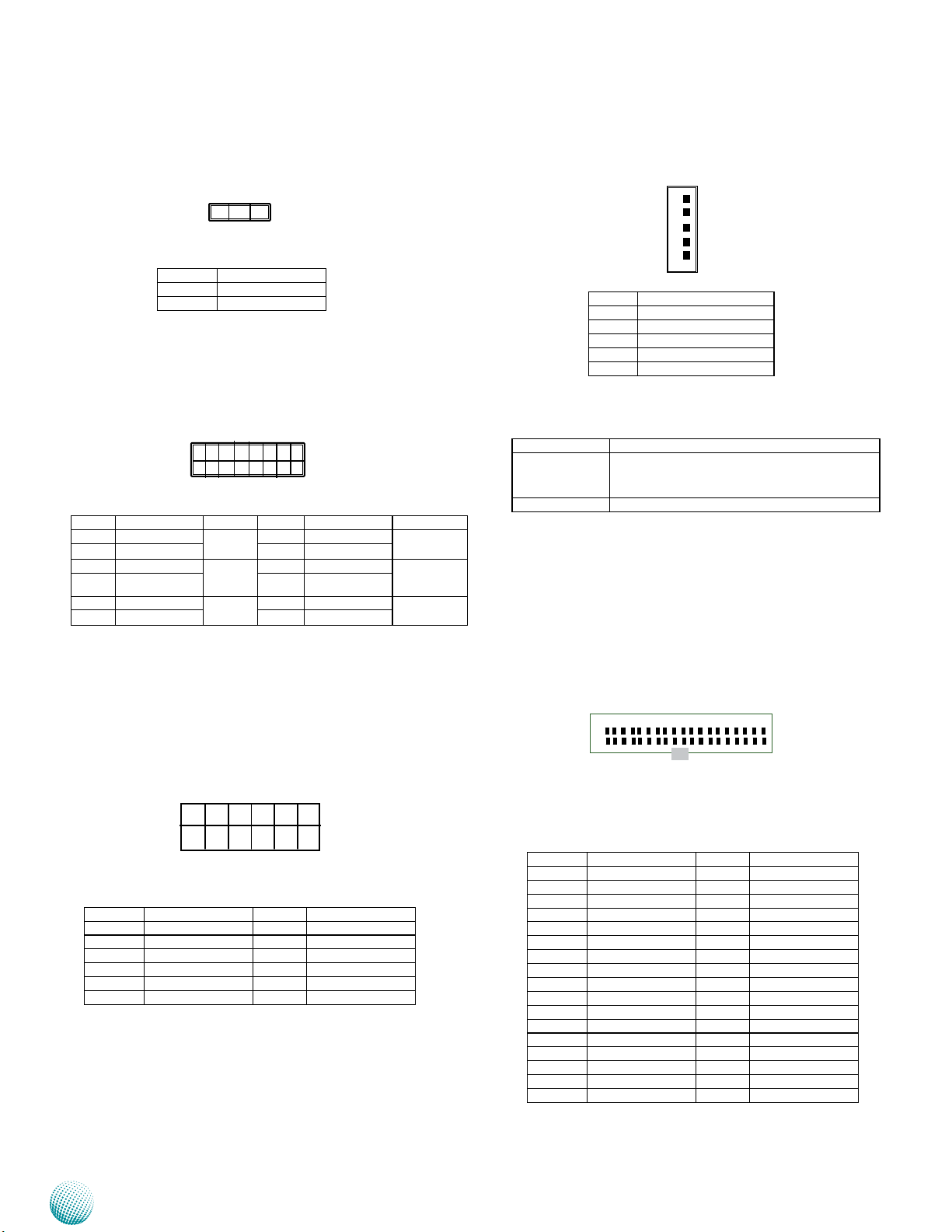

Clear CMOS (JBAT1)

3 2 1

Pin No. Signal

1-2 Normal (default)
2-3 Clear CMOS

Front Panel Connector (JFP1)

1

Pin No. Signal Function Pin No. Signal Function

1 EXT_PWRBTN# Power
2 GND 8 SATA_LED#

3 SYS_RERST# Reset 9 EXT_PWRBTN# Short = AT
4 GND 10 AT_BN

5 +5V Power
6 GND 12 GND

Button

LED

7 +5V HDD LED

Open = ATX

11 CASEOPEN# Case Open

LCD Inverter Connector (JBKL1)

1

2

5

Pin No. Signal

1 +12V_BKL
2 GND
3 BKLEN
4 LVDS_BKLT_CTRL/PWM
5 +5V

Signal Description of JBKL1

Signal Function

LVDS_BKLT_CTRL when LVDS_BKLT_CTRL is controlled by JVR1

header, Vadj = 0.75V ~ 4.25V (Recommended:

4.7KΩ, >1/16W)

BKLEN LCD backlight ON/OFF control signal

Floppy connector (FDC1)

Multi-purpose Connector (JCN3)

2

1

Pin No. Signal Pin No. Signal

1 SER0_TX 2 SER0_RX
3 SER1_TX 4 SER1_RX
5 SLEEP# 6 GND
7 LID# 8 GND
9 PP_TPM 10 GND

11 PP_TPM 12 +3VSB

2

1

Pin No. Signal Pin No. Signal

1 GND 2 DRVDEN0
3 GND 4 NC
5 6 NC
7 GND 8 INDEX#

9 GND 10 MOA#
11 GND 12 NC
13 GND 14 DSA#
15 GND 16 NC
17 GND 18 DIR#
19 GND 20 STEP#
21 GND 22 WD#
23 GND 24 WE#
25 GND 26 TRAK0#
27 GND 28 WP#
29 GND 30 RDATA#
31 GND 32 HEAD#
33 GND 34 DSKCHG#

Embedded and Industrial Computing

14

Chapter 3

Board Layout

Firmware Hub BIOS Chip Select (JFWH1)

1 2

Pin No. Signal

1 GND
2 BIOS_DIS0#

NOTE: Jumper 1-2 closed can disable expansion

board BIOS and use this board’s FWH instead.

LCD Backlight Brightness Adjustment Connector
(JVR1)

1

3

Pin No. Signal

1 +5V
2 LVDS_BKLT_CTRL
3 GND

PCIE Signal Selector (JPCIE1)

1 2 3

Pin No. Signal

1 GND
2 SEL
3 +3.3V

PCI Express Differential Transmit Pairs:

JPCIE1 PCIE

S E L =L OW

(short 1-2)
SEL=HIGH
(short 2-3)

PCIE

PCIE

[0]

[1]

[2]

PCIE3 LAN2 PCIE4 MINI-

LAN2 PCIE4 MINI-

PCIE1

PCIE

PCIE

[3]

x X X X

SPI Selector (JSPI1)

[4]

PCIE

[5]

PCIE

[6]

PCIE1

S3 signal selector (JPWR1)

ATX mode

1 2 3

Pin No. Signal Description

1 PWR_S3 Control by power button
2 S3 Control power IC
3 SLP_S3# Signal between Expansion

AT mode

1 2 3

board and this board

PCIE2 (DDI) Signal Selector (JHDMI1)

1 2

Display Port

Pin No. Signal

1 +3.3V
2 DDI_DDC_AUX_SEL

HDMI/SDVO

Pin No. Signal

Short 1-2 HDMI/SDVO

1 2

1 2

Pin No. Signal

1 GND
2 BIOS_DIS1#

Note: Jumper 1-2 closed can disable expansion
board SPI FLASH and use this board’s SPI FLASH
instead.

Carrier Board SPI FLASH Programming (JSPI2)

DisplayPort

1 3 5 7

Embedded and Industrial Computing

Pin No. Signal Pin No. Signal

1 +3VSB 2 GND
3 SPI_CS# 4 SPI_CLK
5 SPI_MOSI 6 SPI_MISO
7 SPI_HOLD#

15

Appendix A

Terms and Conditions

Appendix A:
Terms and Conditions

Warranty Policy

All products are under warranty against defects in 1.
materials and workmanship for a period of one year
from the date of purchase.

The buyer will bear the return freight charges for 2.
goods returned for repair within the warranty period;
whereas the manufacturer will bear the after service
freight charges for goods returned to the user.

The buyer will pay for repair (for replaced components 3.
plus service time) and transportation charges (both
ways) for items after the expiration of the warranty
period.

If the RMA Service Request Form does not meet the 4.
stated requirement as listed on “RMA Service,” RMA
goods will be returned at customer’s expense.

The following conditions are excluded from this 5.
warranty:

RMA Service

Requesting a RMA#

To obtain a RMA number, simply fill out and fax the 1.
“RMA Request Form” to your supplier.

The customer is required to fill out the problem code 2.
as listed. If your problem is not among the codes listed,
please write the symptom description in the remarks
box.

Ship the defective unit(s) on freight prepaid terms. 3.
Use the original packing materials when possible.

Mark the RMA# clearly on the box. 4.

Note: Customer is responsible for shipping

damage(s) resulting from inadequate/loose
packing of the defective unit(s). All RMA# are valid
for 30 days only; RMA goods received after the
effective RMA# period will be rejected.

Improper or inadequate maintenance by the customer
Unauthorized modification, misuse, or reversed
engineering of the product Operation outside of the
environmental specifications for the product.

Embedded and Industrial Computing

16

Appendix A

RMA Service Request Form

When requesting RMA service, please fill out the following form. Without
this form enclosed, your RMA cannot be processed.

RMA No:

Reasons to Return: Ŀ Repair(Please include failure details)
Ŀ Testing Purpose

Company: Contact Person:

Phone No. Purchased Date:

Fax No.: Applied Date:

Return Shipping Address:
Shipping by: Ŀ Air Freight Ŀ Sea Ŀ Express ___
Ŀ Others:________________

Item Model Name Serial Number Configuration

Item Problem Code Failure Status

*Problem Code:
01:D.O.A.
02: Second Time
R.M.A.
03: CMOS Data Lost
04: FDC Fail
05: HDC Fail
06: Bad Slot

07: BIOS Problem
08: Keyboard Controller Fail
09: Cache RMA Problem
10: Memory Socket Bad
11: Hang Up Software
12: Out Look Damage

13: SCSI
14: LPT Port
15: PS2
16: LAN
17: COM Port
18: Watchdog Timer

19: DIO
20: Buzzer
21: Shut Down
22: Panel Fail
23: CRT Fail
24: Others (Pls specify)

Request Party

Confirmed By Supplier

Authorized Signature / Date Authorized Signature / Date

Terms and Conditions

Embedded and Industrial Computing

17
