Lanner NCA-1210 User Manual

Network Computing Platforms

NCA-1210

User Manual

Rev 1.0 September 12, 2016

Network Computing Platforms

Revision History

This document contains proprietary information of Lanner Electronics Inc. –and is not to be

disclosed or used except in accordance with applicable agreements.

is proprietary and confidential to Lanner Electronics Inc. No part of this document may be

reproduced in any form or by any means or used to make any derivative work (such as

translation, transformation, or adaptation) without the express written consent of Lanner

Electronics Inc. Lanner Electronics Inc. reserves the right to revise this document and to make

changes in content from time to time without obligatio n on the part of La nner Electronics Inc. to

provide notification of such revision or chan ge.

The information in this document is furnished for informational use only, is subject to change

without notice, and should not be constr ued as a commitm ent by Lanner Electroni cs Inc. Lanner

Electronics Inc. assumes no responsibility or liability for any errors or inaccuracies that may

appear in this document or any software that may be provided in association with this document.

Rev Date Descriptions

0.1 2016/08/09 Preliminary

0.2 2016/08/22 Added notes about rubber pads

1.0 2016/09/12 Official release

Network Computing Platforms

Online Resources

The listed websites are links to the on-line product information and technical support.

Resource Website

Lanner www.lannerinc.com Product Resources

www.lannerinc.com/support/download-center

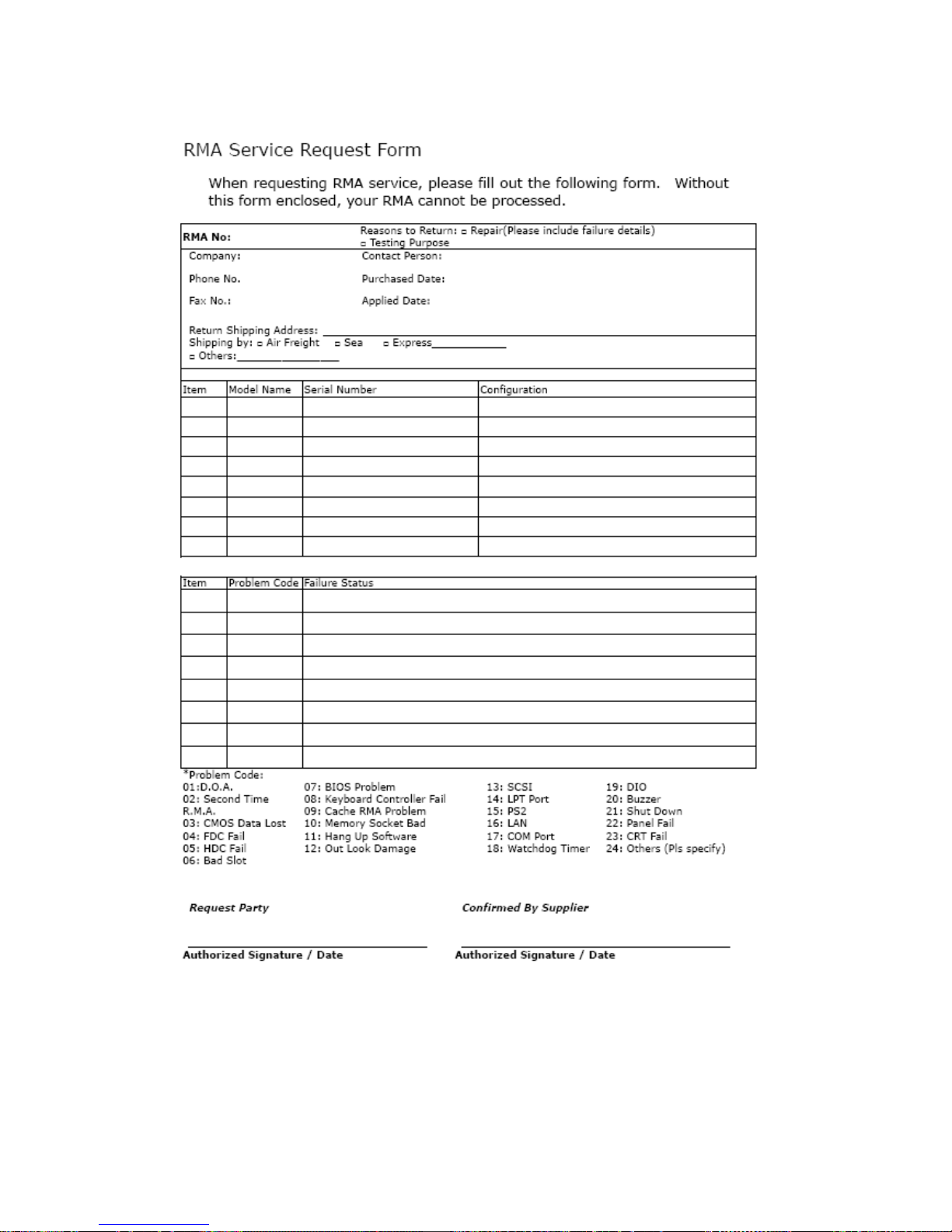

RMA http://eRMA.lannerinc.com

Acknowledgement

Intel, Pentium and Celeron are registered trademarks of Intel Corp. Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp. All other product names or trademarks are properties of their respective owners.

Compliances and Certification CE Certification

This product has passed the CE test for environmental specifications. Test conditions for passing included the equipment being operated within an industrial enclosure. In order to protect the product from being damaged by ESD (Electrostatic Discharge) and EMI leakage, we strongly recommend the use of CE-compliant industrial enclosure products.

FCC Class A Certification

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

EMC Notice

Network Computing Platforms

not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case users will be required to corre ct the interferen ce at their own expense.

Safety Guidelines

z Follow these guidelines to ensure general safety: z Keep the chassis area clear and dust-free before, duri ng and after installation. z Do not wear loose clothing or jewelry that could get caught in the chassis. Fasten your tie

or scarf and roll up your sleeves.

z Wear safety glasses/goggles if you are working under any conditions that might be

hazardous to your eyes.

z Do not perform any action that creates a potential hazard to people or makes the

equipment unsafe.

z Disconnect all power by turning off the power and unplugging the power cord before

installing or removing a chassis or working near power supplies

z Do not work alone if potentially hazardous conditions exist. z Never assume that power is disconnected from a circuit; always check the circuit.

LITHIUM BATTERY CAUTION:

Risk of explosion could occur if battery is replaced by an incorrect type. Please dispose of used batteries according to the recycling instructions of your country. z Installation only by a trained electrician or only by an electrically trained person who knows

all the applied or related installation and device specifications..

z Do not carry the handle of power supplies when moving to other place. z The machine can only be used in a fixed location such as labs or computer facilities.

Operating Safety

z Electrical equipment generates heat. Ambient air temperature may not be adequate to

cool equipment to acceptable operating temperatures without adequate circulation. Be sure that the room in which you choose to operate your system has adequate air circulation.

z Ensure that the chassis cover is secu re. The chassis design allows cooling air to circulate

effectively. An open chassis permits air leaks, which may interrupt and redirect the flow of

cooling air from internal components. Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD damage occurs when electronic components are improperly ha ndled and can result in

Network Computing Platforms

complete or intermittent failures. Be sure to follow ESD-prevention procedures when removing and replacing components to avoid these problems. z Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. If no wrist

strap is available, ground yourself by touching the metal part of the chassis. z Periodically check the resistance value of the antistatic strap, which should be between 1

and 10 megohms (Mohms).

Mounting Installation Environment Precaution

1. Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer.

2. Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised.

3. Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven mechanical loading.

4. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of the circuits might have on over-current protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

5. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).”

Consignes de sécurité

Suivez ces consignes pour assurer la securite generale :

z Laissez la zone du chassis propre et sans poussiere pendant et apres l’installation. z Ne portez pas de vetements amples ou de bijoux qui pourraient etre pris dans le chassis.

Attachez votre cravate ou echarpe et remontez vos manches.

z Portez des lunettes de securite pour proteger vosmyeux. z N’effectuez aucune action qui pourrait creer un dangermpour d’autres ou rendre

l’equipement dangereux. z Coupez completement l’alimentation en eteignant l’alimentation et en debranchant le

cordon d’alimentation avant d’installer ou de retirer un chassis ou de travailler a proximite

de sources d’alimentation. z Ne travaillez pas seul si des conditions dangereuses sont presentes.

Network Computing Platforms

z Ne considerez jamais que l’alimentation est coupee d’un circuit, verifiez toujours le circuit.

Cet appareil genere, utilise et emet une energie radiofrequence et, s’il n’est pas installe et

utilise conformement aux instructions des fournisseurs de composants sans fil, il risque de

provoquer des interferences dans les communications radio.

Avertissement concernant la pile au lithium

z Risque d’explosion si la pile est remplacee par une autre d’un mauvais type. z Jetez les piles usagees conformement aux instructions. z L’installation doit etre effectuee par un electricien forme ou une personne formee a

l’electricite connaissant toutes les specifications d’installation et d’appareil du produit. z Ne transportez pas l’unite en la tenant par le cable d’alimentation lorsque vous deplacez

l’appareil. z La machine ne peut etre utilisee qu’a un lieu fixe comme en laboratoire, salle d’ordinateurs

ou salle de classe.

Sécurité de fonctionnement

z L’equipement electrique genere de la chaleur. La temperature ambiante peut ne pas etre

adequate pour refroidir l’equipement a une temperature de fonctionnement acceptable

sans circulation adaptee. Verifiez que votre site propose une circulation d’air adequate. z Verifiez que le couvercle du chassis est bien fixe. La conception du chassis permet a l’air

de refroidissement de bien circuler. Un chassis ouvert laisse l’air s’echapper, ce qui peut

interrompre et rediriger le flux d’air frais destine aux composants internes. z Les decharges electrostatiques (ESD) peuvent endommager l’equipement et gener les

circuits electriques. Des degats d’ESD surviennent lorsque des composants electroniques

sont mal manipules et peuvent causer des pannes totales ou intermittentes. Suivez les

procedures de prevention d’ESD lors du retrait et du remplacement de composants.

- Portez un bracelet anti-ESD et veillez a ce qu’il soit bien au contact de la peau. Si aucun bracelet n’est disponible, reliez votre corps a la terre en touchant la partie metallique du chassis. Verifiez regulierement la valeur de resistance du bracelet antistatique, qui doit etre comprise entre 1 et 10 megohms (Mohms).

Consignes de sécurité électrique

z Avant d’allumer l’appareil, reliez le cable de mise a la terre de l’equipement a la terre. z Une bonne mise a la terre (connexion a la terre) est tres importante pour proteger l

equipement contre les effets nefastes du bruit externe et reduire les risque s d’electrocution

en cas de foudre. z Pour desinstaller l’equipement, debranchez le cable de mise a la terre apres avoir eteint

l’appareil.

Network Computing Platforms

z Un cable de mise a la terre est requis et la zone reliant les sections du conducteur doit

faire plus de 4 mm2 ou 10 AWG.

Procédure de mise à la terre pour source d’alimentation CC Procédure de mise à la terre pour source d’alimentation CC

• Desserrez la vis du termi nal de mise a la terre.

• Branchez le cable de mise a la terre a la terre.

• L’appareil de protection pour la source d’alimentation CC doit fournir 30 A de courant. Cet appareil de protection doit etre branche a la source d’alimentation avant l’alimentation CC.

Network Computing Platforms

Table of Contents

Revision History ............................................................................................................2

Chapter 1: Introduction................................................................................................10

System Specification............................................................................................10

Ordering Information...........................................................................................12

Package Contents.................................................................................................12

Chapter 2: System Overview.......................................................................................13

Mechanical Drawing............................................................................................13

Block Diagram.....................................................................................................14

Front I/Os.............................................................................................................15

Rear I/Os..............................................................................................................16

Chapter 3: Board Layout..............................................................................................17

Jumpers and Connectors on the Motherboard .....................................................17

Jumper Setting and Connector Pin-out................................................................18

Jumper Settings............................................................................................18

Connector Pin Assignments.........................................................................19

Chapter 4: Hardware Setup..........................................................................................24

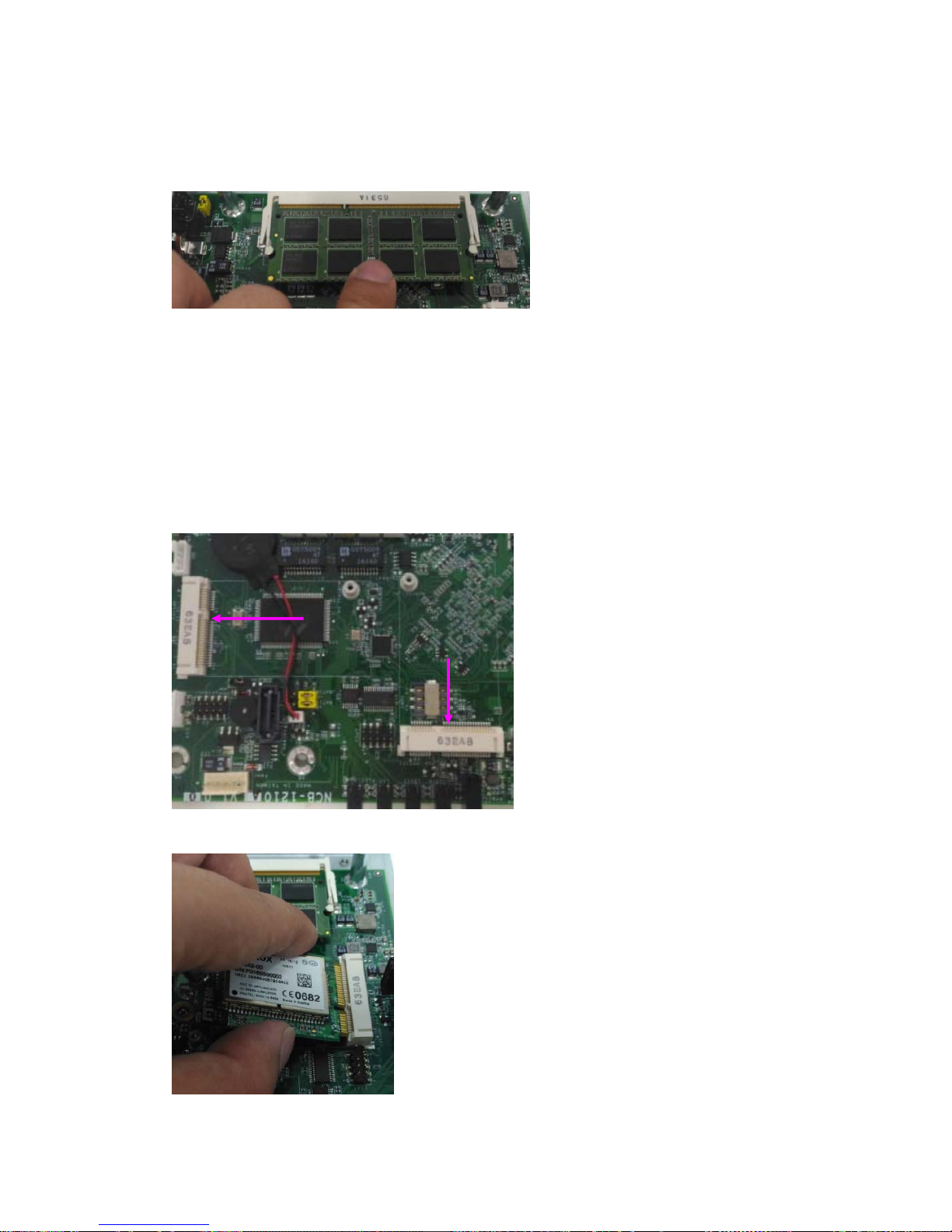

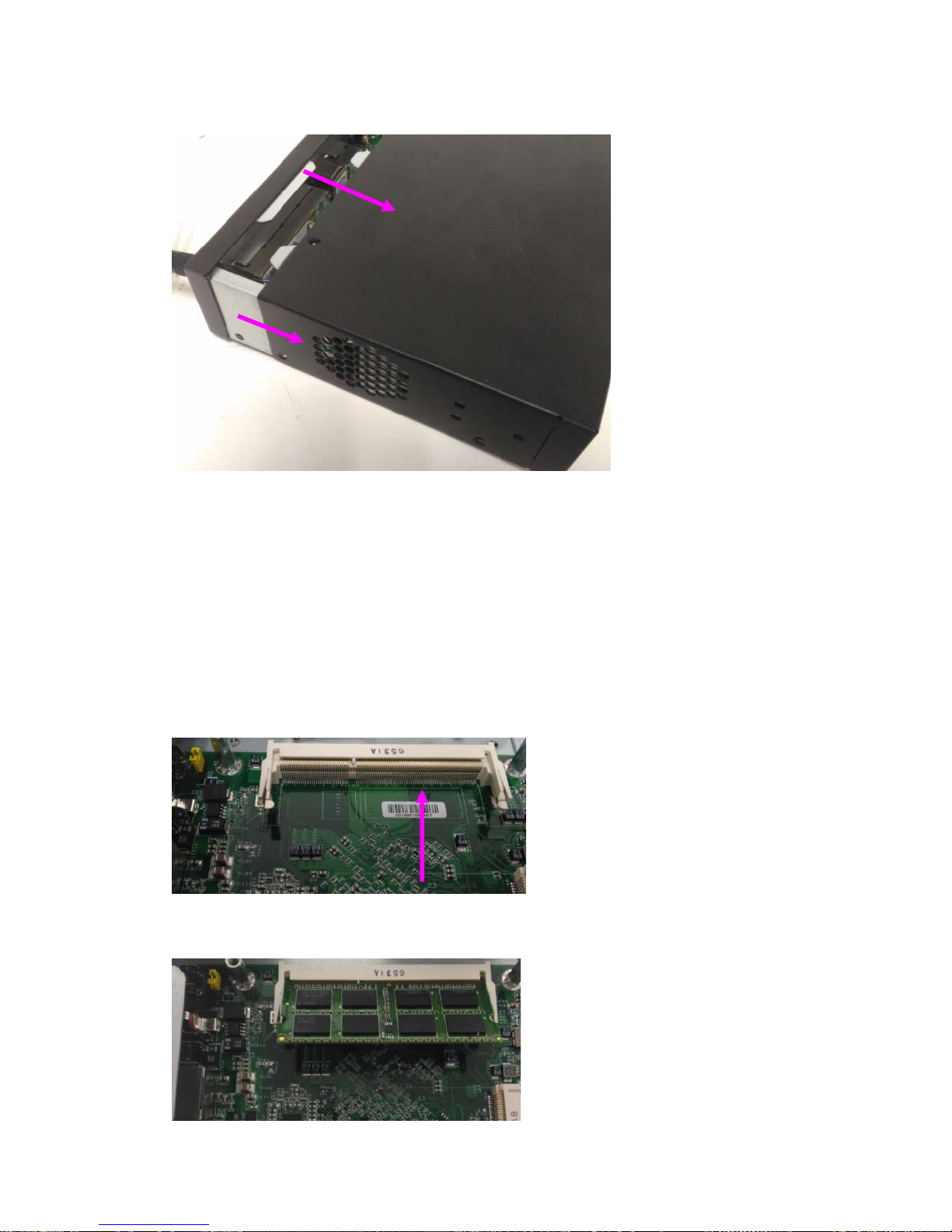

Installing the System Memory.............................................................................25

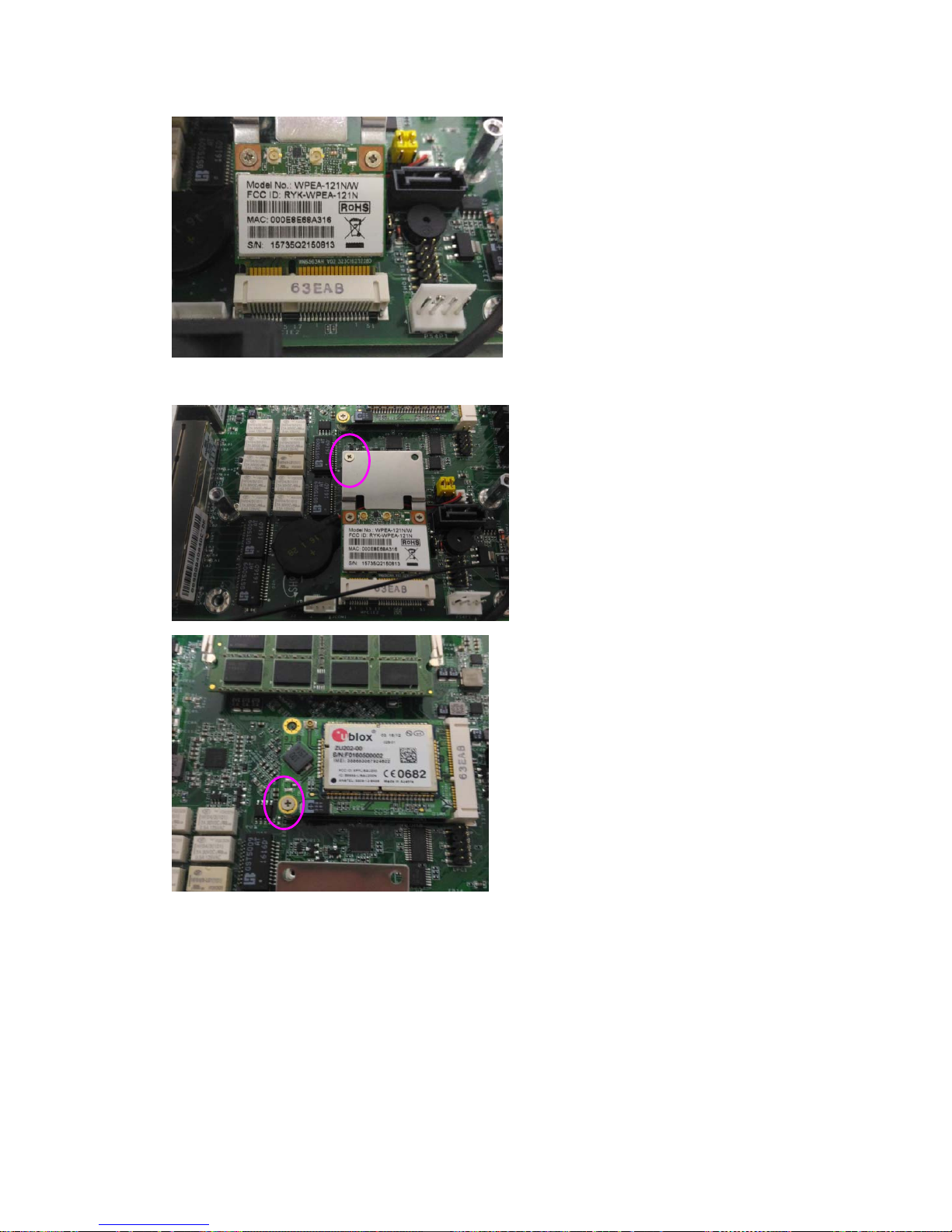

Installing Mini-PCIe Modules .............................................................................26

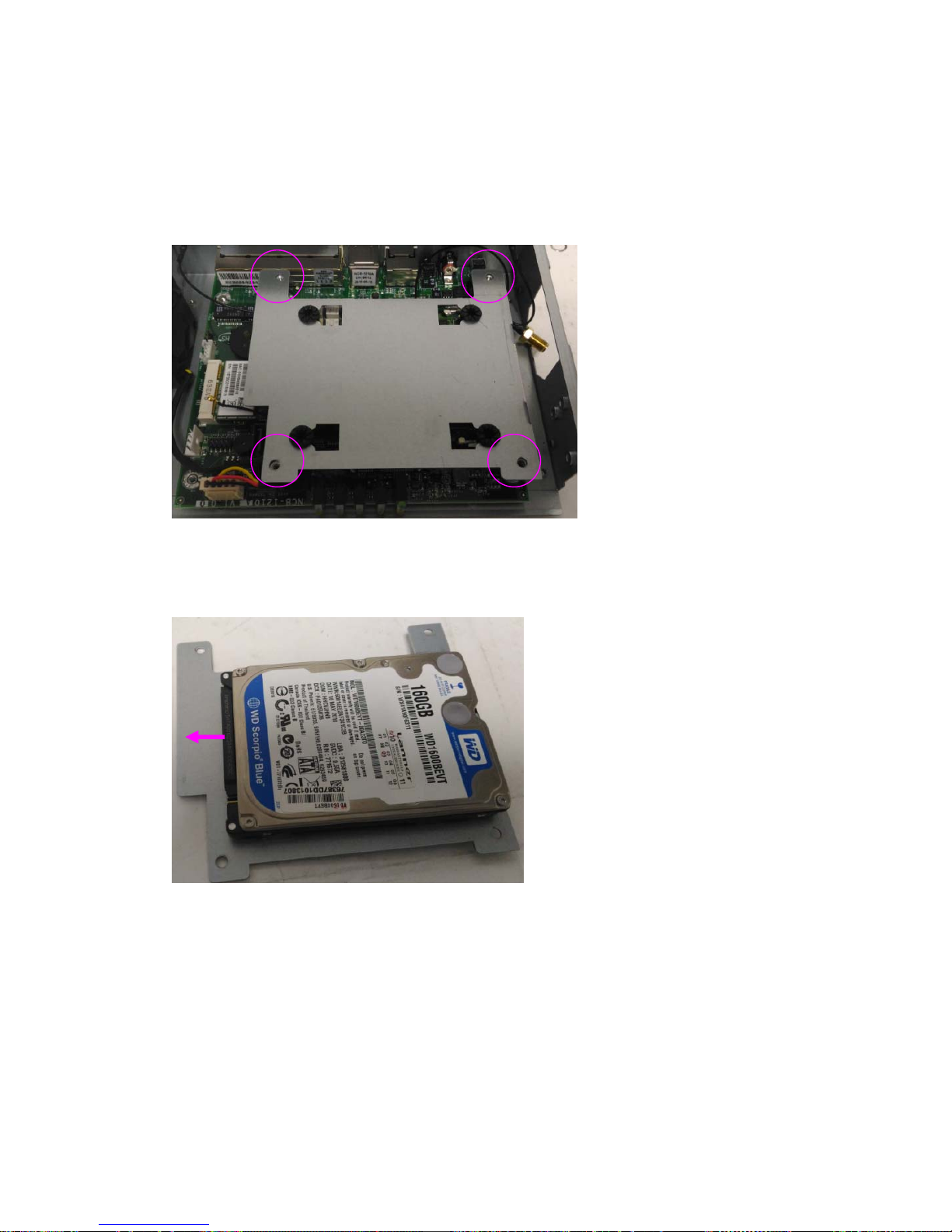

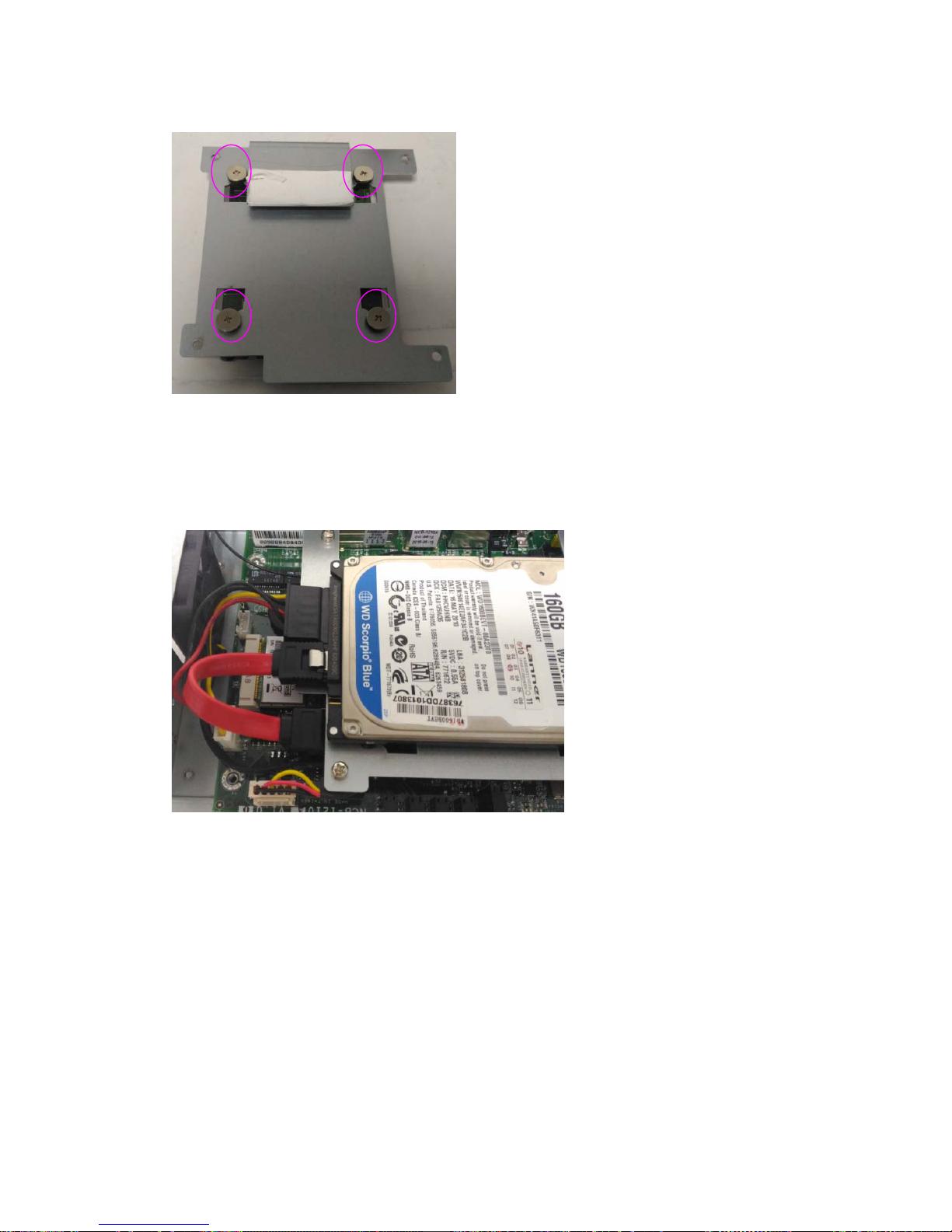

Installing Disk Drives..........................................................................................28

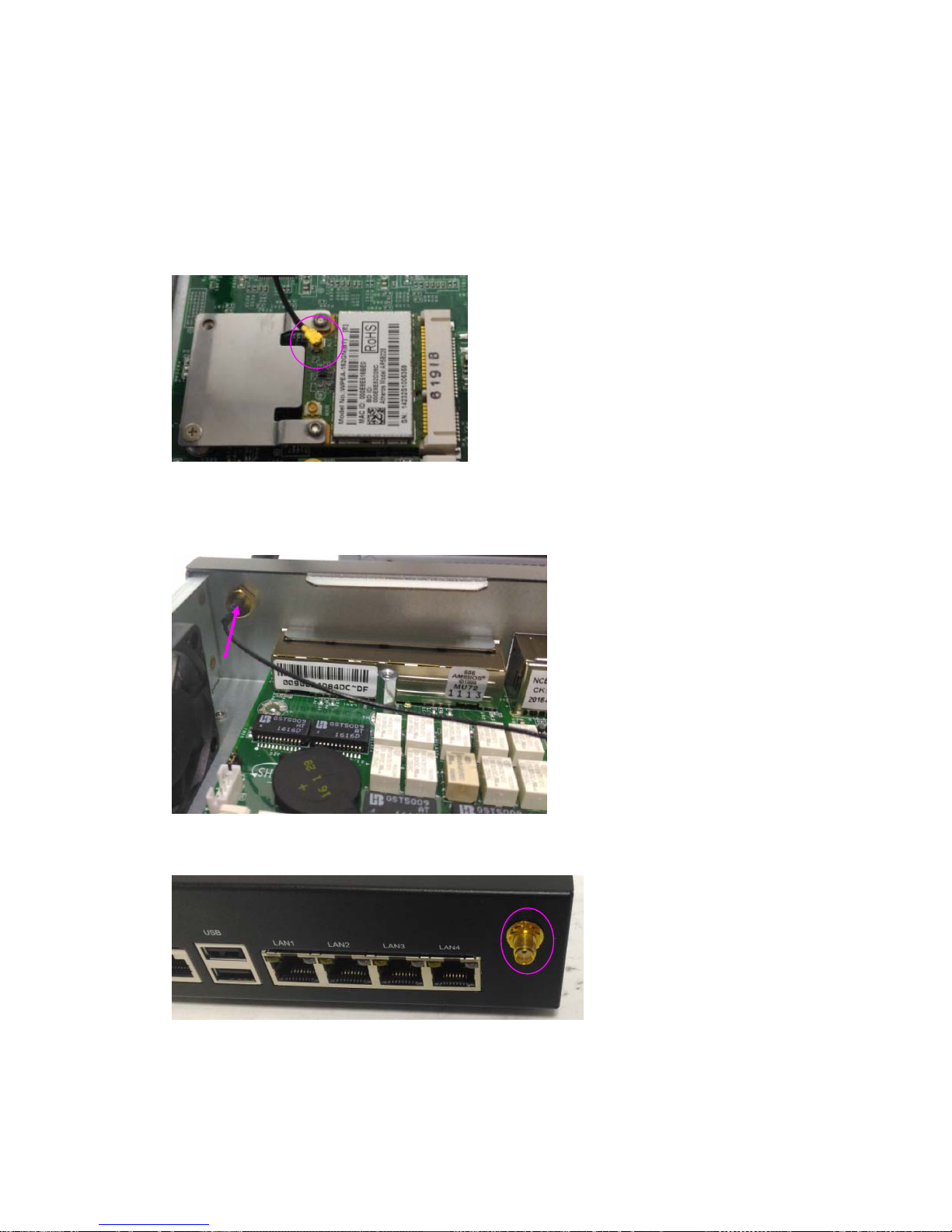

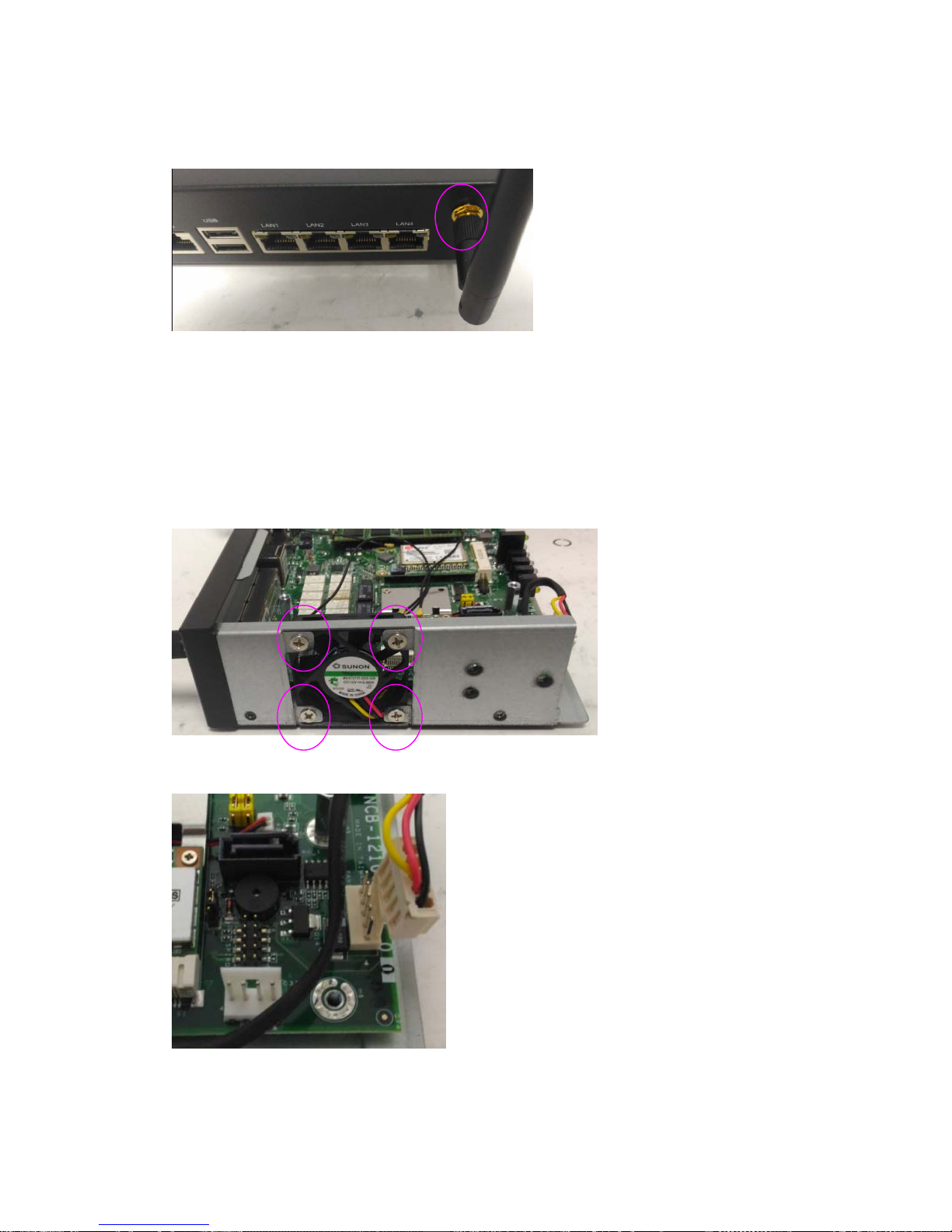

Installing SMA Antenna (optional)......................................................................30

Replacing Cooling Fans.......................................................................................31

Chapter 5: BIOS Setup (TBD).....................................................................................32

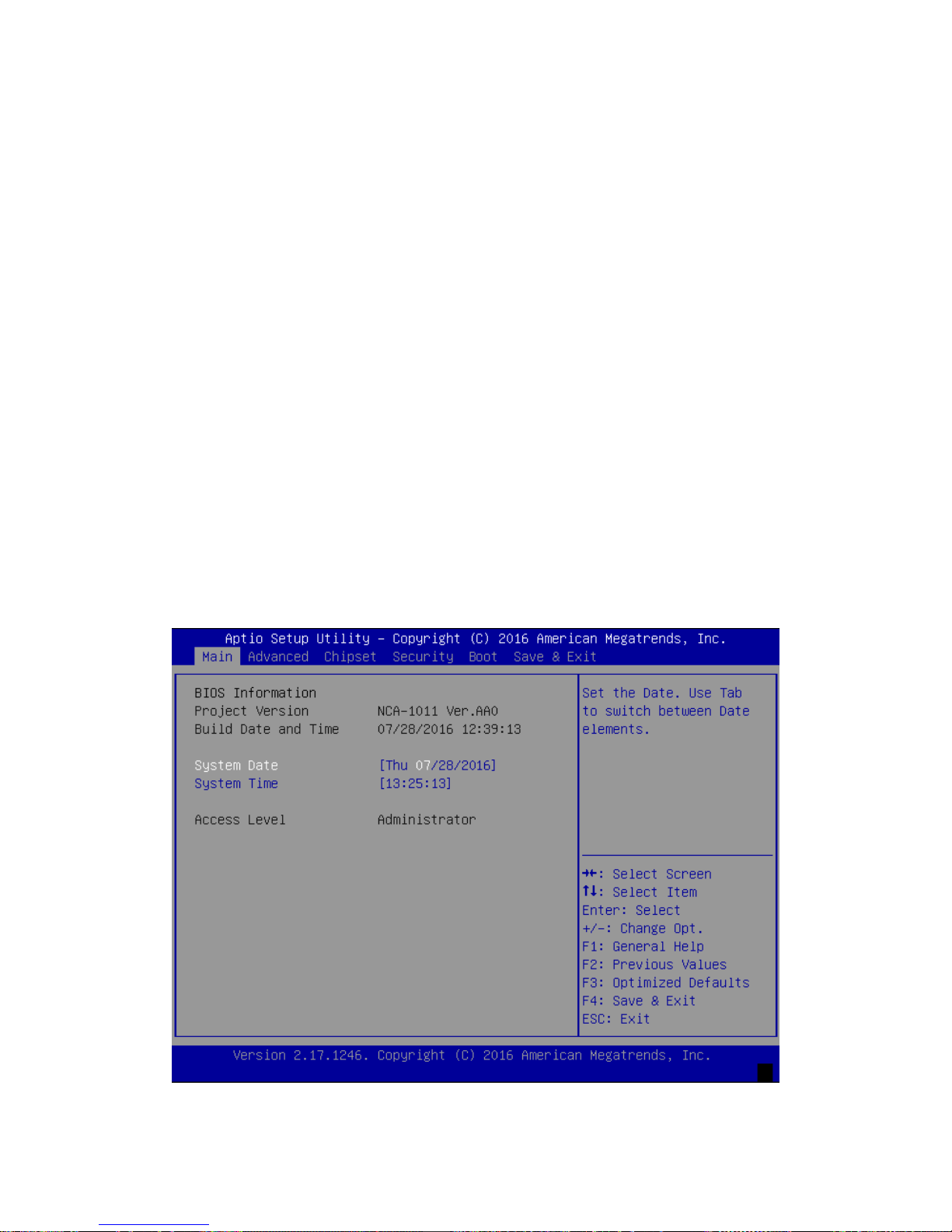

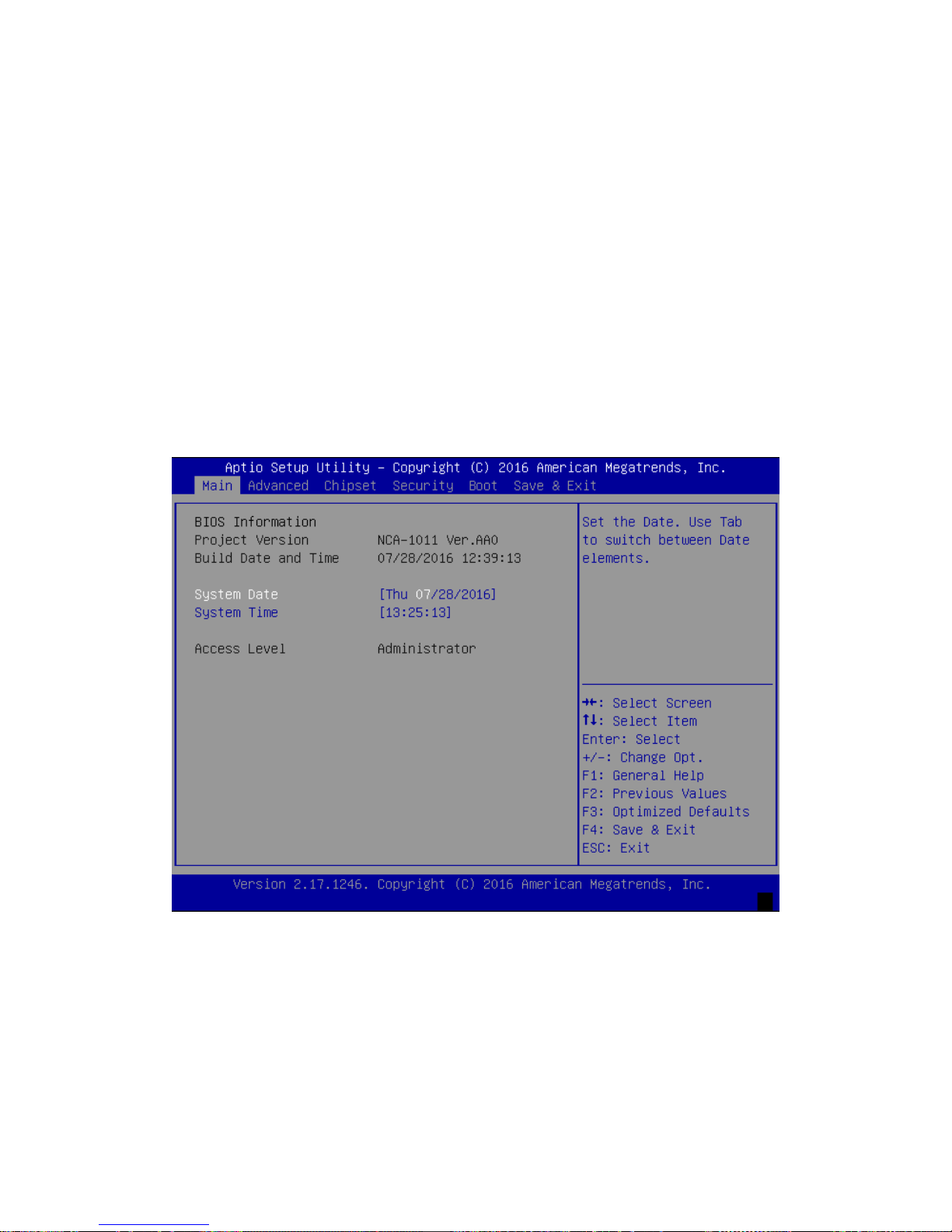

Main.......................................................................................................................33

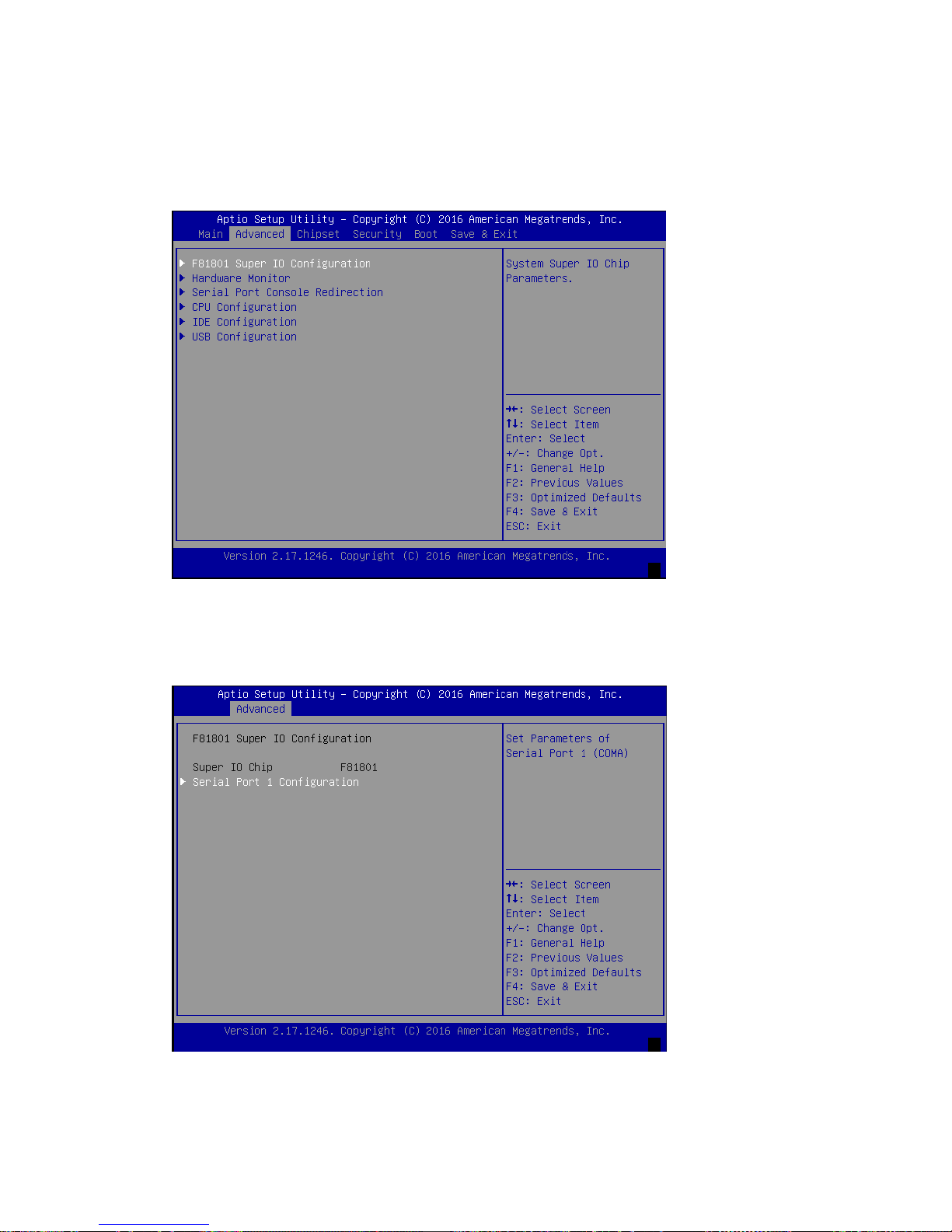

Advanced ................................................................................................................34

F81801 Super IO Configuration ..................................................................34

HW Monitor.................................................................................................35

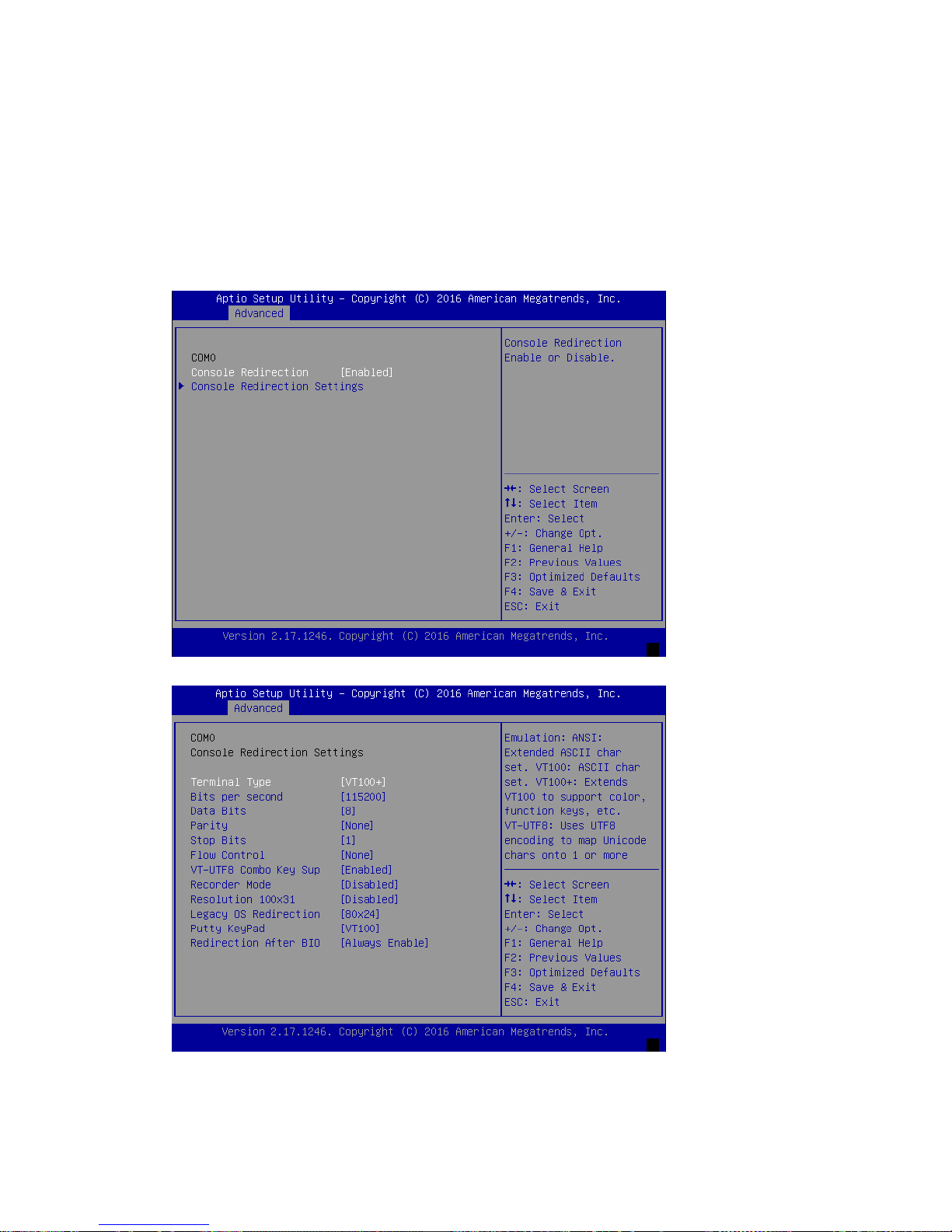

Serial Port Console Redirection...................................................................36

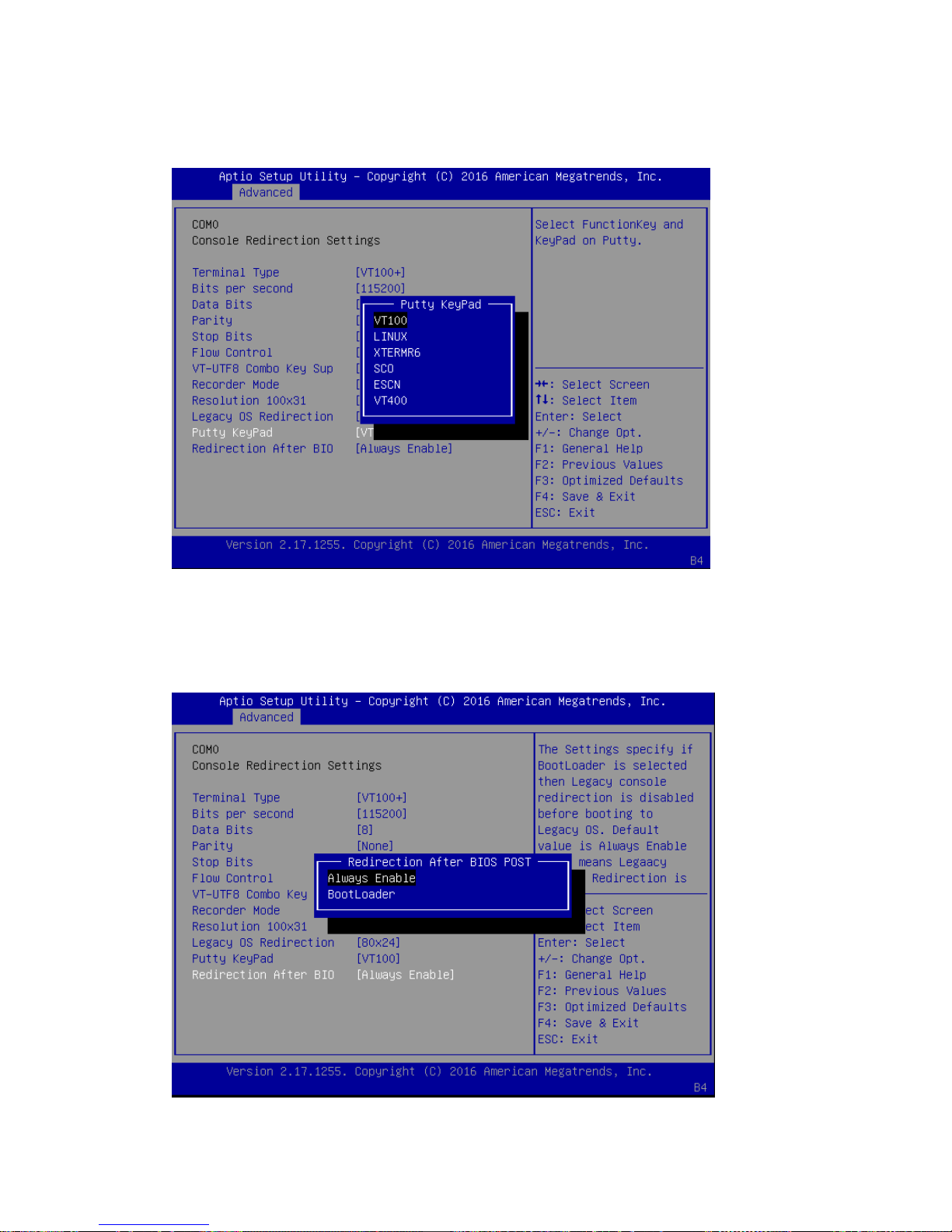

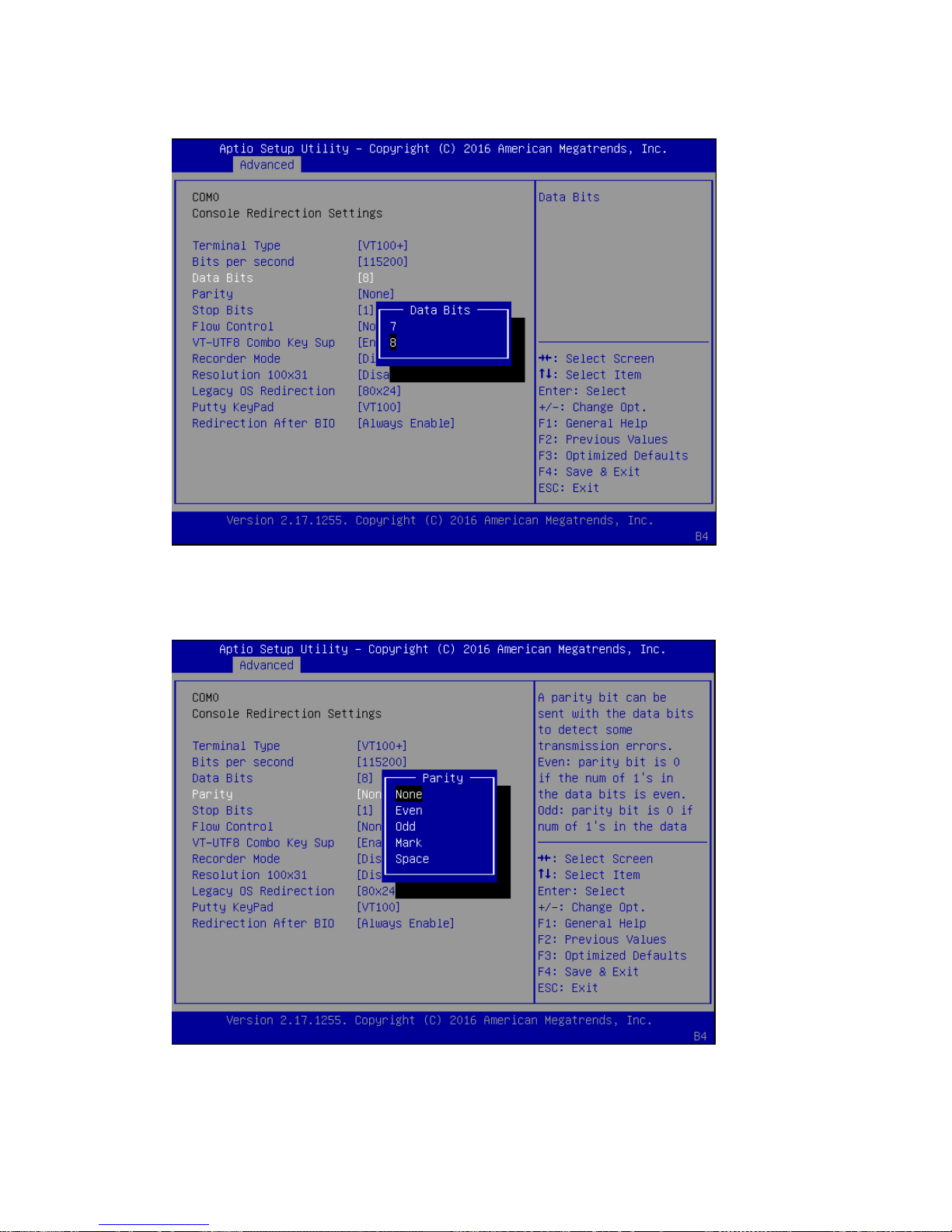

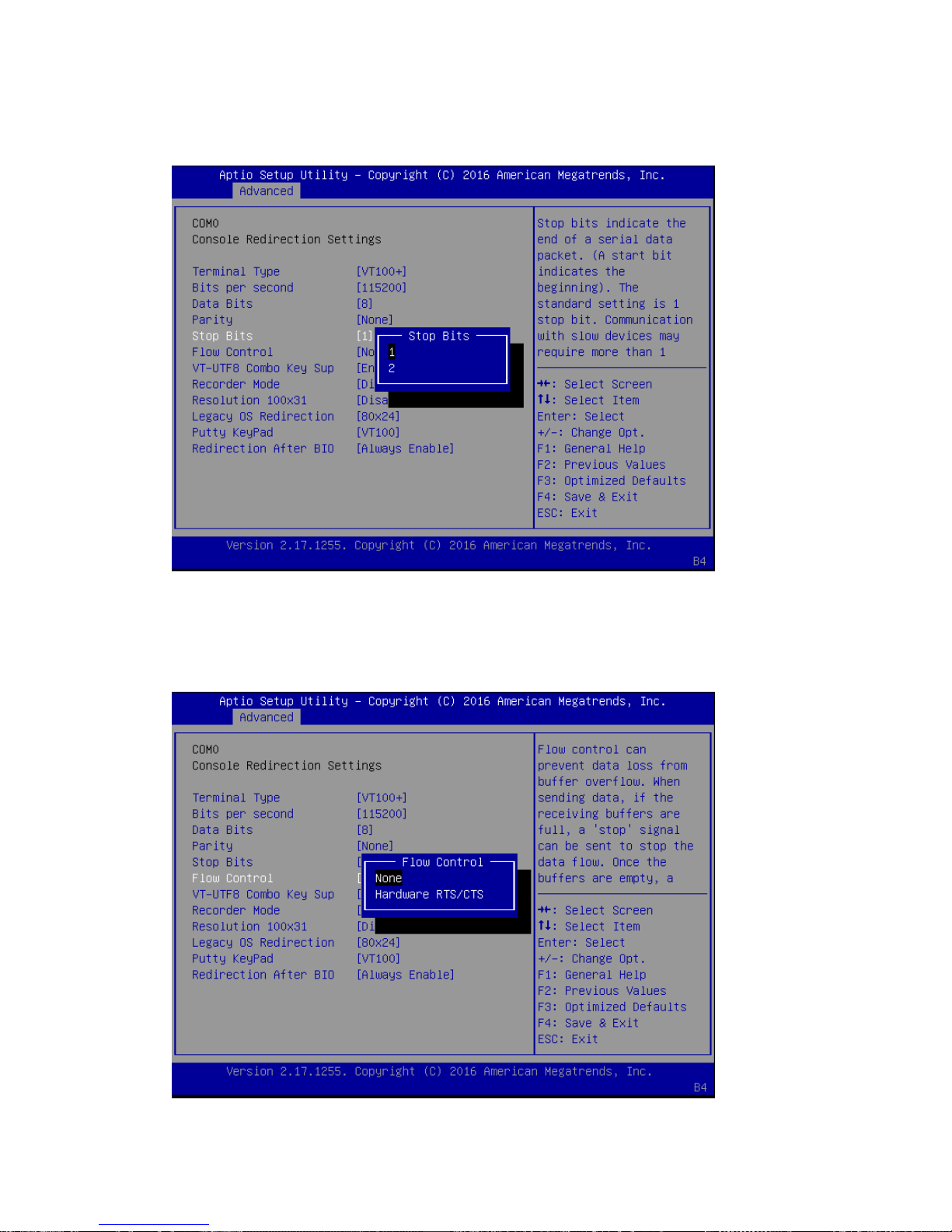

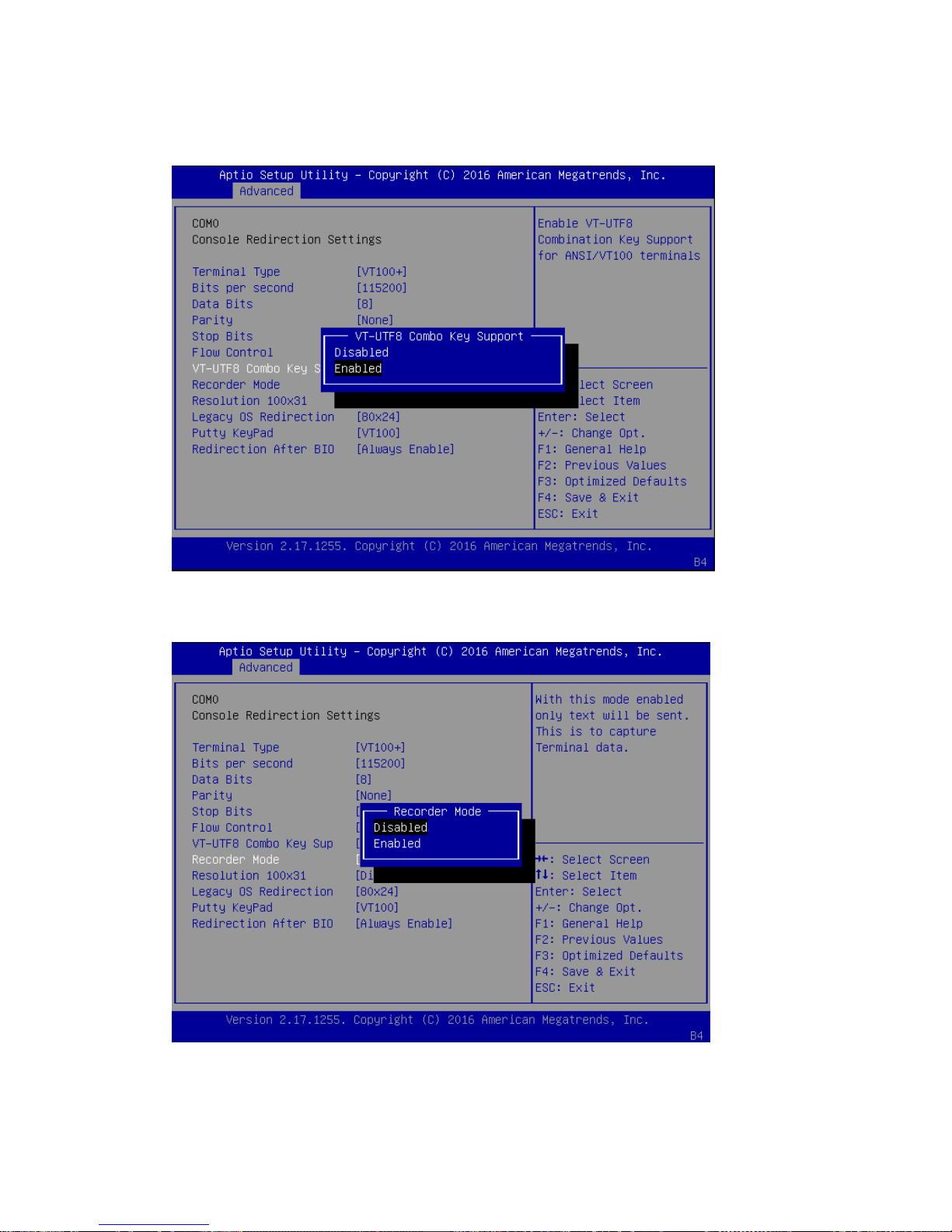

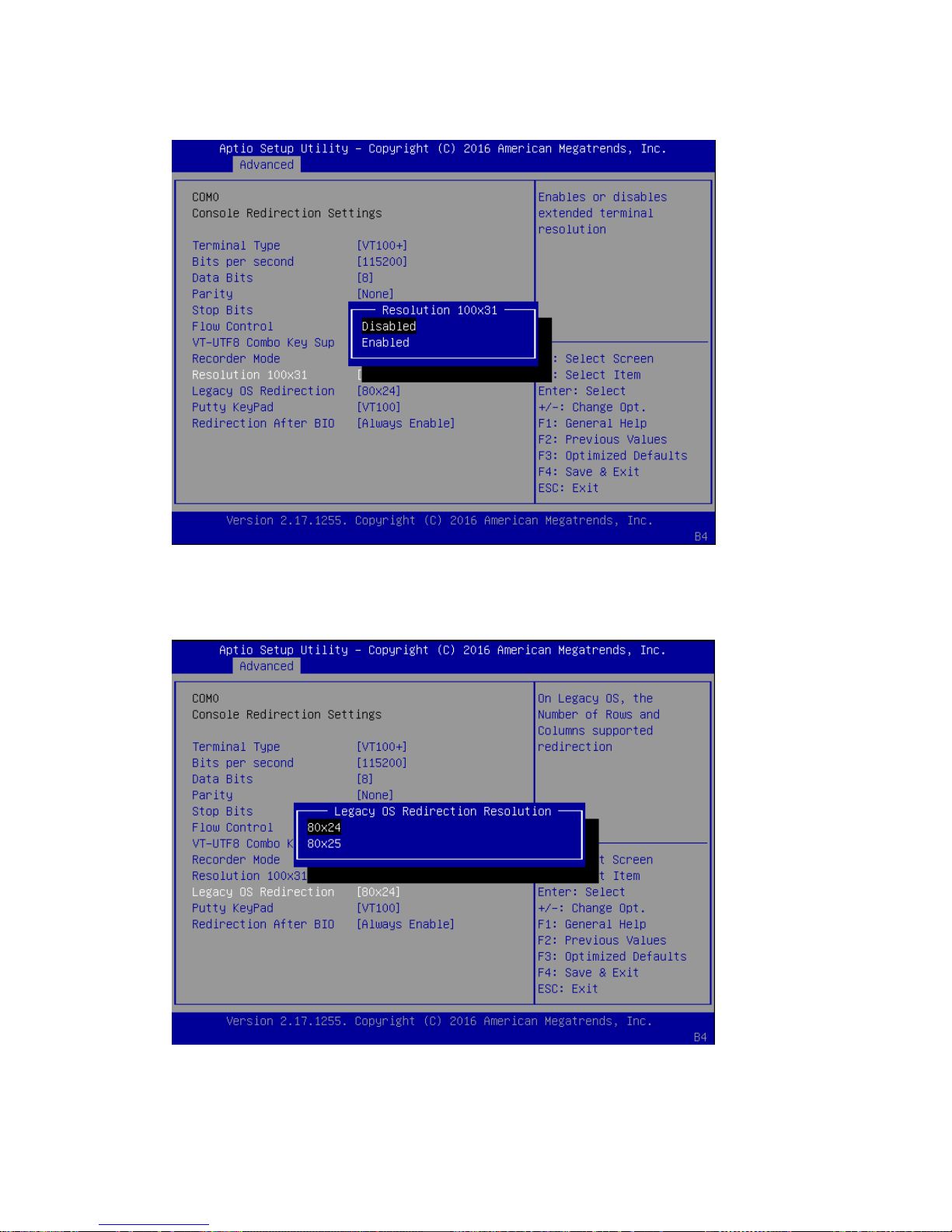

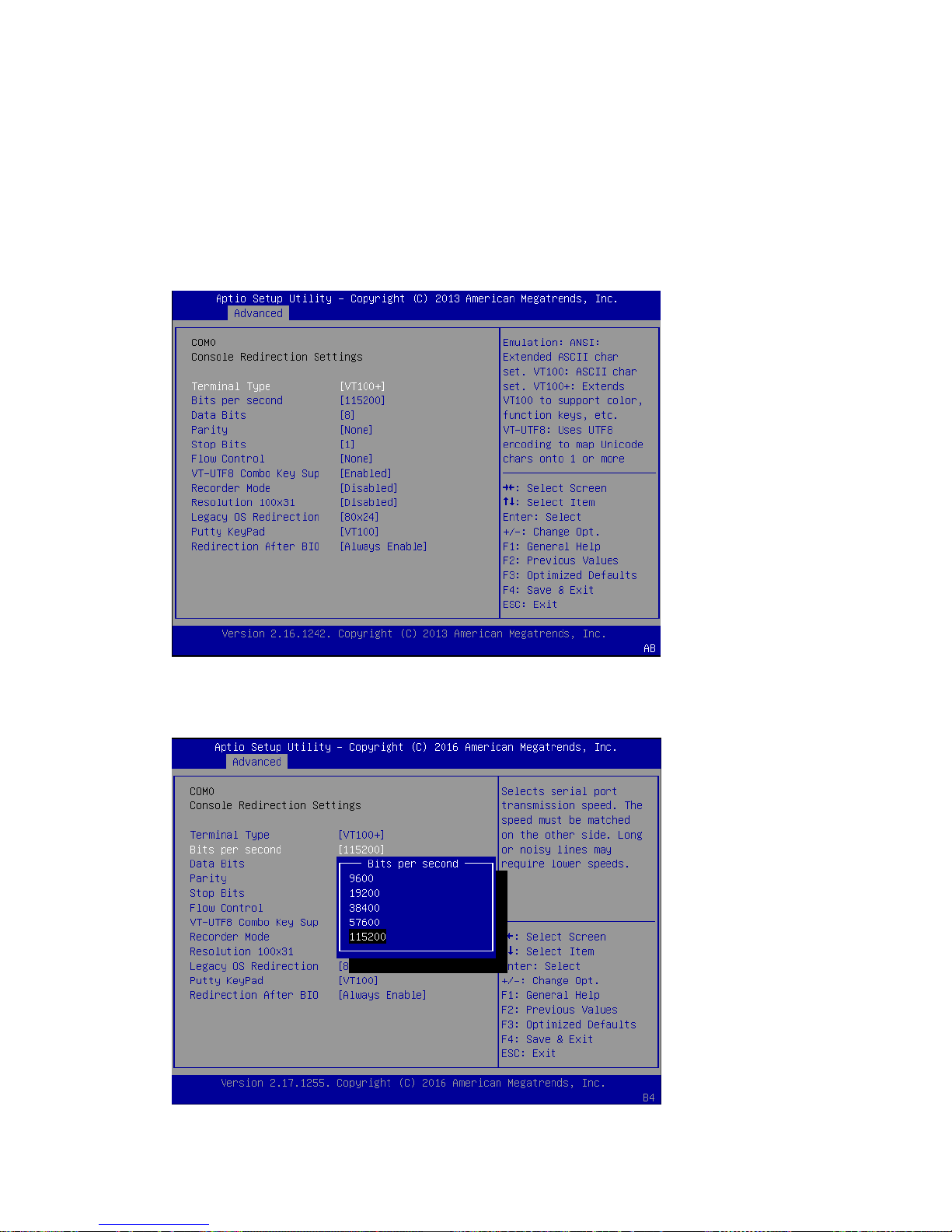

COM Console Redirection Settings.............................................................37

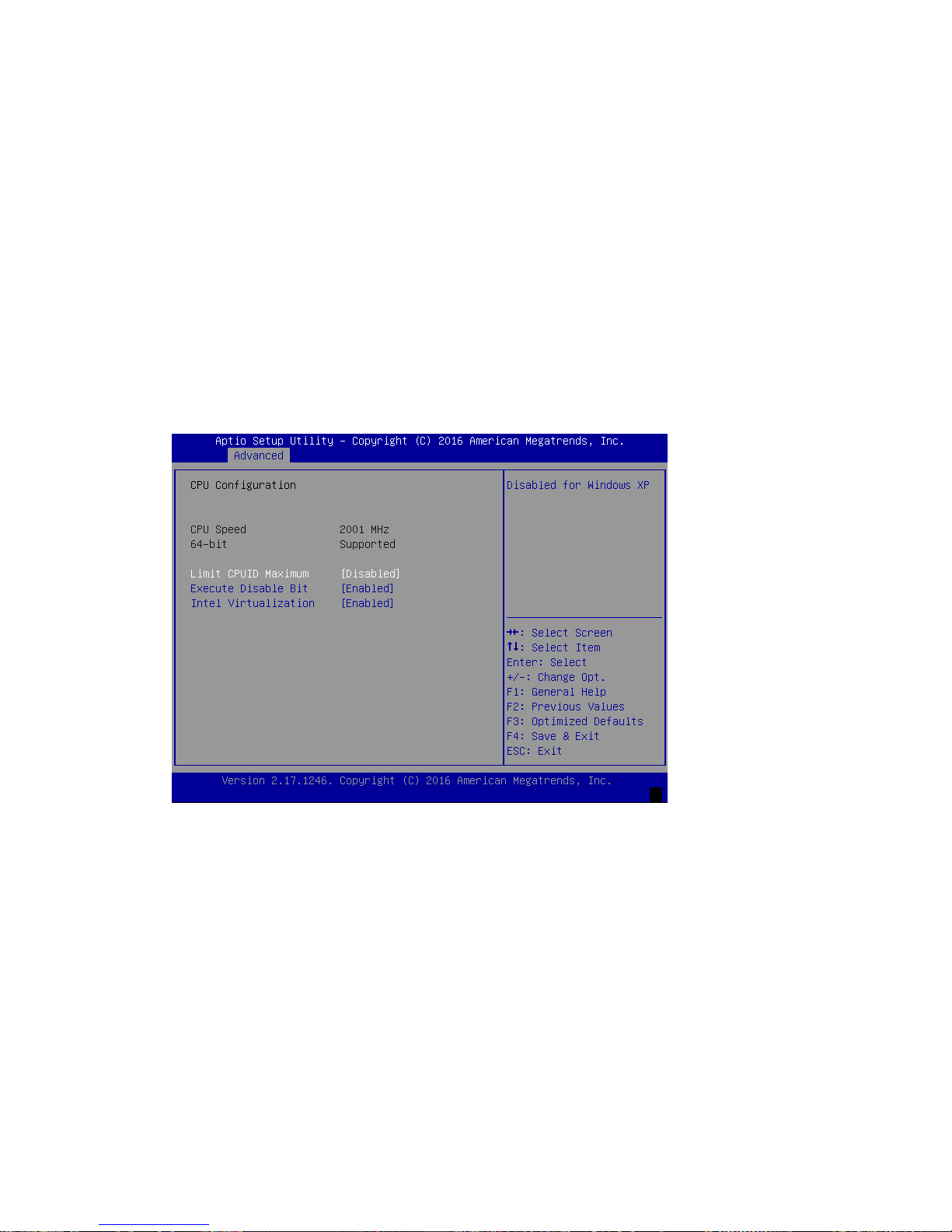

CPU Configurations.....................................................................................43

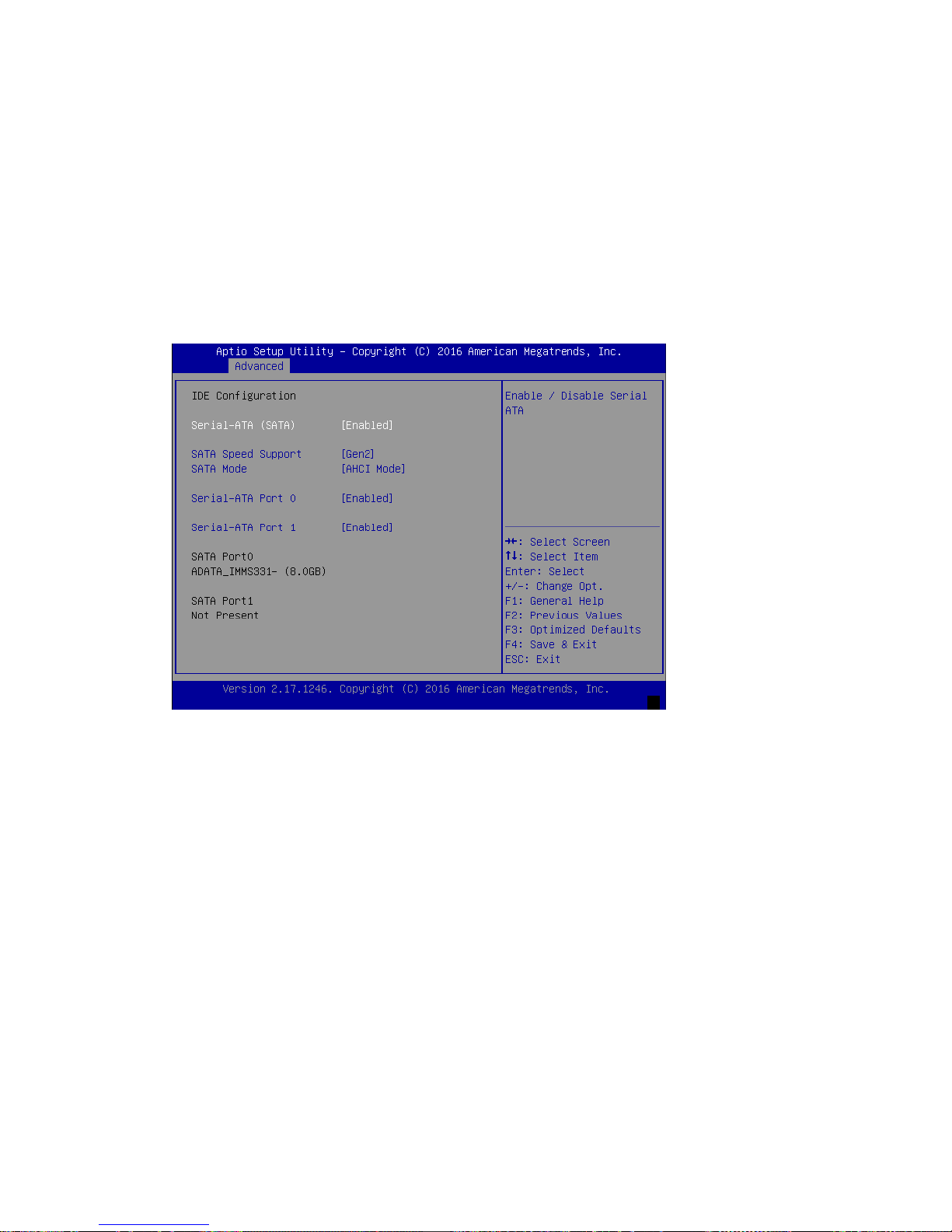

IDE Configuration .......................................................................................44

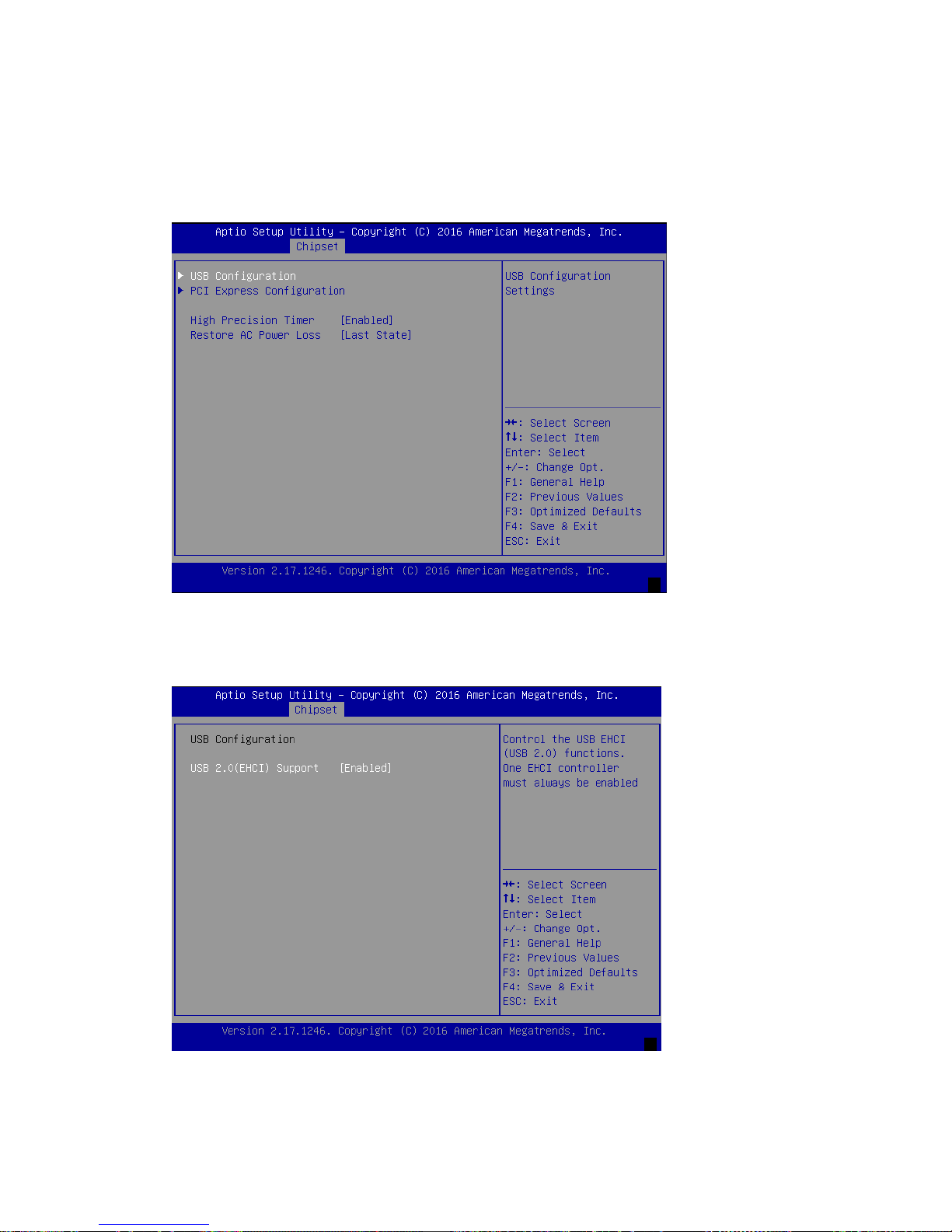

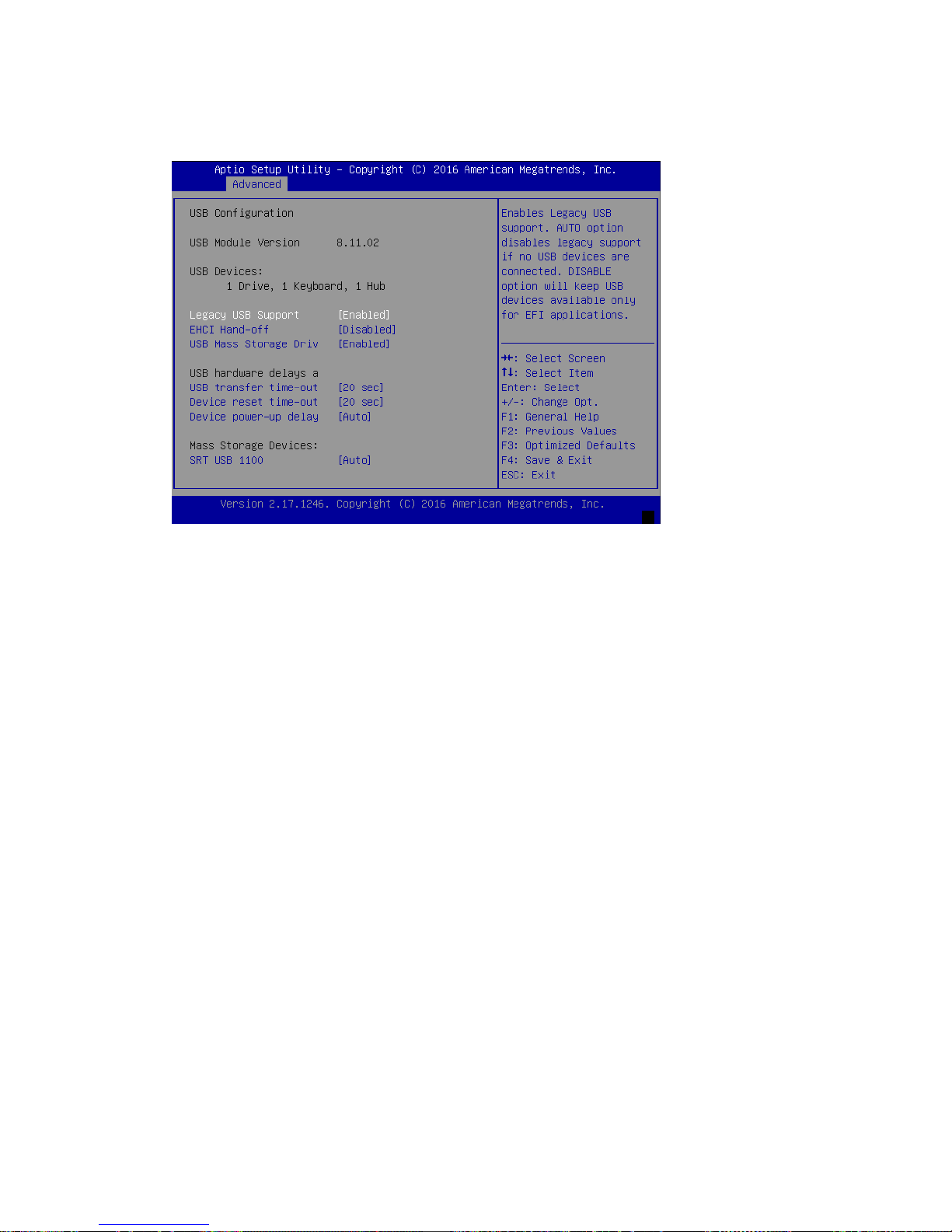

USB Configuration ......................................................................................45

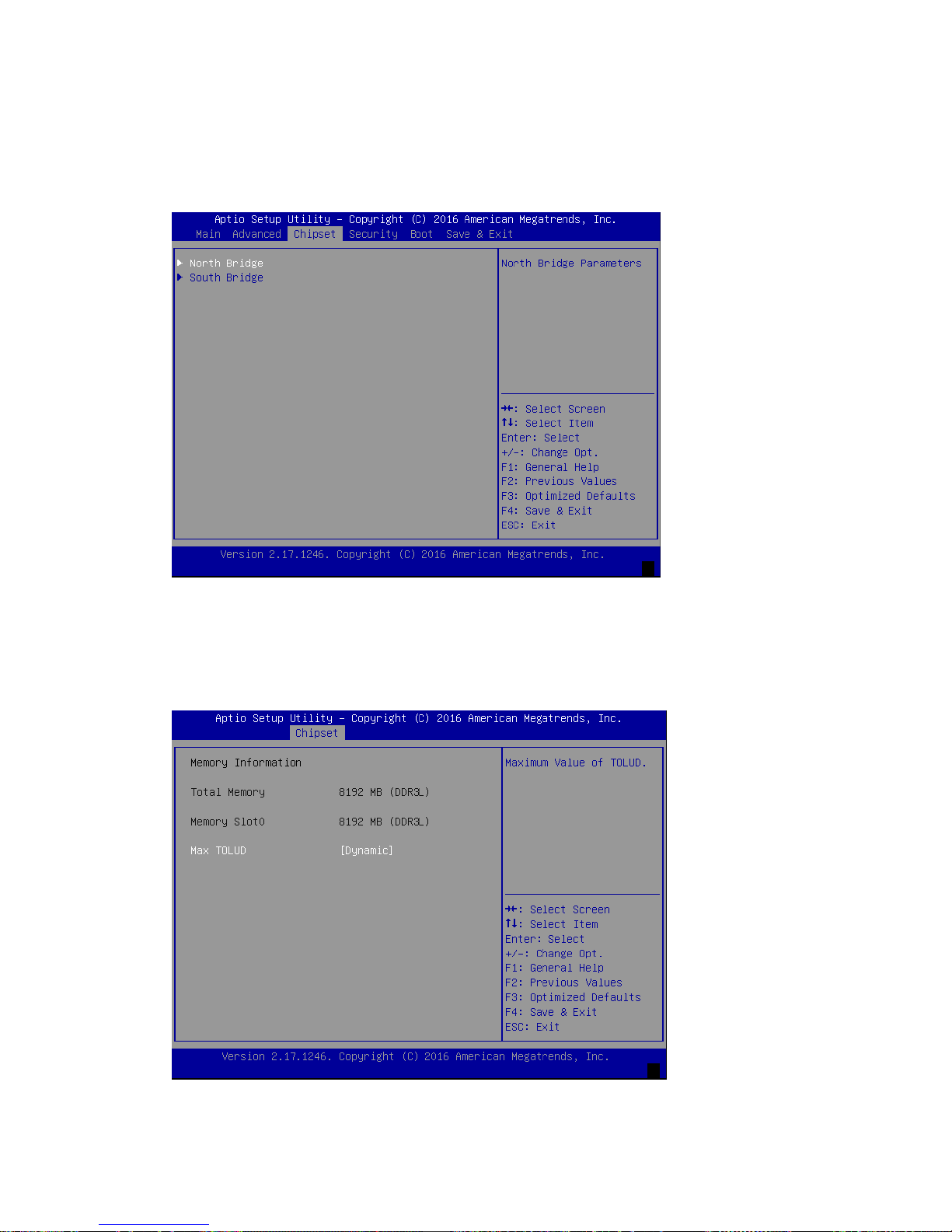

Chipset .................................................................................................................46

North Bridge ................................................................................................46

South Bridge ................................................................................................47

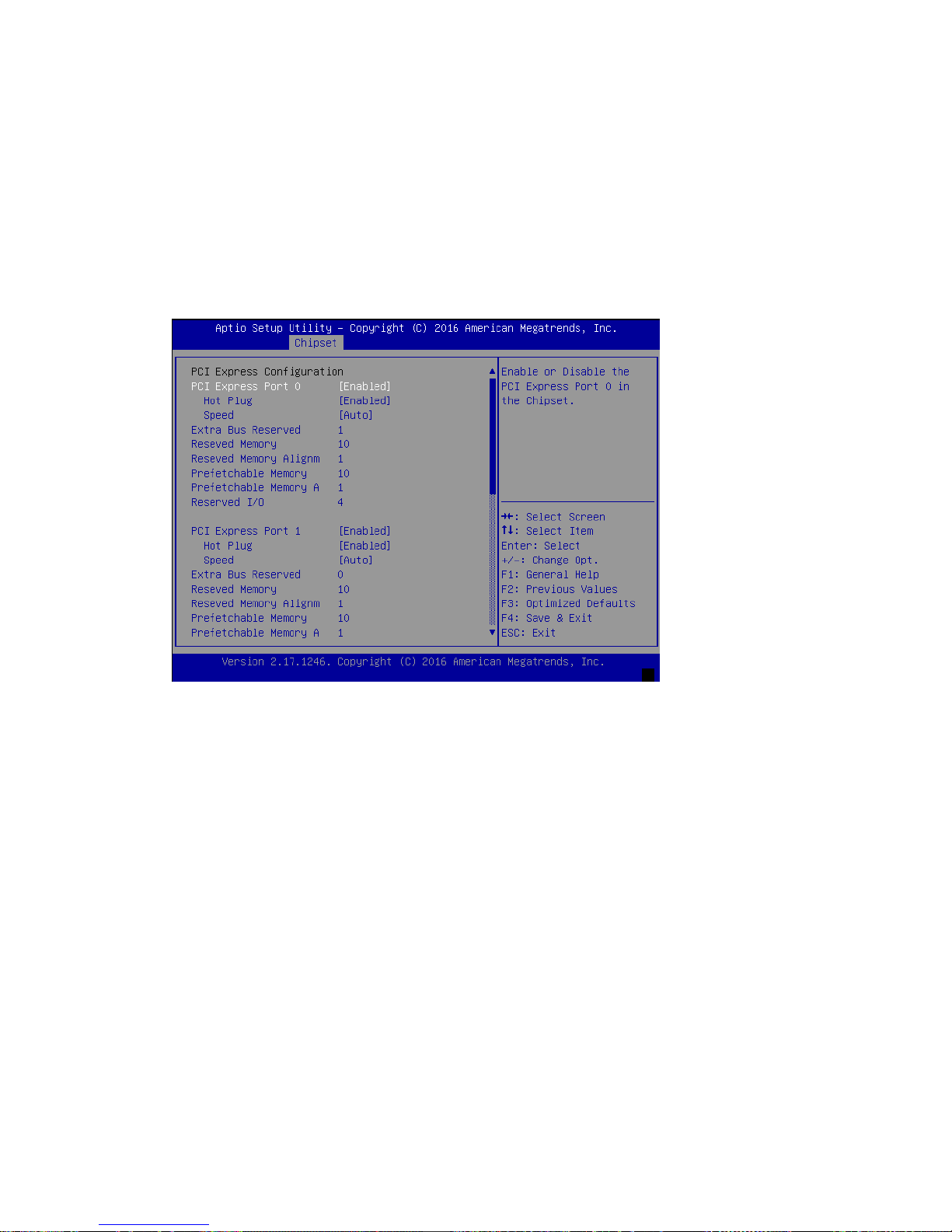

PCI Express Configuration..........................................................................48

Security ..................................................................................................................49

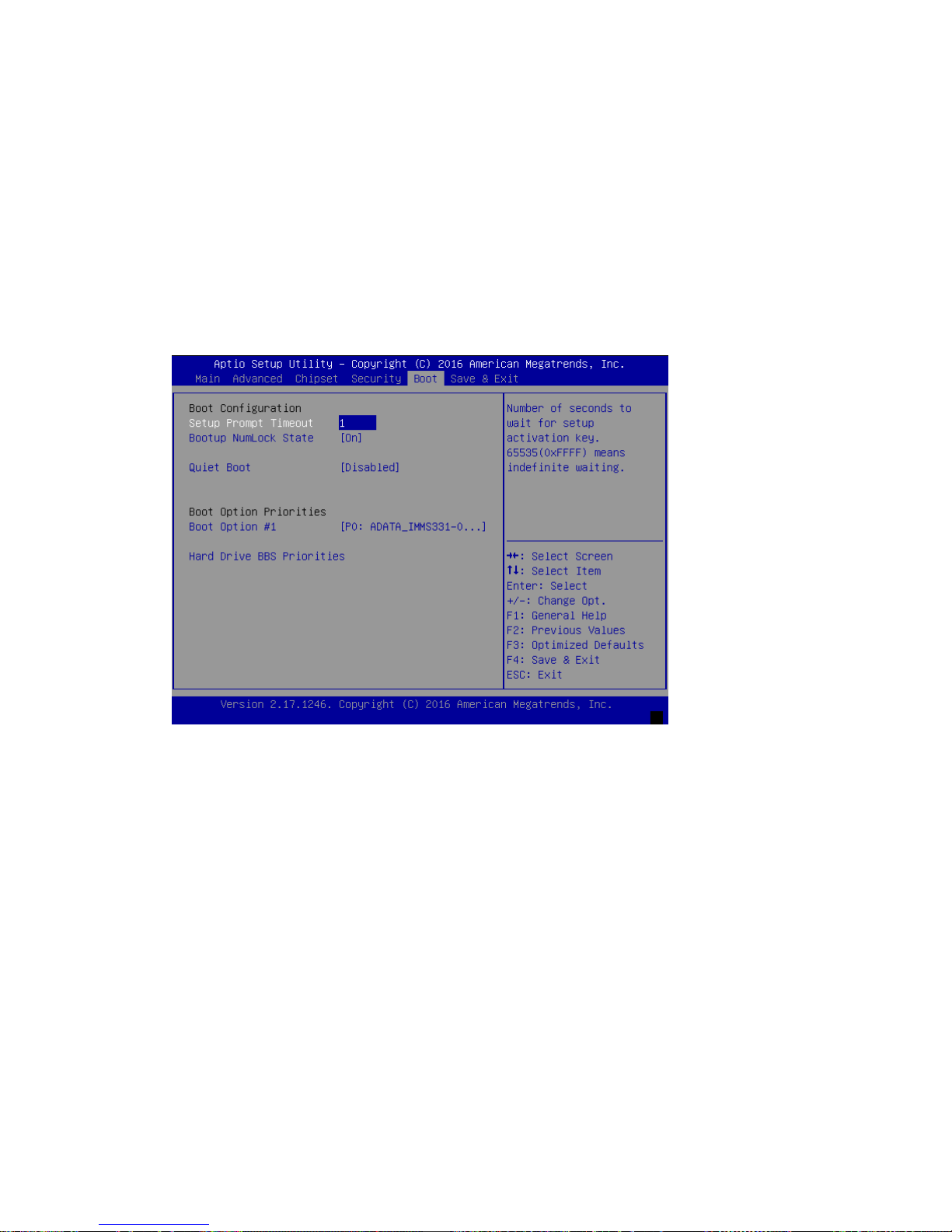

Boot.......................................................................................................................50

Network Computing Platforms

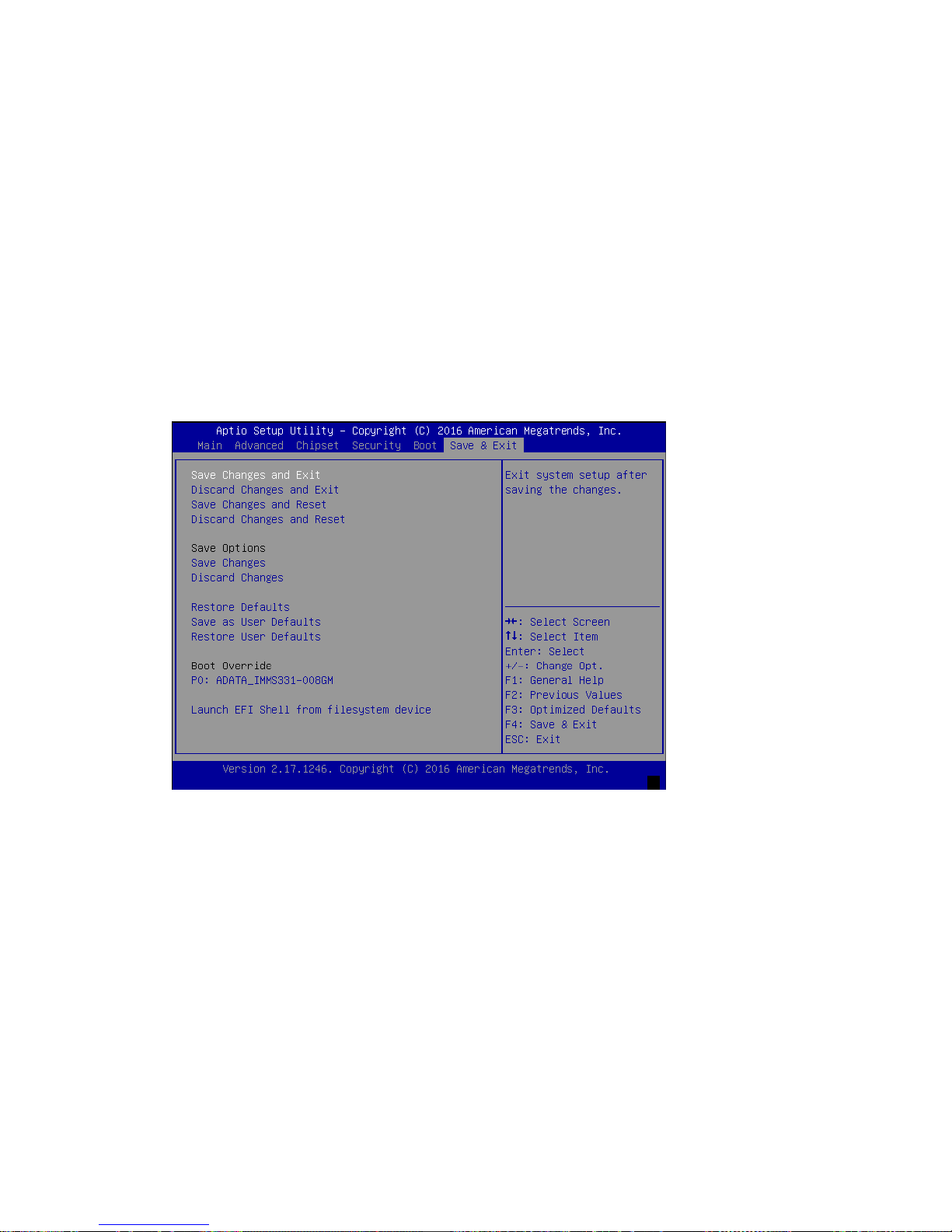

Save & Exit ..............................................................................................................51

Appendix A: Programming W atchdog Timer ..............................................................52

Appendix B: Setting up Console Redirection..............................................................53

Appendix C: Programming Generation 3 LAN Bypass ..............................................54

Appendix D: Programming the LCM..........................................................................56

Appendix E: Terms and Conditions.............................................................................61

Network Computing Platforms

Chapter 1: Introduction

Thank you for choosing NCA-1210. Lanner’s NCA-1210 is a value combination of form factor and computing processor. The compact desktop empowered by Intel Atom C2358/C2558 CP U proves to be the cost-effective network gateway for small and medium enterprises, retail, branch office and other edge security applications. The processor delivers ideal performance and power balance and is programmed with Intel QuickAssist Technology for accelerated cryptographic engine. Though in compact desktop form factor, NCA-1210 supports DDR3 1333 or 1600 MHz up to 16GB, offering high memory efficiency.

Regarding the I/O interface, NCA-1210 comes with four RJ-45 GbE LAN ports, one RJ-45 console port, two USB 2.0 Type-A ports and four SMA antenna holes. The LAN ports are programmed with one pair of LAN bypass. Internally, the system integrates Marvell 88E1543 Quad PHY for improved networking capability. For wireless connectivity, NCA-1210 supports dual mini-PCIe slots.

For cooling purpose, NCA-1210 supports one cooling fan.

Here is the summary of the key features:

z Intel® Atom™ processor C2358 (2-core) /C2558 (4-core) z Marvell 88E1543 PHY integrated z 4 x RJ45 GbE LAN ports, 2 x USB 2.0 ports, 1 x RJ45 console port z 1 pair of LAN Bypass z 1 x DDR3L SODIMM max. up to 16GB memory z 2 x Mini-PCIe sockets with SIM readers z 4 x SMA antenna holes z 1 x SATA 2.5” SSD tray or 1 x SATADOM socket

Please refer to the following chart for a detailed description of the system's specifications.

System Specification

Processor Options

Intel® Atom™ processor C23 58 (2-core) /C2558 (4-core)

Core Number

2 or 4

Chipset

SoC

BIOS

AMI SPI BIOS

System Memory

1 x DDR3 1333 or 1600 MHz, 204-pin,

Network Computing Platforms

Non-ECC up to 16GB

USB

2 x USB 2.0 Type-A ports

Console

1 x RJ-45 Console port

Storage

1 x 2.5” SATA SSD tray or 1 x SATADOM (the

drive nor DOM is not included) LAN 4 x RJ-45 10/100/1000 Mbps LAN ports Controller Intel SoC Integrated with Marvell 88E1543 PHY

Networking

Bypass 1 pair of LAN bypass

Expansion

2x MINI-PCIe with SIM slot

Antenna

4 x SMA antenna holes

Thermal

1 x cooling fan Form Factor Desktop Weight 1 kg Dimensions 185.4 mm x 44.0 mm x 137.1 mm (W x D x H)

Physical Characteristics

Mounting Options

Rackmount

Operating Temperature

0 ~ 40ºC

Non-operating Temperature

-40 ~ 70ºC

Environment

Ambient Humidity

5~90%, non-condensing

Adapter 36W power adapter

Power

Power supply 100~240 V @50~60 Hz Watchdog

Yes

Reliability

Internal RTC with Li-battery

Yes

Operating System

Windows 7/8

Linux Kernel 2.6 or above

Certifications

EMC CE/FCC Class A, RoHS

Network Computing Platforms

Ordering Information

NCA-1210A

Network Security Appliance with Intel® Atom™ processor C2558, 1x DDR3 SODIMM slot, 1x RJ45 Console, 2x USB, 2x Mini PCI-E, 4x Gbe RJ45 with 1 pair bypass, optional 1x 2.5” HDD support / SATA DOM

NCA-1210B

Network Security Appliance with Intel® Atom™ processor C2358, 1x DDR3 SODIMM slot, 1x RJ45 Console, 2x USB, 2x Mini PCI-E, 4x Gbe RJ45 without bypass, optional 1x 2.5” HDD support / SATA DOM

NCA-1210C

Network Security Appliance with Intel® Atom™ processor C2358, 1x DDR3 SODIMM slot, 1x RJ45 Console, 2x USB, 2x Mini PCI-E, 4x Gbe RJ45 with 1 pair bypass, optional 1x 2.5” HDD support / SATA DOM

Package Contents

Please unpack your package carefully and inspect all the following items

1 – NCA-1210 Network Appliance 1 – Power adaptor 1 – Console cable 1 – Power cord 1 – Ethernet cable

Note：If you should find any components missing or damaged, please contact your dealer immediately for assistance

Network Computing Platforms

Chapter 2: System Overview

Mechanical Drawing

Unit: mm

Network Computing Platforms

Block Diagram

Network Computing Platforms

Front I/Os

F1 Power 1 x Power on/off switch F2 DC Jack 1 x DC input jack with lock F3 Reset

1 x reset pin

F4 Console

1 x RJ-45 console port

F5 USB

2 x USB 2.0 Type-A ports

F6 LAN

4 x RJ-45 GbE LAN ports

F7 Antenna

2 x SMA antenna holes (antennas not included)

F1 F2

F7 F7

Network Computing Platforms

Rear I/Os

R1 LAN LED 8 x LAN LED for speed and Link/ACT, 2 per RJ-45

port

R2 System LED 1 x POWER/BYPASS/SSD status LED set

R3 Antenna

2 x SMA antenna holes (antennas not included)

R3 R3

Network Computing Platforms

Chapter 3: Board Layout

Jumpers and Connectors on the Motherboard

LPC1

PS4P1

DIMM1

SATA6G_1

FAN1

SPIROM1

COM1

LAN3-6

JBAT1

USB1

JCOM1

DCIN1

MINIPCI2

LPC

MINIPCI2

Network Computing Platforms

Jumper Setting and Connector Pin-out

Jumper Settings

J2 Reset Mode: set the Reset Mode as Hardware (HW) Reset or Software (SW) Reset.. Default “short pins” are 2-3 as Software Reset (1x3-pin 2.54mm 3P DIP).

JBAT1: CMOS Clear. The default “Short Pins” are 1-2 as “Normal”. When pins 2-3 are short, CMOS clear will be activated. ( 1x3-pin, 2.54mm 3P DIP )

J4 SATA DOM: 3-pin jumper to enable or disable SATA DOM function. ( 1x3-pin

2.54mm 3P DIP ). The default “short pins” are Pin1-2.

Pin Description

1 HW Reset

2 Switch input (default 1-2) 3 SW Reset

Pin Description

1 VBAT 2 PCH_RTCRST_N

3 GND

Pin Description

1 P5V 2 SATA_DOM_SEL

3 GND

1 3

Network Computing Platforms

Connector Pin Assignments

USB1: Dual USB 2.0 Type-A ports in double-stacked form factor

COM1: RJ-45 console port for serial console

LAN: 4 x RJ45 10/100/1000 LAN Connectors

Pin Description Pin Description

1 +P5V_USB0_L 5 +P5V_USB0_L 2 USB0_SB_L_DN 6 USB1_SB_L_DN 3 USB0_SB_L_DP 7 USB1_SB_L_DP 4 GND 8 GND

Pin Description Pin Description

1 NC 5 GND 2 NC 6 LNSINA 3 LSSOUTA 7 NC 4 GND 8 NC

+ 44 hidden pages

Lanner NCA-1210 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
