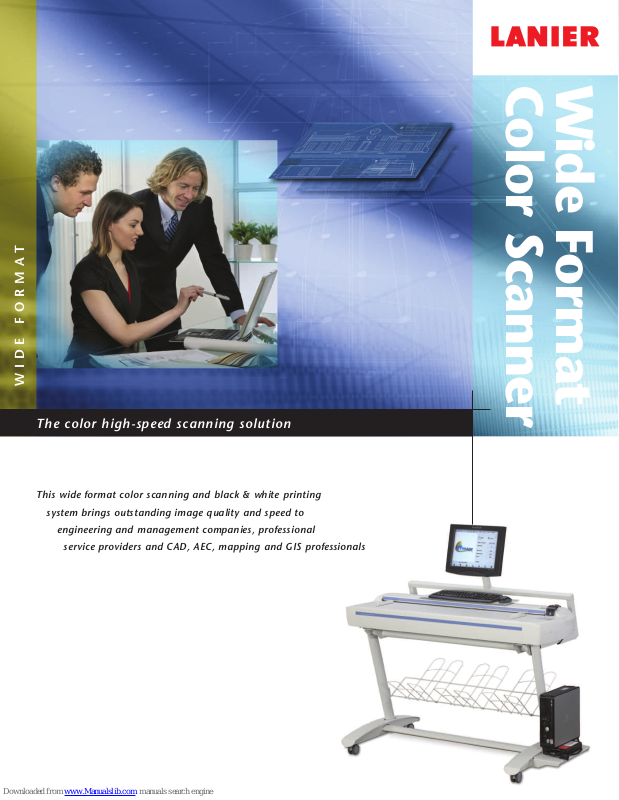

Lanier Wide Format Color Scanner Specifications
Color Scanner
Wide Format
WIDE FORMAT
The color high-speed scanning solution
This wide format color scanning and black & white printing
system brings outstanding image quality and speed to
engineering and management companies, professional
service providers and CAD, AEC, mapping and GIS professionals
IDE FORMAT
W
Wide Format Color Scanner
Fast and Accurate Color Scanning
Changes and additions are a fact of life with wide format documents.
Capture them fast in full color, while handling high-speed monochrome
scanning and printing needs at the same time.The new Lanier Wide
Format Color Scanner captures “as-builts” and on-site changes—or
integrates satellite imagery into your documents.Whether its
architectural drawings,sepias, blueprints,detailed maps, folded or
wrinkled documents,or oversized drawings, photos or posters,you’re
assured unrivaled speed and image quality.
Accelerate Your Workflow
Simply put, the Lanier Wide Format Color Scanner gives you more
time to focus on your work.
• Eliminate waiting time with the high-speed, 12 inches-per-second (ips)
monochrome scan speed and .6 inch-per-second (ips) color scan speed (48-bit).
• Scan thick documents you never thought possible: up to .6" thick. Capture
information from posters, presentation boards and other thick working documents.
• Increase productivity by eliminating skewed documents, cut scanning times, and
avoid both image distortion and damage to fragile originals.The All-Wheel-Drive
Paper Transport System keeps a uniform hold on your documents across the width
of the paper, for a straight paper path and trouble-free scanning.
• Pre-scan, crop images and edit copy before sending to file or output, short-cutting
the design process and saving time.
Scanning Station
Lanier Printer
LP124W
Lanier LW326
Lanier LW324
Inkjet Plotter
Note: To activate the scanner this product requires that one of these Lanier
ide format devices be on the network and turned on: LP124W, LW324,
w
W326, LW310 & LW411. (LW310 and LW411 require Plotbase, JetImage
L
and WideSystem to reside on the same PC)
WIDEsystem
Clients and/or
JETimage
Software
Sharp, Realistic Detail
Create the sharpest, most accurate CAD or GIS reproductions of any
wide format imaging system available today.
• Capture extraordinarily accurate 600 dpi images with 48-bit color and 16-bit
monochrome data.
• Eliminate the background artifacts and “noise,” common problems with GIS
imaging systems, with the advantages of CCD technology: superior background
suppression, color-matched fluorescent lamps, high-quality camera lenses and a
high-definition CCD array.
• Enlarge your work to highlight details and create display-size, presentationquality documents.
• Accurately capture hard-to-scan documents, such as folded, wrinkled or curled
awings from worksites or storage
dr
• Gain the advantage of the most accurate point-to-point pixel distance in the
industry produced by the Accurate Lens Enhancement (ALE) Technology.
Simple T
ouch-Screen Operation
Scanning with the Lanier Wide Format Color Scanner has never
been easier.
• Easily program and select job print parameters with the LCD touch-screen
control panel.
• Free up the printing queue by using Scan-to-File to scan your documents and then
print them later.
• Connect the scanner seamlessly and easily within your network with the included
WIDEsystem multifunction softw
scanner and the controller PC
• Simplify operation with the JETimage
convenient, programmable action buttons to scan,
projects over time.
• Perform scanning operations across your LAN or the Internet with Scan-to-Net,
which allows you to scan directly to anyone on your network or back to your
own PC.
.
which manages communication between the
,
are
.
NET
multifunction software which allows you
print and even track your
,
copy
SCANNER SPECIFICATIONS
Configuration Stand-alone
Scanning Process 4-channel CCD camera (x3)
Warm-Up Time Less than 120 seconds
First Copy 34 seconds (E-Size)
Scanning Speed 12 ips Monochrome, 200 dpi/.6 ips Color, 200 dpi
Scan-to-File Speed 2.9 sec. Monochrome/35 sec. Full-Color (D-Size)
Optical Resolution 600 dpi, Max. 9600 dpi (interpolated)
Color Levels 48-bit color
Media Maximum Thickness 0.6”
Original/Copy Size Maximum: 36”/Document size: up to 44”
Power Source 120V 15A 60Hz
Dimensions (WxDxH) 63” x 26.7” x 18.1” (Mainframe only)
Weight 187.3 lbs. (Mainframe only)
Supported File Formats PDF, TIFF, CALS, HP-RTL, JPEG
Network Protocol TCP/IP(IPv.4/IPv.6), IBX/SPX, AppleTalk
Operating System Windows 95/98/Me, Windows NT 4.0, Windows 2000,
Maintenance Automatic color calibration and camera alignment
Interface Hi-Speed USB 2.0
Accuracy 0.1%, +/- 1 pixel, between any 2 points on document
Recommended PC Configuration (not supplied)
CPU
Monitor The monitor used is either a 15" or 17" touch-screen panel and
Keyboard and Mouse Logitech Wireless Desktop EX110
Option
Wide Format Color Scanner
Upgrade Key and does not require a Lanier device to activate.
www.lanier.com
Lanier Five Dedrick Place, West Caldwell, NJ 07006
©2008 Lanier is a registered trademark of Ricoh Americas Corporation. Windows®and Windows®95/98/Me/2000/XP/Server 2003 are registered trademarks of
Microsoft Corporation. Macintosh
may be affected by network, application or PC performance. Specifications and external appearances are subject to change without notice. Products are shown
with optional features.
Printed in U.S.A. on recycled paper.
®
is a registered trademark of Apple Computer, Inc. All other trademarks are the property of their respective owners. Print speed
61.8” x 25.5” x 20.4” (Stand)
143.3 lbs. (Stand)
Windows XP, Windows 2003 Server, Mac OS 6-10.1 or later
Dell Optiplex 755 CD/DVD Optical Drive
1.66GHz Intel Core 2 Duo 10/100 Ethernet
1024 MB RAM Hi-Speed USB 2.0
80 GB SATA 3 GB/s HDD Windows XP Pro
must support a 4" VESA mount. The monitor shouldn't exceed
13.5"x 15.7".
Allows users to upgrade Scanner to work as a stand-alone device
L2740
