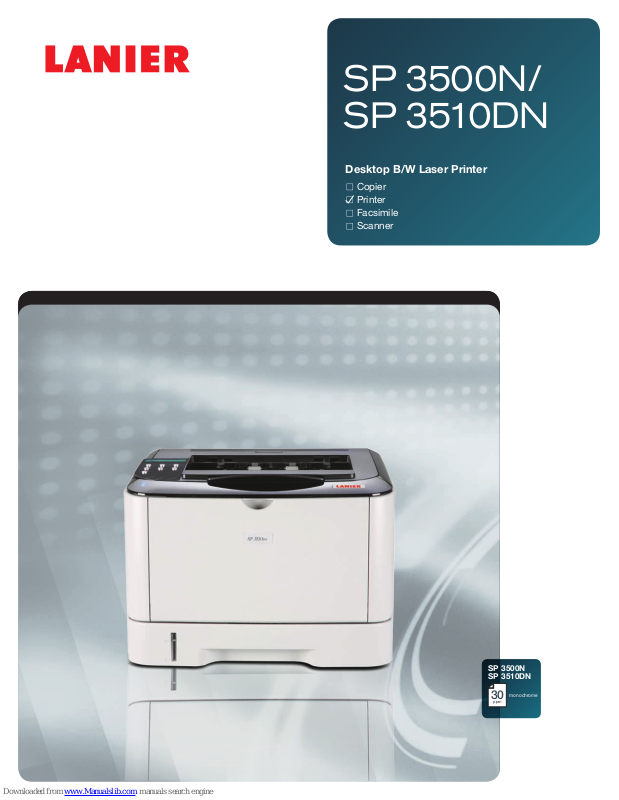

Page 1
SP 3500N/
S P 3 510 D N
Desktop B/W Laser Printer
Copier
Printer
Facsimile
Scanner
SP 3500N
SP 3510DN
monochrome
30
ppm
Page 2
Discover the convenience of affordable network
laser printing
Expect reliable everyday performance from your desktop printer, even when dealing with the unexpected.
®
Choose the robust LANIER
With efficient 30 page-per-minute output speeds, a fast warm-up time and an easy-to-view 2-line tilting LCD
control panel, these printers are excellent choices for corporate workgroups, small businesses, and home
offices with 8.5" x 14" monochrome printing needs. A choice of manual or automatic duplexing plus Lanier's
ultra-reliable All-In-One print cartridge technology rounds out the SP 3500N/SP 3510DN rich feature set to
easily meet the needs of cost-savvy businesses and professionals.
Value-driven performance
Take advantage of an affordable network laser printer that doesn't
compromise power and efficiency. With its competitive hardware costs,
rich feature set and high-duty cycle, this desktop printer can meet both
challenging workflow and budget demands. Choose manual duplex with
the SP 3500N or automatic duplex printing with the SP 3510DN to create
two-sided business documents.
SP 3500N/SP 3510DN for high-quality monochrome output at minimal cost.
Cost-saving productivity
The Lanier SP 3500N/SP 3510DN is designed for smaller, budget-conscious
offices. It supports a maximum print resolution of 1200 x 1200 dpi when
applications call for the best possible output quality. Print affordable,
professional documents fast with print speeds of up to 30 pages-per-minute,
a warm-up time of 20 seconds or less, and an 8-second first print speed
ensuring near-instant readiness for fast turnaround on virtually any job.
User-friendly design
This small, compact printer makes a huge impact. It can be placed in any
location, including on desktops, shelves, under counters and in other tight
or restricted spaces. The front-facing design enables any user to quickly
replace consumables and the tiltable LCD control panel makes it easy to
view system status and access key functions quickly and easily.
Page 3
Enhance productivity with a compact, easyto-own printer that grows with your business
Adapt to every office demand
Business demands change. Choose the printer that can keep pace.
The Lanier SP 3500N/SP 3510DN comes equipped with a 250-Sheet
Paper Tray to support a wider range of stock and paper sizes for
greater flexibility and a 50-Sheet Bypass Tray that supports envelope
printing to enhance in-house invoicing and mailing tasks. Expand paper
capacity to up to 550 sheets by adding the optional 250-Sheet Paper
Feed Unit to handle larger jobs and growing volumes.
Connect to your network
The standard USB 2.0 interface offers a direct connection to a single
computer and a 10/100Base-TX Ethernet port provides connectivity
for shared use in small workgroup environments. It features a
powerful 295MHz controller and 64 MB RAM so multiple users
can share the printer seamlessly with incredible speed and efficiency.
It accommodates the latest Windows and Macintosh technology
with support for PCL and PS3 emulation, as well as utilities for
UNIX and Citrix distributed printing environments.
Manage and maintain with ease
The Lanier SP 3500N/SP 3510DN offers intuitive management and
easy-to-use functionality to ensure maximum productivity every day.
Users can take advantage of the Lanier Universal Printer Driver and
Web Image Monitor to manage the device quickly, even from a
remote location. Plus, All-In-One print cartridges — combining
the drum and toner — can be replaced by any user to simplify
consumables maintenance.
Page 4
Lanier SP 3500N/SP 3510DN
SYSTEM SPECIFICATIONS
General Specifications
Configuration Desktop
Technology Laser beam scanning, electrophotographic
Control Panel
2-line tilting monochrome LCD
Print Resolution 600 x 600 dpi, 1200 x 600 dpi,
Print Speed
30 pages-per-minute (Letter)
First Print Speed 8 seconds or less
Warm-Up Time 20 seconds or less
Recovery Time 15 seconds or less
from Energy Saver Mode
Duplex
SP 3500N: Manual
Standard Paper Supply
Optional Paper Supply 250-Sheet Paper Feed Unit
Maximum Paper Capacity 550 sheets
Output Capacity 125 sheets (face down)
Paper Sizes Standard Paper Tray: Letter (8.5" x 11"),
Bypass Tray: Letter (8.5" x 11"), Legal
Optional Paper Feed Unit: Letter (8.5" x 11"),
Paper Weights
When Duplexing (SP 3510DN only):
Paper Types
Standard Tray: Plain Paper, Recycled
printing using dry mono-component toner
development
1200 x 1200 dpi (@ 50% productivity)
SP 3510DN: Automatic (@ 50% productivity)
250-Sheet Tray + 50-Sheet Bypass Tray
Legal (8.5" x 14"), Half Letter (5.5" x 8.5"),
Executive (7.25" x 10.5"), F (8" x 13"),
Folio (8.25" x 13"), Foolscap (8.5" x 13"),
A4 (210 x 297 mm), A5 (148 x 210 mm),
A6 (105 x 148 mm);
Custom Size: 3.9" x 5.8" to 8.5" x 14"
(100 x 148 mm to 216 x 356 mm)
(8.5" x 14"), Half Letter (5.5" x 8.5"),
Executive (7.25" x 10.5"), A4 (210 x 297 mm),
A5 (210 x 148 mm), A6 (105 x 148 mm);
Envelopes: Com10, Monarch, C6, C5, DL;
Custom Size: 3.6" x 5.8" to 8.5" x 14"
(90 x 148 mm to 216 x 356 mm)
Legal (8.5" x 14"), Half Letter (8.5" x 5.5"),
A4 (210 x 297 mm), A5 (210 x 148 mm)
When Duplexing (SP 3510DN only):
Letter (8.5" x 11"), Legal (8.5" x 14"),
A4 (210 x 297 mm)
Standard Paper Tray and Bypass Tray:
14 – 43 lb. Bond/90 lb. Index
(52 – 162 g/m
Optional Paper Feed Unit: 16 – 28 lb. Bond
(60 – 105 g/m
16 – 28 lb. Bond (60 – 105 g/m
Paper, Cardstock
Bypass Tray: Plain Paper, Recycled Paper,
Envelopes, Cardstock, Labels
Optional Paper Feed Unit: Plain Paper,
Recycled Paper
2
)
2
)
2
)
Dimensions (WxDxH)
Weight (including
14.57" x 15.43" x 10.41"
(370 mm x 392 mm x 262 mm)
SP 3500N: 25.8 lb. (11.7 kg)
consumables) SP 3510DN: 28 lb. (12.7 kg)
Power Requirements 110 – 120V, 60Hz
Power Consumption Maximum: 850W,
TEC Value
1.82 kWh/week (SP 3510DN)
Safety Regulations UL60950-1, FCC47 CFR, Chapter 1,
SP 3510DN: Energy Saver: less than 5W
Part 15, Class B
Print Controller
CPU 295 MHz
Memory 64 MB RAM standard/maximum
Standard Interfaces USB 2.0, Ethernet 10/100Base-TX
Printer Languages/ PCL 5e1, PCL 6, PostScript 3 emulation
Drivers
Fonts PCL/PS 3: 80 fonts
Network Protocols TCP/IP, IPP
Operating Systems Windows XP, Vista, 7, Server 2003, Server
Advanced Printer
Features2 Collate, Layout (N-up), Duplex, Front Cover
Software Utilities
1
PCL 5e driver is not provided (controller can receive PCL 5e command from host).
2
Varies by active PDL/Driver.
3
Counter information only.
2003/R2, Server 2008, Server 2008/R2
Mac OS 10.4v or later;
Citrix MetaFrameXP, Citrix PresentationServer
3.0, 4.0 (32-bit only), 4.5, XenApp 5.0+;
Lanier UNIX Filter
Reduce/Enlarge Scaling, Locked Print,
Sheet, Mirror Image Print, Dithering, Toner
Saving, Watermark, User ID, User Code,
Rotate Print, Reverse Order Print, Do Not
Print Blank Page
Embedded: Web Image Monitor, @Remote3
(limited support)
Provided on CD-ROM: PCL 6 emulation
driver, PS3 emulation driver, Printer Utility
for Mac OS X (PPD)
Available via Download from Website:
Lanier Universal Printer Driver, Lanier
Device Manager NX, Device Option Utility
for Citrix,Lanier UNIX Filter
Hardware Accessories
Paper Feed Unit TK1080
Capacity 250 sheets
Paper Sizes Letter (8.5" x 11"), Legal (8.5" x 14"),
Paper Weights
Dimensions
Weight
16 – 28 lb. Bond (60 – 105 g/m2)
14.6" x 15.1" x 3.5"
Less than 5.3 lb. (2.4 kg)
Half Letter (5.5" x 8.5"), A4, A5
(370 mm x 383 mm x 89 mm)
Consumables
Yield
Standard Yield All-In-One
Print Cartridge SP 3400LA
High Yield All-In-One
2,500 prints*
6,400 prints*
Print Cartridge SP 3500XA
*Declared yield values based on ISO/IEC 19752. Actual yields may vary based
on types of images printed and other factors.
The Lanier SP 3500N/SP 3510DN ships with a starter All-In-One print cartridge
yielding 1,500 pages.
All other consumables ship at full yield.
For maximum performance and yield, we recommend using genuine Lanier
parts and supplies.
Warranty
The Lanier SP 3500N/SP 3510DN is under warranty against defects
for a period of one year from the date of purchase. Consumables are
under warranty for a period of 90 days from the date of purchase.
Please refer to warranty documents shipped with the product for
more details.
