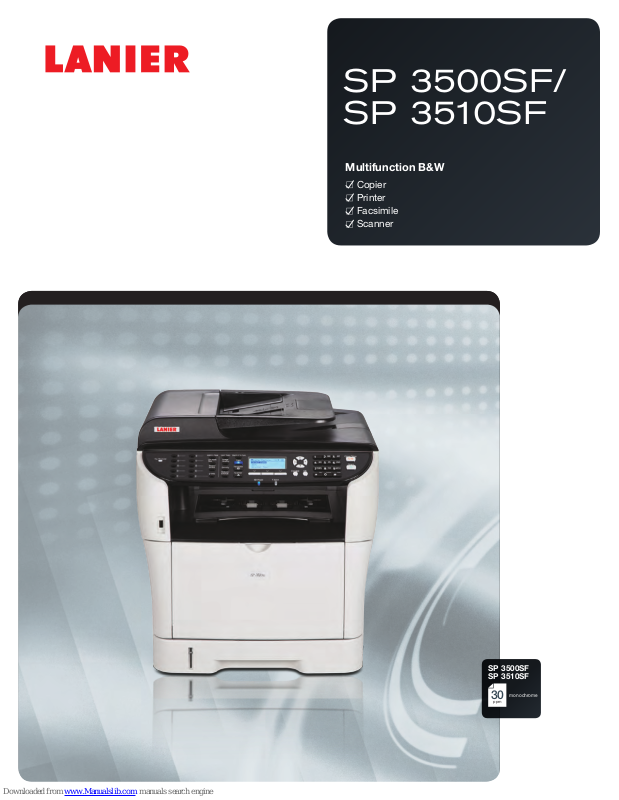

Lanier SP 3500SF, SP 3510SF Quick Manual

SP 3500SF/
SP 3510SF

Multifunction B&W

Copier
Printer
Facsimile
Scanner

SP 3500SF
SP 3510SF

monochrome

30

ppm

An affordable, compact solution engineered
for peak multifunction performance

Challenges loom large, even in the smallest office. The compact LANIER® SP 3500SF/SP 3510SF

offers an innovative multifunction feature set that fits your unique needs and budget. It handles a wide range

f document management tasks easily like ID Card Copying, Internet Faxing, and Scan-to-Email with LDAP

o

(Lightweight Directory Access Protocol) support. Operate more efficiently with fast 30 page-per-minute output

speeds, and maximize uptime with Lanier’s proven All-In-One Print Cartridge technology. Increase productivity

with your choice of an Automatic Document Feeder (ADF) or Automatic Reversing Document Feeder (ARDF)

to make multi-page scanning and faxing a snap. The intuitive control panel with an easy-to-view 4-line LCD

creen simplifies multitasking and allows home offices and workgroups to run more smoothly than ever.

s

Consolidate and save

A smaller office doesn’t mean less work — only fewer resources. The
multifunctional Lanier SP 3500SF/SP 3510SF handles a wider range of
tasks cost-effectively. It consolidates copy, print, scan and fa x capabilities
in an easy-to-use, desktop solution that streamlines everyday document
management workflow for superior productivity. With its competitive hardware
costs, electronic distribution features and intuitive 4-line LCD control panel,
this convenient device is the perfect choice for multitasking on a budget.

Produce more, efficiently

Keep pace with the busiest demands. With a fast 30 second warm-up time and
copy/print speeds of up to 30 pages-per-minute, users can transition to the next
job with ease and efficiency. Deliver crisp, clear output with up to 1,200 x 1,200
dpi for applications needing the best possible output quality. The Lanier
SP 3500SF includes a standard 35-Sheet Automatic Document Feeder (ADF)
and the SP 3510SF offers a standard Automatic Reversing Document Feeder
(ARDF) to expedite copying, scanning and faxing for up to 50 two-sided sheets.

Adapt to every need, every day

Streamline a wider range of of fice tasks with the Lanier SP 3500SF/SP 3510SF.
Two-sided documents like insurance cards and checks can be reproduced on
the same side of a single sheet with one press of a button with ID Card Copy.
The standard 250-Sheet Paper Tray and 50-Sheet Bypass Tray accommodate
thick paper stocks up to 90 lb. Index so users can produce more types of
documents in-house. Expand paper capacity to 550 sheets by adding the
optional 250-Sheet Paper Feed Unit to handle larger jobs and growing volumes.

Enjoy multitasking that fits your office,
budget and desktop

Operate anywhere, with ease

Maximize resources with a sleek, stylish multifunction device that
fits seamlessly into any office environment. The Lanier SP 3500SF/
SP 3510SF occupies less than two square feet of space for easy
p

lacement on or behind the front desk. For optimal convenience,
users can generate output at the device using a USB memory or
SD card for walk-up operation without a computer. A front-access
d

esign simplifies maintenance, and convenient, user-friendly All-in­One print cartridges make toner replacement a snap. Plus, the
four-line, intuitive LCD control panel offers fast, easy access to
system functions, supply status and contact lists.

Connect with your network

The Lanier SP 3500SF/SP 3510SF offers network capabilities in
peer-to-peer or shared-use environments with standard USB 2.0
or 10/100Base-TX Ethernet interfaces. It accommodates the latest
Windows and Macintosh technology with support for PCL6 and PS3
emulation, as well as utilities for UNIX and Citrix distributed printing
environments. Plus, it offers device management tools, including
Web Image Monitor, Lanier Universal Printer Driver and Lanier Device
Manager NX to manage the device quickly, even from a remote location.
Fax documents in seconds and reduce long-distance charges with a

33.6 Kbps Super G3 modem, built-in PC faxing, Internet faxing, and
LDAP for accessing company e-mail servers.

Scan and share

Advanced scanning capabilities enable users to improve how
documents are shared with multiple recipients. The Lanier SP 3500SF/
SP 3510SF offers high-quality, full-color or monochrome TWAIN/
WIA scanning at up to 1,200 x 1,200 dpi optical resolution with
19,200 x 19,200 dpi driver resolution. Users can distribute electronic
documents immediately at no cost with Scan-to-Email/Folder/
FTP/US B.

Lanier SP 3500SF/SP 3510SF

SYSTEM SPECIFICATIONS

General Specifications

Configuration Desktop
Imaging Process

Reading Element Flatbed scanner with full-color CCD array

Control Panel
Print/Copy Speed 30 pages-per-minute/copies-per-minute
Warm-Up Time
Recovery Time
from Energy Saver Mode
First Print Speed 8 seconds or less
Grayscale
Document Feeding

SP 3510SF: Standard 50-Sheet Reversing

Duplex SP 3500SF: Manual
SP 3510SF: Automatic (@ 50% pr

Standard Paper Capacity 250-Sheet Paper Tray plus 50-Sheet

Paper Supply (Optional) 250-Sheet Paper Feed Unit (550-Sheet

Paper Sizes Standard Paper: Letter (8.5” x 11”),

Bypass Tray

Paper Weight Standard Paper Tray and Bypass Tray:

Optional Paper Feed Unit: 16 – 28 lb. Bond

When Duplexing (SP 3510SF only):

Paper Type

Bypass T

Optional Paper Feed Unit: Plain Paper

Output Tray Capacity
Power Requirements
Power Consumption

TEC Value
Dimensions (WxDxH)

SP 3510SF: 16.5” x 15.6” x 18.1”

Weight

SP 3510SF: 40.5 lbs. (19 kg*)
Safety Regulations

*Includes consumables.

Laser beam scanning/marking and
electr

o-photographic printing using dry,

monocomponent toner development

image-sensor
4-line monochr

30 seconds or less

18 seconds or less

256 levels

SP 3500SF: Standard 35-Sheet Automatic

Document Feeder (ADF)

ome LCD

Automatic Document Feeder (ARDF)

oductivity)

Bypass Tray

maximum paper capacity)

Legal (8.5” x 14”), Half Letter (5.5” x 8.5”),
Executive (7.25” x 10.5”), F (8” x 13”),
Folio (8.25” x 13”), Foolscap (8.5” x 13”),
A4 (210 x 297 mm), A5 (148 x 210 mm),
A6 (105 x 148 mm); Custom Size: 3.9” x

5.8” to 8.5” x 14” (100 x 148 mm to
216 x 356 mm)

(8.5” x 14”), Half Letter (5.5” x 8.5”),
Executive (7.25” x 10.5”), A4 (210 x 297
mm), A5 (210 x 148 mm), A6 (105 x 148
mm); Envelopes: Com10, Monarch, C6,
C5, DL; Custom Size: 3.6” x 5.8” to 8.5” x
14” (90 x 148 mm to 216 x 356 mm)

: Letter (8.5” x 11”), Legal

Optional Paper Feed Unit: Letter (8.5” x 11”),

Legal (8.5” x 14”), Half Letter (8.5” x 5.5”),
A4 (210 x 297 mm), A5 (210 x 148 mm)

14 – 43 lb./90 lb. Index (52 – 162 g/m

(60 – 105 g/m

16 – 28 lb. Bond (60 – 105 g/m
Paper T
Cardstock

Envelopes, Cardstock, Labels

Recycled Paper
Up to 125 sheets (face down)

110V – 120V, 60 Hz

Maximum: 850W
SP 3510SF: Energy Saver: less than 10W

1.99 kWh/week (SP 3510SF)

SP 3500SF: 16.5” x 15.6” x 17.4”

2

)

2

ray: Plain Paper, Recycled Paper,

)

ray: Plain Paper, Recycled Paper,

(420 mm x 397 mm x 442 mm)

(420 mm x 397 mm x 462 mm)
SP 3500SF: 38.5 lbs. (17.5 kg*)

UL60950-1, FCC47 CFR, Chapter 1,
Part 15, Class B

2

)

,

Print Controller

CPU 350 MHz
Print Resolution

Standard Interfaces
Memory 128 MB (standard and maximum)
Printer Languages/Drivers

*PCL 5e driver is not provided (controller can receive PCL 5e command from host).

Fonts PCL/PS3: 80 fonts
Network Protocols
Operating Systems Windows XP, Vista, 7, Server 2003, Server

Advanced Printer Features1

Software Utilities Embedded: Web Image Monitor, @Remote

Provided on CD-ROM: PCL 6 emulation

A

1

Varies by active PDL/Driver.

2

Counter information only.

600 x 600 dpi, 1200 x 600 dpi,
1200 x 1200 dpi (@ 50% productivity)
USB 2.0, 100Base-TX/10Base-T Ether

PCL 5e*, PCL6, PostScript 3 emulation

TCP/IP

, IPP

2003/R2, Server 2008, Server 2008/R2
Mac OS X 10.4 or later
Citrix MetaFrameXP, Citrix
Pr

esentationServer 3.0, 4.0 (32-bit only),

4.5, XenApp 5.0+, Lanier UNIX Filter
Reduce/Enlarge (scaling), Locked Print,
Collate Layout (N-up), Duplex, Front Cover
Sheet, Mirror Image Print, Dithering, Toner
Saving, Watermark, User ID, User Code,
Rotate Print, Reverse Order Print, Do Not
Print Blank Page

(limited support)

driver, PS3 emulation driver, Printer Utility
for Mac OS X (PPD), TWAIN Scanner Driver,
Presto!

vailable via Download from Website:
Lanier Universal Printer Driver, Lanier
Device Manager NX, Device Option Utility
for Citrix, Lanier UNIX Filter

2

®

PageManager®, PC Fax Utility

Copier Specifications

First Copy Speed Platen: 12 seconds

Single Document
Multiple Copy Speed (SP 3500SF): 30 copies-per-minute (Letter);

Copy Resolution

Platen: 600 x 600 dpi

Quantity Indicator
Original Type
Original Size

Sheet/Book/3D objects

ADF/ARDF: Letter (8.5” x 11”), Legal

Duplex Copy
Reproduction/Zoom Ratios

Copier Features Image Density Adjustment (manual only:

ADF/ARDF: 11 seconds or less
30 copies-per

ARDF (SP 3510SF): 30 copies-per-minute
(Letter) Multiple Document Single Copy
ADF: (SP 3500SF): 20 copies-per-minute;
ARDF: (SP 3510SF): 20 copies-per-minute
ARDF/ADF: 600 x 300 dpi

-minute (Letter); ADF Platen

1 – 99

Platen: Letter (8.5” x 11”), A4 (210 mm x
297 mm)

(8.5” x 14”), A4 (210 mm x 297 mm)
SP 3510SF only

50%, 65%, 78%, 93%, 129%, 155%,

200%, 400%

5 levels), Copy Mode (Text/Photo/Mixed),
Memory Copy, Auto Duplex Copy
(SP 3510SF only), Combine Copy (2 in 1,
4 in 1), ID Card Copying, Electronic
Sorting (standar
Photo Mode

, through the ARDF

d collation, ADF only),

Scanner Specifications

Scanning Device Full-color CCD array image-sensor
Resolution

Compatibility

net

Scan Modes Black & White: less than 5 seconds;

Max. Original Size

PC Interface USB 2.0, 10/100Base-TX
Scanning Capabilities

Supported File Formats TIFF, JPEG, PDF

Scanner: 1200 x 1200 dpi; Driver: Max.
19200 x 19200 dpi (interpolated)
TW

AIN, WIA

Grayscale: less than 5 seconds;
Color: less than 10 seconds
Platen: W

idth up to 8.5”, length up to

11.69”; ADF/ARDF: Width up to 8.5”,
length up to 14”

, ARDF, TWAIN via Network and USB,

ADF
WIA, Scan-to-Email, Scan-to-Folder,
Scan- to-FTP

, Scan-to-USB memory

Facsimile Specifications

Circuit PSTN/PBX
Compatibility
Resolution

200 x 100 dpi, 200 x 200 dpi

Maximum Print Width 8.2”
Compression MH/MR/MMR/JBIG (Basic)
Scanning Speed
Maximum Scan Width
Modem Speed
Transmission Speed
Memory Backup
SAF Memory
Fax Features

*ITU No. 1 chart, Compression: MMR, Resolution: Standard speed: 33.6 kbps

100 pages

ITU-T G3

Less than 5 seconds (200 dpi)

8.3”

33.6 Kbps

Approx. 3 seconds*

1 hour

20 One-T

ouch Dials, 200 Speed Dials,
Internet Fax, Paperless Fax, Redial, Direct
Fax Number Entry, Auto Redial, Time
Indicator, PC Fax (transmission only),
Broadcasting (100 stations), Contrast
Control (3 level Light/Normal/Dark –
manual setting), Auto Answer, Immediate/
Memory Transmission, Auto/Manual/
Substitute Reception, Error Correction
Mode, Smoothing, Forwarding (to e-mail
address), Book Fax, Double-sided
Transmission, TTI/CSI, LDAP support,
Address Book (200 total fax # entries),
Telephone Answering Machine Interface

Hardware Accessories

Paper Feed Unit TK1080

Capacity 250 sheets
Paper Sizes

Paper Weights
Dimensions
Weight

Less than 5.3 lb. (2.4kg)

Consumables

Yield
Standard Yield All-In-One

Letter (8.5” x 11”), Legal (8.5” x 14”),
Half Letter (5.5” x 8.5”), A4, A5
16 – 28lb. Bond (60 – 105 g/m

14.6” x 15.1” x 3.5” (370 x 383 x 89 mm)

2

)

2,500 prints*

Print Cartridge SP 3400LA
High Yield All-In-One 6,400 prints*
Print Cartridge SP 3500XA

*Declared yield values based on ISO/IEC 19752. Actual yields may vary based
on types of images printed and other factors.

The Lanier SP 3500SF/SP 3510SF ships with a starter toner cartridge that yields
1,500 pages using the ISO/IEC19752 standard.

For maximum performance and yield, we recommend using genuine Lanier parts
and supplies.

Warranty

The Lanier SP 3500SF/SP 3510SF is under warranty against defects
for a period of one year from the date of purchase. Consumables are
under warranty for a period of 90 days from the date of purchase.
Please refer to warranty documents shipped with the product for
more details.

www.lanier.com

Lanier, Five Dedrick Pla ce, West Caldwell, NJ 07006
Lanier® and the Lanie r Logo are registered trad emarks of Ricoh Company, Ltd. All oth er trademarks are the pro perty of their respe ctive owners. The cont ent of this document, and the
appearance, fea tures and specificatio ns of Lanier products a nd services are subjec t to change from time to time wit hout notice. Products a re shown with optional feat ures. While care
has been taken to e nsure the accuracy of this infor mation, Lanier makes no rep resentation or warranti es about the accuracy, compl eteness or adequacy of t he information contained
herein, and shall n ot be liable for any errors or o missions in these materia ls. Actual results will va ry depending upon use of t he products and ser vices, and the conditions a nd factors
affecting p erformance. The only wa rranties for Lanier produ cts and services ar e as set forth in the expres s warranty statements a ccompanying them.

L3347-1

Only the SP 3510SF is Energy Star compliant.
