Page 1

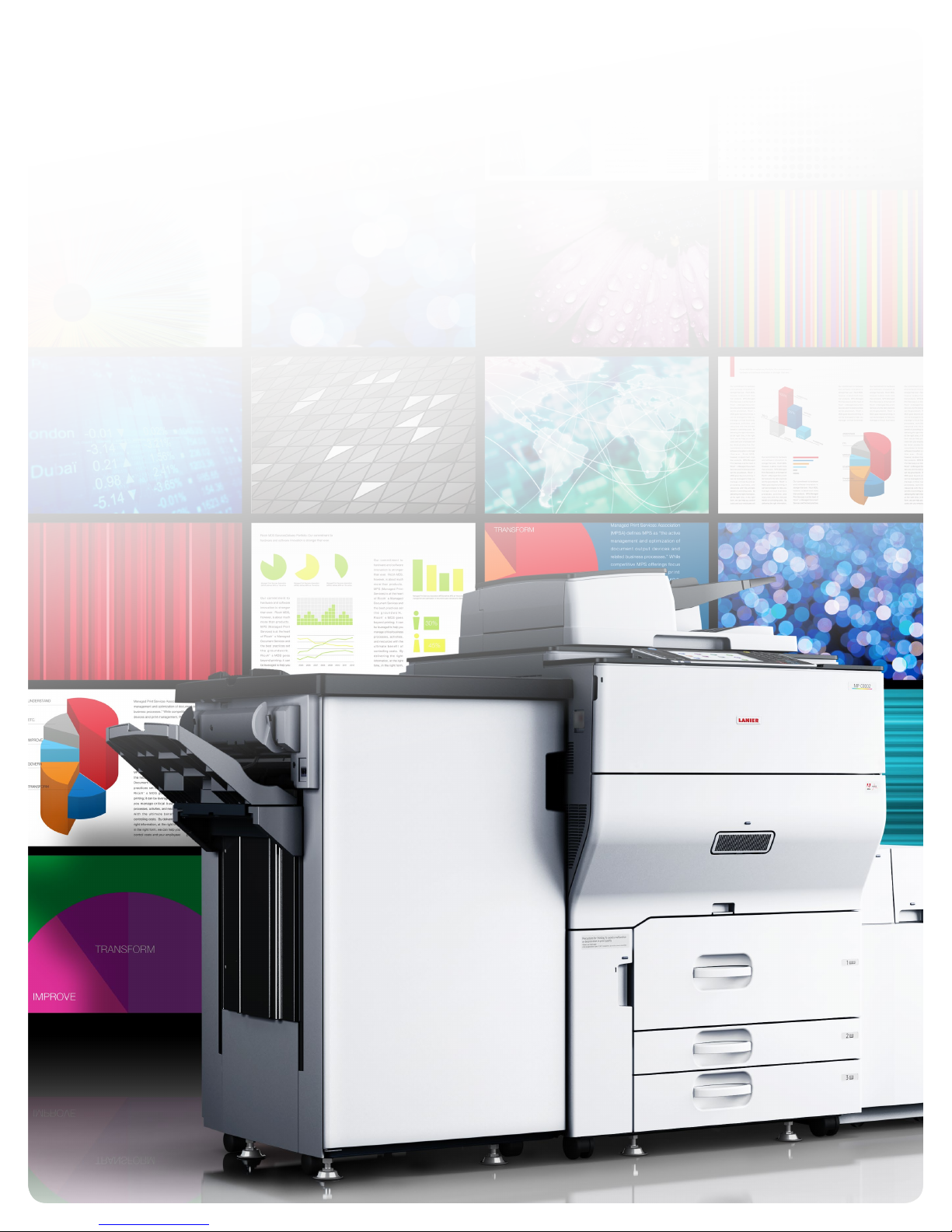

MP C6502/
MP C8002
Multifunction Color
Copier
Printer
Facsimile
Scanner
MP C6502
monochrome
65
and full-color
ppm
MP C8002
monochrome
80
and full-color
ppm
Page 2
Handle everything with superior, high-quality color
The combination of speed and quality has never offered clearer advantages. The LANIER® MP C6502/
MP C8002 color digital MFP uses cutting-edge laser technology to produce fast, exceptional color output
in high-volume offices and graphics departments. This innovative MFP offers intuitive end-to-end control
to improve workflow for everyday tasks. Take advantage of outstanding image quality, enhanced paper
handling and robust finishing by keeping more jobs in house. Transform your MFP into an information portal
by connecting to the cloud from your smartphone, tablet or other mobile device and use these systems
to print, share and discover the value of customized convenience. Use it as your standalone, primary
system — or as an integral part of a Managed Document Services (MDS) strategy and improve productivity
throughout your organization.
• Print full-color or black-and-white documents at speeds of 65 or 80 ppm
• Deliver impressive color with image resolution up to 1200 x 4800 dpi
• Produce documents in sizes up to 13" x 19.2"
• Advanced scanning capabilities
• Paper capacity up to 8,100 sheets
• Comprehensive inline finishing options
Page 3
Transform everyday into the extraordinary
Enhance performance with high-impact, high-volume features
See unprecedented image quality
Bring production print quality to any office. Achieve the highest
resolution available — up to 1200 x 4800 dpi — from the first print to
the last with the Lanier MP C6502/MP C8002. New and innovative
technology called Vertical Cavity Surface Emitting Laser (VCSEL) helps
deliver precise registration and fill on text and images for superior
clarity. The system emits 40 laser beams simultaneously to ensure
accurate color density for impressive output ever y time. It also adjusts
the paper automatically so graphics match more closely on the front
and back of every sheet.
Be more productive
Productivity comes standard with the Lanier MP C6502/MP C8002. It
produces up to 80 prints per minute for fast, high-volume color output.
Take advantage of its quick one-pass duplex scanning that scans both
sides of any original in a single pass. Reload paper and replace toner
without interrupting print runs for continuous uptime and maximum
productivity. Use the embedded Web Browser option and connect to
our Integrated Cloud Environment (ICE) to scan documents, send files
to popular Web services, print on the go and more with the touch of a
button — without on-premise sof tware solutions.
Integrate processes to streamline workflow
Combine advanced printing, copying, faxing and scanning capabilities
in a single system designed to reduce space, unnecessary steps and
operating costs. The Lanier MP C6502/MP C8002 includes Distributed
Scan Management (DSM) for centralized scanning control that automates
document tasks for faster, more efficient workflow while following specific
user permissions, rules, delivery preferences and more. Use the new
embedded Optical Character Recognition (OCR) scanning to create
searchable PDF files for advanced indexing and retrieval of scanned
documents. Send large, full-color files easily as high-compression
PDFs. ID card copy lets users replicate both sides of documents,
forms and ID cards onto one side of paper.
Complete everyday projects with ease
A large, full-color touch-screen control panel lets users set up shortcuts
for convenient, one-step access to specific jobs and functions. Bring
projects with you via a convenient USB memor y or SD card slot on the
control panel. Featuring a range of technologies to minimize paper
misfeeds, these models deliver stable operation even when printing at
high speed. Advanced, real-time animated graphics and other features
also ensure that when a misfeed does occur, troubleshooting is quick,
easy and stress free.
Page 4
Designed to showcase the best ideas
Add color to add impact
New PxP®-EQ formulated toner expands the color space for
advanced color management. Because the toner melts at lower
temperatures, it requires less energy and minimizes operating
costs — making it ideal for in-house graphics departments that
are conscious of both quality and budget. The Lanier MP C6502/
MP C8002 provides consistently stable color recognition that
significantly minimizes banding, gaps and shock jitter. Advanced
print drivers offer incredible flexibility, so users can adjust colors,
brightness, saturation and more to meet any color demand.
Plus, users can take advantage of the powerful, user-friendly
Fiery® E-22B Print Controller for more complex color workflows
in either Windows or Mac environments for effortless, high-grade
print and color control.
Manage multiple media
Produce more jobs in-house — including direct mail, proposals,
booklets, manuals and more — with a wide range of paper
handling features. The high-capacity Lanier MP C6502/MP C8002
can hold up to 8,100 sheets to ensure even the largest workgroups
keep moving efficiently. It accepts thicker paper stocks for
duplex printing in weights up to 142 lb. Index (256 g/m2). It can
accept up to 110 lb. Cover (300 g/m2) for non-duplex printing
via the RT4030 large capacity tray or via the bypass tray. The
system can run and finish up to 13" x 18" sized paper with full
bleed up to 11" x 17" for posters and signage.
Finish what you start
Use the Lanier MP C6502/MP C8002 to create a wide range of
impressive, professional-grade documents on demand and eliminate
expensive outsourcing. Craft highly compelling pieces with multiple
folding options using the FD4000 Multi-Folding Unit. Take advantage
of stapling, hole-punching, saddle stitching and more to meet unique
requirements and quick turnarounds. Newly designed, flat fold
booklet finishing ensures that booklets are neat, thin and significantly
easier to handle.
Page 5
End-to-end control for larger workgroups
Sustain energy efficiency for your environment
The Lanier MP C6502/MP C8002 lets users perform more tasks
while reducing Typical Electricity Consumption (TEC). The system
can be programmed to power on and off with a Weekly Timer to
fit the way you want to work — and save. Default duplex printing
reduces paper and operating costs without compromising quality.
Protect document integrity
The Lanier MP C6502/MP C8002 has enhanced features that help
organizations meet today’s growing security needs. The device
includes user authentication to restrict access to critical MFP functions
to only those with a valid user name and password. Likewise, stored
documents are released only to authorized users. Administrators can
set quotas for individual users or workgroups to curb excessive color
printing and to restrict access to specific functions. In addition, the
DataOverwriteSecurity System (DOSS) feature destroys latent images
and data on the HDD.
Manage performance easily, remotely
The new Remote User Interface supports panel monitoring, which helps
speed problem resolution and maximizes IT personnel productivity.
Administrators can also monitor usage of the Lanier MP C6502/
MP C8002 — or an entire fleet — with the built-in Embedded @Remote
device management functionality, or it can be managed by one of
the other @Remote fleet solutions. Administrators can monitor usage
trends, collect and report meter data and generate an array of usage
reports, including @Remote Green Reports, to ensure eco-friendly
initiatives are meeting targets.
Page 6
Innovative features for fast,
flexible and affordable workflow
8
9
4
10
11
12
13
17
Lanier MP C6502/MP C8002
16
15
Page 7
1
CI4010 and CI4020 Cover Interposers (Optional):
Feed pre-printed
sheets from one or two sources for front and back covers.
2
CS4010 9-Bin Mailbox (Optional):
Keep documents from multiple
users separate with the 9-Bin Mailbox.
3
SR4100 2,000-Sheet Booklet Finisher (Optional):
Produce full-color
booklets cost-effectively with the in-line Booklet Finisher. Also
available with an optional Hole Punch Unit.
4
SR4090 and SR4110
(shown)
3,000-Sheet Finishers (Optional):
Choose from 65- or 100-sheet stapling with the ability to output
documents up to 13" x 19.2". Add the optional Hole Punch Unit
for even more flexibility.
5
FD4000 Multi-Folding Unit (Optional):
Execute several different
folds to create a variety of finished documents.
6
BK5010e Production Booklet Maker (Optional):
Saddle stitch up
to 30 sheets to create 120-page booklets.
7
GBC StreamPunch™ (Optional):
Create professional-quality bound
books with in-line punching in a variety of patterns.
8
220-Sheet Single Pass Duplex Feeder (Standard):
Offers single-pass
color duplex scanning at 220 spm.
9
Full-Color WVGA Control Panel with SD/USB Slot (Standard):
Navigate from job to job easily with fingertip control via the intuitive
touch screen featuring a user-friendly slot for SD/USB cards.
10
Power On/Off Timer (Standard):
Saves energy and minimizes waiting
by automatically turning the MFP on or off at pre-determined times.
11
Automatic Duplexing (Standard):
Save paper and filing space
with standard automatic duplexing that runs at the same speed
as one-sided output.
12
VCSEL and PxP-EQ Toner Technology (Standard):
Vertical Cavity
Surface Emitting Laser and high-quality toner provide more vivid
colors and smooth gradations for improved text, fine lines, graphics
and photographic reproductions.
13
640GB Hard Disk Drive (Standard):
Secure documents with
DataOverwriteSecurity System (DOSS), Data Encryption, Locked
Print and more (capacity for Locked Print is 170GB).
14
Oversize and Heavy Media Support:
Accepts 13" x 19.2" paper
sizes and heavy media (up to 110 lb. Cover stock through the
Bypass Tray and the RT4030 LCT) to give you many more options
for in-house production.
15
Paper Trays (Standard):
Standard paper sources include the tandem
2 x 1,250-sheet Paper Tray, two 550-sheet Paper Trays and 100-sheet
Bypass Tray for a total paper capacity of 3,700 sheets. With additional
paper sources, this system can hold up to 8,100 sheets.
16
RT4030
(shown)
and RT4020 Large Capacity Trays (Optional):
The RT4030 2,200-sheet LCT utilizes the system Bypass Tray
for a straight paper path to help reliably feed up to 110 lb. Cover
stock (300 g/m2) and up to 13" x 19.2" sheets. Choose the RT4020
4,400-sheet LCT to handle paper sizes up to 8.5" x 11" and up to
80 lb. Cover stock (216 g/m2).
17
Broad Compatibility:
Quickly integrate these systems with built-in
compatibility for PC and Mac environments in LAN or wireless networks.
Page 8
Lanier MP C6502/MP C8002
SYSTEM SPECIFICATIONS
Specifications
Output Speed (LTR) MP C6502: 65 ppm (FC/B&W)
MP C8002: 80 ppm (FC/B&W)
Document Feeder Standard 220-Sheet SPDF with single-
Control Panel Full-color 9" WVGA touch panel
Copy Resolution 600 dpi
Color/Grayscale 256 Levels
Quantity Indicator 1 – 9,999
Original Size Up to 11" x 17" (279.4 x 431.8 mm)
Warm-Up Time 50 sec. (from main switch)
Recovery Time MP C6502: 50 sec. (from sleep mode)
First Copy Speed MP C6502: 5.3/7.2 sec. (B&W/FC)
MP C8002: 4.6/6.2 sec. (B&W/FC)
Paper Capacity Tray 1: 1,250 sheets x 2
Trays 2 – 3: 550 sheets x 2
Bypass Tray: 100 sheets
Total Paper Capacity 3,700 (std.) /8,100 sheets (max.)
Paper Size Tray 1: 8.5" x 11"
Trays 2 – 3: 5.5" x 8.5" to 13" x 19.2"
Bypass Tray: 5.5" x 8.5" to 13" x 19.2"
Paper Weight Tray 1/2/3: 14 lb. Bond – 142 lb. Index
Bypass Tray: 14 lb. Bond – 110 lb. Cover
Duplex: 14 lb. Bond – 142 lb. Index
Magnification 7 reduction and 5 enlargement
Zoom 25% to 400% in 1% increments
Power Requirements MP C6502: 120V/20A/60Hz (dedicated)
MP C8002: 208–240V/20A/60Hz (dedicated)
Typical Electricity MP C6502: 5.08 kWh/week
Consumption (TEC) MP C8002: 6.37 kWh/week
Max. Power Consumption MP C6502: 1,920W or less
MP C8002: 2,400W or less
Dimensions (WxDxH) 29.5" x 34.9" x 48.3"
Weight Less than 531 lbs. (241 kg)
Copier Features
Eco-Friendly Indicator, Power On/Off Timer, Auto Off Timer,
Simplified Display, Auto Paper Selection, Auto Start, Auto Tray
Switching, Auto Image Density, Auto Color Calibration, Color
Erase/Convert/Overlay, Image Rotation, Rotate Sorting, Interrupt
Copy, Job Presets, Tabs, Color/Image Creation, Color Balance
Adjustment/Program, Shift/Erase/Margin Adjustment, Multiple
Security Features (DOSS, Data Encryption (AES256bit/SHA2),
Authentication, Unauthorized Copy Control, Quota Setting,
SMTP over SSL, Common Criteria Certification (IEEE2600.1),
Import/Export of Preference Settings, Remote User Interface
Printer Specifications (Standard)
CPU Intel® Celeron® Processor P4505 –
RAM 2.5 GB
HDD 640GB (320GB x 2) (Shared)
Max. Print Resolution 1200 x 4800 dpi via VCSEL
Standard Interfaces Ethernet (10/100/1000Base-TX), USB2.0
Optional Interfaces IEEE 1284/ECP, Wireless LAN
Network Protocol TCP/IP (IPv4, IPv6), IPX/SPX (w/option)
Network Operating Windows XP/Vista/7/Server 2003/Server
Systems 2003R2/Server 2008/Server 2008R2;
Print Drivers PCL5c, PCL6, PDF, Adobe PS3 (optional),
Fonts PCL: 45 scalable + 13 international; PDF:
Printer Features Sample/Locked/Hold/Scheduled/Stored
pass color duplex scanning
(from platen)
MP C8002: 45 sec. (from sleep mode)
(52 – 256 g/m2)
(52 – 300 g/m2)
(52 – 256 g/m2)
(750 x 886 x 1,226 mm) (incl. SPDF)
1.86 GHz
Type A/Type B, SD slot
(IEEE802.11a/b/g/n)
Netware 6.5; Unix Sun Solaris, HP-UX,
SCO OpenServer, RedHat Linux, IBM
AIX; MAC OS X 10.2 or later; SAP R/3;
NPDS Gateway; IBM iSeries AS/400 using
OS/400 Host Print Transform
XPS, IPDS (optional)
136 Roman; IPDS: 108 Roman (optional)
Print, PDF Direct Print, CLP Simulation,
Mail to Print, Bonjour (Rendezvous)
Support, Media Direct Print (Print from
USB/SD), Mobile Driver, Poster Print,
Auto Job Promotion, WS Print, WPS (Wi-
Fi Protected Setup), XPS
Scanner Specifications (Standard)
Scanning Resolution Up to 600 dpi
Scan Area Up to 11.7" x 17" (297 x 432 mm)
Scan Speed (B&W/FC) Simplex: 120 ipm; Duplex: 220 ipm
Output Format Single Page: TIFF/JPEG/PDF/
Multi Page: TIFF/PDF/High Compression
Compression B&W – 1bit (MH/MR/MMR/JBIG2),
Interface Support 10/100/1000Base-TX, Wireless LAN
Authentication SMTP/POP before SMTP
Scanner Features: B&W/FC Photo, B&W/FC Text, ACS,
Document Server Specifications (Standard)
Max. Stored Documents 3,000
Max. Pages per Document 3,000
Max. Stored Pages 15,000
Folder Management Yes (password protectable)
Fax Specifications (Optional)
Circuit PSTN, PBX
Compatibility ITU-T (CCITT) G3, Additional G3 opt.
Resolution 200 x 100/200 dpi (400 dpi w/opt.
Compression Method MH, MR, MMR, JBIG
Modem Speed 33.6 K – 2,400 bps
Transmission Speed G3: Approx. 2 sec.
Memory Backup 1 hour
Quick/Speed Dials 2,000 numbers
Group Dials 100 groups (500 per group)
SAF Memory Capacity Standard: 4MB (approx. 320 pages),
Fax Features Detection of Misplaced Document,
Accessories
RT4030 DLT Large Capacity Tray (LCT)
Paper Capacity 2,200 sheets
Paper Size Up to 13" x 19.2"
Paper Weight 14 lb. – 110 lb. Cover (52 - 300 g/m2)
Size 34.2" x 28.7" x 25.9" (869 x 730 x 658 mm)
Weight 180 lbs. (82 kg)
RT4020 Large Capacity Tray (LCT)
Paper Capacity 4,400 sheets
Paper Size 8.5" x 11"
Paper Weight 14 lb. – 80 lb. Cover (52 - 216 g/m2)
Size 19.7" x 21.3" x 24.6" (500 x 540 x 625 mm)
Weight 44 lbs. (20 kg)
CI4010 Single Source Cover Interposer
Paper Size 5.5" x 8.5" - 11" x 17"
Paper Weight 17 lb. Bond – 80 lb. Cover (64 – 216 g/m2)
Stack Capacity 200 sheets x 1 tray
CI4020 Dual Source Cover Interposer
Paper Size 5.5" x 8.5" – 13" x 19"
Paper Weight 17 lb. Bond – 80 lb. Cover (64 – 216 g/m2)
Stack Capacity 200 sheets x 2 trays
SR4090 3,000-Sheet Finisher with 65-Sheet Stapler
Capacity (Proof Tray) 250 sheets (8.5" x 11" or smaller)
50 sheets (8.5" x 14" or larger)
Capacity (Shift Tray) 8.5" x 11" – 3,000 sheets
8.5" x 14" – 13" x 19.2" – 1,500 sheets
Paper Size 5.5" x 8.5" – 13" x 19.2"
Paper Weight Proof Tray: 14 lb. Bond – 80 lb. Cover
Shift Tray: 14 lb. Bond – 110 lb. Cover
Staple 8.5" x 11" – 11" x 17" – 65 pages
Size 25.8" x 24.1" x 37.8" (657 x 613 x 960 mm)
Weight 117 lbs. (53 kg)
SR4110 3,000-Sheet Finisher with 100-Sheet Stapler
Capacity (Proof Tray) 500 sheets (8.5" x 11" or smaller)
250 sheets (8.5" x 14" or larger)
Capacity (Shift Tray) 8.5" x 11" – 3,000 sheets (LEF)
8.5" x 11" – 11" x 17" – 1,500 sheets (LEF)
12" x 18" – 13" x 19" – 1,000 sheets (SEF)
High Compression PDF/PDF-A
PDF/PDF-A
Grayscale (JPEG), Full Color – JPEG
(IEEE802.11 a/b/g/n), USB2.0 Type A,
SD card slot
Auto Density, Image Rotation, Mixed Size/
SADF/Batch Mode, Reduce and Enlarge,
Split Scan, Scan-to Email/SMB/FTP/
URL/NCP/ PDF/A/Digitally Signed PDF/
Searchable PDF, TWAIN Scanning, USB/
SD2.0 Scanning, LDAP Support, Universal
Send, Distributed Scan Management,
Preview Before Transmission, WS-Scanner
SAF memory)
Maximum: 28MB (approx. 2,240 pages
with memory option)
Direct SMTP, Internet Fax (T.37),
LAN Fax, IP Fax (T.38), Remote Fax
(option), Forward to Email/Folder,
Paperless Fax, LDAP Support
(with LG unit)
(52 – 220 g/m2)
(52 – 300 g/m2)
Paper Size 5.5" x 8.5" – 13" x 19"
Paper Weight Proof Tray: 14 lb. Bond – 80 lb. Cover
Shift Tray: 14 lb. Bond – 110 lb. Cover
Staple 8.5" x 11" – 100 pages
8.5" x 14" – 11" x 17" – 50 pages
Size 31.7" x 28.7" x 38.5" (806 x 730 x 980 mm)
Weight 165 lbs. (75 kg)
SR4100 2,000-Sheet Booklet Finisher
Capacity (Proof Tray) 250 sheets (8.5" x 11" or smaller)
50 sheets (8.5" x 14" or larger)
Capacity (Shift Tray) 8.5" x 11" – 2,000 sheets (LEF)
8.5" x 11" – 13" x 19.2" –1,000 sheets (SEF)
Paper Size 5.5" x 8.5" – 13" x 19.2"
Paper Weight 14 lb. Bond – 80 lb. Cover (52 – 220 g/m2)
Staple 8.5" x 11" – 11" x 17" – 65 pages
Saddle Stitch Staple 8.5" x 11" – 13" x 18" – 20 pages
Size 25.8" x 24.1" x 37.8" (657 x 613 x 960 mm)
Weight 117 lbs. (53 kg)
FD4000 Multi-Folding Unit
Folding Type: Single Sheet Mode: Z-Fold, Half-Fold,
Multiple Sheet Mode: same as Single
Paper Size: Single Sheet Mode: Z folding: 8.5" x 11" –
Multiple Sheet Mode: Half folding: 8.5" x 11"
Size 18.5" x 38.5" x 28.75" (470 x 980 x 730 mm)
Weight 203 lbs. (92 kg)
GBC StreamPunch
Paper Size Punched 8.5" x 11" (LEF)
Paper Weight 20 lb. Bond – 110 lb. Index (216 g/m2)
Die Sets CombBind®, Twin Loop Wire (2:1 or 3:1),
BK5010e Production Booklet Maker
Paper Size 8.5" x 11" – 11" x 17"
Paper Weight 16 lb. Bond – 110 lb. Index (216 g/m2)
Additional Accessories
PU5000 Punch Unit; PU3060 Punch Unit; 11" x 17" Tray Unit Type
M2; Copy Data Security Kit Type G; Adobe PostScript3 Unit Type
M2; IEEE802.11a/g/n Type M2; IEEE1284 I/F Board Type A;
G3 Interface Kit Type M2; Copy Tray Type M2; FAX Memory Unit
Type B 32MB; OCR Unit Type M2; IPDS Unit Type M2; SD Card for
Netware Printing Type M2; Fax Option Type M2; Fax Connection
Unit Type M2; Smart Card Reader Type M2, DataOverwriteSecurity
System Unit (DOSS) Type H (ISO15408 certified), CS4010
9-Bin Mailbox Unit, Web Browser (option) for Integrated Cloud
Environment (ICE) integration (option), Device Manager NX
integration (option)
Fiery E-22B Color Controller Specifications
Controller Type Embedded Type
Fiery Platform FS100
Maximum Continuous MP C6502: 65 ppm B/W and Color
Print Speed MP C8002: 80 ppm B/W and Color
CPU Intel Processor G850 2.9GHz
Host Interface 1000Base-T/100Base-TX/10Base-T
Memory 2 GB
Internal HDD 500 GB
Operating System Linux
Network Protocol TCP/IP (IPv4/IPv6), SMB, Bonjour
Printer Description Adobe PostScript 3 (std.), PCL6/5c (std.)
Language
Max Print Resolution Up to 1200 dpi (2 bit)
Max Scan Resolution Up to 600 dpi
Fonts PS3: 138 fonts/PCL: 81 AGFA fonts
Operation Panel Via touch panel display on the MFP
Utilities Standard: Command WorkStation 5,
Optional: Fiery Impose, Fiery Compose,
Color Management Tools ICC Profile, Color Chart, CMYK Color
Calibration Color Cal, ES-2000 (opt.)
For maximum performance and yield, we recommend using genuine
Lanier parts and supplies.
(52 – 216 g/m2)
(52 – 300 g/m2)
Letter Fold-in, Letter Fold-out, Double
Parallel, Gate-Fold
Sheet mode; up to 3 sheets.
12" x 18"; Half folding: 8.5" x 11" – 13" x
19.2"; Letter folding: 8.5" x 11" – 12" x 18";
Double Parallel/ Gate folding: 8.5" x 11" –
12" x 18"
– 13" x 19.2"; Letter Fold-out: 8.5" x 11" – 8.5"
x 14"; Letter Fold-in: 8.5" x 11" – 12" x 18"
™
ColorCoil®, VeloBind®, Three-Ring, ProClick
Fiery Scan, Printer Delete Utility, Fiery
Web Tools, Fiery Bridge, Fiery VUE,
Secure Erase
Color Profiler Suite ES-2000, Auto
Trapping, Spot-On, Hot Folders/Virtual
Printers, Productivity Package
Reference Pages, RGB Color Tests,
Trapping Support
®
www.lanier.com
Lanier, 70 Valley Stream Parkway, Ma lvern, PA 19355, 1-855-5-LA NIER
Lanier® and the Lanie r Logo are registered trad emarks of Ricoh Americ as Corporation. All other tra demarks are the proper ty of their respecti ve owners. ©2013 Ricoh Am ericas Corporation.
All rights res erved. The content of this d ocument, and the appeara nce, features and specific ations of Lanier produc ts and services are sub ject to change from time to tim e without notice.
Products a re shown with optional feat ures. While care has been t aken to ensure the accuracy of th is information, Lanier make s no representation or war ranties about the accurac y, completeness
or adequac y of the information containe d herein, and shall not be liabl e for any errors or omissions i n these materials. Actua l results will vary dep ending upon use of the produc ts and services,
and the conditi ons and factors affec ting performance. The onl y warranties for Lanier pr oducts and servic es are as set forth in the expr ess warranty stateme nts accompanying them.
L3439
Loading...
