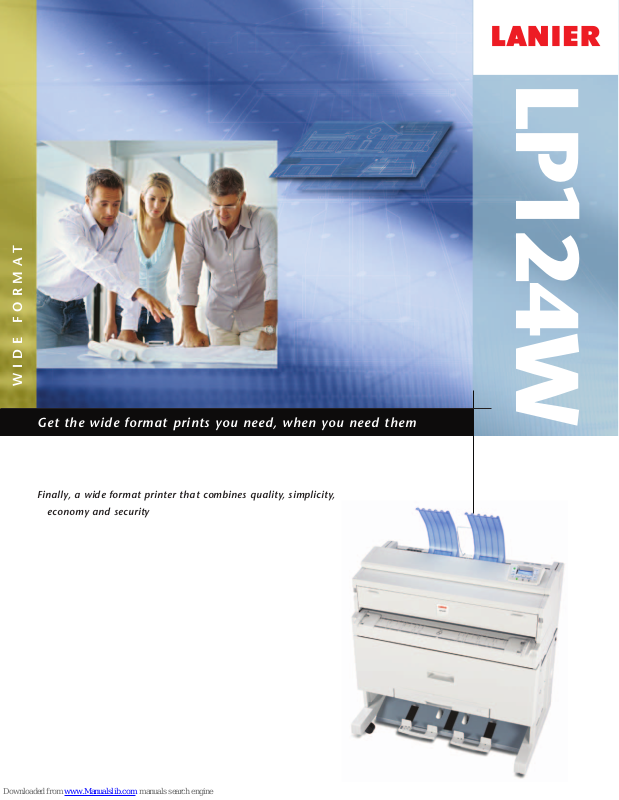

Page 1
LP124W
WIDE FORMAT
Get the wide format prints you need, when you need them
Finally, a wide format printer that combines quality, simplicity,
economy and security
Page 2
WIDE FORMA
T
LP124W
Small and Convenient with
State-of-the-Art Capabilities
When you need high quality collated printouts and you need them
now, the Lanier LP124W Wide Format Digital Imaging System is the
ideal solution. Compact, affordable, state-of-the-art, it delivers all
the capabilities you need to improve your competitive edge while
keeping your costs down.
Simplicity at Every Touch Point
The Lanier LP124W’s single footprint requires less floor space
while offering a simple, convenient path to extremely high
quality printed documents.
Access consumables quickly and easily, thanks to full-front clamshell design.
•
• Handle large print runs with the 50-sheet top output and 40-sheet bottom
stackers.
• Switch paper easily, thanks to the flange-based roll-paper changing and
optional cassette tray (up to 12” x 18” paper).
• Store files and projects in progress up to 180 days with the 80 GB HDD and
access them instantly at the printer or from your PC using WebImageMonitor.
• Improve productivity by stamping documents with dates, page numbers, and
headers and footers prior to printing, storing or retrieving them for reprinting.
Razor Sharp Prints in an Instant
Outsourcing your wide format prints or sending
documents to a central plotter is no longer necessary
with the economical, compact Lanier LP124W.
• Output high quality documents with 600 dpi resolution at 4.5 prints per minute.
• Create vivid details and fills with 2 levels of grayscale.
• Use advanced IT technology—including standard NIB and up to 1000Base T
Gigabit Ethernet, USB, and wireless options—to boost your productivity and
improve workflow.
The Embedded Controller Advantage
Lanier’s unique open architecture controller is packed with
productivity-boosting power
• Handle common file formats in your industry—as well as Windows,
ostscript and HDI print drivers
P
• Use the simple, intuitive Web Printing GUI to access network directories/files,
build print jobs and send them to the printer IP address for fast,
printing from anywhere.
• For added convenience, you can print immediately, print a sample document,
hold the print job on the hard drive for print on demand,
document for authorized printing of the job.
Making Security a Top Priority
Multiple levels of security ensure your peace of mind.
• Password protect your documents with Windows Authentication.
• Ensure document protection during data transmission with the data
encryption tool.
• Prevent unauthorized recall of sensitive data by completely erasing it from the
hard drive with optional Data Overwrite Security
.
.
versatile
or password protect a
.
SPECIFICATIONS
ENGINE/COPIER SPECIFICATIONS
Configuration Desktop
Printing Process Electrophotographic printing
Paper Source 2 Roll Paper Feed Table (Required)*
Warm-Up Time Less than 120 Seconds
First Copy 34 seconds (E-Size)
Printing Speed 4.5 ppm; 2.36 ips (D-Size)
Resolution 600 dpi x 600 dpi
Grayscale Printing 2 levels
Cutting Method Synchronized, preset cut, variable cut
Memory Capacity 512 MB
Hard Drive Capacity 80 GB
Print Exits Top: 50 sheets (Plain Paper D-size LEF)
Power Source 120V 15A 60Hz
Dimensions (W x D x H ) 42.5” x 25” x 21” (Mainframe only)
Weight 235 lbs. (Mainframe only)
Supported Drivers RPCS, PostScript 3 (emulation), HDI
Supported File Formats PDF, HP-GL 1/2, TIFF, CALS, HP-RTL
Network Protocol TCP/IP(IPv.4/IPv.6), IBX/SPX, AppleTalk
Operating System RPCS: Windows 95/98/Me, Windows NT 4.0, Windows
Driver Support 2000, W
Supported AutoCad Version AutoCAD2000, 2000i, 2002, 2004, 2005, 2006, 2007
(HDI Driver)
* 2 Roll Paper Feed Table must be ordered with the mainframe.
PRINT CONTROLLER FEATURES
• Auto Paper Select
der Setting
Bor
•
• Language Setting
• Limitless Paper Feed
Locked Print
•
• Magnification, 25%-400%
• Media Selection
• Mirror Setting
Multiple Print Sets
•
• Output Tray Select
• Pen Setting
Remote Print via Internet (IP Address Direct Printing)
•
• Roll Select
Sample Print
•
• Set up Launcher
• Stamp Setting
ency Mode
ranspar
T
•
• 80 GB Document Server
www.lanier.com
Lanier Five Dedrick Place, W
©2007 Lanier is a registered trademark of Ricoh Americas Corporation. All rights reserved. Windows®and
Windows®98/Me/NT4.0/2000/XP/Server 2003 are registered trademarks of Microsoft Corporation. All other
trademarks are the property of their respective owners. Print speed may be affected by network, application
or PC performance. Specifications and external appearances are subject to change without notice. Products
are shown with optional features.
Printed in U.S.A. on recycled paper.
est Caldwell, NJ 07006
250-Sheet Paper Cassette Tray (Optional)
Bottom: 40 sheets (Plain Paper E-size SEF)
42.5” x 28.3” x 48.5” (Mainframe w/2 roll feed table)
389.3 lbs. (Mainframe w/2 roll feed table)
, Windows 2003 Server
indows XP
PostScript: Windows 95/98/Me, Windows NT 4.0, Windows
2000, Windows XP, Windows 2003 Server Mac OS6-10.1 or later
L2626
