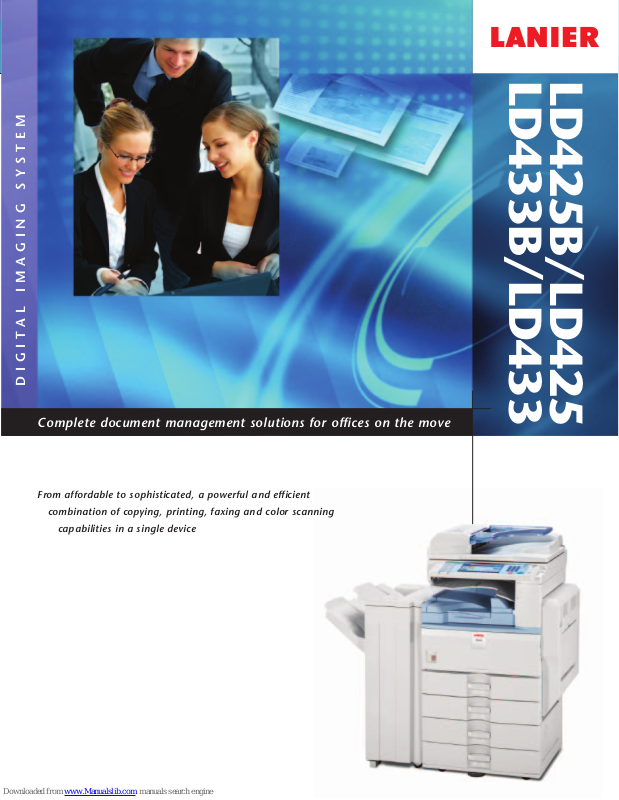

LD433B/LD433
LD425B/LD425
DIGITAL IMAGING SYSTEM
Complete document management solutions for offices on the move
om affordable to sophisticated, a power
Fr
combination of copying, printing, faxing and color scanning
capabilities in a single device
ful and efficient
Page 2
Office productivity moves to the next level LD425B/LD425/LD433B/LD433
Every office is unique.Yet all have the same overriding
pressures: raise productivity, complete projects faster,
improve quality and encourage collaboration. That’s
why the Lanier LD425B/LD425 & LD433B/LD433 is
such a compelling office solution. It’s engineered with
all the speed, quality, finishing capabilities and easy
usability you need to help accomplish the universal
objectives of your office.These systems also streamline
document distribution with the color/black & white
scanning capabilities of the Lanier LD425 & LD433,
and the black & white scanning capabilities of the
LD425B & LD433B.
Powerful Productivity
Getting your office up to speed in today’s global
marketplace means stepping up your delivery on a wide
range of variables. The Lanier LD425B/LD425 &
LD433B/LD433 is designed to help you get there.
• Boost your productivity with up to 33 prints per minute.
• Scan your documents and enter the world of cost-free electronic
document storage and distribution.
• Expand your faxing capabilities while greatly reducing faxing time
with up to three Super G3 fax lines.
• Give your documents the right finishing touch with three different
finishing options—including a 1,000-Sheet Booklet Finisher—all
designed to make you and your work look better than ever.
•
The Lanier LD425B/LD425 & LD433B/LD433 can store up to 3,000
where they can
frequently used documents in its Document Server
be instantly accessed for reprinting,
• Special design features provide easy access for every
authorized user
easy-access paper tray handles and animated guidance.
, such as the simplified color display,
re-faxing or re-scanning.
,
The Intelligent Approach to Networking
To say the Lanier LD425B/LD425 & LD433B/LD433 is an
“intelligent” system sounds cliché, until you see just how
smart it is at helping you accomplish your objectives.
Prioritize your job list by automatically moving the most critical jobs
•
to the head of the print queue, making sure they’re finished first.
Choose the capabilities you need—from economical Refined Print
•
Command Stream (RPCS), PCL or sophisticated Adobe
—to handle exactly the type of documents you have.
• Reduce network traffic with PDF Direct Print by sending PDF files
directly to the printer without opening Adobe
®
PostScript®3
®
Acrobat™Software.
™
Page 3
LAN Fax allows you to fax documents right from your desktop,
maximizing convenience and boosting productivity.
Experience the Benefits of Cost-Free
Document Distribution
The Lanier LD425B/LD425 & LD433B/LD433 gives you
the power to capture important documents and distribute
them anywhere in the world.
• Scan and capture documents and reports with the color/black & white
scanning capabilities of the LD425/LD433 and the black & white scanning
capabilities of the LD425B/LD433B, and then share them cost free using
the powerful Scan-to-Email/Folder/Hard Disk Drive features.
• Reduce programming time and make more efficient use of company
information by accessing up to five LDAP servers.
• Improve productivity and accuracy by viewing full-color thumbnails on
the control panel and confirming that scanned documents were captured
correctly before you distribute them.
• Use High Compression PDF to dramatically reduce the file sizes on
color documents—alleviating the problem of large documents moving
over your network—while still producing high quality prints.
•
Reduce network traffic with Scan-to-URL, which allows you to store
documents on the Hard Disk Drive, where they can be viewed and
downloaded with a Web browser.
Manage the entire spectrum of your document
management tasks—fr
to distribution—with the Lanier LD425B/LD425 &
LD433B/LD433 Digital Imaging Systems.
om creation to production
Powerful, Next-Generation Faxing
Sending and receiving faxes have never been easier, faster
or more convenient than with the Lanier LD425B/LD425 &
LD433B/LD433, cutting your costs no matter how you
distribute your documents.
he Super G3 modem allows you to send out documents on up to
T
•
analog lines, boosting your fax capabilities and reducing faxing time significantly.
Internet F
•
eliminating both phone charges and w
• Go completely paperless by automatically forwarding inbound faxes to e-mail
addresses
ax lets you send scanned documents directly to e-mail addresses
asted paper
network folders or for storage on the systems’ Hard Disk Drive.
,
.
three
,
Keep Your Work Secure
The Lanier LD425B/LD425 & LD433B/LD433 is designed to
be an integral part of a total system of document security
• Restrict access to the system only to people who are authorized and have
ou can also restrict usage rights by application;
a password.
you can restrict scanning or faxing to authorized personnel only
Y
for example
.
.
,
Page 4
• Using Locked Print, you can protect your confidential documents from
being seen or accidentally picked up in the output tray by unauthorized
users—eliminating costly mail boxes.
• For the highest security requirements, you can use the
DataOverwriteSecurity System (DOSS) to prevent the
possibility of reconstructing data from “latent images”
of documents left in the internal hard drive.
• Use Unauthorized Copy Control to deter copying of sensitive documents—
a necessity for workgroups creating and distributing confidential information.
Simplified Management
With the Lanier LD425B/LD425 & LD433B/LD433, you can
turn your computer into a control center for everything from
system management and device monitoring to troubleshooting.
• Get instant access to system settings, program address books, and much
more with Web Image Monitor.
monitor and manage multiple connected Lanier
Efficiently configure
•
devices with Web SmartDeviceMonitor.
• Rely on Auto E-mail Notification to generate an alert when the system is
low on toner or otherwise not functioning at optimum performance levels.
,
Technology to Empower
Your Business
At Lanier, we’re committed to helping you
achieve your goals for reducing overall Total
Cost of Ownership, optimizing fleet management
and ultimately increasing employee productivity.
• Automating service call procedures, eliminating the need for end-users
to initiate service calls. If a service call is required, the @Remote network
appliance automatically places a request for service—including detailed
and accurate diagnostic information.
ading and adjusting your devices via remote firmw
Upgr
•
which means that your devices will always be functioning within the
most current and productive oper
o ensure that your devices are constantly up and running, alerts can be
T
•
sent, such as a low toner warning.
ational par
ameters
are applications
.
Your Environmental Partner
,
With the Lanier RPCS Driver, you can simplify complex jobs
to one-click operations. For example, you can program the
driver to automatically duplex, three-hole punch, and insert
a front and back cover on a document—and then run the
program with a single button.
Color scanning combined with Scan-to-URL impr
collaboration and reduces network traffic. (Color scanning is
not available on the LD425B/LD433B models).
oves project
Lanier continues its long-standing
commitment to developing office solutions
with environmentally friendly and superior
energy- and supply-saving features, including:
• Quick Start-Up (QSU) Technology
• Power-saving Sleep Mode
• Duplex and Combine Copy Modes
• Internal Toner Recycling
• Low Noise Levels
• Minimal Ozone Emissions
• Restriction of Hazardous Substances (RoHS) Compliant
Page 5
50-Sheet Automatic Reversing
Document Feeder (ARDF)
(optional)
Efficiently processes multi-page
originals, even mixed sizes up
to 11” x 17”.
1,000-Sheet Booklet Finisher
(optional)
Provides three destinations for
output, including the ability to produce
paginated, saddle-stitched, punched
and folded booklets, greatly expanding
your in-house capabilities.
1,000-Sheet or 500-Sheet Finisher
also available.
2 x 500-Sheet Paper Trays (standard)
User-adjustable paper trays holds
envelopes, plus a range of paper sizes up
to 11” x 17” and weights up to 42 lb. Bond.
LD425B/LD425/LD433B/LD433
Color Control Panel
Full-color VGA display with
the simplified display feature
makes using the system easy
and accessible for everyone.
Duplex Unit
Provides stackless, two-sided
printing—cutting paper, filing
and postage costs in half.
100-Sheet Bypass Tray
Holds a variety of paper
types and sizes for printing
envelopes, labels and
transparencies.
One-Bin Tray (optional)
Provides a cost-effective
option to separate output
generated from two different
system functions, such as
faxes and prints.
2 x 500-Sheet Paper Trays (optional)
Adjustable paper bank increases
capacity to hold up to five different
sizes and orientations of paper,
reducing maintenance requirements.
2,000-Sheet Large Capacity Tray also available.
Choose the configuration that best meets
your office requirements and budgets.
LD425B/LD433B LD425SP/LD433SP LD425SPF/LD433SPF
For robust copying and a
flexible upgrade path to
black & white printing,
scanning and faxing.
For exceptional black
& white printing and
color and black &
white scanning.
For a complete document
management system with
printing, faxing, color and
black & white scanning in
a single, compact device.
Easy-Access Tray Handles
Unique design makes
accessing trays fast and
simple for everyone.
Flexible upgrade path
For a low-cost network
printer, where a specific
printer language
required, start with Lanier’s
RPCS printer unit.
For the next step up,
add the Printer Enhance
and get PCL printing
and document storage
capabilities.
For a device that can
send cost-free documents
electronically anywhere in
the world, simply add the
Scanner Enhance for black
For an all inclusive solution, a
Printer/Scanner Kit is also available.
& white scanning.
(LD425B/
LD433B)
is not
Page 6
DIGITAL IMAGING SYSTEM
LD425B/LD425/LD433B/LD433
SPECIFICATIONS
ENGINE/COPIER SPECIFICATIONS
Configuration Console
Scanning Element Flatbed with Moving CCD
Printing Pr
Document Feeding Optional 50-Sheet ARDF
Toner Dry, Dual Component
System Memory LD425B/LD433B: 256/512 MB RAM
Hard Disk Drive LD425/LD433: 40 GB Standard
Copy Resolution 600 x 600 dpi
Grayscale 256 levels
Exposur
Quantity Indicator Up to 999
Original T
Maximum Original Size Up to 11" x 17"
Copy Size 5.5" x 8.5" to 11" x 17"
Copy T
W
First Copy Speed 4.5 seconds
Continuous Copying LD425B/LD425: 25 copies/minute (L
Recovery Time 10 seconds (fr
Power Source 120V/60Hz
Dimensions 24.8"(W) x 25.7"(D) x 27.9"(H)
Weight 143 lbs.
Standard Paper 500 sheets x 2 trays, and
Optional Paper 500 sheets x 2 trays or
Paper Size 5.5" x 8.5" to 11" x 17"
ocess
(std./max.) LD425/LD433: 768/768 MB RAM
e Adjustment
ype
ype
arm-Up Time
Speed LD433B/LD433: 33 copies/minute (LTR)
Capacity 100-Sheet Bypass T
Capacity 2,000-Sheet Large Capacity Tray
Paper Weight 16 – 28 lb. Bond/60 – 105 g/m
Standard Output Tray 500 sheets (Letter),
Capacity 250 sheets (Legal, Ledger)
Reduction Ratios 25%, 50%, 65%, 73%, 78%, 85%,
Enlargement Ratios 121%, 129%, 155%, 200%, 400%
Zoom 25% to 400% in 1% increments
Standard Features Auto Magnification, Auto Paper Select,
d Drive Requir
Har
PRINTER SPECIFICATIONS (STANDARD)*
Print Speed LD425B/LD425: 25 ppm
CPU RM7035C 533 MHz
Standard Interfaces 10/100BaseTX Ethernet, USB 2.0
Optional Interfaces IEEE 802.11a/b/g W
Memory Capacity Shar
Network Protocol TCP/IP, IPX/SPX, AppleTalk
Network Operating Windows Vista/2000/ME/XP/Server 2003,
Systems Netware 3.12, 3.2, 4.1, 4.11, 5.0, 5.1,
Array Image Sensor
Single Laser Beam Scanning &
ophotographic Printing
Electr
LD425B/LD433B: 40 GB Optional
Manual & Automatic
Book/Sheet
, Transparencies, Envelopes,
Plain Paper
Cardstock, Recycled
14 seconds
om Auto Off)
ray
A5 to A3
(Tray 1 and Duplex)
14 – 42 lb. Bond/52 – 157 g/m
ray 2 and Bypass)
(T
93%, 100%
Auto Tray Switch, Center/Border Erase,
Chapters, Combine Mode, Cover Insertion,
Date Stamp, Dir
Electronic/Rotate Sorting, English Pre-Set
Stamps, Full-Color VGA Touch-Screen
Contr
Negative/Positive, OHP Slip Sheet, Page
Number Stamp, 500 User Codes
ed
8 Job Pr
Booklet/Magazine Copy, Document
Server (3,000 File Capacity), Series Copy,
User Stamps
ectional Magnification,
ol Panel, 10 Job Pr
esets, Backgr
ound Numbering,
ograms,
LD433B/LD433: 33 ppm
eless LAN, Bluetooth,
IEEE 1284, Gigabit Ethernet
ed with Copier
6.0, 6.5, Unix; Sun Solaris, HP-UX,
SCO OpenServer, Red Hat Linux,
IBM AIX, Mac OS 8.6 – 9.2x, OS
or later, SAP R/3, NDPS Gateway,
IBM iSeries/AS/400®using OS/400
Host Print T
ir
ransform, Citrix Metaframe
TR)
2
2
X 10.1
Utilities SmartDeviceMonitor
Page Description PCL 5e/6 emulation
Languages Lanier RPCS
Print Resolution Up to 600 dpi (2400 x 600 dpi
Grayscale 256 levels
Fonts for PCL 5e/6 35 Intellifonts, 10 T
Fonts for PS3 136 PostScript Fonts
d Features
Standar
d Disk Drive)
(Har
Web SmartDeviceMonitor,
opBinder,
DeskT
eb Image Monitor
W
Adobe PostScript 3 (optional)
with smoothing)
1 Bitmap and 13 International Fonts
Sample/Locked/Hold/Stor
SCANNER SPECIFICA
Scanning Speed Embedded Scanning: 50/29 ipm
B&W/Color (@ 200 dpi)
Scanning Resolution 600 dpi
Grayscale 256 levels
Scan Area Up to 11" x 17"
d Interfaces
Standar
Optional Interfaces IEEE 802.11a/b/g W
otocol
Pr
Memory Capacity Shared with Copier
ypes
File T
Standard Features Embedded Scan-to-Email/HDD/Folder/
Note: Color Scanning, Color Dropout and High Compression
e not available on the LD425B/LD433B models.
PDF ar
10/100BaseTX Ether
net
Ether
, NCP, SMB, SMTP, POP 3,
TCP/IP
, FTP
LDAP
Single page and Multi-page TIFF/PDF
High Compr
URL and TWAIN
,
rueType,
ed Print
TIONS (STANDARD)*
net
eless LAN, Gigabit
ir
ession PDF, Single page JPEG
,
FAX SPECIFICATIONS (OPTION)
cuit
Cir
Compatibility ITU-T G3
ResoIution 200 x 200/100 dpi
ession Method
Compr
Scanning Speed 0.40 seconds (LEF)
Modem Speed 33.6 Kbps with Auto Fallback
Transmission Speed G3: 3 seconds per page
Memory 4 MB standard/28 MB maximum
Std/Max Auto Dials 2,000 (with HDD)
Group Dials 100 (max. 500 numbers per group)
ogramming
ID Code Pr
User Function Key 3 keys
Standard Features Book Transmission, Dual Access, Duplex
Optional Features Simultaneous Operation of up to
Note: Fax is standar
PSTN, PBX
400 x 400 dpi (Optional)
MH, MR, MMR, JBIG
(MMR Compression)
G3: 2 seconds per page
(JBIG Compression)
320 pages/2,240 pages
4 digits
Reception, Image Rotation, 1 Hour
Backup, LAN-Fax Capability*, Internet
Faxing (T.37)*, IP Faxing (T.38)*,
ding to E-Mail/HDD/Folder*
Fax Forwar
3 lines (G3 x 3)
d on the LD425SPF/LD433SPF models.
SECURITY FEATURES (STANDARD)*
S/MIME, IPsec Communication, Locked Print Passwor
Encrypt Address Book, SSL Secure Socket Layer, User Authentication,
SNMP v3, Encryption of Password PDF, Encrypted PDF
d Encryption,
PB3030 PAPER BANK UNIT (OPTION)
Paper Size 5.5" x 8.5"
Paper Weight 16 to 28 lb. Bond/60 to 105 g/m
Paper Capacity 2 x 500 sheets
Dimensions 21.7"(W) x 20.5"(D) x 10.7"(H)
A5 to A3
2
PS500 LARGE CAPACITY TRAY (OPTION)
Paper Size 8.5" x 11"/A4
Paper Weight 16 to 28 lb. Bond/60 to 105 g/m
Paper Capacity 2,000 sheets x 1
Dimensions 21.7"(W) x 20.5"(D) x 10.7"(H)
2
ONE-BIN TRA
Paper Size 5.5" x 8.5" to 11" x 17"/A5 to A3
Paper Weight 16 to 28 lb. Bond/60 to 105 g/m
Paper Capacity 125 sheets
Y BN3030 (OPTION)
2
SR3050 500-SHEET FINISHER (OPTION)
Paper Size 5.5" x 8.5" to 11" x 17"/A6 to A3
Paper Weight 14 to 42 lb. Bond/52 to 157 g/m
Stack Capacity Shift T
Staple Capacity 50 sheets (8.5" x 11")
Staple Position 1 staple/4 positions;
Dimensions 15.6"(W) x 21.7"(D) x 10.9"(H)
ray: 500 sheets
(8.5" x 11" or smaller)
250 sheets (8.5" x 14" or larger)
30 sheets (8.5" x 14" or larger)
2 staples/1 position
2
SR790 1,000-SHEET FINISHER (OPTION)
Paper Size 5.5" x 8.5" to 11" x 17"/A6 to A3
eight
Paper W
Stack Capacity Proof Tray: 250 sheets
Staple Capacity 50 sheets (8.5" x 11")
Staple Position 1 staple/2 positions;
Dimensions 10.7"(W) x 20.5"(D) x 31.2"(H)
14 to 42 lb. Bond/52 to 260 g/m
(8.5" x 11" or smaller)
50 sheets (8.5" x 14" or larger)
ray: 1,000 sheets
Shift T
(8.5" x 11" or smaller)
500 sheets
(8.5" x 14" or larger)
30 sheets (8.5" x 14" or larger)
2 staples/1 position
2
SR3000 BOOKLET FINISHER (OPTION)
Paper Size 5.5" x 8.5" to 11" x 17"/A6 to A3
Paper Weight 14 to 28 lb. Bond/52 to 105 g/m2(Proof
Stack Capacity Proof Tray: 100 sheets
Staple Capacity 50 sheets (8.5" x 11")
Staple Position 1 staple/2 positions;
Dimensions 21.1"(W) x 23.7"(D) x 36.7"(H)
Punch Unit (Option) 2 or 3 hole punch
Tray); 14 to 68 lb. Bond/52 to 256 g/m
(Shift Tray)
(8.5" x 11" or smaller)
50 sheets (8.5" x 14" or larger)
ray: 1,000 sheets
Shift T
(8.5" x 11" or smaller)
500 sheets
(8.5" x 14" or larger)
30 sheets (8.5" x 14" or larger)
2 staples/1 position
ARDF DF3030 (OPTION)
Paper Size 5.5" x 8.5" to 11" x 17"
eight
Paper W
Stack Capacity 50 sheets
Dimensions 21.7"(W) x 19.3"(D) x 4.7"(H)
11 to 34 lb. Bond/40 to 128 g/m
2
ADDITIONAL OPTIONS FOR LD425B/LD425
& LD433B/LD433
Platen Cover T
Interface Type 3350, 32 MB Fax Memory, Handset Type 1018,
IEEE 1284 Interface Board Type A, IEEE 802.11a/b/g Interface Unit
Type J, Adobe PostScript 3 Type 3350, Bridge Unit Type BU3020,
Inter
File Format Converter Type E, DataOverwriteSecurity Unit Type I,
Copy Data Security Unit Type F, Bluetooth Interface Type 3245,
Java VM Card Type F, Punch Kit PU3000, HDD Encryption Type A,
Gigabit Ethernet Type A
ype 3800C, FAC38 Cabinet, Fax Type 3350, G3
nal Shift Sort T
ray Type SH3010, Key Counter Bracket Type H,
ADDITIONAL OPTIONS FOR
LD425B/LD433B MODELS ONLY
Hard Disk Drive Type 5000, Printer Enhance Type 3350,
Printer/Scanner Unit Type 3350, RPCS Printer Unit Type 3350,
Scanner Enhance Type 3350
*Options for Lanier LD425B/LD433B
2
www.lanier.com
Lanier Five Dedrick Place, W
©2008 Lanier is a registered trademark of Ricoh Americas Corporation. All rights reserved. Windows®and Windows®95/98/ Me/NT4.0/2000/XP are registered trademarks of Microsoft Corporation. Macintosh®, Mac®OS
and AppleTalk
of their respective owners. Print speed may be affected by network, application or PC performance. Specifications and external appearances are subject to change without notice. Products are shown with optional features.
Printed in U.S.A. on recycled paper.
est Caldwell, NJ 07006
®
are registered trademarks of Apple Computer, Inc. Adobe®and PostScript®are registered trademarks of Adobe Systems, Inc. RPCS™is a trademark of Ricoh Company, Ltd. All other trademarks are the property
L2684
Loading...
