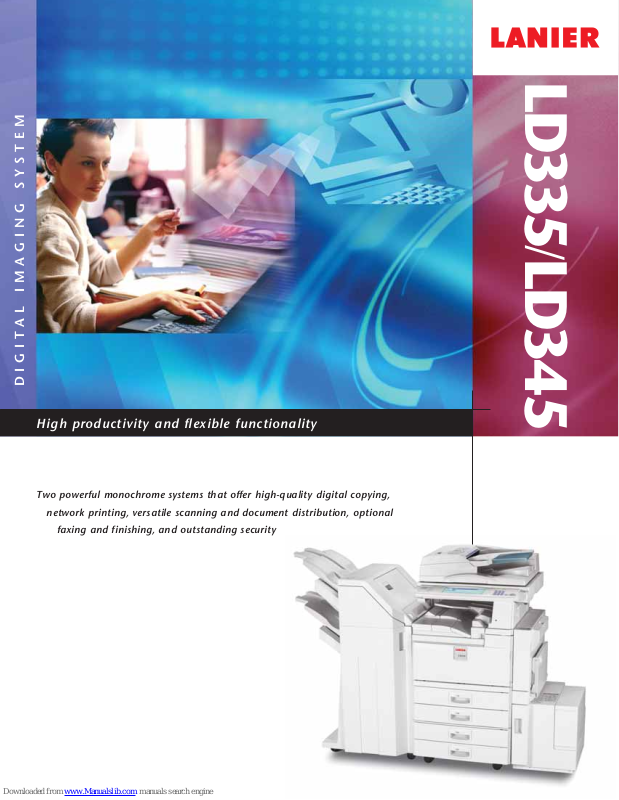

Page 1
High productivity and flexible functionality
Two powerful monochrome systems that offer high-quality digital copying,
network printing, versatile scanning and document distribution, optional
faxing and finishing, and outstanding security
LD3 3 5
/
LD345
DIGITAL IMAGING SYSTEM
Page 2
The edge you need in today’s more competitive world
Introducing the Lanier LD335/LD345 Series—helping
to make your documents more impressive, more
streamlined and more efficient. From copying,
network printing, scanning and advanced faxing,
to ensuring your document security, the Lanier
LD335/LD345 Series can help make your organization
more competitive and cost efficient in this emerging
era of global competition.
Network printing:
easy connections, secure output
The Lanier LD335/LD345 Series features all of the
connections and drivers you need to make networking
and printing simple. And it includes several ways to
improve the security of your work. For example, you
can store your jobs electronically in “virtual mailboxes”
at the printer until you release them at walk-up with
the Hold/Locked/Stored Print feature.
• 10/100 BaseTX Ethernet and USB 2.0 interfaces ensure easy
integration with your network.
• PCL5e/6 and optional Adobe
®
Postscript®3™provide compatibility
with PC and Mac
™
platforms.
• PDF Direct Print lets you send PDF files directly to the printer without
even opening the application, reducing network traffic and raising
productivity. Ideal for printing scanned PDFs.
• 40 GB standard hard drive can rapidly handle even your largest
documents and the 384 MB RAM spools print runs quickly.
Send scanned documents
all over the world
• Deliver scanned documents directly via e-mail or automatically
file them into folders, eliminating the need to detach and save
documents manually.
• Scan to a wide selection of industry-standard formats, including
TIFF, TIFF-F, PDF and JPEG.
• Access up to five corporate LDAP servers and make use of your existing
information such as login data, passwords and company address books.
Fax your way to big savings
The 33.6 Kbps modem features standard JBIG
compression and will accommodate even heavy fax
users with up to three G3 lines. Or transform faxing
from a hands-on, manual procedure to a high-tech,
cost-cutting document solution.
Page 3
• Save steps and time by conveniently faxing from your PC with LAN Fax.
• Capitalize on the cost-saving benefits of IP Faxing (T.38) and Internet
Fax (T.37): for fast, high-quality communication, send and receive faxes
directly over your LAN or WAN, bypassing your PSTN (Public Switched
Telephone Network).
• Forward faxes directly to e-mail, hard disk drive or folder, ensuring
that documents are routed properly.
Customize your system,
enhance your workflow
The Lanier LD335/LD345 Series exceeds industry standards with
Embedded Software Architecture—an innovative Java (J2ME)-compatible
software development platform. Embedded Software Architecture allows
for the development of key applications that run on the Lanier
LD335/LD345 Series, enhancing your organization’s workflow.
The Lanier LD335/LD345 Series can easily be customized to meet your
needs by controlling features such as the operation panel, printing, saving
files and scanning.
Manage your electronic documents
Lanier’s DocumentMall™is powerful document
management software that is delivered as an on-demand
service over the Internet. Seamless integration with the
Lanier LD335/LD345 Series allows you to scan hard-copy
documents directly to DocumentMall and gives
businesses of all sizes the ability to:
• Store business-critical documents in one secure location.
• Manage paper and electronic documents over the Internet from
the convenience of a PC.
• Share documents with anyone, anywhere, at anytime.
• Protect documents with state-of-the-art security and facilities.
A flexible and cost-effective solution, DocumentMall addresses a wide
range of document management needs—from simple “file and find”
applications such as document archiving and disaster readiness, to global
sharing and collaboration with employees, partners and customers.
The Hold/Locked/Stored Print function lets you hold your documents
securely in the device until you’re ready to print them. You can even
print and delete multiple documents in a single operation.
The Lanier LD335/LD345 Series gives any business that extra
advantage by being more efficient and streamlined while also
ensuring document security.
Page 4
LD335/LD345
Manage the system
from your desktop
Lanier’s comprehensive suite of utilities smooths
daily system monitoring and simplifies installation,
configuration and troubleshooting.
• Automatically sends an alert e-mail if it’s low on toner or
otherwise needs attention.
• Reduce the time required for status checks and programming
through Web Image Monitor, which lets you program machine
settings and the address book with your Web browser tool.
Ensure the security of your
documents and network
The Lanier LD335/LD345 Systems offer
an impressive list of security features
designed to keep your documents, data and
network secure at all points of contact.
• Windows/LDAP Authentication guards access to your network
PC by requiring users to input their existing names and passwords.
• Restrict unauthorized access by limiting rights by application.
• Deter copying of sensitive documents by using Unauthorized Copy
Control, a welcome feature in any office responsible for handling
confidential documents.
• Encryption protects data from interception, falsification and
tampering during transmission.
• DataOverwriteSecurity System (DOSS) automatically
overwrites the “latent image” left in the internal
hard drive after a job is completed.
• Removable Hard Disk Drive provides 24-hour
protection for your classified or confidential information
by allowing you to remove the hard drive to a secure location.
Your Environmental Partner
Lanier continues its long-standing
commitment to developing office solutions
with environmentally friendly and superior
energy- and supply-saving features, without
compromising productivity.
Store up to 3,000
documents in the
Document Server.
Frequently used
documents can be
re-printed, re-faxed
and re-scanned.
E-mail
URL Link
Click link to view
and download
Scan-To-URL
Scan
Original
Scan-to-URL improves information sharing in your organization,
while minimizing network traffic.
Simplify even the most complex jobs with our icon-based
RPCS (Refined Print Command Stream) driver.
Page 5
LD335/LD345
Control Panel
Large touch-screen
Control Panel makes
navigation easy.
Document Feeder
Standard 80-Sheet
Automatic Reversing
Document Feeder
enables efficient
scanning for one or
two-sided documents
up to 11" x 17".
Finisher
Multi-Tray Finisher staples
in several positions and
punches holes (option)
to produce a variety of
document types (option).
Large Capacity Tray
Large Capacity Tray
holds up to 1,500
sheets, minimizing
interruptions on
long jobs (option).
One-Bin Tray
Additional 125-Sheet
Output Tray separates
copy output from prints or
faxes and lights up when
output is present (option).
Paper Drawers
500 x 2, user-adjustable Paper
Bank expands capacity to hold
up to five different sizes or
orientations of paper (option).
Bypass Tray
50-Sheet Bypass
Tray for printing
on labels or
special papers.
Duplex Unit
Duplex Unit allows
unlimited printing
of two-sided
documents,
reducing filing
space and costs.
Paper Trays
Two user-adjustable,
500-Sheet Drawers
accept paper sizes up
to 11" x 17".
Select the configuration based on the requirements for your office.
For an affordable
printing solution with
a flexible upgrade path
for scanning and faxing.
For productive
printing and
document handling.
For total document
needs in a space-
saving design.
For secure document
storage, management
and distribution via
the Internet.
Page 6
DIGITAL IMAGING SYSTEM
LD335/LD345
L2368
SPECIFICATIONS
MAINFRAME SPECIFICATIONS
Configuration Console
Scanning Element Flatbed with Moving CCD
Array Image Sensor
Printing Process Twin Laser Beam Scanning &
Electrophotographic printing
Toner Dry, Dual Component
System Memory 128/384 MB RAM
(std./max.)
Hard Disk Drive 40 GB standard
Document Feeder Standard 80-Sheet ARDF
Copy Resolution 600 x 600 dpi
Grayscale 256 levels
Exposure Adjustment Manual & Automatic
Quantity Indicator Up to 999
Original Type Book/Sheet
Maximum Original Up to 11" x 17"
Size
Copy Size 5.5" x 8.5" to 11" x 17"
Copy Type Plain Paper, Transparencies
Warm-Up Time LD335: 15 seconds
LD345: 20 seconds
First Copy Speed LD335: 4.3 seconds
LD345: 3.6 seconds
Continuous Copying LD335: 35 copies/minute (LTR)
Speed LD345: 45 copies/minute (LTR)
Recovery Time LD335: 10 seconds
(from Auto Off) LD345: 15 seconds
Power Source 120V/60Hz/15A
Dimensions 26.5"(W) x 26"(D) x 34"(H)
Weight 205 lbs.
Standard Paper
Capacity 500 sheets x 2 trays
50-sheet Bypass Tray
Optional Paper
Capacity 500 sheets x 2 trays
1,500-sheet Large Capacity Tray
Paper Size 5.5" x 8.5" to 11" x 17"
Paper Weight 20 – 28 lb. Bond/64 – 105g/m
2
(Trays 1 & 2)
16 – 44 lb. Bond/52 – 163g/m
2
(Bypass)
20 – 28 lb. Bond/64 – 105g/m2(Duplex)
Standard Output Tray 500 sheets (LTR)
Capacity
Reduction Ratios 25%, 50%, 65%, 73%, 78%,
85%, 93%
Enlargement Ratios 121%, 129%, 155%, 200%, 400%
Zoom 25% to 400% in 1% increments
Standard Features Auto Magnification, Auto Paper Select,
Auto Tray Switch, Background Numbering,
Booklet/Magazine Copy, Center/Border
Erase, Combine Mode, Cover Insertion,
Date Stamp, Directional Magnification,
Document Server (3,000 file capacity),
Electronic/Rotate Sorting, 10 Job
Programs, Negative/Positive, OHP Slip
Sheet, Page Number Stamp, Paper
Designate, Series Copy, Pre-Set and User
Stamps, Touch-Screen Control Panel,
100 User Codes (optional 500 max.)
SCANNER SPECIFICATIONS (OPTION)
Scanning Speed Embedded Scanning: 52 ipm
(@ 200 dpi)
Scanning Resolution 600 dpi
Grayscale 256 Levels
Scan Area Up to 11" x 17"
Standard Interfaces 10/100BaseTX Ethernet
Optional Interfaces IEEE 802.11b Wireless LAN
Protocol TCP/IP, SMTP, SMB, FTP, IPX, POP3, NCP,
SNMP
Memory Capacity 384 MB Shared
File Formats Single Page TIFF/JPEG/PDF,
Multi-Page TIFF/PDF
Standard Features Embedded Scan-to-Email/HDD/
Folder/URL and TWAIN
PRINTER SPECIFICATIONS (OPTION)
Print Speed LD335: 35 ppm
LD345: 45 ppm
CPU RM7035C 466 MHz
Memory Capacity 384 MB shared
Standard Interfaces 10/100BaseTX Ethernet, USB 2.0
Optional Interfaces IEEE 802.11b Wireless LAN,
Bluetooth, IEEE 1284
Network Protocol TCP/IP, IPX/SPX, AppleTalk
Network Operating Windows 9x/NT4.0/2000/Me/XP/
Systems Server 2003, Netware, UNIX; Sun Solaris,
HP-UX, SCO OpenServer, Red Hat Linux,
IBM AIX, Mac 8.6 – 9.2x, 10.1+, SAP R/3,
NDPS Gateway, IBM iSeries/AS/400
®
using
OS/400 Host Print Transform
Utilities SmartDeviceMonitor, Web Image
Monitor, Web SmartDeviceMonitor,
DeskTopBinder V2 Lite
Page Description PCL 5e/6 emulation*
Languages RPCS
Adobe®PostScript®3™(optional)
Print Resolution Up to 600 dpi
(2400 x 600 dpi with smoothing)
Fonts for PCL 5e/6 35 Intellifonts, 10 TrueType Fonts,
1 Bitmap, 13 International Fonts
Fonts for PS3 136 PostScript Fonts
Standard Features Form Overlay, Watermarks, Spool
Printing, Sample/Locked/Hold/Stored
Print, Encryption
FAX SPECIFICATIONS (OPTION)
Circuit PSTN, PBX
Compatibility ITU-T G3
ResoIution 200 x 200/100 dpi
400 x 400 dpi (Optional)
Compression Method MH, MR, MMR, JBIG
Scanning Speed 0.43 seconds (LEF)
Modem Speed 33.6 Kbps with Auto Fallback
Transmission Speed G3: 3 seconds per page (MMR
Compression)
G3: 2 seconds per page (JBIG
Compression)
Memory 4 MB standard (320 pages)
28 MB maximum (2,240 pages)
Memory Backup 1 hour
Auto Dials 2,000
Group Dials 100 (max. 500 numbers per group)
ID Code Programming 4 digits
User Function Key 3 keys
Standard Features Auto Document (6), Book Transmission,
Dual Access, Duplex Reception, Image
Rotation
Optional Features Simultaneous Operation of up to 3 Lines
(G3 x 3); LAN-Fax Capability, Internet
Faxing (T.37), IP Faxing (T.38), Fax
Forwarding to Email/HDD/ Folder with
Scan/Print Installed
PS530 PAPER BANK (OPTION)
Paper Size 5.5" x 8.5" to 11" x 17"/A5 to A3
Paper Weight 20 to 28 lb. Bond/60 to 105g/m
2
Paper Capacity 2 x 500 sheets
Dimensions 21.3"(W) x 23.6"(D) x 10.6"(H)
RT45 LARGE CAPACITY TRAY (OPTION)
Paper Size 8.5" x 11"/A4
Paper Weight 20 to 28 lb. Bond/60 to 105g/m
2
Paper Capacity 1,500 sheets
Dimensions 15.4"(W) x 19.7"(D) x 15.4"(H)
ONE-BIN TRAY PT330 (OPTION)
Paper Size 5.5" x 8.5" to 11" x 17"/A5 to A3
Paper Weight 16 to 28 lb. Bond/60 to 105g/m
2
Paper Capacity 125 sheets
SR790 FINISHER (OPTION)
Paper Size 5.5" x 8.5" to 11" x 17"/A6 to A3
Paper Weight 16 to 42 lb. Bond/60 to 157g/m
2
Stack Capacity Proof Tray: 250 sheets (8.5" x 11"
or smaller)
50 sheets (8.5" x 14" or larger)
Shift Tray: 1,000 sheets (8.5" x 11"
or smaller)
500 sheets (8.5" x 14" or larger)
Staple Capacity 50 sheets (8.5" x 11")
30 sheets (8.5" x 14" or larger)
Staple Position 3 positions (1 staple/2 positions;
2 staples/1 position)
Dimensions 20.7"(W) x 20.5"(D) x 31.1"(H)
SR880 MULTI-TRAY FINISHER (OPTION)
Paper Size 5.5" x 8.5" to 11" x 17"/A6 to A3
Paper Weight 14 to 43 lb. Bond/52 to 163g/m
2
Stack Capacity Upper Tray: 500 sheets (8.5" x 11")
250 sheets (8.5" x 14" or larger)
100 sheets (5.5" x 8.5")
Lower Tray: 2,000 sheets (8.5" x 11")
750 sheets (8.5" x 14" or larger)
100 sheets (5.5" x 8.5")
Staple Capacity 50 sheets (8.5" x 11")
30 sheets (8.5" x 14" or larger)
Staple Position 4 positions (1 staple/3 positions;
2 staples/1 position)
Dimensions 26.8"(W) x 24.4"(D) x 40.6"(H)
SR890 BOOKLET FINISHER (OPTION)
Paper Size 5.5" x 8.5" to 11" x 17"/A5 to A3
Paper Weight 14 to 43 lb. Bond/52 to 163g/m
2
Stack Capacity Upper Tray: 150 sheets (8.5" x 11"
or smaller)
75 sheets (8.5" x 14" or larger)
Lower Tray: 1,000 sheets (8.5" x 11"
or smaller)
500 sheets (8.5" x 14" or larger)
Staple Capacity 50 sheets (8.5" x 11" or smaller)
30 sheets (8.5" x 14" or larger)
Booklet Tray Capacity 10 sets (11 to 15 sheets)
15 sets (6 to 10 sheets)
25 sets (less than 5 sheets)
Booklet Staple 15 sheets
Capacity
Booklet Staple 4 positions (1 staple/2 positions;
Position 2 staples/2 positions; plus saddle stitch)
Dimensions (WxDxH) 27.1"(W) x 24.5"(D) x 41.5"(H)
2/3 HOLE PUNCH KIT TYPE 1045
(OPTION)
Paper Weight 14 to 43 lb. Bond/52 to 163g/m
2
Application For SR880 Multi-Tray Finisher only
ADDITIONAL OPTIONS
Bridge Unit Type 2045
Scanner Accessibility Option Type 3045
Fax Type 3045
Handset Type 450
G3 Interface Type 3045
Printer/Scanner Unit Type 4500
PostScript Type 4500
Key Counter Bracket Type H
DOSS Type D
File Format Converter Type B
Copy Data Security Unit Type A
FAC25 Cabinet
32 MB Fax Memory
User Account Enhancement Kit Type E
IEEE 1284 Interface Board Type A
Bluetooth Interface Unit Type 3245
IEEE 802.11b Interface Unit Type H
Removable Hard Drive Type 3045
Additional Removable Hard Drive Type 3045
Network Enhancement Kit Type 4500P
VM Card Type B
*Option for LD335p/LD345p configurations.
www.lanier.com
Lanier Five Dedrick Place, West Caldwell, NJ 07006
©2007 Lanier is a registered trademark of Ricoh Americas Corporation. All rights reserved. Windows®and Windows®95/98/Me/NT4.0/2000/XP are registered trademarks of Microsoft Corporation. Macintosh®, Mac®OS and AppleTalk®are registered
trademarks of Apple Computer, Inc. Adobe®and PostScript®are registered trademarks of Adobe Systems, Inc. PCL®is a registered trademark of Hewlett-Packard Company. RPCS™is a trademark of Ricoh Company, Ltd. All other trademarks are the
property of their respective owners. Specifications and external appearances are subject to change without notice. Print speed may be affected by network, application or PC performance. Products are shown with optional features.
Printed in U.S.A. on recycled paper.
Loading...
