Lang ECOH-AP General Manual

ELECTRIC HALF SIZE

IL1474

COMPUTERIZED

CONVECTION OVEN

ECOH-AP

RCOH-AP

Installation and

Operation

Instructions

2M-W491 Rev. E 12/19/08

ECOH-PT

1

These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance.

FOR YOUR SAFTEY

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN

THE VICINTIY OF THIS OR ANY OTHER APPLIANCE.

POST IN PROMINEN T LOCATI ON

INSTRUCTIONS TO BE FOLLOWED IN THE EVENT USER SMELLS GAS. THIS

INFORMATION SHALL BE OBTAINED BY CONSULTING YOUR LOCAL GAS SUPPLIER.

AS A MINIMUM, TURN OFF THE GAS AND CALL YOUR GAS COMPANY AND YOUR

AUTHORIZED SERVICE AGENT. EVACUATE ALL PERSONNEL FROM THE AREA.

WARNIN G

IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE

CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH. READ THE INSTALLATION,

OPERATION & MAINTENANCE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING OR

SERVICING THIS EQUIPMENT.

WARN I N G

RISK OF FIRE OR ELECTRIC SHOCK

DO NOT OPEN

WARNIN G, TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE

CONTROL PANEL. NO USER-SERVICABLE PARTS INSIDE. REPAIRS SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY.

NOTICE

Using any part other than genuine Lang factory supplied parts relieves the manufacturer of all liability.

Star reserves the right to change speci cations and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.

Due to periodic changes in designs, methods, procedures, policies and regulations, the speci cations contained in this sheet are subject to change without notice. While Star Manufacturing exercises good faith efforts to provide information that is accurate, we are not responsible for errors or omissions in information provided or conclusions reached as a result of using the speci cations. By using the information provided, the user assumes all risks in connection with such use.

MAINTENANCE AND REPAIRS

Contact your local dealer for service or required maintenance. Please record the model number, serial number, voltage and purchase & Installation Information in the area below and have it ready when you call to ensure a faster service.

SAFETY SYMBOL

Model No.:

Serial No.:

Voltage:

1-Phase or 3 Phase:

Purchased From:

Location:

Purchase Date:

Installed Date:

2

PROBLEMS, QUESTIONS or CONCERNS

Before you proceed consult you authorized Lang service agent directory

or

Call the Lang Technical Service & Parts Department at 1-800-807-9054.

TABLE OF CONTENTS

Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Equipment Description

Unpacking .

Installation Leg Installation

Stacking the Oven . . . . . . . . . . . . . . . . . . . . . . . . . 7

V

entilation & Clearence . . . . . . . . . . . . . . . . . . . . . . 8

Electrical Connection

Oven V

Reversing the door

Initial Start-Up Pre-Power On .

Power On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

General Operation & Programming Control Panel

Typical Operation Sequence . . . . . . . . . . . . . . . . . . . 11

Loading

Maintenance Cleaning

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

oltage . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

. . . . . . . . . . . . . . . . . . . . . . . . 5

. . . . . . . . . . . . . . . . . . . . . . . . . . 7

. . . . . . . . . . . . . . . . . . . . . . . 8

. . . . . . . . . . . . . . . . . . . . . . . . . . 9

. . . . . . . . . . . . . . . . . . . . . . . . . . 10

. . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Troubleshooting Symptoms & Possible Causes

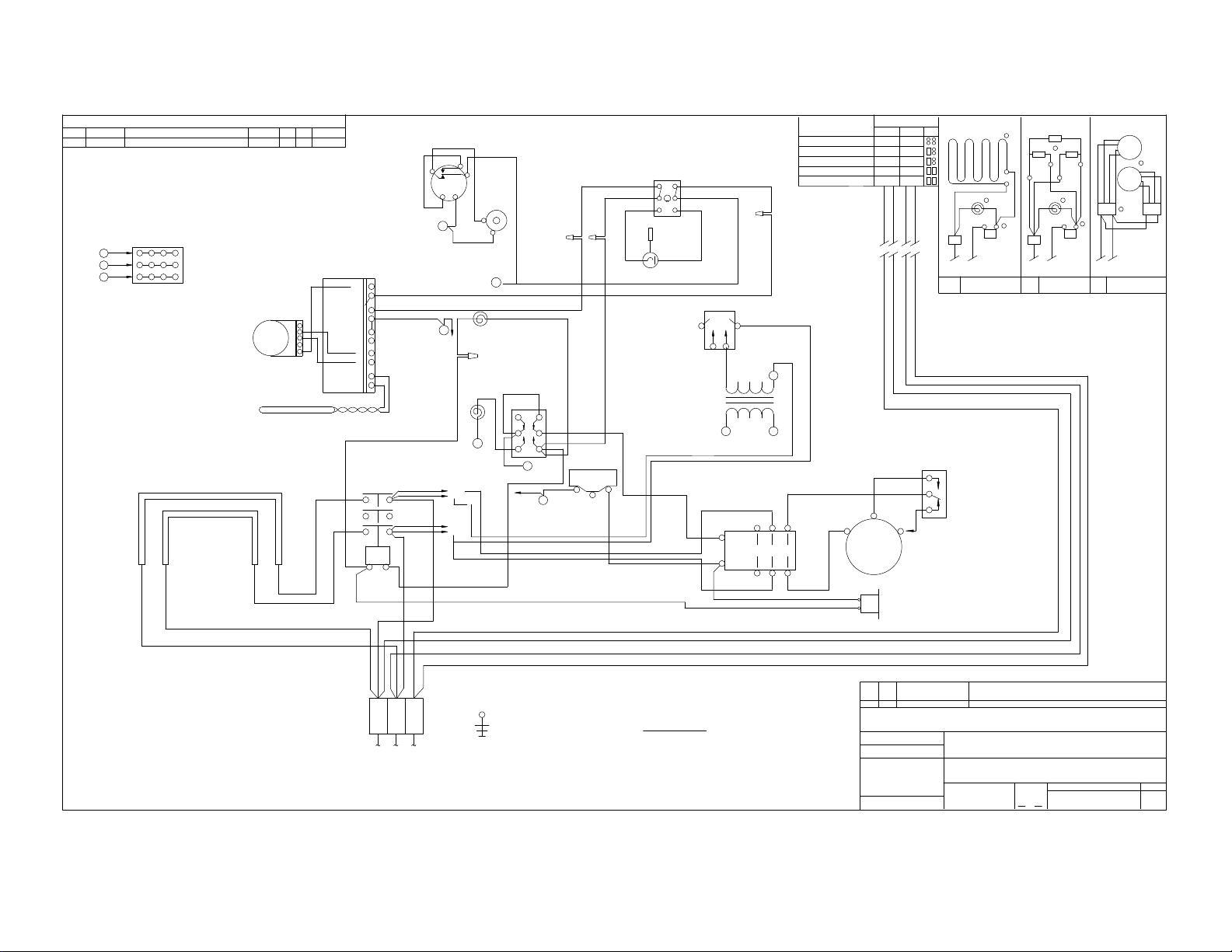

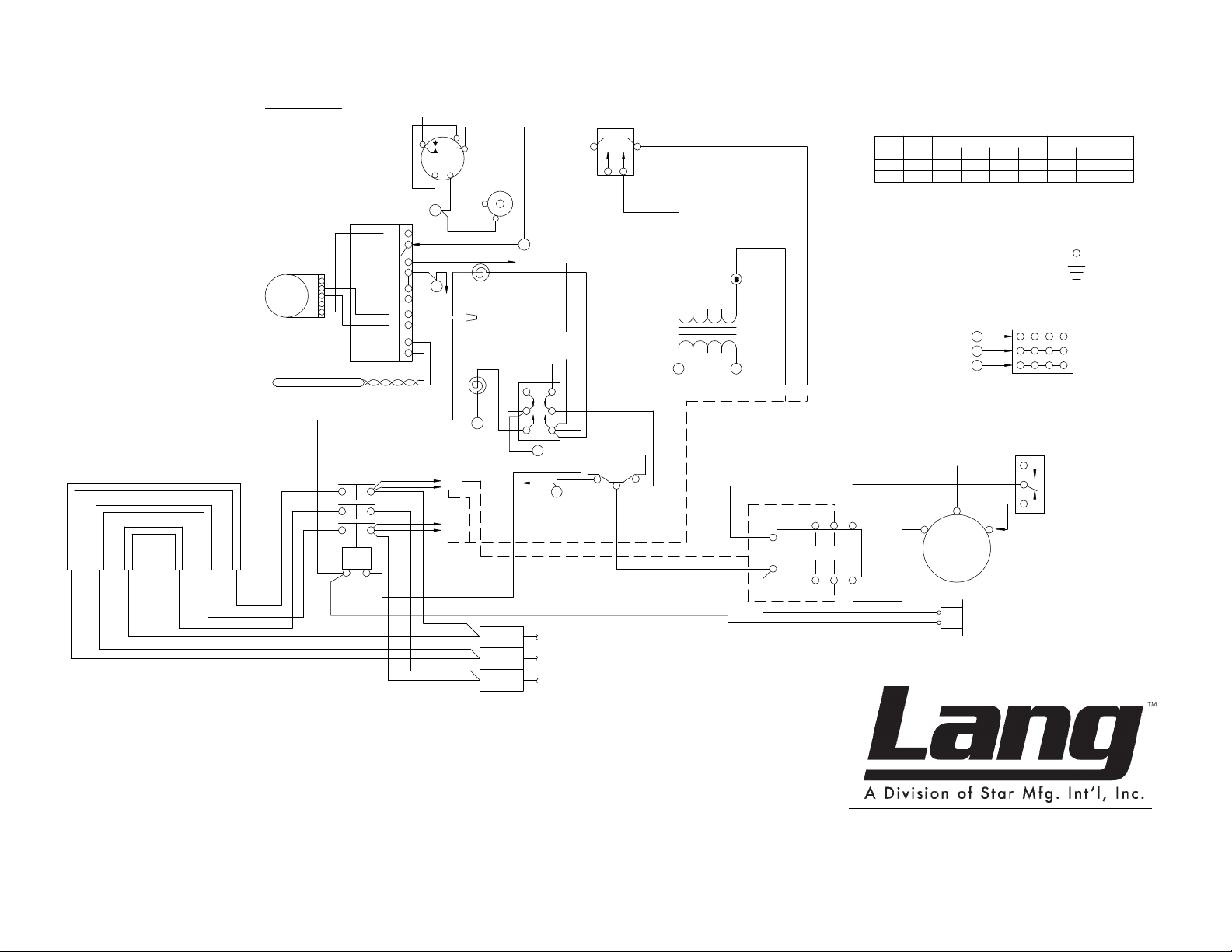

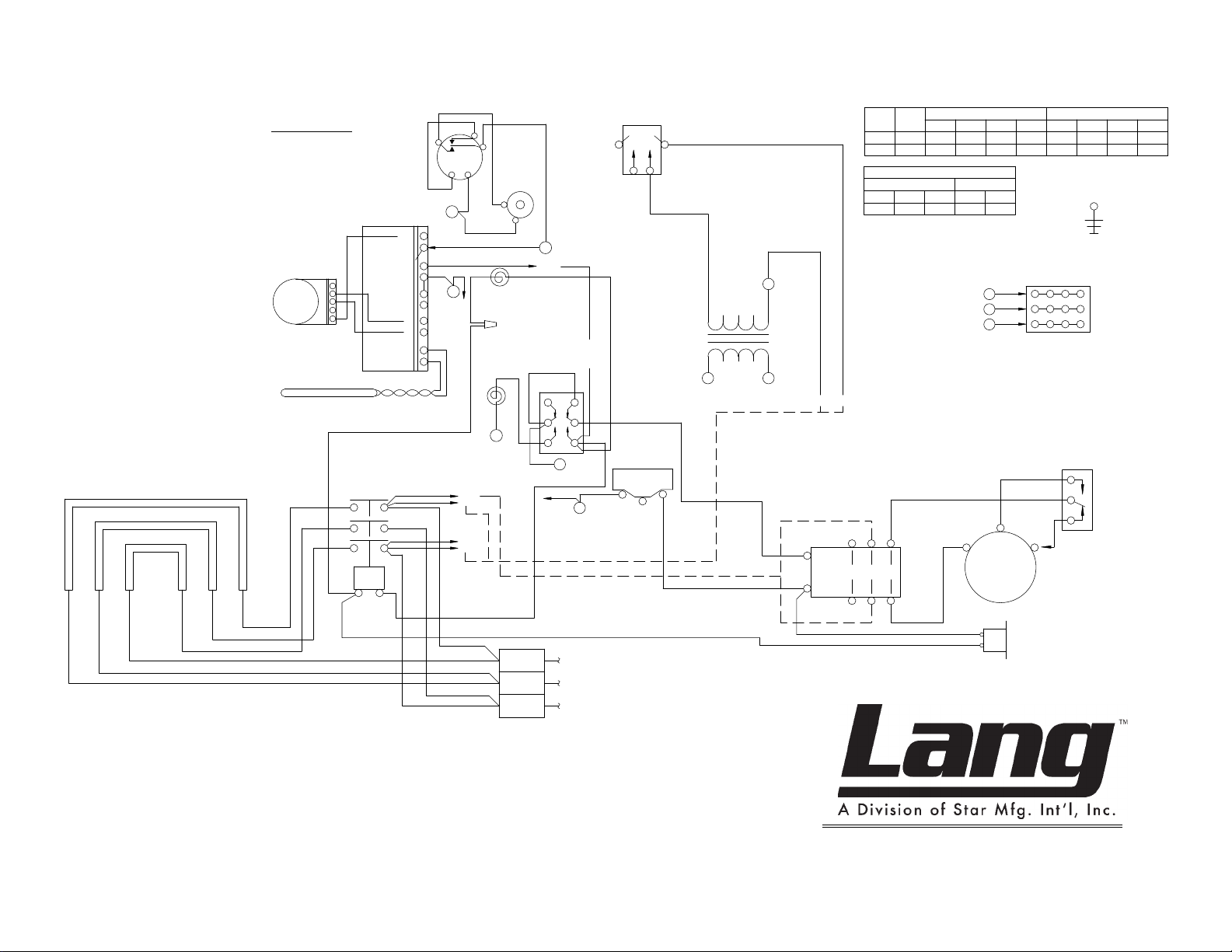

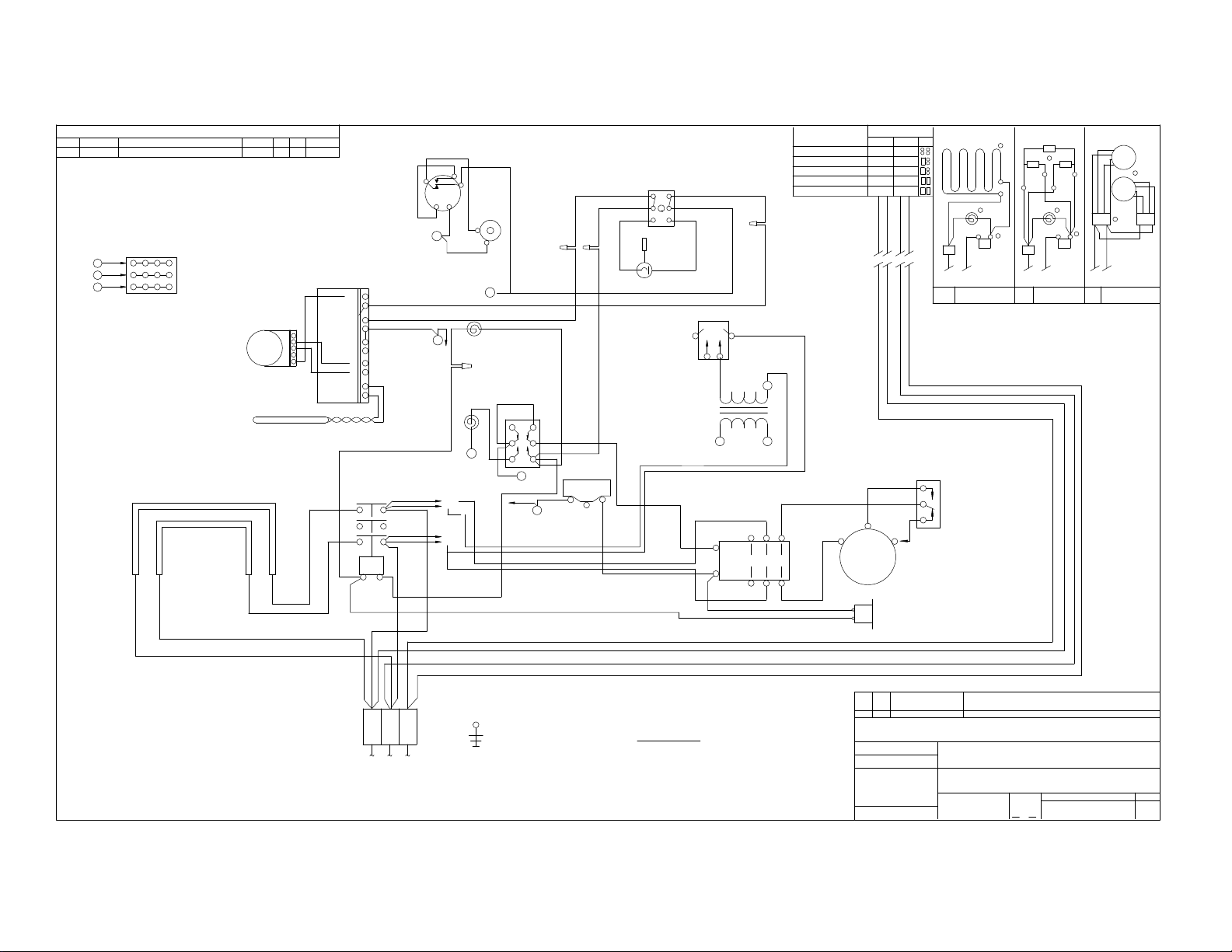

Wiring Diagram

208/240VAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

480VAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

208/240VAC w/Back-up Controls . . . . . . . . . . . . . . . . . 17

480VAC w/Back-up Controls . . . . . . . . . . . . . . . . . . . 18

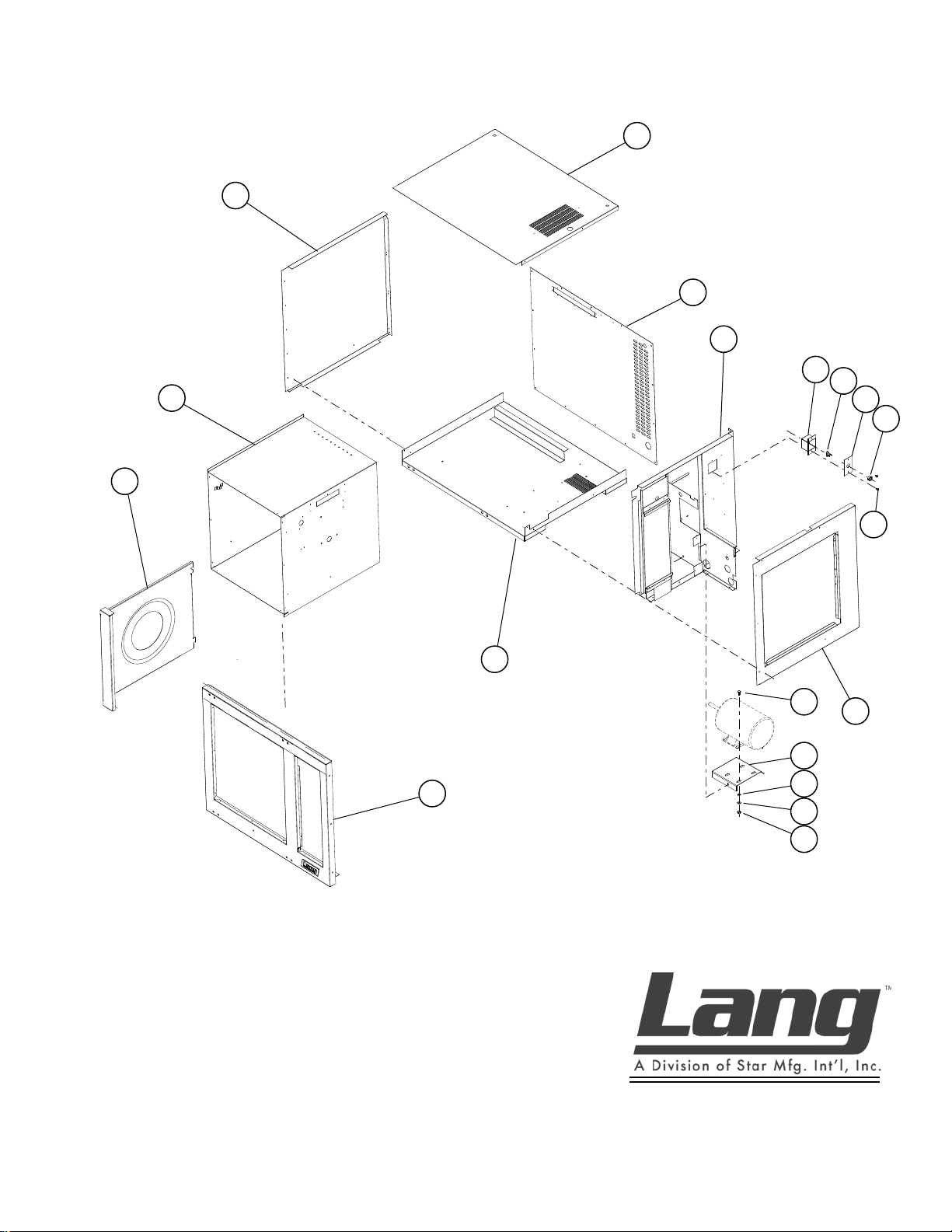

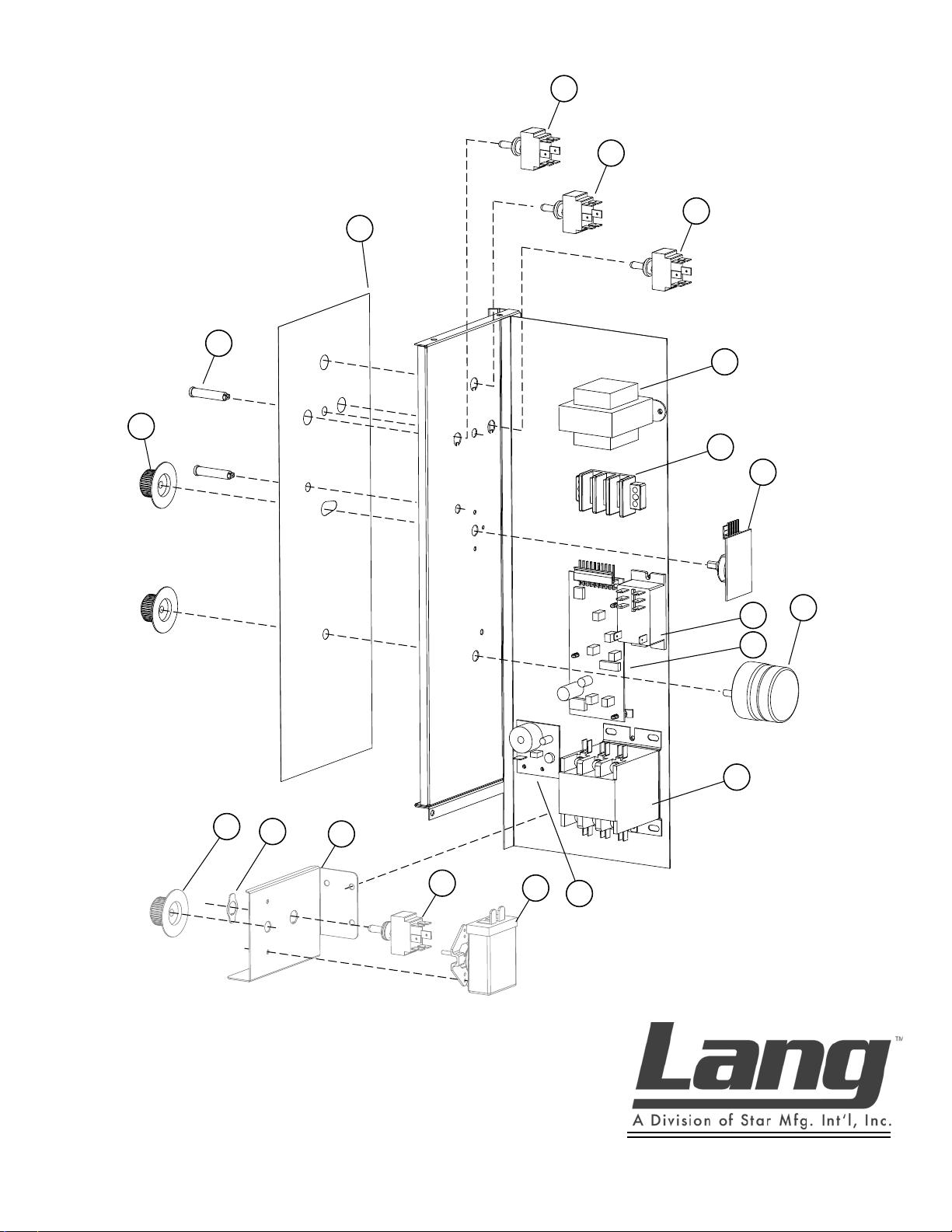

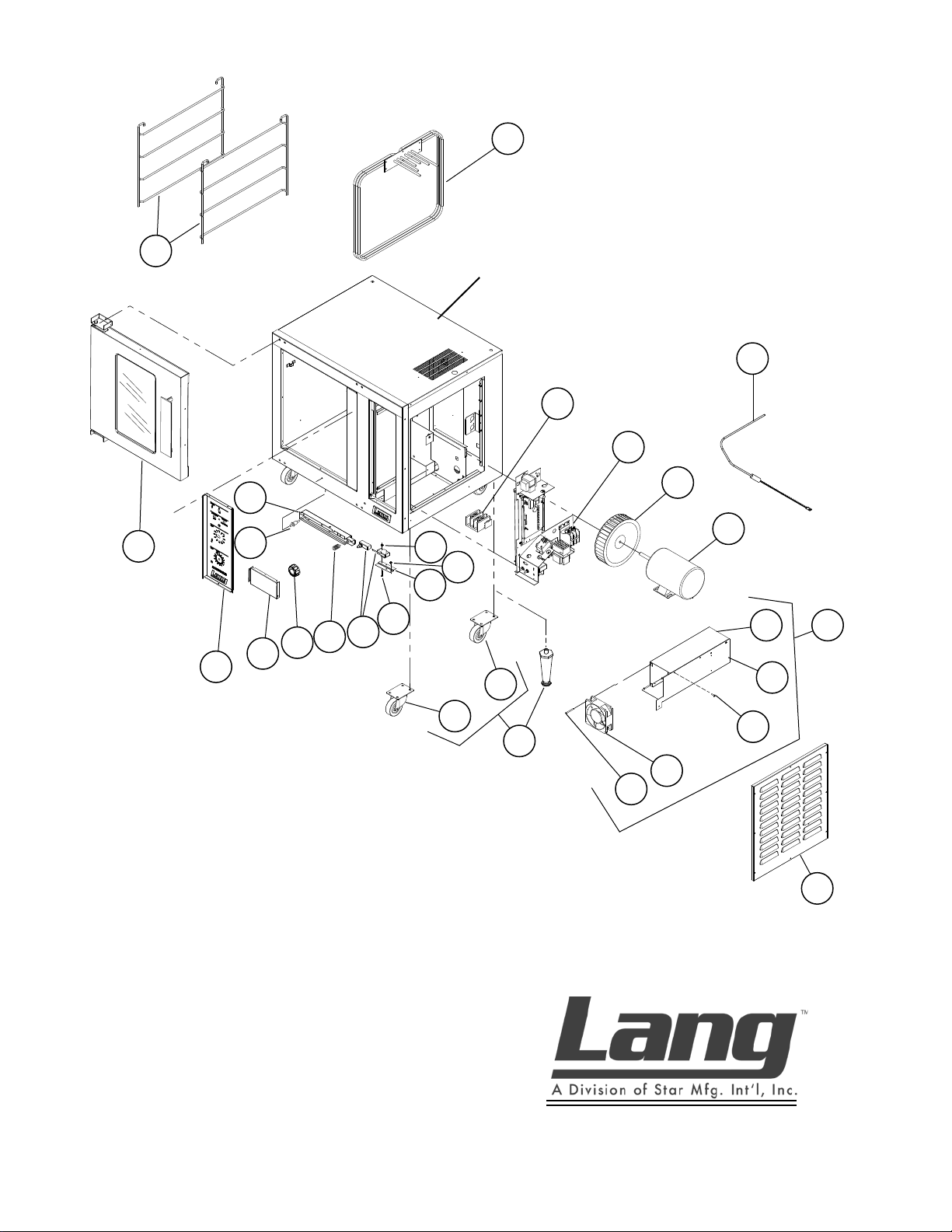

Exploded View & Parts List .

. . . . . . . . . . . . . . . . . . . . 20-28

. . . . . . . . . . . . . . . . . . 14

NOTICE ServiceonthisoranyotherLangappliancemustbeperformedbyqualied

personnel only. Consult your Lang Authorized Service Agent Directory. You can call our toll free number 1-800-807-9054 or visit our website WWW.STAR-MFG.COM for the service agent nearest you.

3

SPECIFICATIONS

30.2” 766mm

25.3” 643mm

53.3” 1353mm

25.3” 642mm

20.8” 529mm

28.0” 711mm

25.3” 642mm

3.0”

76mm

Electrical Connection

28.0” 711mm

30.2” 766mm

STAND OPTIONAL

Front Side View Top ViewRight Side View

IL1454

Model Height x Width x Depth Clearance from Weight (without optional stand) combustible surface Installed Shipping Freight Class

ECOH/ 25.3” x 30.2” x 25.3” Side:6”, Back: 6”, Floor: 6” 185 lbs. 225lbs 85 RCOH 642mm x 766mm x 643mm (84 kg) (102 kg)

SPECIFICATIONS

Star Number VOLTS AC Hz. MTR

AMPS

ECOH-AP2/3FA 220/380 50/60 3.3 1/3PH- 4WIRE 11 6.7 30 10 11 10 10 12

ECOH-AP208CF 208 60 3.3 1/3 5.3 25.5 10 25.5 25.5 10

ECOH-AP208DR 208 60 3.3 1/3 7.8 38 8 23 21 23 10

ECOH-AP208FA 220/380 50/60 3.3 1/3PH- 4WIRE 11 6.7 30 10 11 10 10 12

ECOH-AP-208M 208 60 3.3 1/3 7.8 38 8 23 21 23 10

ECOH-AP-208V 208 60 3.3 1/3 7.8 38 8 23 21 23 10

ECOH-AP-240M 240 60 2.4 1/3 7.8 33 8 20 18 20 12

ECOH-AP-240V 240 60 2.6 1/3 7.8 33 8 20 18 20 12

ECOH-AP-480M 480 60 1.0 3 7.8 10 9 10 12

ECOH-AP-480V 480 60 1.0 3 7.8 10 9 10 12

RCOHAP-208CF 208 60 3.3 3 5.3 25.5 10 25.5 25.5 - 10

RCOHAP-208KR 208 60 3.3 1/3 5.3 25.5 8 25.5 25.5 - 8

RCOHAP-208V 208 60 3 1/3 7.8 37.5 22 20.7 22 8

RCOHAP-240CF 240 60 2.6 1/3 5.3 22.1 22.1 22.1 - 10

RCOHAP-240VM 240 60 3.3 1/3 7.8 32.5 10 32.5 32.5 RR

RCOHAP-440VM 440 60 1.4 3 6.6 8.8 8.3 8.8 12

RCOHAP-480CF 480 60 1.4 3 5.3 11 11 - 14

RCOHAP-480V 480 60 1.4 3 7.8 9.5 9 9.5 12

RCOHAP-480VM 480 60 1.4 3 7.8 9.5 9 9.5 12

RCOHRAP208KR 208 60 3.3 1/3 5.3 25.5 8 25.5 25.5 - 8

RCOHRAP-480M 480 60 33 3 8.1 9.7 9.7 9.7 12

RCOHRAP-480V 480 60 33 3 8.1 9.7 9.7 9.7 12

PHASE AMPS

3PH/

NTRAL

KW

TOT.

AMPS

1 PH

WIRE

1 PH

L1 L2 L3 WIRE

3 PH

4

EQUIPMENT DESCRIPTION

Depth

Width

Height

Motor Cover

Back-Up Controls

Controls

Door Handle

IL1455

Exterior Construction

The Top, Front, Back, and Sides are constructed of stainless steel with an aluminized bottom.

The oven exterior dimensions are:

30” (76.2 cm) Wide,

25.25” (74.3 cm) High,

26.5” (67.31 cm) Deep.

The oven door comes standard with a high temperature insulated window equipped with a polycarbonate handle.

The oven cavity is insulated with high temperature insulation for efciency and reduced heat loss.

Interior Construction

The oven is designed for ve shelves and comes with ve Chrome Plated Racks.

The interior cooking chamber is constructed of stainless steel with dimensions of:

15” (38.1 cm) Wide, 20” (50.84 cm) High, 21” (53.38 cm) Deep.

NOTICE

Operation

The ECOH oven is a forced air convection oven with a vented oven cavity.

The air is driven by a 1/3 HP fan motor.

Controls

Pre-Programmable Product Selections

Independent Shelf Timers for each Shelf.

Shelf Compensation Timing for uniform baking.

Technical

Oven operates as shipped on either 208 or 240-volt (singe or three phase), or 480-volt (three phase).

The oven can be shipped with a Power Cord and Plug attached, but must be specied upon ordering

(part number is listed in the Parts portion of this manual).

Floor space required is 42” (106.68cm) Wide, 32.5” (82.55cm) Deep.

The oven weighs approximately 225 lb. (102.5 Kilograms).

The ovens are stackable, stacking kit available upon request.

The data plate is on the back side of the oven above the power cord.

The oven voltage, wattage, serial number, wire size, and clearance

specicationsareonthedataplate.Thisinformationshouldbecarefullyread

and understood before proceeding with the installation.

5

CAUTION

UNPACKING

Receiving the Oven

Upon receipt, check for freight damage, both visible and concealed. Visible damage should be noted on the freight bill at the time of delivery and signed by the carrier’s agent. Concealed loss or damage means it does not become apparent until the merchandise has been unpacked. If concealed loss or damage is discovered upon unpacking, make a written request for inspection by the carrier’s agent within 15 days of delivery. All packing material should be kept for inspection. Do not return damaged merchandise to Star Manufacturing Company. File your claim with the carrier.

Location

Prior to un-crating, move the oven as near to its intended location as practical. The crating will help protect the unit from the physical damage normally associated with moving it through hallways and doorways.

Un-crating

The oven will arrive completely assembled inside a wood frame and strapped to a skid. Cut the straps and remove the wood frame.

The oven can now be removed from the skid.

THE UNIT IS EXTREMELY HEAVY. FOR SAFE HANDLING, INSTALLER SHOULD OBTAIN HELP AS NEEDED, OR EMPLOY APPROPRIATE MATERIALS HANDLING EQUIPMENT (SUCH AS A FORKLIFT, DOLLY, OR PALLET JACK) TO REMOVE THE UNIT FROM THE SKID AND MOVE IT TO THE PLACE OF INSTALLATION.

ANY STAND, COUNTER OR OTHER DEVICE ON WHICH OVEN WILL BE LOCATED MUST BE DESIGNED TO SUPPORT THE WEIGHT OF THE OVEN.

SHIPPING STRAPS ARE UNDER TENSION AND CAN SNAP BACK WHEN CUT.

6

INSTALLATION

IL1430

16” or 28”

Stand

4” Leg

Cardboard

Leg

Mounting Hole

IL1431

Alignment Pins

pn: 2C-20108-11

Alignment Hole

Leg Installation

4” legs are available for single countertop installations. Single and double deck installations require 16” or 28” stand installation, casters may also be used in certain situations.

To install the 4” legs, place some cardboard on the oor and gently tip the unit onto its back. Fasten the four, 4” legs into the threaded holes located on the bottom of the unit. Gently lift the oven into its operating position.

16” & 28” stand installation, after following the assembly instructions that were provided with the stand, gently lower unit on to some cardboard as shown here. Align the stand with the bottom of the unit and secure with the hardware provided. With the assistance of carefully raise the unit to its vertical position.

Stacking the Ovens

Two alignment pins (pn:2C-20108-11) are needed if you intend on stacking two ECOH on each other as shown. These pins must be requested at the time of purchase, or call your Lang authorized service agent, or Lang parts department at 1-800-807-9054.

Having completed the previous step remove any and all button plugs from the lower unit, so the upper unit will lay properly.

Lay the upper unit on its back and screw the alignment pins into the two rear holes.

With assistance lift the upper unit onto the lower unit, being certain that the alignment pins go into the alignment holes, as shown here.

NOTE: Each unit must have separate electrical connections

7

INSTALLATION continued

Ventilation and Clearances

Standard minimum clearance from combustible construction is as follows.

4” from side

4” from back

6” from oor

• These ovens may be set directly, without legs, on a curbed base or non-combustible oor.

• If the oven is set without legs on a non-combustible oor or a curbed base, maintain a 4-inch back clearance.

• If the oven is set directly against a non-combustible back wall, maintain a 6-inch clearance to the oor.

• Do not install the oven closer than 4 inches from another oven on the right hand side (control panel side).

• Do not install the oven closer than 12 inches from an uncontrolled heat source (char broiler etc.) on the right side.

• Keep the area free & clear of combustible material, and do not obstruct the ow of combustion or ventilation air.

• The installation of any components such as a vent hood, grease extractors, and/or re extinguisher systems, must conform to the applicable nationally recognized installation standards.

NOTICE The installation of any components such as a vent hood, grease

extractors,reextinguishersystems,mustconformtotheir applicable National, State and locally recognized installation standards.

WARNING

Electrical Connection

The electrical connection must be made in accordance with local codes or in the absence of local codes with NFPA No. 70 latest edition (in Canada use: CSA STD. C22.1).

The electrical service entrance is provided by a 1 1/4-inch knockout at the oven back directly behind the control compartment. A grounding lug is provided at the rear service entrance.

Certain units are provided with or can be purchased with a Cord & Plug kit (Part number 9Q-ECOH-CK). This kit includes a 48” cord with a NEMA L15-30P plug and is for 3 Phase units ONLY. In stacked situations each units needs to have separate cord & plug assemblies.

Oven Voltage

The Lang Model ECOH ovens can be operated on 208, 240-volt (single or three phase), or 480-volt (three phase only) source. The Amp draw, KW rating, and phasing can be found in specication section of this manual.

THIS APPLIANCE MUST BE GROUNDED AT THE TERMINAL PROVIDED. FAILURE TO GROUND THE APPLIANCE COULD RESULT IN ELECTROCUTION AND DEATH.

INSTALLATION OF THE UNIT MUST BE DONE BY PERSONNEL QUALIFIED TO WORK WITH ELECTRICITY AND PLUMBING. IMPROPER INSTALLATION CAN CAUSE INJURY TO PERSONNEL AND/OR DAMAGE TO EQUIPMENT. UNIT MUST BE INSTALLED IN ACCORDANCE WITH ALL APPLICABLE CODES.

8

4

1

5

6

8

10

11

1

12

5

4

7

6

8

9

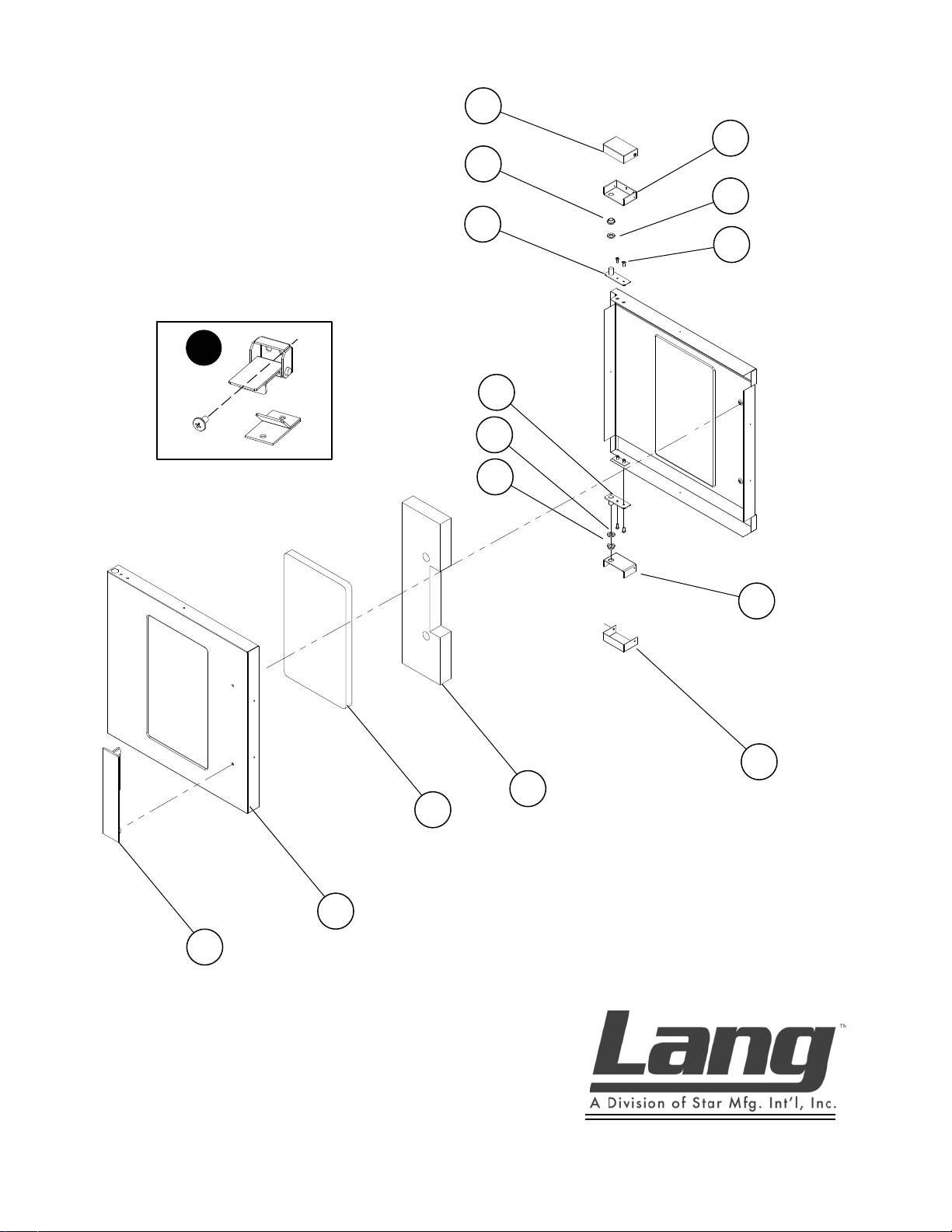

INSERT BEARINGS (ITEMS "5") INTO THE HINGES (ITEMS "1" & "2") AS SHOWN THEN REAM WITH A .508 REAMER.

ECOH HINGE RELPACEMENT KIT

pn: Q9-50313-030

ITEM NO. QTY. PART NO. DESCRIPTION

50313-031

HINGE PIN WELDMENT

EH-267

EH HINGE COVER 70201-19 70201-01 20109-43 20109-15 eh-198-1

BOTTOM HINGE PLATE ASSY CR30-148

UPPER HINGE COVER FOR EH EH-265-1

EH HINGE - TOP - FOR SVC KIT

3 4 5 6 7 8

9 10 11 12

2 2 2 2 2 8 1 1 1 1 EH-266-1

EH HINGE - BOTTOM - FOR SVC KIT

IL1426

Reversing the door

1. Disconnect oven from power.

2. Remove the top and bottom door hinge covers (4) by removing the two 10-32 Phillip head screws (8).

3. Remove the top door hinge bracket (1) from the oven by removing the two ¼-20 Phillip head screws (7). The hinge should now slide off of the door pin (this will now be your right hand lower hinge)

4. Lift the door off the bottom pin and set aside.

5. Remove the bottom door hinge bracket (2) by removing the two ¼-20 Phillip head screws (7) (this will now be your upper right hand hinge).

6. Remove the lower hinge mounting plate (9) by pulling it from behind the leg pad adapter on the bottom of the oven.

7. Remove the two Phillips head screws in the bottom right corner of the oven, where the new hinge will be placed.

8. Slide the hinge mounting plate (9) into place and mount the hinge bracket (this should be your old upper hinge) using two ¼-20 (7) Phillips head screws.

9. Remove the two Phillips head screws in the upper right corner of the oven where the new hinge will be placed.

10. Rotate the door 180° and slide the door pin into the bottom hinge bracket.

11. Slide the upper door hinge (1) onto the upper door pin and then screw into place using two ¼-20 Phillip head screws.

12. Place the top and bottom door hinge covers (4) back on the oven using two 10-32 Phillip head screws (8).

9

INITIAL START UP

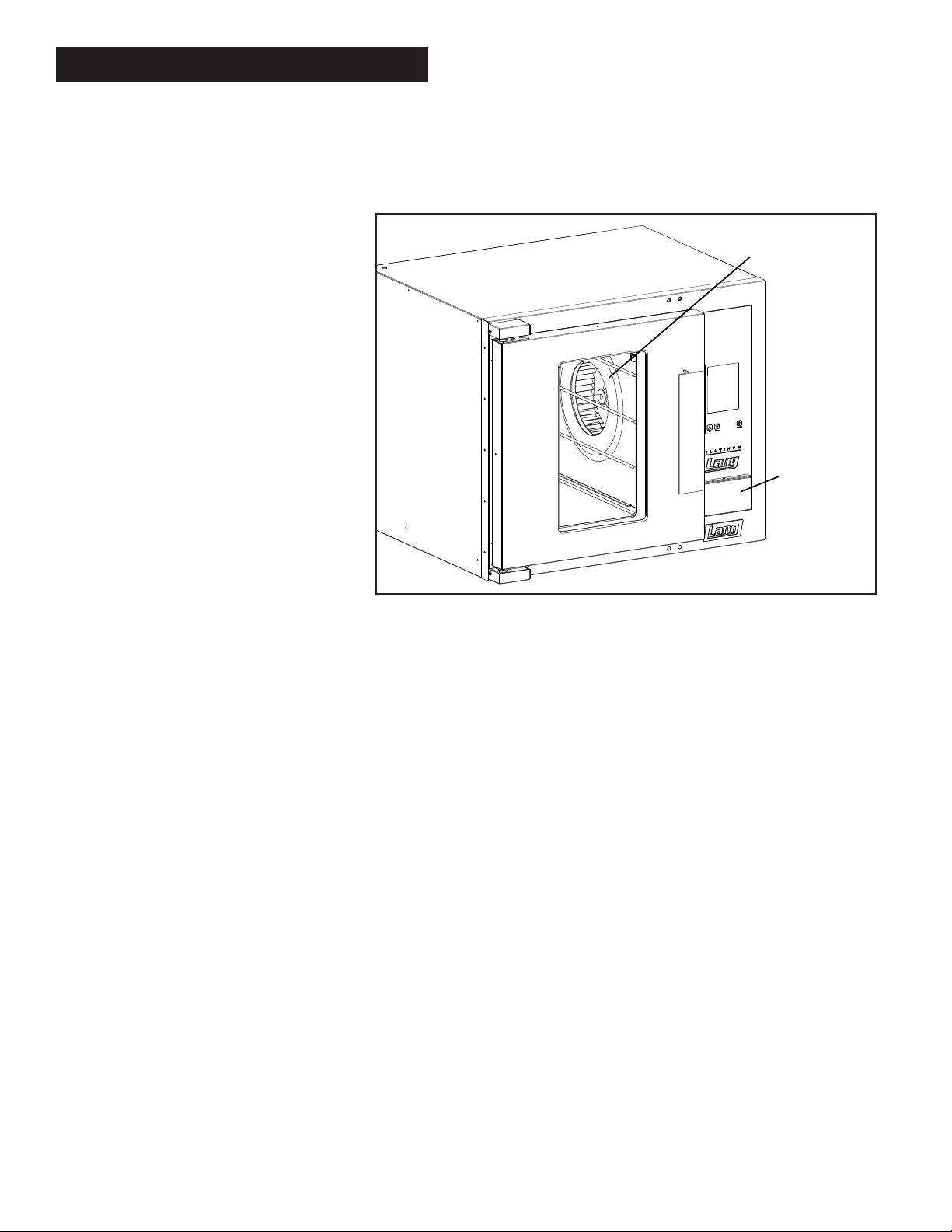

IL1456

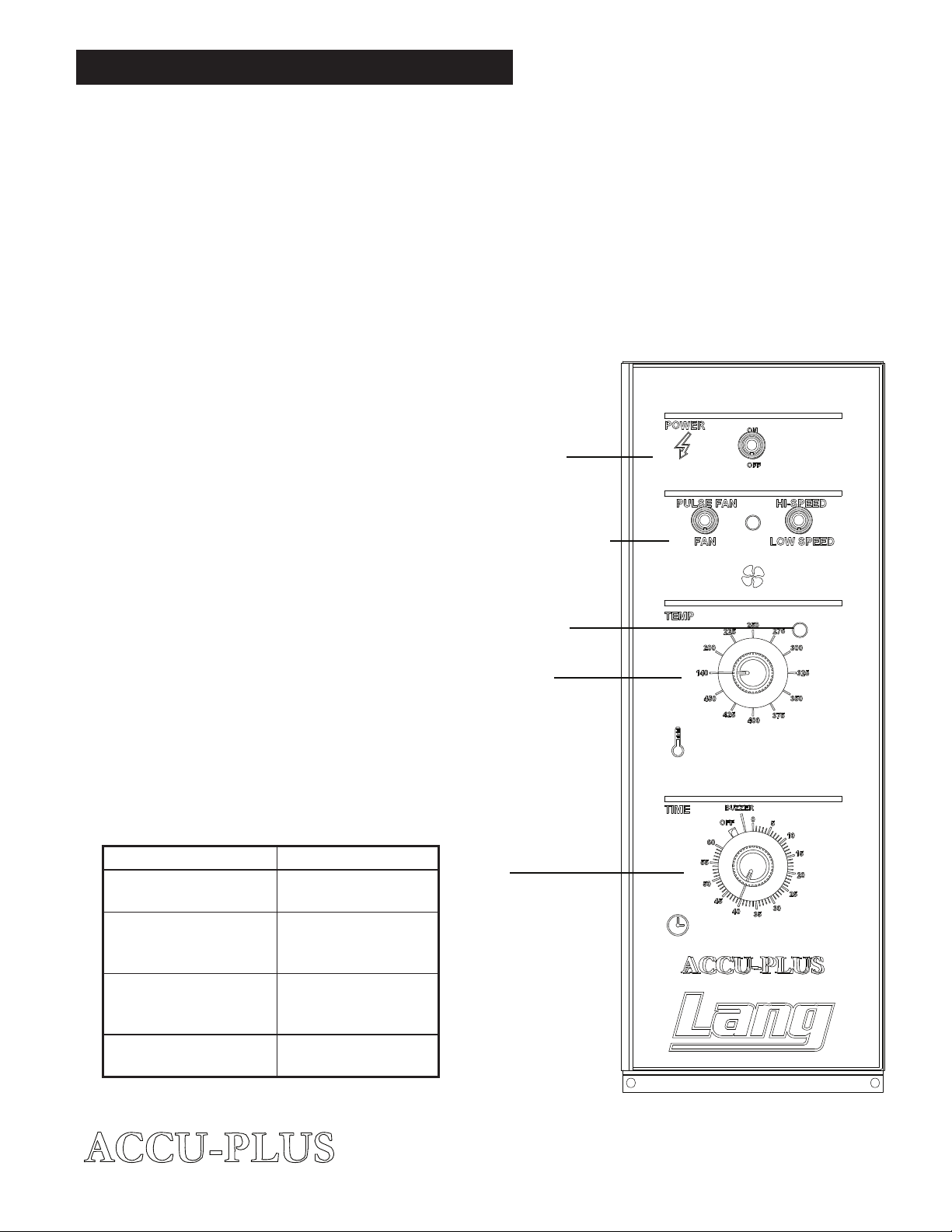

Back-Up Controls

Blower Wheel

Pre-Power On

After th oven is installed and connected to power, prior to turning on, verify the following

• The door opens and closes freely

• All racks are in the oven correctly

• All packing materials have been removed from the inside of the oven

Power On

Once the oven has been turned on verify that the blower wheel is spinning freely in a clockwise position and that the elements are heating properly.

Switch the back-up controls on and make certain it can run the unit,

Conrm that the thermostat knob in the back-up controls is move freely.

AP units

Conrm that all knobs move freely and thet timer beeps.

NOTICE

Duringtherstfewhoursofoperationyoumaynoticeasmallamountofsmoke

coming from the oven, and a faint odor from the smoke.

Thisisnormalforanewunitandwilldisappearaftertherstfewhoursofuse.

10

General Operation & Programming

Power Switch

Timer

Pulse Fan Switch & Hi/Low Speed Switch

Temperature Control

IL1457

Heat Call Light

Convection ovens constantly circulate air over and around the product. This strips away the thin layer of moisture and cool air from around the product allowing heat to penetrate more quickly.

Cooking times can be shortened and cooking temperatures can be reduced.

To convert standard deck oven recipes, reduce the temperatrue 50° degrees and the time by 25%. Make minor adjustments as necessary.

Always weigh your product. This will give you a more consistent size, color and quality.

Check the product near the end of the initial cooking.

Do not open the oven door during baking, as this will change the baking characteristics of the oven and make it difcult to determine a nal program.

If the product is overdone on the outside and underdone on the inside, reduce the baking temperature.

If the product is pulling away from the edge of the pan, the temperature is too high or the cooking time too long.

A convection oven is a mechanical piece of equipment. The same control settings will always give the same results. If the results vary, problems may be because of changes in the product preparation.

ECOH-AP Control Panel

The Control panel consists of the following items. Detailed operational descriptions are given later this section.

Power Switch: Turns the oven on and off

Pulse Fan Switch:

Pulse Setting: Fan will only turn ON, when the oven is calling for heat.

Fan Setting: Fan is on continuously, speed is determined by the Hi/Low switch.

Hi/Low Speed Fan Switch: Dual speed switch. Toggles the fan between high & low speed.

Temperature Control: Allows temperature to be set in 25°F increments from 140°F to 450°F

Timer: Electronic on-hour timer with continuous beeper,

Typical Operation Sequence

Action Result

Turn Power Switch to ON

Adjust temperature, between 140°F & 450°F and allow 20 minutes for preheating

Open oven door and insert product, set timer up to 60 minutes.

Timer beeps continuously when done.

Control panel heat call light comes on.

Oven begins heating

Timer begins counting down.

Product should now be done.

11

General Operation & Programming cont.

Loading

Here are some things to remember when loading your oven.

• When loading and unloading the oven, stage products and racks so the oven door is opened for the least amount of time.

• Be sure that racks are level within the oven.

• Bent or warped pans can greatly affect the evenness of the cook or bake.

• If using baker’s parchment, be sure the parchment does not blow over the product. That will create an uneven bake.

• Load each shelf evenly. Spaces should be maintained equally between the pan and oven walls, front and back.

• Do not overload pan’s this will create an uneven bake.

• For best baking results, load the oven from the center out during random loading.

ALWAYS KEEP THE AREA NEAR THE APPLIANCE FREE FROM

COMBUSTIBLE MATERIALS.

CAUTION

KEEP FLOOR IN FRONT OF EQUIPMENT CLEAN AND DRY. IF SPILLS OCCUR,

CLEAN IMMEDIATELY, TO AVOID THE DANGER OF SLIPS OR FALLS.

12

MAINTENANCE

• Oven interiors should be wiped down daily and thoroughly cleaned weekly using warm water and mild detergent.

DO NOT use caustic cleaners.

• The appliance should be thoroughly checked at six-monthly intervals by a qualied technician (heating unit, mechanical stability, corrosion...) with particular emphasis on all control and safety devices.

CLEANING

• Always start with a cold oven.

• The stainless exterior can easily be cleaned using stainless steel cleaner.

• Always follow the cleaner manufacturer’s instructions when using any cleaner.

• Care should be taken to prevent caustic cleaning compounds from coming in contact with the fan wheel.

• The oven racks, rack slides, may be cleaned outside the oven cavity using oven cleaner.

• Using any harsh chemicals will result in the removal of the ETC coating and etching of the porcelain below it. The oven interior should only be cleaned using a mild soap and a non metal scouring pad.

DO NOT use caustic cleaners.

• Always apply stainless steel cleaners when the oven is cold and rub in the direction of the metal’s grain.

KEEP WATER AND SOLUTIONS OUT OF CONTROLS. NEVER SPRAY OR HOSE

CONTROL CONSOLE, ELECTRICAL CONNECTIONS, ETC.

WARNING

MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES, MUCOUS

MEMBRANES AND CLOTHING. PRECAUTIONS SHOULD BE TAKEN TO WEAR

CAUTION

RUBBER GLOVES, GOGGLES OR FACE SHIELD AND PROTECTIVE CLOTHING.

CAREFULLY READ THE WARNING AND FOLLOW THE DIRECTIONS ON THE

LABEL OF THE CLEANER TO BE USED.

NEVER LEAVE A CHLORINE SANITIZER IN CONTACT WITH STAINLESS STEEL

SURFACES LONGER THAN 10 MINUTES. LONGER CONTACT CAN CAUSE CORROSION.

13

Troubleshooting

Symptoms & Possible Causes

The following are charts of Symptoms and Possible Causes to aid in diagnosing faults with your unit.

Refer to the symptoms column to locate the type of failure then to the Possible Cause for the items to be checked.

To test for a possible cause refer to test to identify test procedures. Test indicated with an “*” should be done by a Lang factory authorized service representative.

Symptoms Possible Cause

No power to cord outlet

Oven unplugged from outlet

Power indicator is not lit

Oven will not heat

Oven motor will not run

Product burning

Product is under done

Failed Power cord or plug

Failed power switch

Failed indicator light

Power Switch is not “ON”

Failed Transformer

Failed Probe

Failed Circuit board

Failed Contactor

Failed Over-temperature Thermostat

Failed Element

Power Switch is not “ON”

Failed Transformer

Failed Contactor

Failed Motor

Product is cooked too long

Failed Probe

Failed Circuit board

Product is not cooked long enough

Failed Probe

Failed Circuit board

Possible Cause Test

Product is cooked too long

Failed Probe Check probe for proper resistance*

Failed Circuit board

Failed Transformer

Failed Contactor

Failed Motor

Failed or disconnected safety thermostat

Failed Element

No test available, operational condition

Conrm that Circuit board is getting

correct voltage and putting out correct voltage*

Check both Primary and Secondary coils for correct voltage*

Remove the wires from the contactor coil and check for continuity across the contactor coil connection*

Ensure the contactor moveable points move freely up and down*

Conrm that motor is getting correct

voltage*

Check across the thermostat connectors for continuity*

Conrm that Elements are getting

correct voltage and have continuity*

NOTICE If an item on the list is followed by an asterisk (*), the work should be done by

a Lang factory authorized service representative.

USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY

LANG OR THEIR AUTHORIZED DISTRIBUTORS CAN CAUSE BODILY INJURY

CAUTION

TO THE OPERATOR AND DAMAGE TO THE EQUIPMENT AND WILL VOID ALL WARRANTIES.

NOTICE ServiceonthisoranyotherLangappliancemustbeperformedbyqualied

personnel only. Consult your Lang Authorized Service Agent Directory. You can call our toll free number 1-800-807-9054 or visit our website WWW.STAR-MFG.COM for the service agent nearest you.

BOTH HIGH AND LOW VOLTAGES ARE PRESENT INSIDE THIS APPLIANCE

WHEN THE UNIT IS PLUGGED/WIRED INTO A LIVE RECEPTACLE. BEFORE

WARNING

REPLACING ANY PARTS, DISCONNECT THE UNIT FROM THE ELECTRIC POWER SUPPLY.

14

15

HEAT

D

BUZZER

24

EH

VOLTS

L1-L2 L2-L3 L3-L1 TOTAL L1 L2 L3 1 PH

KW AMPS

240

208

2.5

3.1

8.1

20.2

23.3

18.0

20.8

20.2

23.3

L1

1-4

L2 L3

2-5 3-6

THREE PHASE

L1 L2

2-4-61-3-5

SINGLE PHASE

SERVICE CONNECTIONS

TERMINAL BLOCK

12 POLE

GROUND LUG

CONTACTOR

FROM MAIN

SWITCH

2-SPEED

HEAT LIGHT

24VAC

CONTROL

C

ON

LIGHT

PULSE

C

TOP

24VAC

NC C NO

24VAC

TIMER

2

3

4

5

6

7

8

9

10

12

POSITION

SWITCH

RTD

5 4 3 2 1

1

-AP

BLUE

BLACK

RED

D

33.8

38.9

2 5 4 3 6 1

T7-T4

T9

P1

NO

NCC

D

1

2

3

SWITCH

CONTACTOR

MAIN

24VAC

C D

B

240

FROM MAIN CONTACTOR

B

C

D

M

DOOR SWITCH

MOTOR

TERMINAL BLOCK

POWER SWITCH

PULSE MODE

"HEAT" FROM

2500W

LO

HIGH

2500W

1

4

5

2

3

6

-AP

CONTROL

HIGH LIMIT DISC STAT

MODELS:

ECOH-AP, RCOH-AP 208/240VAC EHS-AP, 208/240VAC

THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.

NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.

2M-61111-135 Rev B

1/17/2008

16

HEAT

D

BUZZER

24

EH

VOLTS

L1-L2 L2-L3 L3-L1 TOTAL L1 L2 L3

KW AMPS

480 2.6 2.6 2.6 7.8 9.7 9.7 9.7

TERMINAL BLOCK

12 POLE

GROUND LUG

CONTACTOR

FROM MAIN

SWITCH

2-SPEED

HEAT LIGHT

24VAC

CONTROL

C

ON

LIGHT

PULSE

C

TOP

24VAC

NC C NO

24VAC

TIMER

2

3

4

5

6

7

8

9

10

12

POSITION

SWITCH

RTD

5 4 3 2 1

1

-AP

BLUE

BLACK

RED

D

2 5 4 3 6 1

T7-T4

T9

P1

NO

NCC

D

1

2

3

SWITCH

CONTACTOR

MAIN

24VAC

C D

B

480

FROM MAIN CONTACTOR

B

C

D

M

DOOR SWITCH

MOTOR

TERMINAL BLOCK

POWER SWITCH

PULSE MODE

"HEAT" FROM

2500W

LO

HIGH

2500W

1

4

5

2

3

6

-AP

CONTROL

HIGH LIMIT DISC STAT

MODELS:

ECOH-AP, 480VAC EHS-AP, 480VAC

THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.

NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.

2M-61111-163 Rev A

9/9/1999

TO

ELEC

T STAT

TO

PULSE

FAN

TO

ELEC

T STAT

SCALE

LANG MANUFACTURING

HEAT

D

BUZZER

24

TERMINAL BLOCK

12 POLE

GROUND LUG

CONTACTOR

FROM MAIN

SWITCH

2-SPEED

HEAT LIGHT

24VAC

C

ON

LIGHT

PULSE

C

TOP

24VAC

NC C NO

24VAC

TIMER

2

3

4

5

6

7

8

9

10

12

POSITION

SWITCH

RTD

5 4 3 2 1

1

-AP

BLUE

BLACK

RED

D

DRAWING NUMBER REV

OF

SHEET

± 1/64

ANGLES

± .5°

.X ± .05

.XX ± .03

TITLE:

CK:

TOLERANCES

SCALE:

DR:

FRACTIONS DECIMALS

UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES

.XXX ± .015

DATE:

NEXT HIGHER ASSY.

CREATED BY STUART R. CARTIER

PART NUMBERQTY ITEM DESCRIPTION / MATERIAL

REVISION BLOCK

ECN NO.REV DESCRIPTION DR: DATEMFG ENG

6000W

1

5

2

1667

1

1667

1 2 4 3

3 4 2 1

2 1 3 4

5

2

3

9

TO BREAKER

3 4

5 6

MODEL DESIGNATION

TOP ARRANGEMENT SEC-1 SEC-2

S S

CC or CM R30-SS

H S G S

H H G H

CC or CM R30-HS CC or CM R30-GS

CC or CM R30-HH

CC or CM R30-GH

G H S

18" GRIDDLE

HOT TOP

SPEED UNITS

3

6

5

4

CONV. OVEN 5000 W.-AP CONTROLS-RT 30 RANGE TOP-208/240V.

WIRING DIAGRAM

61127-W07CF

3/31/08

TDV

RED BLUE BLUE RED

T7-T4

T9

P1

NO

NCC

D

2

SWITCH

CONTACTOR

MAIN

24VAC

C D

B

240

FROM MAIN CONTACTOR

B

C

D

M

DOOR SWITCH

MOTOR

TERMINAL BLOCK

POWER SWITCH

PULSE MODE

LO

HIGH

2500W

1

7

281

3

RANGE TOP CONFIGURATIONS

-AP

CONTROL

HIGH LIMIT DISC STAT

ON

OFF

1

2

3

4

5

6

BACKUP SWITCH

1

2

3

T STAT

BACKUP

TO TERMINAL BLOCK "C"

17

TO

ELEC

T STAT

TO

PULSE

FAN

TO

ELEC

T STAT

SCALE

LANG MANUFACTURING

HEAT

D

BUZZER

24

TERMINAL BLOCK

12 POLE

GROUND LUG

CONTACTOR

FROM MAIN

SWITCH

2-SPEED

HEAT LIGHT

24VAC

C

ON

LIGHT

PULSE

C

TOP

24VAC

NC C NO

24VAC

TIMER

2

3

4

5

6

7

8

9

10

12

POSITION

SWITCH

RTD

5 4 3 2 1

1

-AP

BLUE

BLACK

RED

D

DRAWING NUMBER REV

OF

SHEET

± 1/64

ANGLES

± .5°

.X ± .05

.XX ± .03

TITLE:

CK:

TOLERANCES

SCALE:

DR:

FRACTIONS DECIMALS

UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES

.XXX ± .015

DATE:

NEXT HIGHER ASSY.

CREATED BY STUART R. CARTIER

PART NUMBERQTY ITEM DESCRIPTION / MATERIAL

REVISION BLOCK

ECN NO.REV DESCRIPTION DR: DATEMFG ENG

6000W

1

5

2

1667

1

1667

1 2 4 3

3 4 2 1

2 1 3 4

5

2

3

9

TO BREAKER

3 4

5 6

MODEL DESIGNATION

TOP ARRANGEMENT SEC-1 SEC-2

S S

CC or CM R30-SS

H S G S

H H G H

CC or CM R30-HS CC or CM R30-GS

CC or CM R30-HH

CC or CM R30-GH

G H S

18" GRIDDLE

HOT TOP

SPEED UNITS

3

6

5

4

CONV. OVEN 5000 W.-AP CONTROLS-RT 30 RANGE TOP-480V.

WIRING DIAGRAM

61127-W08CF

3/31/08

TDV

RED BLUE BLUE RED

T7-T4

T9

P1

NO

NCC

D

2

SWITCH

CONTACTOR

MAIN

24VAC

C D

B

480

FROM MAIN CONTACTOR

B

C

D

M

DOOR SWITCH

MOTOR

TERMINAL BLOCK

POWER SWITCH

PULSE MODE

LO

HIGH

2500W

1

7

281

3

RANGE TOP CONFIGURATIONS

-AP

CONTROL

HIGH LIMIT DISC STAT

ON

OFF

1

2

3

4

5

6

BACKUP SWITCH

1

2

3

T STAT

BACKUP

TO TERMINAL BLOCK "C"

18

28

1

29

2

3

4

5

12

20

22

21

23

16

17

18

19

14

15

13

26

27

See

Door Assembly

25

24

See Body Assembly

See Controller Assembly

See

Panel Assembly

SK2320 Rev. A 1/8/2008

ECOH Complete Assembly

7

8

9

6

10

11

PARTS LIST December 18, 2008 Rev E

Model No: ECOH & RCOH, AP, PP & PT CONTROLS

Commercial & Marine Half Size Economy Convection Oven

Key

Number

1 2N-11090-20 1 ELMNT EHS 208V 7.5KW 208V 2N-11090-21 1 ELMNT EHS 240V 7.5KW 240V, ECOH-AP208FA, ECOH-AP2/3FA 2N-11090-22 1 ELMNT EHS OVEN 480VAC 7.5KW 440VM, 480V, 480VM 2N-11090-23 1 ELMNT EHS OVEN 208VAC 5.0 KW RCOHAP-208KR, RCOHAP-208CF,

2 2E-30500-07 1 TRM BLOCK 3PLELRGE 125AMP ECOHPT208CFR, RCOHPT-208CF,

2E-30500-09 1 TRM BLOCK 3 POLE SMALL 95 ECOH-AP-208V/208M/240V/208DR,

3 Q9-EHPPT-C 1 PNEL ASSY EHS-PT 208/240/480V ECOH-PT, RCOHPT Q9-60101-767 1 PANEL EH 208/240V ECOH-AP-208, 208M, 240V, 208DR,

Q9-EHPAP-GFA 1 PANEL EH 220/380V ACCU-PLUS FA ECOH-AP208FA, ECOH-AP2/3FA, Q9-EHPAPRT-C 1 PANEL EH 208/240V AP W/RT30 RCOHAP-208KR, RCOHAP-208V,

Q9-EHPAP-U 1 PANEL EH 480 VOLT ACCU-PLUS ECOH-AP-480M, 480V, RCOHAP-480V,

Q9-EHPPP-C 1 PANEL EH 208/240V PURPLE w/COOLING FAN ASSY

Q9-EHPPP-C-S 1 PANEL EH 208/240V PURPLE w/o COOLING FAN ASSY

4 2U-71500-06 1 BLOWER WHEEL EHS OVEN ALL 5 2U-30200-16 1 MOTOR 1/3HP 460V/1/60HZ 2SP ECOH-AP-480V, ECOH-AP-480M,

2U-30200-17 1 MTR 1/3HP208/240V1PH2SPD ECOH-AP-208M, ECOHAP-208V,

2U-30200-53 1 MOTOR 1/3HP 240/254V 50HZ 2 SP ECOH-AP208FA, ECOH-AP2/3FA 6 Q9-EH-268 AR EH COOLING FAN ASSY ECOH-PP-208/240V, ECOH-PT-208/240/480V,

7 Q9-EH-268-2 1 AIR DUCT BACK ECOH-PP-208/240V, ECOH-PT-208/240/480V,

8 Q9-EH-268-1 1 AIR DUCT FRONT ECOH-PP-208/240V, ECOH-PT-208/240/480V,

Part

Number

9 2C-20103-02 6 SCRW SM PLT 10 X .5 PHLSL ECOH-PP-208/240V, ECOH-PT-208/240/480V,

1

IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE

2

INCLUDE MODEL AND SERIAL NUMBER OF

Some items are included for illustrative purposes only and in certain instances may not be available.

Qty Per

Description

RCOHRAP208KR, RCOHPT-208CF

RCOHPT-240CF

ECOH-AP-480V480/M, RCOHAP-208V, RCOHAP-480V, RCOHAP-480VM, RCOHAP480V/480M, RCOHRAP-480V/480M, RCOHPT-440VM

ECOH-AP208CF

RCOHRAP208KR

480VM, RCOHRAP-480M, 480V

ECOH-PP-208V, 208BK, 208WB, 240BK, 240WB

ECOH-PT-480V, ECOH-PT480CF, ECOH-PT480MF, RCOHAP-480V, RCOHAP-480M, RCOHRAP-480M, RCOHRAP-480V, RCOHPT-440VM, RCOHPT-480CF

ECOH-AP-240V, ECOH-AP208DR, ECOH-PP-208V, ECOH-PP208BK, ECOH-PP208WB, ECOH-PP240BK, ECOH-PP240WB, ECOH-PT-208V, ECOH-PT-240V, ECOH-PT208CF, ECOH-PT208MF, ECOH-PT208NT, ECOH-PT208RF, ECOH-PT208SZ, ECOH-PT208V7, ECOH-PT208WA, ECOH-PT208WD, ECOH-PT240SZ, ECOH-PT240WD, ECOHPT208CF, ECOHPT208CFC, ECOHPT208CFR, RCOHAP-208KR, RCOHAP-208V, RCOHPT-208CF, RCOHPT-208V, RCOHPT-240CF, RCOHRAP208KR,

RCOHPT-208/240CF/480CF

Star Manufacturing International, Inc.

PARTS LIST December 18, 2008 Rev E

Model No: ECOH & RCOH, AP, PP & PT CONTROLS

Commercial & Marine Half Size Economy Convection Oven

Key

Number

10 2U-30200-46 1 MTR W/FAN AXIAL 220VAC70C ECOH-PP-208/240V, ECOH-PT-208/240/480V,

11 2C-20109-31 4 SCRW S/S 8-32 X 1-3/4 T/H PHIL ECOH-PP-208/240V, ECOH-PT-208/240/480V,

12 Q9-60102-1368 MOTOR COVER EH (EH-141) & HRDW ALL 13 2A-72500-02 4 LEG 4 SS MM ECOH-AP208DR, ECOH-PT208V7 9Q-ECOH-C4 CASTERS (SET OF 4) sold as an accessory with most units Q9-EHS-4C 1 CASTERS (SET OF 4) RCOHAP-208KR, RCOHAP-208V,

2A-72500-05 4 LEG 4 W/BOLT DOWN ADJ ECOH-AP-208M, RCOHAP-480VM,

14 2P-72901-17 2 CSRT SWVL W/BRK 35/16TRD RCOHAP-208KR, RCOHAP-480V,

15 2P-72900-04 2 CSTER RIGID 3,5/16WTRD RCOHAP-208KR, RCOHAP-480V,

16 2C-20301-10 2 NUT HEX 6-32 PLTD ECOH, RCOH 17 2C-20101-65 2 SCRW MS PLT 10-32 X .25 THD ECOH, RCOH 18 Q9-EH-356 1 SWITCH BRACKET ECOH, RCOH 19 2C-20101-17 2 SCRW RND MS 6-32X1 PLTD ECOH, RCOH 20 2E-30301-17 1 SWT MICRO PLUNGER XLH V-27971 & W-48418, Q9-EH-363 1 SWITCH ARM, MICRO ECOH, RCOH 21 2P-51001-12 1 SPRING COMPRSN.665ID X 1.4 LONG ECOH, RCOH 22 Q9-EH-250 1 WELD SWITCH ARM ECOH, RCOH 23 Q9-EH-350 1 SWITCH PLUNGER - ASSY ECOH, RCOH 24 Y9-70701-18 1 KNOB ASSY 450° ECOH-AP, ECOH-PT, ECOH-PP, RCOH-AP,

25 Q9-60102-112 1 SWITCH DOOR - ASSY EH ECOH-PP-208V 26 Q9-60101-765 1 ECOH-PT / EHS-PT CONTROL FRONT ECOH-PT, RCOH-PT Q9-60101-766 1 ECOH-PP / EHS-PP CONTROL FRONT ECOH-PP 27 Q9-51100-53 1 COMP DOOR ASSY EHS/GHS WINDOW ALL 28 2B-50200-83 2 RACK SLIDE EHS ECOH-AP, ECOH-PT, ECOH-PP, RCOH-AP,

29 2E-41100-12 1 SENSOR EHS OVEN 450 DEG ALL

Part

Number

Qty Per

Description

RCOHPT-208/240CF/480CF

RCOHAP-480V, RCOHPT-208CF, RCOHPT-208V, RCOHPT=240CF, RCOHPT-480CF

RCOHRAP-480VM

RCOHPT-208CF

RCOH-PT

NI 2B-50200-34 5 RACK HALF SIZE OVENS ECOH-AP, ECOH-PT, ECOH-PP, RCOH-AP,

NI 2E-31800-01 6 CB 250V50A 1 POLE CRLNGSW RCOHAP-208KR, RCOHAP-208V,

NI 2E-31800-04 1 CB 480V 50A 3 POLE RCOHPT-440VM NI 2E-31800-04 2 CB 480V 50A 3 POLE RCOHAP-480V NI 2E-60101-75 1 EHS CORD KIT 3-PHASE ECOH-AP208DR, -PP208BK, -PP240BK,

NI 2K-70801-03 1 SNAP BUSH 3/8 SB375-4 BLK ECOH-PP-208V NI 2K-70801-04 AR SNAP BUSH 3/4 SB750-10 ECOH NI 2M-61111-135 1 WD EHS-AP 208V-240VAC ECOH-AP-208V NI 2M-61111-148 1 WD EHS-PP 208-240VAC 2SPD ECOH-PP-208V NI 2M-61111-163 1 WD EHS-AP 480V ECOH-AP-480M NI Q9-60102-97 1 DOOR SEAL EH w/ mounting hardware NI 2C-20108-01 2 STACKING PINS ALL NI Q9-EH-550 1 WIRING HARN, ELEMENT ALL NI Q9-EH-551 1 WIRING HARN, HIGH VOLT CONTROL ALL NI Q9-EH-553 1 WIRING HARN, LOW VOLT CONTROL ALL NI Q9-EH-554 1 WIRING HARN, POWER SWITCH ALL NI 2E-31200-02 1 LUG GROUNDING UL APPROVED ALL

2

IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE

2

INCLUDE MODEL AND SERIAL NUMBER OF

Some items are included for illustrative purposes only and in certain instances may not be available.

RCOH-PT

RCOHPT-208CF

-PT208CF, -PT208WD, -PT208CFC

Star Manufacturing International, Inc.

16

15

9

10

11

12

13

14

2

3

4

5

6

7

8

17

18

19

1

SK2325 Rev. A 1/9/2008

ECOH Body Assembly

PARTS LIST December 18, 2008 Rev E

Model No: ECOH & RCOH, AP, PP & PT BODY PANELS

Commercial & Marine Half Size Economy Convection Oven

Key

Number

1 Q9-60102-136 1 BODY TOP EH & HRDW ALL 2 Q9-60102-1361 1 BODY BACK EH & HRDW ALL 3 Q9-EH-119-2 1 FIREWALL - ASSY ALL 4 Q9-EH-135 1 SAFETY STAT BOX ALL 5 2T-30401-09 1 STAT FXD 500° DEG OPEN ALL 6 Q9-EH-136 1 SAFETY STAT COVER ALL 7 2K-70801-04 1 SNAP BUSH 3/4 SB750-10 BLK ALL 8 2C-20103-02 2 SCRW SM PLT 10 X .5 PHLSL ALL 9 Q9-60102-1364 1 BODY R/H SIDE EH & HRDW ALL 10 2C-20104-41 4 SCRW MACH 1/4-20X5/8 H/H ALL 11 Q9-EH-209 1 MOTOR MOUNT ALL 12 2C-20202-08 4 WSHR PLT 5/16 LOCK SPLIT ALL 13 2C-20201-09 4 WSHR PLT 5/16 FLAT SAE ALL 14 2C-20301-06 4 NUT HEX 5/16-18 PLTD ALL 15 Q9-EH-104-2 1 BOTTOM SPOT WELD ALL 16 Q9-EH-215-2 1 FRONT - ASSY REVERSIBLE ALL 17 Q9-EH-452-2 1 BAFFLE STD ALL 17 Q9-EH-452-3 1 BAFFLE ASSY STEAM STEAM 18 Q9-EH-374-3 1 CAN ASSY STD -[NEW RACK ALL 19 Q9-60102-1365 1 BODY L/H SIDE EH & HRDW ALL

Part

Number

Qty Per

Description

1

IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE

1

INCLUDE MODEL AND SERIAL NUMBER OF

Some items are included for illustrative purposes only and in certain instances may not be available.

Star Manufacturing International, Inc.

SK2321 Rev 10/2/2007

ECOH, RCOH Door Assembly

5

6

4

3

2

1

10

8

11

12

11

10

5

7

8

9

MARINE APPLICATION

PARTS LIST December 18, 2008 Rev E

Model No: ECOH & RCOH, AP, PP & PT DOOR ASSEMBLY

Commercial & Marine Half Size Economy Convection Oven

Key

Number

1 2R-50800-12 1 DOOR T HANDLE 11 1/2 LNG ALL 2 Q9-60102-1362 1 OUTER DOOR EH NO/LOGO ALL 3 2Q-71301-04 1 WINDOW ASSY 9-5/8X16-5/8 ALL 4 2H-60106-17 1 INSULATION KIT EHS DOOR - ALL 5 Q9-EH-267 2 HINGE COVER ALL 6 Q9-EH-266 1 HINGE BOTTOM ALL 7 2C-20109-15 4 SCRW PHD MS SS 10-32X1/2 ALL 8 2P-70201-01 2 BRNZBR.505IDX.8750DX.175 ALL 9 Q9-EH-265 1 HINGE TOP ALL 10 2P-70201-19 2 BRNZBRFLN1/2IDX5/8ODX3/8 ALL 11 Q9-50313-031 2 HINGE PIN - WELD ALL 12 Q9-60102-370 1 DOOR LATCH ASSY MARINE MODELS

Part

Number

Qty Per

Description

1

IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE

1

INCLUDE MODEL AND SERIAL NUMBER OF

Some items are included for illustrative purposes only and in certain instances may not be available.

Star Manufacturing International, Inc.

SK2322 Rev. A 5/12/08

ECOH-AP Control Assembly

4

3

2

1

4

5

8

9

6

12

13

4

14

15

1

11

7

10

PARTS LIST December 18, 2008 Rev E

Model No: ECOH & RCOH, AP, CONTROL ASSEMBLY

Commercial & Marine Half Size Economy Convection Oven

Key

Number

1 2R-70701-28 2 KNB BLK 1/4BUSH2SETSCW@90 ECOH-AP-208/240V, ECOH-AP-208M,

2R-70701-28 3 KNB BLK 1/4BUSH2SETSCW@90 ECOH-AP2/3FA, ECOH-AP208FA 2 2J-31601-07-1 2 PILOT LT 28V 6 LEAD WHT W/ CLIP ALL 3 2M-60301-100 1 ACCU-PLUS CONTROL LABEL °F & °C 2M-60301-125 1 PANEL LABEL-EH ACCU-PLUS ECOH-AP 4 2E-30303-06 2 SWT TOG ON-ON DPDT BLK ECOH-AP2/3FA, ECOH-AP208FA 2E-30303-06 3 SWT TOG ON-ON DPDT BLK ALL 2E-30305-01 1 SWT INF 204V 15AMP ECOH-AP2/3FA, ECOH-AP208FA 5 2E-31400-04 1 XFRMR 480/240VAC 100VA ECOH-PT-480V, ECOH-PT480CF, ECOH-PT480MF,

2E-31400-07 1 XFORMR120-208-240/24V 40VA CL2 ECOH-AP-208/240V, ECOH-AP-208M,

2E-31400-15 1 XFRMR 480/24VAC ECOH-AP-480V/M, RCOHAP-440VM, RCOHAP-

6 2E-30501-02 1 TRM STRP 3 POLE W/PUSH ON ALL 7 2E-30304-16 1 CIR. BD. SWITCH 140° - 450°F ALL 8 2E-30701-05 1 CONTC 2 POLE 30A 24VAC ALL 9 2E-40101-19 1 CIRBD SI TEMP CNTRL NO OFFSET ALL 10 2J-30800-05 1 TMER ELECT 1-HOUR 24 VAC ALL Q9-30500-05-11 1 TIMER ELECR. 1-HR 24V w/HARNESS ALL 11 2E-30700-06 1 CONTC 3POLE 35A 24VAC 50/60HZ ECOH-AP-208V, ECOH-AP-480V, ECOH-PP-208V,

12 2J-30802-04 1 BUZZER ELEC 24V AC PIEZ10 ALL NI 2M-60301-120 1 LABEL SWITCH FOR R/S INF ECOH-AP2/3FA NI Q9-EHPAP-C 1 PANEL EH 208/240V ECOH-AP-208V/208M/240V, ECOH-AP208DR NI Q9-EHPAP-GFA 1 PANEL EH 220/380V ECOH-AP2/3FA, ECOH-AP208FA NI Q9-EHPAPRT-C 1 PANEL EH 208/240V AP ECOH-AP208CF, RCOHAP-208V, RCOHAP-208CF,

NI Q9-EHPAPRT-U 1 PANEL EH 480 VOLT AP RCOHAP-480CF NI Q9-EHPAP-U 1 PANEL EH 480V ECOH-AP-480V/480M, RCOHAP-440M, RCOHAP-

BACKUP CONTROLS

4 2E-30303-06 1 SWT TOG ON-ON DPDT BLK, BACK-UP CNTR

13 2T-30402-27 1 STAT ADJ 450 DEG 48 PILOT DTY ECOH-AP208CF, RCOHAP-208CF,

14 Q9-EH-509-W2 1 EH BACKUP SWITCH BRACKET ECOH-AP208CF, RCOHAP-208CF,

15 2E-30303-05 1 SWT PLATE ON/OFF ECOH-AP208CF, RCOHAP-208CF,

Part

Number

Qty Per

Description

ECOH-AP208CF, ECOH-AP-480V/480M,

RCOHAP-440VM, RCOHAP-480V, RCOHAP-480VM,

RCOHAP-480M, RCOHAP-208CF, RCOHAP-208KR,

RCOHAP-208V, RCOHAP-240CF, RCOHAP-240VM,

RCOHRAP208KR, RCOHAP-480CF,

RCOHAP-480CF, RCOHPT-440VM, RCOHPT-480CF

ECOH-AP208DR, ECOH-AP2/3FA, ECOH-AP208FA,

ECOH-AP208CF, RCOHAP-208V, RCOHAP-208CF,

RCOHAP-208KR, RCOHAP-240CF,

RCOHAPP-240VM, RCOHRAP208KR,

480V, RCOHAP-480VM, RCOHRAP-480VM,

RCOHRAP-480V, RCOHAP-480CF

ECOH-PT, RCOH-AP-208V, RCOH-PT

RCOHAP-208KR, RCOHAP-240CF,

RCOHAP-240VM, RCOHRAP208KR

480V/480M,

ECOH-AP208CF

RCOHAP-240CF, RCOHAP-480CF

, RCOHAP-208CF,

1

IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE

1

INCLUDE MODEL AND SERIAL NUMBER OF

Some items are included for illustrative purposes only and in certain instances may not be available.

Star Manufacturing International, Inc.
